7. GateWay

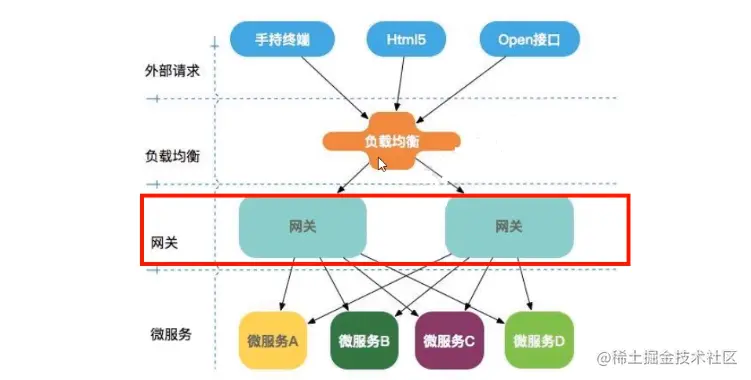

Gateway旨在提供一种简单而有效的方式来对API进行路由，以及提供一些强大的过滤器功能，例如:熔断、限流、重试等。


7.1 GateWay的三大核心

  • Route(路由) - 路由是构建网关的基本模块,它由ID,目标URI,一系列的断言和过滤器组成,如断言为true则匹配该路由；
  • Predicate(断言) - 参考的是Java8的java.util.function.Predicate，开发人员可以匹配HTTP请求中的所有内容(例如请求头或请求参数),如果请求与断言相匹配则进行路由；
  • Filter(过滤) - 指的是Spring框架中GatewayFilter的实例,使用过滤器,可以在请求被路由前或者之后对请求进行修改。

7.2 GateWay路由配置方式

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-gateway</artifactId>
</dependency>

server:
  port: 9527

spring:
  application:
    name: cloud-gateway
  cloud:
    gateway:
      routes:
        - id: payment_routh #payment_route    #路由的ID，没有固定规则但要求唯一，建议配合服务名
          uri: http://localhost:8001          #匹配后提供服务的路由地址
          #uri: lb://cloud-payment-service #匹配后提供服务的路由地址
          predicates:
            - Path=/payment/get/**         # 断言，路径相匹配的进行路由

        - id: payment_routh2 #payment_route    #路由的ID，没有固定规则但要求唯一，建议配合服务名
          uri: http://localhost:8001          #匹配后提供服务的路由地址
          #uri: lb://cloud-payment-service #匹配后提供服务的路由地址
          predicates:
            - Path=/payment/lb/**         # 断言，路径相匹配的进行路由

eureka:
  instance:
    hostname: cloud-gateway-service
  client: #服务提供者provider注册进eureka服务列表内
    service-url:
      register-with-eureka: true
      fetch-registry: true
      defaultZone: http://eureka7001.com:7001/eureka
  • 动态路由配置
server:
  port: 9527

spring:
  application:
    name: cloud-gateway
  cloud:
    gateway:
      discovery:
        locator:
          enabled: true #开启从注册中心动态创建路由的功能，利用微服务名进行路由
      routes:
        - id: payment_routh #payment_route    #路由的ID，没有固定规则但要求唯一，建议配合服务名
          #uri: http://localhost:8001          #匹配后提供服务的路由地址
          uri: lb://cloud-payment-service #匹配后提供服务的路由地址
          predicates:
            - Path=/payment/get/**         # 断言，路径相匹配的进行路由

        - id: payment_routh2 #payment_route    #路由的ID，没有固定规则但要求唯一，建议配合服务名
          #uri: http://localhost:8001          #匹配后提供服务的路由地址
          uri: lb://cloud-payment-service #匹配后提供服务的路由地址
          predicates:
            - Path=/payment/lb/**         # 断言，路径相匹配的进行路由

eureka:
  instance:
    hostname: cloud-gateway-service
  client: #服务提供者provider注册进eureka服务列表内
    service-url:
      register-with-eureka: true
      fetch-registry: true
      defaultZone: http://eureka7001.com:7001/eureka

7.3 GateWay中的Predicate

  • 常用断言工厂
  1. The After Route Predicate Factory
  2. The Before Route Predicate Factory
  3. The Between Route Predicate Factory
  4. The Cookie Route Predicate Factory
  5. The Header Route Predicate Factory
  6. The Host Route Predicate Factory
  7. The Method Route Predicate Factory
  8. The Path Route Predicate Factory
  9. The Query Route Predicate Factory
  10. The RemoteAddr Route Predicate Factory
  11. The weight Route Predicate Factory
  • 例子 The After Route Predicate Factory
spring:
  cloud:
    gateway:
      routes:
      - id: after_route
        uri: https://example.org
        predicates:
        # 这个时间后才能起效
        - After=2017-01-20T17:42:47.789-07:00[America/Denver]

The Cookie Route Predicate Factory

spring:
  cloud:
    gateway:
      routes:
      - id: cookie_route
        uri: https://example.org
        predicates:
        - Cookie=chocolate, ch.p

7.4 GateWay的Filter

@Component
@Slf4j
public class MyLogGateWayFilter implements GlobalFilter,Ordered
{

    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain)
    {
        log.info("***********come in MyLogGateWayFilter:  "+new Date());

        String uname = exchange.getRequest().getQueryParams().getFirst("uname");

        if(uname == null)
        {
            log.info("*******用户名为null，非法用户，o(╥﹏╥)o");
            exchange.getResponse().setStatusCode(HttpStatus.NOT_ACCEPTABLE);
            return exchange.getResponse().setComplete();
        }

        return chain.filter(exchange);
    }

    @Override
    public int getOrder()
    {
        return 0;
    }
}

8. Config

1. 配置总控中心搭建

  1. 新建一个git仓库 git@github.com:zh/springcloud-config.git
  2. 在git中创建三个配置文件
  • config-dev.yml
config:
  info: "master branch,springcloud-config/config-dev.yml version=7"
  • config-prod.yml
config:
  info: "master branch,springcloud-config/config-prod.yml version=1"
  • config-test.yml
config:
  info: "master branch,springcloud-config/config-test.yml version=1"
  1. 引入依赖
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-bus-amqp</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-config-server</artifactId>
</dependency>
  1. 配置文件
server:
  port: 3344

spring:
  application:
    name:  cloud-config-center #注册进Eureka服务器的微服务名
  cloud:
    config:
      server:
        git:
          uri: git@github.com:zh/springcloud-config.git #GitHub上面的git仓库名字
        ####搜索目录
          search-paths:
            - springcloud-config
      ####读取分支
      label: master

#服务注册到eureka地址
eureka:
  client:
    service-url:
      defaultZone: http://localhost:7001/eureka
  1. 主启动类
@SpringBootApplication
@EnableConfigServer
public class ConfigCenterMain3344{
    public static void main(String[] args) {
            SpringApplication.run(ConfigCenterMain3344.class, args);
    }
}

2. 客户端配置

  1. 配置文件
server:
  port: 3355

spring:
  application:
    name: config-client
  cloud:
    #Config客户端配置
    config:
      label: master #分支名称
      name: config #配置文件名称
      profile: dev #读取后缀名称   上述3个综合：master分支上config-dev.yml的配置文件被读取http://config-3344.com:3344/master/config-dev.yml
      uri: http://localhost:3344 #配置中心地址k


#服务注册到eureka地址
eureka:
  client:
    service-url:
      defaultZone: http://localhost:7001/eureka
  1. 主启动类
@EnableEurekaClient
@SpringBootApplication
public class ConfigClientMain3355{
    public static void main(String[] args) {
            SpringApplication.run(ConfigClientMain3355.class, args);
    }
}
  1. 业务类
@RestController
@RefreshScope
public class ConfigClientController{
    @Value("${config.info}")
    private String configInfo;

    @GetMapping("/configInfo")
    public String getConfigInfo(){
        return configInfo;
    }
}

3. 存在问题

-   Linux运维修改GitHub上的配置文件内容做调整
-   刷新3344，发现ConfigServer配置中心立刻响应
-   刷新3355，发现ConfigClient客户端没有任何响应
-   3355没有变化除非自己重启或者重新加载

9. Bus

1. 定义

分布式自动刷新配置功能。

Spring Cloud Bus配合Spring Cloud Config使用可以实现配置的动态刷新。

2. Bus之RebbitMQ环境配置

  • 引入依赖
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-bus-amqp</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-config</artifactId>
</dependency>
  • 配置文件yml
server:
  port: 3366

spring:
  application:
    name: config-client
  cloud:
    #Config客户端配置
    config:
      label: master #分支名称
      name: config #配置文件名称
      profile: dev #读取后缀名称   上述3个综合：master分支上config-dev.yml的配置文件被读取http://config-3344.com:3344/master/config-dev.yml
      uri: http://localhost:3344 #配置中心地址

#rabbitmq相关配置 15672是Web管理界面的端口；5672是MQ访问的端口
  rabbitmq:
    host: localhost
    port: 5672
    username: guest
    password: guest

#服务注册到eureka地址
eureka:
  client:
    service-url:
      defaultZone: http://localhost:7001/eureka

# 暴露监控端点
management:
  endpoints:
    web:
      exposure:
        include: "*"

3. Bus动态刷新全局广播配置

  • 给3344添加总线支持
server:
  port: 3344

spring:
  application:
    name:  cloud-config-center #注册进Eureka服务器的微服务名
  cloud:
    config:
      server:
        git:
          uri: git@github.com:zzyybs/springcloud-config.git #GitHub上面的git仓库名字
        ####搜索目录
          search-paths:
            - springcloud-config
      ####读取分支
      label: master
#rabbitmq相关配置<--------------------------
rabbitmq:
    host: localhost
    port: 5672
    username: guest
    password: guest

#服务注册到eureka地址
eureka:
  client:
    service-url:
      defaultZone: http://localhost:7001/eureka

##rabbitmq相关配置,暴露bus刷新配置的端点<--------------------------
management:
  endpoints: #暴露bus刷新配置的端点
    web:
      exposure:
        include: 'bus-refresh'
  • 给3355添加总线支持
server:
  port: 3355

spring:
  application:
    name: config-client
  cloud:
    #Config客户端配置
    config:
      label: master #分支名称
      name: config #配置文件名称
      profile: dev #读取后缀名称   上述3个综合：master分支上config-dev.yml的配置文件被读取http://config-3344.com:3344/master/config-dev.yml
      uri: http://localhost:3344 #配置中心地址k

#rabbitmq相关配置 15672是Web管理界面的端口；5672是MQ访问的端口<----------------------
  rabbitmq:
    host: localhost
    port: 5672
    username: guest
    password: guest

#服务注册到eureka地址
eureka:
  client:
    service-url:
      defaultZone: http://localhost:7001/eureka

# 暴露监控端点
management:
  endpoints:
    web:
      exposure:
        include: "*"

4. 发送请求

  • 全部接收到通知
curl -X POST "http://localhost:3344/actuator/bus-refresh"
  • 定点通知
curl -X POST "http://localhost:3344/actuator/bus-refresh/config-client:3355

10. Stream

1. 定义

Spring Cloud Stream是一个构建消息驱动微服务的框架。

应用程序通过inputs或者 outputs 来与Spring Cloud Stream中binder对象交互。

通过我们配置来binding(绑定)，而Spring Cloud Stream 的binder对象负责与消息中间件交互。所以，我们只需要搞清楚如何与Spring Cloud Stream交互就可以方便使用消息驱动的方式。

11. SpringCloudAilibaba

  • Sentinel：把流量作为切入点，从流量控制、熔断降级、系统负载保护等多个维度保护服务的稳定性。

  • Nacos：一个更易于构建云原生应用的动态服务发现、配置管理和服务管理平台。

  • RocketMQ：一款开源的分布式消息系统，基于高可用分布式集群技术，提供低延时的、高可靠的消息发布与订阅服务。

  • Dubbo：Apache Dubbo™ 是一款高性能 Java RPC 框架。

  • Seata：阿里巴巴开源产品，一个易于使用的高性能微服务分布式事务解决方案。

  • Alibaba Cloud OSS: 阿里云对象存储服务（Object Storage Service，简称 OSS），是阿里云提供的海量、安全、低成本、高可靠的云存储服务。您可以在任何应用、任何时间、任何地点存储和访问任意类型的数据。

  • Alibaba Cloud SchedulerX: 阿里中间件团队开发的一款分布式任务调度产品，提供秒级、精准、高可靠、高可用的定时（基于 Cron 表达式）任务调度服务。

  • Alibaba Cloud SMS: 覆盖全球的短信服务，友好、高效、智能的互联化通讯能力，帮助企业迅速搭建客户触达通道。

1. Nacos

Nacos就是注册中心＋配置中心的组合 -> Nacos = Eureka+Config+Bus

1.1 Nacos注册中心

1. 服务者注册

<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-alibaba-dependencies</artifactId>
    <version>2.1.0.RELEASE</version>
    <type>pom</type>
    <scope>import</scope>
</dependency>
<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>

server:
  port: 9001

spring:
  application:
    name: nacos-payment-provider
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848 #配置Nacos地址

management:
  endpoints:
    web:
      exposure:
        include: '*'

@EnableDiscoveryClient
@SpringBootApplication
public class PaymentMain9001 {
    public static void main(String[] args) {
            SpringApplication.run(PaymentMain9001.class, args);
    }
}

2. 消费者注册和负载

server:
  port: 83

spring:
  application:
    name: nacos-order-consumer
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848

#消费者将要去访问的微服务名称(注册成功进nacos的微服务提供者)
service-url:
  nacos-user-service: http://nacos-payment-provider

1.2 Nacos配置中心

<!--nacos-config-->
<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
</dependency>
<!--nacos-discovery-->
<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>
  • bootstrap.yml
# nacos配置
server:
  port: 3377

spring:
  application:
    name: nacos-config-client
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848 #Nacos服务注册中心地址
      config:
        server-addr: localhost:8848 #Nacos作为配置中心地址
        file-extension: yaml #指定yaml格式的配置
        group: DEV_GROUP
        namespace: 7d8f0f5a-6a53-4785-9686-dd460158e5d4


# ${spring.application.name}-${spring.profile.active}.${spring.cloud.nacos.config.file-extension}
# nacos-config-client-dev.yaml

# nacos-config-client-test.yaml   ----> config.info
  • application.yml
spring:
  profiles:
    active: dev # 表示开发环境
    #active: test # 表示测试环境
    #active: info

1.3 Nacos集群配置

1个Nginx+3个nacos注册中心+1个mysql

  • mysql配置:application.properties
spring.datasource.platform=mysql

db.num=1
db.url.0=jdbc:mysql://localhost:3306/nacos_devtest?characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true
db.user=root
db.password=1234
  • 三个nacos服务器
192.168.111.144:3333
192.168.111.144:4444
192.168.111.144:5555
  • nginx配置
upstream cluster{
    server 127.0.0.1:3333;
    server 127.0.0.1:4444;
    server 127.0.0.1:4444;
}
server{
    listen 1111;
    server_name localhost;
    location /{
        proxy_pass http://cluster
    }
}
  • 服务注册进nacos集群
server:
  port: 9002

spring:
  application:
    name: nacos-payment-provider
  c1oud:
    nacos:
      discovery:
        #配置Nacos地址
        #server-addr: Localhost:8848
        #换成nginx的1111端口，做集群
        server-addr: 192.168.111.144:1111

management:
  endpoints:
    web:
      exposure:
        inc1ude: '*'

2. Sentinal

Sentinel以流量为切入点，从流量控制、熔断降级、系统负载保护等多个维度保护服务的稳定性。

3. Seata

Seata是一款开源的分布式事务解决方案，致力于在微服务架构下提供高性能和简单易用的分布式事务服务。

1. 基本概念

分布式事务处理过程的一ID+三组件模型：

Transaction ID XID 全局唯一的事务ID

三组件概念

  • TC (Transaction Coordinator) - 事务协调者：维护全局和分支事务的状态，驱动全局事务提交或回滚。
  • TM (Transaction Manager) - 事务管理器：定义全局事务的范围：开始全局事务、提交或回滚全局事务。
  • RM (Resource Manager) - 资源管理器：管理分支事务处理的资源，与TC交谈以注册分支事务和报告分支事务的状态，并驱动分支事务提交或回滚。 2. 处理过程
  1. TM向TC申请开启一个全局事务，全局事务创建成功并生成一个全局唯一的XID；
  2. XID在微服务调用链路的上下文中传播；
  3. RM向TC注册分支事务，将其纳入XID对应全局事务的管辖；
  4. TM向TC发起针对XID的全局提交或回滚决议；
  5. TC调度XID下管辖的全部分支事务完成提交或回滚请求。


3. 安装seata

  • 修改conf目录下的file.conf配置文件
service {
    ##fsp_tx_group是自定义的
    vgroup_mapping.my.test.tx_group="fsp_tx_group"
    default.grouplist = "127.0.0.1:8091"
    enableDegrade = false
    disable = false
    max.commitretry.timeout= "-1"
    max.ollbackretry.timeout= "-1"
}

## transaction log store
store {
	## store mode: file, db
	## 改成db
	mode = "db"

	## file store
	file {
		dir = "sessionStore"

		# branch session size, if exceeded first try compress lockkey, still exceeded throws exceptions
		max-branch-session-size = 16384
		# globe session size, if exceeded throws exceptions
		max-global-session-size = 512
		# file buffer size, if exceeded allocate new buffer
		file-write-buffer-cache-size = 16384
		# when recover batch read size
		session.reload.read_size= 100
		# async, sync
		flush-disk-mode = async
	}

	# database store
	db {
		## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp) etc.
		datasource = "dbcp"
		## mysql/oracle/h2/oceanbase etc.
		## 配置数据源
		db-type = "mysql"
		driver-class-name = "com.mysql.jdbc.Driver"
		url = "jdbc:mysql://127.0.0.1:3306/seata"
		user = "root"
		password = "你自己密码"
		min-conn= 1
		max-conn = 3
		global.table = "global_table"
		branch.table = "branch_table"
		lock-table = "lock_table"
		query-limit = 100
	}
}
  • 建表db_store.sql在\seata-server-0.9.0\seata\conf目录里面
-- the table to store GlobalSession data
drop table if exists `global_table`;
create table `global_table` (
  `xid` varchar(128)  not null,
  `transaction_id` bigint,
  `status` tinyint not null,
  `application_id` varchar(32),
  `transaction_service_group` varchar(32),
  `transaction_name` varchar(128),
  `timeout` int,
  `begin_time` bigint,
  `application_data` varchar(2000),
  `gmt_create` datetime,
  `gmt_modified` datetime,
  primary key (`xid`),
  key `idx_gmt_modified_status` (`gmt_modified`, `status`),
  key `idx_transaction_id` (`transaction_id`)
);

-- the table to store BranchSession data
drop table if exists `branch_table`;
create table `branch_table` (
  `branch_id` bigint not null,
  `xid` varchar(128) not null,
  `transaction_id` bigint ,
  `resource_group_id` varchar(32),
  `resource_id` varchar(256) ,
  `lock_key` varchar(128) ,
  `branch_type` varchar(8) ,
  `status` tinyint,
  `client_id` varchar(64),
  `application_data` varchar(2000),
  `gmt_create` datetime,
  `gmt_modified` datetime,
  primary key (`branch_id`),
  key `idx_xid` (`xid`)
);

-- the table to store lock data
drop table if exists `lock_table`;
create table `lock_table` (
  `row_key` varchar(128) not null,
  `xid` varchar(96),
  `transaction_id` long ,
  `branch_id` long,
  `resource_id` varchar(256) ,
  `table_name` varchar(32) ,
  `pk` varchar(36) ,
  `gmt_create` datetime ,
  `gmt_modified` datetime,
  primary key(`row_key`)
);
  • 修改seata-server-0.9.0\seata\conf目录下的registry.conf配置文件
registry {
  # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
  # 改用为nacos
  type = "nacos"

  nacos {
  	## 加端口号
    serverAddr = "localhost:8848"
    namespace = ""
    cluster = "default"
  }
  ...
}

4. 例子

下订单 -> 减库存 -> 扣余额 -> 改（订单）状态

  • 订单模块
<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-seata</artifactId>
    <exclusions>
        <exclusion>
            <artifactId>seata-all</artifactId>
            <groupId>io.seata</groupId>
        </exclusion>
    </exclusions>
</dependency>
<dependency>
    <groupId>io.seata</groupId>
    <artifactId>seata-all</artifactId>
    <version>0.9.0</version>
</dependency>

server:
  port: 2001

spring:
  application:
    name: seata-order-service
  cloud:
    alibaba:
      seata:
        #自定义事务组名称需要与seata-server中的对应
        tx-service-group: fsp_tx_group
    nacos:
      discovery:
        server-addr: localhost:8848
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/seata_order
    username: root
    password: 123456

feign:
  hystrix:
    enabled: false

logging:
  level:
    io:
      seata: info

mybatis:
  mapperLocations: classpath:mapper/*.xml

file.conf文件

transport {
  # tcp udt unix-domain-socket
  type = "TCP"
  #NIO NATIVE
  server = "NIO"
  #enable heartbeat
  heartbeat = true
  #thread factory for netty
  thread-factory {
    boss-thread-prefix = "NettyBoss"
    worker-thread-prefix = "NettyServerNIOWorker"
    server-executor-thread-prefix = "NettyServerBizHandler"
    share-boss-worker = false
    client-selector-thread-prefix = "NettyClientSelector"
    client-selector-thread-size = 1
    client-worker-thread-prefix = "NettyClientWorkerThread"
    # netty boss thread size,will not be used for UDT
    boss-thread-size = 1
    #auto default pin or 8
    worker-thread-size = 8
  }
  shutdown {
    # when destroy server, wait seconds
    wait = 3
  }
  serialization = "seata"
  compressor = "none"
}

service {

  vgroup_mapping.fsp_tx_group = "default" #修改自定义事务组名称

  default.grouplist = "127.0.0.1:8091"
  enableDegrade = false
  disable = false
  max.commit.retry.timeout = "-1"
  max.rollback.retry.timeout = "-1"
  disableGlobalTransaction = false
}


client {
  async.commit.buffer.limit = 10000
  lock {
    retry.internal = 10
    retry.times = 30
  }
  report.retry.count = 5
  tm.commit.retry.count = 1
  tm.rollback.retry.count = 1
}

## transaction log store
store {
  ## store mode: file、db
  mode = "db"

  ## file store
  file {
    dir = "sessionStore"

    # branch session size , if exceeded first try compress lockkey, still exceeded throws exceptions
    max-branch-session-size = 16384
    # globe session size , if exceeded throws exceptions
    max-global-session-size = 512
    # file buffer size , if exceeded allocate new buffer
    file-write-buffer-cache-size = 16384
    # when recover batch read size
    session.reload.read_size = 100
    # async, sync
    flush-disk-mode = async
  }

  ## database store
  db {
    ## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp) etc.
    datasource = "dbcp"
    ## mysql/oracle/h2/oceanbase etc.
    db-type = "mysql"
    driver-class-name = "com.mysql.jdbc.Driver"
    url = "jdbc:mysql://127.0.0.1:3306/seata"
    user = "root"
    password = "123456"
    min-conn = 1
    max-conn = 3
    global.table = "global_table"
    branch.table = "branch_table"
    lock-table = "lock_table"
    query-limit = 100
  }
}
lock {
  ## the lock store mode: local、remote
  mode = "remote"

  local {
    ## store locks in user's database
  }

  remote {
    ## store locks in the seata's server
  }
}
recovery {
  #schedule committing retry period in milliseconds
  committing-retry-period = 1000
  #schedule asyn committing retry period in milliseconds
  asyn-committing-retry-period = 1000
  #schedule rollbacking retry period in milliseconds
  rollbacking-retry-period = 1000
  #schedule timeout retry period in milliseconds
  timeout-retry-period = 1000
}

transaction {
  undo.data.validation = true
  undo.log.serialization = "jackson"
  undo.log.save.days = 7
  #schedule delete expired undo_log in milliseconds
  undo.log.delete.period = 86400000
  undo.log.table = "undo_log"
}

## metrics settings
metrics {
  enabled = false
  registry-type = "compact"
  # multi exporters use comma divided
  exporter-list = "prometheus"
  exporter-prometheus-port = 9898
}

support {
  ## spring
  spring {
    # auto proxy the DataSource bean
    datasource.autoproxy = false
  }
}

registry.conf

registry {
  # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
  type = "nacos"

  nacos {
    serverAddr = "localhost:8848"
    namespace = ""
    cluster = "default"
  }
  eureka {
    serviceUrl = "http://localhost:8761/eureka"
    application = "default"
    weight = "1"
  }
  redis {
    serverAddr = "localhost:6379"
    db = "0"
  }
  zk {
    cluster = "default"
    serverAddr = "127.0.0.1:2181"
    session.timeout = 6000
    connect.timeout = 2000
  }
  consul {
    cluster = "default"
    serverAddr = "127.0.0.1:8500"
  }
  etcd3 {
    cluster = "default"
    serverAddr = "http://localhost:2379"
  }
  sofa {
    serverAddr = "127.0.0.1:9603"
    application = "default"
    region = "DEFAULT_ZONE"
    datacenter = "DefaultDataCenter"
    cluster = "default"
    group = "SEATA_GROUP"
    addressWaitTime = "3000"
  }
  file {
    name = "file.conf"
  }
}

config {
  # file、nacos 、apollo、zk、consul、etcd3
  type = "file"

  nacos {
    serverAddr = "localhost"
    namespace = ""
  }
  consul {
    serverAddr = "127.0.0.1:8500"
  }
  apollo {
    app.id = "seata-server"
    apollo.meta = "http://192.168.1.204:8801"
  }
  zk {
    serverAddr = "127.0.0.1:2181"
    session.timeout = 6000
    connect.timeout = 2000
  }
  etcd3 {
    serverAddr = "http://localhost:2379"
  }
  file {
    name = "file.conf"
  }
}

Service层

@Service
@Slf4j
public class OrderServiceImpl implements OrderService
{
    @Resource
    private OrderDao orderDao;
    @Resource
    private StorageService storageService;
    @Resource
    private AccountService accountService;

    /**
     * 创建订单->调用库存服务扣减库存->调用账户服务扣减账户余额->修改订单状态
     * 简单说：下订单->扣库存->减余额->改状态
     */
    @Override
    //@GlobalTransactional(name = "fsp-create-order",rollbackFor = Exception.class)
    public void create(Order order)
    {
        log.info("----->开始新建订单");
        //1 新建订单
        orderDao.create(order);

        //2 扣减库存
        log.info("----->订单微服务开始调用库存，做扣减Count");
        storageService.decrease(order.getProductId(),order.getCount());
        log.info("----->订单微服务开始调用库存，做扣减end");

        //3 扣减账户
        log.info("----->订单微服务开始调用账户，做扣减Money");
        accountService.decrease(order.getUserId(),order.getMoney());
        log.info("----->订单微服务开始调用账户，做扣减end");

        //4 修改订单状态，从零到1,1代表已经完成
        log.info("----->修改订单状态开始");
        orderDao.update(order.getUserId(),0);
        log.info("----->修改订单状态结束");

        log.info("----->下订单结束了，O(∩_∩)O哈哈~");

    }
}
avatar
文章
阅读
粉丝
