ShaderType.h
#include <simd/simd.h>
typedef enum ShaderVertexInputIndex
{
ShaderVertexInputIndexVertices = 0,
ShaderVertexInputIndexViewportSize = 1,
} ShaderVertexInputIndex;
/// 纹理索引
typedef enum ShaderTextureIndex
{
ShaderTextureIndexInput = 0,
ShaderTextureIndexOutput = 1,
} ShaderTextureIndex;
typedef struct
{
vector_float2 position;
vector_float2 textureCoordinate;
} ShaderVertex;
Shader.metal
#include <metal_stdlib>
using namespace metal;
#include "ShaderType.h"
struct RasterizerData
{
float4 position [[position]];
float2 textureCoordinate;
};
vertex RasterizerData vertexShader(const uint vertexID [[vertex_id]],
constant ShaderVertex *vertices [[buffer(ShaderVertexInputIndexVertices)]])
{
RasterizerData out;
out.position = vector_float4(vertices[vertexID].position.x, vertices[vertexID].position.y, 0.0, 1.0);
out.textureCoordinate = vertices[vertexID].textureCoordinate;
return out;
}
fragment float4 pretreatmentFragmentShader(RasterizerData in [[stage_in]],
texture2d<half> colorTexture [[texture(ShaderTextureIndexInput)]])
{
constexpr sampler textureSampler (mag_filter::linear, min_filter::linear);
const float2 coordinate0 = float2(in.textureCoordinate.x-0.1, 1.0-in.textureCoordinate.y);
const float2 coordinate1 = float2(in.textureCoordinate.x-0.2, 1.0-in.textureCoordinate.y);
const half4 colorSample0 = colorTexture.sample(textureSampler, coordinate0);
const half4 colorSample1 = colorTexture.sample(textureSampler, coordinate1);
return float4(colorSample0*0.7+colorSample1*0.3);
}
fragment float4 fragmentShader(RasterizerData in [[stage_in]],
texture2d<half> baseTexture [[texture(ShaderTextureIndexInput)]],
texture2d<half> colorTexture [[texture(ShaderTextureIndexOutput)]])
{
constexpr sampler textureSampler (mag_filter::linear, min_filter::linear);
const half4 colorSample0 = baseTexture.sample(textureSampler, in.textureCoordinate);
const half4 colorSample1 = colorTexture.sample(textureSampler, in.textureCoordinate);
return float4(colorSample0*0.6+colorSample1*0.4);
}
MetalRender.swift
import UIKit
import MetalKit
import simd
class MetalRender: NSObject {
private var commandQueue: MTLCommandQueue?
private var offScreenRenderPassDescriptor: MTLRenderPassDescriptor?
private var offScreenPipelineState: MTLRenderPipelineState?
private var renderPipelineState: MTLRenderPipelineState?
private var inputTexture: MTLTexture?
private var outputTexture: MTLTexture?
private let triangleVertices: [ShaderVertex] = {
let vertex0 = ShaderVertex(position: vector_float2(x: -1, y: -1), textureCoordinate: vector_float2(x: 0, y: 0))
let vertex1 = ShaderVertex(position: vector_float2(-1, 1), textureCoordinate: vector_float2(0, 1))
let vertex2 = ShaderVertex(position: vector_float2(1, -1), textureCoordinate: vector_float2(1, 0))
let vertex3 = ShaderVertex(position: vector_float2(1, 1), textureCoordinate: vector_float2(1, 1))
let array: [ShaderVertex] = [vertex0, vertex1, vertex2, vertex3]
return array
}()
private override init() {
super.init()
}
convenience init(_ view: MTKView) {
self.init()
let device = view.device
let defaultLibrary = device?.makeDefaultLibrary()
let vertexFunction = defaultLibrary?.makeFunction(name: "vertexShader")
let pretreatmentFragmentFunction = defaultLibrary?.makeFunction(name: "pretreatmentFragmentShader")
let fragmentFunction = defaultLibrary?.makeFunction(name: "fragmentShader")
commandQueue = device?.makeCommandQueue()
guard let image = flipImage(UIImage(named: "02")), let cgImage = image.cgImage else { return }
let textureLoader = MTKTextureLoader(device: device!)
inputTexture = try? textureLoader.newTexture(cgImage: cgImage, options: [MTKTextureLoader.Option.SRGB : false])
let descriptor = MTLTextureDescriptor()
descriptor.textureType = inputTexture!.textureType
descriptor.pixelFormat = inputTexture!.pixelFormat
descriptor.width = inputTexture!.width
descriptor.height = inputTexture!.height
// 因为是离屏渲染，必须有 .renderTarget
descriptor.usage = [.renderTarget, .shaderRead]
outputTexture = device!.makeTexture(descriptor: descriptor)
// 创建离屏渲染管道的描述
offScreenRenderPassDescriptor = MTLRenderPassDescriptor()
// 设置指向屏幕外纹理
offScreenRenderPassDescriptor?.colorAttachments[0].texture = outputTexture
// 加载操作
offScreenRenderPassDescriptor?.colorAttachments[0].loadAction = .clear
// 清屏颜色
offScreenRenderPassDescriptor?.colorAttachments[0].clearColor = MTLClearColor(red: 1, green: 0, blue: 0, alpha: 1)
// 存储操作
offScreenRenderPassDescriptor?.colorAttachments[0].storeAction = .store
let offScreenPipelineStateDescriptor = MTLRenderPipelineDescriptor()
offScreenPipelineStateDescriptor.label = "OffScreen Pipeline"
offScreenPipelineStateDescriptor.vertexFunction = vertexFunction
offScreenPipelineStateDescriptor.fragmentFunction = pretreatmentFragmentFunction
offScreenPipelineStateDescriptor.colorAttachments[0].pixelFormat = outputTexture!.pixelFormat
let renderPipelineStateDescriptor = MTLRenderPipelineDescriptor()
renderPipelineStateDescriptor.label = "Render Pipeline"
renderPipelineStateDescriptor.vertexFunction = vertexFunction
renderPipelineStateDescriptor.fragmentFunction = fragmentFunction
renderPipelineStateDescriptor.colorAttachments[0].pixelFormat = view.colorPixelFormat
do {
offScreenPipelineState = try device?.makeRenderPipelineState(descriptor: offScreenPipelineStateDescriptor)
renderPipelineState = try device?.makeRenderPipelineState(descriptor: renderPipelineStateDescriptor)
}catch {
print(error)
}
}
}
// MARK: - private
private extension MetalRender {
/// 翻转上下颠倒的图片
func flipImage(_ image: UIImage?) -> UIImage? {
guard let image = image else { return nil }
UIGraphicsBeginImageContextWithOptions(image.size, false, UIScreen.main.scale)
let ctx = UIGraphicsGetCurrentContext()
ctx?.translateBy(x: 0, y: image.size.height)
ctx?.scaleBy(x: 1, y: -1)
image.draw(in: CGRect(origin: .zero, size: image.size))
let reslut = UIGraphicsGetImageFromCurrentImageContext()
UIGraphicsEndImageContext()
return reslut
}
}
// MARK: - MTKViewDelegate
extension MetalRender: MTKViewDelegate {
func mtkView(_ view: MTKView, drawableSizeWillChange size: CGSize) {
}
func draw(in view: MTKView) {
guard offScreenPipelineState != nil else { return }
guard renderPipelineState != nil else { return }
let commandBuffer = commandQueue?.makeCommandBuffer()
commandBuffer?.label = "MyCommand"
if let offScreenRenderPassDescriptor = offScreenRenderPassDescriptor, let renderPassDescriptor = view.currentRenderPassDescriptor {
// 离屏渲染
let offScreenRenderEncoder = commandBuffer?.makeRenderCommandEncoder(descriptor: offScreenRenderPassDescriptor)
offScreenRenderEncoder?.label = "OffScreen Encoder"
offScreenRenderEncoder?.setRenderPipelineState(offScreenPipelineState!)
offScreenRenderEncoder?.setVertexBytes(triangleVertices, length: triangleVertices.count*MemoryLayout<ShaderVertex>.size, index: Int(ShaderVertexInputIndexVertices.rawValue))
offScreenRenderEncoder?.setFragmentTexture(inputTexture, index: Int(ShaderTextureIndexInput.rawValue))
offScreenRenderEncoder?.drawPrimitives(type: .triangleStrip, vertexStart: 0, vertexCount: 4)
offScreenRenderEncoder?.endEncoding()
// 正常渲染
let renderEncoder = commandBuffer?.makeRenderCommandEncoder(descriptor: renderPassDescriptor)
renderEncoder?.label = "Render Encoder"
renderEncoder?.setViewport(MTLViewport(originX: 0, originY: 0, width: Double(view.drawableSize.width), height: Double(view.drawableSize.height), znear: -1, zfar: 1))
renderEncoder?.setRenderPipelineState(renderPipelineState!)
renderEncoder?.setVertexBytes(triangleVertices, length: triangleVertices.count*MemoryLayout<ShaderVertex>.size, index: Int(ShaderVertexInputIndexVertices.rawValue))
renderEncoder?.setFragmentTexture(inputTexture, index: Int(ShaderTextureIndexInput.rawValue))
renderEncoder?.setFragmentTexture(outputTexture, index: Int(ShaderTextureIndexOutput.rawValue))
renderEncoder?.drawPrimitives(type: .triangleStrip, vertexStart: 0, vertexCount: 4)
renderEncoder?.endEncoding()
if let drawable = view.currentDrawable {
commandBuffer?.present(drawable)
}
commandBuffer?.addCompletedHandler({ buffer in
let ciImage = CIImage(mtlTexture: self.outputTexture!)
let image = UIImage(ciImage: ciImage!)
})
}
commandBuffer?.commit()
/*
当样本提交命令缓冲区时，Metal 会依次执行两个渲染管道。
当Metal检测到第一个渲染管道写入屏幕外纹理，第二个管道读取该屏幕外纹理时，它会阻止第二个管道执行，直到GPU完成第一个管道。
*/
}
}

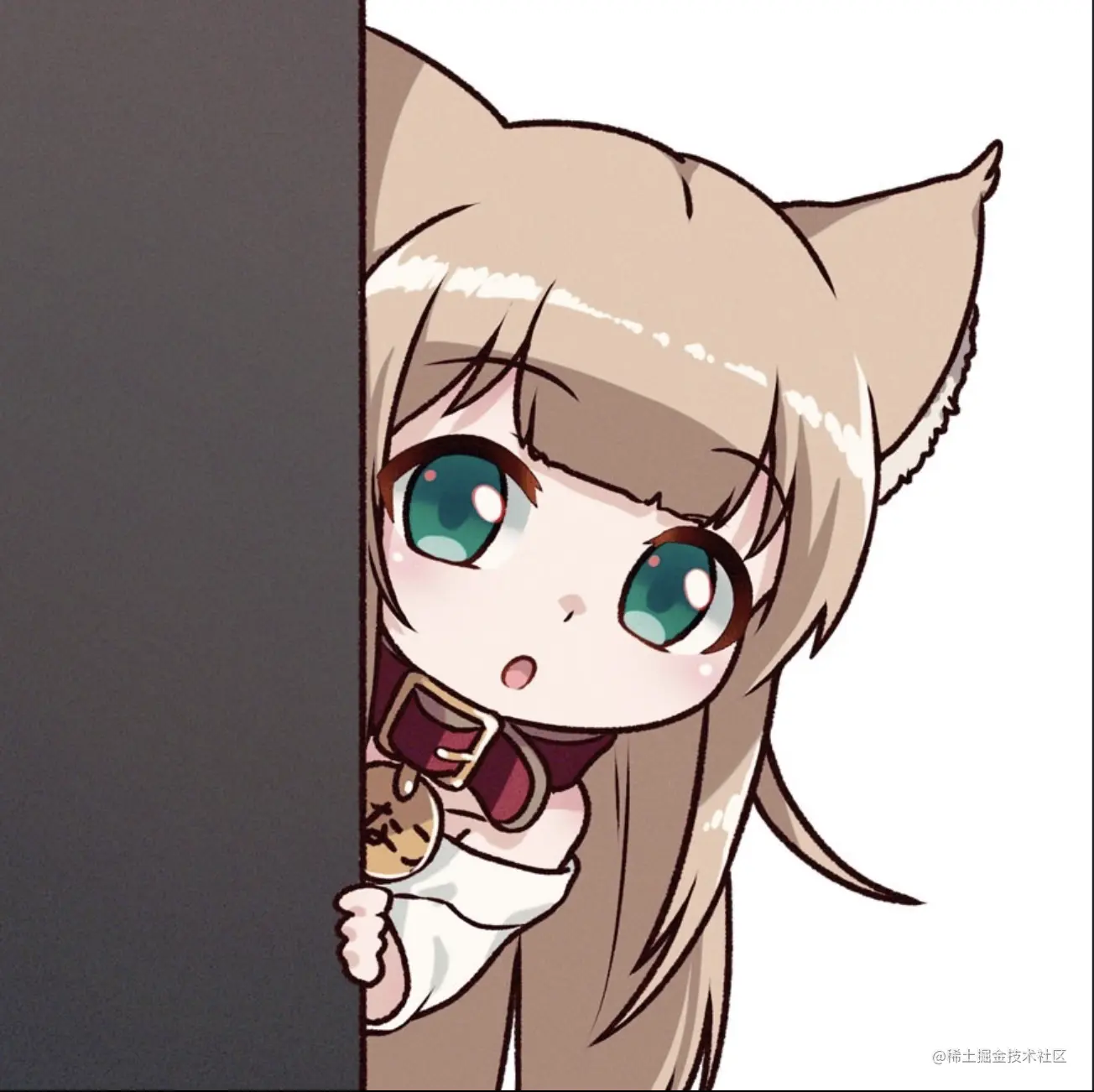

原始图片：

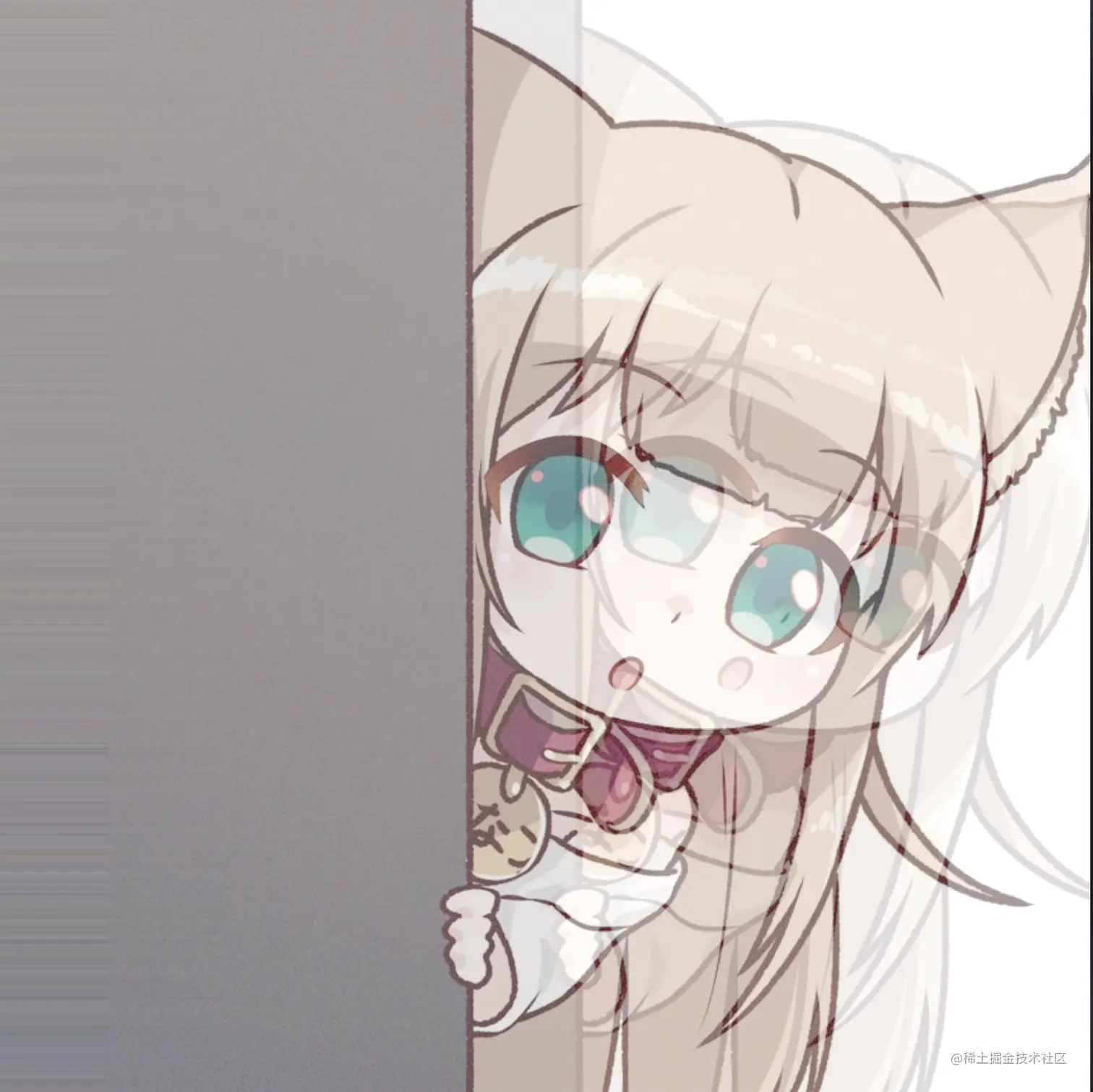

outputTexture：
