Qt&Vtk-CreateTree

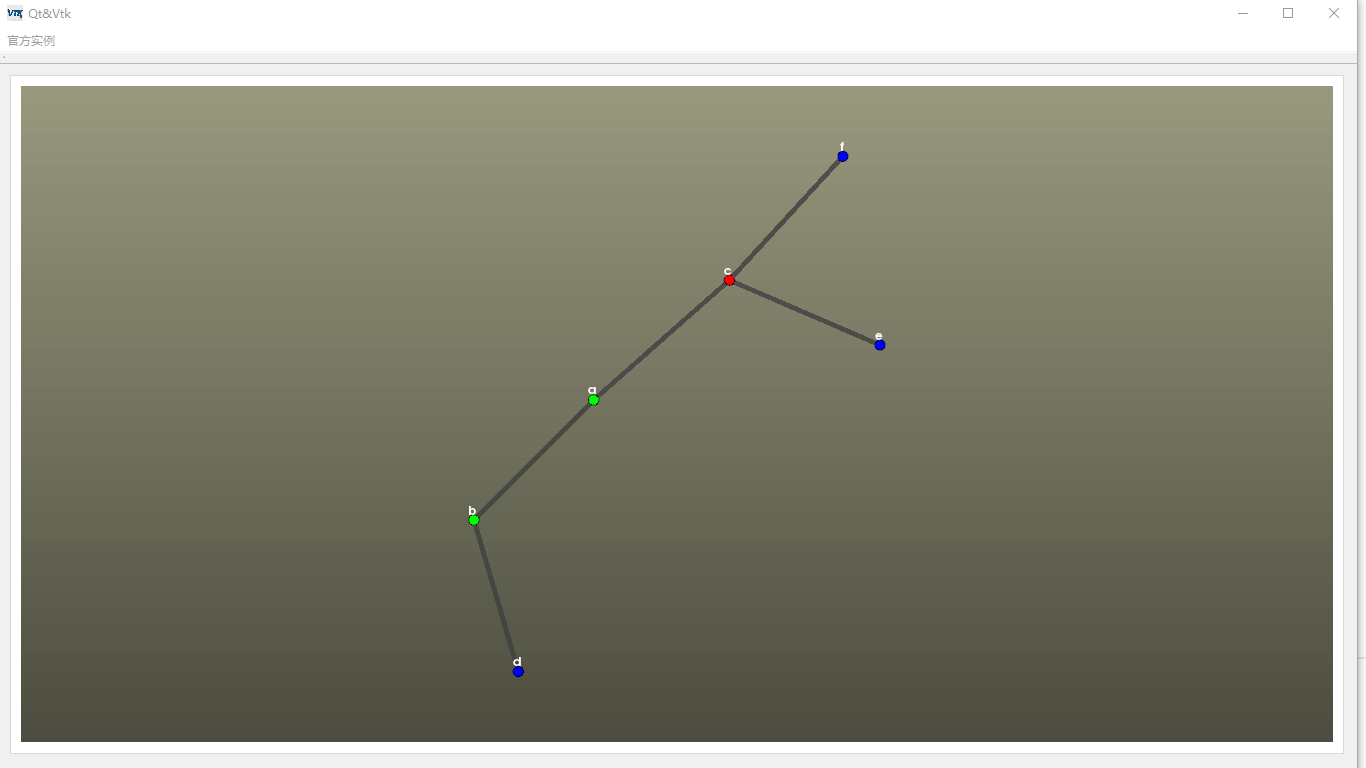

今天我又来搬运代码了。今天终于不再搬运Cone了，今天我么能来搞Tree，官方实例运行起来的是下面这个样子。鼠标点击没有啥效果，先搞起来。

1 代码搬运

1.1createtree.h

#ifndef CREATETREE_H
#define CREATETREE_H

#include <QWidget>
#include "QVTKOpenGLWidget.h"               //新版本，旧版QVTKWidget
#include "vtkAutoInit.h"

#include "vtkDataSetAttributes.h"
#include "vtkGraphLayoutView.h"
#include "vtkMutableDirectedGraph.h"
#include "vtkRandomGraphSource.h"
#include "vtkRenderer.h"
#include "vtkRenderWindow.h"
#include "vtkRenderWindowInteractor.h"
#include "vtkStringArray.h"
#include "vtkTree.h"
#include "vtkViewTheme.h"

namespace Ui {
class CreateTree;
}

class CreateTree : public QWidget
{
    Q_OBJECT

public:
    explicit CreateTree(QWidget *parent = 0);
    ~CreateTree();

    void startInteractor();

private:
    Ui::CreateTree *ui;


    vtkMutableDirectedGraph *graph = nullptr;

    vtkStringArray *lables = nullptr;


    vtkTree *tree = nullptr;

    vtkGraphLayoutView *view = nullptr;

    vtkViewTheme *theme = nullptr;

};

#endif // CREATETREE_H

1.2 createtree.cpp

#include "createtree.h"
#include "ui_createtree.h"
#include <QDebug>
CreateTree::CreateTree(QWidget *parent) :
    QWidget(parent),
    ui(new Ui::CreateTree)
{
    ui->setupUi(this);


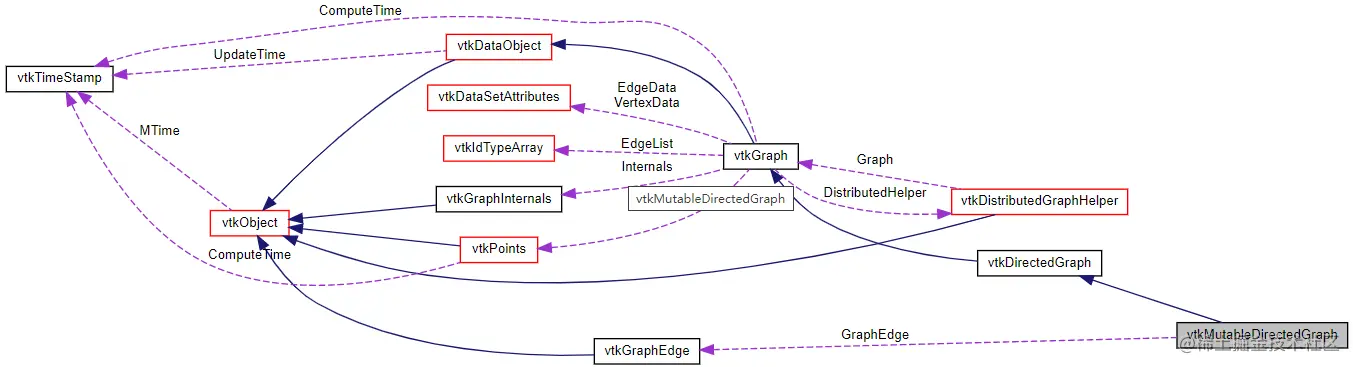

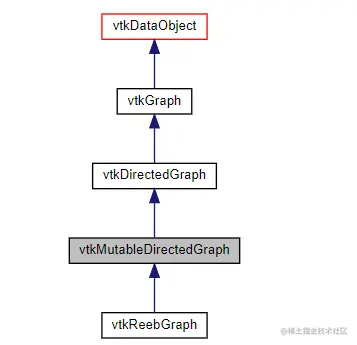

    graph = vtkMutableDirectedGraph::New();

    vtkIdType a = graph->AddVertex();
    vtkIdType b = graph->AddChild(a);
    vtkIdType c = graph->AddChild(a);
    vtkIdType d = graph->AddChild(b);
    vtkIdType e = graph->AddChild(c);
    vtkIdType f = graph->AddChild(c);

    lables = vtkStringArray::New();         //标签
    lables->SetName("JianweiLable");
    lables->InsertValue(a,"a");
    lables->InsertValue(b,"b");
    lables->InsertValue(c,"c");
    lables->InsertValue(d,"d");
    lables->InsertValue(e,"e");
    lables->InsertValue(f,"f");

    graph->GetVertexData()->AddArray(lables);

    tree = vtkTree::New();

    bool validTree = tree->CheckedShallowCopy(graph);

    if(!validTree)
    {
        qDebug() << "Faile";

    }

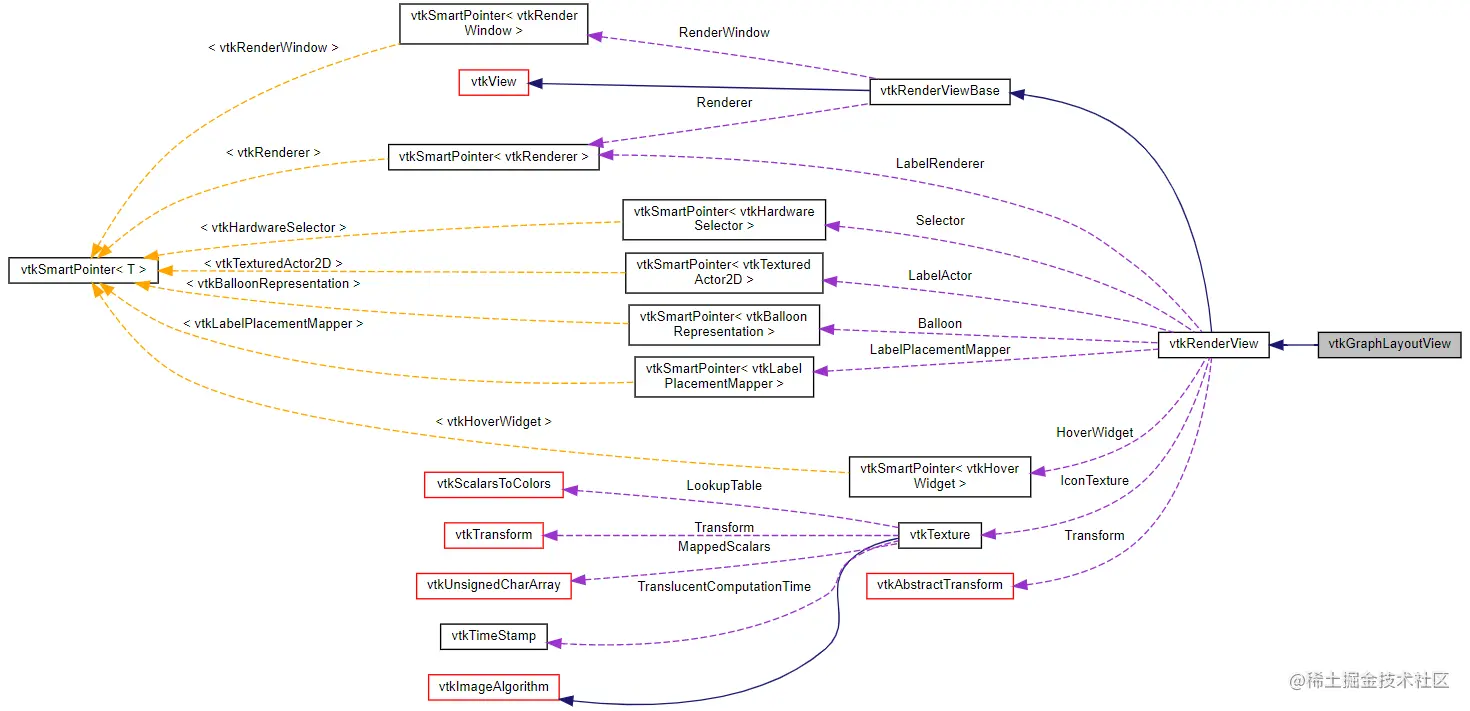

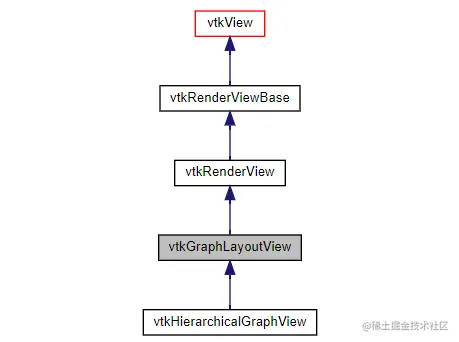

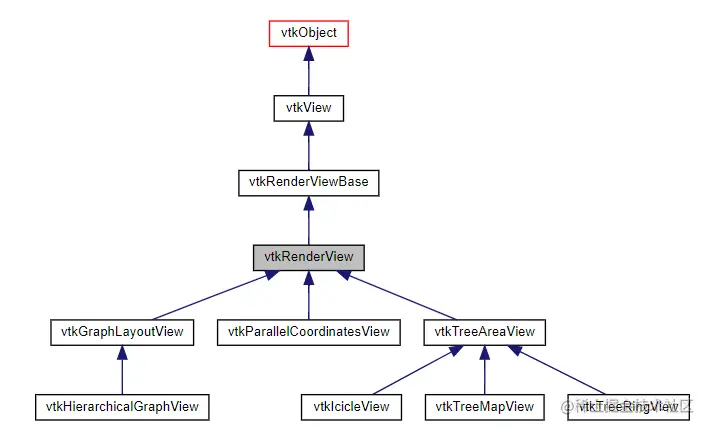

    view = vtkGraphLayoutView::New();

    view->SetRepresentationFromInput(tree);

    theme = vtkViewTheme::CreateMellowTheme();
    theme->SetLineWidth(5);                 //线的宽度
    theme->SetCellOpacity(0.8);                 //cell的透明度
    theme->SetCellAlphaRange(0.5,0.5);          //cell的alpha的范围
    theme->SetPointSize(10);                    //点的大小
    theme->SetSelectedCellColor(1,0,1);         //选中边的颜色
    theme->SetSelectedPointColor(1,0,0);        //选中是点的颜色
    view->ApplyViewTheme(theme);
    view->EdgeLabelVisibilityOn();          //标签是否可见
    view->SetEdgeLabelArrayName("JianweiLable");
    view->SetVertexColorArrayName("VertexDegree");
    view->SetColorVertices(true);
    view->SetVertexLabelArrayName("JianweiLable");
    view->SetVertexLabelVisibility(true);
    view->Update();
    view->ResetCamera();

    view->SetRenderWindow(ui->widget->GetRenderWindow());

}

CreateTree::~CreateTree()
{
    delete ui;
}

void CreateTree::startInteractor()
{
    view->GetInteractor()->Start();
}
