Qt&Vtk-Cone6

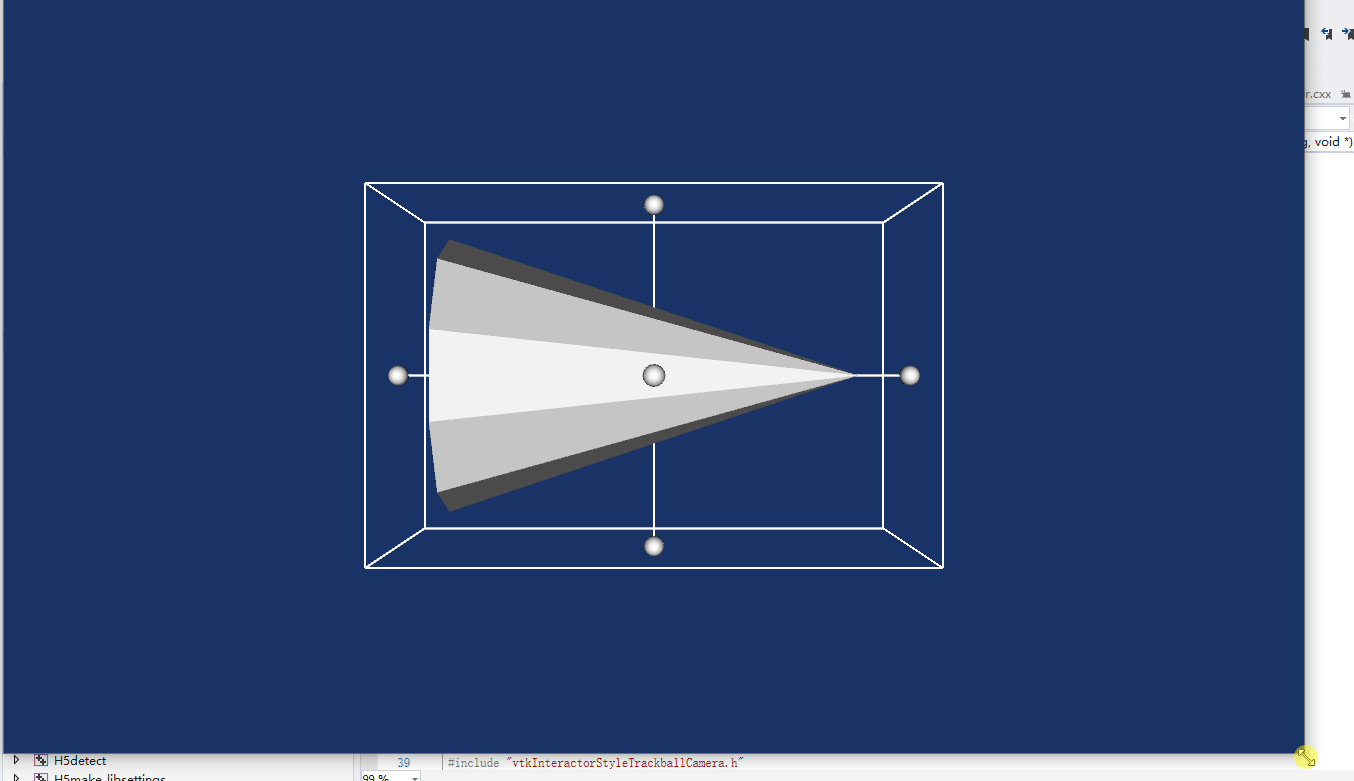

今天我们又来搬运代码了，今天还是搞Cone，哈哈哈，已经是第六个Cone，不过这是最后一个了，还有点意思，先看看官方的例子。

1 代码搬运

1.1 cone6.h

 #ifndef CONE6_H
 #define CONE6_H

 #include <QWidget>
 #include <QTimer>
 #include <QDebug>
 #include <QString>
 #include <QTextBrowser>
 #include "QVTKOpenGLWidget.h"               //新版本，旧版QVTKWidget
 #include "vtkAutoInit.h"

 #include "vtkConeSource.h"
 #include "vtkPolyDataMapper.h"
 #include "vtkRenderer.h"
 #include "vtkRenderWindow.h"
 #include "vtkRenderWindowInteractor.h"
 #include "vtkCamera.h"
 #include "vtkActor.h"
 #include "vtkCommand.h"
 #include "vtkBoxWidget.h"
 #include "vtkTransform.h"
 #include "vtkInteractorStyleTrackballCamera.h"


 namespace Ui {
 class Cone6;
 }




 class vtkMyCallBack : public vtkCommand
 {
 public:
     static vtkMyCallBack *New()
     {
         return new vtkMyCallBack;
     }
     void Execute(vtkObject *caller, unsigned long eventId, void *callData) override;
 };


 class Cone6 : public QWidget
 {
     Q_OBJECT

 public:
     explicit Cone6(QWidget *parent = 0);
     ~Cone6();

     void startInteractor();

 private:
     Ui::Cone6 *ui;


     vtkConeSource *cone = nullptr;

     vtkPolyDataMapper *mapper = nullptr;

     vtkActor *actor = nullptr;

     vtkRenderer *render = nullptr;

     vtkRenderWindowInteractor *iren = nullptr;

     vtkInteractorStyleTrackballCamera * style = nullptr;

     vtkBoxWidget *boxWidget = nullptr;

     vtkMyCallBack *callback = nullptr;

 };

 #endif // CONE6_H

1.2 cone6.cpp

 #include "cone6.h"
 #include "ui_cone6.h"

 Cone6::Cone6(QWidget *parent) :
     QWidget(parent),
     ui(new Ui::Cone6)
 {
     ui->setupUi(this);


     cone = vtkConeSource::New();
     cone->SetRadius(1);
     cone->SetResolution(20);
     cone->SetHeight(3);



     mapper = vtkPolyDataMapper::New();
     mapper->SetInputConnection(cone->GetOutputPort());



     actor = vtkActor::New();
     actor->SetMapper(mapper);


     render = vtkRenderer::New();
     render->AddActor(actor);
     render->SetBackground(0,0,1);


     ui->widget->GetRenderWindow()->AddRenderer(render);


     iren = vtkRenderWindowInteractor::New();
     iren->SetRenderWindow(ui->widget->GetRenderWindow());



     style = vtkInteractorStyleTrackballCamera::New();
     iren->SetInteractorStyle(style);


     boxWidget = vtkBoxWidget::New();
     boxWidget->SetInteractor(iren);
     boxWidget->SetPlaceFactor(1.25);

     boxWidget->SetProp3D(actor);
     boxWidget->PlaceWidget();


     callback = vtkMyCallBack::New();
     boxWidget->AddObserver(vtkCommand::InteractionEvent,callback);
     boxWidget->On();

     iren->Initialize();


 }

 Cone6::~Cone6()
 {
     delete ui;
 }

 void Cone6::startInteractor()
 {
     iren->Start();
 }

 void vtkMyCallBack::Execute(vtkObject *caller, unsigned long eventId, void *callData)
 {
     vtkTransform *t = vtkTransform::New();
     vtkBoxWidget *widget = reinterpret_cast<vtkBoxWidget*>(caller);
     widget->GetTransform(t);
     widget->GetProp3D()->SetUserTransform(t);
     t->Delete();
 }

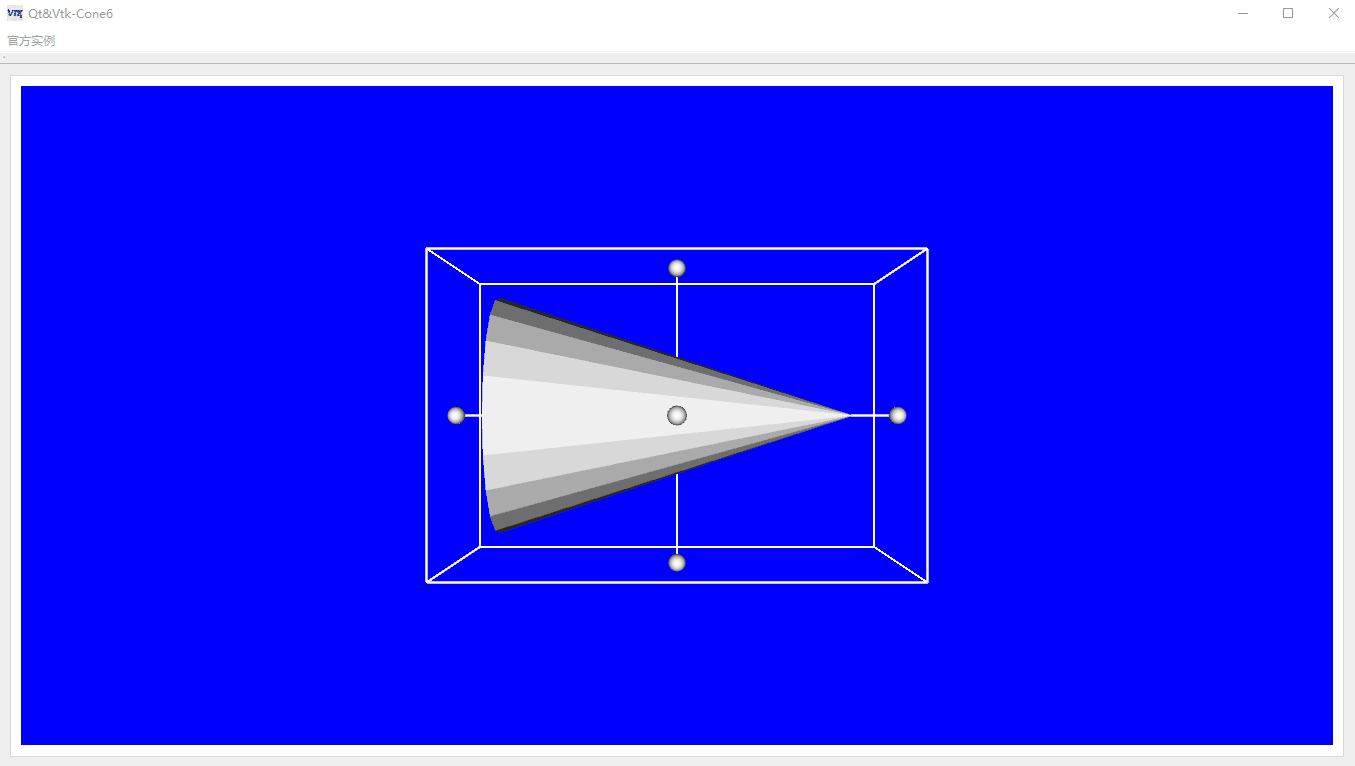

2 运行效果

3 知识点

3.1 vtkBoxWidget

参考：blog.csdn.net/minmindianz…

vtk.org/doc/nightly…

这个Cone更新完了，暂时就不用和Cone玩了。

★ 源码 ★

在这里插入图片描述

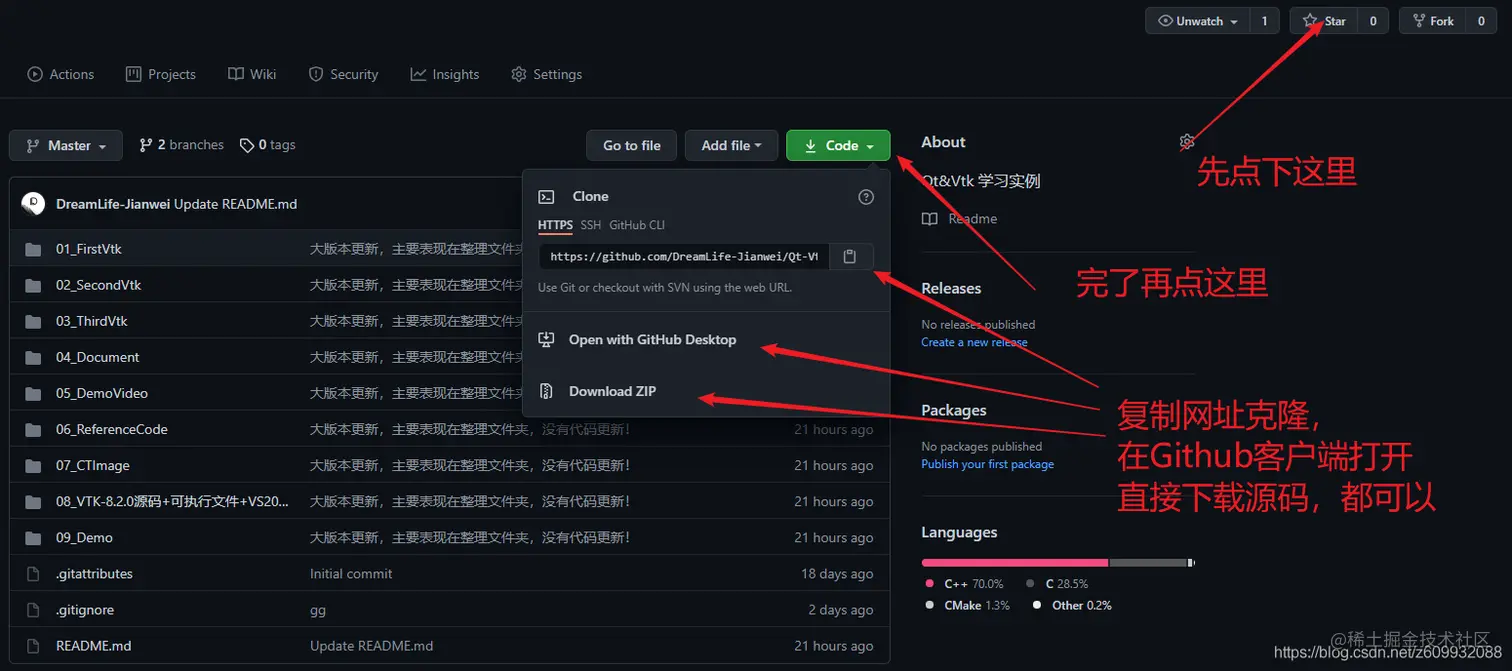

这里就要有人问了呀，这么优秀的代码，能不能分享下呀，当然可以呀，我不生产代码，我只是代码的搬运工，链接如下：

自取：github.com/DreamLife-J…
