  • ETCD 是基于Raft算法的一致性的分布式KV存储系统，由CoreOS公司发起的一个开源项目，授权协议为Apache。
  • ETCD部署到3台Master节点，名称和IP如下：
    • master1：192.168.66.131
    • master2：192.168.66.132
    • master3：192.168.66.133
  • 如果没有特殊说明，本文档的所有操作均在 master1 节点上执行
  • 如果跨主机通讯方案选择flanneld，则需要将Etcd降级到v3.3.x版本

一、下载etcd二进制文件，并复制到其他两台Master节点

[root@master1 ~]# mkdir -p /opt/install/soft/etcd
[root@master1 ~]# cd /opt/install/soft/etcd
[root@master1 etcd]# wget https://github.com/coreos/etcd/releases/download/v3.5.2/etcd-v3.5.2-linux-amd64.tar.gz
[root@master1 etcd]# tar -xvf etcd-v3.5.2-linux-amd64.tar.gz
[root@master1 etcd]# ll etcd-v3.5.2-linux-amd64
总用量 56372
drwxr-xr-x 3 528287 89939       40 2月   1 19:36 Documentation
-rwxr-xr-x 1 528287 89939 23588864 2月   1 19:36 etcd
-rwxr-xr-x 1 528287 89939 17993728 2月   1 19:36 etcdctl
-rwxr-xr-x 1 528287 89939 16068608 2月   1 19:36 etcdutl
-rw-r--r-- 1 528287 89939    42066 2月   1 19:36 README-etcdctl.md
-rw-r--r-- 1 528287 89939     7359 2月   1 19:36 README-etcdutl.md
-rw-r--r-- 1 528287 89939     9394 2月   1 19:36 README.md
-rw-r--r-- 1 528287 89939     7896 2月   1 19:36 READMEv2-etcdctl.md
[root@master1 etcd]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "mkdir -p /opt/k8s/bin"
    scp /opt/install/soft/etcd/etcd-v3.5.2-linux-amd64/etcd* root@${node_ip}:/opt/k8s/bin
    ssh root@${node_ip} "chmod +x /opt/k8s/bin/*"
  done
>>> 192.168.66.131
etcd                       100%   22MB 215.1MB/s   00:00
etcdctl                    100%   17MB 214.5MB/s   00:00
etcdutl                    100%   15MB 219.5MB/s   00:00
>>> 192.168.66.132
etcd                       100%   22MB 126.8MB/s   00:00
etcdctl                    100%   17MB 120.2MB/s   00:00
etcdutl                    100%   15MB 136.8MB/s   00:00
>>> 192.168.66.133
etcd                       100%   22MB 158.1MB/s   00:00
etcdctl                    100%   17MB 144.3MB/s   00:00
etcdutl                    100%   15MB 152.8MB/s   00:00
[root@master1 etcd]#

二、配置etcd服务

1、准备服务模板

[root@master1 ~]# mkdir -p /opt/install/service
[root@master1 ~]# cd /opt/install/service
[root@master1 service]# cat > etcd.service.template <<EOF
[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target
Documentation=https://github.com/coreos

[Service]
Type=notify
WorkingDirectory=${ETCD_DATA_DIR}
ExecStart=/opt/k8s/bin/etcd \\
  --data-dir=${ETCD_DATA_DIR} \\
  --wal-dir=${ETCD_WAL_DIR} \\
  --name=##NODE_NAME## \\
  --cert-file=/opt/k8s/etcd/cert/etcd.pem \\
  --key-file=/opt/k8s/etcd/cert/etcd-key.pem \\
  --trusted-ca-file=/opt/k8s/etc/cert/ca.pem \\
  --peer-cert-file=/opt/k8s/etcd/cert/etcd.pem \\
  --peer-key-file=/opt/k8s/etcd/cert/etcd-key.pem \\
  --peer-trusted-ca-file=/opt/k8s/etc/cert/ca.pem \\
  --peer-client-cert-auth \\
  --client-cert-auth \\
  --listen-peer-urls=https://##NODE_IP##:2380 \\
  --initial-advertise-peer-urls=https://##NODE_IP##:2380 \\
  --listen-client-urls=https://##NODE_IP##:2379,http://127.0.0.1:2379 \\
  --advertise-client-urls=https://##NODE_IP##:2379 \\
  --initial-cluster-token=etcd-cluster-0 \\
  --initial-cluster=${ETCD_NODES} \\
  --initial-cluster-state=new \\
  --auto-compaction-mode=periodic \\
  --auto-compaction-retention=1 \\
  --max-request-bytes=33554432 \\
  --quota-backend-bytes=6442450944 \\
  --heartbeat-interval=250 \\
  --election-timeout=2000
Restart=on-failure
RestartSec=5
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
EOF

2、为每个节点生产服务配置文件

[root@master1 ~]# cd /opt/install/service
[root@master1 service]# for (( i=0; i < 3; i++ ))
  do
    sed -e "s/##NODE_NAME##/${MASTER_NAMES[i]}/" -e "s/##NODE_IP##/${MASTER_IPS[i]}/" etcd.service.template > etcd-${MASTER_IPS[i]}.service
  done
[root@master1 service]# ll etcd-*
-rw-r--r-- 1 root root 1412 4月   9 09:17 etcd-192.168.66.131.service
-rw-r--r-- 1 root root 1412 4月   9 09:17 etcd-192.168.66.132.service
-rw-r--r-- 1 root root 1412 4月   9 09:17 etcd-192.168.66.133.service
[root@master1 service]#

3、分发服务配置文件到3个Master节点

[root@master1 ~]# cd /opt/install/service
[root@master1 service]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp etcd-${node_ip}.service root@${node_ip}:/etc/systemd/system/etcd.service
  done
>>> 192.168.66.131
etcd-192.168.66.131.service         100% 1412     1.3MB/s   00:00
>>> 192.168.66.132
etcd-192.168.66.132.service         100% 1412   484.5KB/s   00:00
>>> 192.168.66.133
etcd-192.168.66.133.service         100% 1412   443.3KB/s   00:00
[root@master1 service]#

4、启动Etcd服务

[root@master1 ~]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "mkdir -p ${ETCD_DATA_DIR} ${ETCD_WAL_DIR}"
    ssh root@${node_ip} "systemctl daemon-reload && systemctl enable etcd && systemctl restart etcd "
  done
>>> 192.168.66.131
>>> 192.168.66.132
>>> 192.168.66.133
[root@master1 ~]#
  • 如果遇到错误，查看运行日志 journalctl -xe
  • 请检查etcd数据目录和工作目录是否创建成功

三、检查etcd服务状态

1、检查etcd服务是否成功启动

[root@master1 ~]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "systemctl status etcd|grep Active"
  done
>>> 192.168.66.131
   Active: active (running) since 六 2022-04-09 09:26:45 CST; 1min 19s ago
>>> 192.168.66.132
   Active: active (running) since 六 2022-04-09 09:26:45 CST; 1min 19s ago
>>> 192.168.66.133
   Active: active (running) since 六 2022-04-09 09:26:46 CST; 1min 19s ago
[root@master1 ~]#
  • 确保状态为active (running)，否则查看日志:
[root@master1 ~]# journalctl -u etcd
[root@master1 ~]# journalctl -f -u etcd
[root@master1 ~]# journalctl -xe

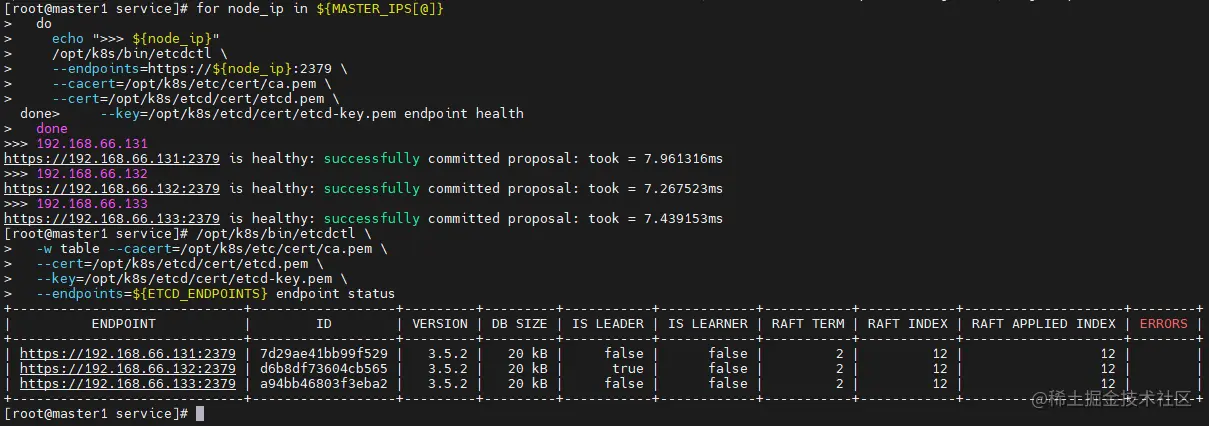

2、检查etcd服务健康状况

[root@master1 ~]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    /opt/k8s/bin/etcdctl \
    --endpoints=https://${node_ip}:2379 \
    --cacert=/opt/k8s/etc/cert/ca.pem \
    --cert=/opt/k8s/etcd/cert/etcd.pem \
    --key=/opt/k8s/etcd/cert/etcd-key.pem endpoint health
  done
>>> 192.168.66.131
https://192.168.66.131:2379 is healthy: successfully committed proposal: took = 7.961316ms
>>> 192.168.66.132
https://192.168.66.132:2379 is healthy: successfully committed proposal: took = 7.267523ms
>>> 192.168.66.133
https://192.168.66.133:2379 is healthy: successfully committed proposal: took = 7.439153ms
[root@master1 ~]#

3、查看当前Leader节点

[root@master1 ~]# /opt/k8s/bin/etcdctl \
  -w table --cacert=/opt/k8s/etc/cert/ca.pem \
  --cert=/opt/k8s/etcd/cert/etcd.pem \
  --key=/opt/k8s/etcd/cert/etcd-key.pem \
  --endpoints=${ETCD_ENDPOINTS} endpoint status
+-----------------------------+------------------+---------+---------+-----------+------------+-----------+------------+--------------------+--------+
|          ENDPOINT           |        ID        | VERSION | DB SIZE | IS LEADER | IS LEARNER | RAFT TERM | RAFT INDEX | RAFT APPLIED INDEX | ERRORS |
+-----------------------------+------------------+---------+---------+-----------+------------+-----------+------------+--------------------+--------+
| https://192.168.66.131:2379 | 7d29ae41bb99f529 |   3.5.2 |   20 kB |     false |      false |         2 |         12 |                 12 |        |
| https://192.168.66.132:2379 | d6b8df73604cb565 |   3.5.2 |   20 kB |      true |      false |         2 |         12 |                 12 |        |
| https://192.168.66.133:2379 | a94bb46803f3eba2 |   3.5.2 |   20 kB |     false |      false |         2 |         12 |                 12 |        |
+-----------------------------+------------------+---------+---------+-----------+------------+-----------+------------+--------------------+--------+
  • 从上面的输出可以看出，当前的leader为192.168.66.132


四、etcdctl常用命令

# 存入
etcdctl put key value
# 读取
etcdctl get key
# 区间查找
etcdctl get key1  key2
# 只读取key的值
etcdctl get --print-value-only key
# 读取key开头的数据
etcdctl get --prefix key
# 读取所有key
etcdctl get / --prefix --keys-only
# 从key开始读取后面的数据
etcdctl get --from-key key
# 查找所有的key-value
etcdctl get --from-key ""
# 删除
etcdctl del key
etcdctl del --prev-kv key
etcdctl del --prev-kv --from-key key
etcdctl del --prev-kv --prefix key
# 删除所有数据
etcdctl del --prefix ""

五、etcd备份和恢复

# 备份快照：可以定期执行
etcdctl snapshot save /data/backup/xxxx.db
# 恢复步骤
1、关闭所有Master节点的 Etcd服务 systemctl stop etcd
2、备份 ETCD 存储目录下数据
3、拷贝 ETCD 备份快照到每个Etcd节点
4、在每个节点执行恢复命令
ETCDCTL_API=3 etcdctl snapshot restore /data/backup/etcd-snapshot-xxxxx.db \
  --name etcd-0 \
  --initial-cluster "master1=https://192.168.66.131:2380,master2=https://192.168.66.132:2380,master3=https://192.168.66.133:2380" \
  --initial-cluster-token etcd-cluster \
  --initial-advertise-peer-urls https://192.168.66.131:2380 \
  --data-dir=/var/lib/etcd/default.etcd
  • 先用起来，通过操作实践认识kubernetes(k8s)，积累多了自然就理解了
  • 把理解的知识分享出来，自造福田，自得福缘
  • 追求简单，容易使人理解，知识的上下文也是知识的一部分，例如版本，时间等
  • 欢迎留言交流，也可以提出问题，一般在周末回复和完善文档
