RocketMQ -消费者拉取数据过程-pullMessage方法结构

DefaultMQPushConsumerImpl#pullMessage

消息拉取 pullMessage

1. 封装PullRequest 请求，加入处理队列ProcessQueue
2. 流量控制，包含个数控制&消息size控制。
3. 顺序消费&非顺序消费，顺序消费有加锁解锁过程，并设置偏移量。
4. 拉取订阅信息，没拉取到直接返回
5. 有个拉取消息后到回调方法 PullCallback
6. 构建消息的系统标记 PullSysFlag
7. 消息拉取的核心代码pullKernelImpl

消息拉取入口 DefaultMQPushConsumerImpl#pullMessage

 public void pullMessage(final PullRequest pullRequest) {
        final ProcessQueue processQueue = pullRequest.getProcessQueue();
        if (processQueue.isDropped()) {
            log.info("the pull request[{}] is dropped.", pullRequest.toString());
            return;
        }

        pullRequest.getProcessQueue().setLastPullTimestamp(System.currentTimeMillis());

        try {
            this.makeSureStateOK();
        } catch (MQClientException e) {
            log.warn("pullMessage exception, consumer state not ok", e);
            this.executePullRequestLater(pullRequest, pullTimeDelayMillsWhenException);
            return;
        }

        if (this.isPause()) {
            log.warn("consumer was paused, execute pull request later. instanceName={}, group={}", this.defaultMQPushConsumer.getInstanceName(), this.defaultMQPushConsumer.getConsumerGroup());
            this.executePullRequestLater(pullRequest, PULL_TIME_DELAY_MILLS_WHEN_SUSPEND);
            return;
        }

        long cachedMessageCount = processQueue.getMsgCount().get();
        long cachedMessageSizeInMiB = processQueue.getMsgSize().get() / (1024 * 1024);

        if (cachedMessageCount > this.defaultMQPushConsumer.getPullThresholdForQueue()) {
            this.executePullRequestLater(pullRequest, PULL_TIME_DELAY_MILLS_WHEN_FLOW_CONTROL);
            if ((queueFlowControlTimes++ % 1000) == 0) {
                log.warn(
                    "the cached message count exceeds the threshold {}, so do flow control, minOffset={}, maxOffset={}, count={}, size={} MiB, pullRequest={}, flowControlTimes={}",
                    this.defaultMQPushConsumer.getPullThresholdForQueue(), processQueue.getMsgTreeMap().firstKey(), processQueue.getMsgTreeMap().lastKey(), cachedMessageCount, cachedMessageSizeInMiB, pullRequest, queueFlowControlTimes);
            }
            return;
        }

        if (cachedMessageSizeInMiB > this.defaultMQPushConsumer.getPullThresholdSizeForQueue()) {
            this.executePullRequestLater(pullRequest, PULL_TIME_DELAY_MILLS_WHEN_FLOW_CONTROL);
            if ((queueFlowControlTimes++ % 1000) == 0) {
                log.warn(
                    "the cached message size exceeds the threshold {} MiB, so do flow control, minOffset={}, maxOffset={}, count={}, size={} MiB, pullRequest={}, flowControlTimes={}",
                    this.defaultMQPushConsumer.getPullThresholdSizeForQueue(), processQueue.getMsgTreeMap().firstKey(), processQueue.getMsgTreeMap().lastKey(), cachedMessageCount, cachedMessageSizeInMiB, pullRequest, queueFlowControlTimes);
            }
            return;
        }

        if (!this.consumeOrderly) {
            if (processQueue.getMaxSpan() > this.defaultMQPushConsumer.getConsumeConcurrentlyMaxSpan()) {
                this.executePullRequestLater(pullRequest, PULL_TIME_DELAY_MILLS_WHEN_FLOW_CONTROL);
                if ((queueMaxSpanFlowControlTimes++ % 1000) == 0) {
                    log.warn(
                        "the queue's messages, span too long, so do flow control, minOffset={}, maxOffset={}, maxSpan={}, pullRequest={}, flowControlTimes={}",
                        processQueue.getMsgTreeMap().firstKey(), processQueue.getMsgTreeMap().lastKey(), processQueue.getMaxSpan(),
                        pullRequest, queueMaxSpanFlowControlTimes);
                }
                return;
            }
        } else {
            if (processQueue.isLocked()) {
                if (!pullRequest.isPreviouslyLocked()) {
                    long offset = -1L;
                    try {
                        offset = this.rebalanceImpl.computePullFromWhereWithException(pullRequest.getMessageQueue());
                    } catch (Exception e) {
                        this.executePullRequestLater(pullRequest, pullTimeDelayMillsWhenException);
                        log.error("Failed to compute pull offset, pullResult: {}", pullRequest, e);
                        return;
                    }
                    boolean brokerBusy = offset < pullRequest.getNextOffset();
                    log.info("the first time to pull message, so fix offset from broker. pullRequest: {} NewOffset: {} brokerBusy: {}",
                        pullRequest, offset, brokerBusy);
                    if (brokerBusy) {
                        log.info("[NOTIFYME]the first time to pull message, but pull request offset larger than broker consume offset. pullRequest: {} NewOffset: {}",
                            pullRequest, offset);
                    }

                    pullRequest.setPreviouslyLocked(true);
                    pullRequest.setNextOffset(offset);
                }
            } else {
                this.executePullRequestLater(pullRequest, pullTimeDelayMillsWhenException);
                log.info("pull message later because not locked in broker, {}", pullRequest);
                return;
            }
        }

        final SubscriptionData subscriptionData = this.rebalanceImpl.getSubscriptionInner().get(pullRequest.getMessageQueue().getTopic());
        if (null == subscriptionData) {
            this.executePullRequestLater(pullRequest, pullTimeDelayMillsWhenException);
            log.warn("find the consumer's subscription failed, {}", pullRequest);
            return;
        }

        final long beginTimestamp = System.currentTimeMillis();

        PullCallback pullCallback = new PullCallback() {
            @Override
            public void onSuccess(PullResult pullResult) {
                if (pullResult != null) {
                    pullResult = DefaultMQPushConsumerImpl.this.pullAPIWrapper.processPullResult(pullRequest.getMessageQueue(), pullResult,
                        subscriptionData);

                    switch (pullResult.getPullStatus()) {
                        case FOUND:
                            long prevRequestOffset = pullRequest.getNextOffset();
                            pullRequest.setNextOffset(pullResult.getNextBeginOffset());
                            long pullRT = System.currentTimeMillis() - beginTimestamp;
                            DefaultMQPushConsumerImpl.this.getConsumerStatsManager().incPullRT(pullRequest.getConsumerGroup(),
                                pullRequest.getMessageQueue().getTopic(), pullRT);

                            long firstMsgOffset = Long.MAX_VALUE;
                            if (pullResult.getMsgFoundList() == null || pullResult.getMsgFoundList().isEmpty()) {
                                DefaultMQPushConsumerImpl.this.executePullRequestImmediately(pullRequest);
                            } else {
                                firstMsgOffset = pullResult.getMsgFoundList().get(0).getQueueOffset();

                                DefaultMQPushConsumerImpl.this.getConsumerStatsManager().incPullTPS(pullRequest.getConsumerGroup(),
                                    pullRequest.getMessageQueue().getTopic(), pullResult.getMsgFoundList().size());

                                boolean dispatchToConsume = processQueue.putMessage(pullResult.getMsgFoundList());
                                DefaultMQPushConsumerImpl.this.consumeMessageService.submitConsumeRequest(
                                    pullResult.getMsgFoundList(),
                                    processQueue,
                                    pullRequest.getMessageQueue(),
                                    dispatchToConsume);

                                if (DefaultMQPushConsumerImpl.this.defaultMQPushConsumer.getPullInterval() > 0) {
                                    DefaultMQPushConsumerImpl.this.executePullRequestLater(pullRequest,
                                        DefaultMQPushConsumerImpl.this.defaultMQPushConsumer.getPullInterval());
                                } else {
                                    DefaultMQPushConsumerImpl.this.executePullRequestImmediately(pullRequest);
                                }
                            }

                            if (pullResult.getNextBeginOffset() < prevRequestOffset
                                || firstMsgOffset < prevRequestOffset) {
                                log.warn(
                                    "[BUG] pull message result maybe data wrong, nextBeginOffset: {} firstMsgOffset: {} prevRequestOffset: {}",
                                    pullResult.getNextBeginOffset(),
                                    firstMsgOffset,
                                    prevRequestOffset);
                            }

                            break;
                        case NO_NEW_MSG:
                        case NO_MATCHED_MSG:
                            pullRequest.setNextOffset(pullResult.getNextBeginOffset());

                            DefaultMQPushConsumerImpl.this.correctTagsOffset(pullRequest);

                            DefaultMQPushConsumerImpl.this.executePullRequestImmediately(pullRequest);
                            break;
                        case OFFSET_ILLEGAL:
                            log.warn("the pull request offset illegal, {} {}",
                                pullRequest.toString(), pullResult.toString());
                            pullRequest.setNextOffset(pullResult.getNextBeginOffset());

                            pullRequest.getProcessQueue().setDropped(true);
                            DefaultMQPushConsumerImpl.this.executeTaskLater(new Runnable() {

                                @Override
                                public void run() {
                                    try {
                                        DefaultMQPushConsumerImpl.this.offsetStore.updateOffset(pullRequest.getMessageQueue(),
                                            pullRequest.getNextOffset(), false);

                                        DefaultMQPushConsumerImpl.this.offsetStore.persist(pullRequest.getMessageQueue());

                                        DefaultMQPushConsumerImpl.this.rebalanceImpl.removeProcessQueue(pullRequest.getMessageQueue());

                                        log.warn("fix the pull request offset, {}", pullRequest);
                                    } catch (Throwable e) {
                                        log.error("executeTaskLater Exception", e);
                                    }
                                }
                            }, 10000);
                            break;
                        default:
                            break;
                    }
                }
            }

            @Override
            public void onException(Throwable e) {
                if (!pullRequest.getMessageQueue().getTopic().startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
                    log.warn("execute the pull request exception", e);
                }

                DefaultMQPushConsumerImpl.this.executePullRequestLater(pullRequest, pullTimeDelayMillsWhenException);
            }
        };

PushConsumer 在消息拉取方面做了很多优化，有长轮询，slave 拉取、消息过滤。

其实主要是 pullMessage 中方法executePullRequestLater

   this.executePullRequestLater(pullRequest, pullTimeDelayMillsWhenException);
     private void executePullRequestLater(final PullRequest pullRequest, final long timeDelay) {
        this.mQClientFactory.getPullMessageService().executePullRequestLater(pullRequest, timeDelay);
    }

pullMessageService#executePullRequestLater

public void executePullRequestLater(final PullRequest pullRequest, final long timeDelay) {
        if (!isStopped()) {
            this.scheduledExecutorService.schedule(new Runnable() {
                @Override
                public void run() {
                    PullMessageService.this.executePullRequestImmediately(pullRequest);
                }
            }, timeDelay, TimeUnit.MILLISECONDS);
        } else {
            log.warn("PullMessageServiceScheduledThread has shutdown");
        }
    }

从 PullRequest 中获取 ProcessQueue

从 PullRequest 中获取 ProcessQueue，如果处理队列当前状态为被丢弃。则更新 ProcessQueue 的 last-PullTimestamp 为当前时间戳。如果当前消费者被挂起，则将拉取任务延迟 1s 再次放入到 PullMessageService 的拉去任务任务中，结束本次。

final ProcessQueue processQueue = pullRequest.getProcessQueue();
        if (processQueue.isDropped()) {
            log.info("the pull request[{}] is dropped.", pullRequest.toString());
            return;
        }

        pullRequest.getProcessQueue().setLastPullTimestamp(System.currentTimeMillis());

        try {
            this.makeSureStateOK();
        } catch (MQClientException e) {
            log.warn("pullMessage exception, consumer state not ok", e);
            this.executePullRequestLater(pullRequest, pullTimeDelayMillsWhenException);
            return;
        }

        if (this.isPause()) {
            log.warn("consumer was paused, execute pull request later. instanceName={}, group={}", this.defaultMQPushConsumer.getInstanceName(), this.defaultMQPushConsumer.getConsumerGroup());
            this.executePullRequestLater(pullRequest, PULL_TIME_DELAY_MILLS_WHEN_SUSPEND);
            return;
        }

进行消息拉取流量监控，从消息消费数量与消费大小size两个维度进行控制。

• 消息处理总量，如果 ProcessQueue 当前处理的消息条数超过 pullThresholdForQueue=1000 将出发流控，放弃本次拉取任务，并且对了在下一次拉取任务将在 50 毫秒后才加入到任务队列中， 每触发 1000 次流控后会有个提示语 the cached message count exceeds the threshold...

 long cachedMessageCount = processQueue.getMsgCount().get();
        long cachedMessageSizeInMiB = processQueue.getMsgSize().get() / (1024 * 1024);

        if (cachedMessageCount > this.defaultMQPushConsumer.getPullThresholdForQueue()) {
            this.executePullRequestLater(pullRequest, PULL_TIME_DELAY_MILLS_WHEN_FLOW_CONTROL);
            // 消息总量流量控制
            if ((queueFlowControlTimes++ % 1000) == 0) {
                log.warn(
                        "the cached message count exceeds the threshold {}, so do flow control, minOffset={}, maxOffset={}, count={}, size={} MiB, pullRequest={}, flowControlTimes={}",
                        this.defaultMQPushConsumer.getPullThresholdForQueue(), processQueue.getMsgTreeMap().firstKey(), processQueue.getMsgTreeMap().lastKey(), cachedMessageCount, cachedMessageSizeInMiB, pullRequest, queueFlowControlTimes);
            }
            return;
        }

        if (cachedMessageSizeInMiB > this.defaultMQPushConsumer.getPullThresholdSizeForQueue()) {
            this.executePullRequestLater(pullRequest, PULL_TIME_DELAY_MILLS_WHEN_FLOW_CONTROL);
            if ((queueFlowControlTimes++ % 1000) == 0) {
                log.warn(
                        "the cached message size exceeds the threshold {} MiB, so do flow control, minOffset={}, maxOffset={}, count={}, size={} MiB, pullRequest={}, flowControlTimes={}",
                        this.defaultMQPushConsumer.getPullThresholdSizeForQueue(), processQueue.getMsgTreeMap().firstKey(), processQueue.getMsgTreeMap().lastKey(), cachedMessageCount, cachedMessageSizeInMiB, pullRequest, queueFlowControlTimes);
            }
            return;
        }

拉取主题订阅消息，如果消息为空，结束本次消息拉取。

 final SubscriptionData subscriptionData = this.rebalanceImpl.getSubscriptionInner().get(pullRequest.getMessageQueue().getTopic());
        if (null == subscriptionData) {
            this.executePullRequestLater(pullRequest, pullTimeDelayMillsWhenException);
            log.warn("find the consumer's subscription failed, {}", pullRequest);
            return;
        }

标记消息

标记消息代码如下：

 boolean commitOffsetEnable = false;
        long commitOffsetValue = 0L;
        if (MessageModel.CLUSTERING == this.defaultMQPushConsumer.getMessageModel()) {
            commitOffsetValue = this.offsetStore.readOffset(pullRequest.getMessageQueue(), ReadOffsetType.READ_FROM_MEMORY);
            if (commitOffsetValue > 0) {
                commitOffsetEnable = true;
            }
        }

        String subExpression = null;
        boolean classFilter = false;
        SubscriptionData sd = this.rebalanceImpl.getSubscriptionInner().get(pullRequest.getMessageQueue().getTopic());
        if (sd != null) {
            if (this.defaultMQPushConsumer.isPostSubscriptionWhenPull() && !sd.isClassFilterMode()) {
                subExpression = sd.getSubString();
            }

            classFilter = sd.isClassFilterMode();
        }

        int sysFlag = PullSysFlag.buildSysFlag(
                commitOffsetEnable, // commitOffset
                true, // suspend
                subExpression != null, // subscription
                classFilter // class filter
        );

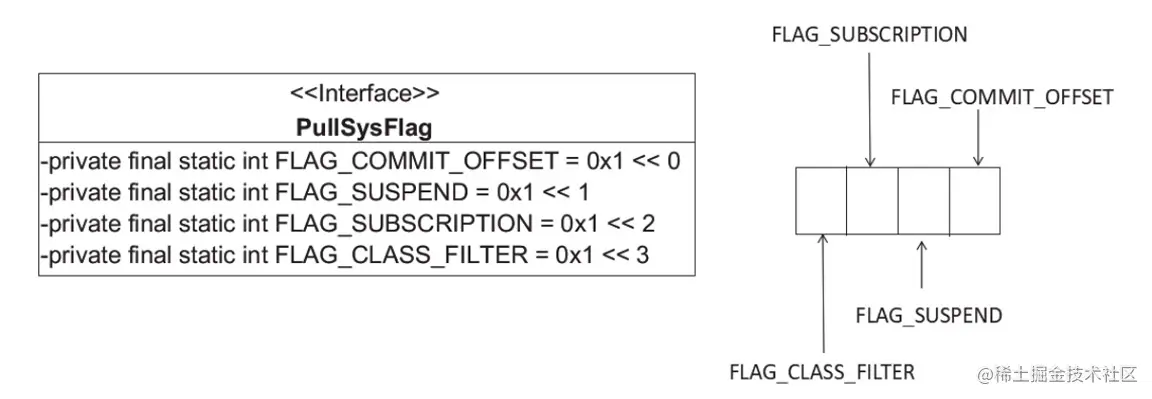

PullSysFlag 含义如下：

• FLAG_COMMIT_OFFSET :表示从内存中读取消息的进度大于0 ，则设置改标记位，
• FLAG_SUSPEND:表示消息拉取式支持挂起
• FLAG_SUBSCRIPTION:消息过滤机制为表达式，则设置该标记位置
• FLAG_CLASS_FILTER: 消息过滤机制为类过滤模式

PullSysFlag.java 代码具体如下。

 private final static int FLAG_COMMIT_OFFSET = 0x1;
    private final static int FLAG_SUSPEND = 0x1 << 1;
    private final static int FLAG_SUBSCRIPTION = 0x1 << 2;
    private final static int FLAG_CLASS_FILTER = 0x1 << 3;
    private final static int FLAG_LITE_PULL_MESSAGE = 0x1 << 4;

    public static int buildSysFlag(final boolean commitOffset, final boolean suspend,
        final boolean subscription, final boolean classFilter) {
        int flag = 0;

        if (commitOffset) {
            flag |= FLAG_COMMIT_OFFSET;
        }

        if (suspend) {
            flag |= FLAG_SUSPEND;
        }

        if (subscription) {
            flag |= FLAG_SUBSCRIPTION;
        }

        if (classFilter) {
            flag |= FLAG_CLASS_FILTER;
        }

        return flag;
    }

消息拉取核心代码

pullKernelImpl 是拉取消息的核心代码，这个下一篇文章继续研究说明。

try {
            this.pullAPIWrapper.pullKernelImpl(
                    pullRequest.getMessageQueue(),
                    subExpression,
                    subscriptionData.getExpressionType(),
                    subscriptionData.getSubVersion(),
                    pullRequest.getNextOffset(),
                    this.defaultMQPushConsumer.getPullBatchSize(),
                    sysFlag,
                    commitOffsetValue,
                    BROKER_SUSPEND_MAX_TIME_MILLIS,
                    CONSUMER_TIMEOUT_MILLIS_WHEN_SUSPEND,
                    CommunicationMode.ASYNC,
                    pullCallback
            );
        } catch (Exception e) {
            log.error("pullKernelImpl exception", e);
            this.executePullRequestLater(pullRequest, pullTimeDelayMillsWhenException);
        }

pullKernelImpl 方法 参数说明

final MessageQueue mq,  // 从哪个消息消费队列拉取消息
final String subExpression, //消息过滤表达式
final String expressionType, //消息表达式类型，分为 TAG,SQL92
final long subVersion,
final long offset, // 消息拉取偏移量
final int maxNums, // 本次拉取最大消息条数
final int sysFlag, // 拉取系统标记
final long commitOffset, // 当前 MessageQueue 消息进度。
final long brokerSuspendMaxTimeMillis,//消息拉取过程中运行 Broker 挂起时间 默认15s
final long timeoutMillis, //消息拉取超时时间
final CommunicationMode communicationMode, //消息拉取模式，默认为异步拉取
final PullCallback pullCallback //从 broker 拉取到消息后到回调方法。

总结

本文是针对 DefaultMQPushCOnsumerImpl#pullMessage方法结构作了说明。封装 pullRequest请求后，加入队列。 判断是否需要流量控制，顺序消费，还是并发消费。顺序消费有加锁解锁的操作，顺序消费会设置便宜量。拉取订阅信息，构建消息的系统标记等。
