(五)数据结构之“链表”

143 阅读5分钟

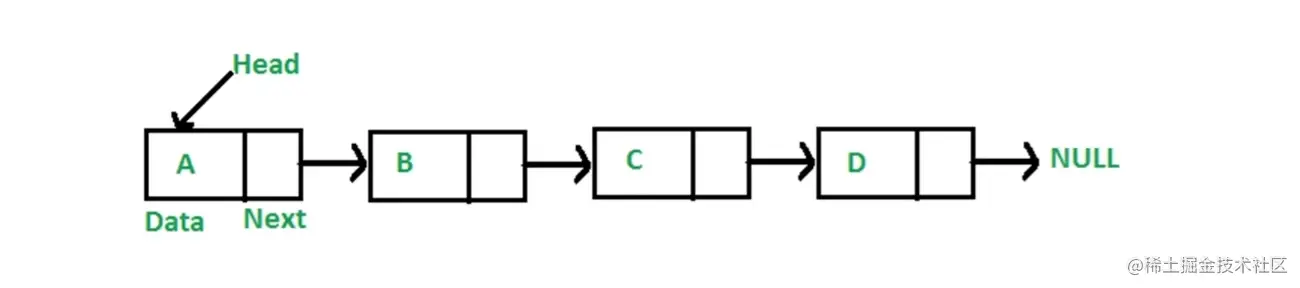

链表是什么

多个元素组成的列表。

元素存储不连续,用next指针连在一起。


数组 VS 链表

数组

  • 数组的特点

存储在物理空间上是连续的。

底层的数组长度是不可变的。

数组的变量,指向了数组第一个元素的位置。a[0],[] 方括号表示存储地址的偏移。(通过偏移查询数据性能最好)

  • 优点

通过偏移指定查询某个位置,查询性能好。

  • 缺点

因为空间必须得是连续的,所以如果数组比较大,当系统的空间碎片较多的时候,容易存不下。

因为数组的长度是固定的,所以数组的内容难以被添加和删除。

链表

  • 链表的特点

空间上不是连续的。

每存放一个值,都要多开销一个引用空间。

  • 优点

只要内存足够大,就能存的下,不用担心空间碎片问题。

链表的添加和删除非常的容易。

  • 缺点

查询速度慢。(指的查询某个位置)

链表每一个节点都需要创建一个指向next的引用,浪费一些空间。当节点内数据越多的时候,这部分内存开销的影响越小。

  • 注意

每一个节点,都认为自己是根节点。

JS中的链表

定义

// 定义:链表节点构造函数
function Node(value) {
    this.value = value
    this.next = null
}

let a = new Node('a')
let b = new Node('b')
let c = new Node('c')
a.next = b
b.next = c
c.next = null
console.log(a) /**  Node {
    value: 'a',
    next: Node { value: 'b', next: Node { value: 'c', next: null } }
  }
 */

遍历

 // 循环遍历
function cycleLink(root) {
    let temp = root;
    while(temp) {
        console.log(temp.value);
        temp = temp.next
    }
}

插入

let d = new Node('d')
a.next = d
d.next = b
console.log(a) /**Node {
    value: 'a',
    next: Node { value: 'd', next: Node { value: 'b', next: Node { value: 'c', next: null } } }
  }
 */

删除

a.next = b

LeetCode:237.删除链表中的节点

237. 删除链表中的节点 - 力扣(LeetCode) (leetcode-cn.com)

解题思路

无法直接获取被删除节点的上个节点。

将被删除节点转移到下个节点。

  1. 将被删节点的值改为下个节点的值。
  2. 删除下个节点。
/**
 * Definition for singly-linked list.
 * function ListNode(val) {
 *     this.val = val;
 *     this.next = null;
 * }
 */
/**
 * @param {ListNode} node
 * @return {void} Do not return anything, modify node in-place instead.
 */
var deleteNode = function(node) {
    if(node.next === null) {
        return
    }
    node.val = node.next.val
    node.next = node.next.next
};

复杂度

  • 时间复杂度:O(1)
  • 空间复杂度:O(1)

LeetCode: 206.反转链表

206. 反转链表 - 力扣(LeetCode) (leetcode-cn.com)

解题思路

  • 反转两个节点

将 n+1 的next指向n。

输入:...->n->n+1->...
输出:...->n+1->n->...
  • 反转多个节点

双指针遍历链表,重复上述操作。

输入:1->2->3->4->5->NULL
输出:5->4->3->2->1->NULL
  1. 双指针一前一后遍历链表
  2. 反转双指针
/**
 * Definition for singly-linked list.
 * function ListNode(val, next) {
 *     this.val = (val===undefined ? 0 : val)
 *     this.next = (next===undefined ? null : next)
 * }
 */
/**
 * @param {ListNode} head
 * @return {ListNode}
 */
var reverseList = function(head) {
    if (!head) {
        return head
    }
    let cur = null
    let next = head
    while(next) {
        let newNext = next.next
        next.next = cur
        cur = next
        next = newNext
    }
    return cur
};

复杂度

  • 时间复杂度:O(N)

  • 空间复杂度:O(1)

LeetCode:2. 两数相加

2. 两数相加 - 力扣(LeetCode) (leetcode-cn.com)

解题思路

输入: l1 = [2,4,3], l2 = [5,6,4]
输出: [7,0,8]
解释: 342 + 465 = 807.
  1. 新建一个空链表
  2. 遍历被相加的两个链表,模拟相加操作,将个位追加到新链表上,将十位留到下一位去相加。
/**
 * Definition for singly-linked list.
 * function ListNode(val, next) {
 *     this.val = (val===undefined ? 0 : val)
 *     this.next = (next===undefined ? null : next)
 * }
 */
/**
 * @param {ListNode} l1
 * @param {ListNode} l2
 * @return {ListNode}
 */
var addTwoNumbers = function(l1, l2) {
    let next1 = l1
    let next2 = l2
    let l3 = new ListNode()
    let next3 = l3
    // 十位
    let flag = 0
    while(next1 || next2) {
        let val1 = next1 ? next1.val : 0
        let val2 = next2 ? next2.val : 0
        let val = val1 + val2 + flag
        flag = val >= 10 ? 1 : 0
        next3.next = new ListNode(val % 10)
        next1 = next1 && next1.next
        next2 = next2 && next2.next
        next3 = next3.next
    }
    flag === 1 && (next3.next = new ListNode(1))
    return l3.next
}

复杂度

  • 时间复杂度:O(N)

  • 空间复杂度:O(N)

LeetCode:83. 删除排序链表中的重复元素

83. 删除排序链表中的重复元素 - 力扣(LeetCode) (leetcode-cn.com)

解题思路

因为链表是有序的,所以重复元素一定响铃。

遍历链表,如果发现当前元素和下一个元素值相同,就删除下一个元素值

  1. 遍历链表,如果发现当前元素和下一个元素值相同,就删除下一个元素值
  2. 遍历结束后,返回原链表的头部。
/**
 * Definition for singly-linked list.
 * function ListNode(val, next) {
 *     this.val = (val===undefined ? 0 : val)
 *     this.next = (next===undefined ? null : next)
 * }
 */
/**
 * @param {ListNode} head
 * @return {ListNode}
 */
var deleteDuplicates = function(head) {
    if (!head) {
        return head
    }
    let cur = head
    let next = cur.next

    while(next) {
        // 当前元素和下一个元素值相同,删除下一个元素值。
        if (cur.val === next.val) {
            cur.next = next.next
        } else {
            cur = next
        }
        next = cur.next
    }
    return head
};

复杂度

  • 时间复杂度:O(N)

  • 空间复杂度:O(1)

LeetCode:141. 环形链表

141. 环形链表 - 力扣(LeetCode) (leetcode-cn.com)

解题思路

用一快一慢两个指针遍历链表,如果指针能够相遇,那么链表就有圈。

  1. 一快一慢两个指针遍历链表,如果指针能够相遇,就返回true

  2. 遍历结束后,还没有相遇就返回false

/**
 * Definition for singly-linked list.
 * function ListNode(val) {
 *     this.val = val;
 *     this.next = null;
 * }
 */

/**
 * @param {ListNode} head
 * @return {boolean}
 */
var hasCycle = function(head) {
    let p1 = head
    let p2 = head
    while(p1 && p2 && p2.next) {
        p1 = p1.next
        p2 = p2.next.next
        // 再次相遇,有环
        if (p1 === p2) {
            return true
        }
    }
    return false
}

复杂度

  • 时间复杂度:O(N)

  • 空间复杂度:O(1)

前端与链表:JS 中的原型链

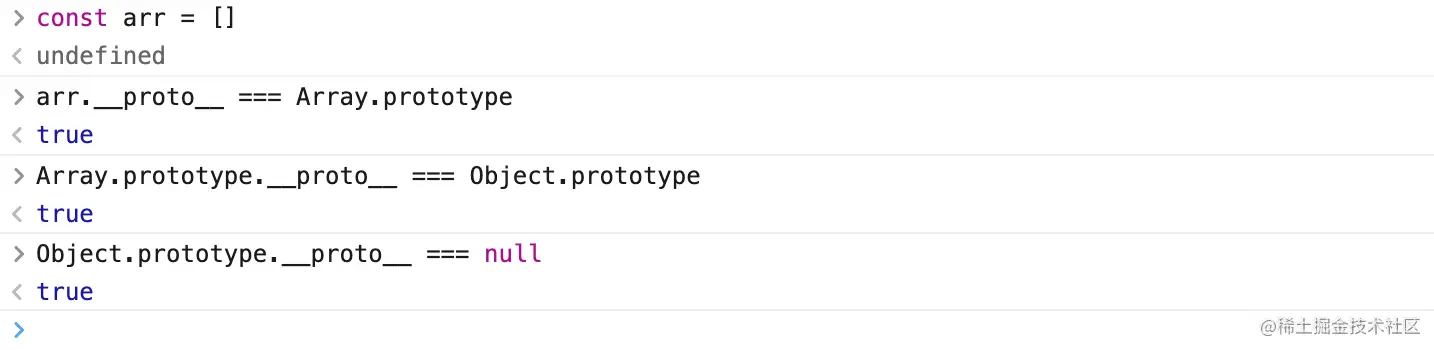

原型链

原型链的本质是链表

原型链上的节点是各种原型对象,比如:Function.prototypeObject.prototype...

原型链通过__proto__ 属性连接各种原型对象。


instanceof 原理

如果A沿着原型链能找到B.prototype,那么 A instanceof B 为true(A 是B的实例)。

  1. 遍历A的原型链,如果找到B.prototype,返回true,否则返回false。
function instanceOf(A, B) {
    let p = A
    while(p) {
        if (p === B.prototype) {
            return true
        }
        p = p.__proto__
    }
    return false
}

前端与链表:使用链表指针获取 JSON 的节点值

const json = {
    a: {b: { c: 'c'}},
    d: { e: 'e' }
}
const path  = ['a', 'b', 'c']
let p = json
path.forEach(k => {
    p = p[k]
})
