margin的合并与塌陷

207 阅读1分钟

一、margin

margin是盒模型的外边框,但是在开发的过程中,会有一些特殊的现象,通过以下例子展示

合并

代码结构

#style

    .wrap {
        width: 200px;
        height: 200px;
        background-color: #000;
      }
      .top {
        height: 50px;
        width: 50px;
        background-color:red;
        margin-bottom: 50px;
      }
      .bottom {
        height: 50px;
        width: 50px;
        background-color: blue;
        margin-bottom: 25px;
      }

#dom

<div class="wrap">
   <div class="top"></div>
   <div class="bottom"></div>
</div>

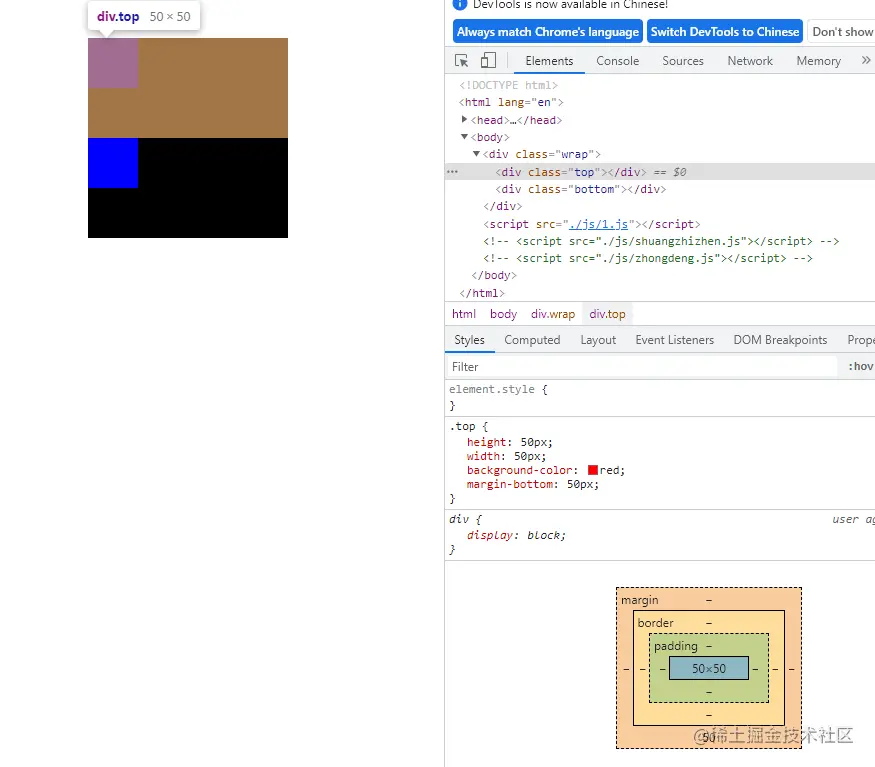

这里看到top和bottom的间距值的和是75px,但是通过查看dom节点,可以看到top和bottom合并了


这里能看到top和bottom如果有margin属性重叠,那么就以值最大的值50为准

margin塌陷

在这里给top设置属性

margin: 50px auto 20px;

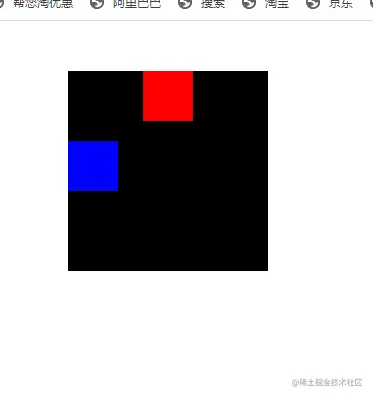

能得到这样一个图


这会会思考,怎么会塌陷呢,不是好好的吗

接下来给wrap设置属性

margin: 50px auto;

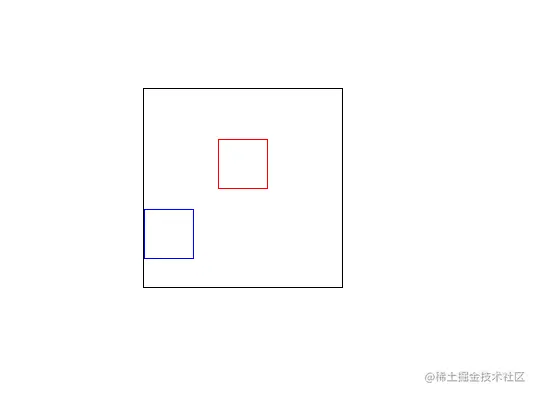

得到这样的图

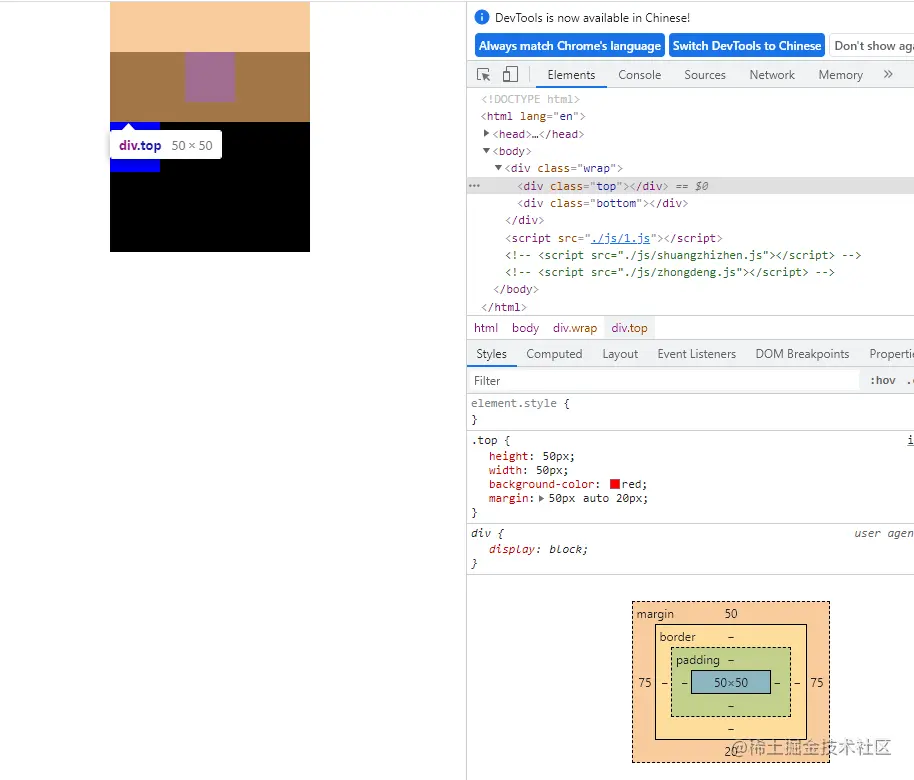

看下结构


发现top应该离上边距有50像素,但是实际上并没有,这里就是塌陷。 先不说原因,说下解决的方式,其实就是BFC(格式化上下文)

margin-bottom 负值

bottom 设置属性

 margin-top: -10px;

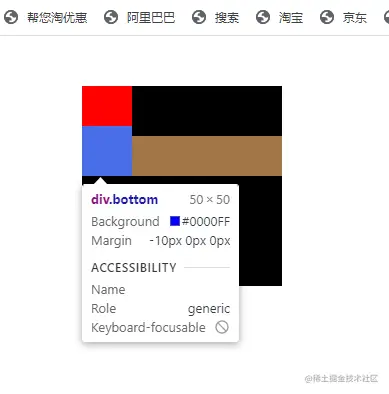

我们能看到样式bottom的样式覆盖在了top上 image.png 但是设置top为负值时

margin-bottom: -10px;

我们会发现,上下节点,都是下节点覆盖到上节点上,

BFC的触发条件

  • float除none以外的值
  • position(absolute, fixed)
  • display 为其中之一的值 inline-block,table-cell,table-caption
  • overflow: hidden auto scroll

margin塌陷的原因

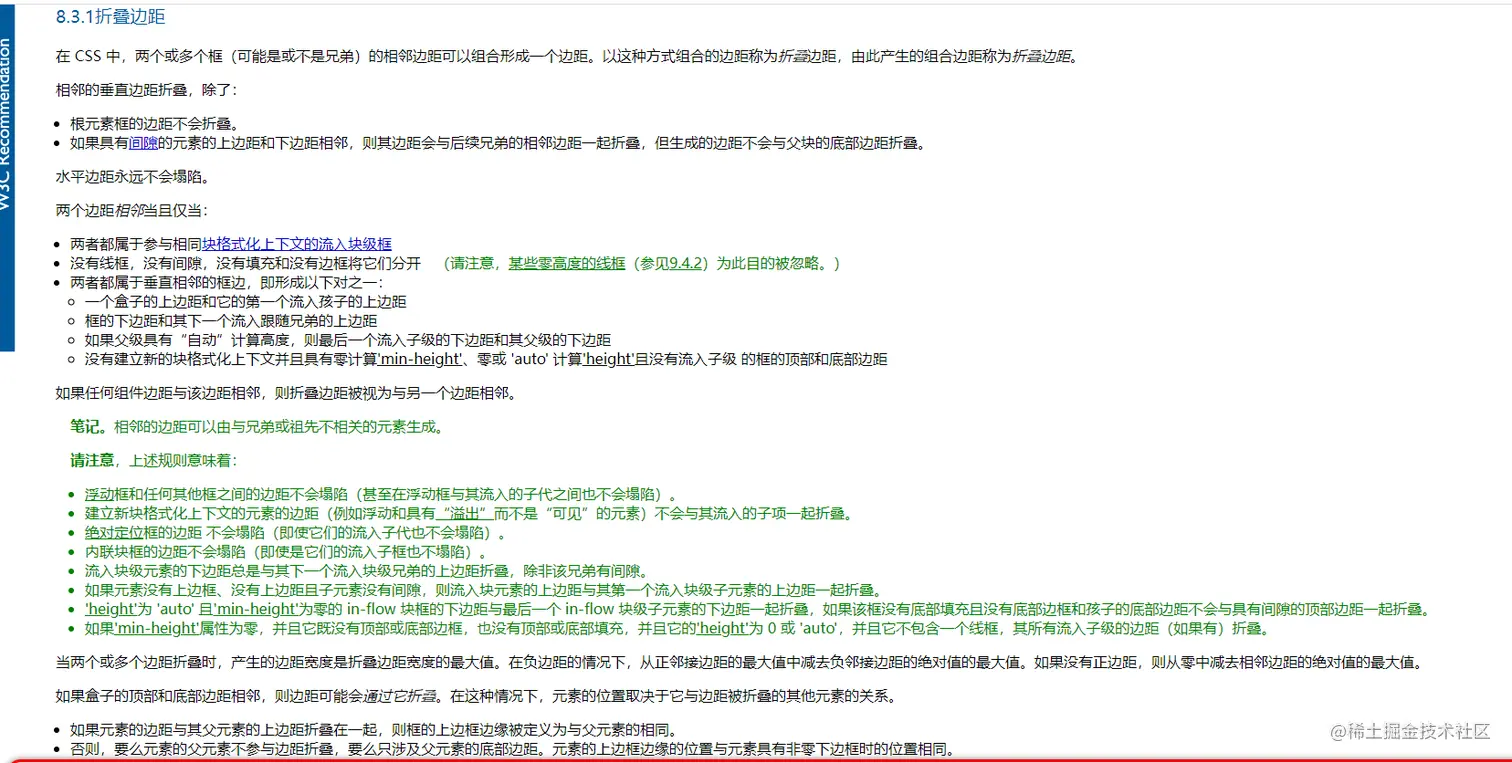

www.w3.org/TR/CSS2/box… 在这里看到了margin的规则


从相邻的垂直边距折叠规则下,这里是产生坍陷的原因
