流量分析

流量分析简介

CTF 比赛中, 流量包的取证分析是另一项重要的考察方向。

通常比赛中会提供一个包含流量数据的 PCAP 文件，有时候也会需要选手们先进行修复或重构传输文件后，再进行分析。

PCAP 这一块作为重点考察方向，复杂的地方在于数据包里充满着大量无关的流量信息，因此如何分类和过滤数据是参赛者需要完成的工作。

总的来说有以下几个步骤

总体把握
协议分级
端点统计
过滤赛选
过滤语法
Host，Protocol，contains，特征值
发现异常
特殊字符串
协议某字段
flag 位于服务器中
数据提取
字符串取
文件提取
总的来说比赛中的流量分析可以概括为以下三个方向:

流量包修复
协议分析
数据提取

流量包修复-pcapfix

修复地址:f00l.de/hacking/pca…

修复软件:wiki.qlnuctf.cn/course/13/t…

例题:网刃杯协议分析 藏在s7里的秘密

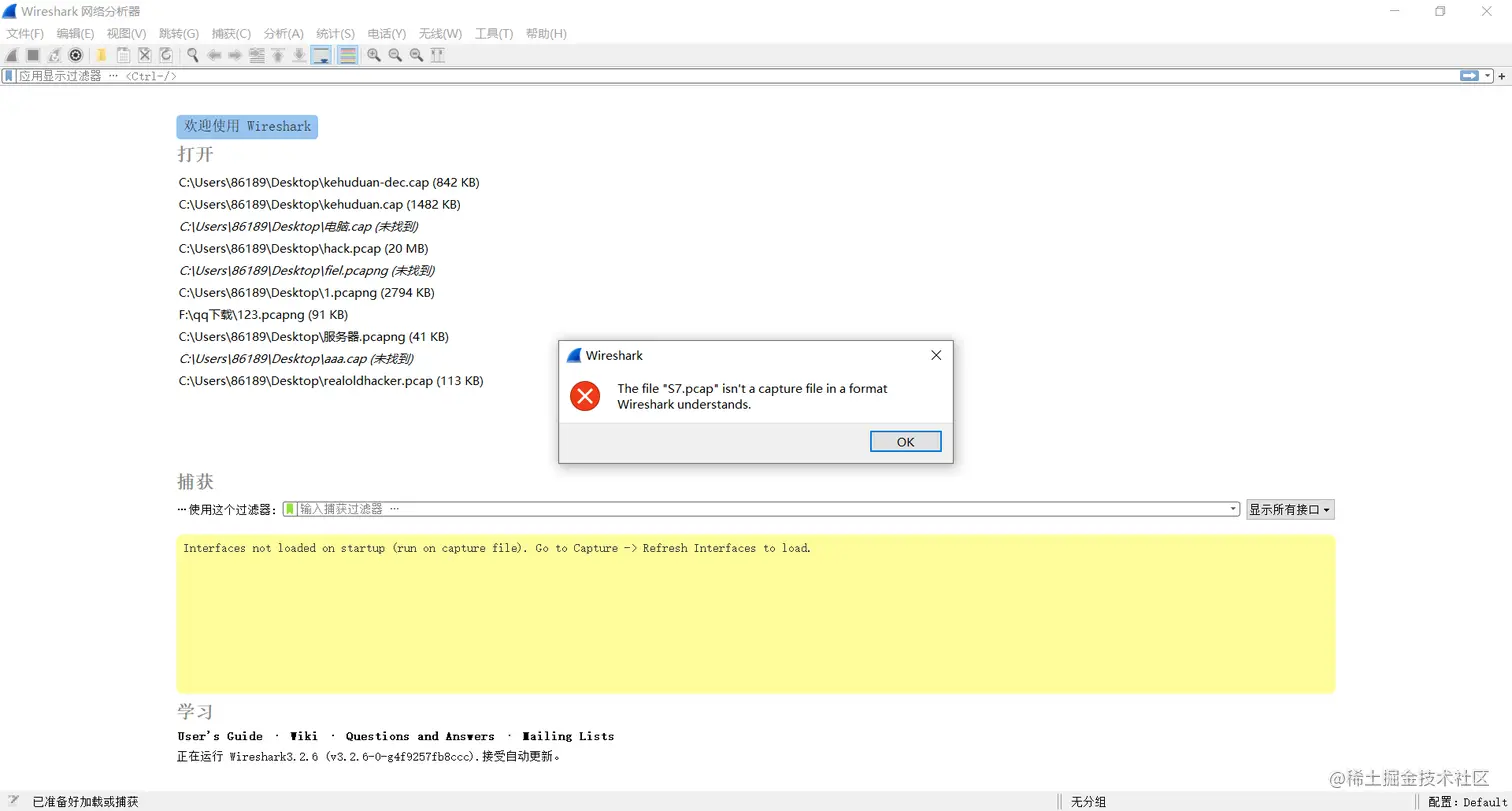

打开pcap附件,发现报错

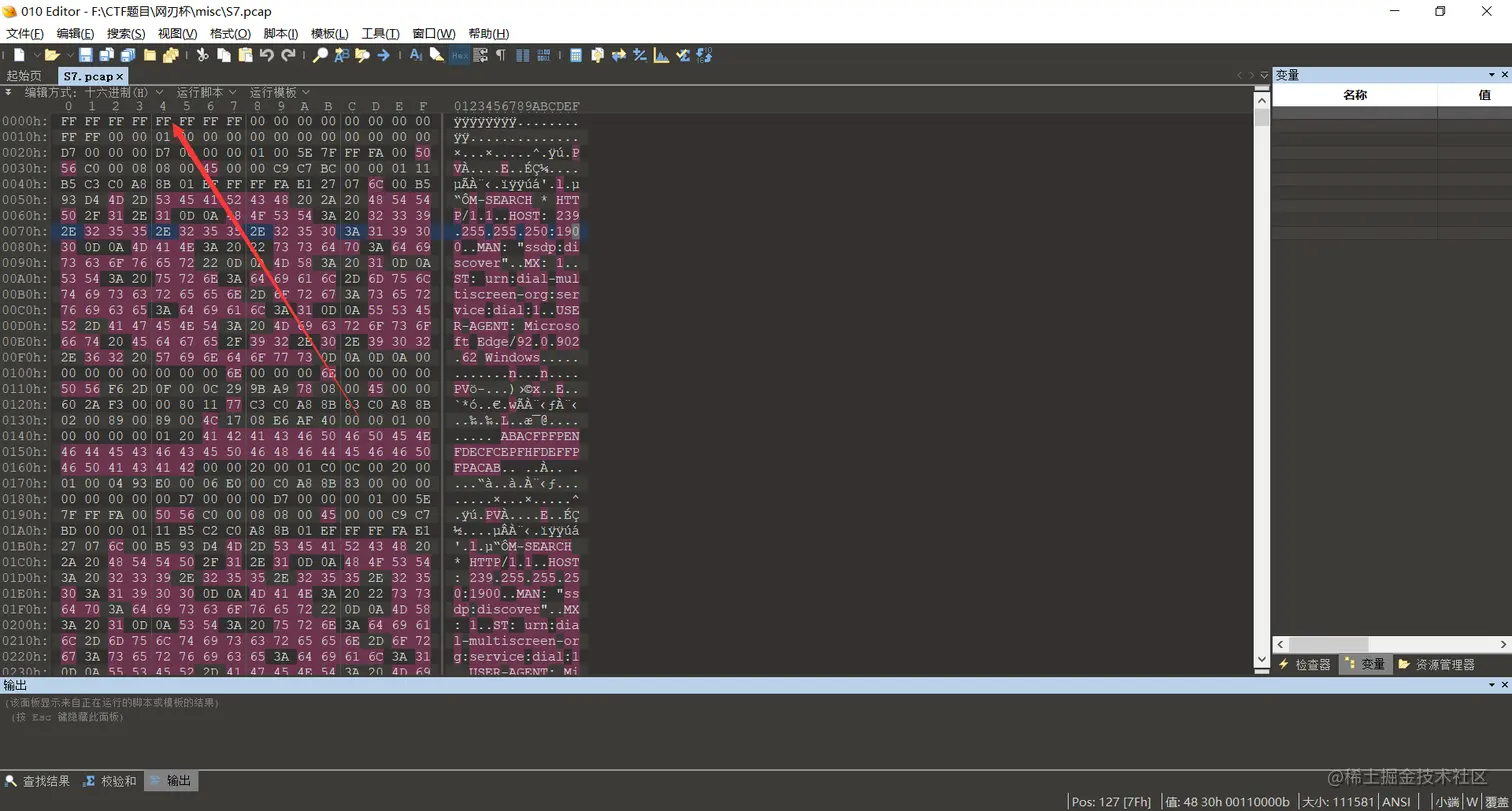

010打开发现文件头被修改了

用在线工具或者是pcapfix修复即可

数据提取-tshark

什么是tshark?

tshark 作为 wireshark 的命令行版, 高效快捷是它的优点, 配合其余命令行工具 (awk,grep) 等灵活使用, 可以快速定位, 提取数据从而省去了繁杂的脚本编写 。

工具地址

windows的wireshark自带

kali自带

使用

tshark -r file -T fields -e 提取的内容 > 指定输出的附件

这里拿提取USB协议的内容举例

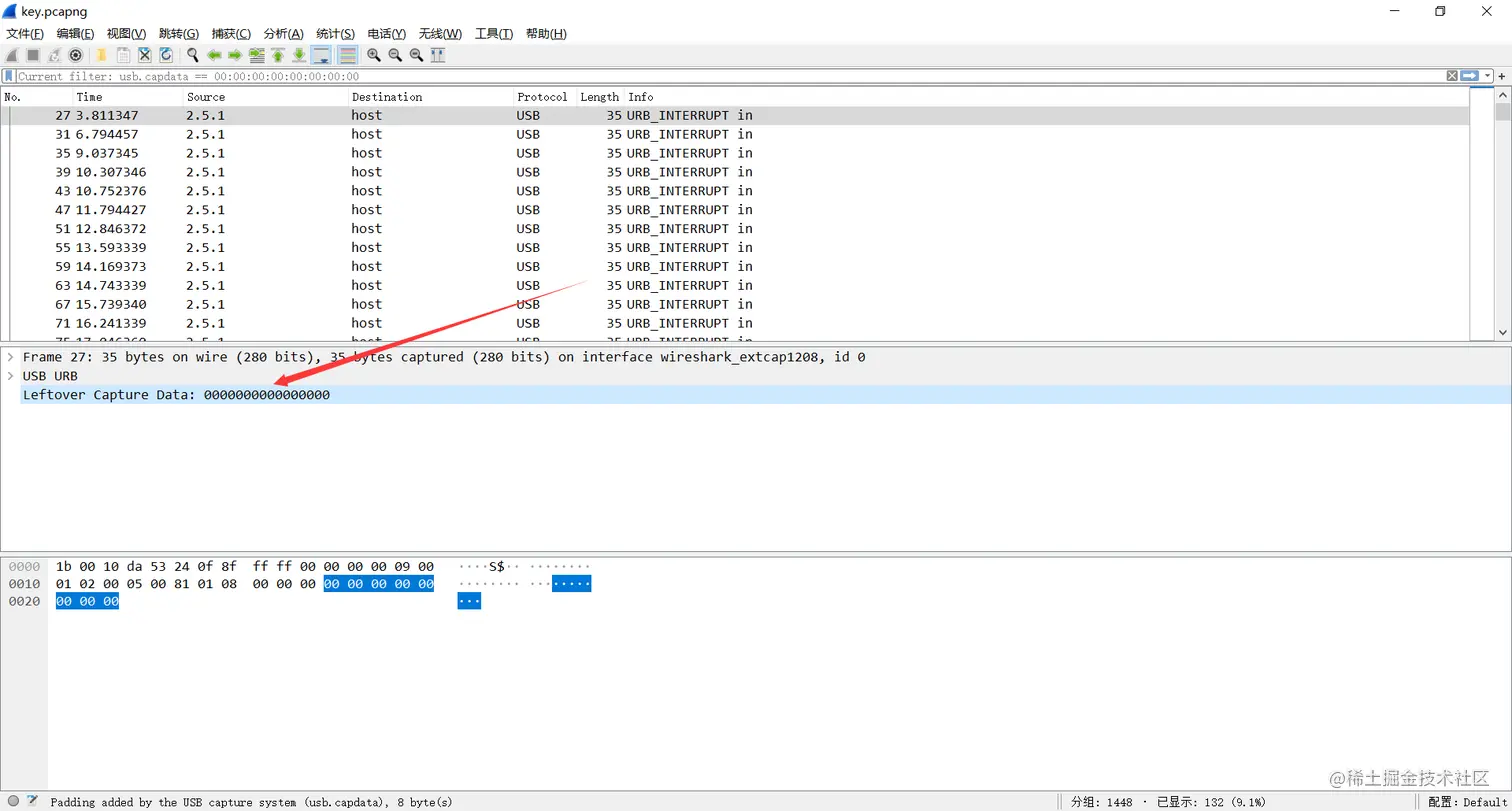

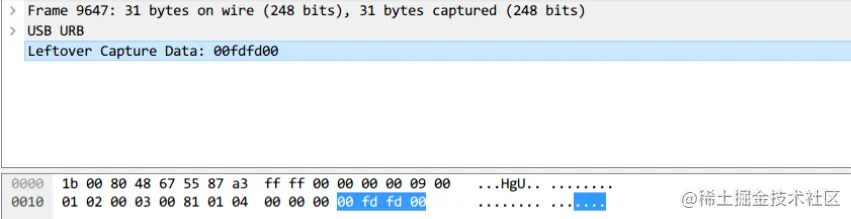

比如我们想要提取usb的data部分，找到有data的包

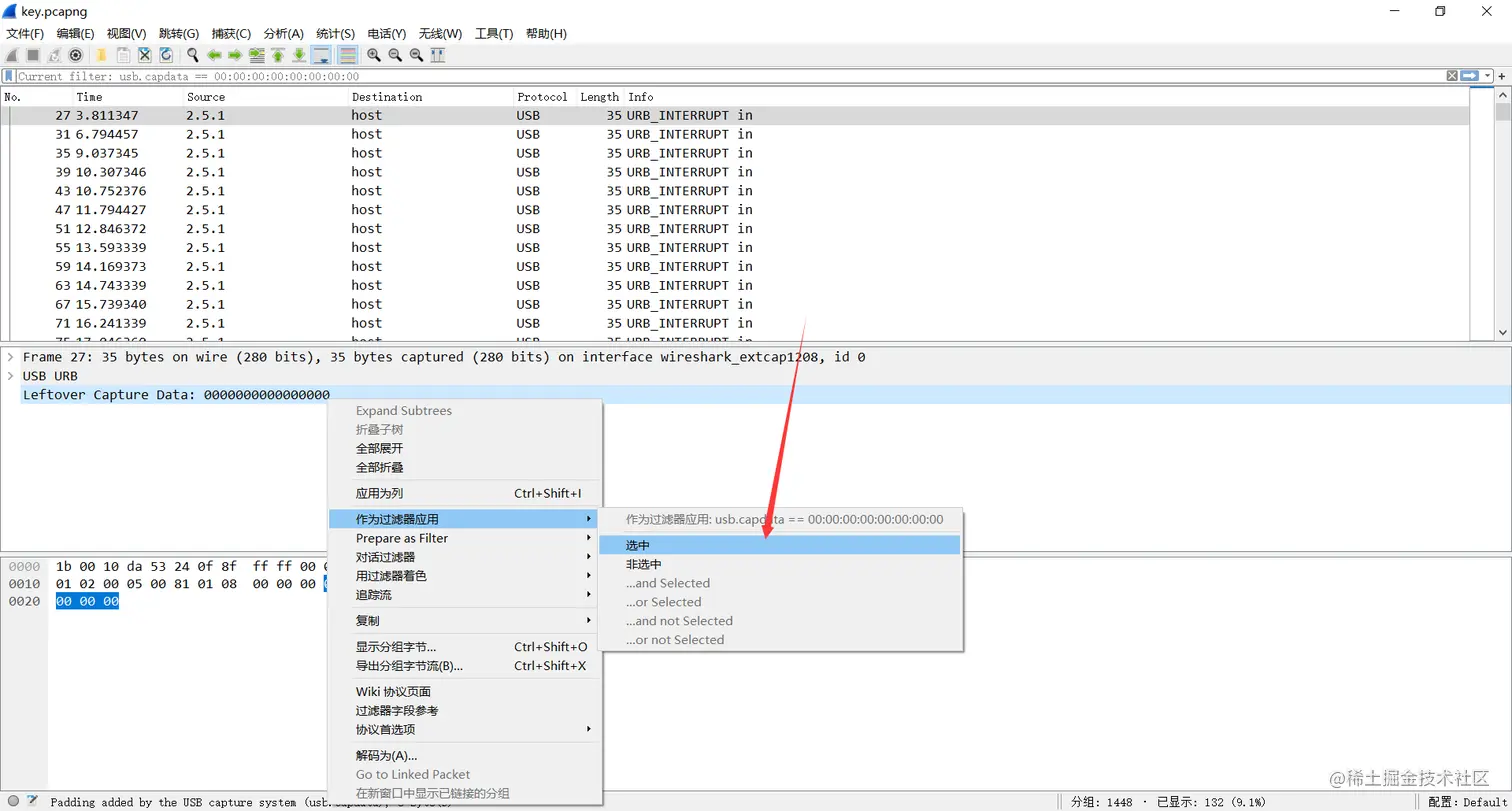

右击-作为过滤器应用-选中

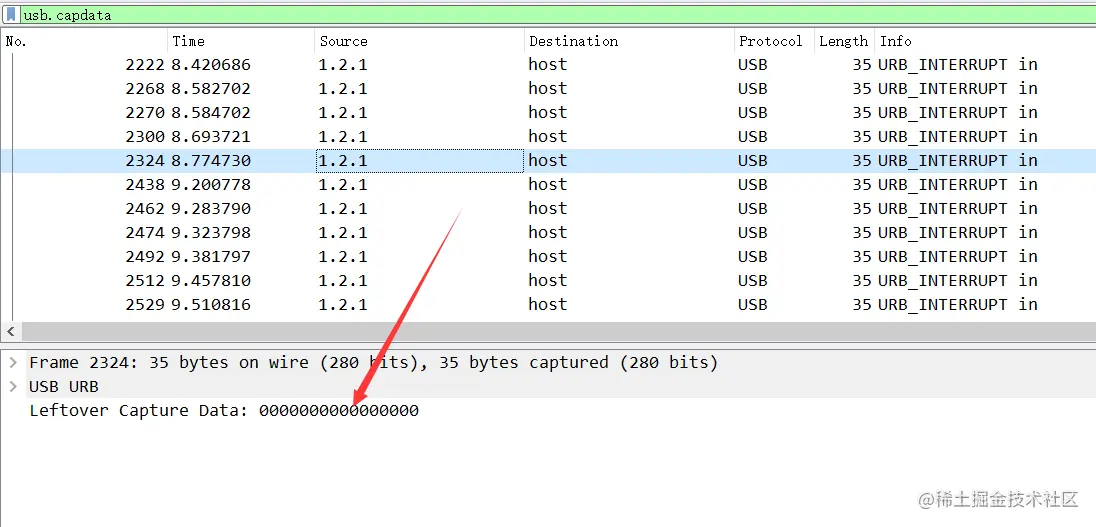

左上角会出现

所以我们要提取每个数据包的内容就位 usb.capdata

tshark -r key.pcapng -T fields -e usb.capdata

提取之后会发现数据里有大量的换行符，可以使用

tshark -r key.pcapng -T fields -e usb.capdata | sed '/^\s*$/d'

协议分析

概述

网络协议为计算机网络中进行数据交换而建立的规则、标准或约定的集合。例如，网络中一个微机用户和一个大型主机的操作员进行通信，由于这两个数据终端所用字符集不同，因此操作员所输入的命令彼此不认识。为了能进行通信，规定每个终端都要将各自字符集中的字符先变换为标准字符集的字符后，才进入网络传送，到达目的终端之后，再变换为该终端字符集的字符。当然，对于不相容终端，除了需变换字符集字符外还需转换其他特性，如显示格式、行长、行数、屏幕滚动方式等也需作相应的变换。

工具的使用-wirshark

追踪流

可以使用追踪流的功能查看数据包的详细数据

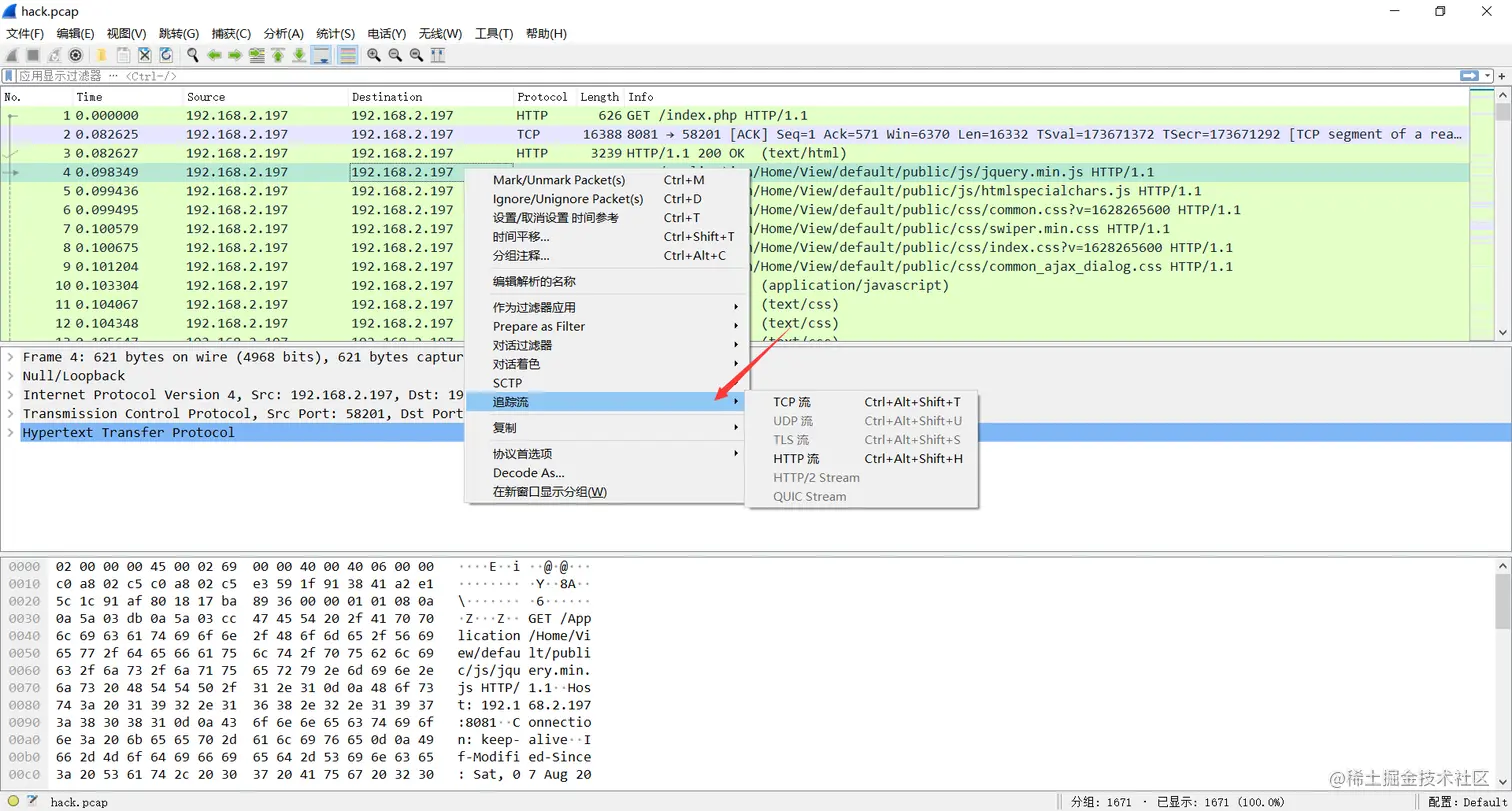

右击数据包-追踪流

过滤器

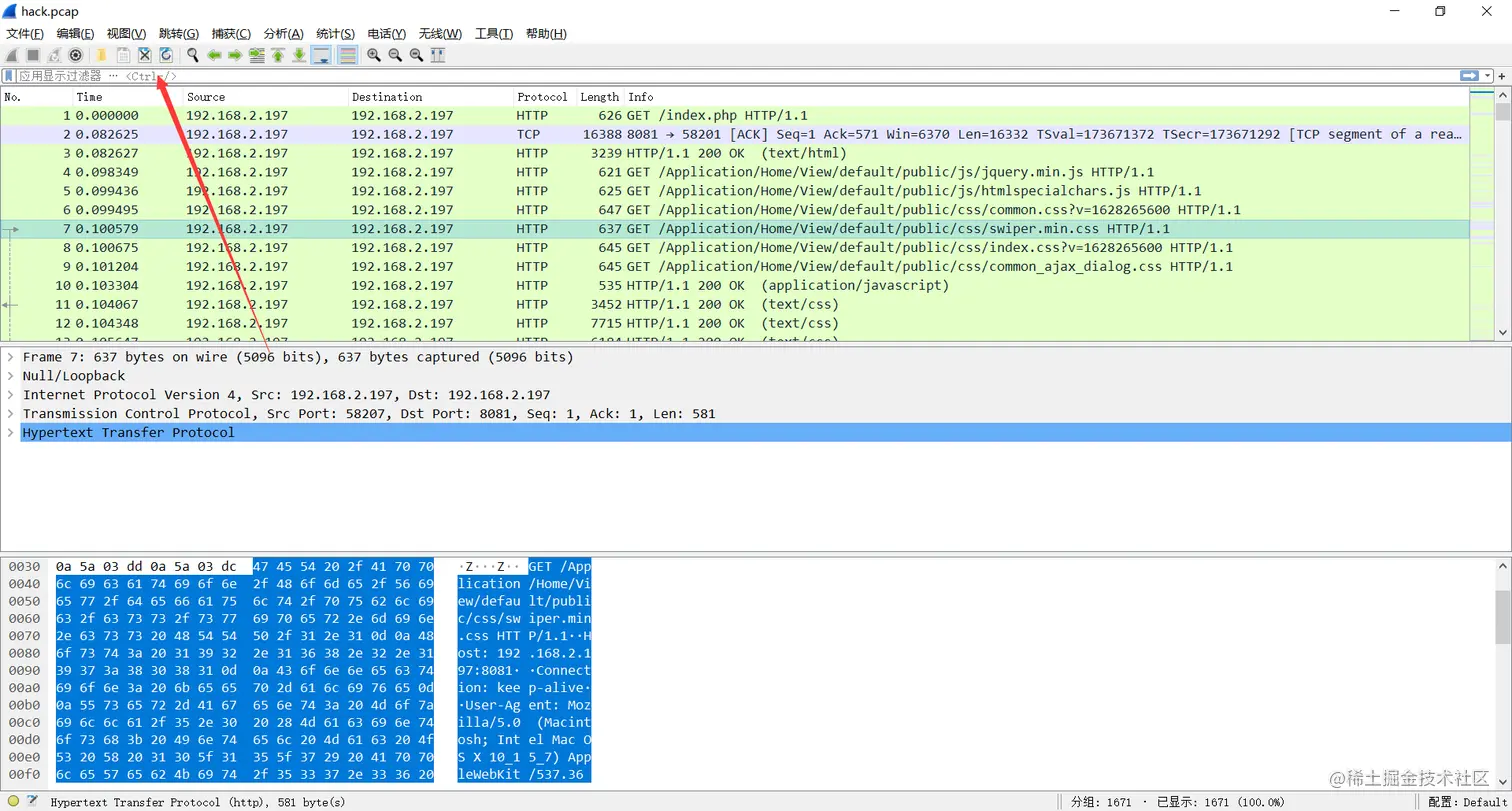

左上角的应用过滤器，可以直接在上面输入想要过滤的内容，比如只想看http的包，那么直接输入http

如果想过滤的内容不知道名字，可以使用右击-作为过滤器应用-选中，左上角会直接出现。

协议分级

可以通过查看协议分级，实现对存在协议的一个总体把控

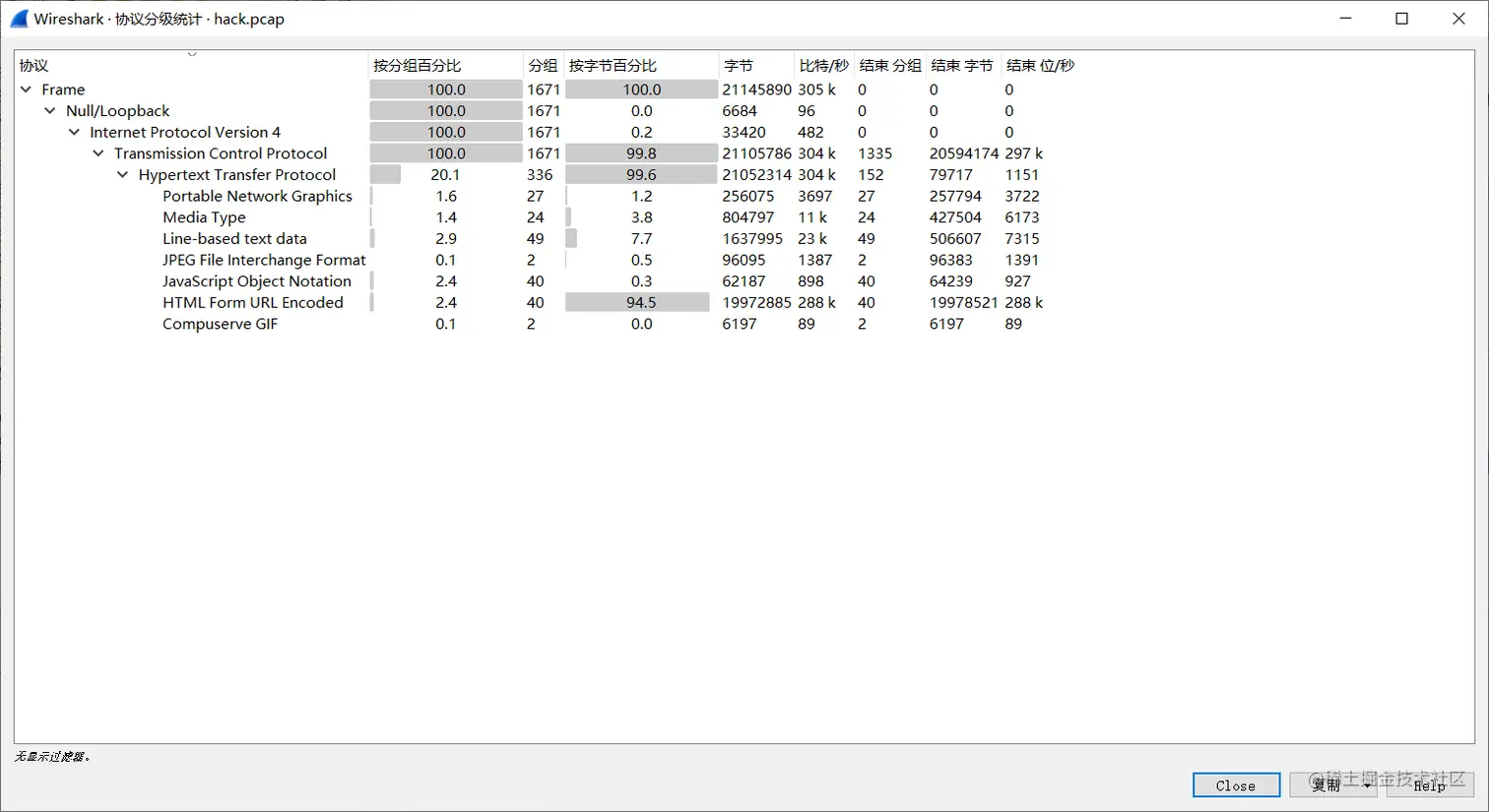

统计-协议分级

conversations

发生于一特定端点的 IP 间的所有流量.

统计-conversations

导出对象

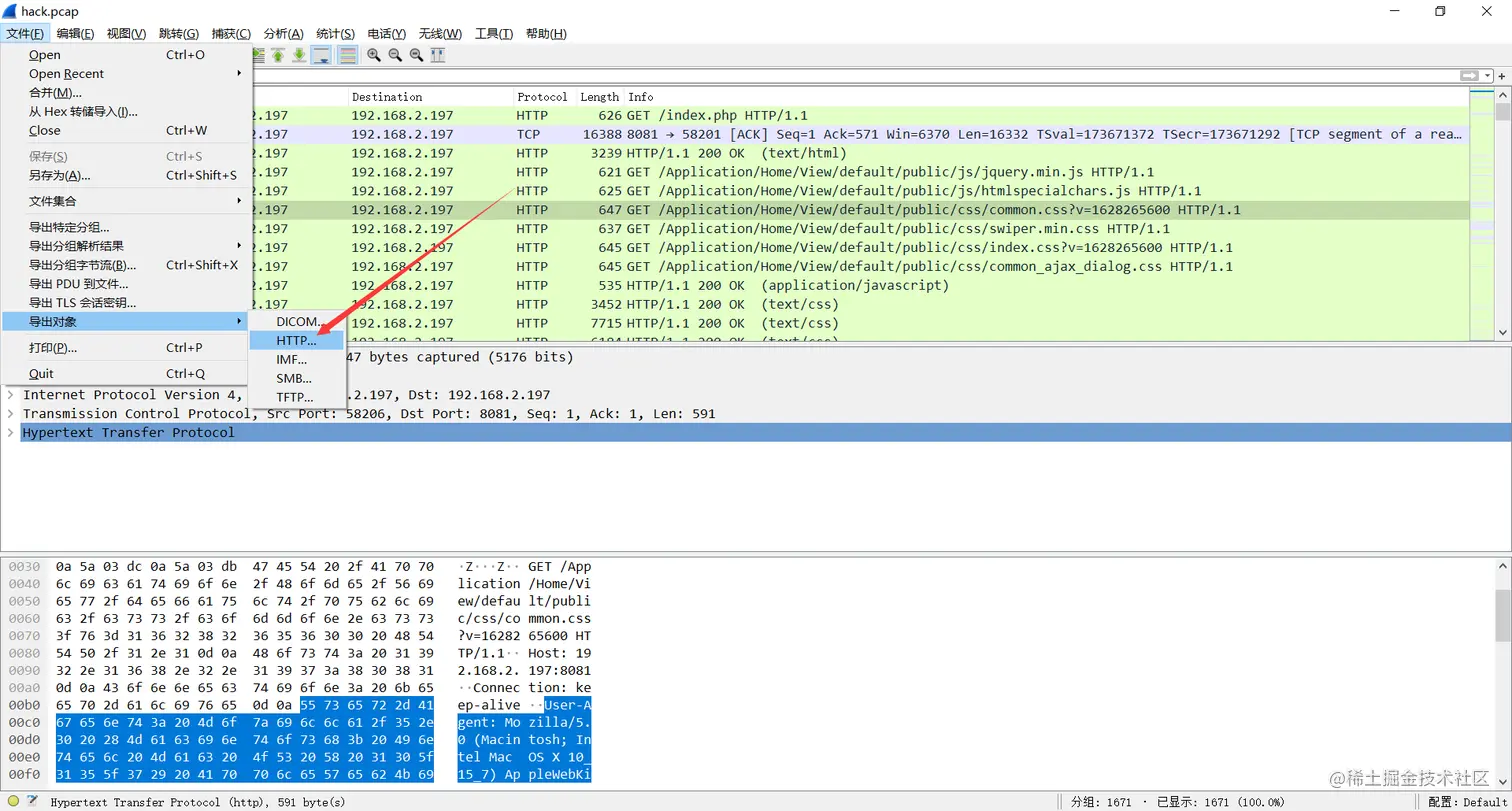

如果发现流量包传输了什么文件，可以使用导出对象-HTTP(常见)

常见协议

HTTP
HTTP ( Hyper Text Transfer Protocol ，也称为超文本传输协议) 是一种用于分布式、协作式和超媒体信息系统的应用层协议。 HTTP 是万维网的数据通信的基础。

由于传输的时候是明文传输，所以常见考点位于登录处，会把flag隐藏在明文密码的位置。

常见是与tcp协议一同使用，当追踪tcp流时发现有加密的部分可以查看同时的http来看相应的明文数据

HTTPS

HTTPs = HTTP + SSL / TLS. 服务端和客户端的信息传输都会通过 TLS 进行加密，所以传输的数据都是加密后的数据

TCP

常见的传输协议

UDP
FTP
FTP ( File Transfer Protocol ，即文件传输协议) 是 TCP/IP 协议组中的协议之一。 FTP 协议包括两个组成部分，其一为 FTP 服务器，其二为 FTP 客户端。其中 FTP 服务器用来存储文件，用户可以使用 FTP 客户端通过 FTP 协议访问位于 FTP 服务器上的资源。在开发网站的时候，通常利用 FTP 协议把网页或程序传到 Web 服务器上。此外，由于 FTP 传输效率非常高，在网络上传输大的文件时，一般也采用该协议。

默认情况下 FTP 协议使用 TCP 端口中的 20 和 21 这两个端口，其中 20 用于传输数据， 21 用于传输控制信息。但是，是否使用 20 作为传输数据的端口与 FTP 使用的传输模式有关，如果采用主动模式，那么数据传输端口就是 20 ；如果采用被动模式，则具体最终使用哪个端口要服务器端和客户端协商决定。

文件传输协议

DNS

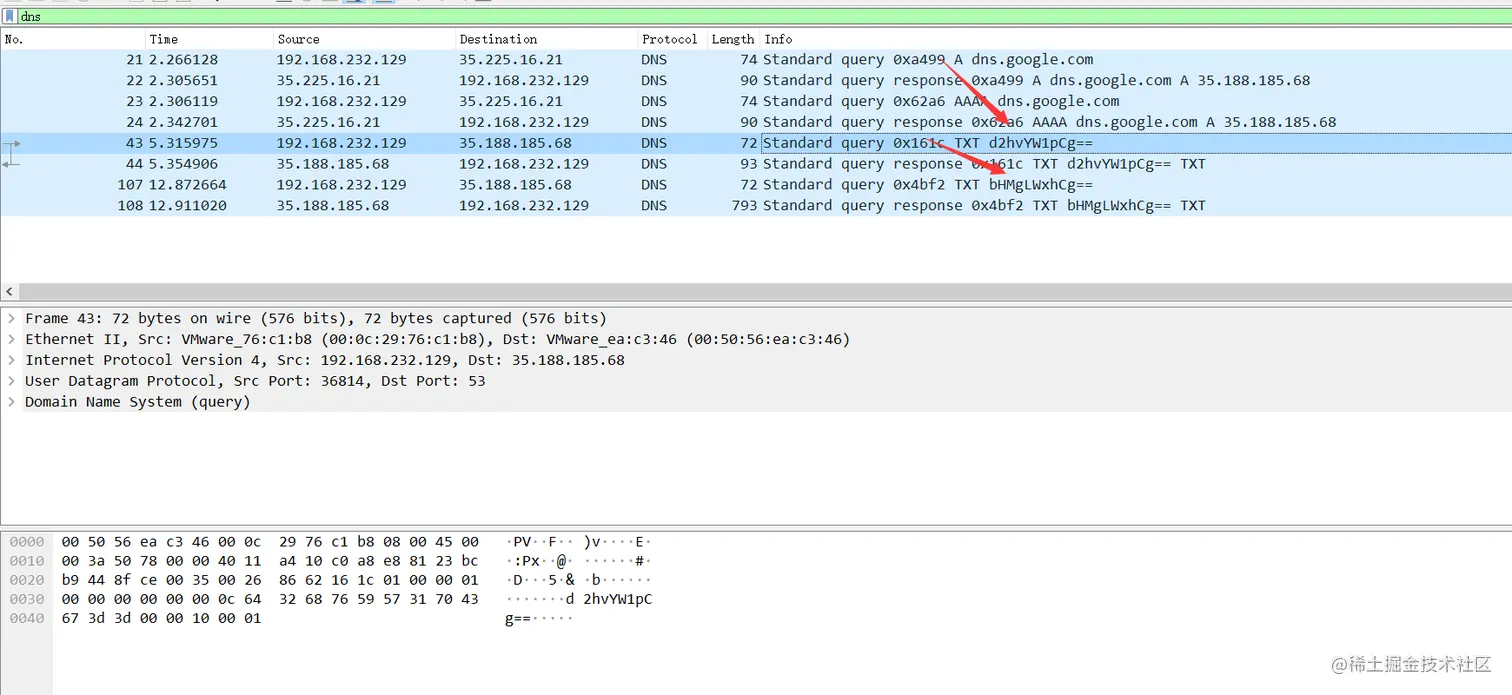

利用DNS协议来传输隐写数据

例题:[UTCTF2020]dns-shell

USB

tshark提取并处理usb流量数据

tshark -r key.pcapng -T fields -e usb.capdata | sed '/^\s*$/d' > fileaaa.txt

键盘流量

键盘数据包的数据长度为 8 个字节，击键信息集中在第 3 个字节

数据位于usb.capdata部分

盖乐希师傅脚本

normalKeys = {
        "04":"a", "05":"b", "06":"c", "07":"d", "08":"e",
        "09":"f", "0a":"g", "0b":"h", "0c":"i", "0d":"j",
         "0e":"k", "0f":"l", "10":"m", "11":"n", "12":"o",
          "13":"p", "14":"q", "15":"r", "16":"s", "17":"t",
           "18":"u", "19":"v", "1a":"w", "1b":"x", "1c":"y",
            "1d":"z","1e":"1", "1f":"2", "20":"3", "21":"4",
             "22":"5", "23":"6","24":"7","25":"8","26":"9",
             "27":"0","28":"<RET>","29":"<ESC>","2a":"<DEL>", "2b":"\t",
             "2c":"<SPACE>","2d":"-","2e":"=","2f":"[","30":"]","31":"\\",
             "32":"<NON>","33":";","34":"'","35":"<GA>","36":",","37":".",
             "38":"/","39":"<CAP>","3a":"<F1>","3b":"<F2>", "3c":"<F3>","3d":"<F4>",
             "3e":"<F5>","3f":"<F6>","40":"<F7>","41":"<F8>","42":"<F9>","43":"<F10>",
             "44":"<F11>","45":"<F12>"}
shiftKeys = {
        "04":"A", "05":"B", "06":"C", "07":"D", "08":"E",
         "09":"F", "0a":"G", "0b":"H", "0c":"I", "0d":"J",
          "0e":"K", "0f":"L", "10":"M", "11":"N", "12":"O",
           "13":"P", "14":"Q", "15":"R", "16":"S", "17":"T",
            "18":"U", "19":"V", "1a":"W", "1b":"X", "1c":"Y",
             "1d":"Z","1e":"!", "1f":"@", "20":"#", "21":"$",
              "22":"%", "23":"^","24":"&","25":"*","26":"(","27":")",
              "28":"<RET>","29":"<ESC>","2a":"<DEL>", "2b":"\t","2c":"<SPACE>",
              "2d":"_","2e":"+","2f":"{","30":"}","31":"|","32":"<NON>","33":"\"",
              "34":":","35":"<GA>","36":"<","37":">","38":"?","39":"<CAP>","3a":"<F1>",
              "3b":"<F2>", "3c":"<F3>","3d":"<F4>","3e":"<F5>","3f":"<F6>","40":"<F7>",
              "41":"<F8>","42":"<F9>","43":"<F10>","44":"<F11>","45":"<F12>"}
output = []
keys = open('filebbb.txt')
for line in keys:
    try:
        if line[0]!='0' or (line[1]!='0' and line[1]!='2') or line[3]!='0' or line[4]!='0' or line[9]!='0' or line[10]!='0' or line[12]!='0' or line[13]!='0' or line[15]!='0' or line[16]!='0' or line[18]!='0' or line[19]!='0' or line[21]!='0' or line[22]!='0' or line[6:8]=="00":
            continue
        if line[6:8] in normalKeys.keys():
            output += [[normalKeys[line[6:8]]],[shiftKeys[line[6:8]]]][line[1]=='2']
        else:
            output += ['[unknown]']
    except:
        pass

keys.close()

flag=0
print("".join(output))
for i in range(len(output)):
    try:
        a=output.index('<DEL>')
        del output[a]
        del output[a-1]
    except:
        pass

for i in range(len(output)):
    try:
        if output[i]=="<CAP>":
            flag+=1
            output.pop(i)
        if flag==2:
            flag=0
        if flag!=0:
            output[i]=output[i].upper()
    except:
        pass

print ('output :' + "".join(output))

wangyihang的jiaoben

#!/usr/bin/env python

import sys
import os

DataFileName = "usb.dat"

presses = []

normalKeys = {"04":"a", "05":"b", "06":"c", "07":"d", "08":"e", "09":"f", "0a":"g", "0b":"h", "0c":"i", "0d":"j", "0e":"k", "0f":"l", "10":"m", "11":"n", "12":"o", "13":"p", "14":"q", "15":"r", "16":"s", "17":"t", "18":"u", "19":"v", "1a":"w", "1b":"x", "1c":"y", "1d":"z","1e":"1", "1f":"2", "20":"3", "21":"4", "22":"5", "23":"6","24":"7","25":"8","26":"9","27":"0","28":"<RET>","29":"<ESC>","2a":"<DEL>", "2b":"\t","2c":"<SPACE>","2d":"-","2e":"=","2f":"[","30":"]","31":"\\","32":"<NON>","33":";","34":"'","35":"<GA>","36":",","37":".","38":"/","39":"<CAP>","3a":"<F1>","3b":"<F2>", "3c":"<F3>","3d":"<F4>","3e":"<F5>","3f":"<F6>","40":"<F7>","41":"<F8>","42":"<F9>","43":"<F10>","44":"<F11>","45":"<F12>"}

shiftKeys = {"04":"A", "05":"B", "06":"C", "07":"D", "08":"E", "09":"F", "0a":"G", "0b":"H", "0c":"I", "0d":"J", "0e":"K", "0f":"L", "10":"M", "11":"N", "12":"O", "13":"P", "14":"Q", "15":"R", "16":"S", "17":"T", "18":"U", "19":"V", "1a":"W", "1b":"X", "1c":"Y", "1d":"Z","1e":"!", "1f":"@", "20":"#", "21":"$", "22":"%", "23":"^","24":"&","25":"*","26":"(","27":")","28":"<RET>","29":"<ESC>","2a":"<DEL>", "2b":"\t","2c":"<SPACE>","2d":"_","2e":"+","2f":"{","30":"}","31":"|","32":"<NON>","33":"\"","34":":","35":"<GA>","36":"<","37":">","38":"?","39":"<CAP>","3a":"<F1>","3b":"<F2>", "3c":"<F3>","3d":"<F4>","3e":"<F5>","3f":"<F6>","40":"<F7>","41":"<F8>","42":"<F9>","43":"<F10>","44":"<F11>","45":"<F12>"}

def main():
    # check argv
    if len(sys.argv) != 2:
        print("Usage : ")
        print("        python UsbKeyboardHacker.py data.pcap")
        print("Tips : ")
        print("        To use this python script , you must install the tshark first.")
        print("        You can use `sudo apt-get install tshark` to install it")
        print("Author : ")
        print("        WangYihang <wangyihanger@gmail.com>")
        print("        If you have any questions , please contact me by email.")
        print("        Thank you for using.")
        exit(1)

    # get argv
    pcapFilePath = sys.argv[1]

    # get data of pcap
    os.system("tshark -r %s -T fields -e usb.capdata 'usb.data_len == 8' > %s" % (pcapFilePath, DataFileName))

    # read data
    with open(DataFileName, "r") as f:
        for line in f:
            presses.append(line[0:-1])
    # handle
    result = ""
    for press in presses:
        if press == '':
            continue
        if ':' in press:
            Bytes = press.split(":")
        else:
            Bytes = [press[i:i+2] for i in range(0, len(press), 2)]
        if Bytes[0] == "00":
            if Bytes[2] != "00" and normalKeys.get(Bytes[2]):
                result += normalKeys[Bytes[2]]
        elif int(Bytes[0],16) & 0b10 or int(Bytes[0],16) & 0b100000: # shift key is pressed.
            if Bytes[2] != "00" and normalKeys.get(Bytes[2]):
                result += shiftKeys[Bytes[2]]
        else:
            print("[-] Unknow Key : %s" % (Bytes[0]))
    print("[+] Found : %s" % (result))

    # clean the temp data
    os.system("rm ./%s" % (DataFileName))


if __name__ == "__main__":
    main()

鼠标流量

鼠标移动时表现为连续性，与键盘击键的离散性不一样，不过实际上鼠标动作所产生的数据包也是离散的，毕竟计算机表现的连续性信息都是由大量离散信息构成的

每一个数据包的数据区有四个字节，第一个字节代表按键，当取 0x00 时，代表没有按键、为 0x01 时，代表按左键，为 0x02 时，代表当前按键为右键。第二个字节可以看成是一个 signed byte 类型，其最高位为符号位，当这个值为正时，代表鼠标水平右移多少像素，为负时，代表水平左移多少像素。第三个字节与第二字节类似，代表垂直上下移动的偏移。

得到这些点的信息后, 即可恢复出鼠标移动轨迹

#!/usr/bin/env python

import sys
import os

DataFileName = "usb.dat"

presses = []

normalKeys = {"04":"a", "05":"b", "06":"c", "07":"d", "08":"e", "09":"f", "0a":"g", "0b":"h", "0c":"i", "0d":"j", "0e":"k", "0f":"l", "10":"m", "11":"n", "12":"o", "13":"p", "14":"q", "15":"r", "16":"s", "17":"t", "18":"u", "19":"v", "1a":"w", "1b":"x", "1c":"y", "1d":"z","1e":"1", "1f":"2", "20":"3", "21":"4", "22":"5", "23":"6","24":"7","25":"8","26":"9","27":"0","28":"<RET>","29":"<ESC>","2a":"<DEL>", "2b":"\t","2c":"<SPACE>","2d":"-","2e":"=","2f":"[","30":"]","31":"\\","32":"<NON>","33":";","34":"'","35":"<GA>","36":",","37":".","38":"/","39":"<CAP>","3a":"<F1>","3b":"<F2>", "3c":"<F3>","3d":"<F4>","3e":"<F5>","3f":"<F6>","40":"<F7>","41":"<F8>","42":"<F9>","43":"<F10>","44":"<F11>","45":"<F12>"}

shiftKeys = {"04":"A", "05":"B", "06":"C", "07":"D", "08":"E", "09":"F", "0a":"G", "0b":"H", "0c":"I", "0d":"J", "0e":"K", "0f":"L", "10":"M", "11":"N", "12":"O", "13":"P", "14":"Q", "15":"R", "16":"S", "17":"T", "18":"U", "19":"V", "1a":"W", "1b":"X", "1c":"Y", "1d":"Z","1e":"!", "1f":"@", "20":"#", "21":"$", "22":"%", "23":"^","24":"&","25":"*","26":"(","27":")","28":"<RET>","29":"<ESC>","2a":"<DEL>", "2b":"\t","2c":"<SPACE>","2d":"_","2e":"+","2f":"{","30":"}","31":"|","32":"<NON>","33":"\"","34":":","35":"<GA>","36":"<","37":">","38":"?","39":"<CAP>","3a":"<F1>","3b":"<F2>", "3c":"<F3>","3d":"<F4>","3e":"<F5>","3f":"<F6>","40":"<F7>","41":"<F8>","42":"<F9>","43":"<F10>","44":"<F11>","45":"<F12>"}

def main():
    # check argv
    if len(sys.argv) != 2:
        print("Usage : ")
        print("        python UsbKeyboardHacker.py data.pcap")
        print("Tips : ")
        print("        To use this python script , you must install the tshark first.")
        print("        You can use `sudo apt-get install tshark` to install it")
        print("Author : ")
        print("        WangYihang <wangyihanger@gmail.com>")
        print("        If you have any questions , please contact me by email.")
        print("        Thank you for using.")
        exit(1)

    # get argv
    pcapFilePath = sys.argv[1]

    # get data of pcap
    os.system("tshark -r %s -T fields -e usb.capdata 'usb.data_len == 8' > %s" % (pcapFilePath, DataFileName))

    # read data
    with open(DataFileName, "r") as f:
        for line in f:
            presses.append(line[0:-1])
    # handle
    result = ""
    for press in presses:
        if press == '':
            continue
        if ':' in press:
            Bytes = press.split(":")
        else:
            Bytes = [press[i:i+2] for i in range(0, len(press), 2)]
        if Bytes[0] == "00":
            if Bytes[2] != "00" and normalKeys.get(Bytes[2]):
                result += normalKeys[Bytes[2]]
        elif int(Bytes[0],16) & 0b10 or int(Bytes[0],16) & 0b100000: # shift key is pressed.
            if Bytes[2] != "00" and normalKeys.get(Bytes[2]):
                result += shiftKeys[Bytes[2]]
        else:
            print("[-] Unknow Key : %s" % (Bytes[0]))
    print("[+] Found : %s" % (result))

    # clean the temp data
    os.system("rm ./%s" % (DataFileName))


if __name__ == "__main__":
    main()

手柄流量

2020西湖论剑-yusa_yyds

WIFI

aircrack-ng

爆破wifi或解密wifi密码

wifi流量是加密的需要使用此工具进行解密

题目:陇剑杯-Wifi

TCP的流量是加密传输，HTTP是明文传输，所以如果同时有tcp和http的流量，建议tcp和http流量一起看

PDU短信协议

0011000D9开头编码 在线解析网站tool.letmetellyou.xyz/pdu/
