理解读写锁-ReentrantReadWriteLock本文理解读写锁(ReentrantReadWriteLock),

本文理解读写锁(ReentrantReadWriteLock),理解共享锁获取机制，包括写锁的获取与释放、读锁的获取与释放，以及锁降级机制。

简介

目前我们知道的锁，无非是Synchronized和ReentrantLock，他们都是独占式锁，以阻塞的方式实现同步。我们知道只有写操作才会造成线程安全问题，但是大多业务场景下，读业务远远大于些业务，而且读是没有线程安全性问题的，如果我们对每一个执行读业务的线程都加锁，显然效率是不高的。

读写锁就是解决这样的问题的，对于读锁可以多次被不同线程获取，即是共享锁，但是对于写锁所有线程都会阻塞，即是独占锁。

ReenTrantReadWriteLock本身没有实现Lock接口，而是内聚了ReadLock和WriterLock，然后提供获取和释放读写锁的方法。

支持重入性
分别使用低16位和高16位表示写锁和读锁重入次数

写锁

写锁的获取

tryAcquire()

ReentrantReadWriteLock.sync.tryAcquire()

protected final boolean tryAcquire(int acquires) {
    /*
     * Walkthrough:
     * 1. If read count nonzero or write count nonzero
     *    and owner is a different thread, fail.
     * 2. If count would saturate, fail. (This can only
     *    happen if count is already nonzero.)
     * 3. Otherwise, this thread is eligible for lock if
     *    it is either a reentrant acquire or
     *    queue policy allows it. If so, update state
     *    and set owner.
     */
    //获取当前线程
    Thread current = Thread.currentThread();
    //获取同步状态
    int c = getState();
    //计算写锁被获取次数，以下有介绍
    int w = exclusiveCount(c);
    if (c != 0) {
        // (Note: if c != 0 and w == 0 then shared count != 0)
        //同步状态被读锁获取，阻塞进入同步队列
        if (w == 0 || current != getExclusiveOwnerThread())
            return false;
        //如果写锁获取次数达上限 65536  抛出异常
        if (w + exclusiveCount(acquires) > MAX_COUNT)
            throw new Error("Maximum lock count exceeded");
        // Reentrant acquire
        //写锁重入    w != 0 && current == getExclusiveOwnerThread()
        setState(c + acquires);
        return true;
    }
    //写锁是否阻塞
    if (writerShouldBlock() ||
        !compareAndSetState(c, c + acquires))
        return false;
    //写锁不阻塞，设置当前线程为同步状态拥有者，并返回true
    setExclusiveOwnerThread(current);
    return true;
}

写锁是否应该阻塞：

①对于非公平锁，writerShouldBlock()返回false，如果cas成功则获取写锁，如果cas失败则阻塞。
②对于公平锁，需要看同步队列是否有其他节点，

如果有，writerShouldBlock()返回true，则直接阻塞。
如果没有，writerShouldBlock()则返回false，当cas成功获取得到写锁。

接下来阻塞就入队进行自旋，不阻塞就执行。

总结：对于写锁获取的过程和普通独占锁获取没有区别

exclusiveCount()

//65536  =》   2^16-1
static int exclusiveCount(int c) {
    return c & EXCLUSIVE_MASK;
}

按位与运算，得到同步状态低16位的值,这里的意思是使用低16位来表示读锁的同步状态。其实在hashMap中也有类似用法，用来表示除一个二的幂次方数取余的。

writerShouldBlock

对于非公平锁：写锁不应该阻塞，但是cas失败的话，也就是获取写锁的过程中其他线程修改了同步状态，还是会阻塞。

 final boolean writerShouldBlock() {
     return false; // writers can always barge
 }

对于公平锁，当同步队列存在节点时阻塞，不存在节点不应该阻塞，同时结合cas操作结果判断是否阻塞。

 final boolean writerShouldBlock() {
       return hasQueuedPredecessors();
 }

写锁释放锁

tryRelease

 protected final boolean tryRelease(int releases) {
     //判断当前线程是否是同步状态拥有者
     if (!isHeldExclusively())
         throw new IllegalMonitorStateException();
     //同步状态减一
     int nextc = getState() - releases;
     //写锁被获取次数是否为0（是否被释放完全）。
     boolean free = exclusiveCount(nextc) == 0;
     if (free)
         setExclusiveOwnerThread(null);
     setState(nextc);
     return free;
 }

写锁的释放还是很简单的，简单判断①当前线程是否为同步状态拥有者②写锁是否完全释放，然后修改同步状态和同步状态拥有者即可。

总结

关于写锁：
①写锁是独占式锁，获取锁的过程是互斥的
②写锁通过低16位表示写锁的同步状态
③由于写锁是独占式锁，同步状态亦可表示重入次数

读锁

读锁的获取

首先我们了解几个变量：

firstReader 首个读锁拥有者的线程
firstReaderHoldCount 首个读锁拥有者线程重入次数
cachedHoldCounter 缓存上一个线程id和重入次数
readHolds 提供访问ThreadLocalMap的实例

引入前3个实际上是缓存，减少对readHolds的访问，即减少了查找ThreadLocalMap的次数，提升了速度。

cachedHoldCounter也类似，它用缓存上一个成功获取读锁的线程的HoldCounter对象，HoldCounter对象里面存了线程的ID和重入次数。它缓存的至少是第二个成功获取读锁线程的HoldCounter，因为第一个线程的重入信息缓存在firstReader、firstReaderHoldCounter中了。

读锁是一个共享锁

public void lock() {
    sync.acquireShared(1);
}

tryAcquireShared

protected final int tryAcquireShared(int unused) {
    /*
     * Walkthrough:
     * 1. If write lock held by another thread, fail.
     * 2. Otherwise, this thread is eligible for
     *    lock wrt state, so ask if it should block
     *    because of queue policy. If not, try
     *    to grant by CASing state and updating count.
     *    Note that step does not check for reentrant
     *    acquires, which is postponed to full version
     *    to avoid having to check hold count in
     *    the more typical non-reentrant case.
     * 3. If step 2 fails either because thread
     *    apparently not eligible or CAS fails or count
     *    saturated, chain to version with full retry loop.
     */
            //1.如果其他线程拥有了写锁，获取共享锁失败
            //2.如果没有写锁，就代表可以获取共享锁，不过要现判断是否应该进行阻塞（由于队列策略）
            //	并且通过CAS的方法更新同步状态，更新成功就代表获取锁成功
            //3.如果获取共享锁失败，代表CAS失败或者共享锁数量满了

    Thread current = Thread.currentThread();
    int c = getState();
    //如果存在写锁获取了同步状态且当前线程不是同步状态的拥有者(不是锁降级) 则获取锁失败
    if (exclusiveCount(c) != 0 &&
        getExclusiveOwnerThread() != current)
        return -1;
    //获取读锁被获取次数
    int r = sharedCount(c);
    //①如果读锁应该被阻塞
    ②读锁被获取次数达到上限
    ③或cas失败
    则进行"完全获取共享锁"
    if (!readerShouldBlock() &&
        r < MAX_COUNT &&
        compareAndSetState(c, c + SHARED_UNIT)) {
        //读锁被首次获取，记录线程和首次重入次数
        if (r == 0) {
            firstReader = current;
            firstReaderHoldCount = 1;
        } else if (firstReader == current) {
            //首个获取读锁线程  重入就加一
            firstReaderHoldCount++;
        } else {
            //不是首次获取读锁，也不是首个重入，那么就是一个新的获取读锁的线程
            //需要维护一个HoldCounter对象
            HoldCounter rh = cachedHoldCounter;
            //①rh为null：第二个获取读锁的线程，初始化cache,并记录在readHolds里
            //②不是重入，更新cache,并记录在readHolds里
            if (rh == null || rh.tid != getThreadId(current))
                cachedHoldCounter = rh = readHolds.get();
            //什么情况下会走这个判断：rh！=null and  rh.tid==getThreadId(current) and rh.count == 0
            //什么情况会走这里？当前线程释放读锁后再次获取读锁且获取成功，重新将cachedHoldCounter放回readHolds里
            else if (rh.count == 0)
                readHolds.set(rh);
            //当前读锁重入次数加一（①重入②初始值加一）
            rh.count++;
        }
        return 1;
    }
    //cas失败时 进行自旋
    return fullTryAcquireShared(current);
}

读锁的获取相对复杂：

①如果同步状态已经被写锁获取且当前线程不是同步状态的拥有者（即不是锁降级或重入），就进行入队操作

②readerShouldBlock()返回false，也就是读锁不应该被阻塞、写锁被获取次数未达上限且cas成功，则获取读锁成功。（这里分首次获取读锁和第二次以后获取读锁，readerShouldBlock也在下文说明）

③readerShouldBlock()返回true，也就是读锁应该被阻塞，执行fullTryAcquireShared()方法,如果返回-1，进行入队操作。如果返回1则成功获取锁

不晓得各位有没有这样一个疑问？何时走下面的判断？

 else if (rh.count == 0)
                 readHolds.set(rh);

什么情况下是这样的？：rh！=null and rh.tid==getThreadId(current) and rh.count == 0

cacheHolerCounter不是null，也就是第二个即之后的线程获取读锁，rh.tid==getThreadId(current)此条件是重入那么count至少为1吧。但是最后一个条件为count == 0。思考良久，掉了十根头发，结果就是下面的例子，各位在int i = 0初打断点，debug查看。

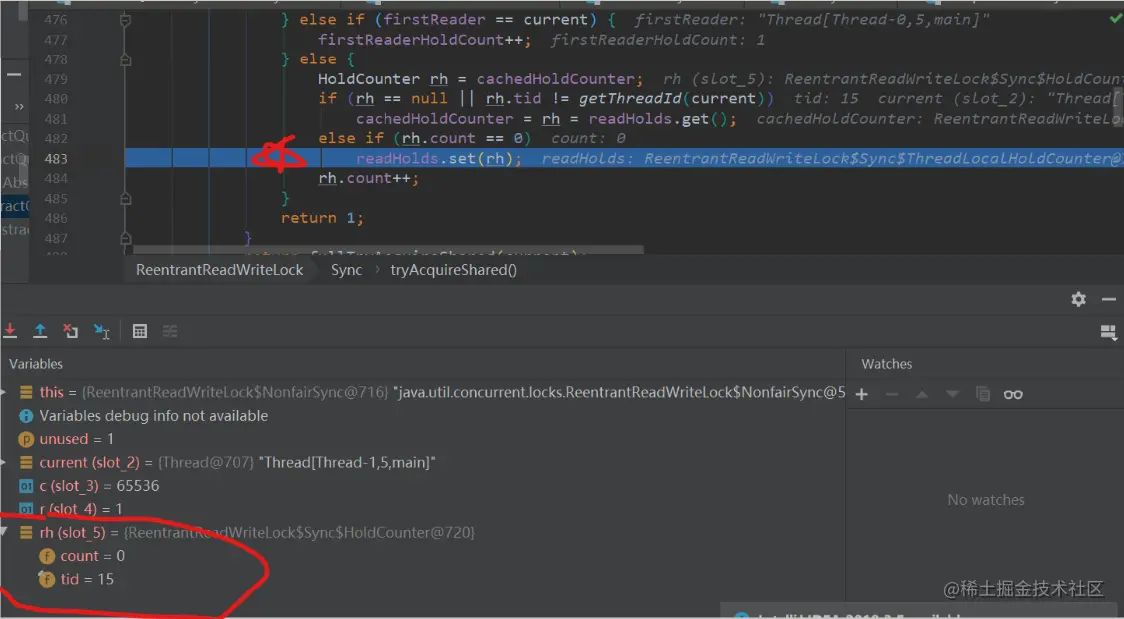

测试：

 class readHoldsTest{
     private static ReadWriteLock readWriteLock = new ReentrantReadWriteLock();
     private static Lock readLock = readWriteLock.readLock();
     public static void main(String[] args) {
         new Thread(()-> {
             readLock.lock();
             //获取读锁死循环  模拟占用firstReader
             while (true);
         }).start();
         new Thread(()-> {
             try {
                 readLock.lock();
                 //第二次获取读锁
                 System.out.println("第二次获取读锁");
             }finally {
                 System.out.println("释放读锁");
                 readLock.unlock();
             }
             int i = 0;
             try {
                 readLock.lock();
                 //释放锁后再次获取
                 System.out.println("释放锁后再次获取");
             }finally {
                 System.out.println("释放读锁");
                 readLock.unlock();
             }
         }).start();
     }
 }

doAcquireShared：

读锁的入队操作

private void doAcquireShared(int arg) {
    //添加可共享节点到同步队列
    final Node node = addWaiter(Node.SHARED);
    boolean failed = true;
    try {
        boolean interrupted = false;
        //自旋
        for (;;) {
            //获取当前节点前驱节点
            final Node p = node.predecessor();
            if (p == head) {
                //如果前驱节点为头结点且可以获取同步状态，获取(共享锁)读锁成功
                int r = tryAcquireShared(arg);
                if (r >= 0) {
                    setHeadAndPropagate(node, r);
                    p.next = null; // help GC
                    if (interrupted)
                        selfInterrupt();
                    failed = false;
                    return;
                }
            }
            if (shouldParkAfterFailedAcquire(p, node) &&
                parkAndCheckInterrupt())
                interrupted = true;
        }
    } finally {
        if (failed)
            cancelAcquire(node);
    }
}

入队操作和普通锁一样，只不过往同步队列添加的是共享节点。

readerShouldBlock()方法：

作为公平锁：和写锁是一样的，如果同步队列有节点的话就阻塞

final boolean readerShouldBlock() {
    return hasQueuedPredecessors();
}

public final boolean hasQueuedPredecessors() {
    // The correctness of this depends on head being initialized
    // before tail and on head.next being accurate if the current
    // thread is first in queue.
    Node t = tail; // Read fields in reverse initialization order
    Node h = head;
    Node s;
    return h != t &&
        ((s = h.next) == null || s.thread != Thread.currentThread());
}

作为非公平锁：

当头结点的后驱节点不是共享节点时阻塞，也就是是写锁时阻塞

final boolean apparentlyFirstQueuedIsExclusive() {
    Node h, s;
    return (h = head) != null &&
        (s = h.next)  != null &&
        !s.isShared()         &&
        s.thread != null;
}

fullTryAcquireShared

完全尝试获取共享锁。

final int fullTryAcquireShared(Thread current) {
    /*
     * This code is in part redundant with that in
     * tryAcquireShared but is simpler overall by not
     * complicating tryAcquireShared with interactions between
     * retries and lazily reading hold counts.
     */
    //从第二个获取读锁的线程开始，每一个线程都需要维护一个HoldCounter对象，cachedHoldCounter缓存上一个线程的HoldCounter
    HoldCounter rh = null;
    //自旋
    for (;;) {
        int c = getState();
        if (exclusiveCount(c) != 0) {
            if (getExclusiveOwnerThread() != current)
                return -1;
            // else we hold the exclusive lock; blocking here
            // would cause deadlock.
        } else if (readerShouldBlock()) {
            // Make sure we're not acquiring read lock reentrantly
            if (firstReader == current) {
                // assert firstReaderHoldCount > 0;
                //首个读锁重入  啥都不做，都在下面做
            } else {
                if (rh == null) {
                    //读取上一个线程的缓存信息，用于判断是否重入
                    rh = cachedHoldCounter;
                    //①rh为null：第二个获取读锁的线程，初始化cache
		    //②不是重入，重置cache
                    if (rh == null || rh.tid != getThreadId(current)) {
                        //更新缓存
                        rh = readHolds.get();
                        if (rh.count == 0)
                            //移除  线程value
                            readHolds.remove();
                    }
                }
                if (rh.count == 0)
                    return -1;
            }
        }
        if (sharedCount(c) == MAX_COUNT)
            throw new Error("Maximum lock count exceeded");
        if (compareAndSetState(c, c + SHARED_UNIT)) {
            if (sharedCount(c) == 0) {
                firstReader = current;
                firstReaderHoldCount = 1;
            } else if (firstReader == current) {
                firstReaderHoldCount++;
            } else {
                if (rh == null)
                    rh = cachedHoldCounter;
                if (rh == null || rh.tid != getThreadId(current))
                    rh = readHolds.get();
                else if (rh.count == 0)
                    readHolds.set(rh);
                rh.count++;
                cachedHoldCounter = rh; // cache for release
            }
            return 1;
        }
    }
}

读锁释放

protected final boolean tryReleaseShared(int unused) {
    Thread current = Thread.currentThread();
    //如果当前线程  是首个获取读锁的线程
    if (firstReader == current) {
        // assert firstReaderHoldCount > 0;
        if (firstReaderHoldCount == 1)
            firstReader = null;
        else
            firstReaderHoldCount--;
    } else {
        //如果当前线程不是首个读锁拥有者  获取HoldCounter对象
        HoldCounter rh = cachedHoldCounter;
        if (rh == null || rh.tid != getThreadId(current))
            //如果满足条件，去readHolds里获取HoldCounter对象 移除线程信息并计数器置位0
            rh = readHolds.get();
        //否则就是释放锁（重入次数）
        int count = rh.count;
        if (count <= 1) {
            readHolds.remove();
            if (count <= 0)
                throw unmatchedUnlockException();
        }
        --rh.count;
    }
    //自旋cas操作
    for (;;) {
        //将同步状态高16位置位0
        int c = getState();
        int nextc = c - SHARED_UNIT;
        if (compareAndSetState(c, nextc))
            // Releasing the read lock has no effect on readers,
            // but it may allow waiting writers to proceed if
            // both read and write locks are now free.
            return nextc == 0;
    }
}

锁降级

读写锁支持锁降级，遵循按照获取写锁，获取读锁再释放写锁的次序，写锁能够降级成为读锁，不支持锁升级，关于锁降级下面的示例代码摘自ReentrantWriteReadLock源码中：

void processCachedData() {
        rwl.readLock().lock();
        if (!cacheValid) {
            // Must release read lock before acquiring write lock
            rwl.readLock().unlock();
            rwl.writeLock().lock();
            try {
                // Recheck state because another thread might have
                // acquired write lock and changed state before we did.
                if (!cacheValid) {
                    data = ...
            cacheValid = true;
          }
          // Downgrade by acquiring read lock before releasing write lock
          rwl.readLock().lock();
        } finally {
          rwl.writeLock().unlock(); // Unlock write, still hold read
        }
      }
      try {
        use(data);
      } finally {
        rwl.readLock().unlock();
      }
    }
}

这是源码中的例子，需要注意的是获取写锁之前一定要先释放读锁。

关于锁降级在源码中也有说明，也就是获读锁时①存在线程获取了写锁②当前线程不是同步状态用有者需要同时满足这两个条件才会返回-1，也就是获取读锁失败。

那么如果我们在获取了写锁的线程内去获取读锁会怎样？这就是锁降级

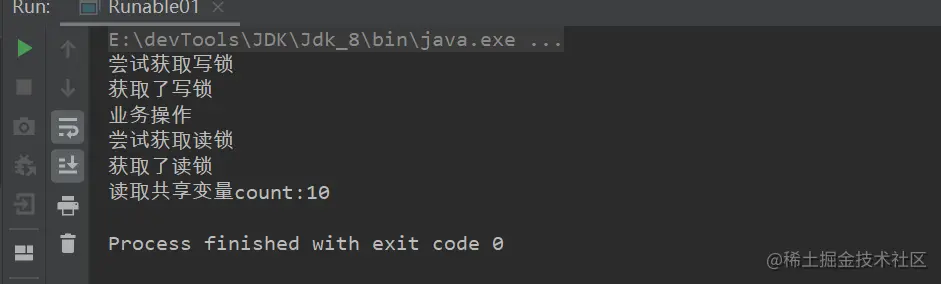

测试：

class Runable01 implements Runnable {
    private static ReadWriteLock readWriteLock = new ReentrantReadWriteLock();
    private static Lock readLock = readWriteLock.readLock();
    private static Lock writeLock = readWriteLock.writeLock();
    //共享数据
    private static int count = 0;
    @Override
    public void run() {
        try {
            System.out.println("尝试获取写锁");
            writeLock.lock();
            System.out.println("获取了写锁");
            System.out.println("业务操作");
            do Thread.sleep(500); while (++count < 10);
            try {
                System.out.println("尝试获取读锁");
                readLock.lock();
                System.out.println("获取了读锁");
                System.out.println("读取共享变量" + "count:" + count);
            } finally {
                //释放写锁，线程锁降级为读锁
                writeLock.unlock();
            }
        } catch (InterruptedException e) {
            e.printStackTrace();
        } finally {
            readLock.unlock();
        }
    }
    public static void main(String[] args) {

        new Thread(new Runable01()).start();
    }
}

锁降级针对的是线程拥有锁的类型，而不是锁的性质发生变化。
锁降级顺序：获取写锁 -----> 获取读锁------> 释放写锁

获取读锁操作在释放写锁操作之前是为了保证在同一个线程内完成此操作，因为as if seriel 保证了单线程的内存可见性。

如果说是这样的顺序：获取写锁 -----> 释放写锁------> 获取读锁
这样就是普通的锁竞争了，你无法保证，一定可以获取读锁。

例子

写锁被当前线程获取，其他线程阻塞

写锁+写锁

//模拟读锁被获取，其他锁阻塞
public static void main(String[] args) {
    ReadWriteLock readWriteLock  = new ReentrantReadWriteLock();
    Lock writeLock = readWriteLock.writeLock();
    new Thread(()->{
        try {
            System.out.println(Thread.currentThread().getName()+"尝试获取写锁");
            //当前线程获取写锁  其他线程阻塞
            writeLock.lock();
            System.out.println(Thread.currentThread().getName()+"获取了写锁");
            System.out.println("睡5秒 在此过程其他线程阻塞");
            Thread.sleep(5000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }finally {
            System.out.println(Thread.currentThread().getName() + "释放写锁");
            writeLock.unlock();
        }
    }).start();

    new Thread(()->{
        try {
            System.out.println(Thread.currentThread().getName()+"尝试获取写锁");
            //当前线程阻塞
            writeLock.lock();
            System.out.println(Thread.currentThread().getName()+"获取了写锁");
        }finally {
             System.out.println(Thread.currentThread().getName() + "释放写锁");
            writeLock.unlock();
        }
    }).start();
}

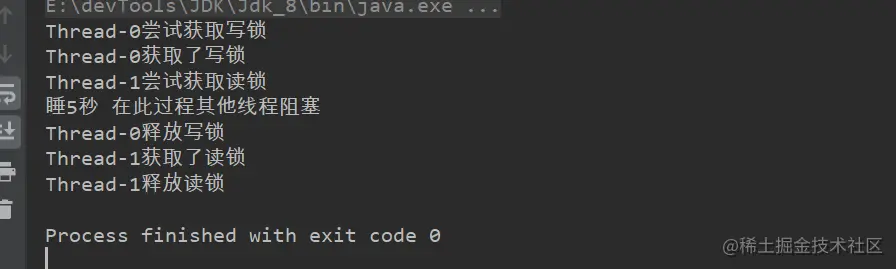

写锁+读锁

//模拟读锁被获取，其他锁阻塞
public static void main(String[] args) {
    ReadWriteLock readWriteLock = new ReentrantReadWriteLock();
    Lock readLock = readWriteLock.readLock();
    Lock writeLock = readWriteLock.writeLock();

    new Thread(() -> {
        try {
            System.out.println(Thread.currentThread().getName() + "尝试获取写锁");
            //当前线程获取写锁  其他线程阻塞
            writeLock.lock();
            System.out.println(Thread.currentThread().getName() + "获取了写锁");
            System.out.println("睡5秒 在此过程其他线程阻塞");
            Thread.sleep(5000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        } finally {
            System.out.println(Thread.currentThread().getName() + "释放写锁");
            writeLock.unlock();
        }
    }).start();

    new Thread(() -> {
        try {
            System.out.println(Thread.currentThread().getName() + "尝试获取读锁");
            //当前线程阻塞
            readLock.lock();
            System.out.println(Thread.currentThread().getName() + "获取了读锁");
        } finally {
            System.out.println(Thread.currentThread().getName() + "释放读锁");

            readLock.unlock();
        }
    }).start();
}

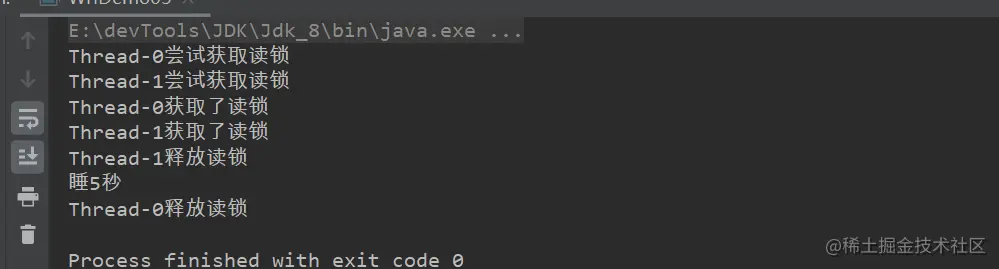

读锁+读锁不会阻塞

public static void main(String[] args) {
    ReadWriteLock readWriteLock = new ReentrantReadWriteLock();
    Lock readLock = readWriteLock.readLock();
    Lock writeLock = readWriteLock.writeLock();
    new Thread(() -> {
        try {
            System.out.println(Thread.currentThread().getName() + "尝试获取读锁");
            //当前线程获取读锁
            readLock.lock();
            System.out.println(Thread.currentThread().getName() + "获取了读锁");
            System.out.println("睡5秒");
            Thread.sleep(5000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        } finally {
            System.out.println(Thread.currentThread().getName() + "释放读锁");

            readLock.unlock();
        }
    }).start();
    new Thread(() -> {
        try {
            System.out.println(Thread.currentThread().getName() + "尝试获取读锁");
            readLock.lock();
            System.out.println(Thread.currentThread().getName() + "获取了读锁");
        } finally {
            System.out.println(Thread.currentThread().getName() + "释放读锁");
            readLock.unlock();
        }
    }).start();
}

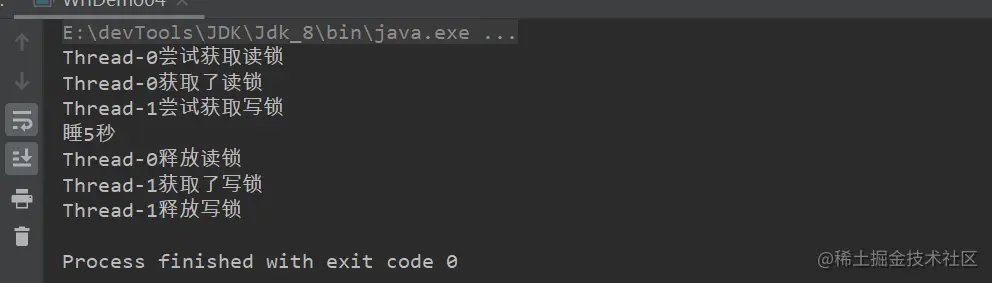

读锁＋写锁

会阻塞，也说明了一点，获取写锁之前一定要释放写锁。源码也可以看出，如果有线程获取了读锁，且当前线程不是同步状态拥有者，那么就会阻塞进入同步队列。

class WrlDemo04 {
    public static void main(String[] args) {
        ReadWriteLock readWriteLock = new ReentrantReadWriteLock();
        Lock readLock = readWriteLock.readLock();
        Lock writeLock = readWriteLock.writeLock();
        new Thread(() -> {
            try {
                System.out.println(Thread.currentThread().getName() + "尝试获取读锁");
                //当前线程获取读锁
                readLock.lock();
                System.out.println(Thread.currentThread().getName() + "获取了读锁");
                Thread.sleep(5000);
                System.out.println("睡5秒");
            } catch (InterruptedException e) {
                e.printStackTrace();
            } finally {
                System.out.println(Thread.currentThread().getName() + "释放读锁");

                readLock.unlock();
            }
        }).start();

        new Thread(() -> {
            try {
                System.out.println(Thread.currentThread().getName() + "尝试获取写锁");
                writeLock.lock();
                System.out.println(Thread.currentThread().getName() + "获取了写锁");
            } finally {
                System.out.println(Thread.currentThread().getName() + "释放写锁");
                writeLock.unlock();
            }
        }).start();
    }
}

理解读写锁-ReentrantReadWriteLock

简介

写锁
