07-移动Web-D7-响应式布局

145 阅读2分钟

Ⅰ. 响应式布局

一套代码,可在pc端运行,也可在移动端运行,并体验都不错

一.实现原理

根据屏幕宽度不同 去使用不同的css

(1) 媒体查询

① 写法

  1. 简洁写法
@media (width:400px){
  body{
    background-color: blue;
  }
}
  1. 常见写法(推荐)
@media screen and (width:400px) {
  body{
    background-color: yellow;
  }
}

② 应用:区间选择

  1. 小于:max-width
@media screen and (max-width: 100px) {
  body {
    background-color: red;
  }
  1. 大于:min-width
@media screen and (min-width: 500px) {
  body {
    background-color: green;
  }
  1. 范围
@media screen and (min-width: 300px) and (max-width: 500px) {
  body {
    background-color: yellow;
  }
}

二.bootstrap-框架应用体验

基于 HTML、CSS、JAVASCRIPT 的用于快速开发 Web 应用程序和网站的前端响应式框架

(1) 优缺点

① 优点

  • 为开发人员创建借口提供一个简介统一的解决方案
  • 包含了功能强大的内置组件,易于定制
  • 提供基于Web的定制
  • 开源

② 缺点

  • 面对复杂界面,需大量重写代码,不便于维护
  • CSS内容多,容易造成宽带浪费

(2) 核心知识:栅格系统

① 系统划分的四种屏幕宽度

  1. 大屏幕:lg(large) >1200px
  2. 中等屏幕:md(middle)992px-1200px
  3. 小屏幕:sm(small)768px-992px
  4. 极小屏幕:xs(extra small)<768px

② 系统固定用法

  1. 外出写 'container' 类名(*container-fluid [全屏] ,按需选择)

  2. 里面写 'row' 类名

  3. 根据需求写每行显示几个元素(*默认一行划分12份)

代码示范

<div class="container">
  <div class="row">
    <!-- 在大屏幕下 每一列 占2份 -->
    <div class="col-lg-2">1</div>
    <div class="col-lg-2">2</div>
    <div class="col-lg-2">3</div>
    <div class="col-lg-2">4</div>
    <div class="col-lg-2">5</div>
    <div class="col-lg-2">6</div>
  </div>
</div>

③ 系统特性

  1. 如果一行超过了12份,和浮动的特性一样,往下掉
  2. .container 居中的版心宽度会跟随屏幕宽度的变化而变化

(3) 应用步骤

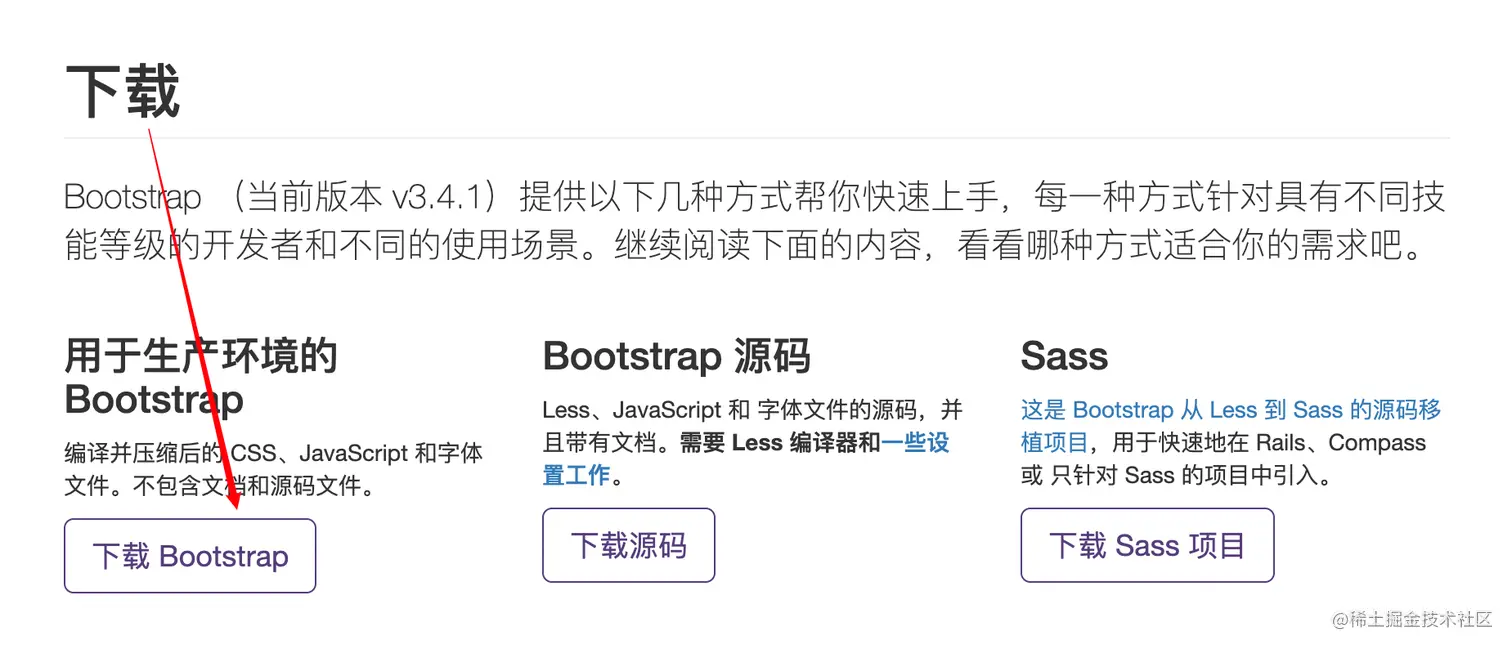

① 获取资源

  1. 进入官网下载页面:v3.bootcss.com/getting-sta…
  2. 下载资源!


② 引入步骤

  1. 引入bootstrap css文件
<link rel="stylesheet" href="./lib/bootstrap/css/bootstrap.css">
  1. 引入jquery.js
<script src="./lib/jquery.js"></script>
  1. 引入bootstrap.js
<script src="./lib/bootstrap/js/bootstrap.js"></script>
  1. 根据需求寻找相应模块并按需修改
  • 示例:导航条

截屏2022-03-29 下午4.39.54.png

截屏2022-03-29 下午4.45.54.png
