页面适配

布局单位

  1. vw,vh 相对视口大小的百分比大小
  2. px:固定单位 不会随着视口大小改变而改变 不会随着设备屏幕尺寸的大小改变而改变
  3. em,rem:相对单位
    • em:相对父元素的 font-size 的大小

      1em == 父元素的 font-size

      2em == 2 * 父元素的 font-size

    • rem:相对于根(html)的 font-size 大小

      1rem == html 的 font-size 大小

      2rem == 2 _ html 的 font-size 大小

自适应布局

淘宝自适应方案:淘宝无限适配

UI 设计图多大:移动端宽度 750px ; PC 端宽度 1920px

前端调试项目以 iPhone6 为基准 宽度 375px

淘宝自适应原理:

html 的 font-size 大小=1rem,因此可以通过改变 html 的 font-size 大小改变所有使用 rem 单位的元素大小 html 的 font-size 初始为 100px,即 100px=1rem。

那么 1px=0.01rem 方便计算当视口变小时,等比缩小 html 的 font-size,即等比缩小 1rem,即等比缩小所有使用 rem 单位的元素在缩小过程中,浏览器字体最小为 12px,当字体大小缩小到 12px 的时候不会继续缩小

实战演练

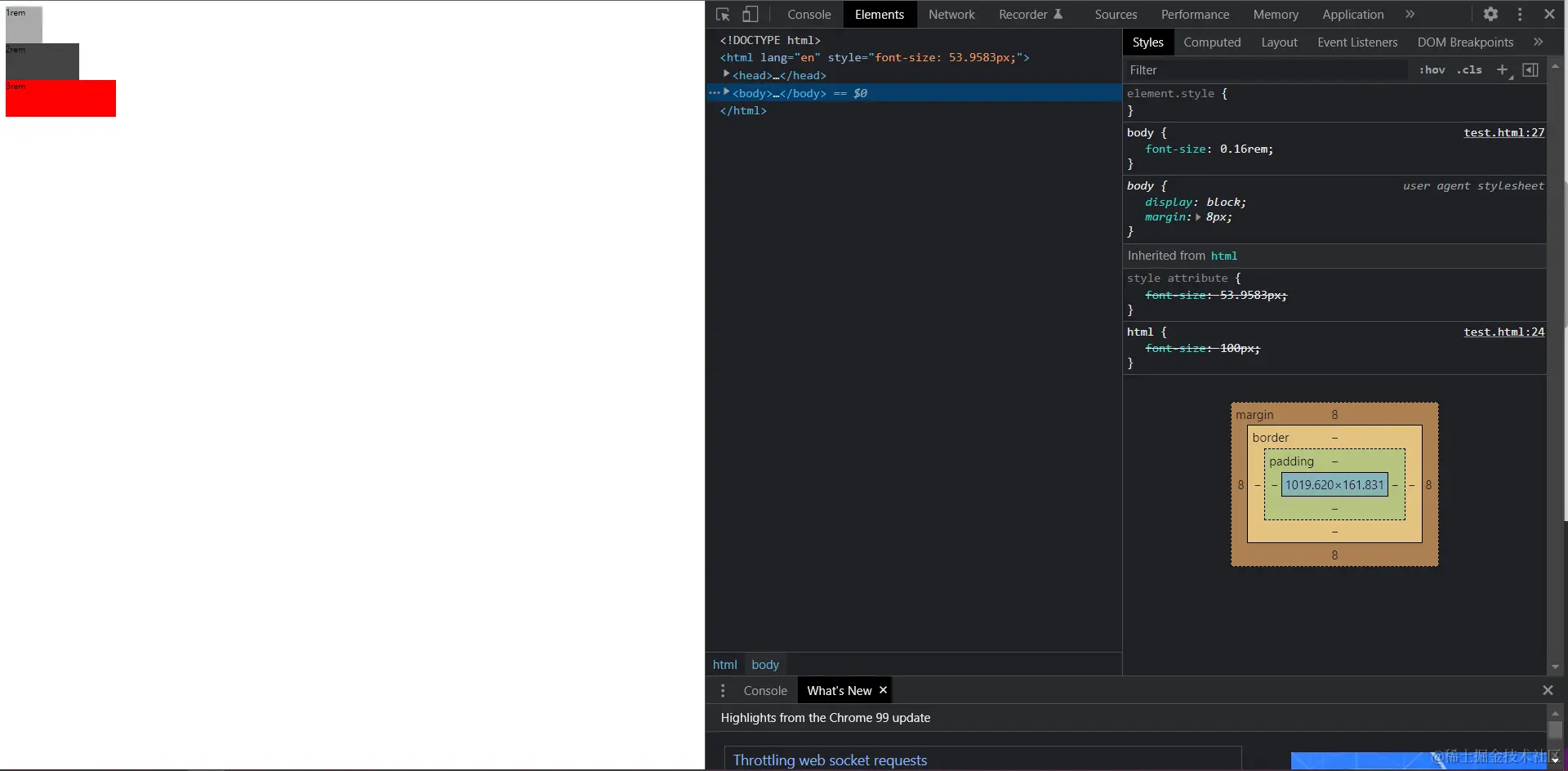

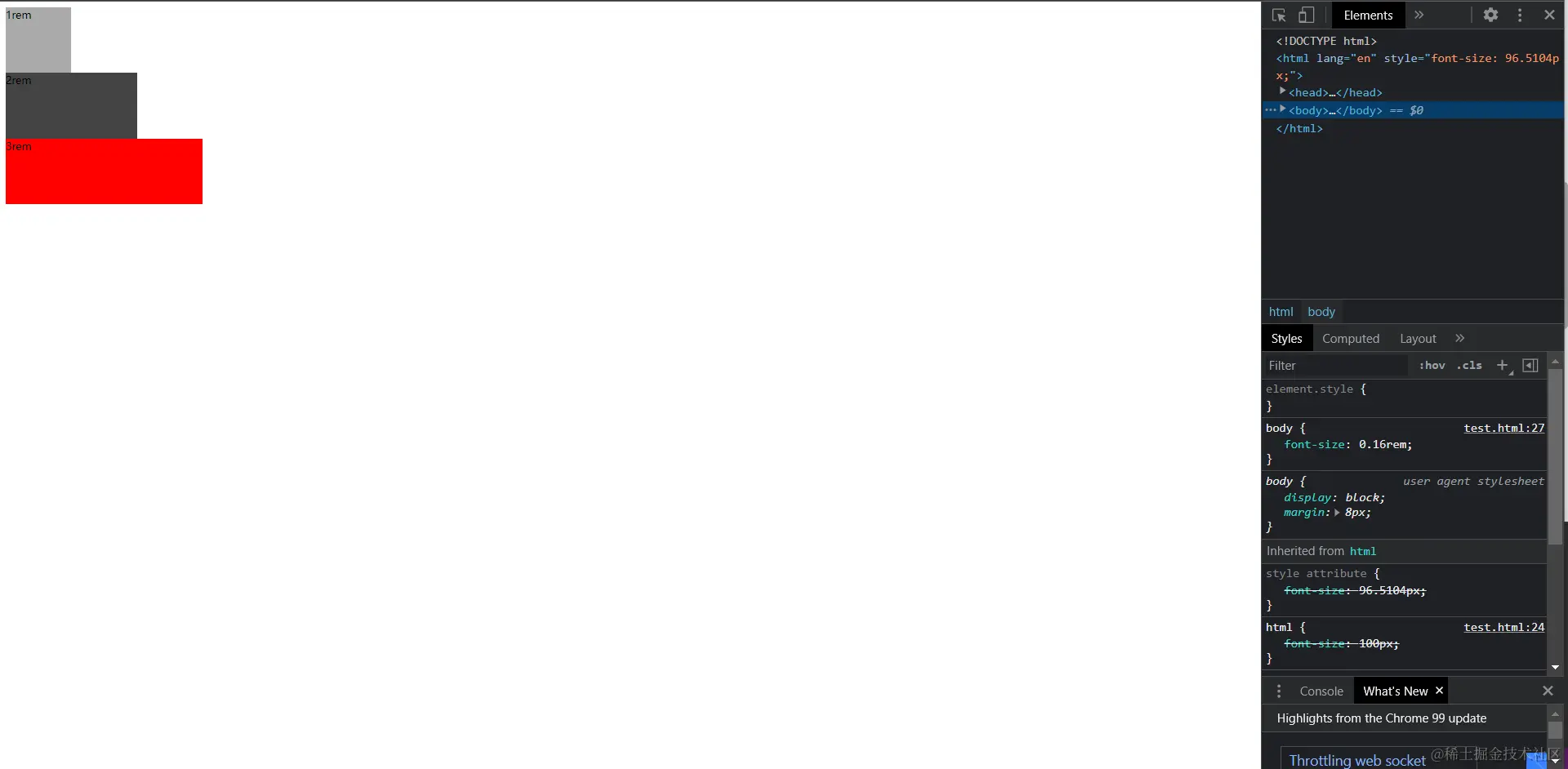

效果展示: Snipaste_2022-03-31_16-38-00.png


<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>Document</title>
  </head>
  <body>
    <div class="box">1rem</div>
    <div class="box1">2rem</div>
    <div class="box2">3rem</div>
    <script type="text/javascript">
      window.onresize = function () {
        // let designSize = 1920; // PC端设计图尺寸
        let designSize = 750 // 移动端设计图尺寸
        let html = document.documentElement // html节点
        let wW = html.clientWidth // 视口宽度
        let rem = (wW * 100) / designSize // 计算1rem为多少px
        document.documentElement.style.fontSize = rem + 'px' //将计算出的1rem的大小设置给html的font-size
      }
    </script>
    <style>
      html {
        font-size: 100px;
      }
      body {
        font-size: 0.16rem;
      }
      .box {
        width: 1rem;
        height: 1rem;
        background: #aaa;
      }
      .box1 {
        width: 2rem;
        height: 1rem;
        background: #444;
      }
      .box2 {
        width: 3rem;
        height: 1rem;
        background: red;
      }
    </style>
  </body>
</html>
