解决问题
解决活动页面白屏问题
设计思路

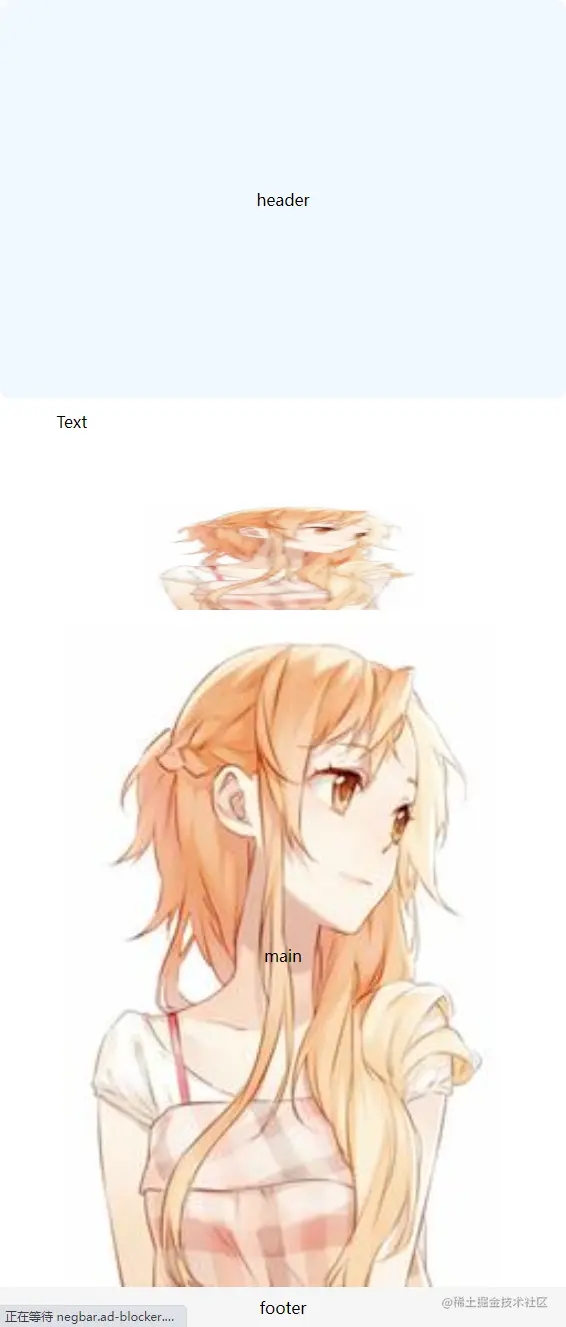

假设这是个活动页面

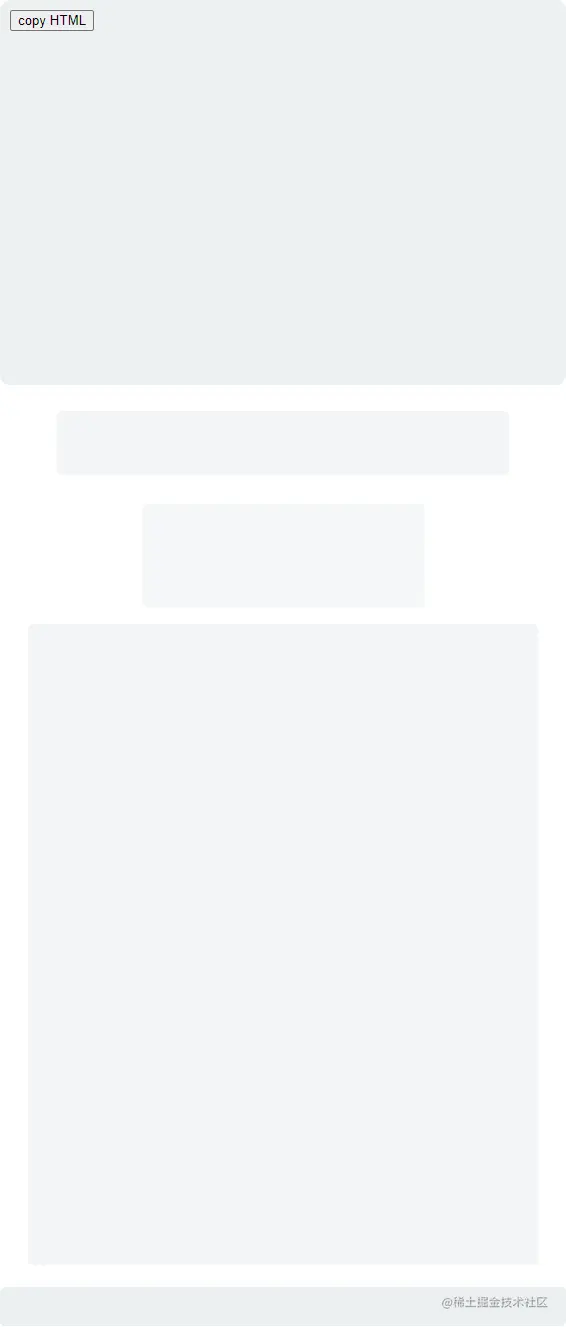

目标生成这样的骨架屏，通过 copy 按钮复制 HTML 代码插入到页面中
目标
- 执行方法时分析页面节点，挑选白名单节点
- 递归处理节点
- 将节点绘制到页面中
- 点击按钮复制骨架屏代码
util.js
const animationConf = {
loading: {
keyframe: 'loading { to { background-position-x: -20%; } }',
needDelay: false,
styles: {
backgroundColor: '#ecf0f2',
background: 'linear-gradient( 100deg, rgba(255, 255, 255, 0) 40%, rgba(255, 255, 255, .5) 50%, rgba(255, 255, 255, 0) 60% ) #ecf0f2',
backgroundSize: '200% 100%',
backgroundPositionX: '180%',
animation: '2s loading ease-in-out infinite'
},
},
flash: {
keyframe: 'flash {from,50%,to{opacity: 1;}25%,75% {opacity: 0.5;}}',
needDelay: true,
styles: {
backgroundColor: '#ecf0f2',
animation: 'flash 3s infinite',
},
},
}
// 获取默认配置
export const getDefault = () => {
return {
include: ['audio', 'button', 'canvas', 'code', 'img', 'input', 'pre', 'svg', 'textarea', 'video'],
w: window.innerWidth,
h: window.innerHeight,
boxId: 'bone',
boxStyle: `position: fixed;width: 100%;height: 100%;background-color: #fff;top: 0;z-index: 100000;`,
delay: 0.3,
beforeCreateOption: (() => false),
styles: {
position: 'fixed',
zIndex: 1000000,
background: '#ecf0f2',
animation: 'flash 3s infinite'
}
}
}
export const useAnimation = (animation, config) => {
const animate = animationConf[animation]
config.keyframe = animate.keyframe
return { ...config.styles, ...animate.styles }
}
// 获取节点css样式
export const getStyle = el => {
if(el.nodeType !== 1) return () => ''
const computedStyle = getComputedStyle(el)
return attr => computedStyle[attr]
}
// 百分比
export const percent = (x, y) => parseFloat(x / y * 100).toFixed(3)
// 是否隐藏元素
export const isHidden = (style, node) => style('display') === 'none' || style('visibility') === 'hidden' || style('opacity') == 0 || node.hidden;
// 是否有背景图
export const hasBackgroundUrl = style => !!(style('backgroundImage').match(/url\(.+?\)/) || []).length
// 是否有背景颜色
export const hasBackgroundColor = style => !!(style('backgroundColor'))
// 是否圆角
export const hasBorderRadius = style => !!(-style('border-radius').replace('px', ''))
// 获取圆角
export const getBorderRadius = style => !hasBorderRadius(style) ? `5px` : style('border-radius')
// 获取node节点位置大小
export const getRect = node => node ? node.getBoundingClientRect() : {}
// 是否文本节点
export const isTextNode = node => node.textContent.trim().length && node.nodeType === 1 && !node.children.length
// 是否子元素为文本节点
export const hasChildText = node => [...node.children].some(item => isTextNode(item)) && node.children.length === 1
export const inWhite = (els, node) => els.includes(node.tagName.toLocaleLowerCase())
// 获取node
export const getRootNode = (el) => {
el = el || document.body
return typeof el === 'object' ? el :
(typeof el === 'string' ? document.querySelector(el): null);
}
// 获取padding
export const getPadding = style => {
return {
paddingTop: parseInt(style('paddingTop')),
paddingLeft: parseInt(style('paddingLeft')),
paddingBottom: parseInt(style('paddingBottom')),
paddingRight: parseInt(style('paddingRight'))
}
}
// 转换css属性
export const transformStyle = (str, replace='-') => {
var temp = str.replace(/[A-Z]/g, (match) => {
return replace + match.toLowerCase();
});
if(temp.slice(0,1) === replace){ //如果首字母是大写，执行replace时会多一个_，这里需要去掉
temp = temp.slice(1);
}
return temp;
}
// 绘制节点
export const drawBlock = (styles = {}) => Object.entries(styles).reduce((prev,[key, value]) => `${prev}${transformStyle(key)}:${value};`, '<div style="') + `"></div>`
// 合并配置
export const margeOptions = (option, useOption, node) => {
// 处理diy配置
const diy = useOption(node, option)
// 显示不渲染
if(diy === null || JSON.stringify(diy) === '{}') return null
const options = typeof diy === 'object' ? diy : option
return options
}
index.js
import { getDefault, useAnimation, getStyle,
percent, isHidden, hasBackgroundUrl, hasBackgroundColor,
hasBorderRadius, getBorderRadius, getRect, isTextNode,
hasChildText, inWhite, getRootNode, getPadding,
drawBlock,margeOptions } from './util'
class CreateStructure {
constructor(options = {}){
this.node = getRootNode(options.node)
// 初始化配置
this.config = {
...getDefault(),
...options
}
this.blocks = []
}
// 处理节点
deal(animate='flash'){
// 使用什么动画
useAnimation(animate, this.config)
// div数组
this.blocks = []
// 动画延迟时间
const { delay, beforeCreateOption, include } = this.config
let delayTime = 0
// 递归节点
this.deepFindNode(this.node.children, node => {
const style = getStyle(node)
// 过滤隐藏的节点
if(isHidden(style, node)) return
/**
* 绘制目标
* 1. 有背景图片的节点
* 2. 有背景颜色且有圆角的节点
* 3. 文本节点
* 4. 子节点为文本节点
* 5. 在需要绘制的标签内的节点
*/
if(
hasBackgroundUrl(style) ||
(hasBackgroundColor(style) && hasBorderRadius(style)) ||
isTextNode(node) ||
hasChildText(node) ||
inWhite(include, node)
){
// 获取默认配置
const option = this.defaultOptions(node)
// 过滤不在当前的屏幕内的元素
if(!option) return
// 判断动画是否需要延迟
option.animationDelay = delayTime + 's'
delayTime = parseInt((delayTime + delay) * 10000) / 10000
const options = margeOptions(option, beforeCreateOption, node)
if(!options) return
// 绘制每个节点
this.blocks.push(drawBlock(options))
return true
}
})
}
// 递归节点
deepFindNode(nodes=[], deal=()=>{}){
nodes = [...nodes]
if(nodes.length){
nodes.forEach(el => {
const children = el.children
if(!deal(el) && children.length){
this.deepFindNode(children, deal)
}
});
}
}
// 默认配置
defaultOptions(node){
const { width, height, top, left } = getRect(node)
const { w, h } = this.config
if((width >= w && height >= h) || top > h || left > w) return null
const style = getStyle(node)
const { paddingTop, paddingLeft, paddingBottom, paddingRight, } = getPadding(style)
this.config.styles = {
...this.config.styles,
width: percent(width - paddingLeft - paddingRight, w) + '%',
height: percent(height - paddingTop - paddingBottom - (height / 30), h) + '%',
top: percent(top + paddingTop, h) + '%',
left: percent(left + paddingLeft, w) + '%',
borderRadius: getBorderRadius(style),
}
return this.config.styles
}
// 绘制方法
draw(){
if (!this.blocks.length) return
const { body } = document;
const { keyframe='', boxStyle, boxId } = this.config
const blocksHTML = this.blocks.join('');
const div = document.createElement('div');
div.id = boxId
div.style = boxStyle
let html = `<style>@keyframes ${keyframe}@-webkit-keyframes ${keyframe}</style><button style='position: fixed;z-index: 10000000;left: 10px;top: 10px;' class='copy-btn'>copy HTML</button>${blocksHTML}`
div.innerHTML = html
body.appendChild(div);
setTimeout(() => {
new ClipboardJS('.copy-btn', {
text: () => this.getHtml()
});
}, 10)
}
// 获取html内容
getHtml(data={}){
let { html='' } = data
const { boxStyle, boxId } = this.config
const bone = document.getElementById(boxId)
html = html || bone.innerHTML
return `<div id='${boxId}' style="${boxStyle}">${html}</div><script>window.closeBone = function(e){var _b = document.getElementById('${boxId}');(_b && _b.remove())}</script>`;
}
}
export default CreateStructure
使用
import CreateStructure from './src/index'
setTimeout(() => {
window.cs = new CreateStructure({
boxStyle: `position: fixed;width: 100%;height: 100%;background-color: #ddd;top: 0;z-index: 100000;`,
delay: 0.2,
beforeCreateOption(node, option){
}
})
cs.deal()
cs.draw()
}, 1000)
