责任链模式含义

阅读OkHttp源码的过程中，我发现它在处理拦截器的过程中非常的巧妙，结合了责任链模式，将Request以链路的方式传递下去，再将Response以方向链路传递上来。

责任链模式（Chain of Responsibility）使多个对象都有机会处理请求，从而避免请求的发送者和接收者之间的耦合关系。将这些对象连成一条链，并沿着这条链传递该请求，直到有一个对象处理它为止。

接下来我们模仿OkHttp来写个责任链模式，处理请求和响应。

实例

需求：一个Request请求，需要经过Log、Header、Connect和Call四个流程，每个流程都会单独对Request进行处理，最终从流程的末端获取Response。

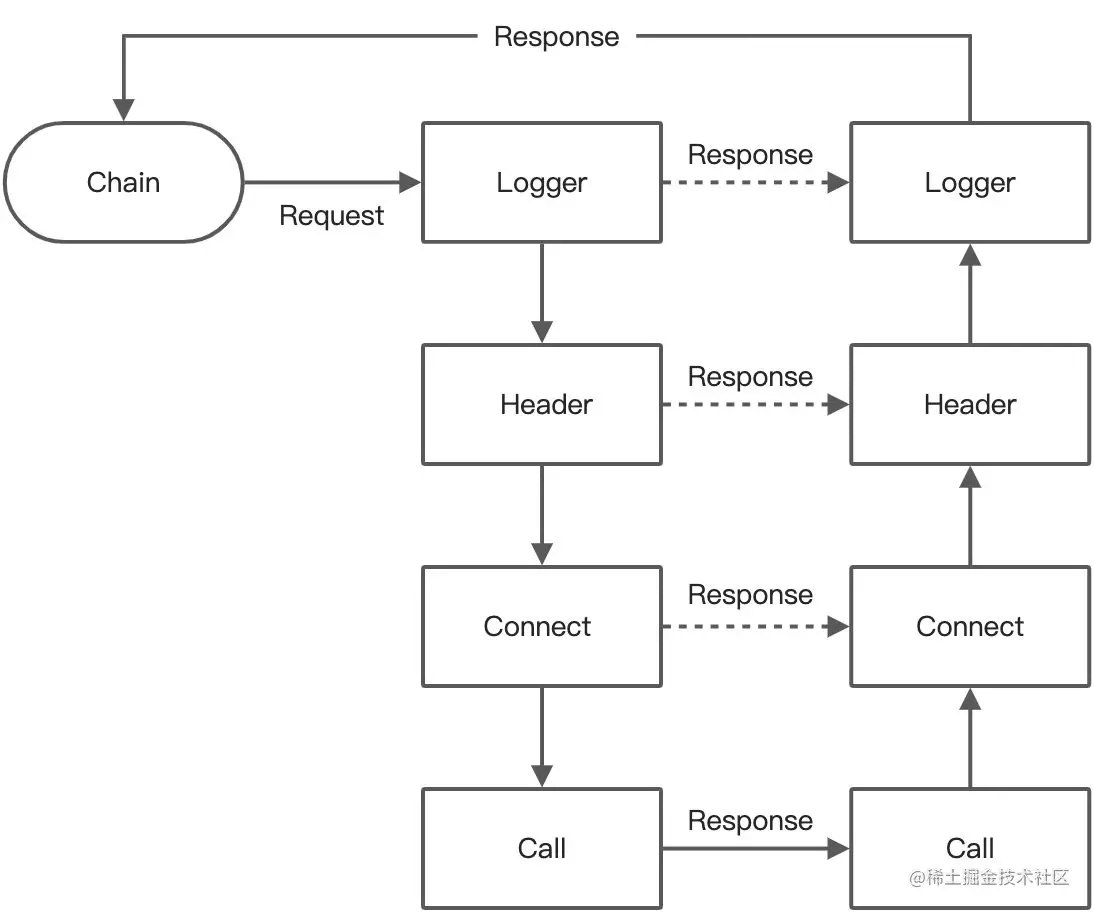

具体流程如上图所以，Chain作为链条，驱动着Request请求的开始，同时也是最终拿到Response的对象。

• 实线部分为完整的一个责任链流程，Chain发起，经过Logger->Header->Connect->Call，等到Call处理完结果，再将结果方向传递上去，依次经过Call->Connect->Header->Logger->Chain。
• 虚线部分为中途被某一个对象提前消费返回，比如在Header步骤出现异常，生成一个空的Response返回，那么请求流程就变为Chain->Logger->Header，返回流程则为Header->Logger->Chain；这就是责任链模式的魅力，链中任何一个对象都可以提前消费并返回，而且不影响链路的正常执行。

下面用代码展示下。

编码

/**
 * [Chain]对象用来发起请求，并且接收最终的结果
 */
class Chain(private val interceptorList: List<Interceptor>, private val index: Int, val request: Request) {

    /**
     * 依次调用链对象处理方法
     */
    fun process(request: Request): Response {
        // 同样使用index作为下标，用来依次调用链中对象
        val next = Chain(interceptorList, index = this.index + 1, request)
        val interceptor = interceptorList[index]
        return interceptor.intercept(next)
    }
}

/**
 * [Request]
 */
class Request(var msg: String) {

    fun buildRequest(msg: String) = Request(msg)
}

/**
 * [Response]
 */
class Response(val msg: String) {
    fun buildResponse(msg: String) = Response(msg)
}

上面主要定义Chain、Request和Response

/**
 * [Interceptor]对象用来处理链中对象的逻辑
 */
interface Interceptor {

    fun intercept(chain: Chain): Response
}

class LoggerInterceptor : Interceptor {
    override fun intercept(chain: Chain): Response {
        val request = chain.request
        println("logger request: ${request.msg}")
        val response = chain.process(request.buildRequest("logger"))
        println("logger response: ${response.msg}")
        return response.buildResponse("logger")
    }
}

class HeaderInterceptor : Interceptor {
    override fun intercept(chain: Chain): Response {
        val request = chain.request
        println("header request: ${request.msg}")
        val response = chain.process(request.buildRequest("header"))
        println("header response: ${response.msg}")
        return response.buildResponse("header")
    }
}

class ConnectInterceptor : Interceptor {
    override fun intercept(chain: Chain): Response {
        val request = chain.request
        println("connect request: ${request.msg}")
        val response = chain.process(request.buildRequest("connect"))
        println("connect response: ${response.msg}")
        return response.buildResponse("connect")
    }
}

class CallInterceptor : Interceptor {
    override fun intercept(chain: Chain): Response {
        val request = chain.request
        println("call request: ${request.msg}")
        println()
        val response = Response("call")
        println("call response: ${response.msg}")
        return response
    }
}

定义Interceptor基类和四个链对象；

fun main() {
    val interceptorList = mutableListOf<Interceptor>()
    interceptorList += LoggerInterceptor()
    interceptorList += HeaderInterceptor()
    interceptorList += ConnectInterceptor()
    interceptorList += CallInterceptor()
    val request = Request("init")
    val chain = Chain(interceptorList, 0, request)
    chain.process(request)
}

将四个链对象传入Chain中，然后发起请求，看下Log：

logger request: init
header request: logger
connect request: header
call request: connect

call response: call
connect response: call
header response: connect
logger response: header

通过Log我们就能很清楚的看到每个链中对象的执行过程，按照顺序依次进入对象的执行过程，最后再反向将Response传递上去。
