Banana Pi BPI-M5是新一代单板计算机设计，采用Amlogic S905X3四核Cortex-A55 (2.0xxGHz)处理器。MP2 GPU(650Mhz)。支持4GB LPDDR4和16G eMMC板载存储。它有4个USB 3.0端口，1个千兆网口。 905X3是晶晨半导体旗下最新的8K智能家庭影音芯片，采用四颗64位ARM A55架构 CPU芯片，集成G31图形处理器，支持8K视频解码和8K视频输出，运行开放的安卓9.0系统和Linux系统。

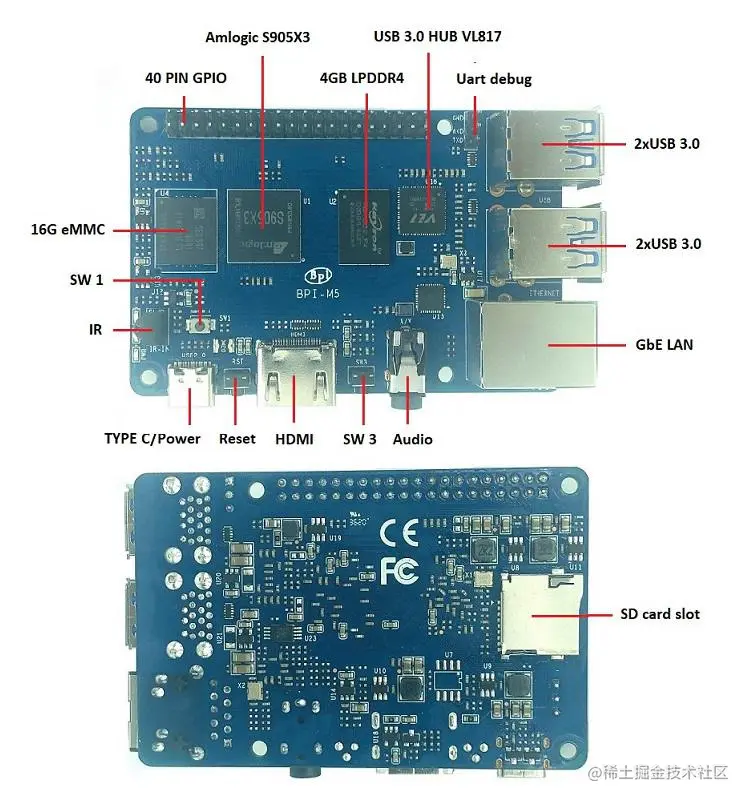

硬件接口示意图：
硬件规格：\
| 香蕉派BPI-M5 硬件规格表 | |
|---|---|
| CPU | Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz) |
| GPU | Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz) |
| Memory | 4 GB LPDDR4 |
| Storage | MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB |
| Network | 10/100/1000 Mbit/s Ethernet |
| Video Output(s) | 1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID) |
| Audio Output(s) | 3.5mm jack and 1 x HDMI digital output |
| USB ports | USB 3.0 PORT (x4) |
| GPIO | 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM |
| Switches | Reset, Power and U-boot |
| LED | Power Status and Activity status |
| Power Source | 5 volt @3A via Micro USB (TYPE C) |
| Size & Weight | 92x60mm, 48g |
| OS | Android and Linux |
Online wiki development document: https://wiki.banana-pi.org/Banana_Pi_BPI-M5
