iOS之贝塞尔曲线

官方文档developer.apple.com/documentati…

原创不易，对你有帮助的话，点个赞支持一下~

聊天冒泡 的界面

一、Objective-C版本（如需要Swift版本，还请留言，后续更新）

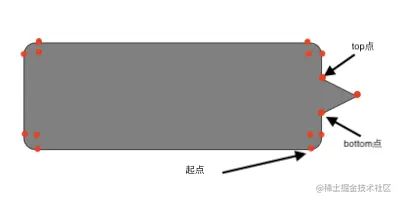

效果图如下：

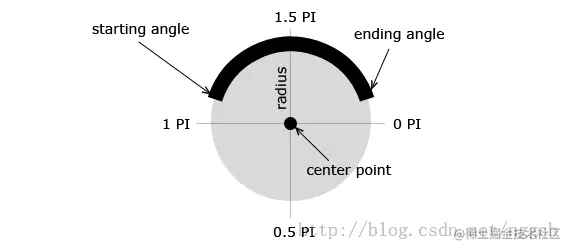

图描述：红色的是点，从图可知，四个角分别都有三个点，这里要做圆角处理，我暂时想到的是用 addArcWithCenter 方法来画弧线，里面的角其实是一个圆点。对于圆的角度如下图（这个圆形图借用了其它博主的）：

代码实现如下：

- (void)drawBubble:(CGRect)rect {

    UIBezierPath *mainPath = [[UIBezierPath alloc] init];

    CGFloat maxX = rect.size.width - 50;
    CGFloat maxY = rect.size.height;
    CGFloat minX = 0;
    CGFloat minY = 0;

    //自定义圆角的半径
    CGFloat radius = 10;

    /**
     顶点值点越小越往里面的收缩
     **/
    //冒泡三角形突出的顶点
    CGFloat cornerLength = 30;

    /**
     top点和bottom点越小越往中间的收缩
     **/
    //冒泡三角形的底边的top点
    CGFloat cornerTopY1 = 15;
    //冒泡三角形的底边的bottom点
    CGFloat cornerBottomY2 = 15;

    //起点
    [mainPath moveToPoint:CGPointMake(maxX - radius, maxY)];

    [mainPath addLineToPoint:CGPointMake(minX + radius, maxY)];
    [mainPath addArcWithCenter:CGPointMake(minX + radius, maxY - radius) radius:radius startAngle:0.5*M_PI endAngle:1*M_PI clockwise: true];
    [mainPath addLineToPoint:CGPointMake(minX, maxY - radius)];


    [mainPath addLineToPoint:CGPointMake(minX, radius)];
    [mainPath addArcWithCenter:CGPointMake(radius, radius) radius:radius startAngle:1*M_PI endAngle:1.5*M_PI clockwise: true];
    [mainPath addLineToPoint:CGPointMake(radius, minY)];

    [mainPath addLineToPoint:CGPointMake(maxX - radius, minY)];
    [mainPath addArcWithCenter:CGPointMake(maxX - radius, minY + radius) radius:radius startAngle:1.5*M_PI endAngle:0*M_PI clockwise: true];
    [mainPath addLineToPoint:CGPointMake(maxX, minY + 10)];


    [mainPath addLineToPoint:CGPointMake(maxX, maxY/2 - cornerTopY1)];
    [mainPath addLineToPoint:CGPointMake(maxX + cornerLength, maxY/2)];
    [mainPath addLineToPoint:CGPointMake(maxX, maxY/2 + cornerTopY1)];

    [mainPath addLineToPoint:CGPointMake(maxX, maxY - radius)];
    [mainPath addArcWithCenter:CGPointMake(maxX - radius, maxY - radius) radius:radius startAngle:0*M_PI endAngle:0.5*M_PI clockwise: true];

    [mainPath closePath];
    [mainPath stroke];

    CAShapeLayer *shapeLayer = [[CAShapeLayer alloc] init];
    shapeLayer.path = mainPath.CGPath;

    self.layer.mask = shapeLayer;
}

**备注：**我这里是的聊天冒泡界面是整个UIView来的，因此可以在里面添加内容等。这里需要在Draw方法里面的进行调用（Draw方法是指UIView类里面方法，非自定义）

实现圆圈动画

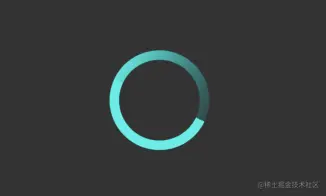

效果静态图如下：

    private var gradientLayer: CALayer?    // MARK:  加载小圆圈
    func addLoadingAnimation(superView: UIView) {
        if self.gradientLayer != nil {
            self.gradientLayer?.removeFromSuperlayer()
            self.gradientLayer = nil
        }

        // 形状
        let lineWidth: CGFloat = 7
        let middleColor = UIColor.hex_00efe7
        let circleLayer = CAShapeLayer.init()
        circleLayer.lineWidth = lineWidth;
        //        circleLayer.frame = self.translateTypeView.bounds
        circleLayer.fillColor = UIColor.clear.cgColor
        circleLayer.strokeColor = UIColor.black.cgColor

        // 曲线
        //        let circlePath = UIBezierPath.init(arcCenter: CGPoint(x: self.translateTypeView.width / 2, y: self.translateTypeView.height / 2), radius: self.translateTypeView.height / 2, startAngle: CGFloat(-Double.pi / 2), endAngle: CGFloat(Double.pi * 2), clockwise: true) // 有毛边
        let circlePath = UIBezierPath.init(ovalIn: superView.bounds)
        circleLayer.path = circlePath.cgPath

        // 渐变
        self.gradientLayer = CALayer.init()
        // 渐变1
        let gradient = CAGradientLayer.init()
        gradient.frame = CGRect(x: -lineWidth * 2, y: -lineWidth * 2, width: superView.bounds.size.width / 2 + lineWidth * 2, height: superView.bounds.size.height + lineWidth*3)
        gradient.colors = [UIColor.hex_333333.cgColor, middleColor.cgColor]
        //        gradient.locations = [NSNumber(value: 0.1), NSNumber(value:1.0)] // 设置比例
        gradient.startPoint = CGPoint(x: 0.0, y: 0.0)
        gradient.endPoint = CGPoint(x: 0.0, y: 1.0)
        gradient.shadowPath = circlePath.cgPath

        // 渐变1
        let gradient2 = CAGradientLayer.init()
        gradient2.frame = CGRect(x: superView.bounds.size.width / 2, y: -lineWidth * 2, width: superView.bounds.size.width / 2 + lineWidth * 2, height: superView.bounds.size.height + lineWidth*3)
        gradient2.colors = [UIColor.hex_00efe7.cgColor, middleColor.cgColor]
        //        gradient2.locations = [NSNumber(value: 0.1), NSNumber(value:1.0)]
        gradient2.startPoint = CGPoint(x: 0.0, y: 0.0)
        gradient2.endPoint = CGPoint(x: 0.0, y: 1.0)
        gradient2.shadowPath = circlePath.cgPath

        gradientLayer!.addSublayer(gradient)
        gradientLayer!.addSublayer(gradient2)
        gradientLayer!.mask = circleLayer

        // CABasicAnimation strokeEnd动画
//        let pathAnimation = CABasicAnimation()
//        pathAnimation.keyPath = "strokeEnd"
//        pathAnimation.duration = 1.0
//        pathAnimation.fillMode = CAMediaTimingFillMode.forwards
//        pathAnimation.timingFunction = CAMediaTimingFunction(name: CAMediaTimingFunctionName.linear)
//        pathAnimation.fromValue = 0.0
//        pathAnimation.toValue = 1.0
//        pathAnimation.repeatCount = 1
//        circleLayer.add(pathAnimation, forKey: "strokeEndAnimationcircle")

        // 旋转z
        let rotateAnima = CABasicAnimation.init(keyPath: "transform.rotation.z")
        rotateAnima.duration = 1.0
        rotateAnima.repeatCount = HUGE
        rotateAnima.fromValue = NSNumber(value: 0.0)
        rotateAnima.toValue = NSNumber(value: Double.pi * 2)
//        rotateAnima.beginTime = CACurrentMediaTime() + 3.0 / 4.0

        gradientLayer!.add(rotateAnima, forKey: "rotateAnimationcircle")
        gradientLayer!.frame = superView.bounds  // 一定要设置frame，不然anchorPoint(锚点--旋转中心点始终是（0,0）)
        superView.layer.addSublayer(gradientLayer!)
    }
