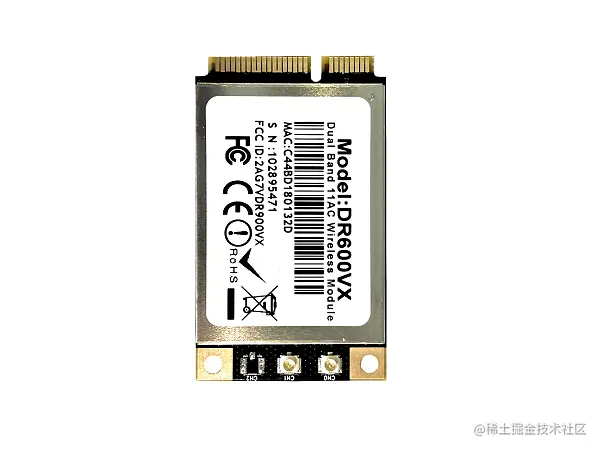

DR600VX
QCA9880 2x2 2.4G/5G FCC/CE Qualcomm-Atheros QCA9880 chipset
2.4GHz max 24dBm & 5GHz max 23dBm output power
IEEE 802.11accompliant & backward compatible with 802.11a/b/g/n
2x2 MIMO Technology, up to 867Mbps
Mini PCI Express edge connector
Support the Frequency 4920MHz~4980MHz
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
Supports Spatial Multiplexing, Cyclic-Delay Diversity (CDD), Low-Density Parity Check
(LDPC) Codes, Maximal Ratio Combining (MRC), Space Time Block Code (STBC)
Supports IEEE 802.11d, e, h, i, k, r, v time stamp, and w standards
Supports Dynamic Frequency Selection (DFS)
-
Specifications** ** -
\
-
Symbol**** Parameter**** Chipset QCA9880 Host Interface Mini PCI Express 1.1 Standard Antenna Connector 2 x UF.L Frequency Range 2.4GHz: 2.412GHz to 2.472GHz 5GHz: 4.920GHz to 5.825GHz Operating Voltage 3.3V DC Power Consumption 5W(Max) Modulation Techniques OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM Environmental Temperature Operating: -40°C to 70°C, Storage: -40°C to 90°C Environmental Humidity, non-condensing Operating: 5% to 95%, Storage: Max. 90% ROHS Compliance YES Dimensions (W×H×D) 30.0mm × 50.9mm × 3.2mm -
\
-
\
-
****RF Performance Table -
\
-
\
-
Operating Mode Data Rate RX Sensitivity Tolerance 2.4 GHz802.11b 1Mbps -95dBm ±2dB 2Mbps -94dBm ±2dB 5.5Mbps -92dBm ±2dB 11Mbps -90dBm ±2dB 2.4 GHz802.11g 6Mbps -94dBm ±2dB 9Mbps -93dBm ±2dB 12Mbps -92dBm ±2dB 18Mbps -90dBm ±2dB 24Mbps -88dBm ±2dB 36Mbps -85dBm ±2dB 48Mbps -81dBm ±2dB 54Mbps -80dBm ±2dB 2.4 GHz802.11n HT20 MCS0 -93dBm ±2dB MCS1 -91dBm ±2dB MCS2 -89dBm ±2dB MCS3 -84dBm ±2dB MCS4 -83dBm ±2dB MCS5 -78dBm ±2dB MCS6 -78dBm ±2dB MCS7 -76dBm ±2dB 2.4 GHz802.11n HT20 MCS0 -92dBm ±2dB MCS1 -88dBm ±2dB MCS2 -85dBm ±2dB MCS3 -82dBm ±2dB MCS4 -79dBm ±2dB MCS5 -75dBm ±2dB MCS6 -75dBm ±2dB MCS7 -73dBm ±2dB -
\
