笔记摘自视频章节：第四章-p32
主题
service实践
笔记
ClusterIP
clusterIP 主要在每个node节点使用iptables,将发向clusterIP对应端口的数据,转发到kube-proxy中。然后kube-proxy 自己内部实现有负载均衡的方法,并可以查询到这个service下对应pod的地址和端口,进而把数据转发给对应的pod的地址和端口。

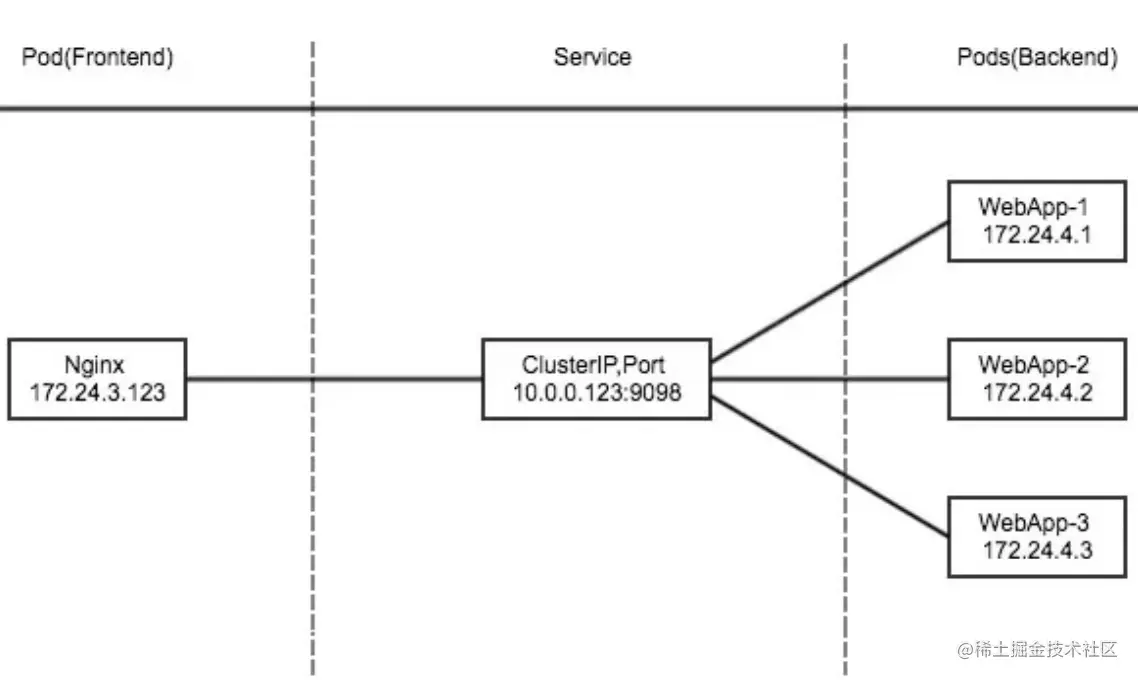

为了实现图上的功能,主要需要以下几个组件的协同工作:
- apiserver： 用户通过kubectl 指令向apiserver发送创建service的命令, apiserver接收到请求后将数据存储到etcd中
- kube-proxy kubernetes的每个节点中都有一个叫做kube-porxy的进程,这个进程负责感知service, pod的变化,并将变化的信息写入本地的iptables规则中
- iptables 使用NAT等技术将virtualIP的流量转至endpoint中
实践
- 文件
apiVersion: apps/v1
kind: Deployment
metadata:
name: myapp-deploy
namespace: default
spec:
replicas: 3
selector:
matchLabels:
app: myapp
release: stable
template:
metadata:
labels:
app: myapp
release: stable
env: test
spec:
containers:
- name: myapp
image: wangyanglinux/myapp:v2
imagePullPolicy: IfNotPresent
ports:
- name: http
containerPort: 80
- apply:
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# kubectl apply -f p32_svc_deployment.yaml
deployment.apps/myapp-deploy created
- 通过svc管理deployment
- selector: 匹配到app:myapp; release:stable
- ports：
- port: svc开放段开口为500
- targetPort: pod端口为80
apiVersion: v1
kind: Service
metadata:
name: my-svc
namespace: default
spec:
type: ClusterIP
selector:
app: myapp
release: stable
ports:
- name: http
port: 500
targetPort: 80
- 查看svc
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# kubectl get svc -o wide
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
kubernetes ClusterIP 10.1.0.1 <none> 443/TCP 3d3h <none>
my-svc ClusterIP 10.1.5.238 <none> 500/TCP 4m14s app=myapp,release=stable
- 测试访问
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# curl 10.1.5.238:500
Hello MyApp | Version: v2 | <a href="hostname.html">Pod Name</a>
- 修改svc文件，把app修改为一个不存在的label，比如app_not_exist
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# kubectl apply -f p32_svc_deployment.yaml
deployment.apps/myapp-deploy created
- 测试修改后的联通性，发现已经无法访问。查看ipvs规则，发现该svc的对应的转发规则已经没了。
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# curl 10.1.5.238:500
curl: (7) Failed to connect to 10.1.5.238 port 500: Connection refused
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
-> RemoteAddress:Port Forward Weight ActiveConn InActConn
TCP 10.1.0.1:443 rr
-> 172.16.13.128:6443 Masq 1 0 0
TCP 10.1.0.10:53 rr
-> 10.244.0.2:53 Masq 1 0 0
-> 10.244.0.3:53 Masq 1 0 0
TCP 10.1.0.10:9153 rr
-> 10.244.0.2:9153 Masq 1 0 0
-> 10.244.0.3:9153 Masq 1 0 0
TCP 10.1.5.238:500 rr
UDP 10.1.0.10:53 rr
-> 10.244.0.2:53 Masq 1 0 0
-> 10.244.0.3:53 Masq 1 0 0
- 修改回来后，访问成功。
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# kubectl apply -f p32_svc_demo.yaml
service/my-svc configured
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# curl 10.1.5.238:500
Hello MyApp | Version: v2 | <a href="hostname.html">Pod Name</a>
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
-> RemoteAddress:Port Forward Weight ActiveConn InActConn
TCP 10.1.0.1:443 rr
-> 172.16.13.128:6443 Masq 1 0 0
TCP 10.1.0.10:53 rr
-> 10.244.0.2:53 Masq 1 0 0
-> 10.244.0.3:53 Masq 1 0 0
TCP 10.1.0.10:9153 rr
-> 10.244.0.2:9153 Masq 1 0 0
-> 10.244.0.3:9153 Masq 1 0 0
TCP 10.1.5.238:500 rr
-> 10.244.1.138:80 Masq 1 0 0
-> 10.244.1.139:80 Masq 1 0 0
-> 10.244.3.159:80 Masq 1 0 1
UDP 10.1.0.10:53 rr
-> 10.244.0.2:53 Masq 1 0 0
-> 10.244.0.3:53 Masq 1 0 0
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
myapp-deploy-5cd54797f8-647jg 1/1 Running 0 3m44s 10.244.1.139 jjh-k8s-demo-node1 <none> <none>
myapp-deploy-5cd54797f8-c2wvd 1/1 Running 0 3m44s 10.244.1.138 jjh-k8s-demo-node1 <none> <none>
myapp-deploy-5cd54797f8-nrrpw 1/1 Running 0 3m44s 10.244.3.159 jjh-k8s-node-2 <none> <none>
- 测试访问的pod，发现是rr规则的负载均衡策略
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# curl 10.1.5.238:500/hostname.html
myapp-deploy-5cd54797f8-647jg
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# curl 10.1.5.238:500/hostname.html
myapp-deploy-5cd54797f8-c2wvd
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# curl 10.1.5.238:500/hostname.html
myapp-deploy-5cd54797f8-nrrpw
Headless Service
这是一种特殊的ClusterIP。有时不需要或不想要负载均衡,以及单独的Service IP。遇到这种情况,可以通过指定ClusterIP(spec.clusterIP) 的值为"None" 来创建Headless Service。这类Service 不会分配Cluster IP, kube-proxy不会处理它们,而且平台也不会为它们进行负载均衡和路由
- 文件
apiVersion: v1
kind: Service
metadata:
name: myapp-headless
namespace: default
spec:
selector:
app: myapp
clusterIP: "None"
ports:
- port: 80
targetPort: 80
- 部署
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# kubectl apply -f p32_svc_headless_demo.yaml
service/myapp-headless created
- 对headless svc，查看dns（使用dig 命令）。能够查到
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# kubectl get pods -n kube-system -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
coredns-65c54cc984-smdtc 1/1 Running 0 12d 10.244.0.2 jjh-k8s-demo-master <none> <none>
coredns-65c54cc984-tcbfb 1/1 Running 0 12d 10.244.0.3 jjh-k8s-demo-master <none> <none>
etcd-jjh-k8s-demo-master 1/1 Running 0 12d 172.16.13.128 jjh-k8s-demo-master <none> <none>
kube-apiserver-jjh-k8s-demo-master 1/1 Running 0 12d 172.16.13.128 jjh-k8s-demo-master <none> <none>
kube-controller-manager-jjh-k8s-demo-master 1/1 Running 0 12d 172.16.13.128 jjh-k8s-demo-master <none> <none>
kube-flannel-ds-6m5mp 1/1 Running 0 12d 172.16.13.128 jjh-k8s-demo-master <none> <none>
kube-flannel-ds-lmrw9 1/1 Running 1 12d 172.16.13.127 jjh-k8s-demo-node1 <none> <none>
kube-flannel-ds-nbjm7 1/1 Running 2 32h 172.16.13.254 jjh-k8s-node-2 <none> <none>
kube-proxy-cwp2v 1/1 Running 1 9d 172.16.13.127 jjh-k8s-demo-node1 <none> <none>
kube-proxy-n56nk 1/1 Running 3 32h 172.16.13.254 jjh-k8s-node-2 <none> <none>
kube-proxy-nmslm 1/1 Running 0 9d 172.16.13.128 jjh-k8s-demo-master <none> <none>
kube-scheduler-jjh-k8s-demo-master 1/1 Running 0 12d 172.16.13.128 jjh-k8s-demo-master <none> <none>
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# dig -t A myapp-headless.default.svc.cluster.local. @10.244.0.2
; <<>> DiG 9.16.1-Ubuntu <<>> -t A myapp-headless.default.svc.cluster.local. @10.244.0.2
;; global options: +cmd
;; Got answer:
;; WARNING: .local is reserved for Multicast DNS
;; You are currently testing what happens when an mDNS query is leaked to DNS
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 27790
;; flags: qr aa rd; QUERY: 1, ANSWER: 3, AUTHORITY: 0, ADDITIONAL: 1
;; WARNING: recursion requested but not available
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
; COOKIE: 49bf867f5f0813be (echoed)
;; QUESTION SECTION:
;myapp-headless.default.svc.cluster.local. IN A
;; ANSWER SECTION:
myapp-headless.default.svc.cluster.local. 30 IN A 10.244.1.139
myapp-headless.default.svc.cluster.local. 30 IN A 10.244.3.159
myapp-headless.default.svc.cluster.local. 30 IN A 10.244.1.138
;; Query time: 4 msec
;; SERVER: 10.244.0.2#53(10.244.0.2)
;; WHEN: Tue Mar 22 15:05:39 UTC 2022
;; MSG SIZE rcvd: 249
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
myapp-deploy-5cd54797f8-647jg 1/1 Running 0 18m 10.244.1.139 jjh-k8s-demo-node1 <none> <none>
myapp-deploy-5cd54797f8-c2wvd 1/1 Running 0 18m 10.244.1.138 jjh-k8s-demo-node1 <none> <none>
myapp-deploy-5cd54797f8-nrrpw 1/1 Running 0 18m 10.244.3.159 jjh-k8s-node-2 <none> <none>
NodePort
在Node上开一个Port
- 文件
apiVersion: v1
kind: Service
metadata:
name: mysvc-node-port
namespace: default
spec:
type: NodePort
selector:
app: myapp
release: stable
ports:
- name: http
port: 80
targetPort: 80
- 创建svc，看到对外开放的端口是32477。
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# kubectl apply -f p32_svc_node_port_demo.yaml
service/mysvc-node-port created
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.1.0.1 <none> 443/TCP 3d4h
my-svc ClusterIP 10.1.5.238 <none> 500/TCP 34m
myapp-headless ClusterIP None <none> 80/TCP 11m
mysvc-node-port NodePort 10.1.50.255 <none> 80:32477/TCP 51s

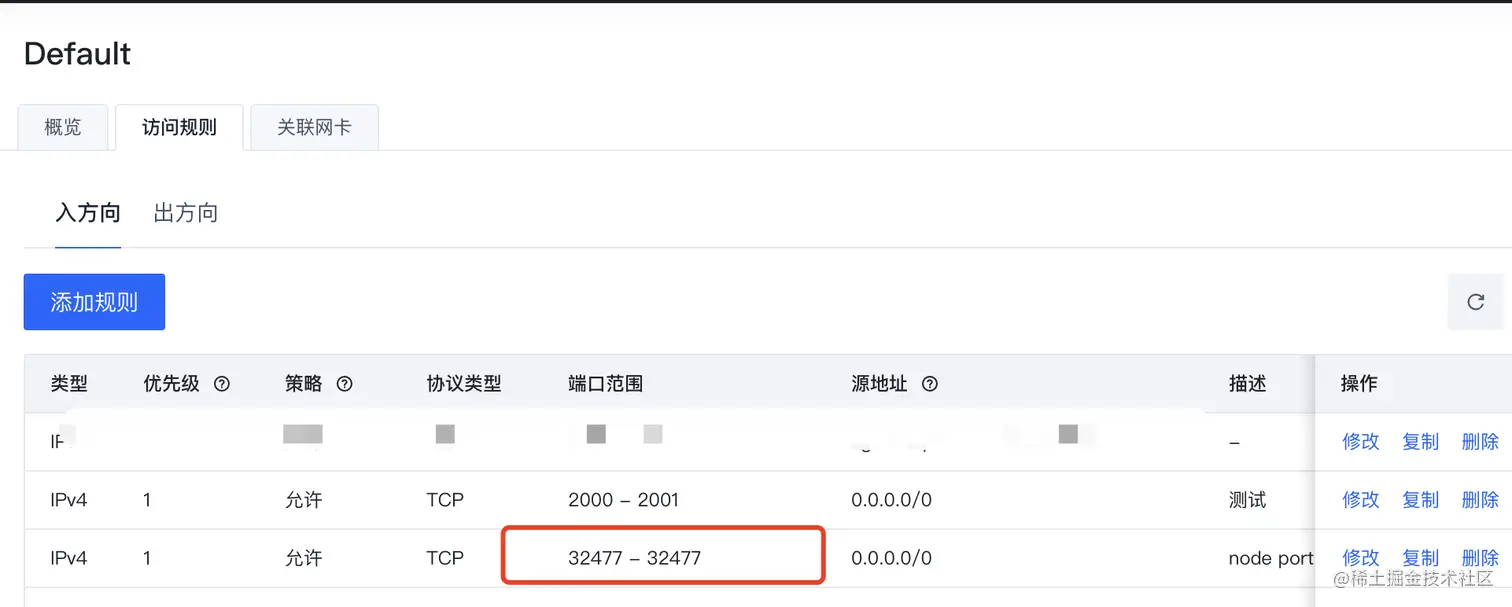

- 尝试访问。我使用的是云主机，还需要再控制台上设置安全组，开放改端口。

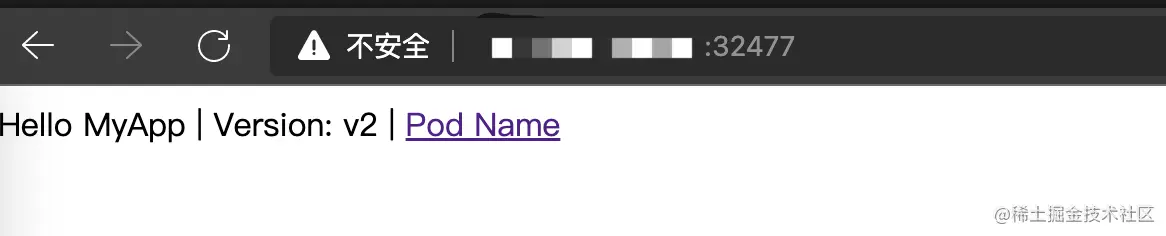

- 测试访问成功
- 在每一个node上都能检查到该端口的监听信息。通过netstat查看该端口的连接信息，每个节点都能查到类似的信息。
netstat -anpt |grep :32477
tcp 2 0 0.0.0.0:32477 0.0.0.0:* LISTEN 1439834/kube-proxy
LoadBalancer
nodePort的原理在于在node上开了一个端口,将向该端口的流量导入到kube-proxy,然后由kube-proxy进一步到给对应的pod 需要购买服务（花钱）
ExternalName
- 文件
apiVersion: v1
kind: Service
metadata:
name: mysvc-external-name-to-sohu
namespace: default
spec:
type: ExternalName
externalName: www.sohu.com
- 查看配置结果
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# dig -t A mysvc-external-name-to-sohu.default.svc.cluster.local. @10.244.0.2
; <<>> DiG 9.16.1-Ubuntu <<>> -t A mysvc-external-name-to-sohu.default.svc.cluster.local. @10.244.0.2
;; global options: +cmd
;; Got answer:
;; WARNING: .local is reserved for Multicast DNS
;; You are currently testing what happens when an mDNS query is leaked to DNS
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 61061
;; flags: qr aa rd; QUERY: 1, ANSWER: 4, AUTHORITY: 0, ADDITIONAL: 1
;; WARNING: recursion requested but not available
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
; COOKIE: a2b8ece21d67fd70 (echoed)
;; QUESTION SECTION:
;mysvc-external-name-to-sohu.default.svc.cluster.local. IN A
;; ANSWER SECTION:
mysvc-external-name-to-sohu.default.svc.cluster.local. 30 IN CNAME www.sohu.com.
www.sohu.com. 30 IN CNAME gs.a.sohu.com.
gs.a.sohu.com. 30 IN CNAME fbx.a.sohu.com.
fbx.a.sohu.com. 30 IN A 123.126.104.68
;; Query time: 40 msec
;; SERVER: 10.244.0.2#53(10.244.0.2)
;; WHEN: Wed Mar 23 03:27:59 UTC 2022
;; MSG SIZE rcvd: 283
- 进入pod内部，测试配置结果。nslookup和ping均成功，结果显示正常。可以发现nslookup
SVC_NAME.NAMESPACE.svc.cluster.local的结果与直接查询 www.sohu.com 的结果是相同的。
root@jjh-k8s-demo-master:~/k8s_yaml/bzhan_shangguigu# kubectl exec myapp-deploy-5cd54797f8-c2wvd -it -- /bin/sh
# nslookup www.sohu.com
nslookup: can't resolve '(null)': Name does not resolve
Name: www.sohu.com
Address 1: 123.126.104.68
Address 2: 2408:80f0:4100:4007::4
Address 3: 2408:80f0:4100:4007::5
# nslookup ping mysvc-external-name-to-sohu.default.svc.cluster.local
Server: 123.126.104.68
Address 1: 123.126.104.68
nslookup: can't resolve 'ping': Name does not resolve
# ping mysvc-external-name-to-sohu.default.svc.cluster.local.
PING mysvc-external-name-to-sohu.default.svc.cluster.local. (123.126.104.68): 56 data bytes
64 bytes from 123.126.104.68: seq=0 ttl=50 time=4.265 ms
64 bytes from 123.126.104.68: seq=1 ttl=50 time=4.129 ms
备注
当查询主机SVC_NAME.NAMESPACE.svc.cluster.local 时,集群的DNS服务将返回一个对应的的CNAME记录。访问这个服务的工作方式和其他的相同,唯一不同的是重定向发生在DNS层,而且不会进行代理或转发
