手把手教你搭建 React UI 组件库 (六) 建立官网

田田川
467 阅读3分钟

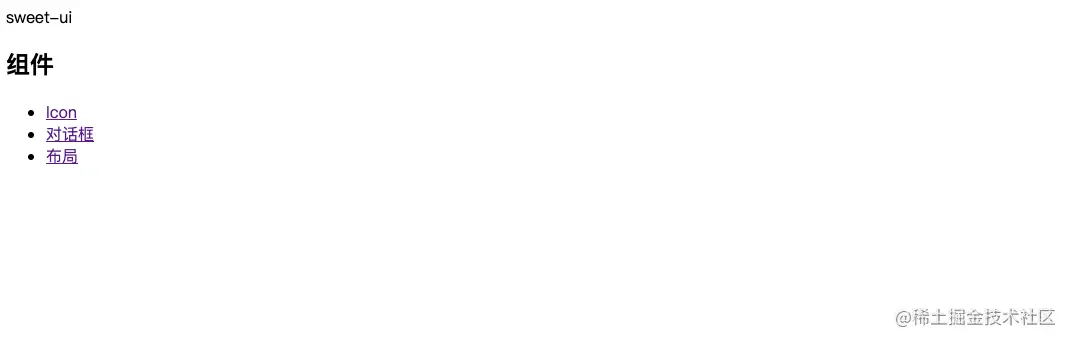

1. 目标一: 添加 menu 切换组件示例:

目标:


点击Icon链接后:

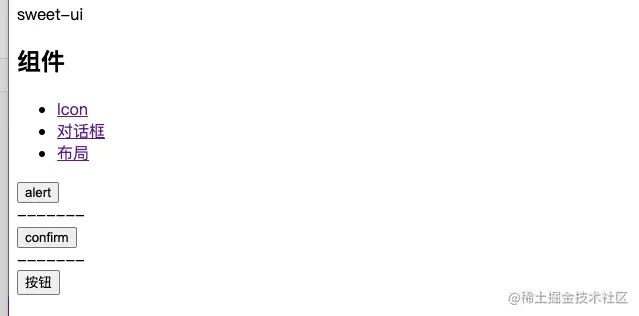

image.png 点击对话框:

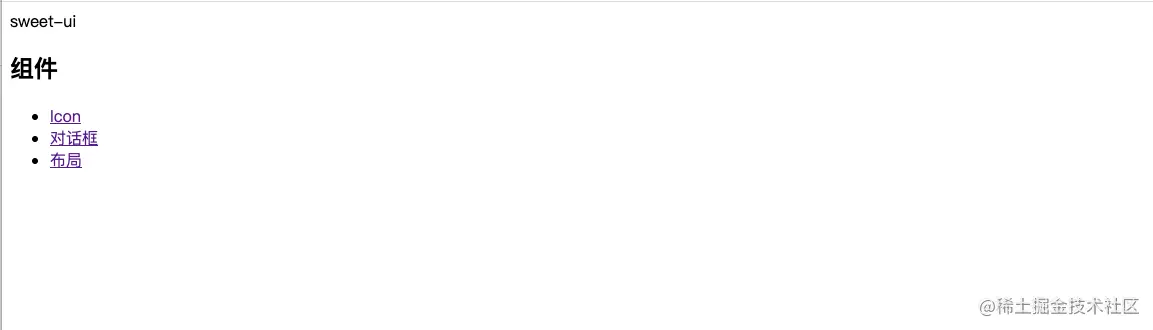

点击布局:


开始:

  1. 安装必要的库: 修改:@/package.json:

    {
  "name": "sweetui",
  "version": "1.0.0",
  "description": "",
  "main": "dist/lib/index",
  "types": "dist/lib/index",
  "scripts": {
    "test": "cross-env NODE_ENV=test jest --config=jest.config.js --runInBand",
    "start": "cross-env NODE_ENV=development webpack-dev-server --config webpack.config.dev.js",
    "build": "cross-env NODE_ENV=production webpack --config webpack.config.prod.js"
  },
  "keywords": [],
  "author": "",
  "license": "ISC",
  "devDependencies": {
    "@babel/preset-env": "^7.3.4",
    "@babel/preset-react": "^7.0.0",
    "@types/classnames": "2.2.7",
    "@types/jest": "^24.0.9",
    "@types/react": "^16.8.7",
    "@types/react-dom": "^16.8.2",
    "@types/react-router-dom": "^5.3.3",
    "@types/react-test-renderer": "^16.8.1",
    "babel-jest": "^24.3.1",
    "cross-env": "^5.2.0",
    "css-loader": "^2.1.1",
    "html-webpack-plugin": "^3.2.0",
    "jest": "^24.3.1",
    "node-sass": "npm:sass",
    "react-test-renderer": "^16.8.4",
    "sass-loader": "^7.1.0",
    "style-loader": "^0.23.1",
    "ts-jest": "^24.0.0",
    "ts-loader": "~8.2.0",
    "typescript": "^4.6.2",
    "webpack": "^4.29.6",
    "webpack-cli": "^3.2.3",
    "webpack-dev-server": "^3.2.1"
  },
  "dependencies": {
    "classnames": "2.2.6",
    "react": "^16.8.4",
    "react-dom": "^16.8.4",
    "react-router-dom": "^6.2.2",
    "svg-sprite-loader": "^6.0.11"
  }
}

    运行yarn 安装

    修改webpack配置:@/webpack.config.js

    const path = require('path')
const HtmlWebpackPlugin = require('html-webpack-plugin');
module.exports = {
    entry: {
        index: './lib/index.tsx'
    },
    resolve: {
        extensions: ['.ts', '.tsx', '.js', '.jsx'],
    },
    output: {
        path: path.resolve(__dirname, 'dist/lib'),
        library: 'FUI',
        libraryTarget: 'umd',
    },
    module: {
        rules: [
            {
                test: /.tsx?$/,
                loader: 'ts-loader',
                exclude: /node_modules/,
            },
            {
                test: /.svg$/,
                loader: 'svg-sprite-loader',
            },
            {
                test: /.scss$/,
                use: ['style-loader', 'css-loader', 'sass-loader']
            }
        ]
    },
}

  2. 修改:@/lib/index.tsx

    import React from 'react';
import ReactDOM from 'react-dom';
import {HashRouter as Router, Routes,Route, Link} from 'react-router-dom';
import LayoutExample from './Layout/layout.example';
import IconExample from './Icon/icon.example';
import DialogExample from './Dialog/Dialog.example';


ReactDOM.render(
    <Router>
        <div>
            <header>
                <div className="logo">
                    sweet-ui
                </div>

            </header>
            <div>
                <aside>
                    <h2>组件</h2>
                    <ul>
                        <li>
                            <Link to="/icon">Icon</Link>
                        </li>
                        <li>
                            <Link to="/dialog">对话框</Link>
                        </li>
                        <li>
                            <Link to="/layout">布局</Link>
                        </li>
                    </ul>
                </aside>
                <main>
                    <Routes>
                        <Route path="/icon" element={<IconExample/>}/>
                        <Route path="/dialog" element={<DialogExample/>}/>
                        <Route path="/layout" element={<LayoutExample/>}/>
                    </Routes>
                </main>
            </div>
        </div>
    </Router>
    ,
    document.getElementById('root')
)

    修改:@/lib/Icon/icon.example.tsx:

    import * as React from 'react';
import Icon from './index';

interface propsType {

}

const IconExample: React.FC<propsType> = () => {
    return (
        <div>
            <Icon icon="alipay"/>
            <Icon icon="wechat"/>
            <Icon icon="close"/>
        </div>
    );
};
export default IconExample;

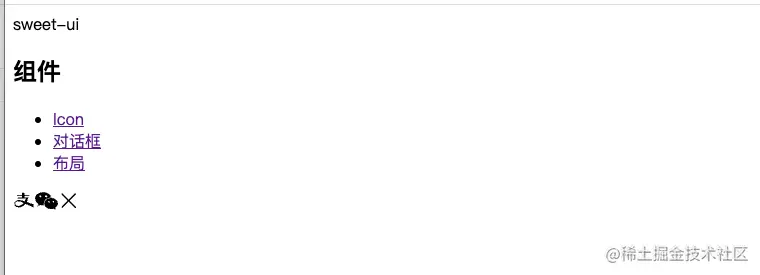

  3. 查看结果:

    image.png 成功!

2. 目标二: 使用自己的layout组件建立官网

目标:menu放左边, 自己的logo放在header里, 示例放在content里面

行动:

  1. 修改:@/lib/index.tsx:

    import React from 'react';
import ReactDOM from 'react-dom';
import {HashRouter as Router, Routes,Route, Link} from 'react-router-dom';
import LayoutExample from './Layout/layout.example';
import IconExample from './Icon/icon.example';
import DialogExample from './Dialog/Dialog.example';
import Layout, {Content, Footer, Sider} from './Layout/layout';


ReactDOM.render(
    <Router>
        <Layout>
            <Sider>
                <h2>组件</h2>
                <ul>
                    <li>
                        <Link to="/icon">Icon</Link>
                    </li>
                    <li>
                        <Link to="/dialog">对话框</Link>
                    </li>
                    <li>
                        <Link to="/layout">布局</Link>
                    </li>
                </ul>
            </Sider>
            <Layout>
                <header>
                    <div className="logo">
                        sweet-ui
                    </div>
                </header>
                <Content>
                    <main>
                        <Routes>
                            <Route path="/icon" element={<IconExample/>}/>
                            <Route path="/dialog" element={<DialogExample/>}/>
                            <Route path="/layout" element={<LayoutExample/>}/>
                        </Routes>
                    </main>
                </Content>
                <Footer>
                    footer
                </Footer>
            </Layout>
        </Layout>
    </Router>
    ,
    document.getElementById('root')
)

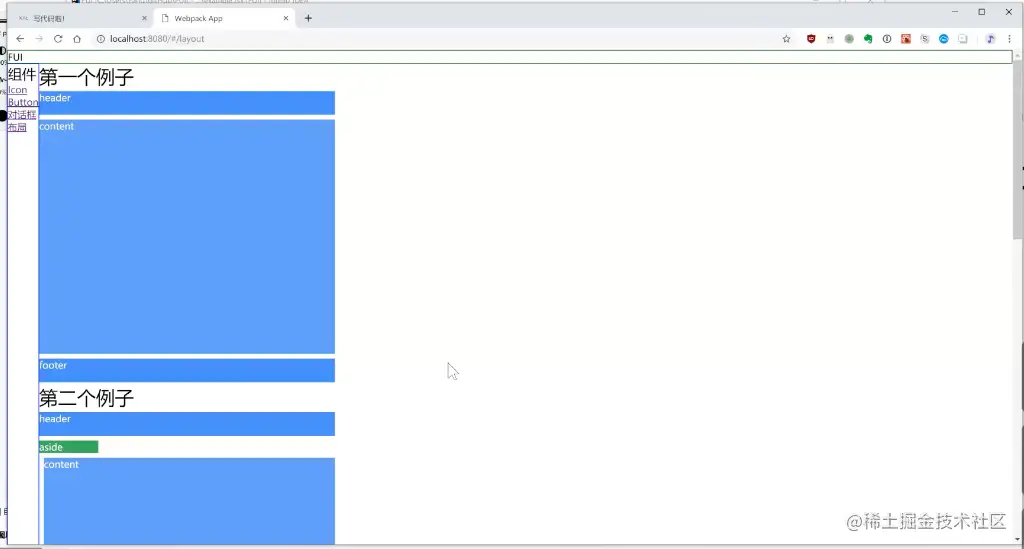

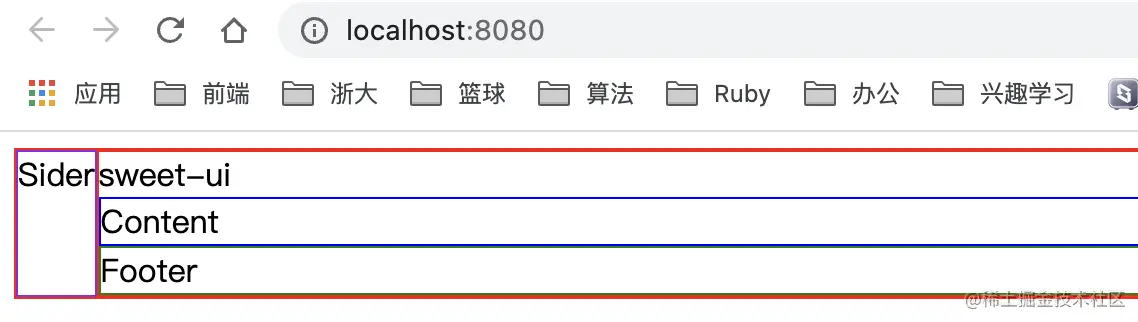

  2. 查看结果:

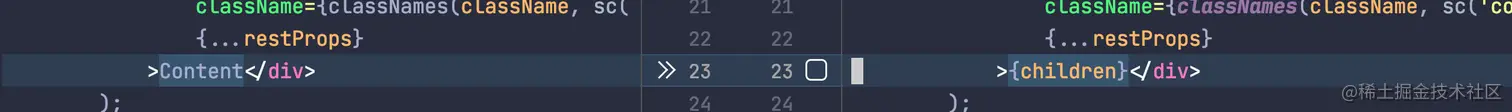

    image.png 很明显, 组件写的有问题, 没接受children参数, 回去改

  3. 同样修改: @/lib/Layout/components/Header/header.tsx, @/lib/Layout/components/Footer/footer.tsx, @/lib/Layout/components/Content/content.tsx, @/lib/Layout/components/Sider/sider.tsx

    让组件能接受chirldren参数

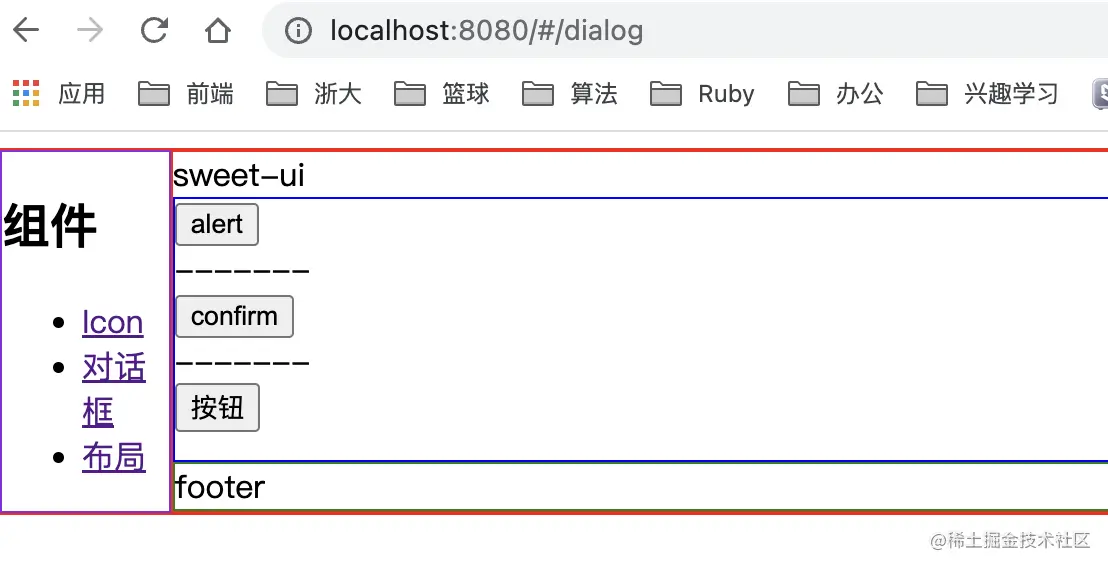

    image.png 查看浏览器:

    image.png 我们成功了!

3. 目标三: 制作自己的logo

  1. 谷歌搜索: logo maker, 制作, 下载自己的logo

  2. 将logo保存到 @/lib/assets/SweetUILogo.png

  3. 修改代码@/lib/index.tsx

    import logo from './assets/SweetUILogo.png'

//31行添加:
<img src={logo} alt='pic' />

    修改@/types/custom.d.ts

    declare module '*.svg' {
    const content: any;
    export default content;
}
declare module '*.png' {
    const content: any;
    export default content;
}

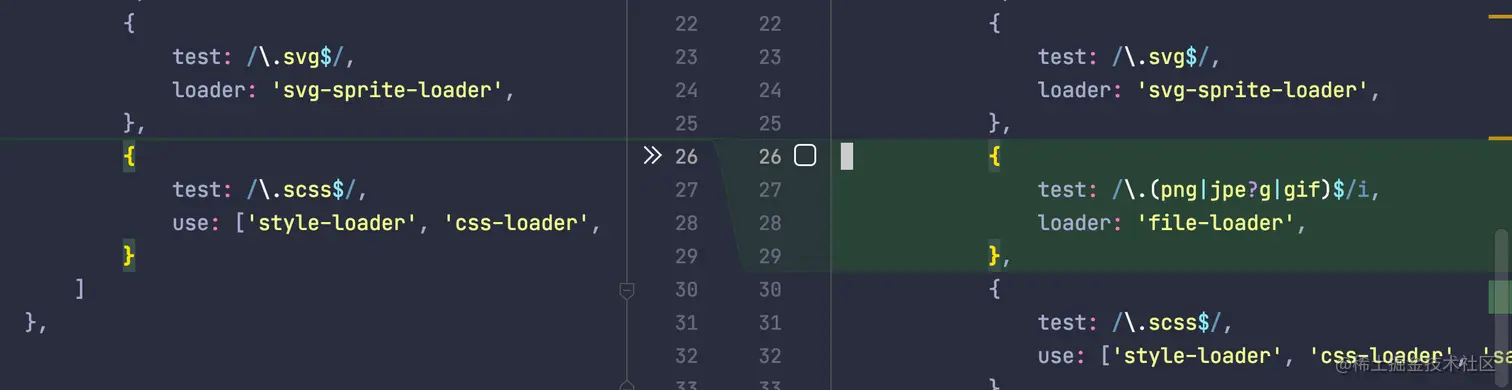

    修改webpack配置:

                {
            test: /\.(png|jpe?g|gif)$/i,
            loader: 'file-loader',
        },

    image.png 安装:png的loader:yarn add --dev file-loader

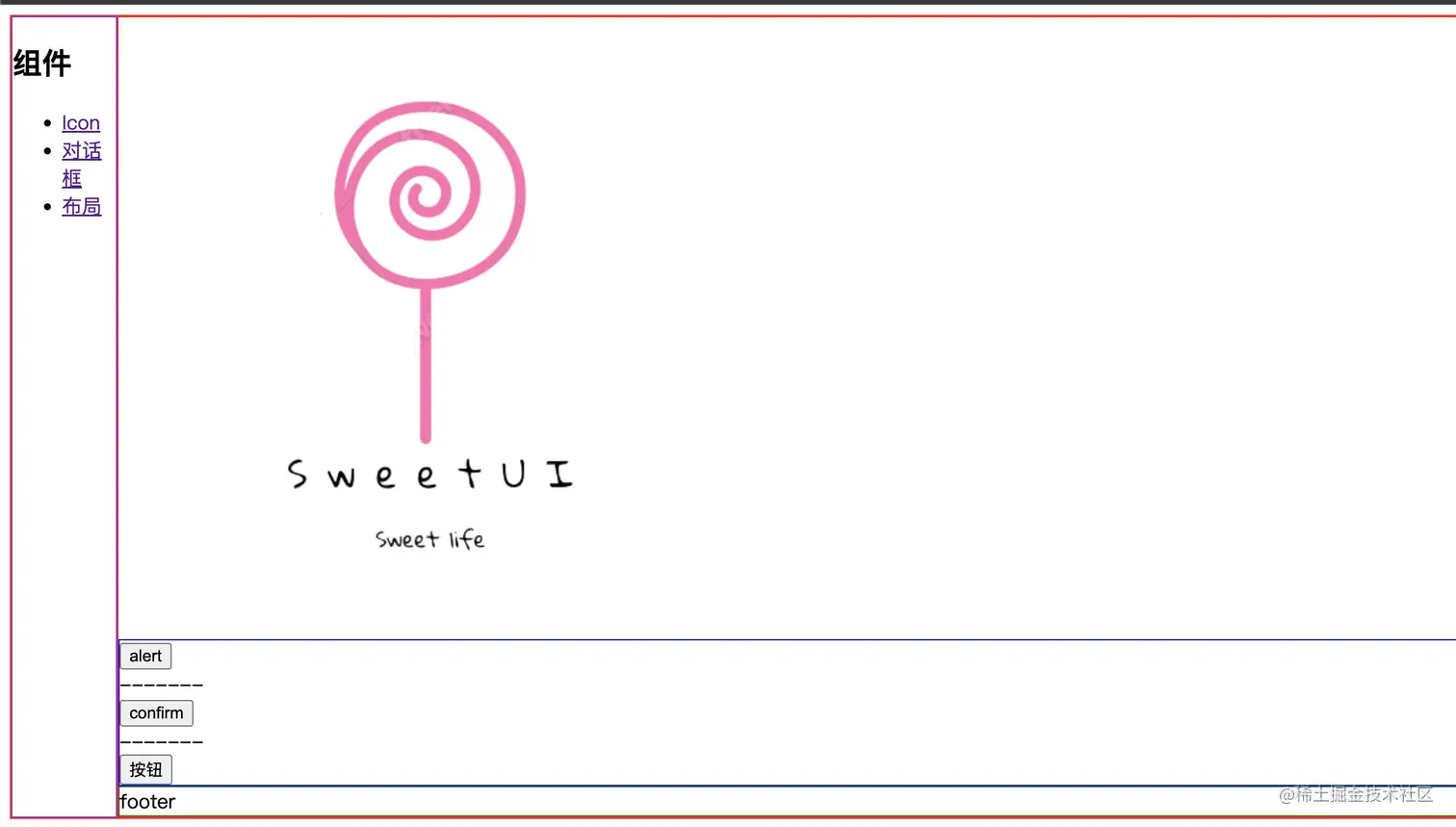

    重启项目, 查看浏览器


    我们成功了

4. 目标四: 改造页面

  1. 修改@/lib/index.tsx:

    import React from 'react';
import ReactDOM from 'react-dom';
import {HashRouter as Router, Routes,Route, Link} from 'react-router-dom';
import LayoutExample from './Layout/layout.example';
import IconExample from './Icon/icon.example';
import DialogExample from './Dialog/Dialog.example';
import Layout, {Content, Footer, Header, Sider} from './Layout/layout';
import logoCandy from './assets/logo/logoCandy.png'
import logoText from './assets/logo/logoText.png'
import './index.scss'


ReactDOM.render(
    <Router>
        <Layout className="site-page">
            <Header className="site-header">
                <div className="logo">
                    <img src={logoCandy} width="48"  alt='pic' />
                    <img src={logoText} width="140"  alt='pic' />
                </div>
            </Header>
            <Layout>
                <Sider className="site-aside">
                    <h2>组件</h2>
                    <ul>
                        <li>
                            <Link to="/icon">Icon</Link>
                        </li>
                        <li>
                            <Link to="/dialog">对话框</Link>
                        </li>
                        <li>
                            <Link to="/layout">布局</Link>
                        </li>
                    </ul>
                </Sider>
                <Content className="site-main">
                    <Routes>
                        <Route path="/icon" element={<IconExample/>}/>
                        <Route path="/dialog" element={<DialogExample/>}/>
                        <Route path="/layout" element={<LayoutExample/>}/>
                    </Routes>
                </Content>
            </Layout>
            <Footer className="site-footer">
                &copy; ttclib/index.scss`

            </Footer>
        </Layout>
    </Router>
    ,
    document.getElementById('root')
)

  2. 修改scss:@/lib/index.scss

    [class^=sweetui-] {
  box-sizing: border-box;
  &::after,
  &::before {
    box-sizing: border-box;
  }
}
button {
  box-sizing: border-box;
  height: 32px;
  margin: 0 4px;
  border-radius: 4px;
  &:first-child {
    margin-left: 0;
  }
  &:last-child {
    margin-right: 0;
  }
}

* {margin: 0;padding: 0; box-sizing: border-box;}
*::before {box-sizing: border-box;}
*::after {box-sizing: border-box;}
ul, ol {list-style: none;}
h1, h2, h3, h4, h5, h6 {font-weight: normal;}
a { text-decoration: none; color: inherit; }
pre {
  font-family: "Fira Code Medium", Consolas, monospace;
}
$padding: 16px;
$main-color: #FF64B2;
$border-color: #eee;
body {
  font-size: 16px;
}
.site-page {
  background: #ffffff;
  min-height: 100vh;
}
.site-main {
  padding-top: 16px;
}
.site-header {
  background: $border-color;
  padding: 8px 0;
  .logo {
    padding: 0 $padding;
    display: flex;
    align-items: center;
    > img {margin-right: 8px;}
    > span {
      color: $main-color;
      font-size: 32px;
    }
  }
}
.site-aside {
  border-right: 1px solid #EEEEEE;
  margin-right: 16px;
  h2 {
    padding: $padding;
    font-size: 18px;
  }
  ul {
    min-width: 12em;
    > li {
      a {
        color: #333;
        display: block;
        padding: 8px $padding;
        &:hover {
          color: $main-color;
        }
        &.active {
          color: white;
          background: $main-color;
        }
      }
    }
  }
}
.site-footer {
  text-align: center;
  font-size: 12px;
  color: #666;
  padding: 16px 0;
  border-top: 1px solid $border-color;
}
.example {
  padding: 16px 0;
}

    查看浏览器:

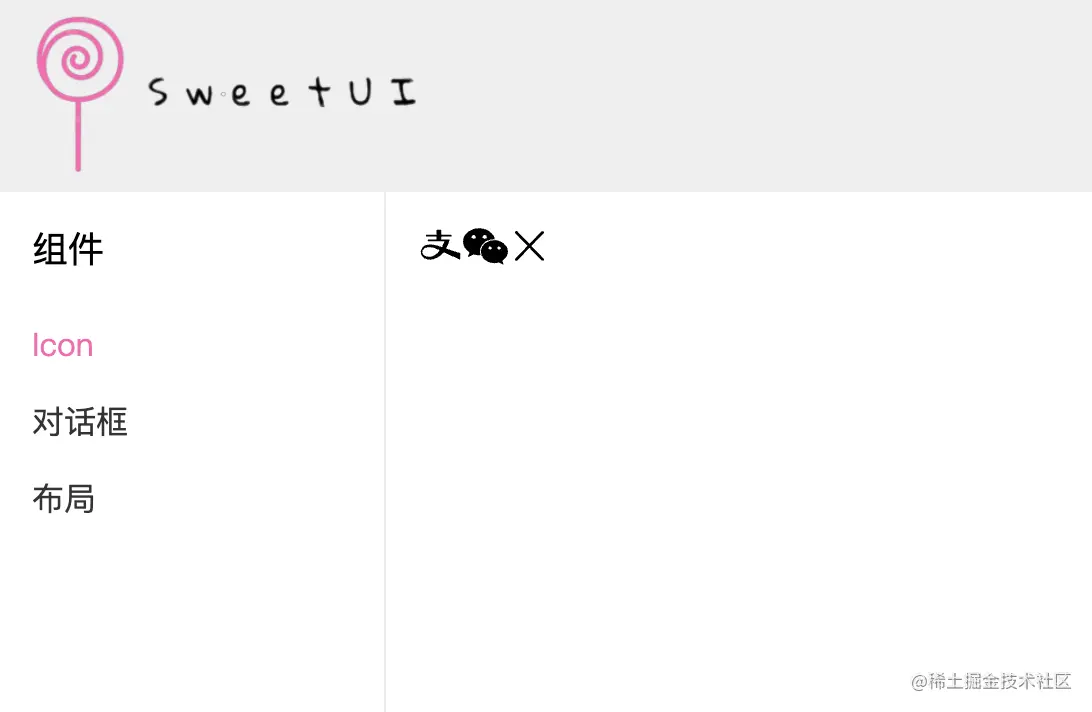

    image.png 成功了!

5. 目标五: 展示代码

目标: 我们期待能在示例下面展示代码:


行动:

  1. 安装一个loader: yarn add --dev raw-loader@2.0.0

  2. 新增文件: @/lib/Components/Demo/demo.tsx:

    import * as React from 'react';

interface propsType {
    code: string;
}

const Demo: React.FC<propsType> = (props) => {
    return (
        <div>
            {props.children}
            <pre>
                {props.code}
            </pre>
        </div>
    );
};
export default Demo;

  3. 新增文件@/lib/Icon/icon.demo.tsx:

    import * as React from 'react';
import IconExample from './icon.example';
import Demo from '../Components/Demo/demo';

interface propsType {

}
const x = require('!!raw-loader!./icon.example')

const IconDemo: React.FC<propsType> = () => {
    return (
        <Demo code={x.default}>
            <IconExample/>
        </Demo>
    );
};
export default IconDemo;

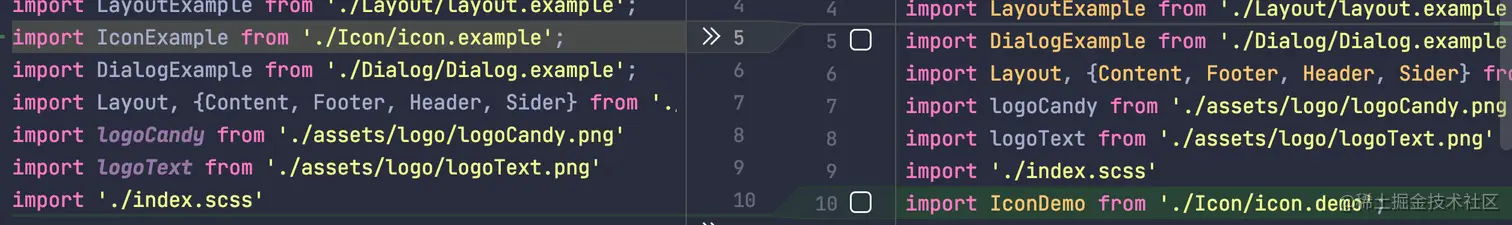

  4. 修改引用:@/lib/index.tsx


import IconDemo from './Icon/icon.demo';

<Route path="/icon" element={<IconDemo/>}/>

    image.png image.png

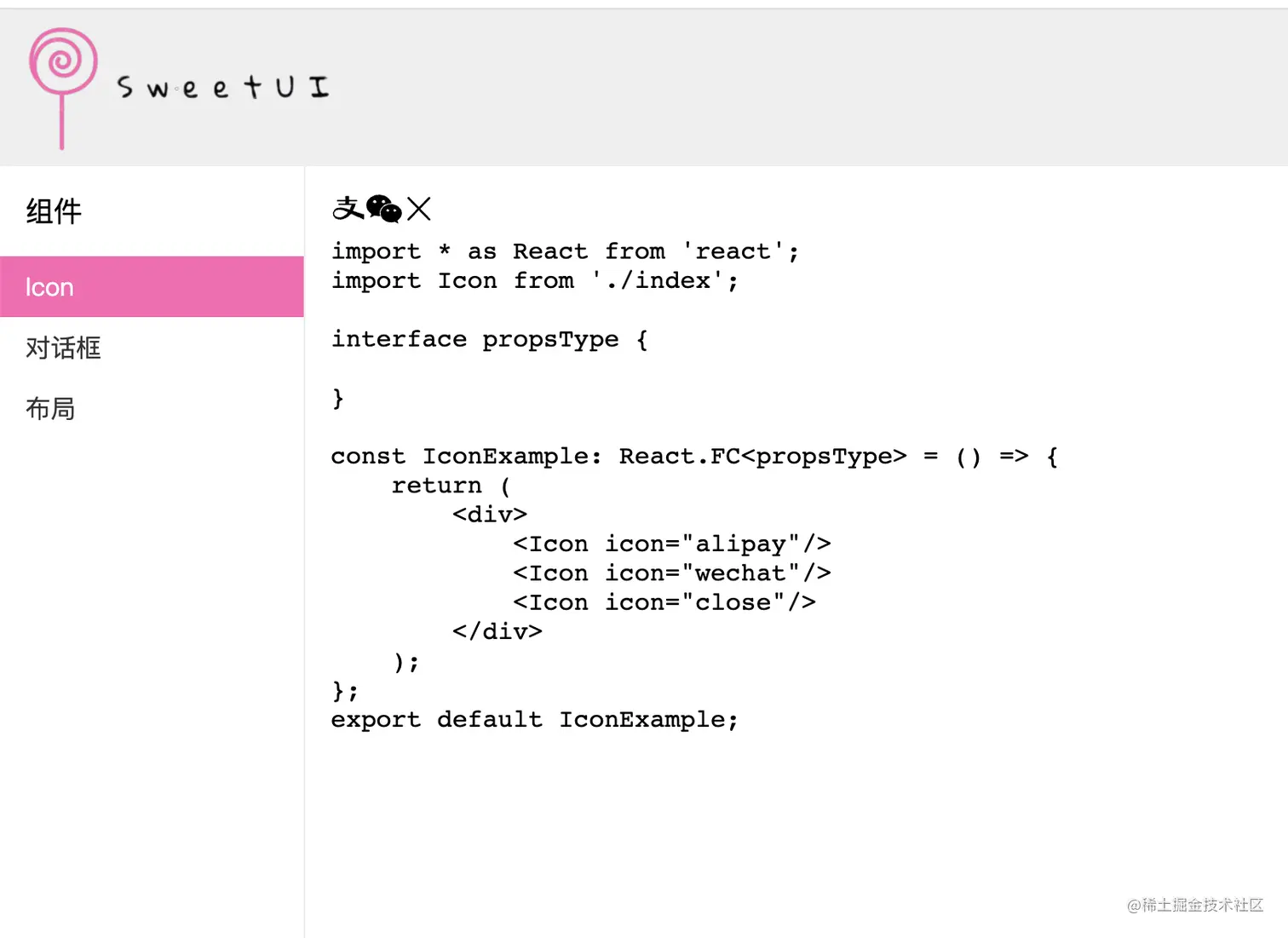

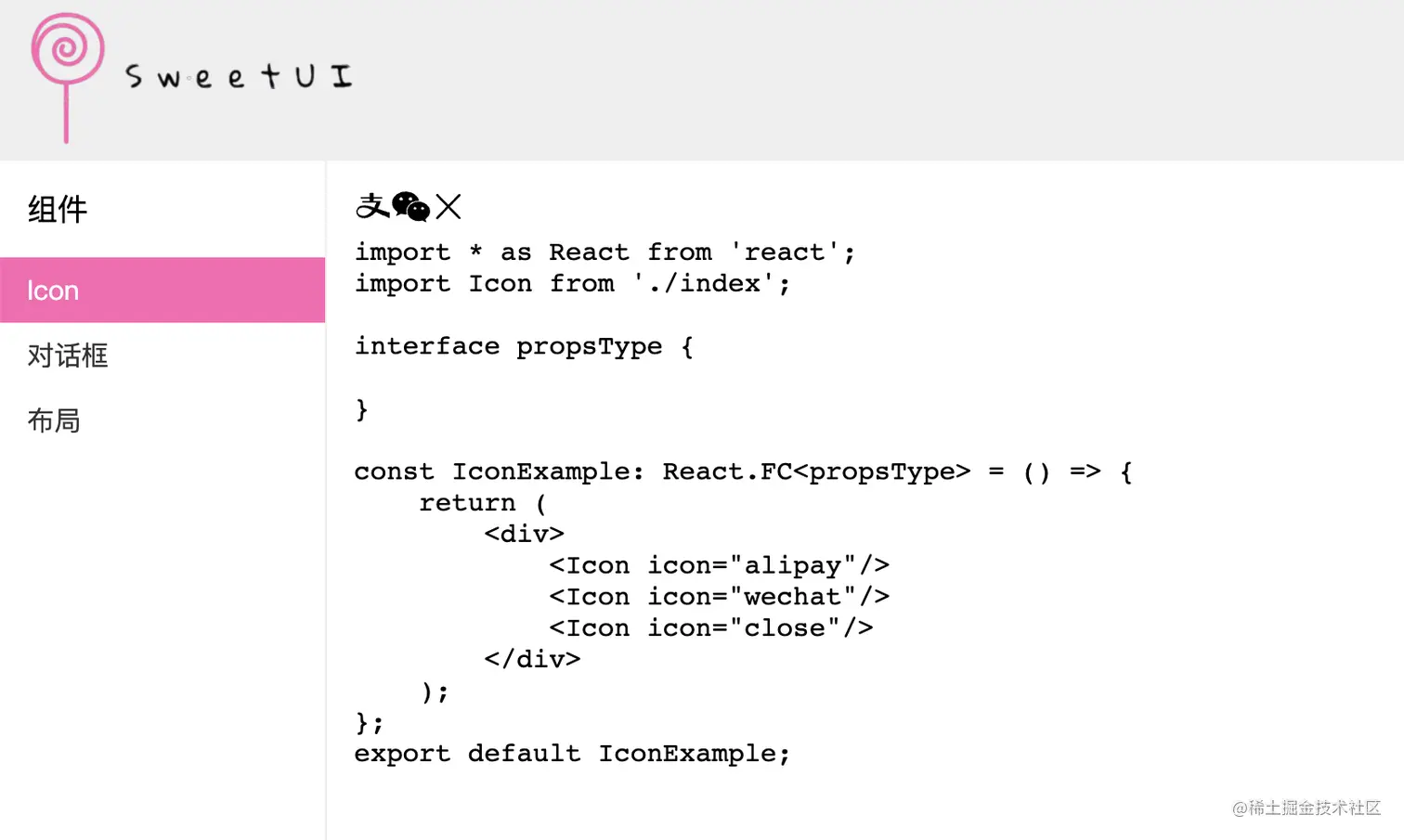

  5. 重启项目查看浏览器:

    image.png 成功实现!

6. 目标六: 代码显示高亮:

  1. 安装库: yarn add --dev prism-react-renderer

  2. 修改@/lib/Components/Demo/demo.tsx

    import * as React from 'react';
import Highlight, {defaultProps} from "prism-react-renderer";
import {useState} from 'react';

interface Props {
    code: string;
}

const Demo: React.FunctionComponent<Props> = (props) => {
    const [codeVisible, setCodeVisible] = useState(false);
    const code = (
        <Highlight {...defaultProps} code={props.code} language="jsx">
            {({className, style, tokens, getLineProps, getTokenProps}) => (
                <pre className={className} style={style}>
              {tokens.map((line, i) => (
                  <div {...getLineProps({line, key: i})}>
                      {line.map((token, key) => (
                          <span {...getTokenProps({token, key})} />
                      ))}
                  </div>
              ))}
            </pre>
            )}
        </Highlight>
    );
    return (
        <div>
            <div className="example">
                {props.children}
            </div>
            <div>
                <button onClick={() => setCodeVisible(!codeVisible)}>查看代码</button>
                {codeVisible && code}
            </div>
        </div>
    );
};

export default Demo;

  3. 重启项目, 查看浏览器:

    image.png 我们成功了!

7. 目标七: 编译项目, 准备部署

  1. 增加生存官网文件命令, 修改: @/package.json

        "doc": "cross-env NODE_ENV=production webpack --config webpack.config.doc.js"


  2. 添加生成官网webpack配置, 新增文件:@/webpack.config.doc.js

    const base = require('./webpack.config')
const path = require('path')
const HtmlWebpackPlugin = require('html-webpack-plugin');
module.exports = Object.assign({}, base, {
    mode: 'production',
    output: {
        path: path.resolve(__dirname, 'doc'),
    },
    entry: {
        example: './lib/index.tsx',
    },
    plugins: [
        new HtmlWebpackPlugin({
            template: 'index.html',
            filename: 'example.html'
        })
    ],
})

  3. 运行命令生成官网文件夹: yarn doc

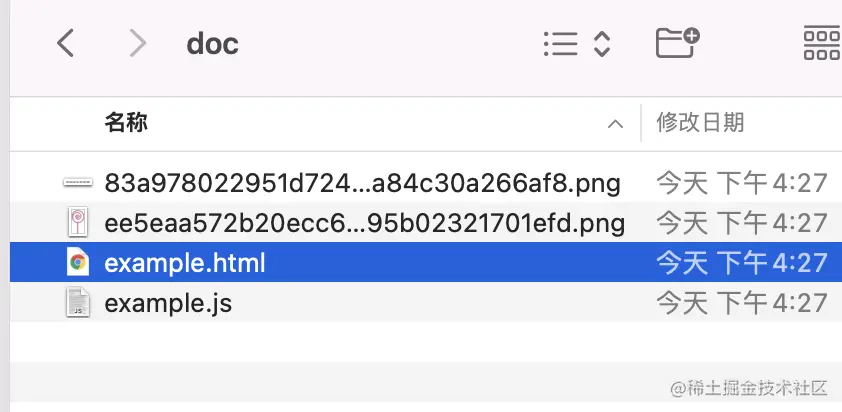

  4. 在文件夹管理器双击打开:@/doc/example.html


    image.png 我们成功了!

8.目标八: 将官网部署到github上去

  1. 保存当前代码:

        git add .
    git commit -m 'update'

    新建分支: git checkout -b gh-pages

  2. 在新分支下, 删除新建分支不需要的文件: 删除到只剩下下列文件夹: image.png

  3. 将doc文件夹东西移出来: mv -f doc/* ./

  4. git保存, 上传到github:

    git add .
git commit -m 'update'
git push --set-upstream origin gh-pages

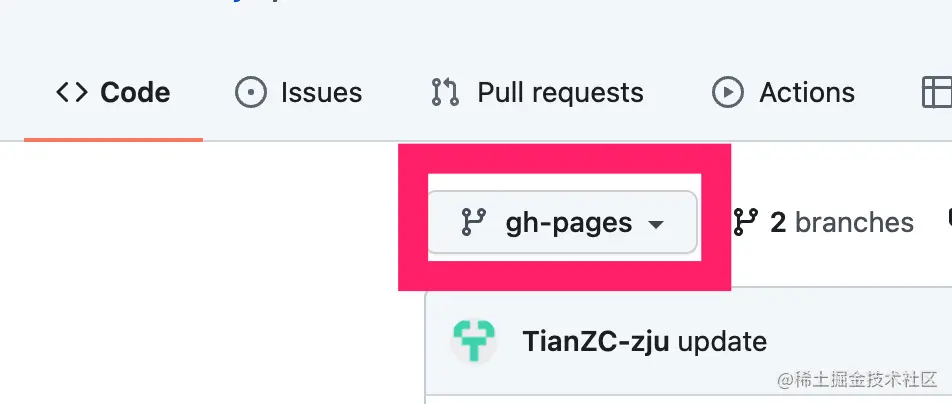

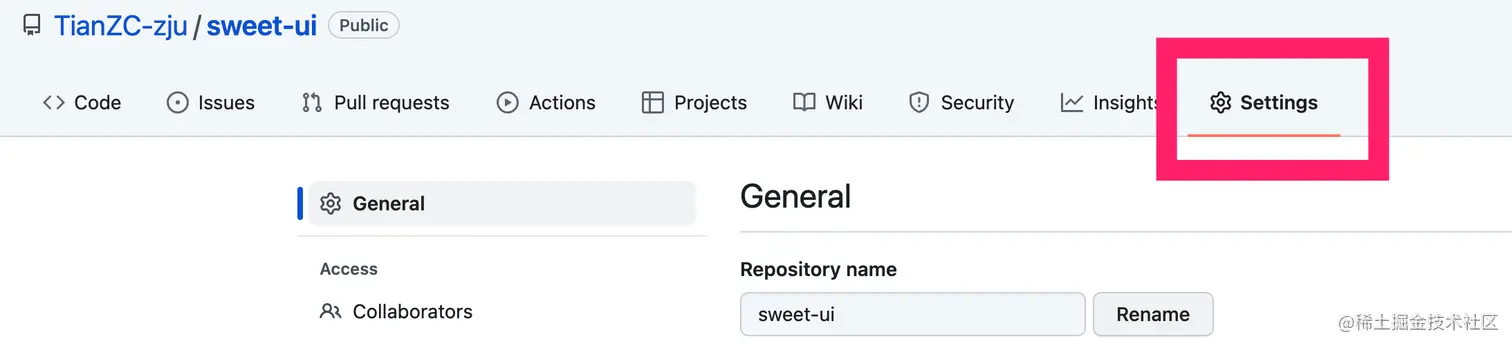

  5. 修改github 设置: 切换到 gh-pages 分支 image.png 打开settings

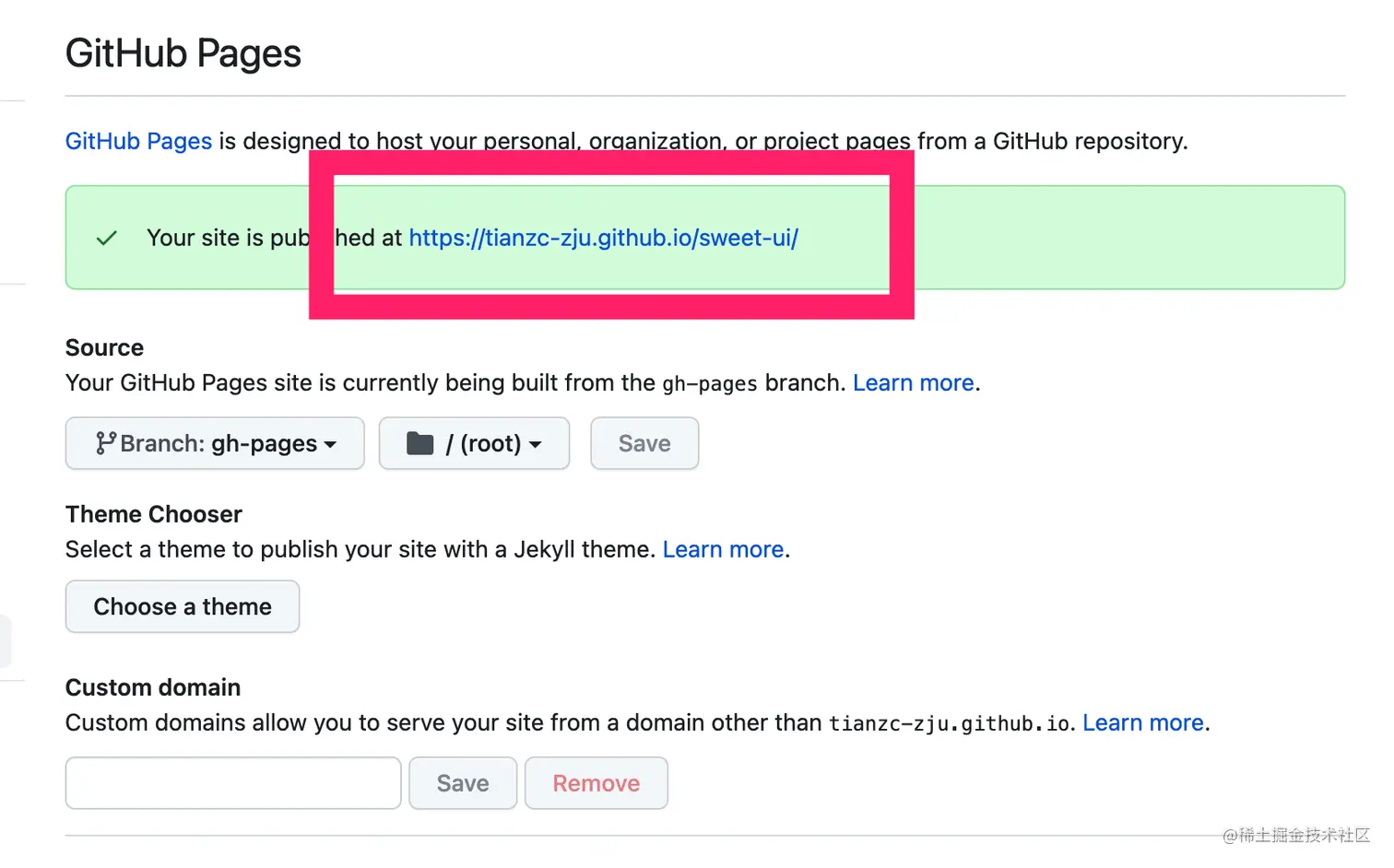

    image.png 打开github pages设置 image.png 成功打开:

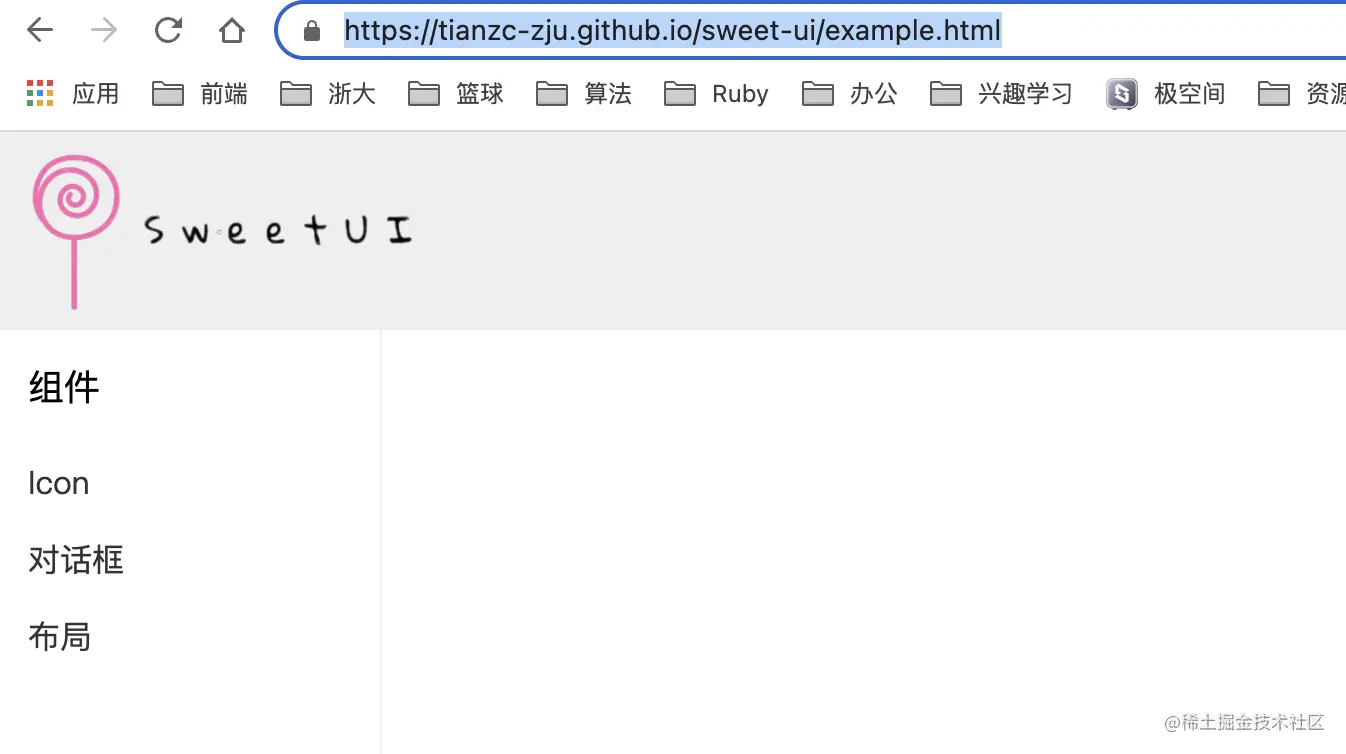

  6. 打开上图生成的github网址:https://tianzc-zju.github.io/sweet-ui/example.html

    image.png 我们成功了

9. 目标九: 生成自动更新官网的脚本

  1. 切回main分支 git checkout main

  2. 新建文件:@/doc.sh:

    #!/bin/env bash

yarn doc
git add .
git commit -m "update"
git checkout gh-pages
mv -f doc/* ./
git add .
git commit -m "update"
git push
git checkout -

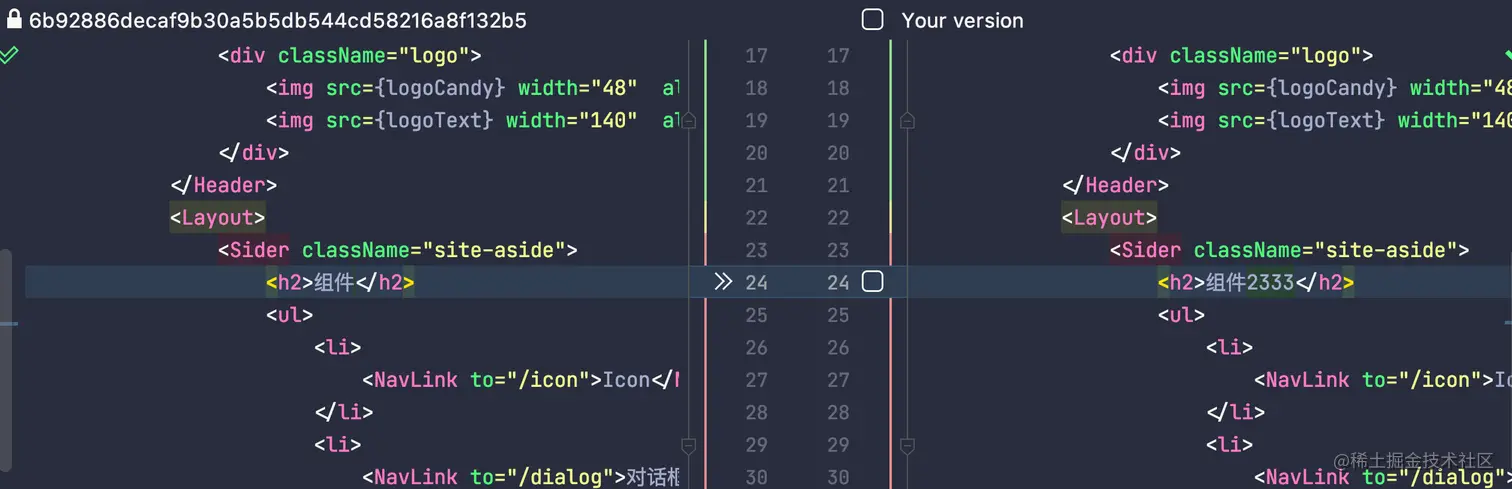

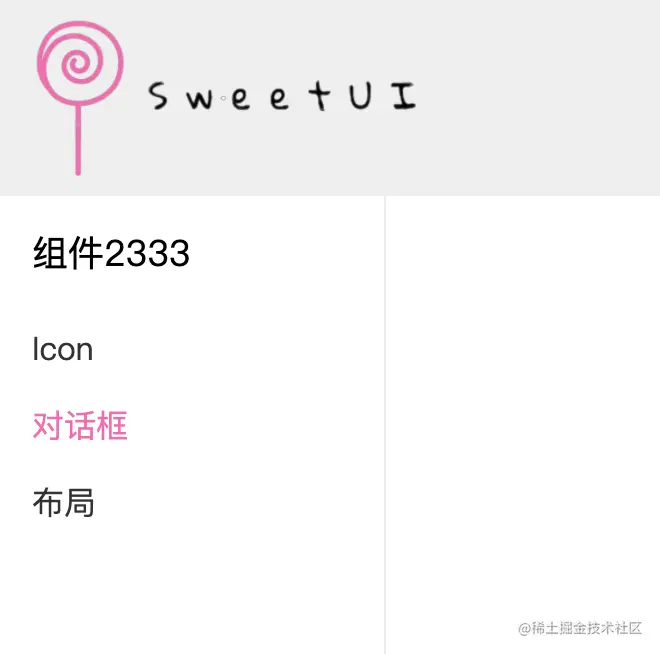

  3. 修改文件: @/lib/index.tsx


  4. 执行命令: sh ./doc.sh

  5. 查看https://tianzc-zju.github.io/sweet-ui/example.html


avatar
文章
阅读
粉丝
