canvas 实现抠图效果——浏览器canvas 实现抠图前端抠图 mask 图原图 mask 图图片合成前端 m

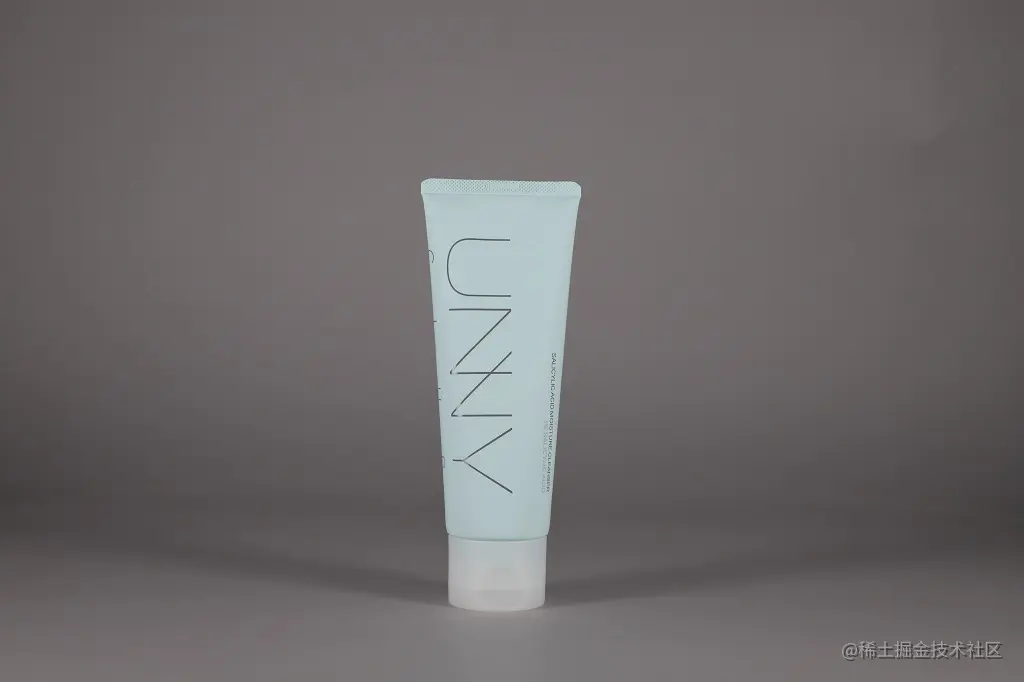

原图：gd-filems.dancf.com/gaoding/gao…

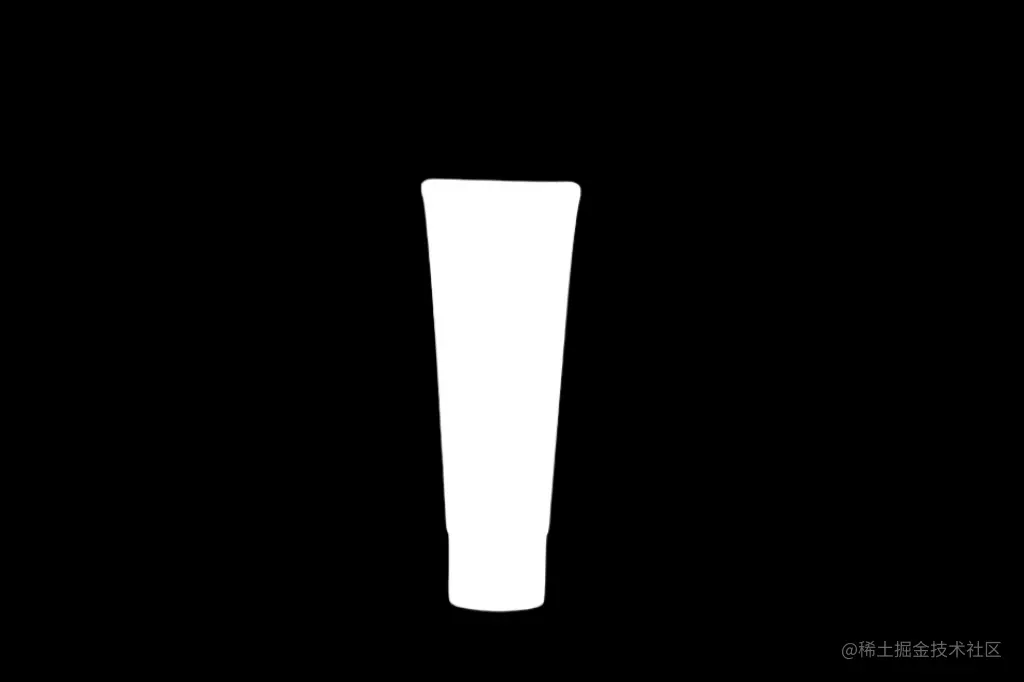

mask 图：matting-batch.dancf.com/matting/f11…

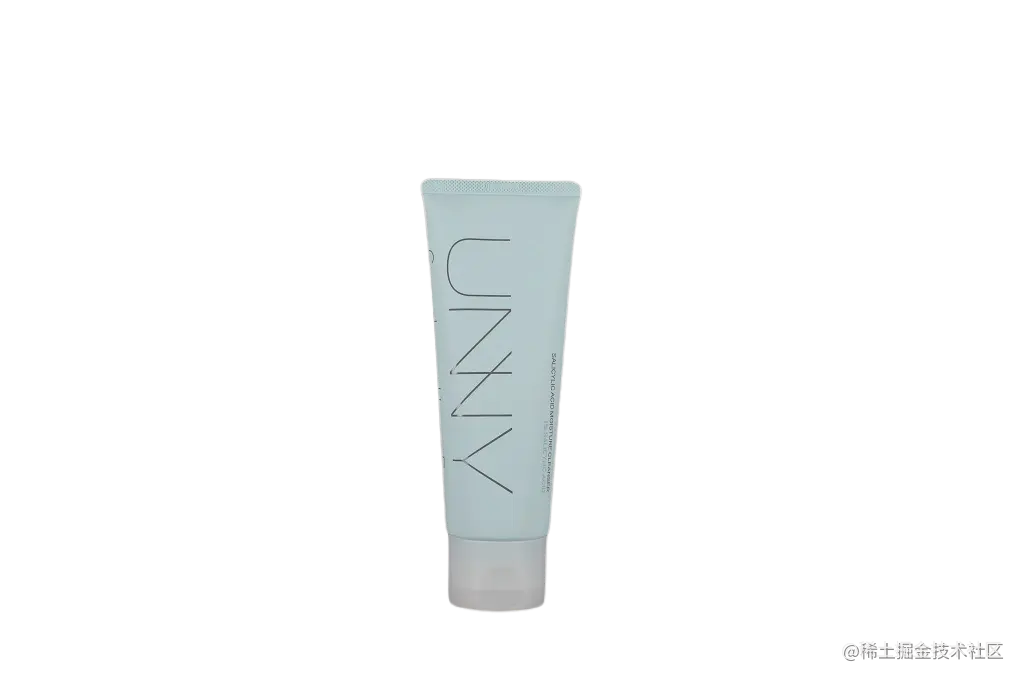

抠图结果

抠图代码实现

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>canvas-抠图测试</title>
</head>
<body>
    <!-- 商品 -->
    <!-- <img id='mask' width="1024" height="682" crossOrigin src="https://matting-batch.dancf.com/matting/f11d26c1611613be-20220315154323636.png" />
    <img id='source' width="1024" height="682" crossOrigin src="https://gd-filems.dancf.com/gaoding/gaoding/56406/f02eaf63-f3bb-49ac-b7ce-5b2c0de9d4ce35398314.jpg"/> -->
    <!-- 人像 -->
    <img id='mask' width="1000" height="1000" crossOrigin src="https://matting-batch.dancf.com/matting/7ab866edd2699a38-20220315171838594.png" />
    <img id='source' width="1000" height="1000" crossOrigin src="https://matting-batch.dancf.com/yunzheng/test/passport.jpg"/>
    <canvas id="canvas"></canvas>
    <script>
        // 创建一个 canvas 用来绘制 mask 图片
        const maskCanvas = document.createElement('canvas');
        const maskCtx = maskCanvas.getContext('2d');
        maskCanvas.width = maskImg.width;
        maskCanvas.height = maskImg.height;
        // 图片加载完毕标识
        let maskLoaded = false;
        const maskImg = document.getElementById('mask');
        // 当页面加载完毕后，图片开始加载时，开始画布绘制
        maskImg.onload = function() {
            maskLoaded = true
            // drawImage() 不支持直接传入 uint8Array、uint8ClampedArray 等像素矩阵数据
            maskCtx.drawImage(maskImg, 0, 0)
            // 获取图片的 imageData, imageData 的数据本身是像素点组成的数组 uint8ClampedArray, 结构为[R,G,B,A,R,G,B,A,...]
            let maskData = maskCtx.getImageData(0,0, maskCanvas.width, maskCanvas.height)
            for(let i = 0; i < maskData.data.length; i+= 4) {
                const r = maskData.data[i];
                // 修改 alpha 通道值，使得黑色区域透明，方便合图操作
                maskData.data[i + 3] = r
            }
            // 将修改后的像素矩阵重新绘制到画布上
            maskCtx.putImageData(maskData, 0, 0)
            checkLoading()
        }

        // 创建一个 canvas 来绘制原图
        const sourceCanvas = document.createElement('canvas');
        const sourceCtx = sourceCanvas.getContext('2d');
        const sourceImg = document.getElementById('source')
        sourceCanvas.width = sourceImg.width;
        sourceCanvas.height = sourceImg.height;
        let sourceLoaded = false

        sourceImg.onload = function() {
            sourceLoaded = true
            sourceCtx.drawImage(sourceImg, 0, 0)
            checkLoading()
        }

        // 确认原图和 mask 图已加载，进行抠图操作
        function checkLoading() {
            if(maskLoaded && sourceLoaded) {
                const resultCanvas = document.getElementById('canvas');
                resultCanvas.width = sourceImg.width;
                resultCanvas.height = sourceImg.height;
                const resultCtx = resultCanvas.getContext('2d');
                // 将 mask 画布内容绘制到新画布上
                resultCtx.drawImage(maskCanvas, 0, 0);
                // 关键步骤: 组合操作
                resultCtx.globalCompositeOperation = 'source-in';
                // 将原图画布内容绘制到新画布上
                resultCtx.drawImage(sourceCanvas, 0, 0);
            }
        }

    </script>
</body>
</html>
