Velero BackupLocation(BSL)-使用Restic备份&恢复集群通过Velero BackupLoc

功能测试

测试前的准备工作：可用的K8S集群环境、云厂商对象存储功能

设置Velero的凭证配置文件，此处用的阿里云的AK/SK，大家可以自行定义

vim credentials-velero
[default]
aws_access_key_id=<输入合法的AK>
aws_secret_access_key=<输入合法的SK>

安装velero（指定AWS插件、BUCKET、Regin、BSL配置信息、NameSpace等）

velero install \
--provider aws \
--plugins velero/velero-plugin-for-aws:v1.3.1 \
--bucket <bucket> \
--prefix <prefix> \
--secret-file ./credentials-velero \
--use-restic \
--default-volumes-to-restic \
--backup-location-config region=<region>,s3ForcePathStyle="false",s3Url=https://oss-<region>.aliyuncs.com \
--use-volume-snapshots=false \
--namespace velero-1 \
--wait

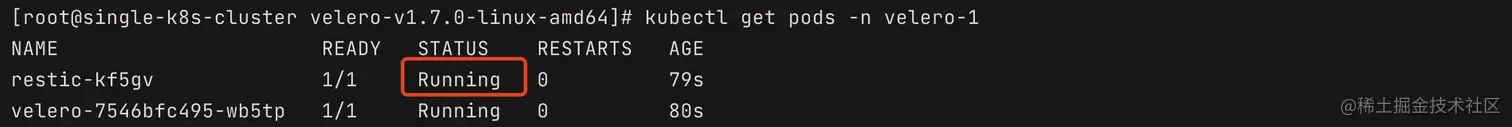

成功安装完成后会有提示，这时候velero就安装到k8s中，命名空间是velero-1，这里需要注意的是，BSL的状态应该为：Available，如果不是的话，会导致Restic备份的数据无法上传至S3对象存储桶中，还有就是pods中restic的状态，必须是Running，否则无法使用restic功能查看下BSL的详细信息

[root@single-k8s-cluster velero-v1.7.0-linux-amd64]# velero backup-location get -n velero-1 -o json
{
 "kind": "BackupStorageLocation",
 "apiVersion": "velero.io/v1",
 "metadata": {
   "name": "default",
   "namespace": "velero-1",
   "uid": "04b8a845-9cae-4b81-b346-ab26eb9600cb",
   "resourceVersion": "12037612",
   "generation": 1,
   "creationTimestamp": "2022-03-16T02:00:58Z",
   "labels": {
     "component": "velero"
   },
   "managedFields": [
     {
       "manager": "velero",
       "operation": "Update",
       "apiVersion": "velero.io/v1",
       "time": "2022-03-16T02:00:58Z",
       "fieldsType": "FieldsV1",
       "fieldsV1": {"f:metadata":{"f:labels":{".":{},"f:component":{}}},"f:spec":{".":{},"f:config":{".":{},"f:region":{},"f:s3ForcePathStyle":{},"f:s3Url":{}},"f:default":{},"f:objectStorage":{".":{},"f:bucket":{},"f:prefix":{}},"f:provider":{}}}
     },
     {
       "manager": "velero-server",
       "operation": "Update",
       "apiVersion": "velero.io/v1",
       "time": "2022-03-16T02:01:12Z",
       "fieldsType": "FieldsV1",
       "fieldsV1": {"f:status":{".":{},"f:lastSyncedTime":{},"f:lastValidationTime":{},"f:phase":{}}}
     }
   ]
 },
 "spec": {
   "provider": "aws",
   "config": {
     "region": "cn-beijing",
     "s3ForcePathStyle": "false",
     "s3Url": "https://oss-cn-beijing.aliyuncs.com"
   },
   "objectStorage": {
     "bucket": "xueltestoss",
     "prefix": "yxtest1"
   },
   "default": true
 },
 "status": {
   "phase": "Available",
   "lastSyncedTime": "2022-03-16T02:05:13Z",
   "lastValidationTime": "2022-03-16T02:05:13Z"
 }
}

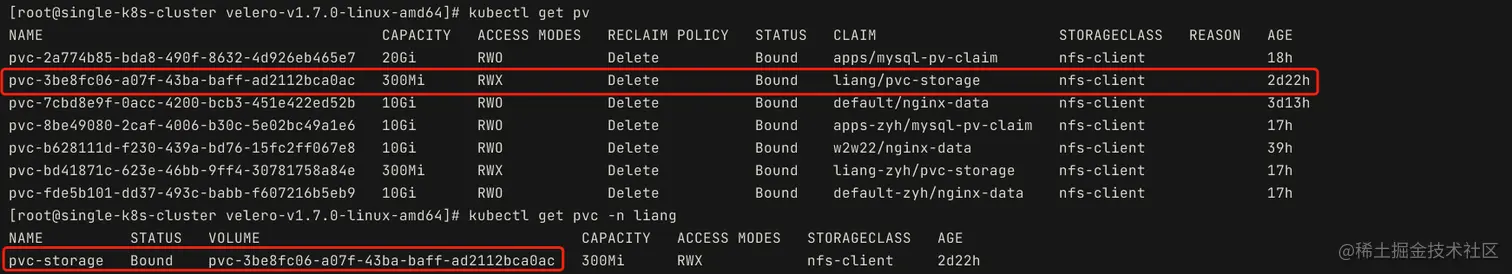

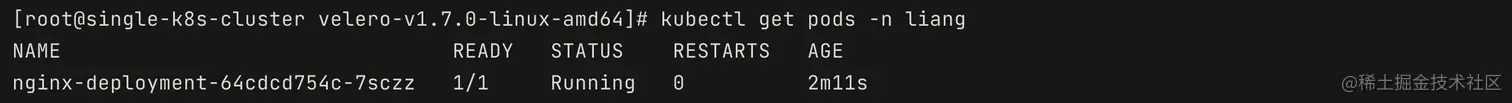

先查看下即将备份的资源，这是需要备份的的PV数据我们去该Pods中准备些数据进行备份，执行命令进入Pod

kubectl exec -it -n liang nginx-deployment-64cdcd754c-7sczz -- bash

在/usr/share/nginx/html路径下，上传了一个30mb大小的压缩文件

需要备份的资源准备妥当，开始使用velero创建备份

velero backup create yx-bk1\
--default-volumes-to-restic=true \
--include-namespaces=liang \
--snapshot-volumes=false \
-n velero-1

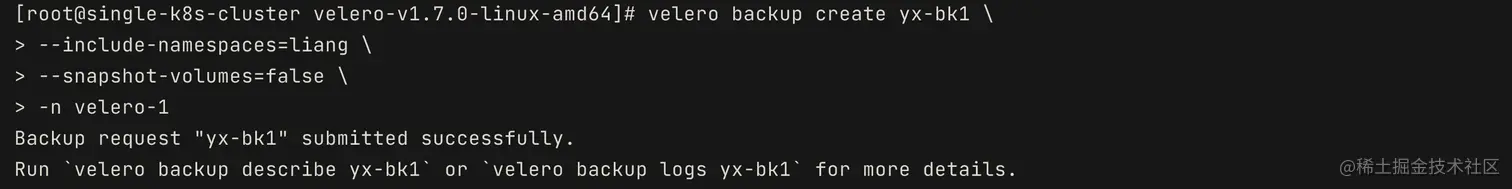

可以看到yx-bk1备份任务已经创建成功了，我们可以查看下备份任务的详细信息

[root@single-k8s-cluster velero-v1.7.0-linux-amd64]# velero backup describe yx-bk1 -n velero-1 --details
Name:         yx-bk1
Namespace:    velero-1
Labels:       velero.io/storage-location=default
Annotations:  velero.io/source-cluster-k8s-gitversion=v1.20.4
              velero.io/source-cluster-k8s-major-version=1
              velero.io/source-cluster-k8s-minor-version=20

Phase:  Completed

Errors:    0
Warnings:  0

Namespaces:
  Included:  liang
  Excluded:  <none>

Resources:
  Included:        *
  Excluded:        <none>
  Cluster-scoped:  auto

Label selector:  <none>

Storage Location:  default

Velero-Native Snapshot PVs:  false

TTL:  720h0m0s

Hooks:  <none>

Backup Format Version:  1.1.0

Started:    2022-03-16 11:43:49 +0800 CST
Completed:  2022-03-16 11:44:08 +0800 CST

Expiration:  2022-04-15 11:43:49 +0800 CST

Total items to be backed up:  15
Items backed up:              15

Resource List:
  apps/v1/Deployment:
    - liang/nginx-deployment
  apps/v1/ReplicaSet:
    - liang/nginx-deployment-64cdcd754c
  v1/ConfigMap:
    - liang/kube-root-ca.crt
  v1/Event:
    - liang/nginx-deployment-64cdcd754c-7sczz.16dcbf07fbf97282
    - liang/nginx-deployment-64cdcd754c-7sczz.16dcbf083bc9f4f8
    - liang/nginx-deployment-64cdcd754c-7sczz.16dcbf0bdb8d6ee0
    - liang/nginx-deployment-64cdcd754c-7sczz.16dcbf0bdffb412d
    - liang/nginx-deployment-64cdcd754c-7sczz.16dcbf0bf13bf614
    - liang/nginx-deployment-64cdcd754c.16dcbf07fb4ce5a0
  v1/Namespace:
    - liang
  v1/PersistentVolume:
    - pvc-3be8fc06-a07f-43ba-baff-ad2112bca0ac
  v1/PersistentVolumeClaim:
    - liang/pvc-storage
  v1/Pod:
    - liang/nginx-deployment-64cdcd754c-7sczz
  v1/Secret:
    - liang/default-token-9b4z9
  v1/ServiceAccount:
    - liang/default

Velero-Native Snapshots: <none included>

Restic Backups:
  Completed:
    liang/nginx-deployment-64cdcd754c-7sczz: wwwroot

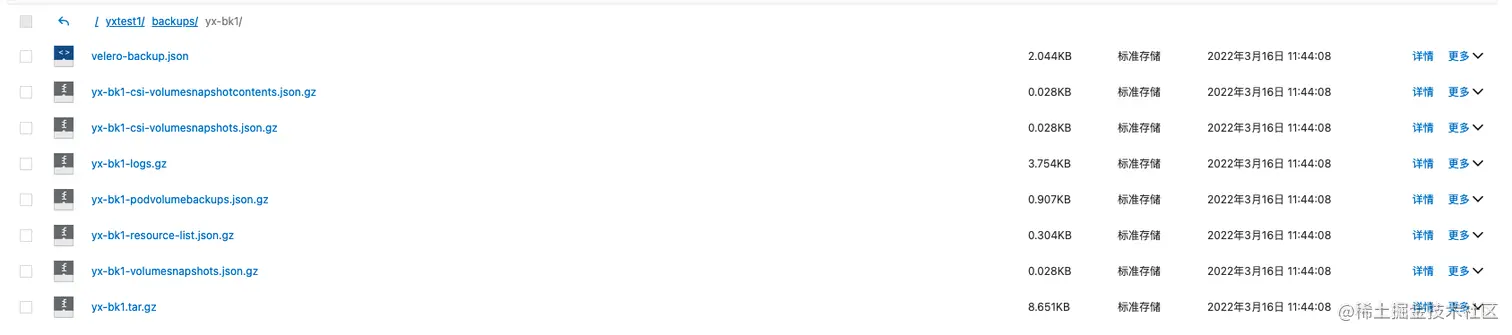

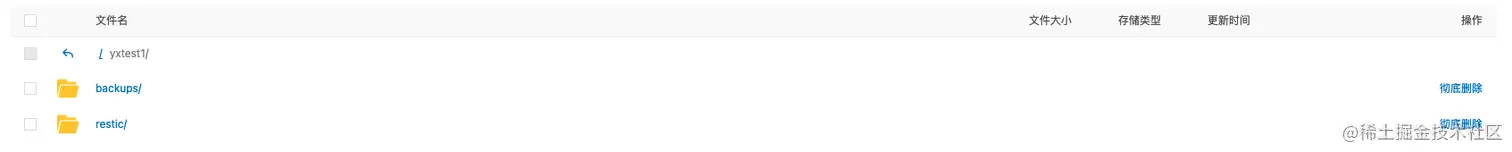

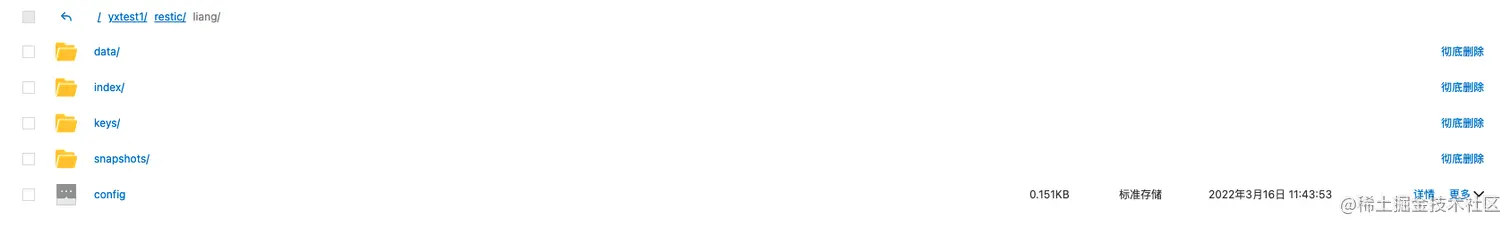

状态为Completed，说明备份已经成功。样的，我们可以在S3对象存储桶中看到备份的信息在backup文件夹中可以看到备份的任务以及日志等信息在restic文件夹中可以看到备份的信息

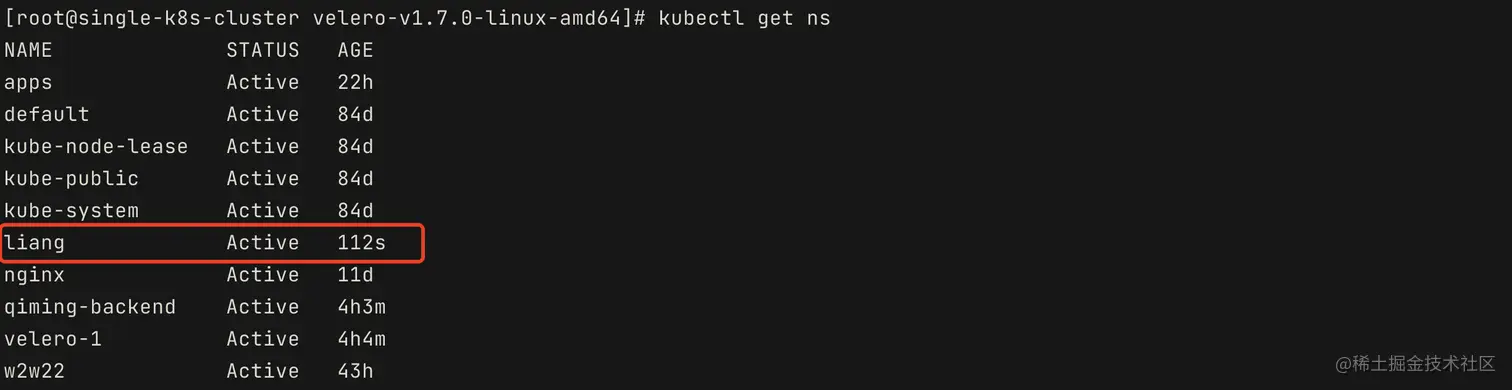

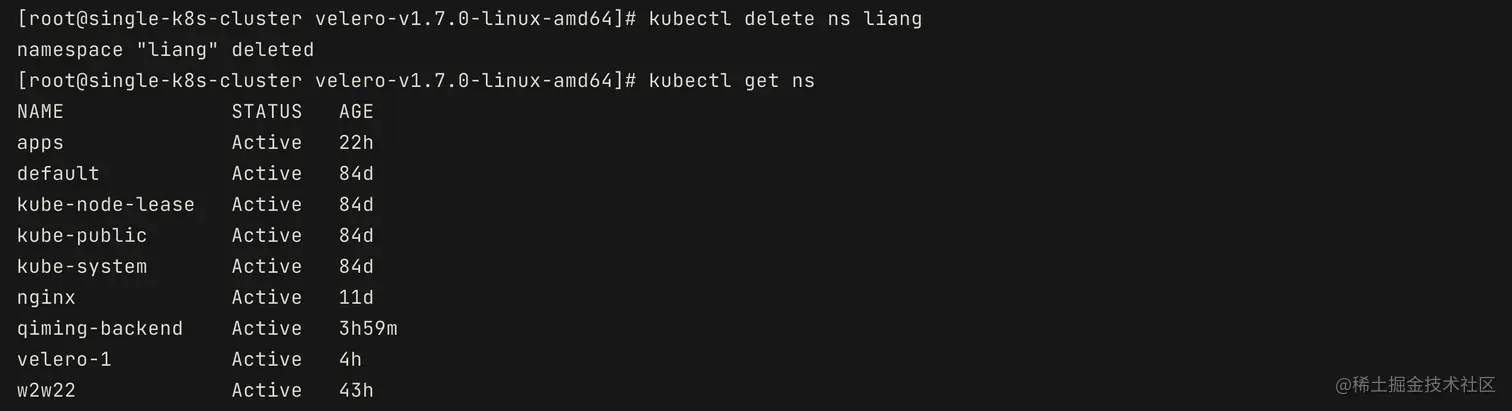

备份完成后，我们可以模拟灾难场景，将命名空间liang完全删除，并通过Velero恢复可以看到集群的命名空间中已经不包含liang了
通过Velero来恢复被删除的资源

velero restore create yx-re1 \
--include-namespaces=liang \
--from-backup yx-bk1 \
-n velero-1

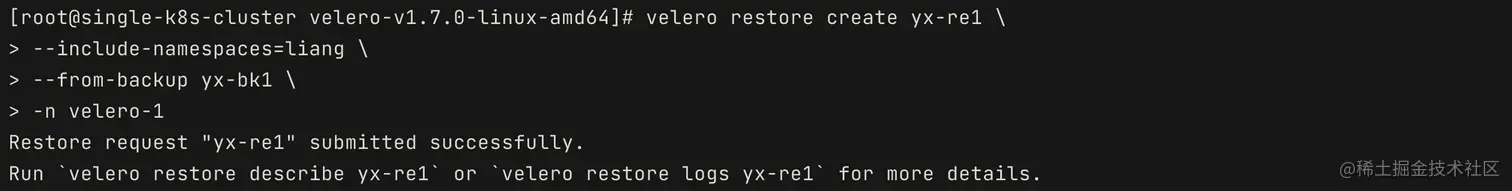

恢复任务已经创建完毕，我们可以查看恢复任务的详细信息

[root@single-k8s-cluster velero-v1.7.0-linux-amd64]# velero restore describe yx-re1 -n velero-1 --details
Name:         yx-re1
Namespace:    velero-1
Labels:       <none>
Annotations:  <none>

Phase:                       Completed
Total items to be restored:  9
Items restored:              9

Started:    2022-03-16 14:03:25 +0800 CST
Completed:  2022-03-16 14:03:46 +0800 CST

Backup:  yx-bk1

Namespaces:
  Included:  liang
  Excluded:  <none>

Resources:
  Included:        *
  Excluded:        nodes, events, events.events.k8s.io, backups.velero.io, restores.velero.io, resticrepositories.velero.io
  Cluster-scoped:  auto

Namespace mappings:  <none>

Label selector:  <none>

Restore PVs:  auto

Restic Restores:
  Completed:
    liang/nginx-deployment-64cdcd754c-7sczz: wwwroot

Preserve Service NodePorts:  auto

可以看到恢复状态是Completed，说明恢复成功

这时候可以看到，被删除的命名空间liang已经恢复到集群中，并且Pod也成功运行

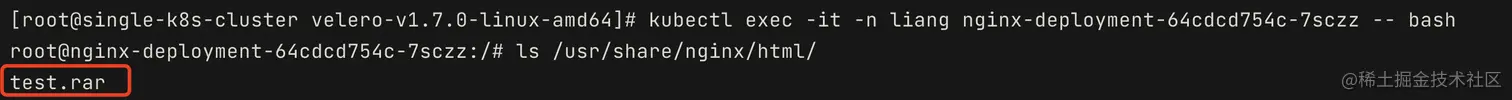

检测下之前用来测试备份的test.rar文件是否一同恢复，我们进入恢复好的Pod中

kubectl exec -it -n liang nginx-deployment-64cdcd754c-7sczz -- bash

可以看到，用于测试的文件也一同恢复到原来的位置至此，通过BSL的方式备份&恢复集群资源到这里就结束了
