前言
部门内一直在使用xxl-job的定时任务缓存数据，用起来很方便！但是本人一直没有对xxl-job框架的原理、流程进行学习，本篇文章对执行器的注册流程进行探索，欢迎指正！
自动注册
保存执行器信息

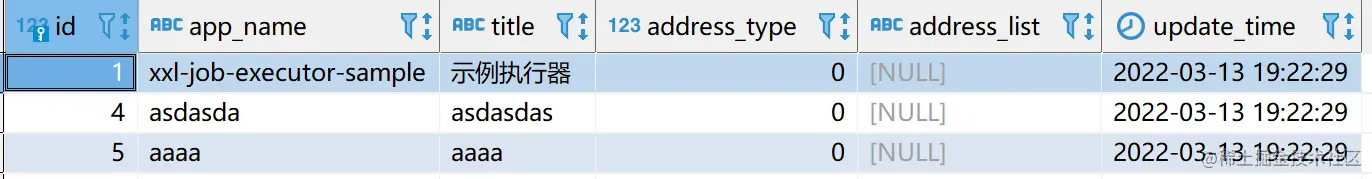

发送/xxl-job-admin/jobgroup/save请求，将AppName、名称、注册方式保存到MySQL中，保存信息如下：
address_type为执行器地址类型：0=自动注册、1=手动录入
执行器启动后注册到调度中心
1）启动执行器项目时，会启动一个netty服务器，把该netty服务器的信息注册到调度中心，该netty服务器会与调度中心进行通信
EmbedServer.java
public void start(final String address, final int port, final String appname, final String accessToken) {
executorBiz = new ExecutorBizImpl();
thread = new Thread(new Runnable() {
@Override
public void run() {
// param
EventLoopGroup bossGroup = new NioEventLoopGroup();
EventLoopGroup workerGroup = new NioEventLoopGroup();
// 1.bizThreadPool用于执行调度中心发来的任务
ThreadPoolExecutor bizThreadPool = new ThreadPoolExecutor(
0,
200,
60L,
TimeUnit.SECONDS,
new LinkedBlockingQueue<Runnable>(2000),
new ThreadFactory() {
@Override
public Thread newThread(Runnable r) {
return new Thread(r, "xxl-job, EmbedServer bizThreadPool-" + r.hashCode());
}
},
// 拒绝策略：直接丢弃
new RejectedExecutionHandler() {
@Override
public void rejectedExecution(Runnable r, ThreadPoolExecutor executor) {
throw new RuntimeException("xxl-job, EmbedServer bizThreadPool is EXHAUSTED!");
}
});
try {
// start server
ServerBootstrap bootstrap = new ServerBootstrap();
bootstrap.group(bossGroup, workerGroup)
.channel(NioServerSocketChannel.class)
.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
public void initChannel(SocketChannel channel) throws Exception {
channel.pipeline()
.addLast(new IdleStateHandler(0, 0, 30 * 3, TimeUnit.SECONDS)) // beat 3N, close if idle 超时关闭通道
.addLast(new HttpServerCodec())
.addLast(new HttpObjectAggregator(5 * 1024 * 1024)) // merge request & reponse to FULL
.addLast(new EmbedHttpServerHandler(executorBiz, accessToken, bizThreadPool));
}
})
.childOption(ChannelOption.SO_KEEPALIVE, true);
// bind
ChannelFuture future = bootstrap.bind(port).sync();
logger.info(">>>>>>>>>>> xxl-job remoting server start success, nettype = {}, port = {}", EmbedServer.class, port);
// start registry
// 把自己注册到调度中心
startRegistry(appname, address);
// wait util stop
future.channel().closeFuture().sync();
} catch (InterruptedException e) {
if (e instanceof InterruptedException) {
logger.info(">>>>>>>>>>> xxl-job remoting server stop.");
} else {
logger.error(">>>>>>>>>>> xxl-job remoting server error.", e);
}
} finally {
// stop
try {
workerGroup.shutdownGracefully();
bossGroup.shutdownGracefully();
} catch (Exception e) {
logger.error(e.getMessage(), e);
}
}
}
});
thread.setDaemon(true); // daemon, service jvm, user thread leave >>> daemon leave >>> jvm leave
thread.start();
}
2）再往startRegistry里面走，可以看到
public void start(final String appname, final String address){
// valid
if (appname==null || appname.trim().length()==0) {
logger.warn(">>>>>>>>>>> xxl-job, executor registry config fail, appname is null.");
return;
}
if (XxlJobExecutor.getAdminBizList() == null) {
logger.warn(">>>>>>>>>>> xxl-job, executor registry config fail, adminAddresses is null.");
return;
}
registryThread = new Thread(new Runnable() {
@Override
public void run() {
// registry
while (!toStop) {
try {
RegistryParam registryParam = new RegistryParam(RegistryConfig.RegistType.EXECUTOR.name(), appname, address);
for (AdminBiz adminBiz: XxlJobExecutor.getAdminBizList()) {// 这里可以看到，调度中心可以部署多个
try {
ReturnT<String> registryResult = adminBiz.registry(registryParam);//把自己注册到当前的adminBiz调度中心中
if (registryResult!=null && ReturnT.SUCCESS_CODE == registryResult.getCode()) {
registryResult = ReturnT.SUCCESS;
logger.debug(">>>>>>>>>>> xxl-job registry success, registryParam:{}, registryResult:{}", new Object[]{registryParam, registryResult});
break;
} else {
logger.info(">>>>>>>>>>> xxl-job registry fail, registryParam:{}, registryResult:{}", new Object[]{registryParam, registryResult});
}
} catch (Exception e) {
logger.info(">>>>>>>>>>> xxl-job registry error, registryParam:{}", registryParam, e);
}
}
} catch (Exception e) {
if (!toStop) {
logger.error(e.getMessage(), e);
}
}
try {
if (!toStop) {
TimeUnit.SECONDS.sleep(RegistryConfig.BEAT_TIMEOUT);
}
} catch (InterruptedException e) {
if (!toStop) {
logger.warn(">>>>>>>>>>> xxl-job, executor registry thread interrupted, error msg:{}", e.getMessage());
}
}
}
// registry remove
try {
RegistryParam registryParam = new RegistryParam(RegistryConfig.RegistType.EXECUTOR.name(), appname, address);
for (AdminBiz adminBiz: XxlJobExecutor.getAdminBizList()) {
try {
ReturnT<String> registryResult = adminBiz.registryRemove(registryParam);
if (registryResult!=null && ReturnT.SUCCESS_CODE == registryResult.getCode()) {
registryResult = ReturnT.SUCCESS;
logger.info(">>>>>>>>>>> xxl-job registry-remove success, registryParam:{}, registryResult:{}", new Object[]{registryParam, registryResult});
break;
} else {
logger.info(">>>>>>>>>>> xxl-job registry-remove fail, registryParam:{}, registryResult:{}", new Object[]{registryParam, registryResult});
}
} catch (Exception e) {
if (!toStop) {
logger.info(">>>>>>>>>>> xxl-job registry-remove error, registryParam:{}", registryParam, e);
}
}
}
} catch (Exception e) {
if (!toStop) {
logger.error(e.getMessage(), e);
}
}
logger.info(">>>>>>>>>>> xxl-job, executor registry thread destroy.");
}
});
registryThread.setDaemon(true);
registryThread.setName("xxl-job, executor ExecutorRegistryThread");
registryThread.start();
}
3）最终发送请求给调度中心
return XxlJobRemotingUtil.postBody(addressUrl + "api/registry", accessToken, timeout, registryParam, String.class);
4）调度中心收到请求
JobApiController.java
// 其他代码省略
return adminBiz.registry(registryParam);
5）调度中心保存注册信息到MySQL
public ReturnT<String> registry(RegistryParam registryParam) {
// valid
if (!StringUtils.hasText(registryParam.getRegistryGroup())
|| !StringUtils.hasText(registryParam.getRegistryKey())
|| !StringUtils.hasText(registryParam.getRegistryValue())) {
return new ReturnT<String>(ReturnT.FAIL_CODE, "Illegal Argument.");
}
// async execute
registryOrRemoveThreadPool.execute(new Runnable() {
@Override
public void run() {
// 可能存在原有注册记录，先尝试更新（多个调度中心使用的是同一台MySQL，所以有可能出现已存在的记录）
int ret = XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().registryUpdate(registryParam.getRegistryGroup(), registryParam.getRegistryKey(), registryParam.getRegistryValue(), new Date());
if (ret < 1) {
// 如果没有原有记录，则插入新记录
XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().registrySave(registryParam.getRegistryGroup(), registryParam.getRegistryKey(), registryParam.getRegistryValue(), new Date());
// fresh
freshGroupRegistryInfo(registryParam);
}
}
});
return ReturnT.SUCCESS;
}
注意： 注册信息刚插入MySQL表之后，查看执行器管理界面时，仍不会显示online机器地址
原因： 注册信息插入到xxl_job_registry表，执行器管理界面查询的是xxl_job_group表的信息，需要registryMonitorThread线程将online机器地址信息更新到xxl_job_group表中，具体代码如下：
JobRegistryHelper.java
registryMonitorThread = new Thread(new Runnable() {
@Override
public void run() {
while (!toStop) {
try {
// auto registry group
List<XxlJobGroup> groupList = XxlJobAdminConfig.getAdminConfig().getXxlJobGroupDao().findByAddressType(0);
if (groupList!=null && !groupList.isEmpty()) {
// remove dead address (admin/executor)
List<Integer> ids = XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().findDead(RegistryConfig.DEAD_TIMEOUT, new Date());
if (ids!=null && ids.size()>0) {
XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().removeDead(ids);
}
// fresh online address (admin/executor)
HashMap<String, List<String>> appAddressMap = new HashMap<String, List<String>>();
List<XxlJobRegistry> list = XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().findAll(RegistryConfig.DEAD_TIMEOUT, new Date());
if (list != null) {
for (XxlJobRegistry item: list) {
if (RegistryConfig.RegistType.EXECUTOR.name().equals(item.getRegistryGroup())) {
String appname = item.getRegistryKey();
List<String> registryList = appAddressMap.get(appname);
if (registryList == null) {
registryList = new ArrayList<String>();
}
// registryValue就是执行器的ip:port
if (!registryList.contains(item.getRegistryValue())) {
registryList.add(item.getRegistryValue());
}
appAddressMap.put(appname, registryList);
}
}
}
// fresh group address
for (XxlJobGroup group: groupList) {
List<String> registryList = appAddressMap.get(group.getAppname());
String addressListStr = null;
if (registryList!=null && !registryList.isEmpty()) {
Collections.sort(registryList);
StringBuilder addressListSB = new StringBuilder();
for (String item:registryList) {
addressListSB.append(item).append(",");
}
addressListStr = addressListSB.toString();
addressListStr = addressListStr.substring(0, addressListStr.length()-1);
}
group.setAddressList(addressListStr);
group.setUpdateTime(new Date());
//此处会将读取到的机器地址，保存到xxl_job_group表中，保存之后前端界面刷新才能看到online机器地址
XxlJobAdminConfig.getAdminConfig().getXxlJobGroupDao().update(group);
}
}
} catch (Exception e) {
if (!toStop) {
logger.error(">>>>>>>>>>> xxl-job, job registry monitor thread error:{}", e);
}
}
try {
//修改该值，可以缩短监控时间间隔，默认30s
TimeUnit.SECONDS.sleep(RegistryConfig.BEAT_TIMEOUT);
} catch (InterruptedException e) {
if (!toStop) {
logger.error(">>>>>>>>>>> xxl-job, job registry monitor thread error:{}", e);
}
}
}
logger.info(">>>>>>>>>>> xxl-job, job registry monitor thread stop");
}
});
总结
即使是一个任务调度框架，也是很复杂的，有很多细节值得学习，学习时不能像无头苍蝇一样乱撞，这样只会在看代码的过程中迷失方向，自我内耗。
我的思路是：使用功能，给自己提出问题，然后对疑点进行调试，最终对问题进行自我解答，以始为终。
