3D曲面图 平滑处理

原数据

用一个二维数组表示曲面图数据，每条数据的i、j分别代表x,y,data[i][j]代表z

const data = [
  [0.67, 0.65, 0.69, 0.63, 0.66],
  [0.61, 0.62, 0.70, 0.60, 0.54],
  [0.64, 0.59, 0.56, 0.55, 0.60]
]

绘制效果

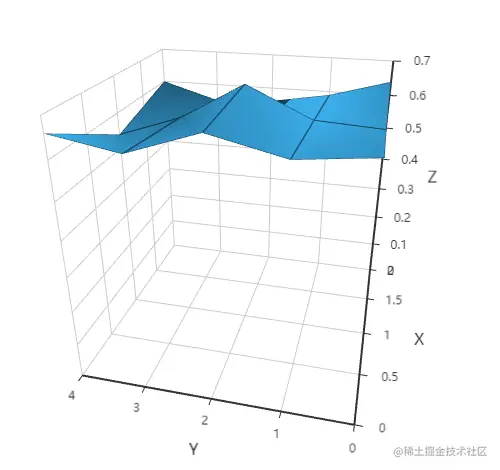

使用Echarts-gl绘制效果如下。

分析

可以看出，数据量较少，图形的拐点非常尖锐生硬，如何才能使图形更加的平滑呢？ 可以使用插值的方式，及在每两个数据直接插入n个数。

[
  [0.67, n1, n2,n3...., 0.65, n1, n2,n3...., 0.69, n1, n2,n3...., 0.63, n1, n2,n3...., 0.66],
  [n1,.......],
  [n2,.......],
  [n3,.......],
  ...
  [0.61, n1, n2,n3...., 0.62, n1, n2,n3...., 0.70, n1, n2,n3...., 0.60, n1, n2,n3...., 0.54],
  [n1,.......],
  [n2,.......],
  [n3,.......],
  ...
  [0.64, n1, n2,n3...., 0.59, n1, n2,n3...., 0.56, n1, n2,n3...., 0.55, n1, n2,n3...., 0.60]
]

但是，插入的时候又不能均匀插入，要使数据的变化更平滑，这里使用贝塞尔曲线方程计算插入的值。什么！不会贝塞尔曲线？没关系，直接引入amfe-cubicbezier

安装amfe-cubicbezier

npm i amfe-cubicbezier

使用

import { easeInOut } from 'amfe-cubicbezier'

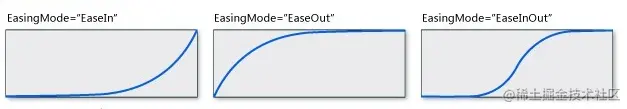

amfe-cubicbezier提供了 generate, linear, ease, easeIn, easeOut, easeInOut三个方法，其中generate可自定义生成贝塞尔曲线，其他的是常用贝塞尔曲线。这里使用的是easeInOut(必定经过中点)

代码实现

import { easeInOut } from 'amfe-cubicbezier'

// 曲面图平滑处理
export function toSmooth(arr) {
  // 纵向插值
  const res = []
  for (let i = 0; i < arr.length; i++) {
    const row = arr[i]
    res.push(row)
    if (i !== arr.length - 1) {
      res.push(...getVal10Arr(row, arr[i + 1]))
    }
  }
  // 横向插值
  const hArr = []
  for (let i = 0; i < res.length; i++) {
    const row = []
    for (let j = 0; j < res[i].length; j++) {
      row.push(res[i][j])
      if (j !== res[i].length - 1) {
        row.push(...getVal10(res[i][j], res[i][j + 1]))
      }
    }
    hArr.push(row)
  }
  return hArr
}
// 在min,max直接插入9个值
function getVal10(min, max) {
  const step = max - min
  const res = []
  for (let i = 1; i < 10; i++) {
    const v = min + step * easeInOut(i / 10)
    res.push(v)
  }
  return res
}
// 在两个数组直接插入9个数组
function getVal10Arr(minArr, maxArr) {
  const res = []
  for (let i = 0; i < minArr.length; i++) {
    const min = minArr[i]
    const max = maxArr[i]
    console.log(min, max, i)
    res.push(getVal10(min, max))
  }
  // 数组旋转
  return res[0].map((_, i) => res.map(row => row[i]))
}

在vue中使用

// 引入上面的toSmooth方法
import { toSmooth } from './utils'
this.chart = this.$echarts.init(this.$refs.chart, 'light')

// 预览图表 假数据
const data = [
  [0.67, 0.65, 0.69, 0.63, 0.66],
  [0.61, 0.62, 0.70, 0.60, 0.54],
  [0.64, 0.59, 0.56, 0.55, 0.60]
]
const smoothData = toSmooth(data)
this.chart.setOption({
  xAxis3D: { type: 'value' },
  yAxis3D: { type: 'value' },
  zAxis3D: { type: 'value' },
  grid3D: {},
  series: [
    {
      equation: {
        x: { min: 0, max: 2, step: 0.1 },
        y: { min: 0, max: 4, step: 0.1 },
        z: (x, y) => {
          return smoothData[Math.round(x / 0.1)][Math.round(y / 0.1)]
        }
      },
      type: 'surface'
    }
  ]
})

插值处理后效果

插值后的数据

[
