一、Spring整合RabbitMQ

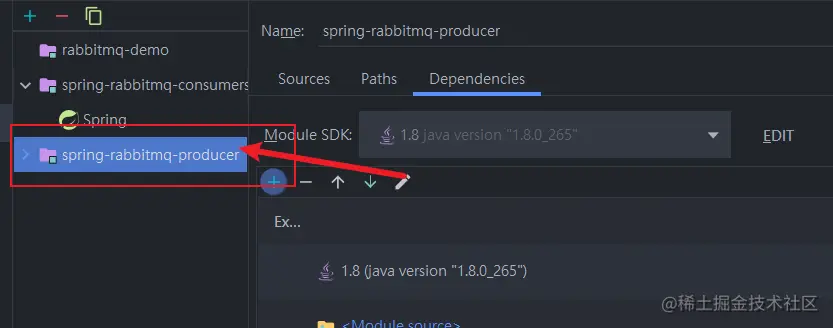

1. 搭建生产者工程

1.1 添加依赖

<dependencies>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-context</artifactId>
        <version>5.1.7.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.amqp</groupId>
        <artifactId>spring-rabbit</artifactId>
        <version>2.1.8.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <version>4.12</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-test</artifactId>
        <version>5.1.7.RELEASE</version>
    </dependency>
</dependencies>

1.2 配置整合

resources\properties\rabbitmq.properties

rabbitmq.host=XXX.XXX.XXX.XXX
rabbitmq.port=5672
rabbitmq.username=admin
rabbitmq.password=admin
rabbitmq.virtual-host=/admin

resources\spring\spring-rabbitmq.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:rabbit="http://www.springframework.org/schema/rabbit"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
https://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/rabbit
http://www.springframework.org/schema/rabbit/spring-rabbit.xsd">
    <!--加载配置文件-->
    <context:property-placeholder
            location="classpath:properties/rabbitmq.properties"/>
    <!-- 定义rabbitmq connectionFactory -->
    <rabbit:connection-factory id="connectionFactory" host="${rabbitmq.host}"
                               port="${rabbitmq.port}"
                               username="${rabbitmq.username}"
                               password="${rabbitmq.password}"
                               virtual-host="${rabbitmq.virtual-host}"/>
    <!--定义管理交换机、队列-->
    <rabbit:admin connection-factory="connectionFactory"/>
    <!--定义持久化队列，不存在则自动创建；不绑定到交换机则绑定到默认交换机
    默认交换机类型为direct，名字为：""，路由键为队列的名称
    -->
    <rabbit:queue id="spring_queue" name="spring_queue" auto-declare="true"/>
    <!-- ~~~~~~~~~~~~~~~~~~~~~~~~~~~~广播；所有队列都能收到消息
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~ -->
    <!--定义广播交换机中的持久化队列，不存在则自动创建-->
    <rabbit:queue id="spring_fanout_queue_1" name="spring_fanout_queue_1" auto-declare="true"/>
    <!--定义广播交换机中的持久化队列，不存在则自动创建-->
    <rabbit:queue id="spring_fanout_queue_2" name="spring_fanout_queue_2" auto-declare="true"/>
    <!--定义广播类型交换机；并绑定上述两个队列-->
    <rabbit:fanout-exchange id="spring_fanout_exchange"
                            name="spring_fanout_exchange" auto-declare="true">
        <rabbit:bindings>
            <rabbit:binding queue="spring_fanout_queue_1"/>
            <rabbit:binding queue="spring_fanout_queue_2"/>
        </rabbit:bindings>
    </rabbit:fanout-exchange>
    <!-- ~~~~~~~~~~~~~~~~~~~~~~~~~~~~通配符；*匹配一个单词，#匹配多个单词
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~ -->
    <!--定义广播交换机中的持久化队列，不存在则自动创建-->
    <rabbit:queue id="spring_topic_queue_star" name="spring_topic_queue_star"
                  auto-declare="true"/>
    <!--定义广播交换机中的持久化队列，不存在则自动创建-->
    <rabbit:queue id="spring_topic_queue_well" name="spring_topic_queue_well"
                  auto-declare="true"/>
    <!--定义广播交换机中的持久化队列，不存在则自动创建-->
    <rabbit:queue id="spring_topic_queue_well2" name="spring_topic_queue_well2"
                  auto-declare="true"/>
    <rabbit:topic-exchange id="spring_topic_exchange"
                           name="spring_topic_exchange" auto-declare="true">
        <rabbit:bindings>
            <rabbit:binding pattern="lxs.*" queue="spring_topic_queue_star"/>
            <rabbit:binding pattern="lxs.#" queue="spring_topic_queue_well"/>
            <rabbit:binding pattern="xzk.#" queue="spring_topic_queue_well2"/>
        </rabbit:bindings>
    </rabbit:topic-exchange>
    <!--定义rabbitTemplate对象操作可以在代码中方便发送消息-->
    <rabbit:template id="rabbitTemplate" connection-factory="connectionFactory"/>
</beans>

1.3 测试文件

src\test\java\com\zjl\rabbitmq\ProducerTest.java

@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = "classpath:spring/spring-rabbitmq.xml")
public class ProducerTest {

    @Autowired
    private RabbitTemplate rabbitTemplate;

    @Test
    public void queueTest(){
        rabbitTemplate.convertAndSend("spring_queue", "只发队列spring_queue的消息");
    }

    @Test
    public void fanoutTest(){
        /**
         * 参数1：交换机名称
         * 参数2：路由键名（广播设置为空）
         * 参数3：发送的消息内容
         */
        rabbitTemplate.convertAndSend("spring_fanout_exchange", "", "发送到spring_fanout_exchange交换机的广播消息");
    }

    /**
     * 通配符
     * 交换机类型为 topic
     * 匹配路由键的通配符，*表示一个单词，#表示多个单词
     * 绑定到该交换机的匹配队列能够收到对应消息
     */
    @Test
    public void topicTest(){
        /**
         * 参数1：交换机名称
         * 参数2：路由键名
         * 参数3：发送的消息内容
         */
        rabbitTemplate.convertAndSend("spring_topic_exchange", "lxs.bj", "发送到spring_topic_exchange交换机lxs.bj的消息");
        rabbitTemplate.convertAndSend("spring_topic_exchange", "lxs.bj.1", "发送到spring_topic_exchange交换机lxs.bj.1的消息");
        rabbitTemplate.convertAndSend("spring_topic_exchange", "lxs.bj.2", "发送到spring_topic_exchange交换机lxs.bj.2的消息");
        rabbitTemplate.convertAndSend("spring_topic_exchange", "xzk.cn", "发送到spring_topic_exchange交换机xzk.cn的消息");
    }
}

2. 搭建消费者工程

2.1 添加依赖

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-context</artifactId>
    <version>5.1.7.RELEASE</version>
</dependency>
<dependency>
    <groupId>org.springframework.amqp</groupId>
    <artifactId>spring-rabbit</artifactId>
    <version>2.1.8.RELEASE</version>
</dependency>
<dependency>
    <groupId>junit</groupId>
    <artifactId>junit</artifactId>
    <version>4.12</version>
</dependency>
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-test</artifactId>
    <version>5.1.7.RELEASE</version>
</dependency>

2.2 配置整合

resources\properties\rabbitmq.properties

rabbitmq.host=XXX.XXX.XXX.XXX
rabbitmq.port=5672
rabbitmq.username=admin
rabbitmq.password=admin
rabbitmq.virtual-host=/admin

resources\spring\spring-rabbitmq.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:rabbit="http://www.springframework.org/schema/rabbit"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
https://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/rabbit
http://www.springframework.org/schema/rabbit/spring-rabbit.xsd">
    <!--加载配置文件-->
    <context:property-placeholder
            location="classpath:properties/rabbitmq.properties"/>
    <!-- 定义rabbitmq connectionFactory -->
    <rabbit:connection-factory id="connectionFactory" host="${rabbitmq.host}"
                               port="${rabbitmq.port}"
                               username="${rabbitmq.username}"
                               password="${rabbitmq.password}"
                               virtual-host="${rabbitmq.virtual-host}"/>
    <bean id="springQueueListener"
          class="com.zjl.rabbitmq.listener.SpringQueueListener"/>
    <bean id="fanoutListener1"
          class="com.zjl.rabbitmq.listener.FanoutListener1"/>
    <bean id="fanoutListener2"
          class="com.zjl.rabbitmq.listener.FanoutListener2"/>
    <bean id="topicListenerStar"
          class="com.zjl.rabbitmq.listener.TopicListenerStar"/>
    <bean id="topicListenerWell"
          class="com.zjl.rabbitmq.listener.TopicListenerWell"/>
    <bean id="topicListenerWell2"
          class="com.zjl.rabbitmq.listener.TopicListenerWell2"/>

    <rabbit:listener-container connection-factory="connectionFactory" auto-declare="true">
    <rabbit:listener ref="springQueueListener" queue-names="spring_queue"/>
    <rabbit:listener ref="fanoutListener1" queue-names="spring_fanout_queue_1"/>
    <rabbit:listener ref="fanoutListener2" queue-names="spring_fanout_queue_2"/>
    <rabbit:listener ref="topicListenerStar" queue-names="spring_topic_queue_star"/>
    <rabbit:listener ref="topicListenerWell" queue-names="spring_topic_queue_well"/>
    <rabbit:listener ref="topicListenerWell2" queue-names="spring_topic_queue_well2"/>
    </rabbit:listener-container>

</beans>

2.3 消息监听器

2.3.1 队列监听器

rabbitmq\listener\SpringQueueListener.java

public class SpringQueueListener implements MessageListener {
    @Override
    public void onMessage(Message message) {
        try {
            String msg = new String(message.getBody(), "utf-8");

            System.out.printf("接收路由名称为：%s，路由键为：%s，队列名为：%s的消息：%s\n",
                    message.getMessageProperties().getReceivedExchange(),
                    message.getMessageProperties().getReceivedRoutingKey(),
                    message.getMessageProperties().getConsumerQueue(),
                    msg
            );

        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

2.3.2 广播监听器1

public class FanoutListener1 implements MessageListener {
    public void onMessage(Message message) {
        try {
            String msg = new String(message.getBody(), "utf-8");
            System.out.printf("广播监听器1：接收路由名称为：%s，路由键为：%s，队列名为：%s的消息：%s \n",
                    message.getMessageProperties().getReceivedExchange(),
                    message.getMessageProperties().getReceivedRoutingKey(),
                    message.getMessageProperties().getConsumerQueue(),
                    msg);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

2.3.3 广播监听器2

public class FanoutListener2 implements MessageListener {
    public void onMessage(Message message) {
        try {
            String msg = new String(message.getBody(), "utf-8");
            System.out.printf("广播监听器2：接收路由名称为：%s，路由键为：%s，队列名为： %s的消息：%s \n",
                    message.getMessageProperties().getReceivedExchange(),
                    message.getMessageProperties().getReceivedRoutingKey(),
                    message.getMessageProperties().getConsumerQueue(),
                    msg);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

2.3.4 星号通配符监听器

public class TopicListenerStar implements MessageListener {
    public void onMessage(Message message) {
        try {
            String msg = new String(message.getBody(), "utf-8");
            System.out.printf("通配符*监听器：接收路由名称为：%s，路由键为：%s，队列名 为：%s的消息：%s \n",
                    message.getMessageProperties().getReceivedExchange(),
                    message.getMessageProperties().getReceivedRoutingKey(),
                    message.getMessageProperties().getConsumerQueue(),
                    msg);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

2.3.5 井号通配符监听器

public class TopicListenerWell implements MessageListener {
    public void onMessage(Message message) {
        try {
            String msg = new String(message.getBody(), "utf-8");
            System.out.printf("通配符#监听器：接收路由名称为：%s，路由键为：%s，队列名 为：%s的消息：%s \n",
                    message.getMessageProperties().getReceivedExchange(),
                    message.getMessageProperties().getReceivedRoutingKey(),
                    message.getMessageProperties().getConsumerQueue(),
                    msg);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

2.3.6 井号通配符监听器2

public class TopicListenerWell2 implements MessageListener {
    public void onMessage(Message message) {
        try {
            String msg = new String(message.getBody(), "utf-8");
            System.out.printf("通配符#监听器2：接收路由名称为：%s，路由键为：%s，队列名 为：%s的消息：%s \n",
            message.getMessageProperties().getReceivedExchange(),
                    message.getMessageProperties().getReceivedRoutingKey(),
                    message.getMessageProperties().getConsumerQueue(),
                    msg);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

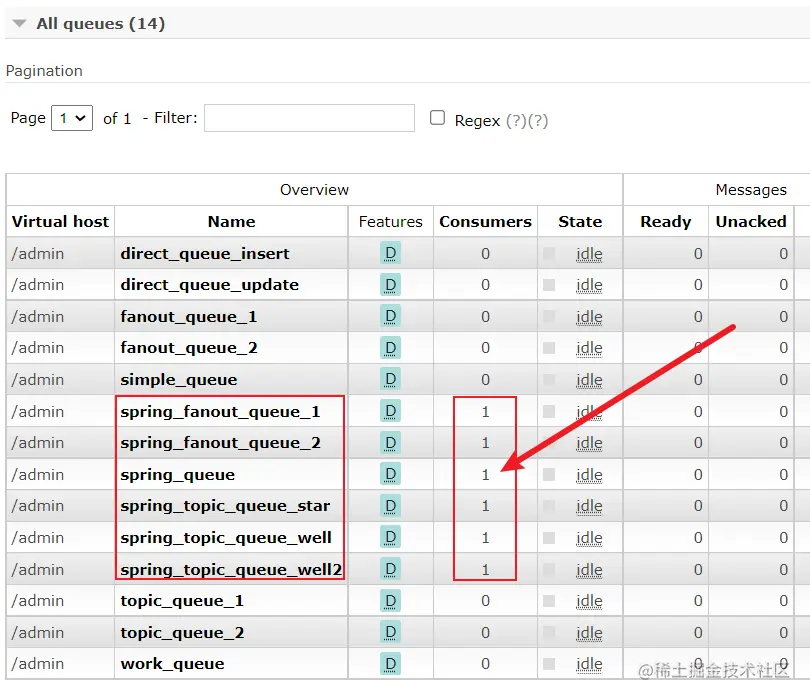

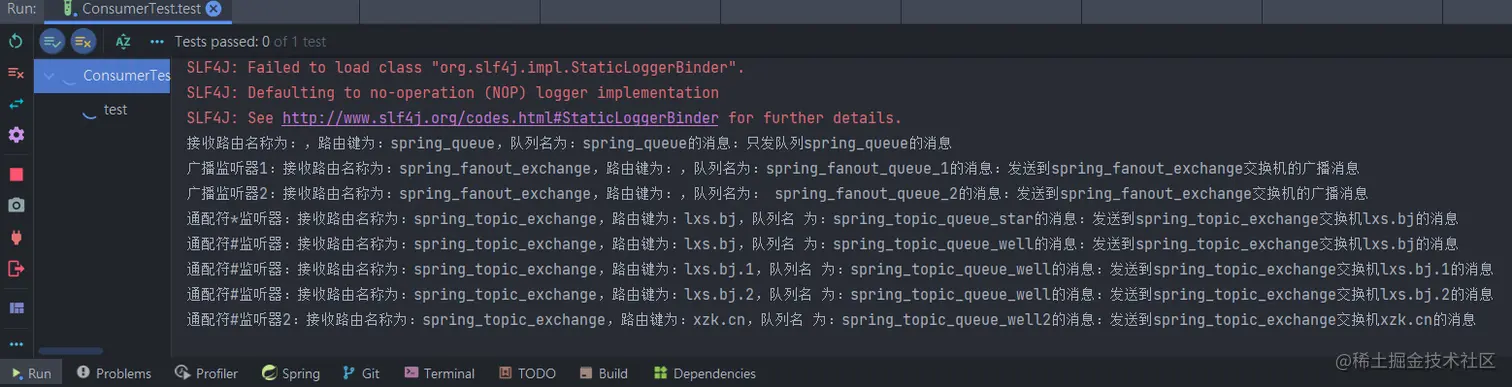

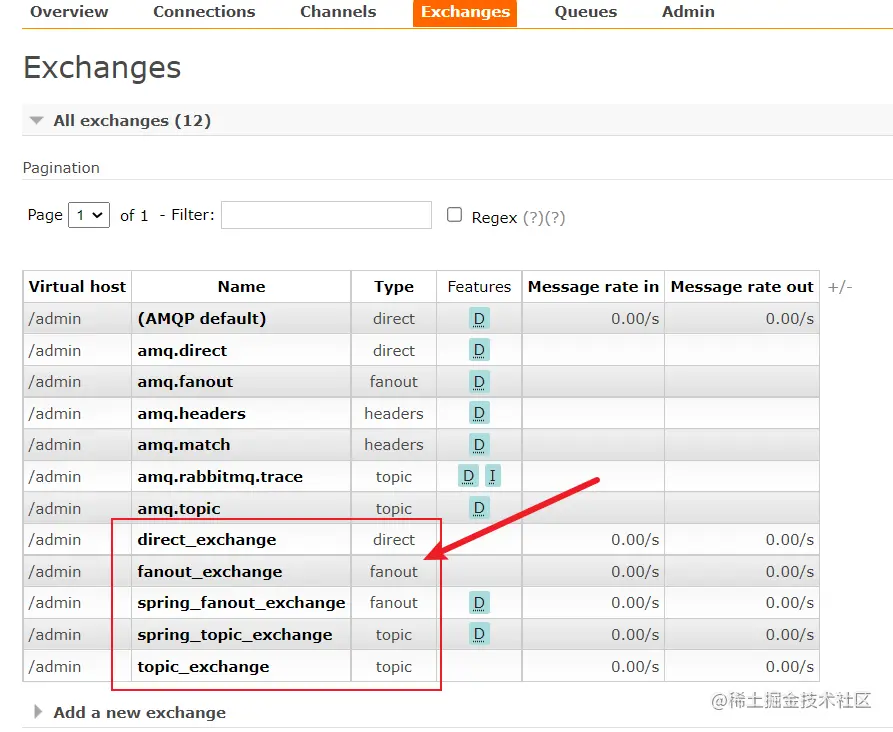

2.4 测试

二、Springboot整合RabbitMQ

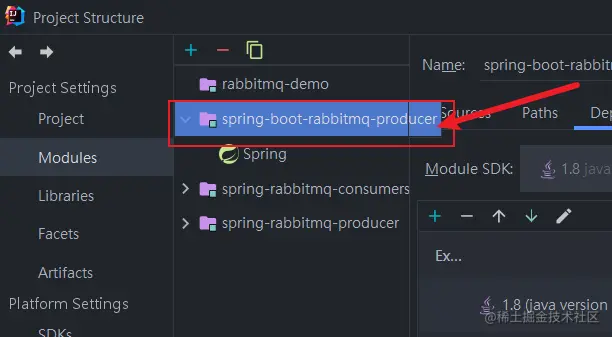

2.1 创建生产者工程

2.1.1 添加依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.zjl</groupId>
    <artifactId>spring-boot-rabbitmq-producer</artifactId>
    <version>1.0-SNAPSHOT</version>

    <parent>
        <artifactId>spring-boot-starter-parent</artifactId>
        <groupId>org.springframework.boot</groupId>
        <version>2.1.6.RELEASE</version>
    </parent>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-amqp</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>
    </dependencies>
</project>

2.1.2 启动类

@SpringBootApplication
public class ProducerApplication {
    public static void main(String[] args) {
        SpringApplication.run(ProducerApplication.class);
    }
}

2.1.3 配置RabbitMQ

2.1.3.1 配置文件

创建application.yml，内容如下：

spring:
  rabbitmq:
    host: XXX.XXX.XXX.XXX
    port: 5672
    virtual-host: /admin
    username: admin
    password: admin

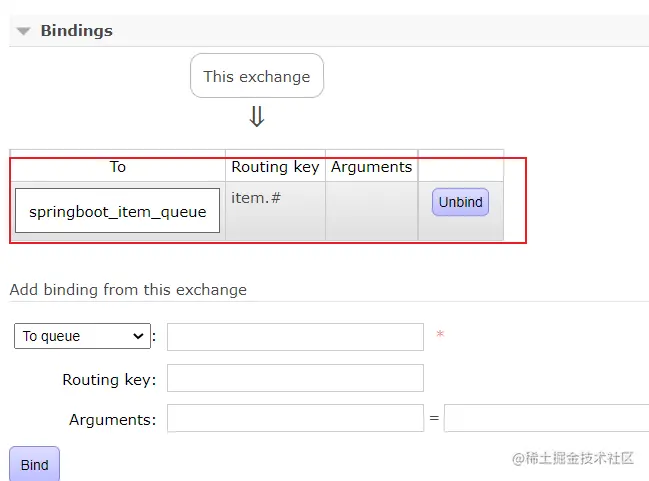

2.1.3.2 绑定交换机和队列

创建RabbitMQ队列与交换机绑定的配置类com.zjl.rabbitmq.config.RabbitMQConfig

@Configuration
public class RabbitMQConfig {
    //交换机名称
    public static final String ITEM_TOPIC_EXCHANGE = "springboot_item_topic_exchange";
    //队列名称
    public static final String ITEM_QUEUE = "springboot_item_queue";

    //声明交换机
    @Bean("itemTopicExchange")
    public Exchange topicExchange(){
        return ExchangeBuilder.topicExchange(ITEM_TOPIC_EXCHANGE).durable(true).build();
    }

    //声明队列
    @Bean("itemQueue")
    public Queue itemQueue(){
        return QueueBuilder.durable(ITEM_QUEUE).build();
    }

    //绑定队列和交换机
    @Bean
    public Binding itemQueueExchange(@Qualifier("itemQueue") Queue queue,
                                     @Qualifier("itemTopicExchange") Exchange exchange){
        return BindingBuilder.bind(queue).to(exchange).with("item.#").noargs();
    }

}

2.4.3 测试

@RunWith(SpringRunner.class)
@SpringBootTest
public class ProducerApplicationTest{

    @Autowired
    private RabbitTemplate rabbitTemplate;

    @Test
    public void test(){
        rabbitTemplate.convertAndSend(RabbitMQConfig.ITEM_TOPIC_EXCHANGE, "item.insert", "商品新增，routing key 为item.insert");
        rabbitTemplate.convertAndSend(RabbitMQConfig.ITEM_TOPIC_EXCHANGE, "item.update", "商品修改，routing key 为item.update");
        rabbitTemplate.convertAndSend(RabbitMQConfig.ITEM_TOPIC_EXCHANGE, "item.delete", "商品删除，routing key 为item.delete");
    }

}

2.2 创建消费者工程

2.2.1 添加依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.zjl</groupId>
    <artifactId>spring-boot-rabbitmq-consumer</artifactId>
    <version>1.0-SNAPSHOT</version>

    <parent>
        <artifactId>spring-boot-starter-parent</artifactId>
        <groupId>org.springframework.boot</groupId>
        <version>2.1.6.RELEASE</version>
    </parent>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-amqp</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>
    </dependencies>

</project>

2.2.2 启动类

@SpringBootApplication
public class ConsumerApplication {
    public static void main(String[] args) {
        SpringApplication.run(ConsumerApplication.class, args);
    }
}

2.2.3 配置RabbitMQ

创建application.yml，内容如下：

spring:
  rabbitmq:
    host: XXX.XXX.XXX.XXX
    port: 5672
    virtual-host: /admin
    username: admin
    password: admin

2.2.4 消息监听处理类

编写消息监听器com.zjl.rabbitmq.listener.MyListener

@Component
public class MyListener {
    /**
     * 监听某个队列的消息
     * @param message 接收到的消息
     */
    @RabbitListener(queues = "springboot_item_queue")
    public void myListener1(String message){
        System.out.println("消费者接收到的消息为：" + message);
    }
}

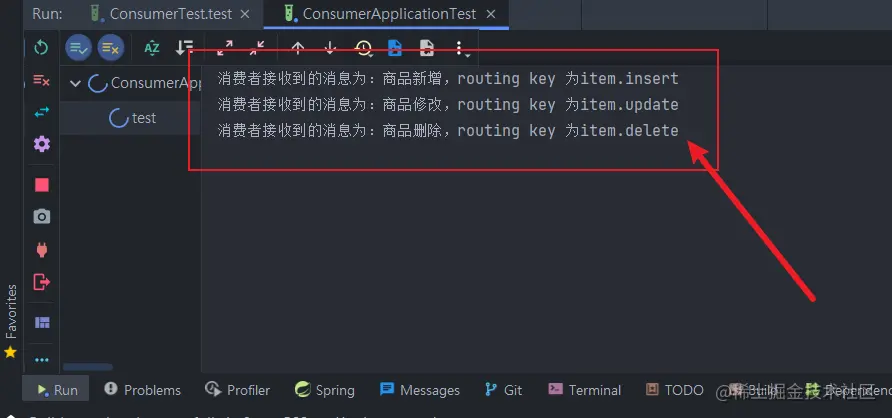

2.2.5 测试
