手把手教你封装一个移动端的底栏组件

每日进步一点
162 阅读2分钟

案例--封装一个TabBar组件

在样式里引用资源

// App.vue
<template></template>
<style>
@import './assets/css/base.css';
</style>

初始化结构

App.vue

<template>
  <div id="app">
    <TabBar></TabBar>
  </div>
</template>

<script>
import TabBar from './components/tabbar/TabBar.vue'
export default {
  name: 'App',
  components: {
    TabBar
  }
}
</script>
<style scoped>
</style>

TabBar.vue

<template>
  <div id="tab-bar">
    <div class="tab-bar-item">首页</div>
    <div class="tab-bar-item">分类</div>
    <div class="tab-bar-item">购物车</div>
    <div class="tab-bar-item">我的</div>
  </div>
</template>

<script>
export default {
  name: 'TarBar'
}
</script>
<style scoped>
#tab-bar {
  display: flex;
  background-color: #f6f6f6;

  position: fixed;
  left: 0;
  right: 0;
  bottom: 0;

  box-shadow: 0 -1px 1px rgba(100, 100, 100,.2);
}
.tab-bar-item {
  flex: 1;
  text-align: center;
  height: 49px;
}
</style>

TabBar进一步抽离出TarBarItem

由TarBarItem组成,新增一个TarBarItem组件

TarBarItem.vue

<template>
  <div class="tab-bar-item">
    <img src="../../assets/img/tabbar/home.svg" alt="">
    <div>首页</div>
  </div>
</template>

<script>
export default {
  name: 'TabBarItem'
}
</script>
<style scoped>
.tab-bar-item {
  flex: 1;
  text-align: center;
  height: 49px;
  font-size: 14px;
}
.tab-bar-item img {
  height: 24px;
  width: 24px;
  margin-top: 3px;
  vertical-align: middle;
}
</style>

TabBar.vue

<template>
  <div id="tab-bar">
    <slot></slot>
  </div>
</template>

<script>
export default {
  name: 'TarBar'
}
</script>
<style scoped>
#tab-bar {
  display: flex;
  background-color: #f6f6f6;

  position: fixed;
  left: 0;
  right: 0;
  bottom: 0;

  box-shadow: 0 -1px 1px rgba(100, 100, 100,.2);
}
</style>

App.vue

<template>
  <div id="app">
    <TabBar>
      <TabBarItem></TabBarItem>
      <TabBarItem></TabBarItem>
      <TabBarItem></TabBarItem>
      <TabBarItem></TabBarItem>
    </TabBar>
  </div>
</template>

<script>
import TabBar from './components/tabbar/TabBar.vue'
import TabBarItem from './components/tabbar/TabBarItem.vue'
export default {
  name: 'App',
  components: {
    TabBar,
    TabBarItem
  }
}
</script>
<style scoped>
</style>

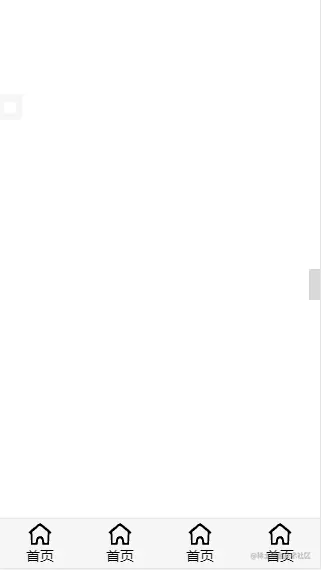

效果

image-20211120115852137.png 问题：同一个图片，一样的文字

TarBarItem.vue的内容是写死的吗?

不是，加入具名插槽

TarBarItem.vue

<template>
  <div class="tab-bar-item">
    <solt name="item-icon"></solt>
    <solt name="item-text"></solt>
  </div>
</template>

<script>
export default {
  name: 'TabBarItem'
}
</script>
<style scoped>
.tab-bar-item {
  flex: 1;
  text-align: center;
  height: 49px;
  font-size: 14px;
}
.tab-bar-item img {
  height: 24px;
  width: 24px;
  margin-top: 3px;
  vertical-align: middle;
}
</style>

App.vue

<template>
  <div id="app">
    <tab-bar>
      <tab-bar-item>
        <img slot="item-icon" src="./assets/img/tabbar/home.svg" alt="">
        <div slot="item-text">首页</div>
      </tab-bar-item>
      <tab-bar-item>
        <img slot="item-icon" src="./assets/img/tabbar/category.svg" alt="">
        <div slot="item-text">分类</div>
      </tab-bar-item>
      <tab-bar-item>
        <img slot="item-icon" src="./assets/img/tabbar/shopcart.svg" alt="">
        <div slot="item-text">购物车</div>
      </tab-bar-item>
      <tab-bar-item>
        <img slot="item-icon" src="./assets/img/tabbar/profile.svg" alt="">
        <div slot="item-text">我的</div>
      </tab-bar-item>
    </tab-bar>
  </div>
</template>

<script>
import TabBar from './components/tabbar/TabBar.vue'
import TabBarItem from './components/tabbar/TabBarItem.vue'
export default {
  name: 'App',
  components: {
    TabBar,
    TabBarItem
  }
}
</script>
<style scoped>
</style>

处于激活状态的图片和文字

TabBarItem.vue

新增:一个数据isActive、一个类active

<template>
  <div class="tab-bar-item">
    <div v-if="!isActive"><slot name="item-icon"></slot></div>
    <div v-else><slot name="item-icon_active"></slot></div>
    <div :class="{active: isActive}"><slot name="item-text"></slot></div>
  </div>
</template>

<script>
export default {
  name: 'TabBarItem',
  data () {
    return {
      isActive: true
    }
  }
}
</script>
<style scoped>
.tab-bar-item {
  flex: 1;
  text-align: center;
  height: 49px;
  font-size: 14px;
}
.tab-bar-item img {
  height: 24px;
  width: 24px;
  margin-top: 3px;
  vertical-align: middle;
}
.active {
  color: lightcoral;
}
</style>

经验：

当插槽有属性时，为了防止使用时覆盖掉slot的属性，一般都是在slot标签外面包一层div，然后那些属性放到div的属性上

例如

这样的插槽被使用时可能会被覆盖掉v-if属性

<slot v-if="!isActive" name="item-icon"></slot>

而这样就不会

<div v-if="!isActive"><slot name="item-icon"></slot></div>

效果


点击每一个item对应一个路由

components文件夹和view的区别

components放的是公共组件

而view放的是单独组件

新建四个组件

在双src文件夹下新建view文件夹，然后分别新建home、category、shopcar、profile文件夹放对应组件

比如

home文件夹下的Home.vue

<template>
  <div>首页</div>
</template>

<script>
export default {
  name: 'Home'
}
</script>

<style scoped>

</style>

新增路由

在src文件夹下新建一个router文件夹并在该文件夹下新建一个index.js

index.js

// 1.导入
import Vue from 'vue'
import VueRouter from 'vue-router'
// 2.挂载
Vue.use(VueRouter)
// 懒加载
const Home = () => import('../view/home/Home.vue')
const Category = () => import('../view/Category/Category.vue')
const ShopCar = () => import('../view/shopcar/ShopCar.vue')
const Profile = () => import('../view/profile/Profile.vue')
// 3.创建路由配置对象
const routes = [
  {
    path: '',
    redirect: '/home'
  },
  {
    path: '/home',
    components: Home
  },
  {
    path: '/category',
    components: Category
  },
  {
    path: '/shopcar',
    components: ShopCar
  },
  {
    path: '/profile',
    components: Profile
  }
]
// 4.实例化路由对象
const router = new VueRouter({
  routes
})
// 5.默认导出
export default router

main.js导入路由

import Vue from 'vue'
import App from './App.vue'
import router from './router'

// 导入组件库
import ElementUI from 'element-ui'
// 导入组件相关样式
import 'element-ui/lib/theme-chalk/index.css'
// 配置Vue插件
Vue.use(ElementUI)

Vue.config.productionTip = false

new Vue({
  router,
  render: h => h(App)
}).$mount('#app')

父组件给子组件传路径

App.vue

<template>
  <div id="app">
    <router-view></router-view>
    <tab-bar>
      <tab-bar-item path="/home">
        <img slot="item-icon" src="./assets/img/tabbar/home.svg" alt="">
        <img slot="item-icon_active" src="./assets/img/tabbar/home_active.svg" alt="">
        <div slot="item-text">首页</div>
      </tab-bar-item>
      <tab-bar-item path="/category">
        <img slot="item-icon" src="./assets/img/tabbar/category.svg" alt="">
        <img slot="item-icon_active" src="./assets/img/tabbar/category_active.svg" alt="">
        <div slot="item-text">分类</div>
      </tab-bar-item>
      <tab-bar-item path="/shopcar">
        <img slot="item-icon" src="./assets/img/tabbar/shopcart.svg" alt="">
        <img slot="item-icon_active" src="./assets/img/tabbar/shopcart_active.svg" alt="">
        <div slot="item-text">购物车</div>
      </tab-bar-item>
      <tab-bar-item path="/profile">
        <img slot="item-icon" src="./assets/img/tabbar/profile.svg" alt="">
        <img slot="item-icon_active" src="./assets/img/tabbar/profile_active.svg" alt="">
        <div slot="item-text">我的</div>
      </tab-bar-item>
    </tab-bar>
    <!-- <Login></Login> -->
  </div>
</template>

<script>
import TabBar from './components/tabbar/TabBar.vue'
import TabBarItem from './components/tabbar/TabBarItem.vue'
// import Login from './components/Login.vue'
export default {
  name: 'App',
  components: {
    TabBar,
    TabBarItem
    // Login
  }
}
</script>
<style scoped>
</style>

TabBarItem.vue

<template>
  <div class="tab-bar-item" @click="itemClick">
    <div v-if="!isActive"><slot name="item-icon"></slot></div>
    <div v-else><slot name="item-icon_active"></slot></div>
    <div :class="{active: isActive}"><slot name="item-text"></slot></div>
  </div>
</template>

<script>
export default {
  name: 'TabBarItem',
  props: {
    path: String
  },
  data () {
    return {
      isActive: true
    }
  },
  methods: {
    itemClick () {
      this.$router.push(this.path)
    }
  }
}
</script>
<style scoped>
.tab-bar-item {
  flex: 1;
  text-align: center;
  height: 49px;
  font-size: 14px;
}
.tab-bar-item img {
  height: 24px;
  width: 24px;
  margin-top: 3px;
  vertical-align: middle;
}
.active {
  color: lightcoral;
}
</style>

点击item才激活

将TabBarItem的isActive改成计算属性

computed: {
    isActive () {
      return this.$route.path.indexOf(this.path) !== -1
    }
  }

如何让使用者修改激活样式？

比如想修改激活文字样式activeColor="blue"

<tab-bar-item path="/home" activeColor="blue">
        <img slot="item-icon" src="./assets/img/tabbar/home.svg" alt="">
        <img slot="item-icon_active" src="./assets/img/tabbar/home_active.svg" alt="">
        <div slot="item-text">首页</div>
</tab-bar-item>

先在TabBarItem里添加一个自定义属性activeColor

修改控制文字的那个插槽绑定的样式

<template>
  <div class="tab-bar-item" @click="itemClick">
    <div v-if="!isActive"><slot name="item-icon"></slot></div>
    <div v-else><slot name="item-icon_active"></slot></div>
    <div :style="activeStyle"><slot name="item-text"></slot></div>
  </div>
</template>

<script>
export default {
  name: 'TabBarItem',
  props: {
    path: String,
    activeColor: {
      type: String,
      default: 'red'
    }
  },
  data () {
    return {
    }
  },
  computed: {
    isActive () {
      return this.$route.path.indexOf(this.path) !== -1
    },
    activeStyle () {
      return this.isActive ? { color: this.activeColor } : {}
    }
  },
  methods: {
    itemClick () {
      this.$router.push(this.path)
    }
  }
}
</script>
<style scoped>
.tab-bar-item {
  flex: 1;
  text-align: center;
  height: 49px;
  font-size: 14px;
}
.tab-bar-item img {
  height: 24px;
  width: 24px;
  margin-top: 3px;
  vertical-align: middle;
}
</style>
