JavaWeb第(3)部分：XML、Tomcat、Servlet、JSP、Cookie 和 Session、Filter过滤器

The_fool
200 阅读10分钟

XML

##1.概述

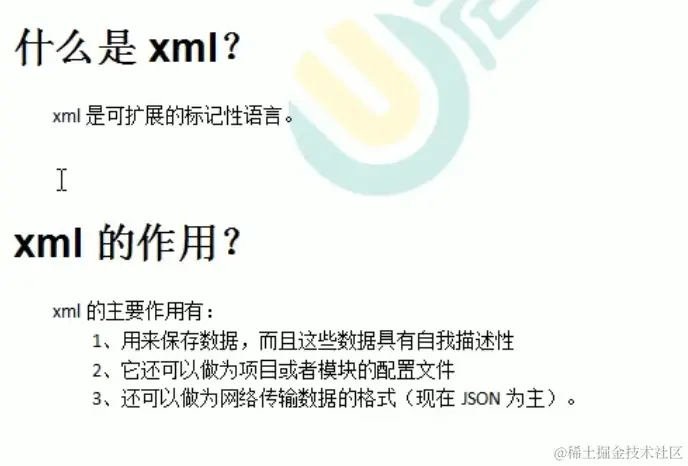

image-20211015192423642

2.XML语法介绍

<?xml version="1.0" encoding="utf-8" ?>

<books>
    <book sn="SN131411">
        <name>时间简史</name>
        <author>霍金</author>
        <price>75</price>
    </book>

    <book sn="SN131412">
        <name>java</name>
        <author><![CDATA[
                    ,,,,<<<<<<<我搞
                   ]]></author>  <!--把括号里面的识别成文本-->
        <price>9.9</price>
    </book>
    <book sn="SN131413" name="吉利牌" author="哈哈哈" price="34"/>

</books>

3.XML解析技术

image-20211015200131902

4.Dom4j的使用和jar包入库

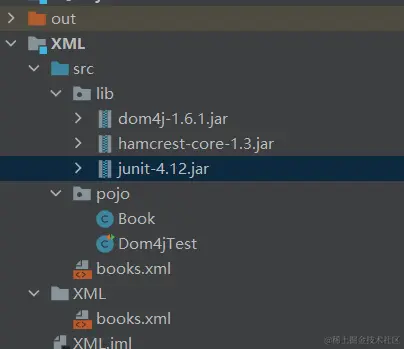

jar包导入和目录结构

image-20211015202148292

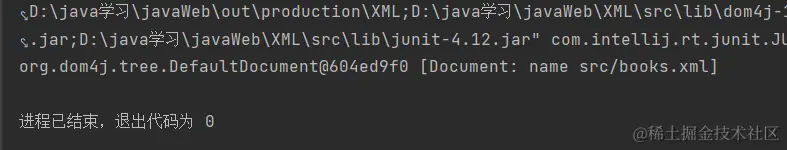

写入测试

image-20211015204559409

public void Test01() throws DocumentException {
    SAXReader saxReader = new SAXReader();
    Document read = saxReader.read("src/books.xml");
    System.out.println(read);
}

取值测试

image-20211015204449861

public void Test02() throws DocumentException {
        //读取books.xml文件
        SAXReader saxReader = new SAXReader();
         Document read = saxReader.read("src/books.xml");
        //通过   Document对象  使用  getRootElement  读取根元素
        Element rootElement = read.getRootElement();
        //通过根元素获取标签对象
        //elements 和 element 都是通过标签名查找子元素
        List<Element> elements = rootElement.elements("book");
        //遍历
        for (Element element : elements) {
//            asXML : 把标签对象转换成标签字符串
//            System.out.println(element.asXML());

//            通过name标签名获取元素对象
            String name = element.elementText("name");

//            同理
           String price = element.elementText("price");
           String author = element.elementText("author");

//           特殊的sn, attributeValue获取标签的属性值
            String sn = element.attributeValue("sn");

            System.out.println(new Book(sn,name,Float.valueOf(price),author));
        }
    }

Tomcat

1.JavaWeb概念

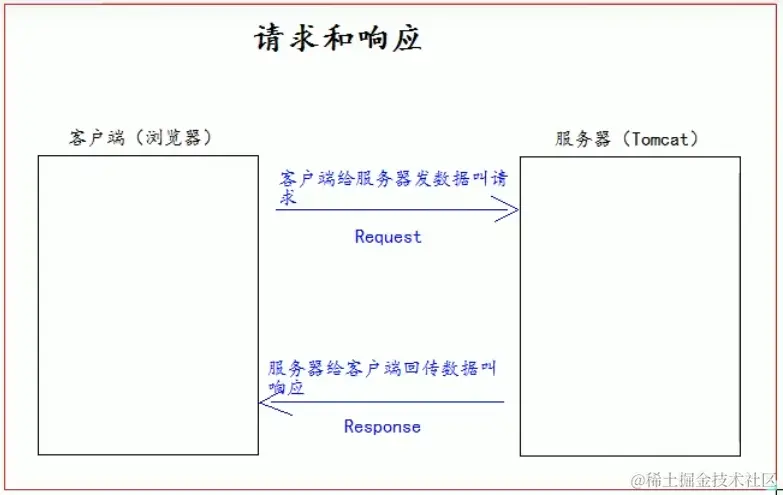

###1.请求和响应流程

image-20211015205500200

###2.Web资源的分类

image-20211015210226508

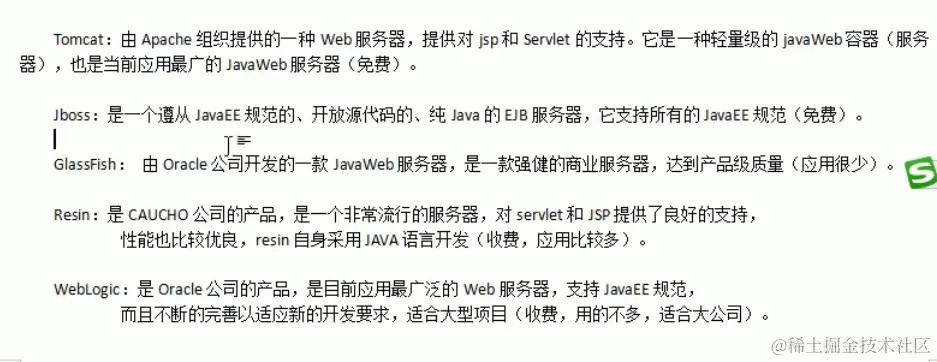

###3.常用的JavaWeb服务器

image-20211016141306651

###4.Tomcat服务器和Servlet版本的关系

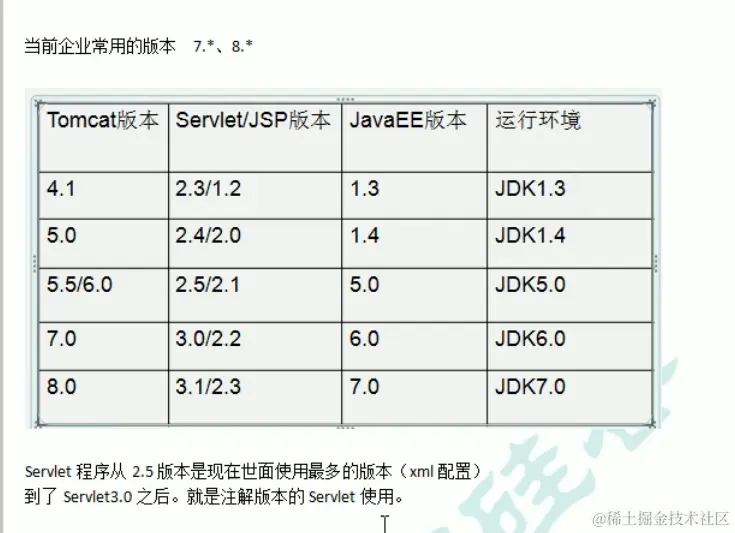

image-20211016141701625

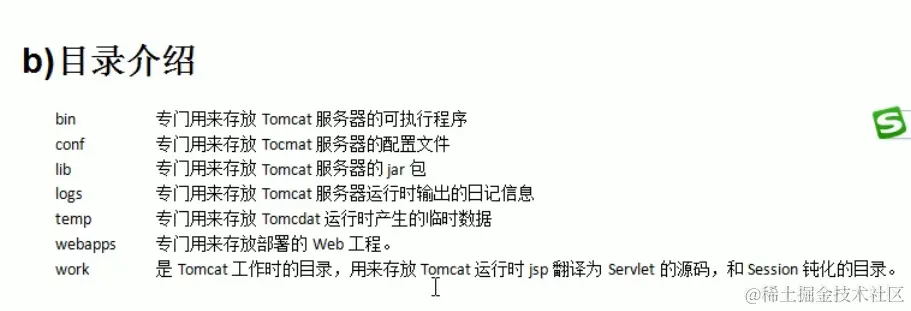

###5.目录介绍

image-20211016142248533

##2.JavaWeb使用

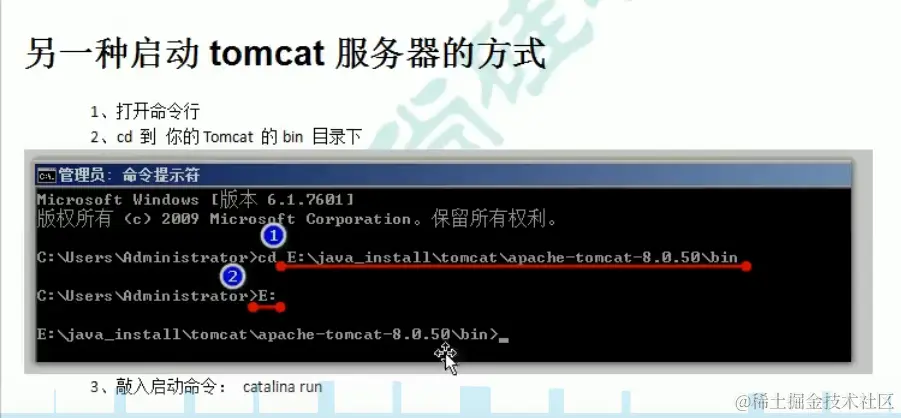

1.运行成功

要是想运行成功，就不能关闭Tomcat的启动程序

image-20211016143812221

image-20211016144742014

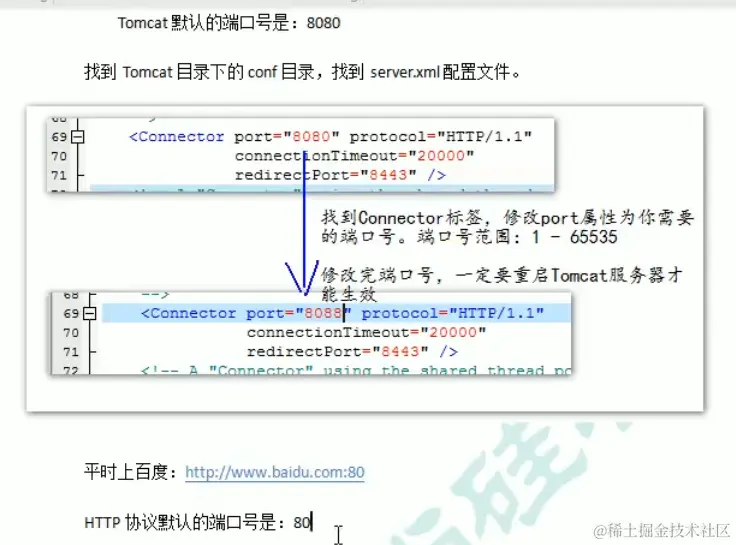

2.Tomcat端口号修改

image-20211016153020582

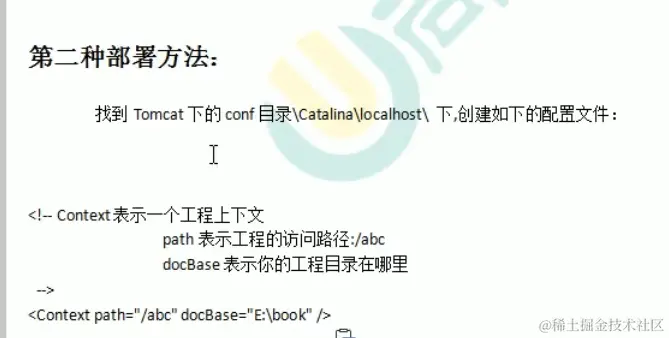

3.把Web部署到Tomcat中

image-20211016161248131

image-20211016162618838

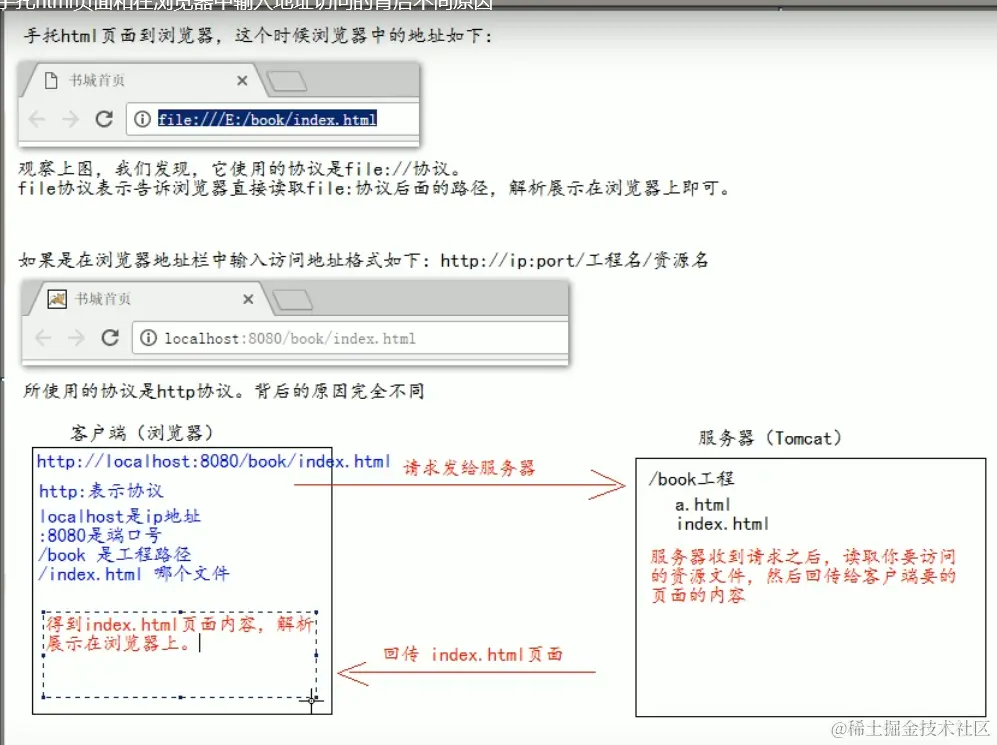

4.手托页面和ip访问页面的区别

image-20211016163249985

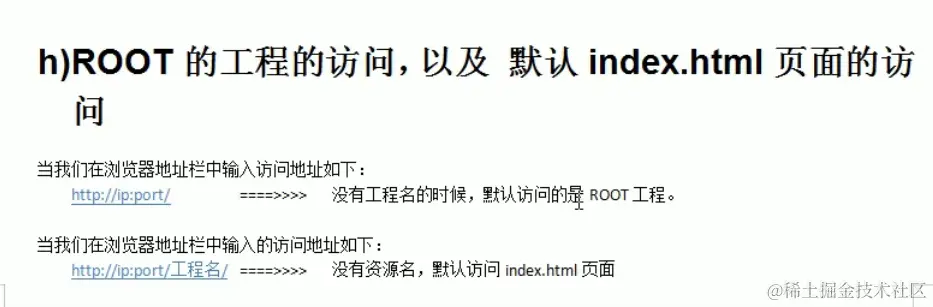

5.Tomcat的默认访问

image-20211016163852917

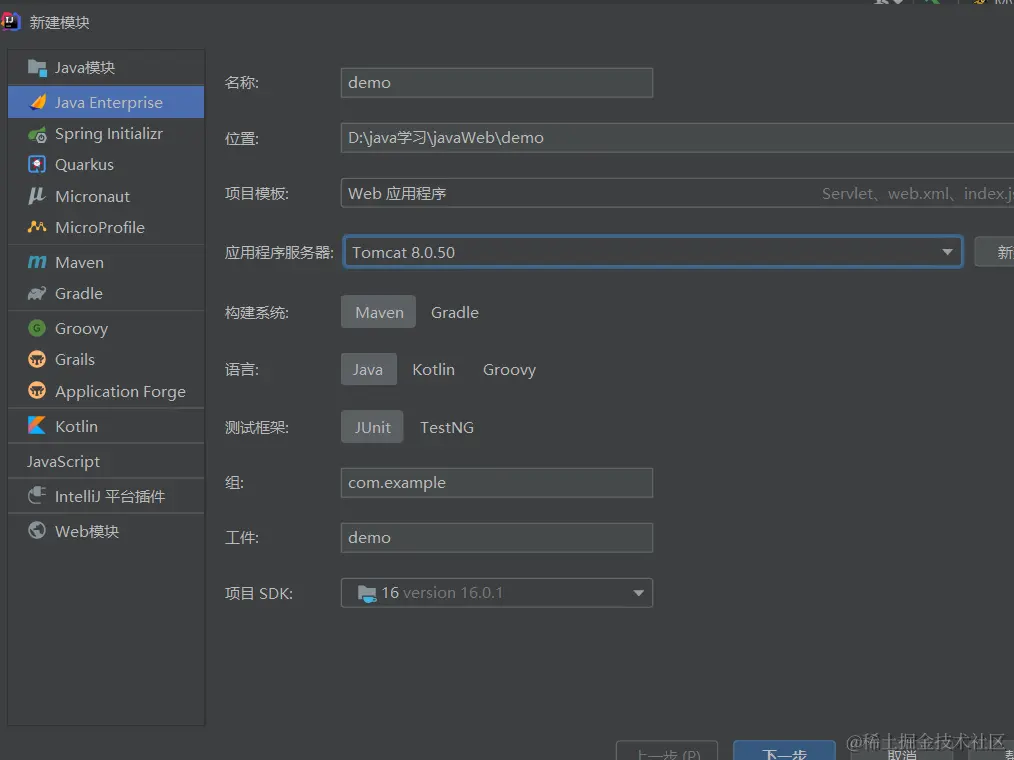

6.idea整合Tomcat

image-20211016165234655

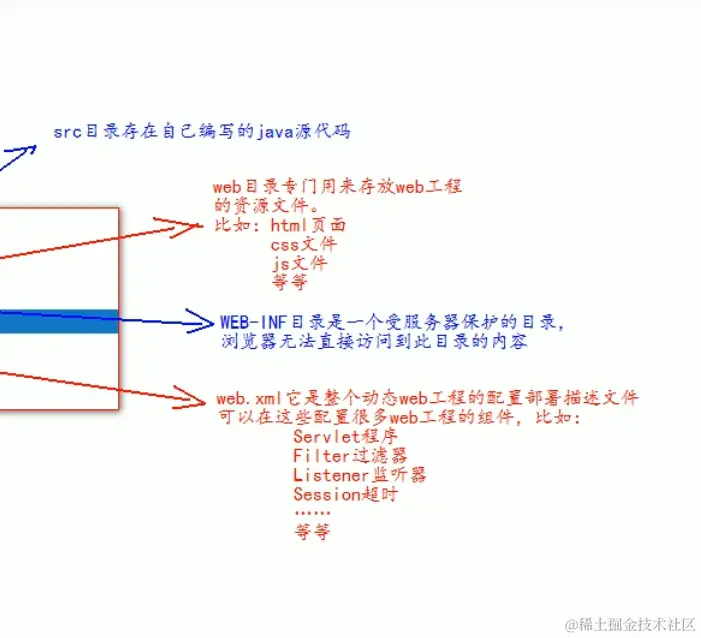

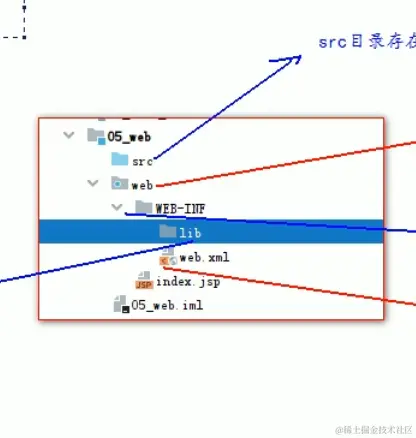

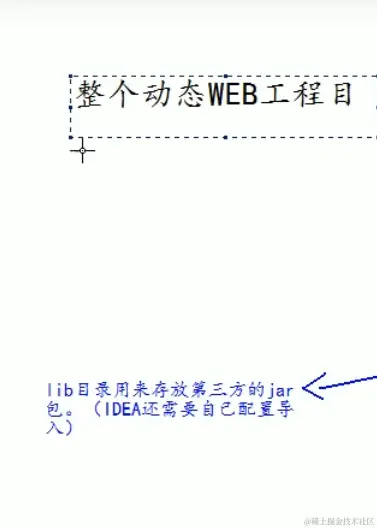

7.目录介绍

image-20211017195516209

image-20211017195533825

image-20211017195502108

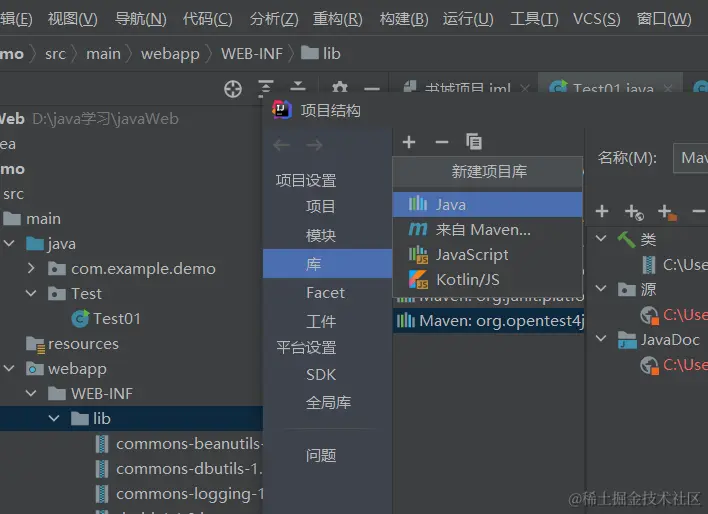

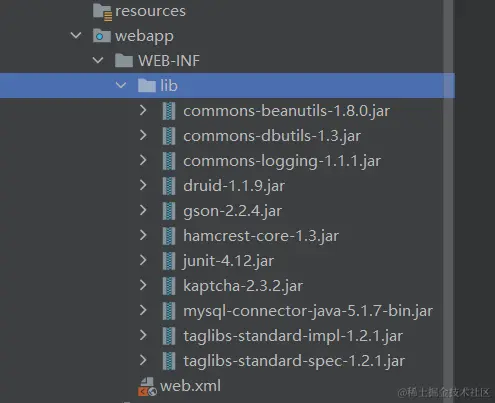

8.导入jar包

一个一个添加然后一个一个的导入库

image-20211017195819755

或者

image-20211017200456268

image-20211017200612258

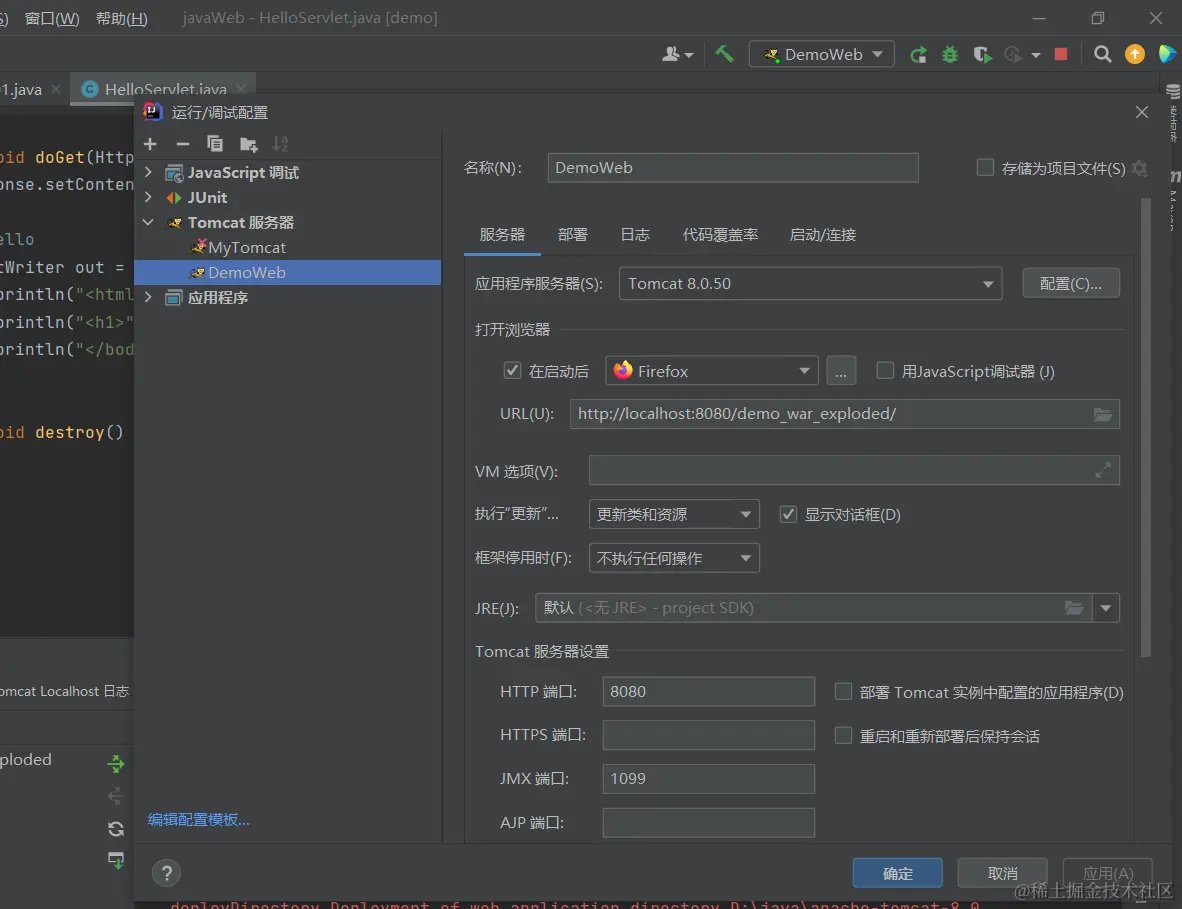

9.用idea启动web项目和配置

名称可以修改成项目名；
url是项目运行的默认地址

image-20211017201356002

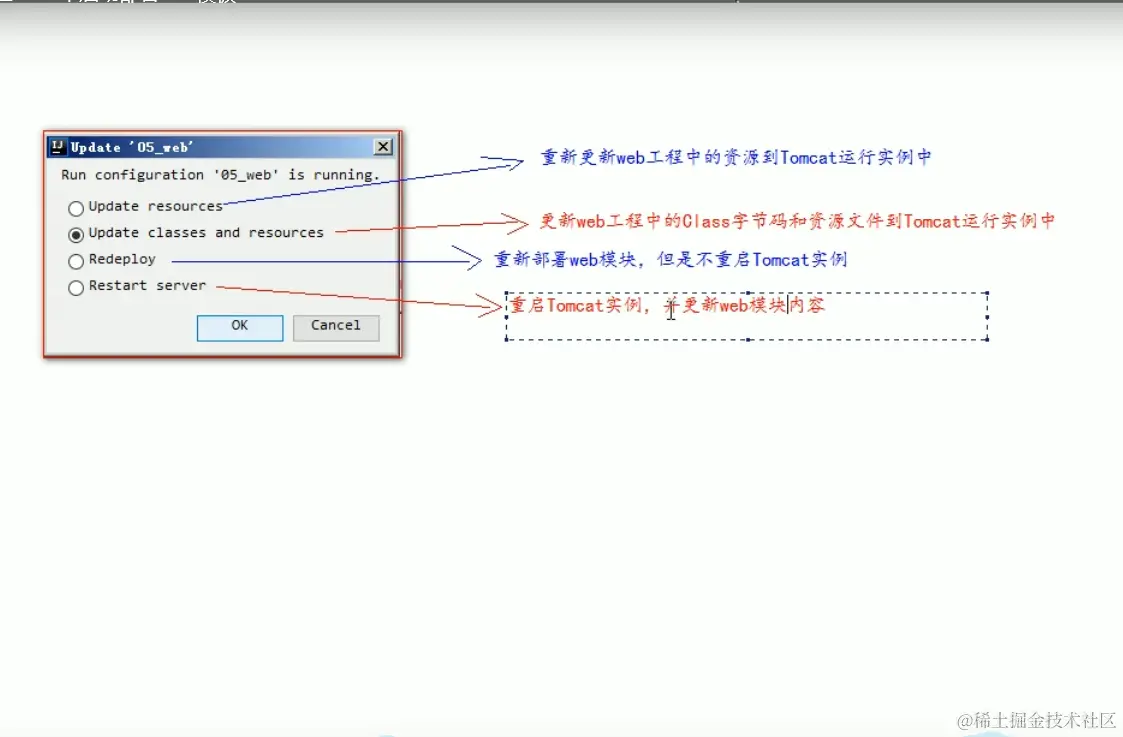

image-20211017201934056

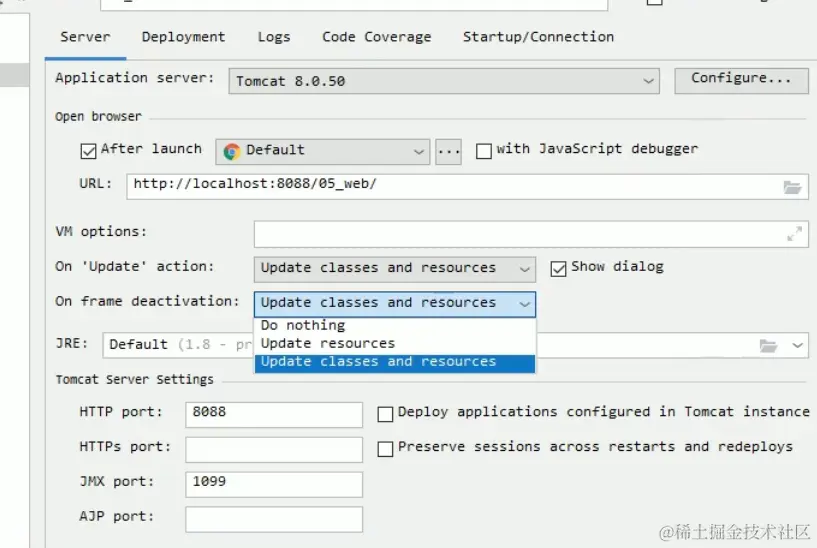

修改热部署：代码有变化时更新页面

image-20211017202107075

10.一些问题和修改

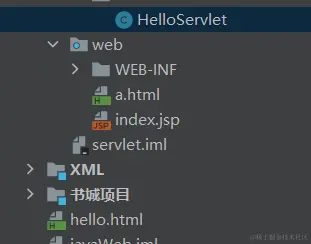

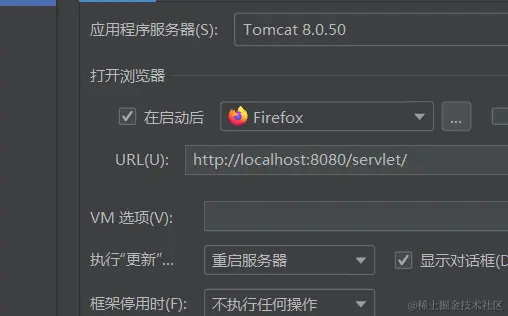

如图的 url 中的 servlet 是项目的名称 ， 如果url不使用这样，那么看第二张图，的web下面的页面文件将无法加载和显示，因为路径名不正确，修改方式为第三张图：

image-20211019154031697

image-20211019154141513

先打开tomcat部署，打开部署，选择当前项目的启动工件（就是图片里蓝色的），如果不进行修改，那么默认的url访问路径就是这个一长串的工件名称，但是你的项目名不是这个，所以就要修改 ， 那么就需要在：“应用程序上下文”那一框修改：成图中这样子。

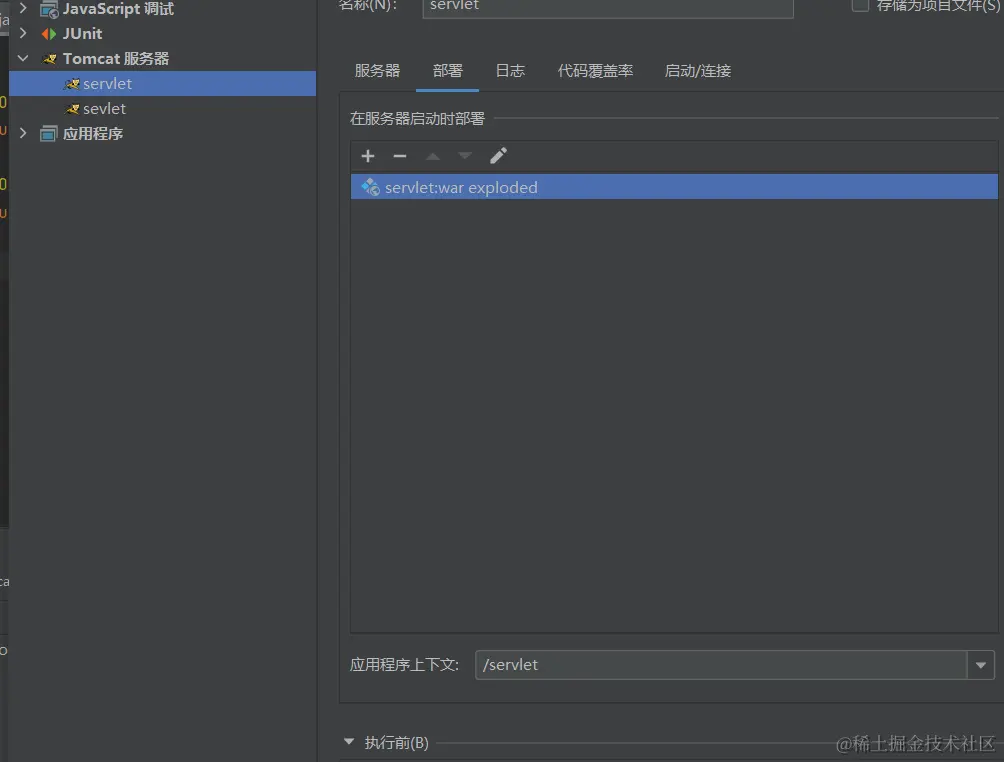

image-20211019154303390

Servlet

1.Servlet的介绍

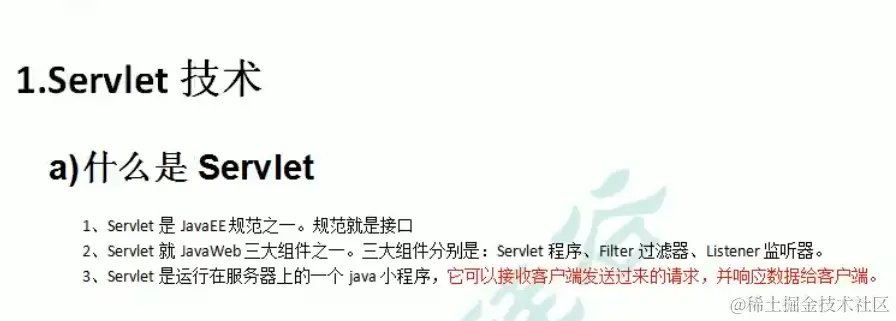

###1.什么是Servlet

image-20211017202938122

2.实现servlet程序

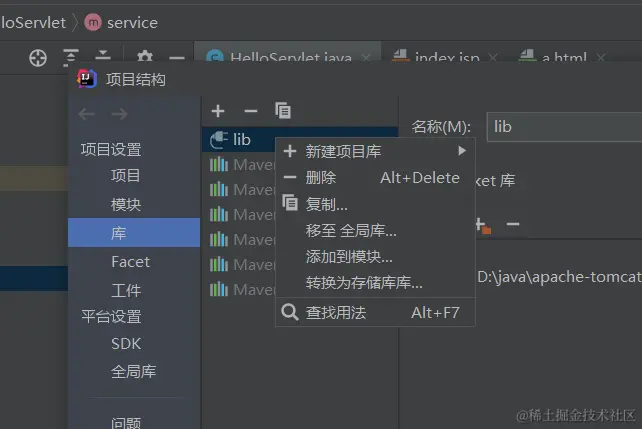

还有问题，在接下来还需要导入tomcat的lib库到该项目模块里面

image-20211019154748893

创建程序完成，接下来开始测试：

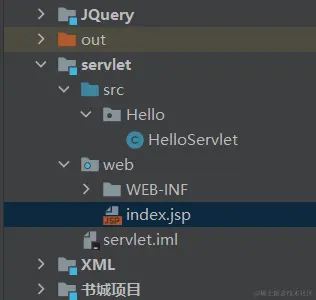

image-20211018155004601

测试类

package Hello;

import javax.servlet.*;
import java.io.IOException;

public class HelloServlet implements Servlet {
    @Override
    public void init(ServletConfig servletConfig) throws ServletException {

    }

    @Override
    public ServletConfig getServletConfig() {
        return null;
    }

    @Override
    public void service(ServletRequest servletRequest, ServletResponse servletResponse) throws ServletException, IOException {
        System.out.println("终于找到你 !!!");
    }

    @Override
    public String getServletInfo() {
        return null;
    }

    @Override
    public void destroy() {

    }
}

然后要在web.xml里面进行配置

<servlet>
        <!--类别名-->
        <servlet-name>HelloServlet</servlet-name>
        <!--全类名-->
        <servlet-class>Hello.HelloServlet</servlet-class>
    </servlet>

    <servlet-mapping>
        <!--对类别名的配置-->
        <servlet-name>HelloServlet</servlet-name>
        <!--工程路径下面的-->
        <url-pattern>/hello</url-pattern>
    </servlet-mapping>

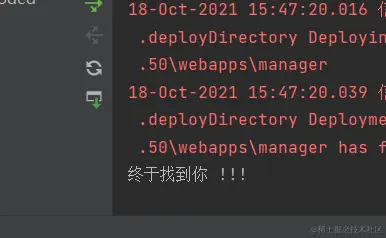

image-20211018155242812

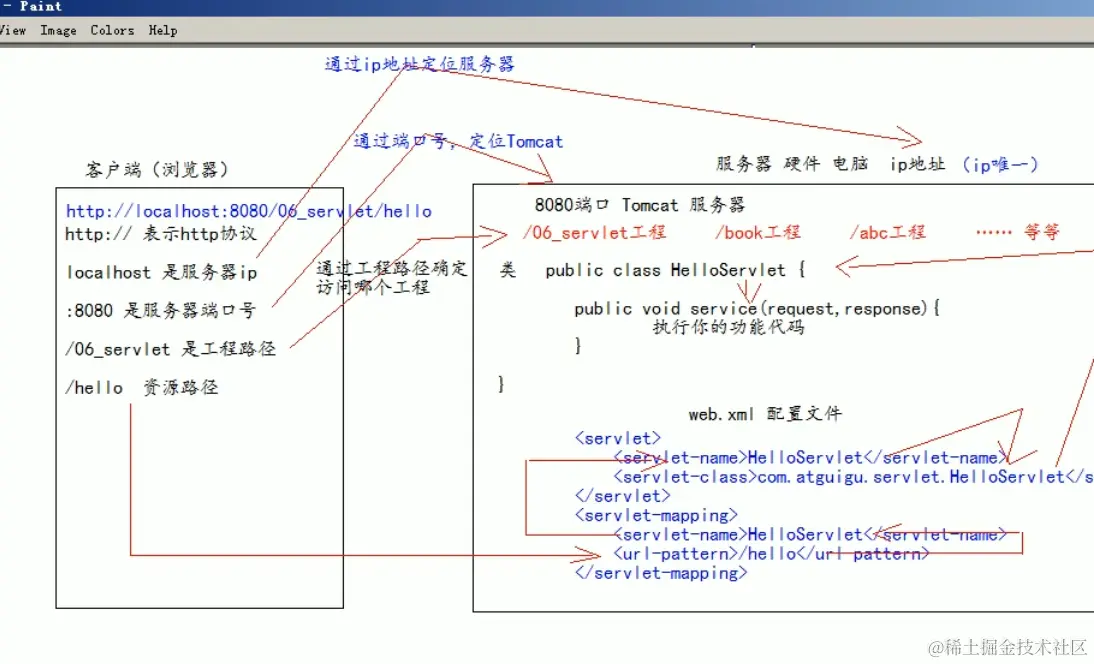

3.url如何定位到servlet程序进行访问

image-20211018160045236

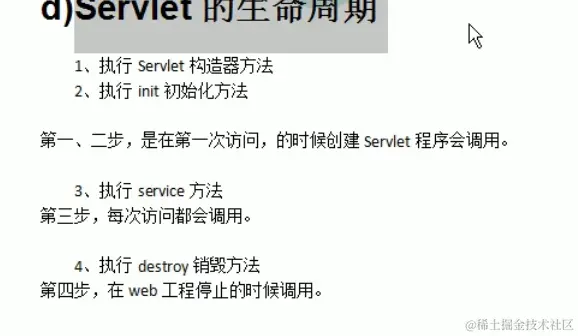

4.servlet的生命周期

image-20211018160642504

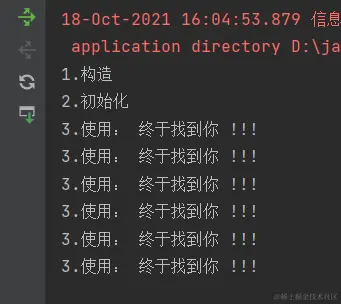

image-20211018160513753

package Hello;

import javax.servlet.*;
import java.io.IOException;

public class HelloServlet implements Servlet {

    public HelloServlet() {
        System.out.println("1.构造");
    }

    @Override
    public void init(ServletConfig servletConfig) throws ServletException {
        System.out.println("2.初始化");
    }

    @Override
    public ServletConfig getServletConfig() {
        return null;
    }

    @Override
    public void service(ServletRequest servletRequest, ServletResponse servletResponse) throws ServletException, IOException {
        System.out.println("3.使用： 终于找到你 !!!");
    }

    @Override
    public String getServletInfo() {
        return null;
    }

    @Override
    public void destroy() {
        System.out.println("4.销毁");
    }
}

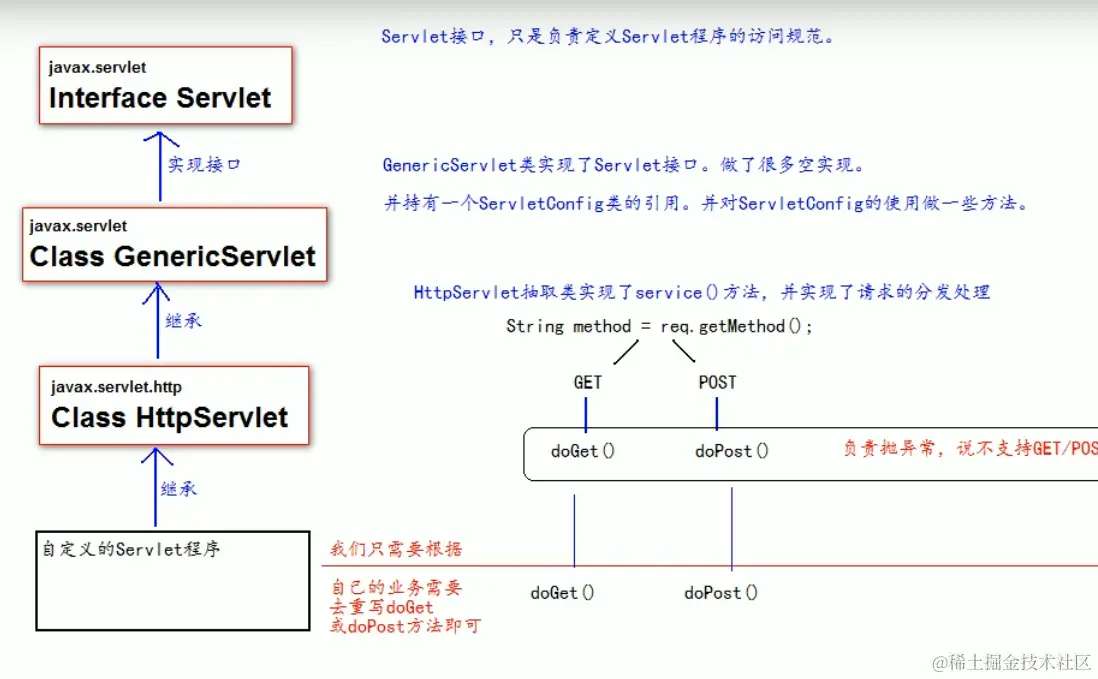

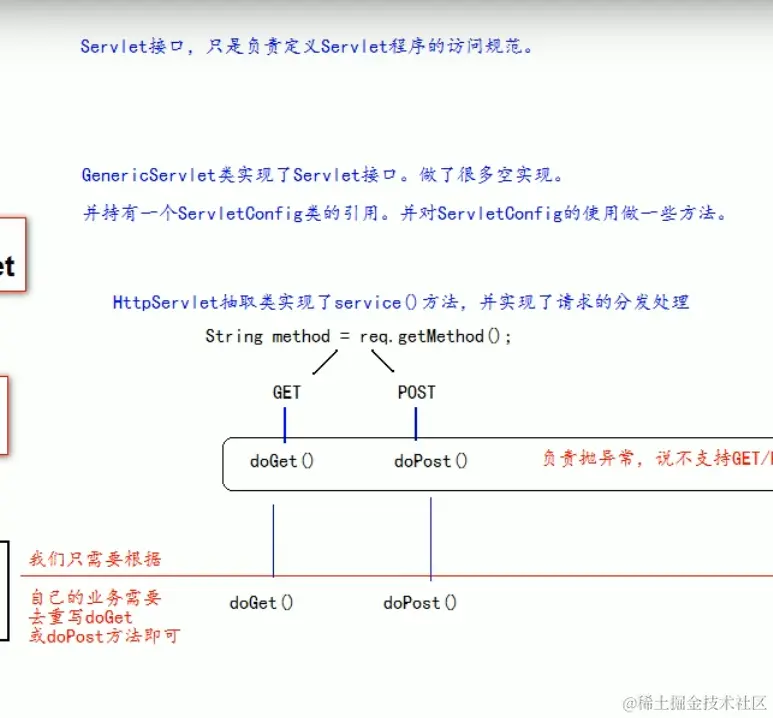

5.Servlet整个类的继承体系

image-20211019210326538

image-20211019210345838

2.Servlet的使用

1.请求的分发处理

在java里请求都是大写的GET 和 POST

image-20211019153841260

public void service(ServletRequest servletRequest, ServletResponse servletResponse) throws ServletException, IOException {
    System.out.println("3.使用： 终于找到你 !!!");

    HttpServletRequest httpServletRequest = (HttpServletRequest) servletRequest;
    String method = httpServletRequest.getMethod();
    System.out.println(method);
    if("GET".equals(method)){
        System.out.println("GET请求");
    }else if("POST".equals(method)){
        System.out.println("POST请求");
    }
}

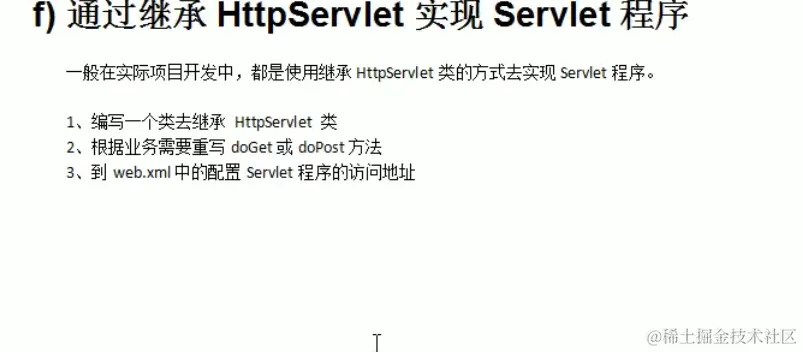

2.通过继承HttpServlet实现程序

image-20211019195454644

image-20211019195722864

public class HttpHello extends HttpServlet {
    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        System.out.println("get响应");
    }

    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        System.out.println("post响应");
    }
}

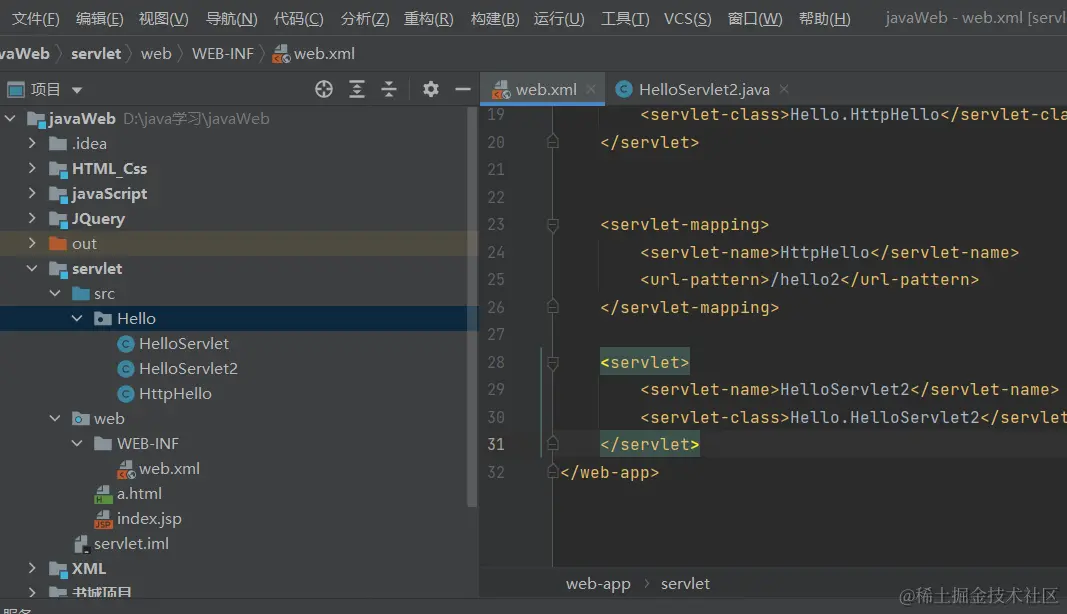

3.使用idea创建servlet程序

右键的新建里面就有Servlet，需要导入lib库，同时需要设置项目结构的facet页面下面的根源要勾上src。
idea生成的servlet会自动生成doget和dopost方法 以及在web.xml里自动配置

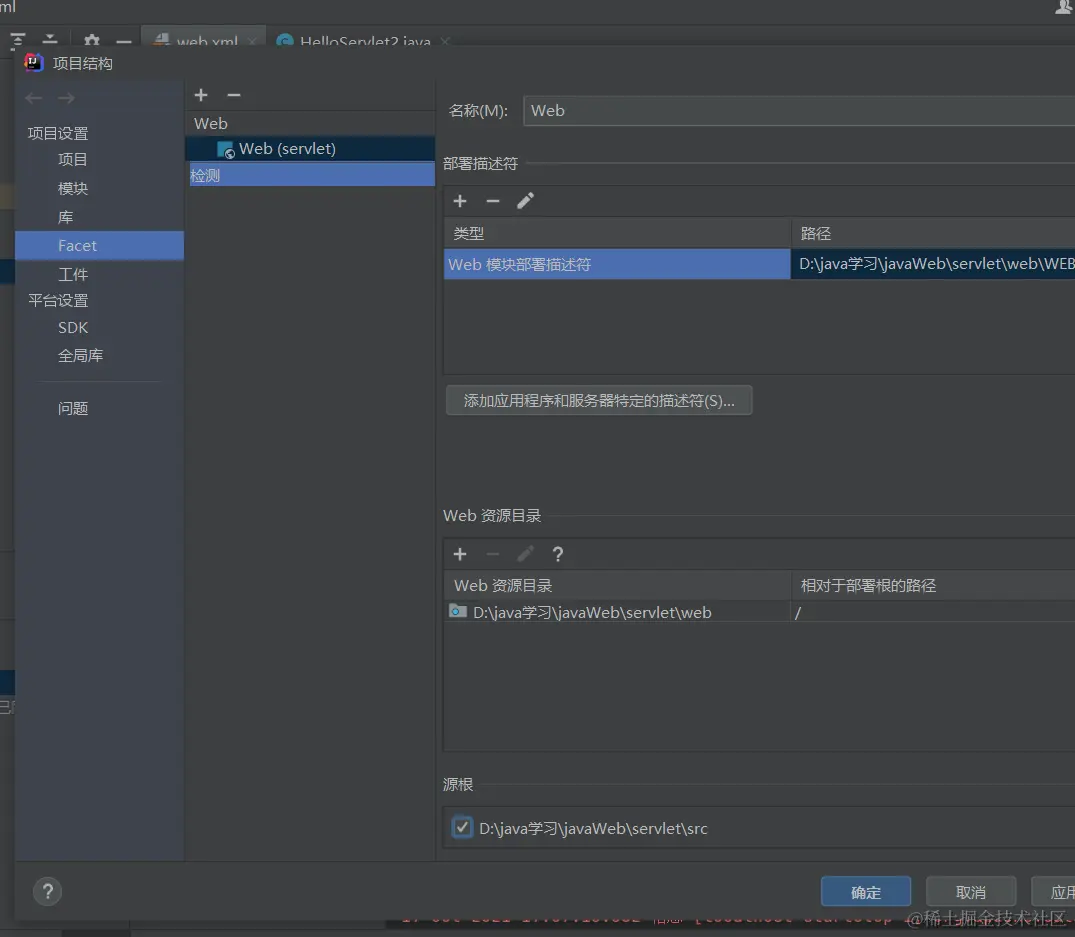

image-20211019200604908

image-20211019200448913

image-20211019200441042

##3.ServletConfig的使用

###1.使用

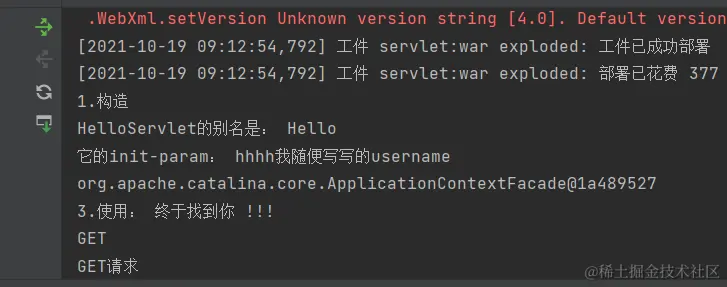

image-20211019211314338

public void init(ServletConfig servletConfig) throws ServletException {
    System.out.println("HelloServlet的别名是： "+servletConfig.getServletName());
    System.out.println("它的init-param： "+servletConfig.getInitParameter("username"));
    System.out.println(servletConfig.getServletContext());//打印对象
}

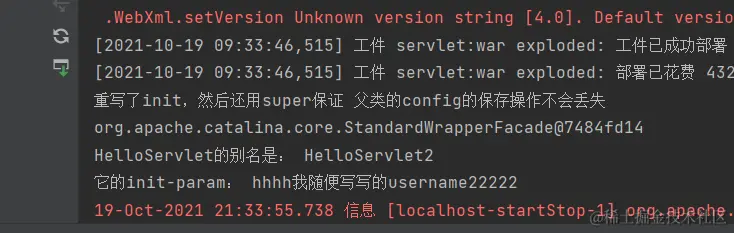

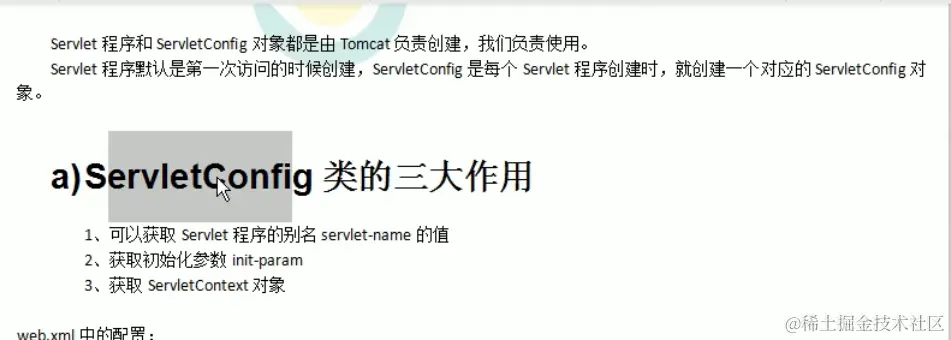

2.类的说明

image-20211019212740314

image-20211019213403295

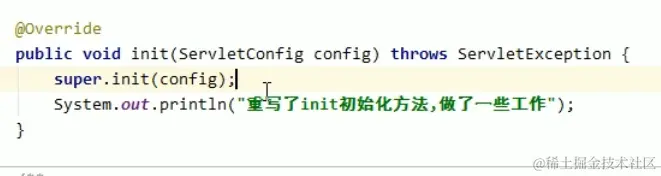

如果重写了init方法，需要把super方法写上

image-20211019212712161

public void init(ServletConfig config) throws ServletException {
    super.init(config);
    System.out.println("重写了init，然后还用super保证 父类的config的保存操作不会丢失");
}

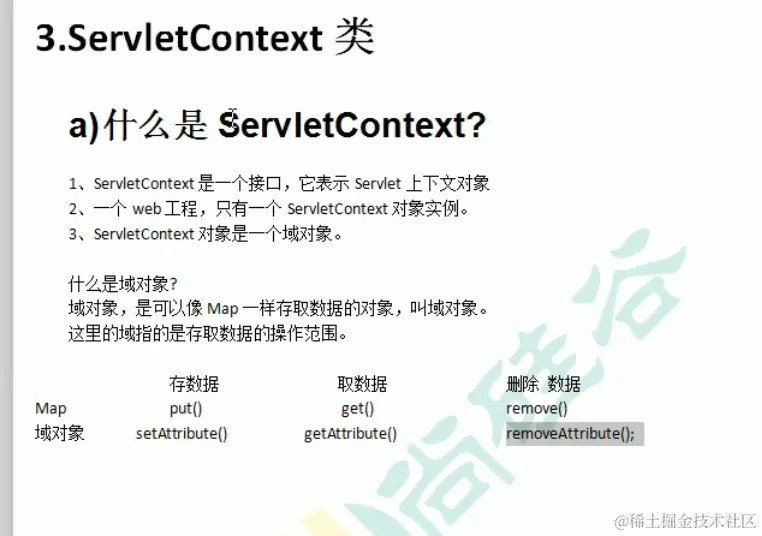

4.ServletContext类

1.干什么的

image-20211019213917845

2.获取配置值和工程路径，存储数据

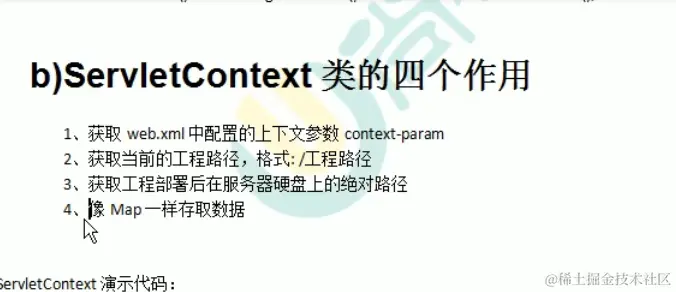

image-20211020192724936

image-20211020193714889

image-20211020192633452

protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//        获取context-param里面的值
        ServletContext context = getServletConfig().getServletContext();
        String namespace = context.getInitParameter("namespace");
        System.out.println("servletcontext的namespace:  "+namespace);
//        获取当前工程路径
        System.out.println("获取当前工程路径：  "+context.getContextPath());
        System.out.println("获取当前工程绝对路径：  "+context.getRealPath("/"));
    }

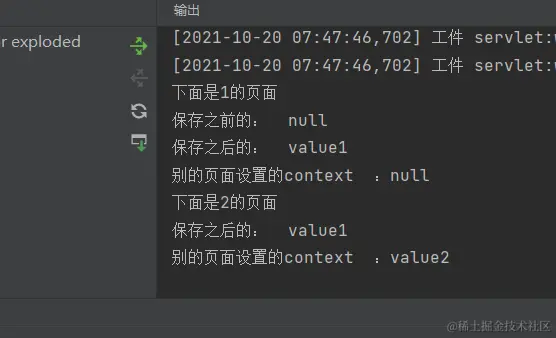

存储数据的展示

image-20211020194759926

protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        System.out.println("下面是1的页面");

        ServletContext context = getServletContext();

        System.out.println("保存之前的：  "+context.getAttribute("key1"));
        context.setAttribute("key1","value1");
        System.out.println("保存之后的：  "+context.getAttribute("key1"));
        System.out.println("别的页面设置的context  ："+context.getAttribute("key2"));
    }

protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

    ServletContext context = getServletContext();

    System.out.println("下面是2的页面");
    context.setAttribute("key2","value2");
    System.out.println("保存之后的：  "+context.getAttribute("key1"));
    System.out.println("别的页面设置的context  ："+context.getAttribute("key2"));

}

5.HTTP协议

image-20211020195040848

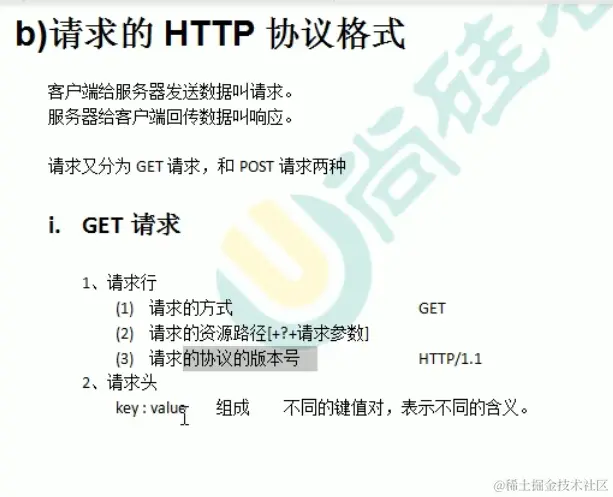

1.请求的HTTP协议的格式

image-20211020195616627

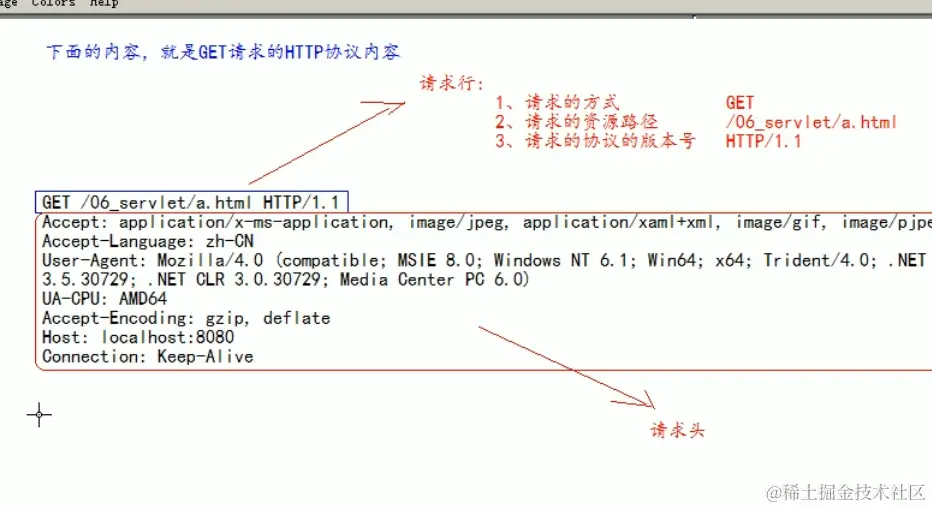

GET请求：

image-20211020195637285

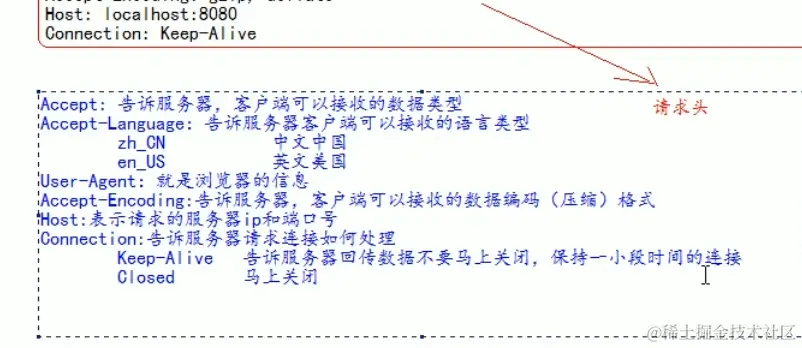

image-20211020200106432

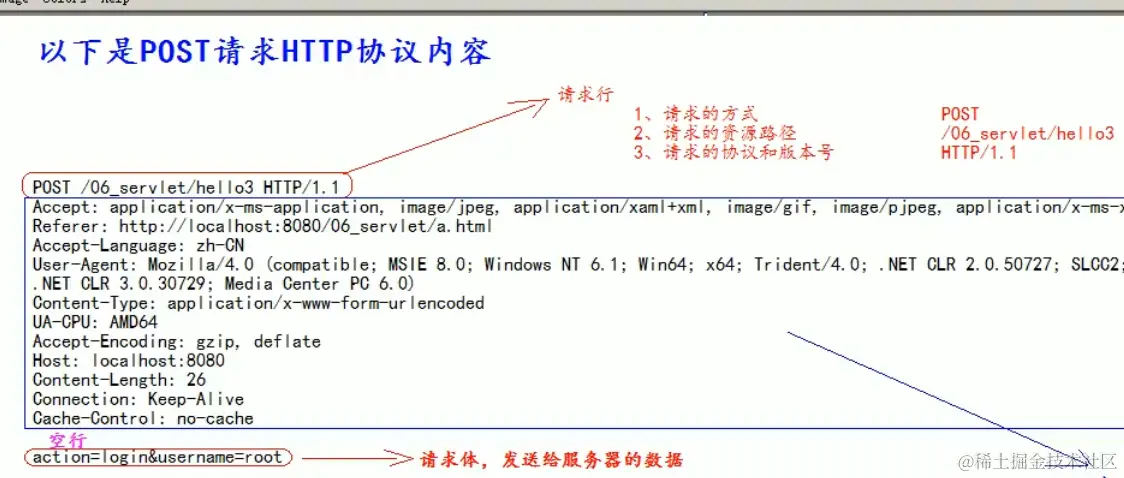

POST的请求

image-20211020201245223

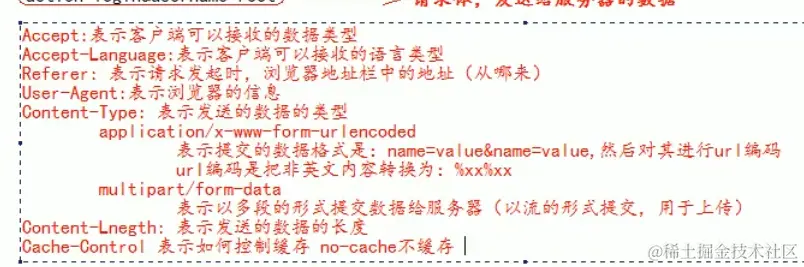

image-20211020201255125

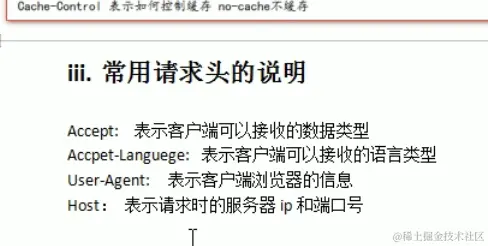

2.常用的请求头

image-20211020201428459

3.哪些是get请求，哪些是post

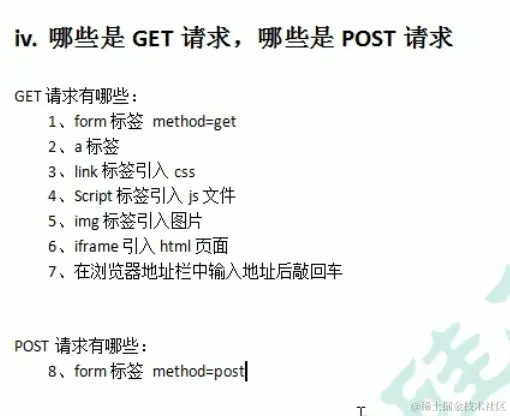

image-20211020201651213

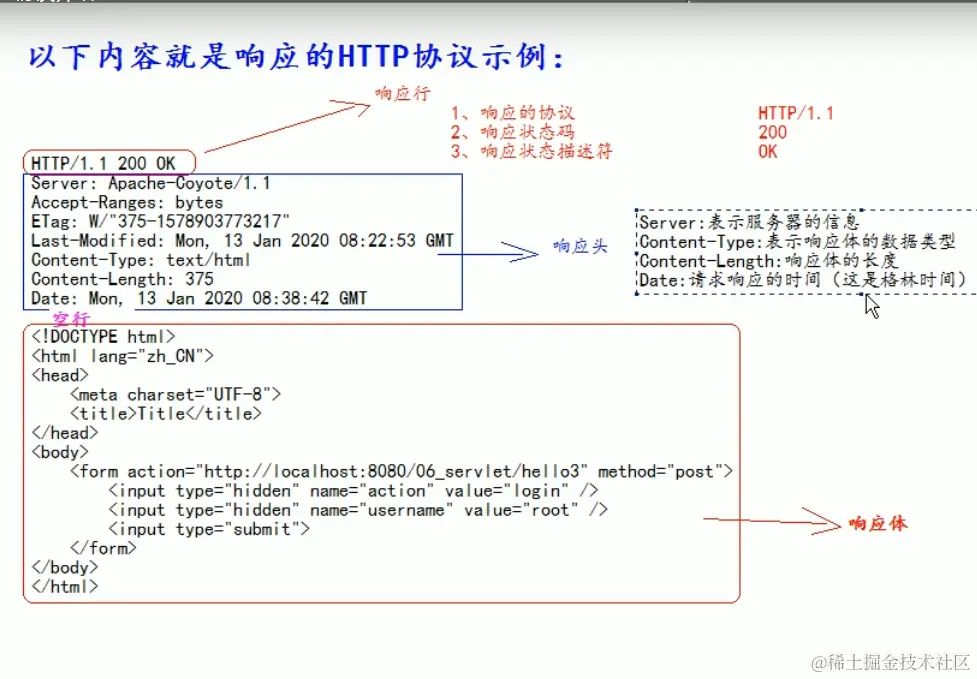

4.响应的HTTP协议格式

image-20211020202303515

5.常见的响应码

image-20211020202555133

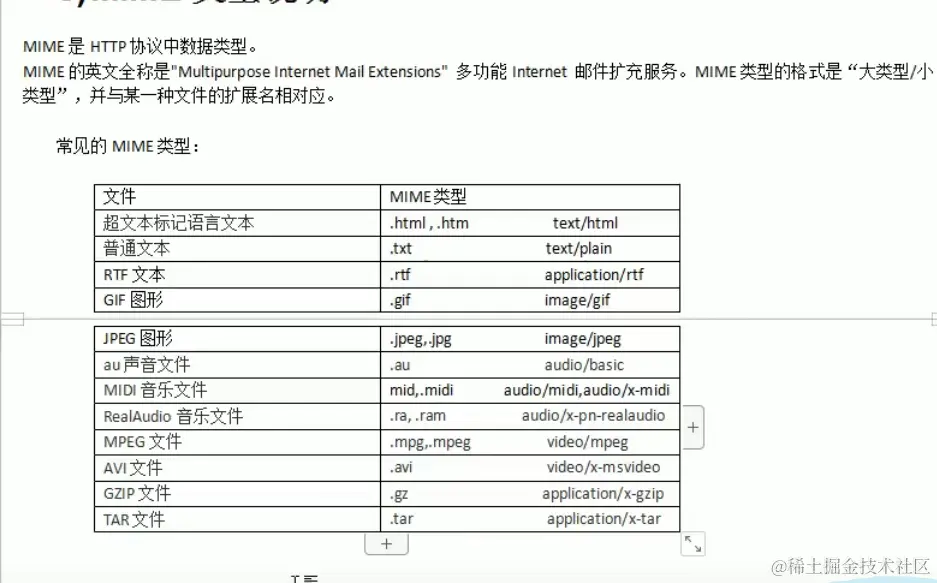

6.MIME类型说明

image-20211020202859290

6.HttpServletRequest类

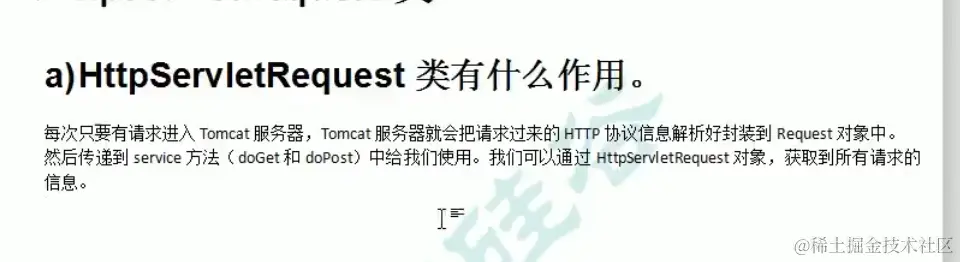

image-20211020203921249

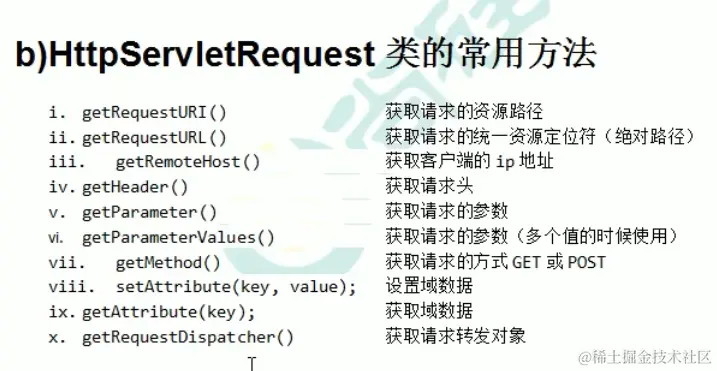

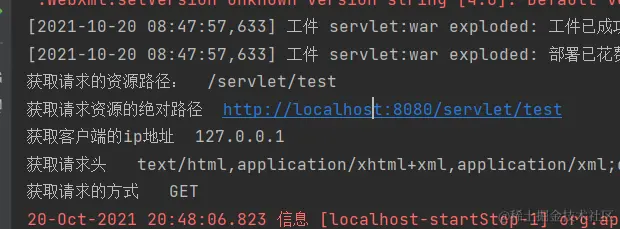

1.常用方法

image-20211020204127768

image-20211020204833766

protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

    System.out.println("获取请求的资源路径：  "+request.getRequestURI());
    System.out.println("获取请求资源的绝对路径  "+request.getRequestURL());
    System.out.println("获取客户端的ip地址  "+request.getRemoteHost());
    System.out.println("获取请求头   "+request.getHeader("Accept"));
    System.out.println("获取请求的方式   "+request.getMethod());
}

2.获取客户端发来的请求参数

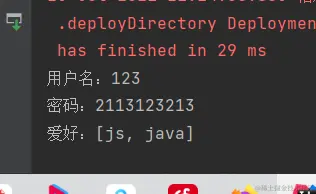

image-20211020211447227

image-20211020211456451

protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
    String username = request.getParameter("username");
    String password = request.getParameter("password");
    String[] hobby = request.getParameterValues("hobby");

    System.out.println("用户名："+username);
    System.out.println("密码："+password);
    System.out.println("爱好："+ Arrays.asList(hobby));
}

3.POST请求的中文乱码问题

image-20211021143030445

解决：

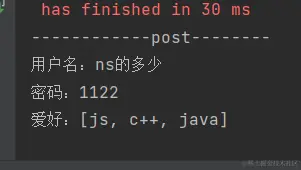

image-20211021143436283

private void hh(HttpServletRequest request) {
    String username = request.getParameter("username");
    String password = request.getParameter("password");
    String[] hobby = request.getParameterValues("hobby");

    System.out.println("用户名："+username);
    System.out.println("密码："+password);
    System.out.println("爱好："+ Arrays.asList(hobby));
}

@Override
protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
    req.setCharacterEncoding("UTF-8"); //解决方法，设置成UTF-8
    System.out.println("------------post--------");

    hh(req);
}

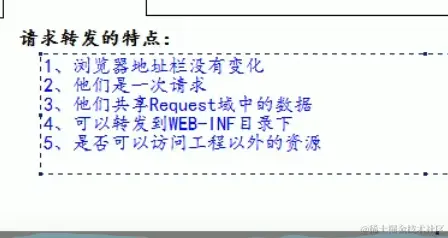

4.请求的转发

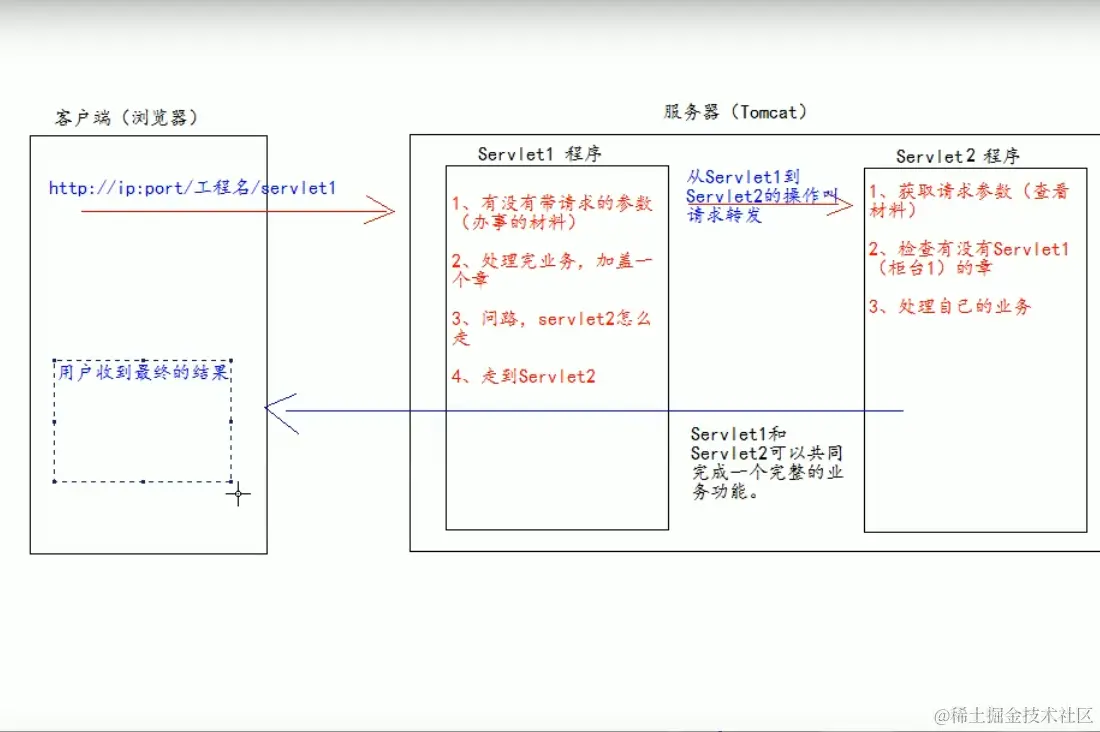

image-20211021145929636

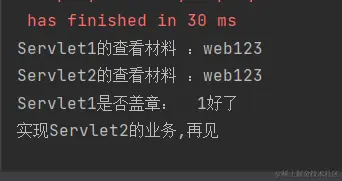

image-20211021151514293

image-20211021152046934

Servlet1

    protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//        查看材料
        String username = request.getParameter("username");
        System.out.println("Servlet1的查看材料 ："+username);

//        给材料盖章
        request.setAttribute("key1","1好了");

//        问路：Servlet2怎么走
        RequestDispatcher requestDispatcher = request.getRequestDispatcher("/servlet2");


//        开始走路
        requestDispatcher.forward(request,response);

    }

Servlet2

    protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//        查看材料
        String username = request.getParameter("username");
        System.out.println("Servlet2的查看材料 ："+username);

//        查看servlet1的章
        Object key1 = request.getAttribute("key1");
        System.out.println("Servlet1是否盖章：  "+key1);


//        实现自己的业务
        System.out.println("实现Servlet2的业务,再见");
    }

5.base标签的作用

image-20211021153333769

image-20211021153351461

6.Web中的路径问题

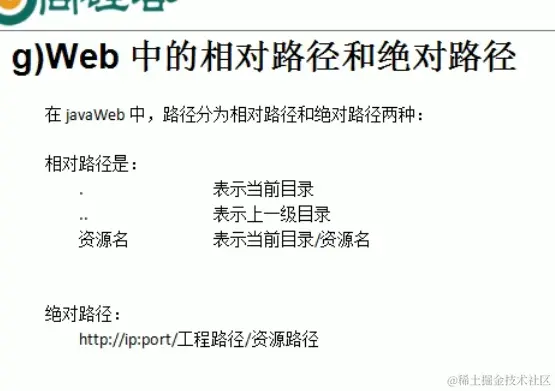

image-20211021153526633

7.Web中“/”的意义

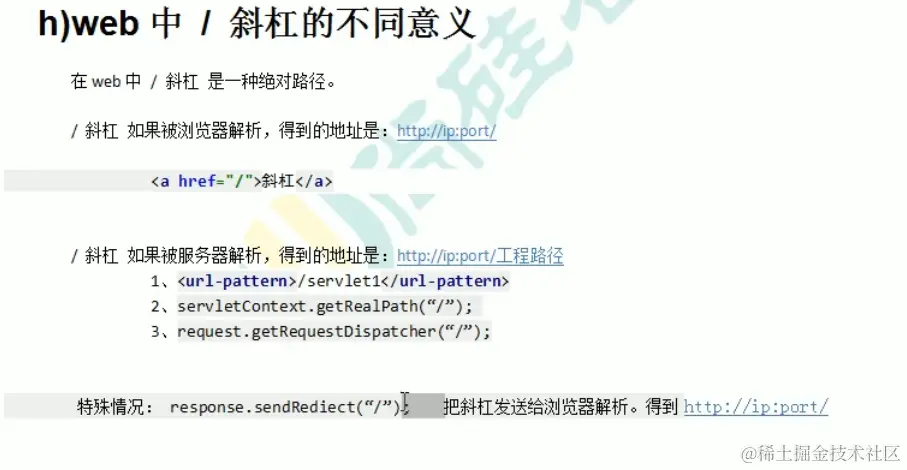

image-20211021153958703

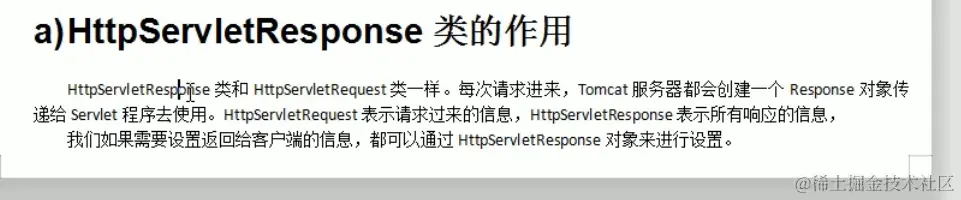

##7.HttpServletResponse类

image-20211021154301043

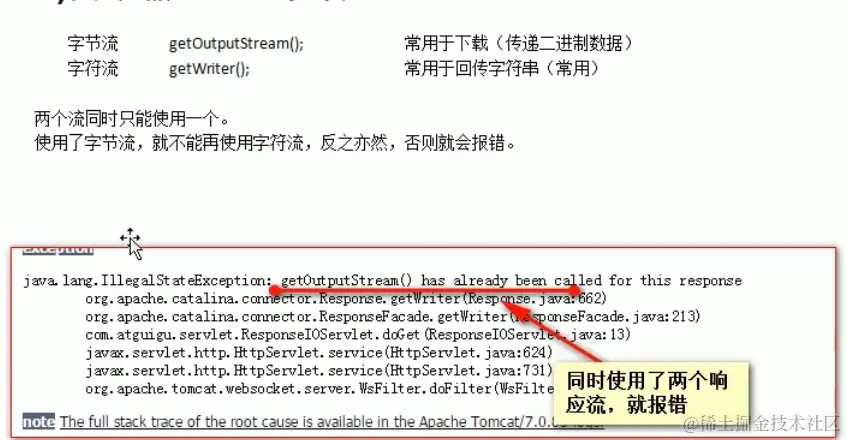

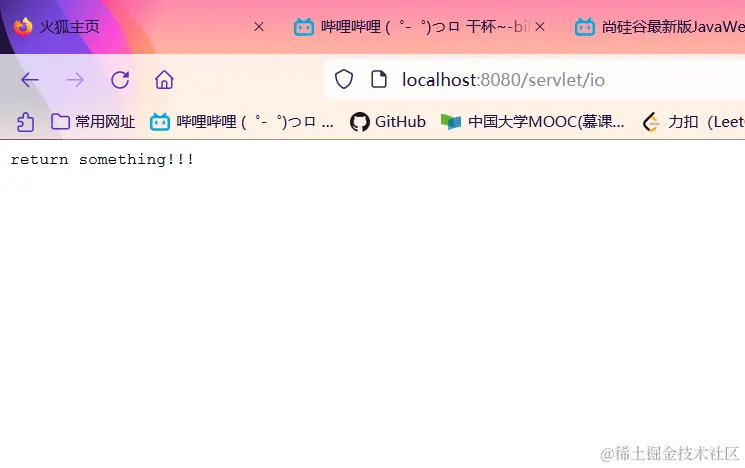

1.两个输出流的说明

image-20211021154715636

image-20211021155411548

 protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//        往客户端返回字符串

        PrintWriter writer = response.getWriter();
        writer.write("return something!!!");
    }

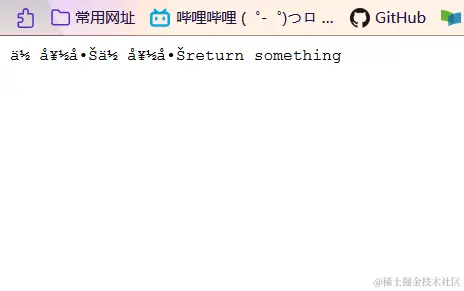

2.中文乱码问题（一）

image-20211021160606071

修改：

 protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//        往客户端返回字符串

        response.setCharacterEncoding("UTF-8");
//        通过响应头来修改浏览器也是用UTF-8
        response.setHeader("Content-Type","text/html;charset-UTF-8");
        PrintWriter writer = response.getWriter();
        writer.write("你好啊你好啊");
        writer.write("return something");
    }

image-20211021160952616

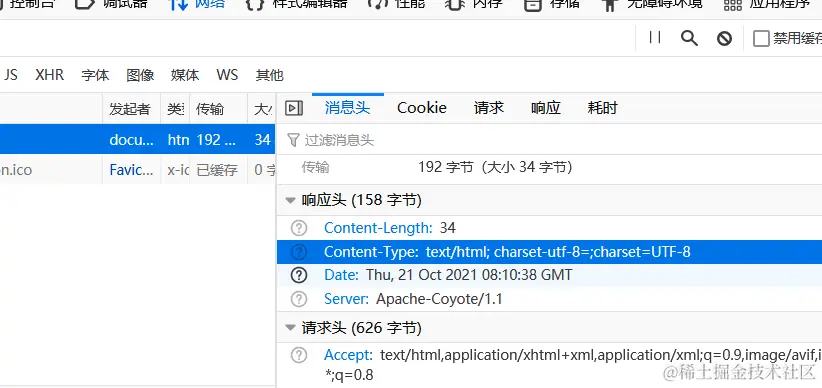

页面源代码查看，已看到响应头属性改变

image-20211021161114241

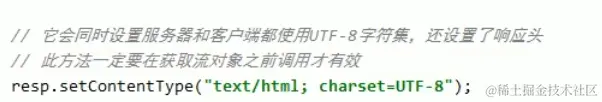

3.乱码解决方案（二）

image-20211021163914966

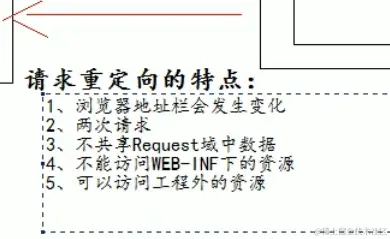

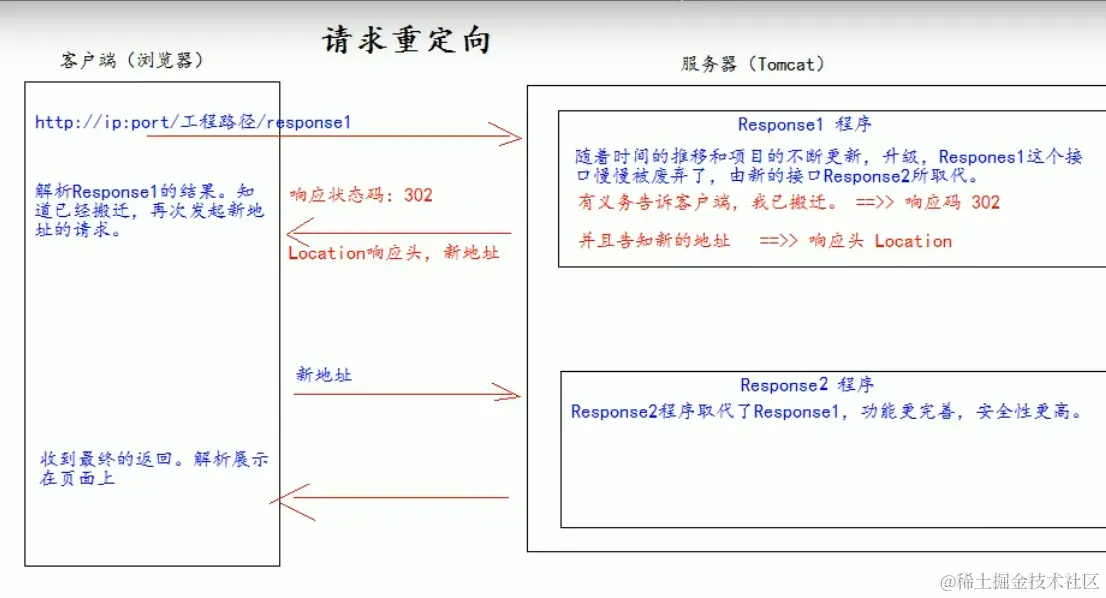

4.请求重定向

image-20211021165006323

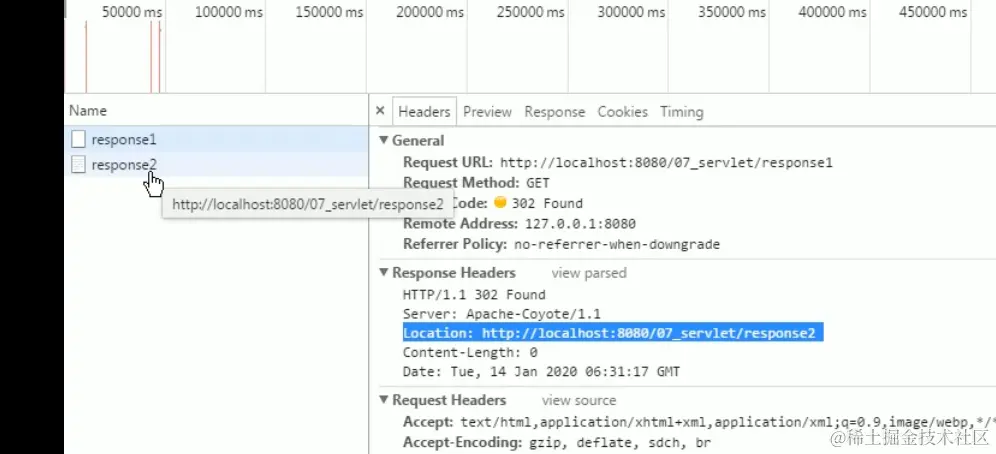

image-20211021170014534

image-20211021170232163

response1

protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        System.out.println("曾到此一游----response1");

        //设置响应状态302（重新定向）
        response.setStatus(302);

//        设置响应头，声明新地址在哪
        response.setHeader("Location","http://localhost:8080/servlet/response2");
    }

response2

protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        response.getWriter().write("response2 run!!!");
    }

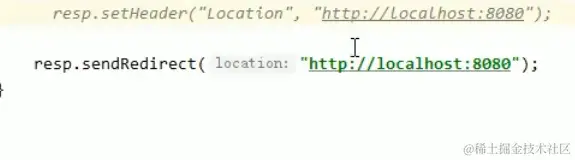

5.请求重定向（二）

image-20211021170515207

JSP

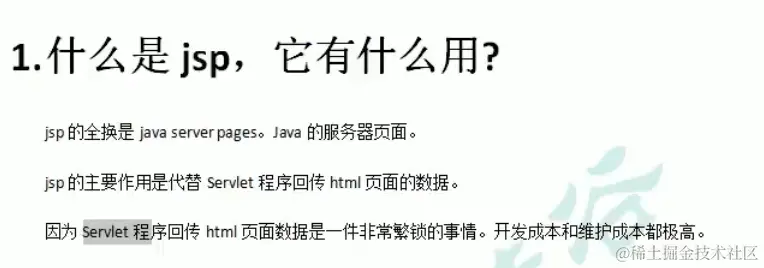

1.什么是JSP

image-20211025143444670

image-20211025143324442

模仿servlet传递页面数据的过程

public class PringHtml extends HttpServlet {
    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
//        模仿servlet传递页面数据的过程
//        通过响应流回传html页面数据
        resp.setContentType("text/html;charset=UTF-8");
        PrintWriter writer = resp.getWriter();

        writer.write("<!DOCTYPE html>\r\n");
        writer.write("<html lang=\"en\">\n");
        writer.write("<head>\n");
        writer.write("<meta charset=\"UTF-8\">\n");
        writer.write(" <title>Title</title>\n");
        writer.write("</head>\n");
        writer.write("<body>\n");
        writer.write("这是html页面\n");
        writer.write("</body>\n");
        writer.write("</html>\n");
    }
}

JSP传输

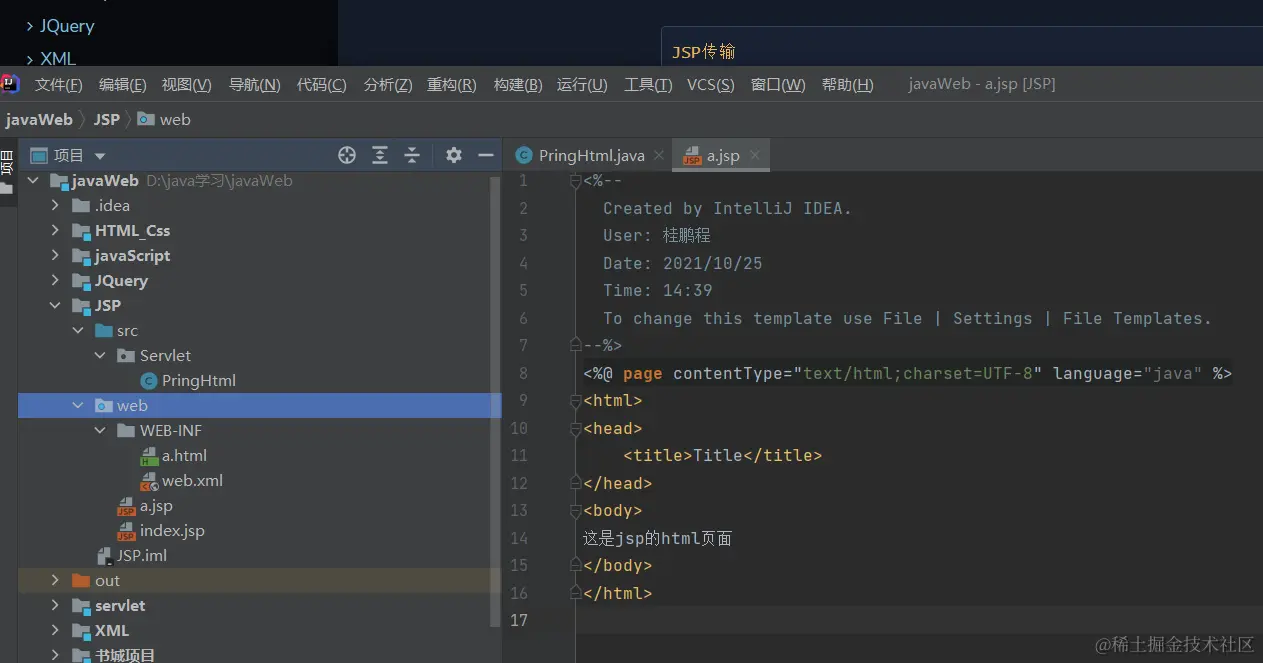

image-20211025144234893

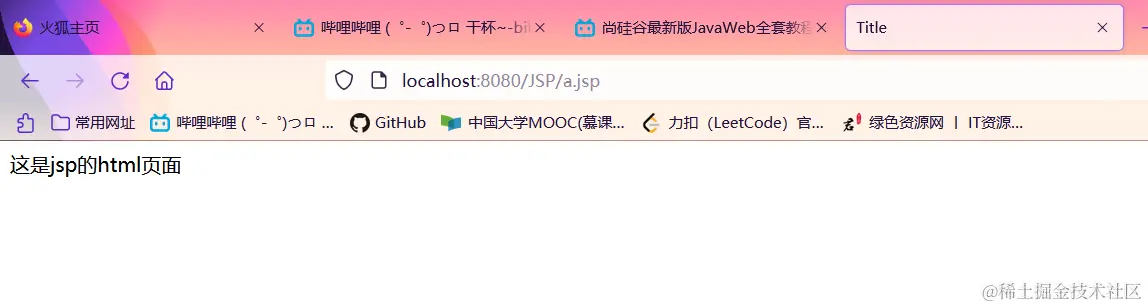

image-20211025144209543

创建和访问

image-20211025144337581

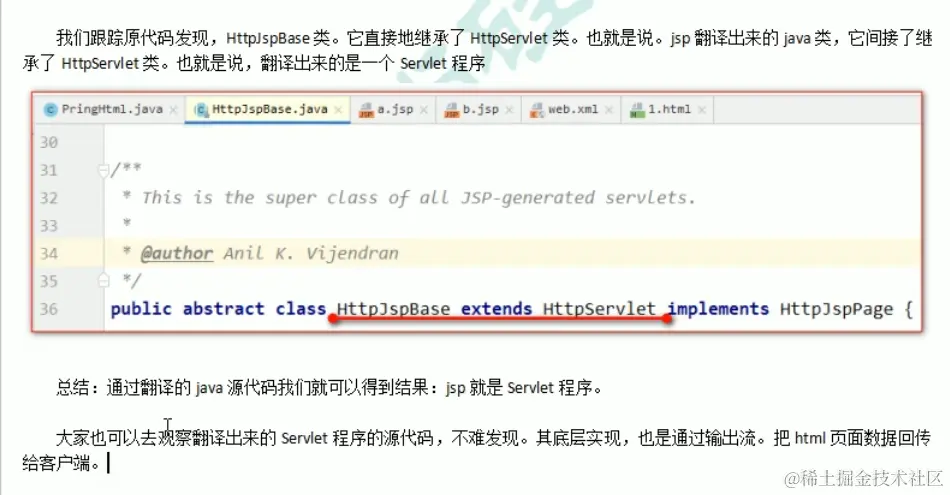

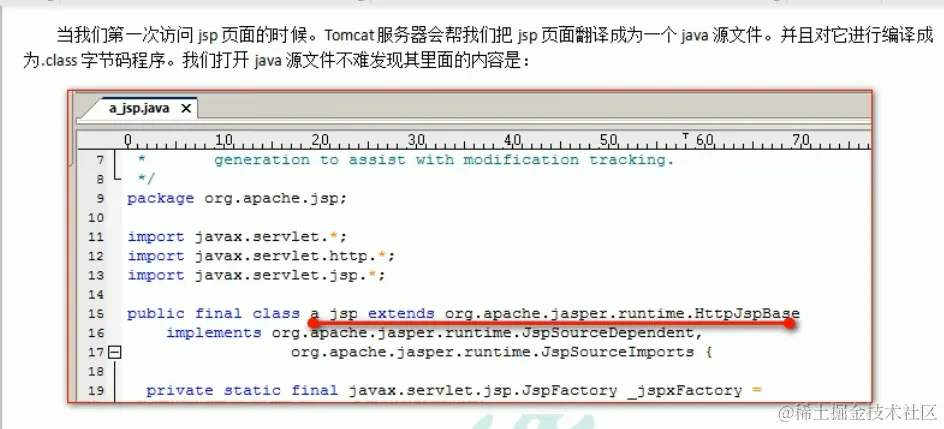

##2.JSP页面的本质

本质上是Servlet程序：
在页面加载时，服务器资源文件下就会出现对应的java程序

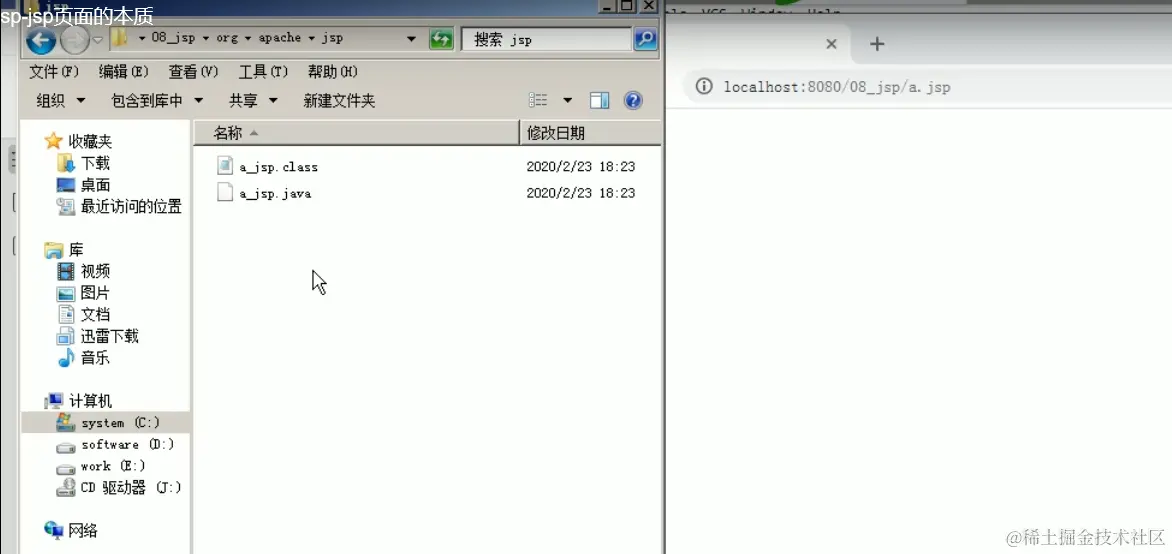

image-20211025150809968

image-20211025151431642

image-20211025151500329

3.JSP的三种语法

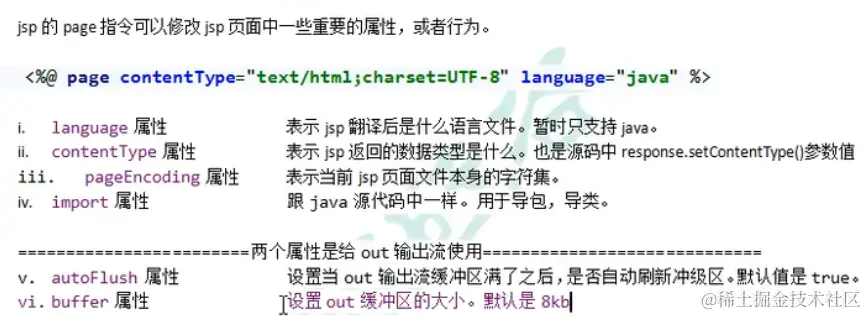

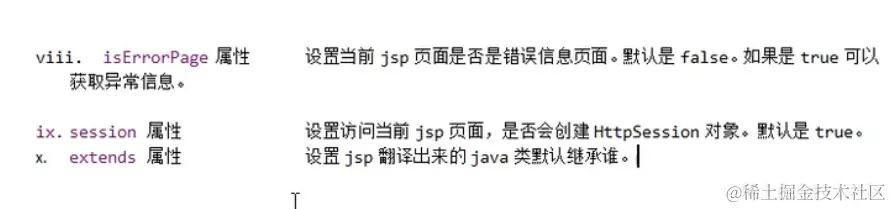

1.page指令

image-20211025153037755

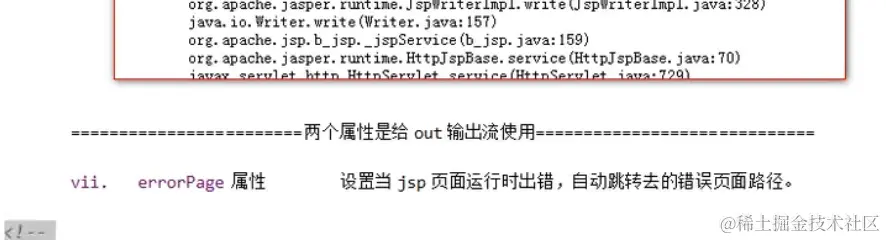

image-20211025153123004

image-20211025153138914

2.脚本

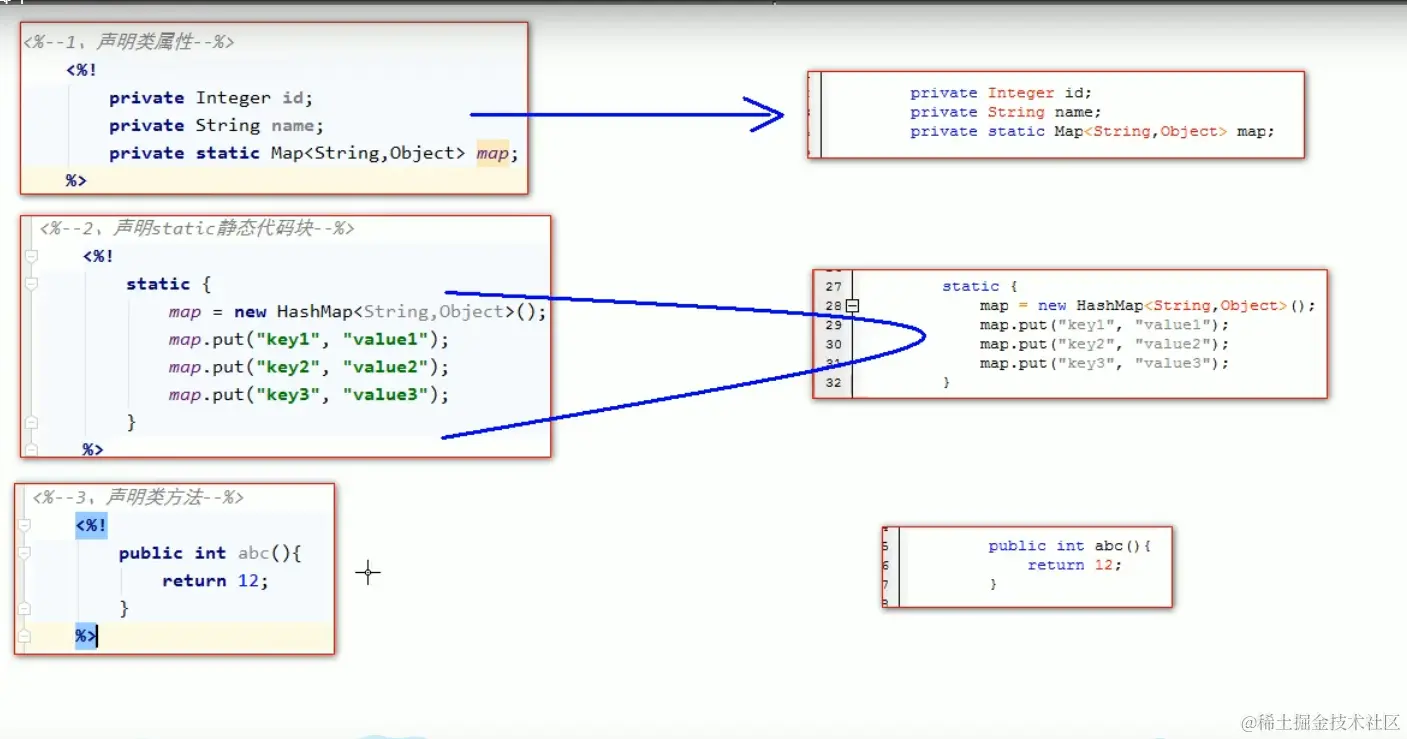

声明脚本

image-20211025153324659

image-20211025153831711

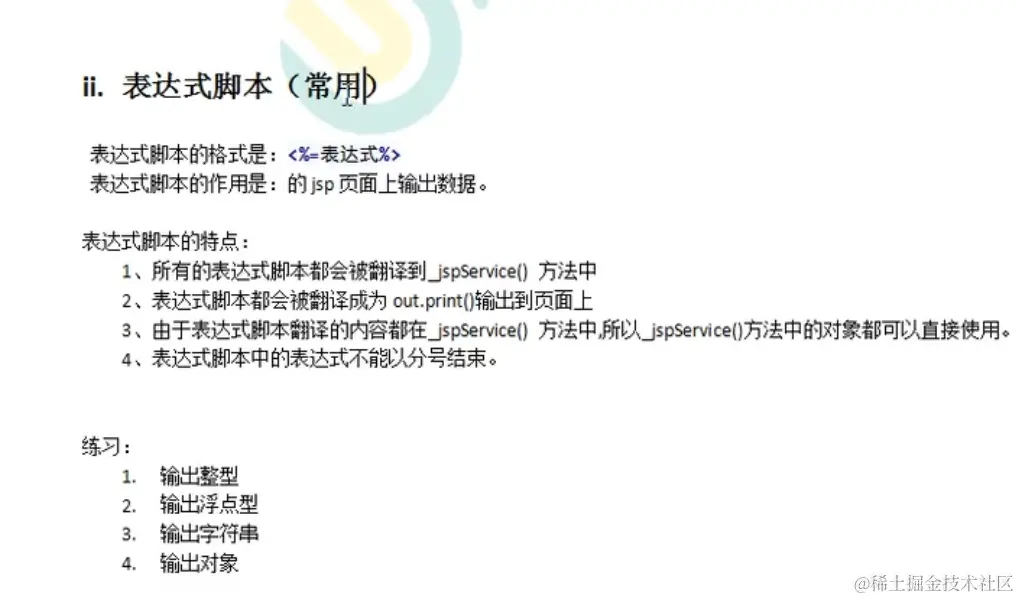

####表达式脚本

image-20211026102736792

image-20211026102817062

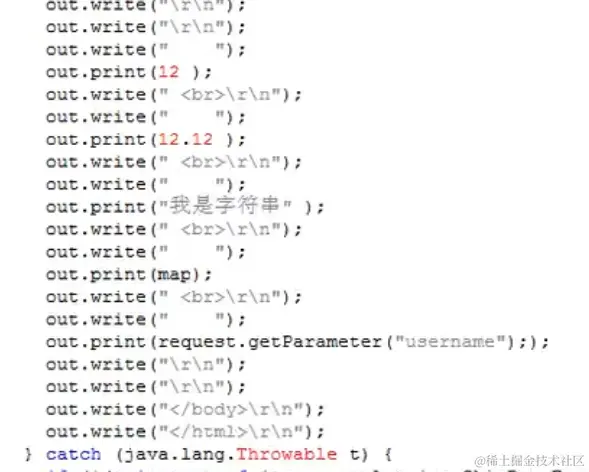

image-20211026102754182

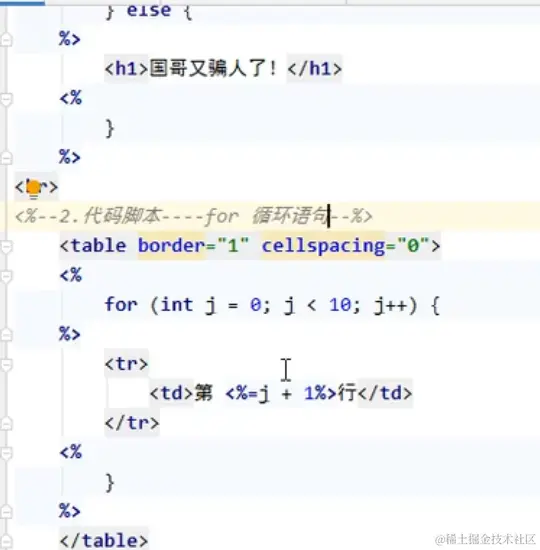

代码脚本

与页面语句混合使用 ： 非常灵活

image-20211026105651365

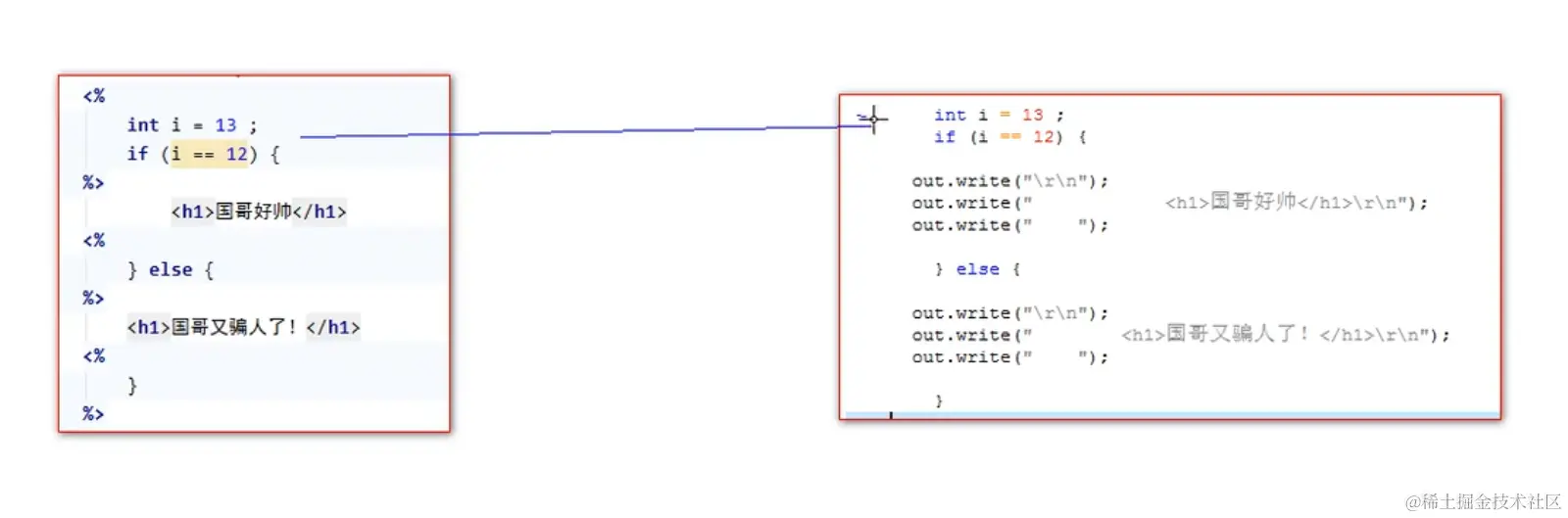

源代码

image-20211026105808953

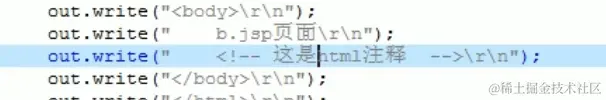

##4.JSP的三种注释

image-20211026110032534

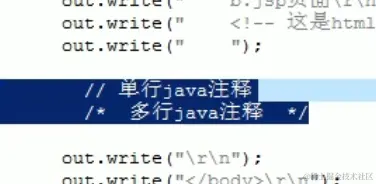

image-20211026110254790

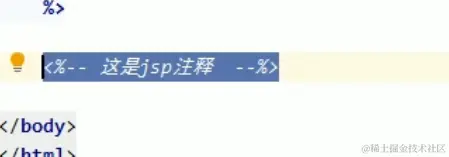

image-20211026110328399

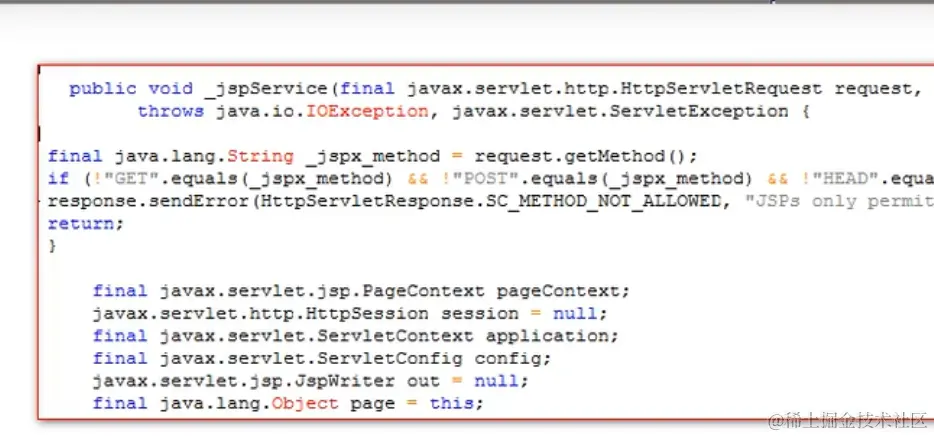

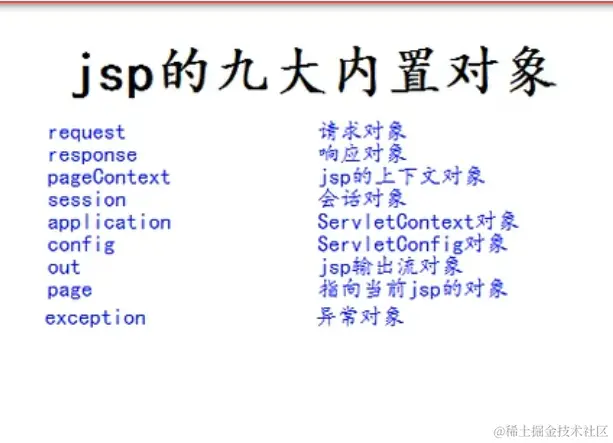

##5.JSP九大内置对象

image-20211026110558765

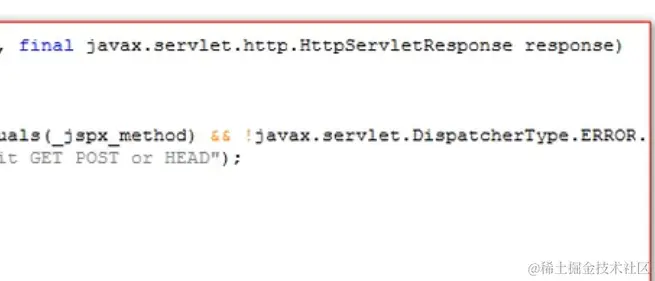

image-20211026110614518

image-20211026110802674

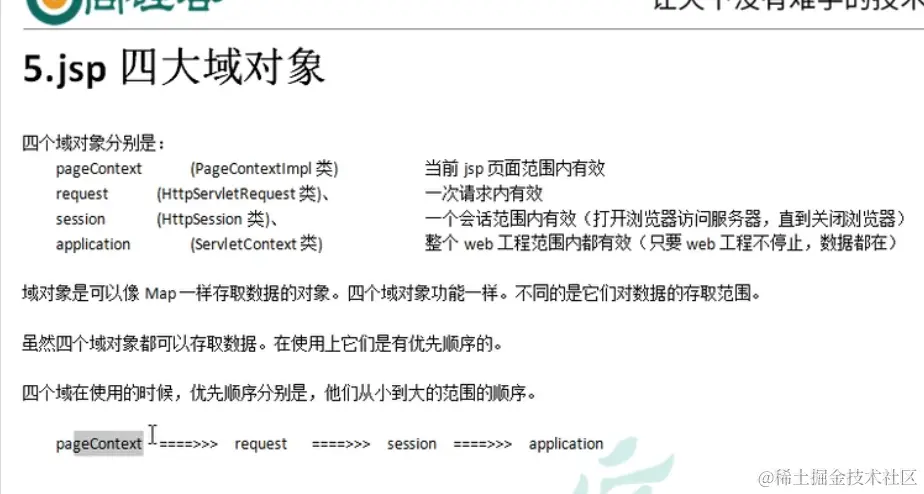

6.四大域对象

image-20211026113453244

scope

<html>
<head>
    <title>Title</title>
</head>
<body>
    <h1>scope.jsp页面</h1>
    <%
        //往四个域分别保存数据
        pageContext.setAttribute("key","pageContext");
        request.setAttribute("key","request");
        session.setAttribute("key","session");
        application.setAttribute("key","application");
    %>
    pageContext是否有值: <%=pageContext.getAttribute("key")%><br>
    request 是否有值：<%=request.getAttribute("key")%><br>
    session是否有值：<%=session.getAttribute("key")%><br>
    application是否有值;<%=application.getAttribute("key")%><br>

<%
    request.getRequestDispatcher("/scope2.jsp").forward(request,response);
%>
</body>
</html>

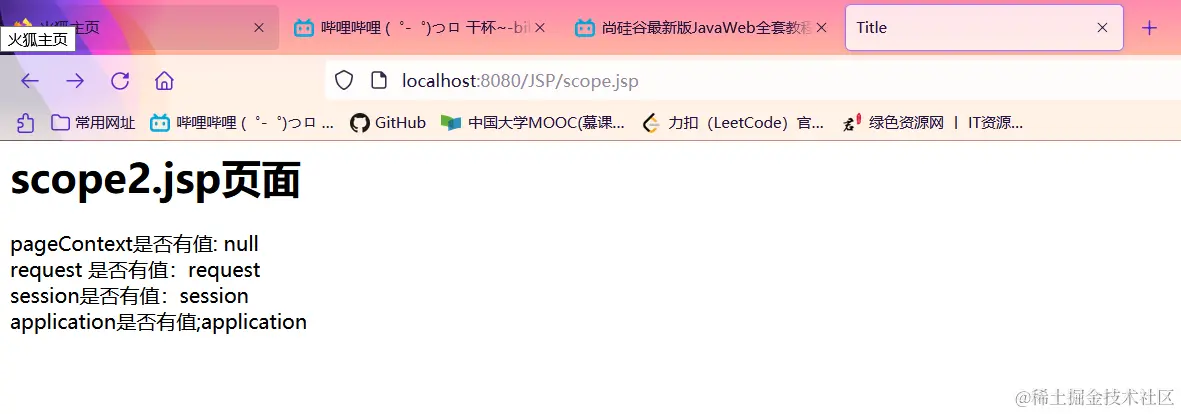

scope2

<html>
<head>
    <title>Title</title>
</head>
<body>
<h1>scope2.jsp页面</h1>

pageContext是否有值: <%=pageContext.getAttribute("key")%><br>
request 是否有值：<%=request.getAttribute("key")%><br>
session是否有值：<%=session.getAttribute("key")%><br>
application是否有值;<%=application.getAttribute("key")%><br>
</body>
</html>

image-20211026113509765

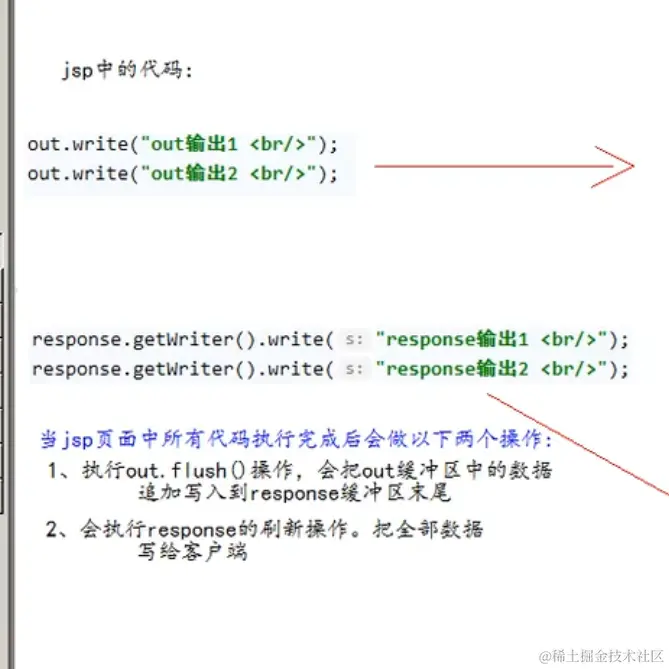

7.JSP中的out和response的getWriter区别

image-20211026184953124

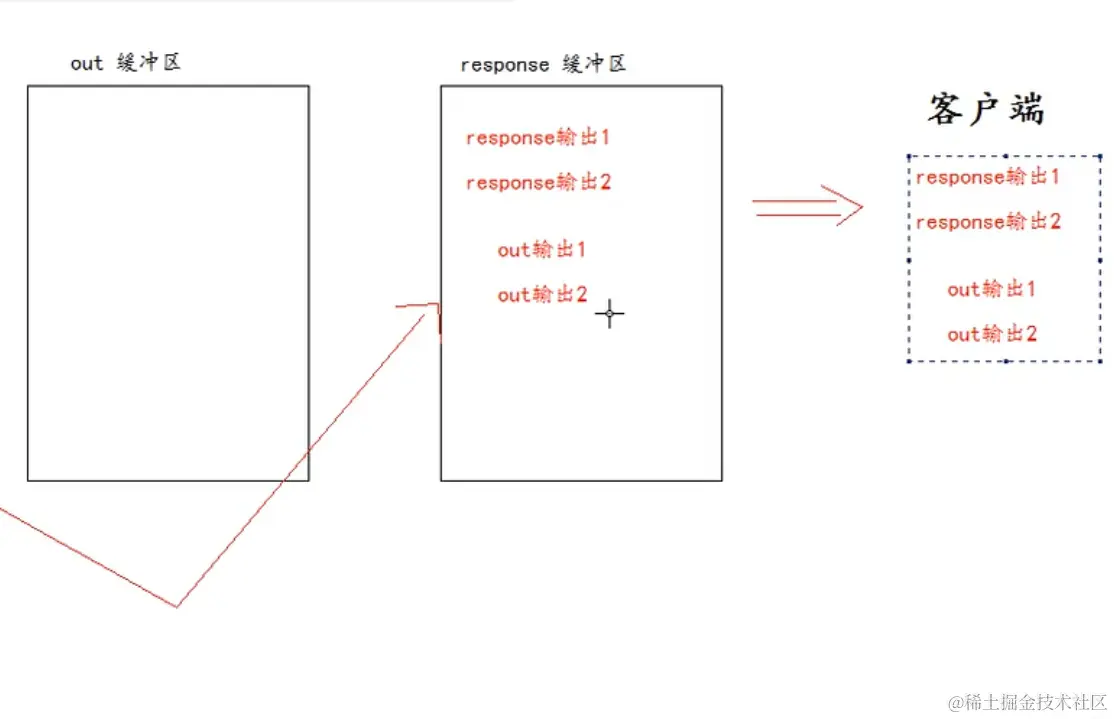

image-20211026185003707

<html>
<head>
    <title>Title</title>
</head>
<body>
    <%
        out.write("out1输出\r\n");
        out.flush();
        out.write("out2输出\r\n");

        response.getWriter().write("response1输出\r\n");
        response.getWriter().write("response2输出\r\n");

    %>
</body>
</html>

image-20211026185407208

问题：write里面只能写字符串，如果写了int类型的，则会输出乱码或者空白。。。不会输出数字

print可以输出任意的数据类型

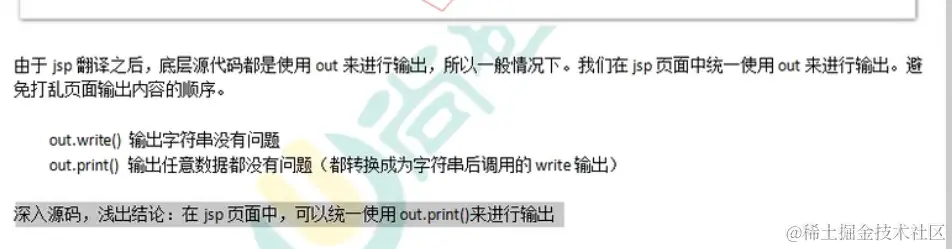

image-20211026190323664

##8.JSP的常用标签

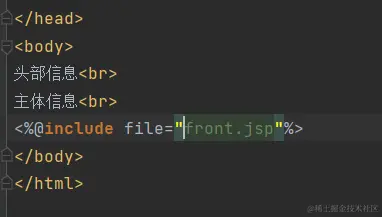

1.静态包含

image-20211026191312710

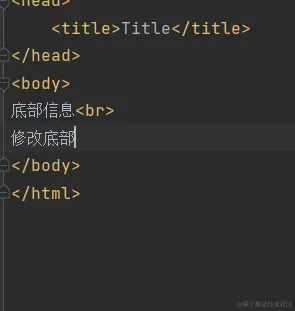

image-20211026191318875

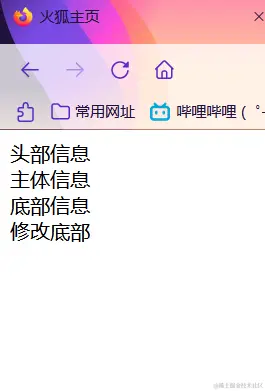

image-20211026191331841

2.动态包含

主页面

<html>
<head>
    <title>Title</title>
</head>
<body>
头部信息<br>
主体信息<br>
<%@include file="front.jsp"%>

<jsp:include page="front.jsp">
    <jsp:param name="key" value="abc"/>
    <jsp:param name="password" value="12233456"/>
</jsp:include>
</body>
</html>

底部页面

<html>
<head>
    <title>Title</title>
</head>
<body>
<br>
底部信息<br>
修改底部<br>
获取从主页面创建的数值 ：<%=request.getParameter("password")%>
</body>
</html>

image-20211026192907364

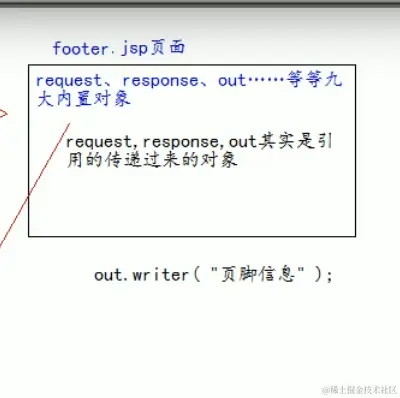

底层原理

image-20211026193037462

image-20211026192953215

image-20211026193003946

image-20211026193012519

3.转发

image-20211026193259984

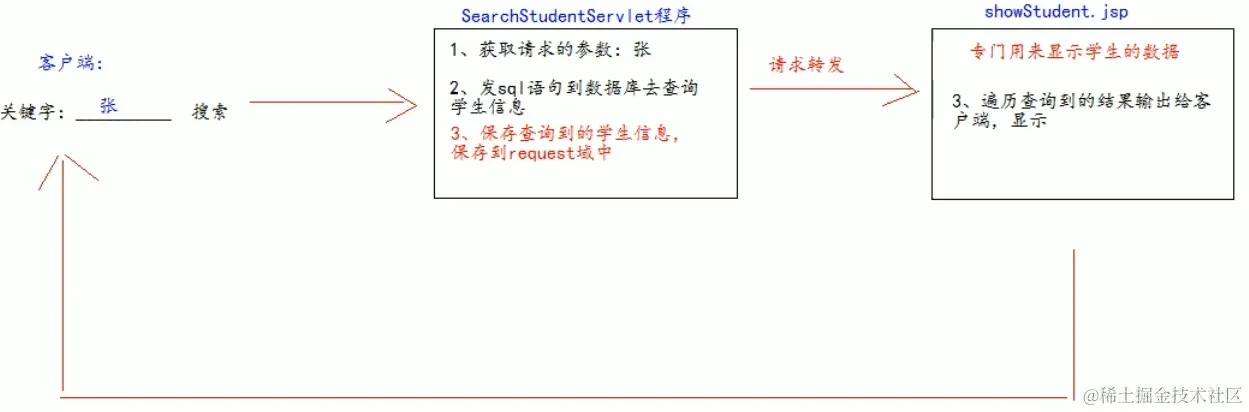

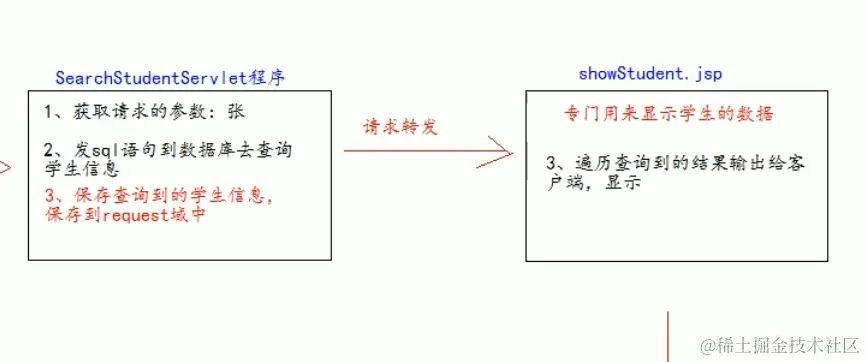

9.请求转发

image-20211026195217591

image-20211026195232633

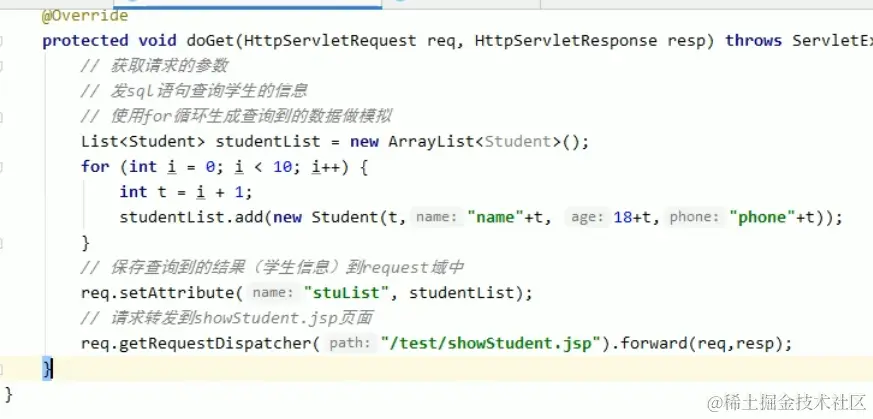

代码演示

image-20211026195518270

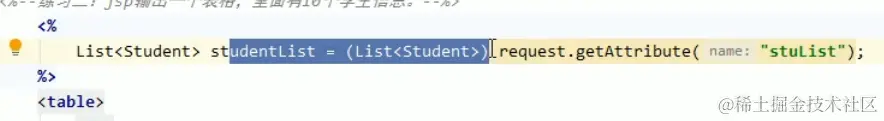

jsp代码

image-20211026195803341

#Listener监听器

image-20211026201103459

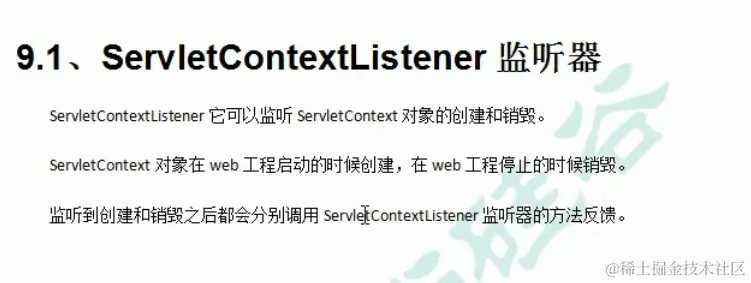

主要使用的
image-20211026202105249

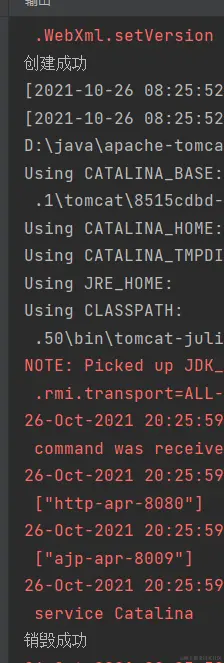

public class Listener implements ServletContextListener {

    @Override
    public void contextInitialized(ServletContextEvent servletContextEvent) {
        System.out.println("创建成功");
    }

    @Override
    public void contextDestroyed(ServletContextEvent servletContextEvent) {
        System.out.println("销毁成功");
    }

}

image-20211026202610290

Cookie 和 Session

Cookie

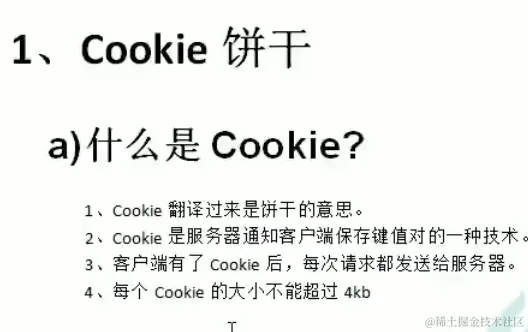

1.什么是Cookie

image-20211103201722846

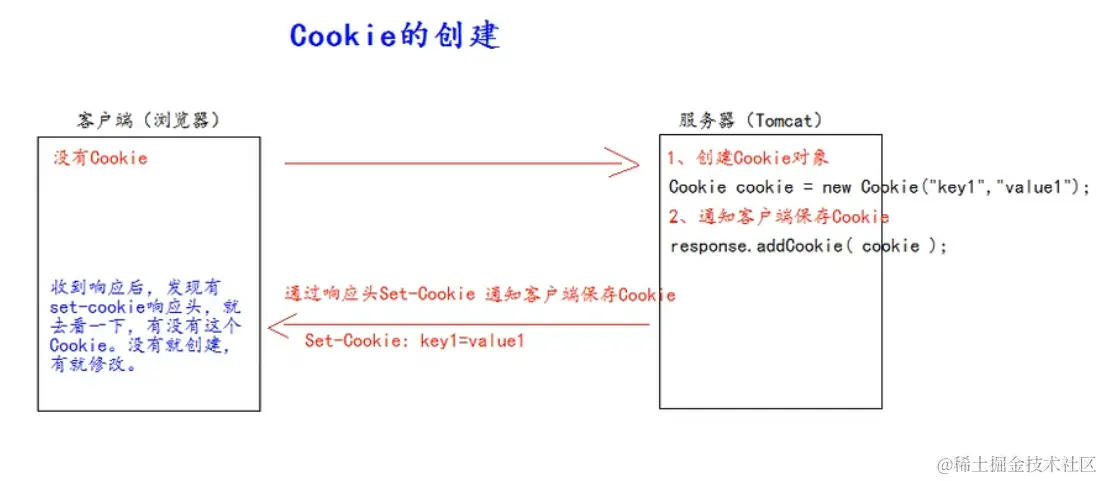

2.Cookie的创建

public class CookieServlet extends BaseServlet {


    protected void createCookie(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        //1 创建Cookie对象
        Cookie cookie = new Cookie("key4", "value4");
        //2 通知客户端保存Cookie
        resp.addCookie(cookie);
        //1 创建Cookie对象
        Cookie cookie1 = new Cookie("key5", "value5");
        //2 通知客户端保存Cookie
        resp.addCookie(cookie1);

        resp.getWriter().write("Cookie创建成功");
    }
}

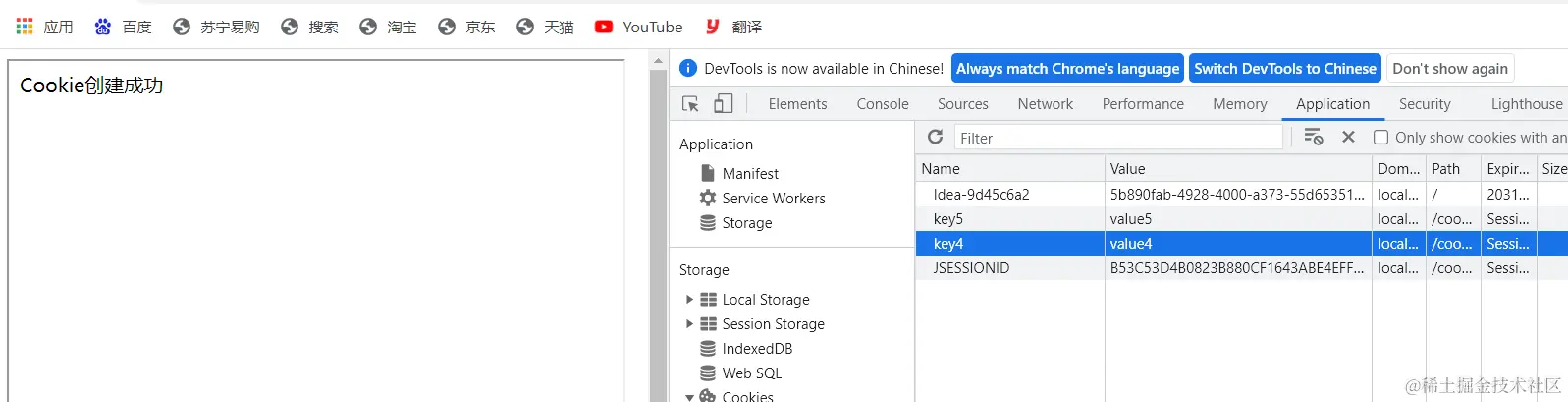

image-20211104144007876

image-20211104144357447

3.服务器如何获取Cookie

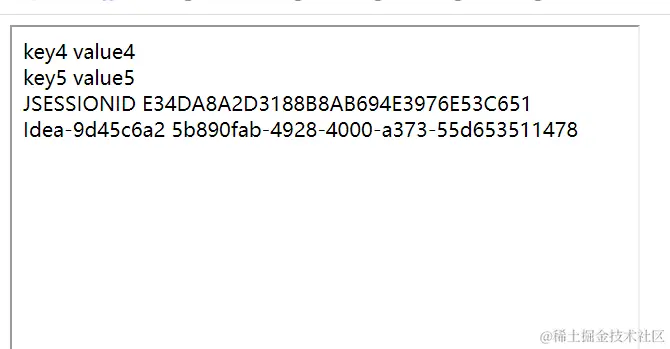

image-20211104145119346

protected void getCookie(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
    Cookie[] cookies = req.getCookies();
    for (Cookie cookie : cookies) {
        resp.getWriter().write(cookie.getName()+" "+cookie.getValue()+"<br>");
    }
}

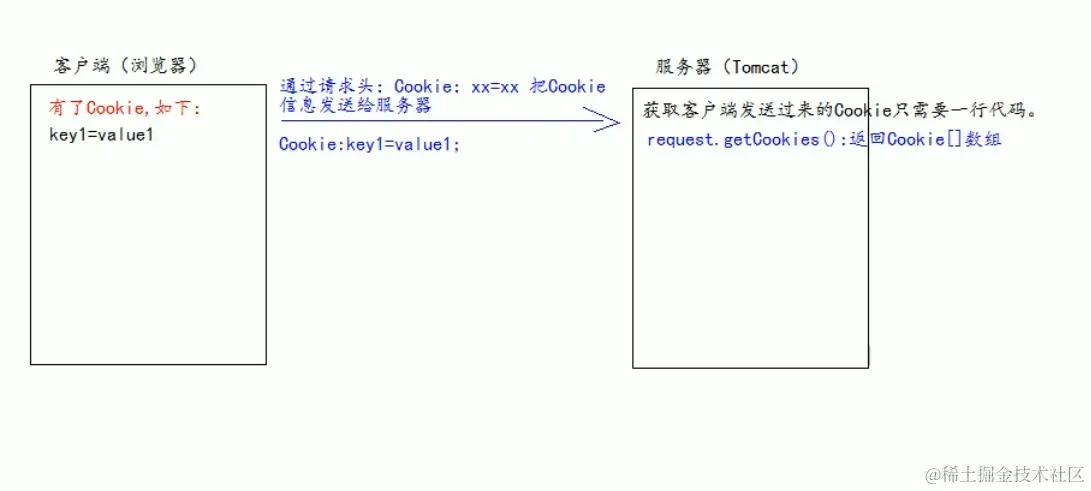

image-20211104145346763

遍历查找需要的Cookie，所以说要创建一个Utils工具类

protected void getCookie(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
    Cookie[] cookies = req.getCookies();
    Cookie cookie = cookieUtils.findCookie("key4", cookies);
    if (cookie!=null){
        resp.getWriter().write(cookie.getName()+" "+cookie.getValue());
    }
}

public Cookie findCookie(String name , Cookie[] cookies){
    if(name==null||cookies==null||cookies.length==0)return null;

    for (Cookie cookie : cookies) {
        if (name.equals(cookie.getName())){
            return cookie;
        }
    }
    return null;
}

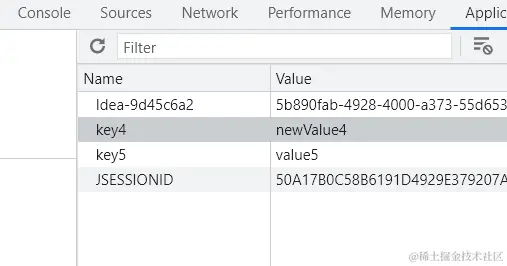

4.Cookie值的修改

image-20211104150841269

方案1：

protected void updateCookie(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
    //1 创建Cookie对象
    Cookie cookie = new Cookie("key4", "newValue4");
    //2 通知客户端保存Cookie
    resp.addCookie(cookie);

    resp.getWriter().write("Cookie修改成功");
}

方案2：

Cookie[] cookies = req.getCookies();
Cookie cookie = cookieUtils.findCookie("key4", cookies);
if (cookie!=null){
    cookie.setValue("new2Value4");
    resp.addCookie(cookie);
}

5.Cookie的生命控制

protected void life3600(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
    Cookie  cookie = new Cookie("defaultLift","defaultLift");

    /*
     * 设置存活时间:
     * 负数：默认值，服务器关了就删除
     * 0：立刻删除
     * 其他：单位秒
     *
     * */
    cookie.setMaxAge(4);

    resp.addCookie(cookie);
}

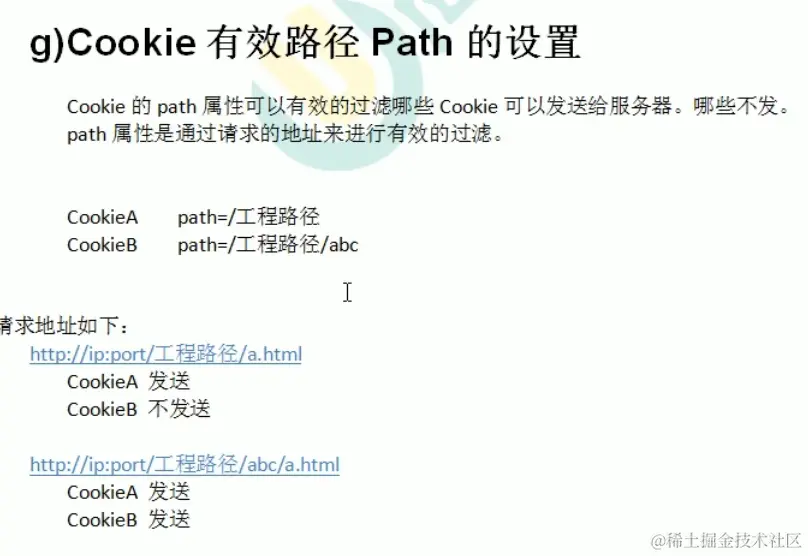

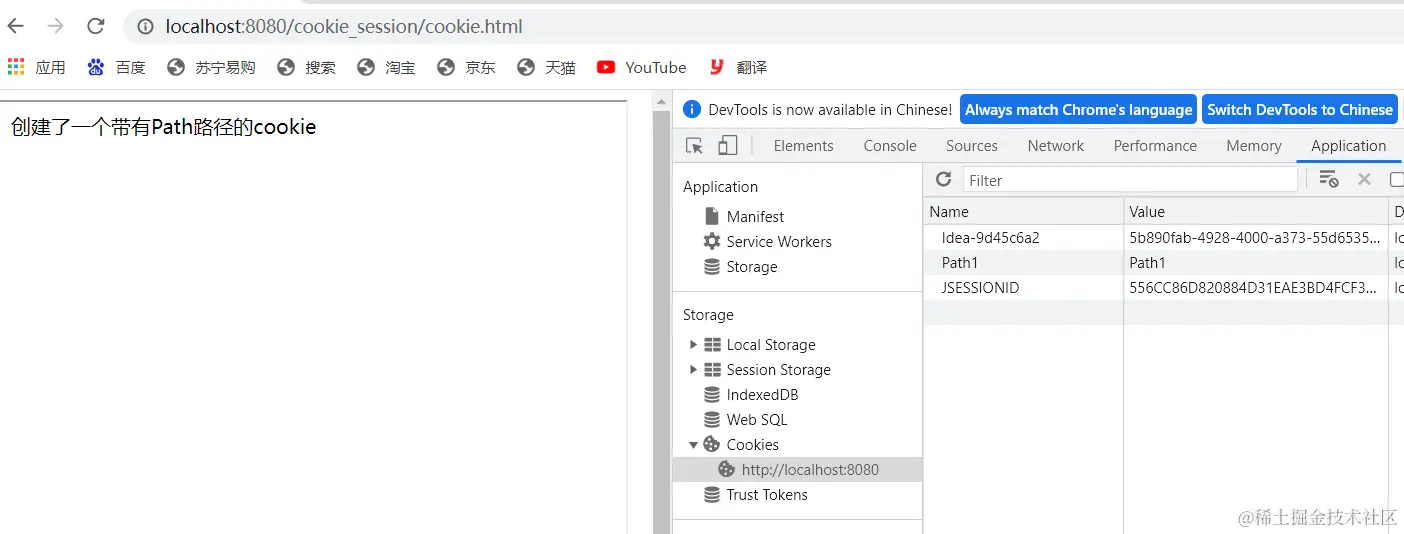

6.Cookie的有效路径设置

image-20211104153556211

image-20211104154207103

protected void testPath(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
    Cookie cookie = new Cookie("Path1","Path1");
    cookie.setPath(req.getContextPath());
    resp.addCookie(cookie);
    resp.getWriter().write("创建了一个带有Path路径的cookie");
}

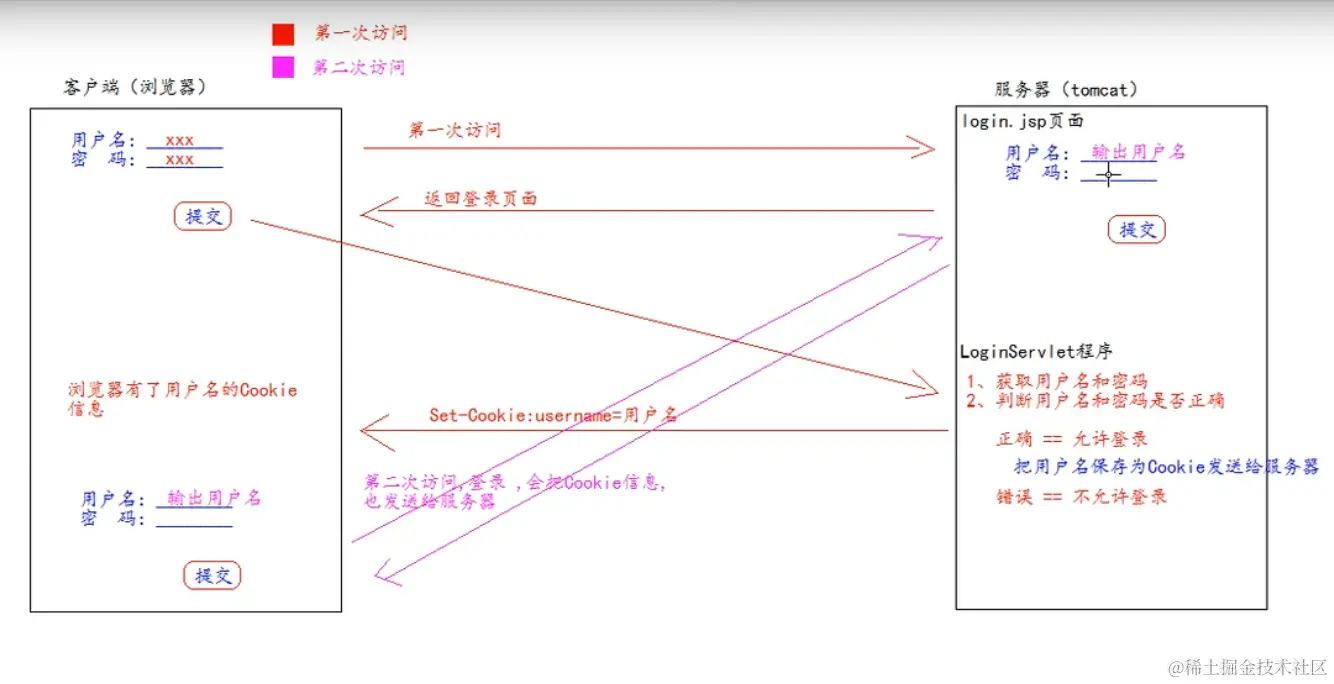

7.练习1：免用户登录

image-20211104155447786

public class LoginServlet extends BaseServlet{

    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        String username = req.getParameter("username");
        String password = req.getParameter("password");

        if("admin".equals(username)&&"123456".equals(password)){
            System.out.println("登录成功");
            Cookie cookie = new Cookie("username",username);
            cookie.setMaxAge(60*60);
            resp.addCookie(cookie);
        }else {
            System.out.println("登陆失败");
        }
    }

}

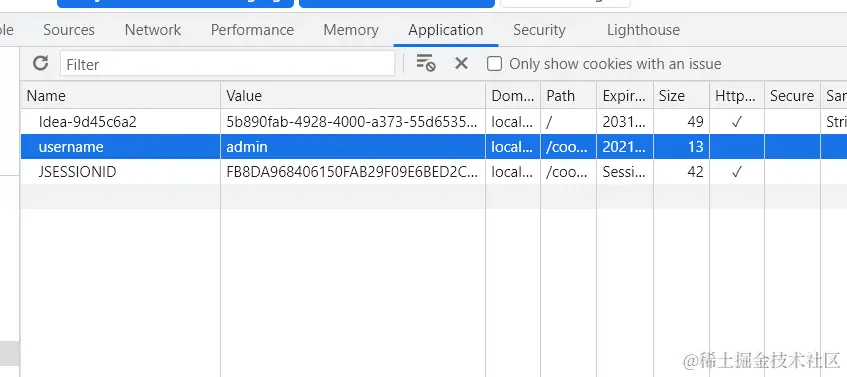

第一次登录：

image-20211104160817920

再次登录：

image-20211104160901117

Session

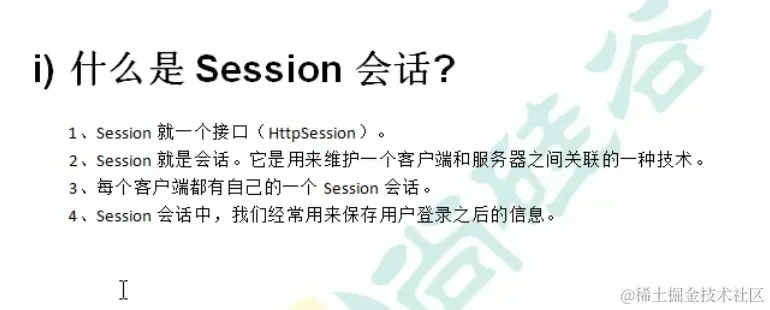

1.Session会话

image-20211104161242911

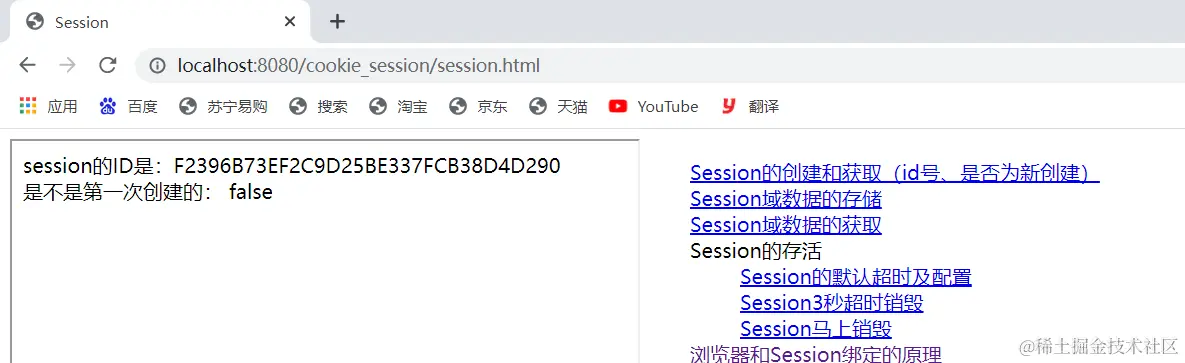

2.Session的创建和获取

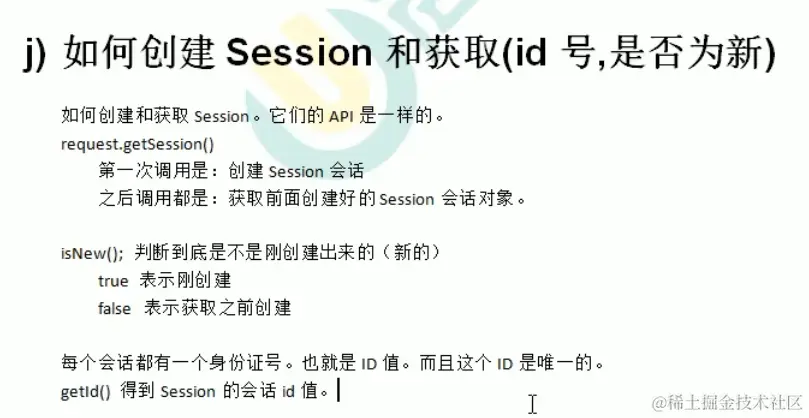

image-20211104163013231

image-20211104162333798

public class SessionServlet extends BaseServlet{

    protected void createOrGetSession(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
//        创建和获取session对象
        HttpSession session = req.getSession();
//        判断是不是第一次
        boolean isNew = session.isNew();
//        获取信息
        String id = session.getId();

        resp.getWriter().write("session的ID是："+id+"<br>");
        resp.getWriter().write("是不是第一次创建的： "+isNew);
    }
}

3.Session域的数据存取

image-20211104162906965

protected void setAttribute(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
    req.getSession().setAttribute("key1","value1");
}

protected void getAttribute(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
    Object key1 = req.getSession().getAttribute("key1");
    resp.getWriter().write("从key1中获取的数据:"+key1.toString());
}

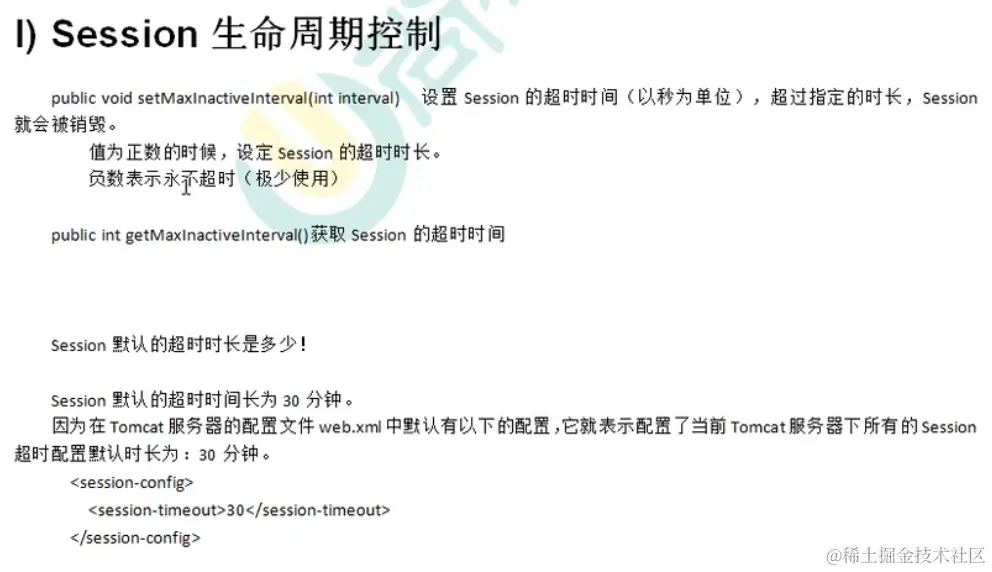

###4.Session的生命周期控制

image-20211104164352321

image-20211104163803232

<!--    可以修改所有的session的默认超时时常都是20分钟-->
    <session-config>
        <session-timeout>20</session-timeout>
    </session-config>

image-20211104163942157

三秒超时
超时后就会清除session
在3秒内无法创建
3秒后就可以创建新的session了

protected void life3(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
    HttpSession session = req.getSession();
    session.setMaxInactiveInterval(3);
    int maxInactiveInterval =session.getMaxInactiveInterval();
    resp.getWriter().write("现在设置后的Session的潮湿时常： "+maxInactiveInterval+"秒<br>");
}

image-20211104164333285

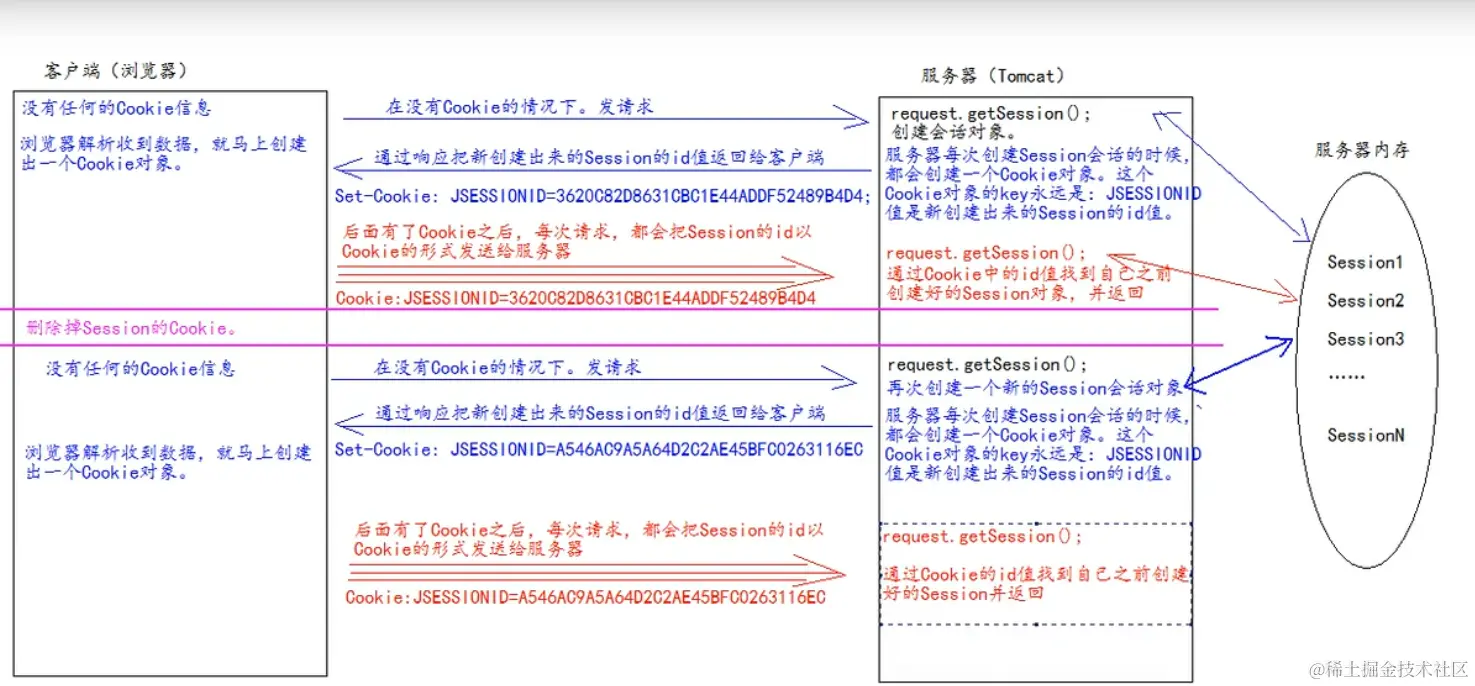

5.浏览器和Session关联的技术内幕

image-20211104165857964

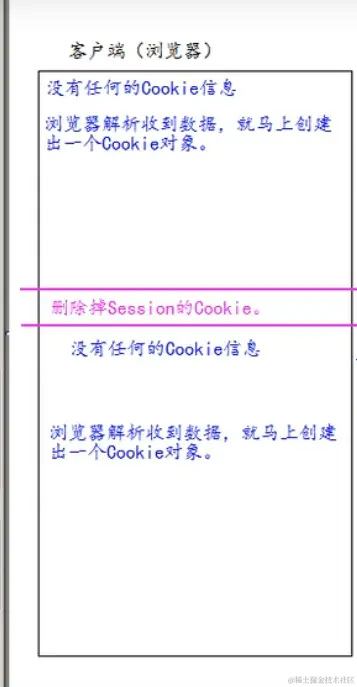

客户端

image-20211104165920302

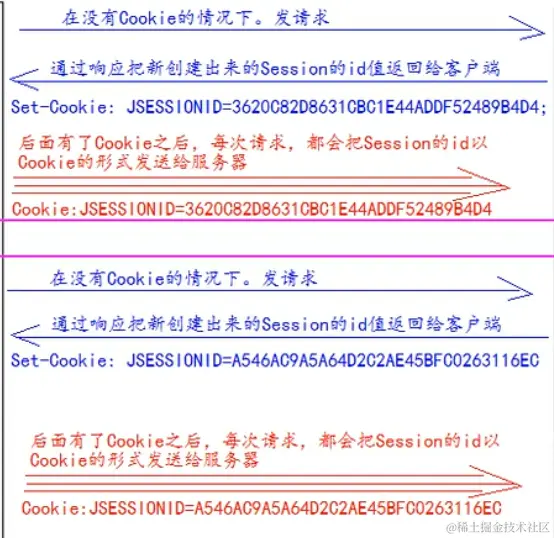

中间操作

image-20211104165937958

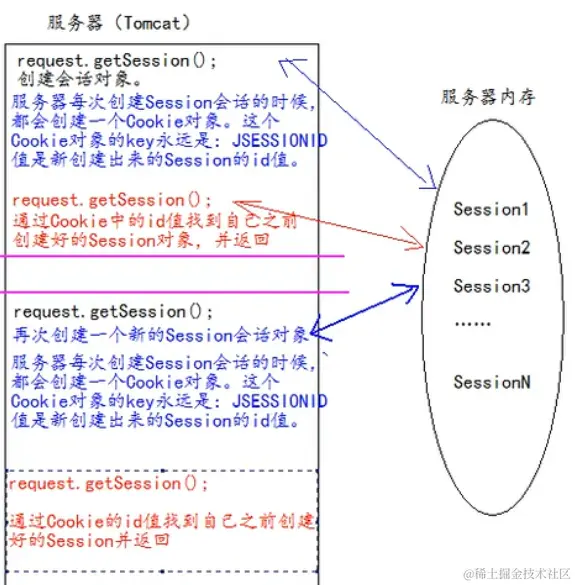

服务器

image-20211104165954205

Filter过滤器

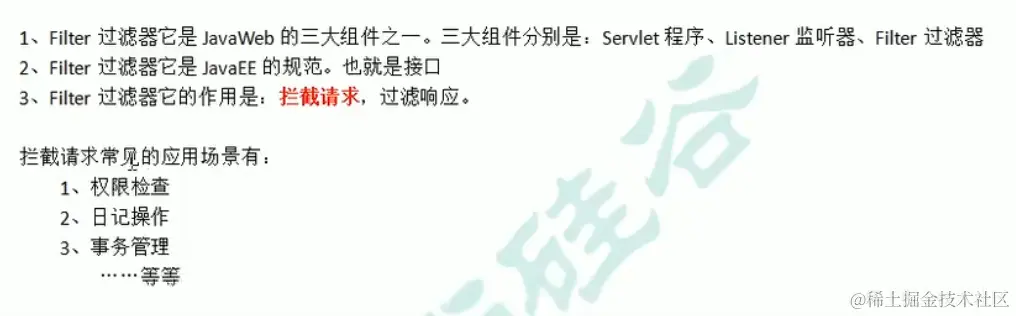

1.什么是Filter

image-20211110104313437

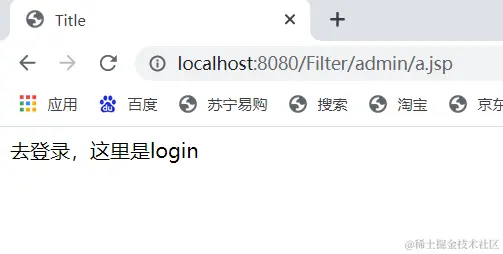

2.初体验（权限检查）

    拦截流程，首先设置所以admin路径下的页面都拦截 ： 就是说当用户访问admin下的任意页面，都需要跳转到后台的Filter程序，该程序检测session域中用户是否存在，存在就放行，否则就跳转到登录页面实现用户登陆

如果没有登陆，就跳转到登陆页面

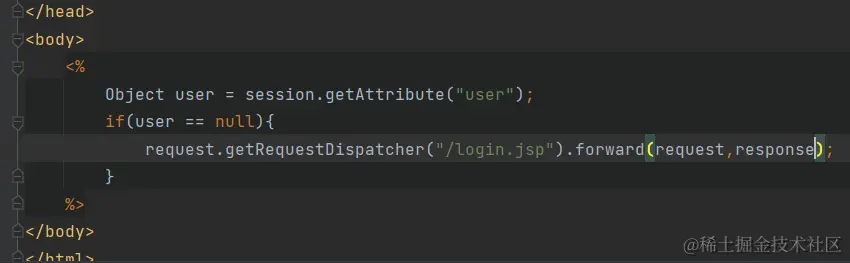

image-20211110105723459

image-20211110105715402

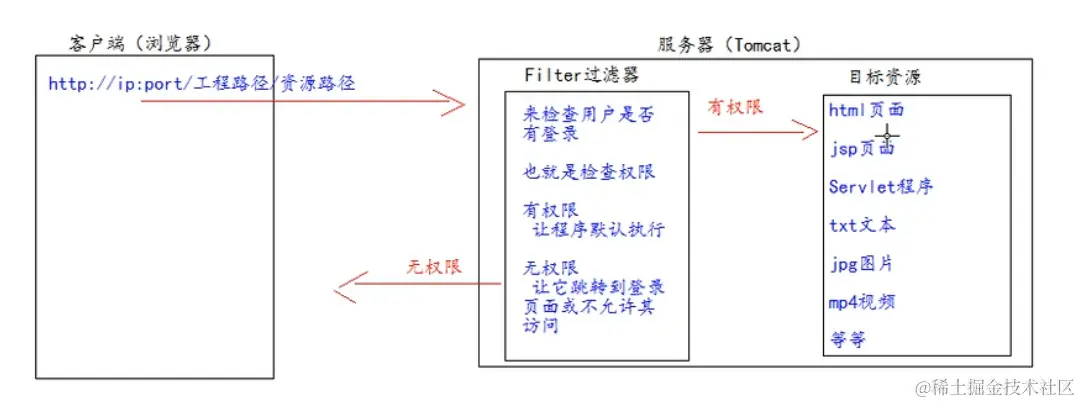

拦截的实现

image-20211110110841143

package Filter;


import javax.servlet.*;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpSession;
import java.io.IOException;

public class AdminFilter implements Filter {
    @Override
    public void init(FilterConfig filterConfig) throws ServletException {

    }

    @Override
    public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
        HttpServletRequest httpServletRequest = (HttpServletRequest) servletRequest;
        HttpSession session = httpServletRequest.getSession();
        Object user = session.getAttribute("user");
        if(user == null){
            servletRequest.getRequestDispatcher("/login.jsp").forward(servletRequest,servletResponse);
            return;
        }else{
            filterChain.doFilter(servletRequest,servletResponse);//放行
        }
    }

    @Override
    public void destroy() {

    }
}

Web.xml配置拦截路径

 <filter>
        <filter-name>AdminFilter</filter-name>
        <filter-class>Filter.AdminFilter</filter-class>
    </filter>

    <filter-mapping>
        <filter-name>AdminFilter</filter-name>
<!--        配置拦截路径   http://ip:port/工程路径/-->
        <url-pattern>/admin/*</url-pattern>
    </filter-mapping>

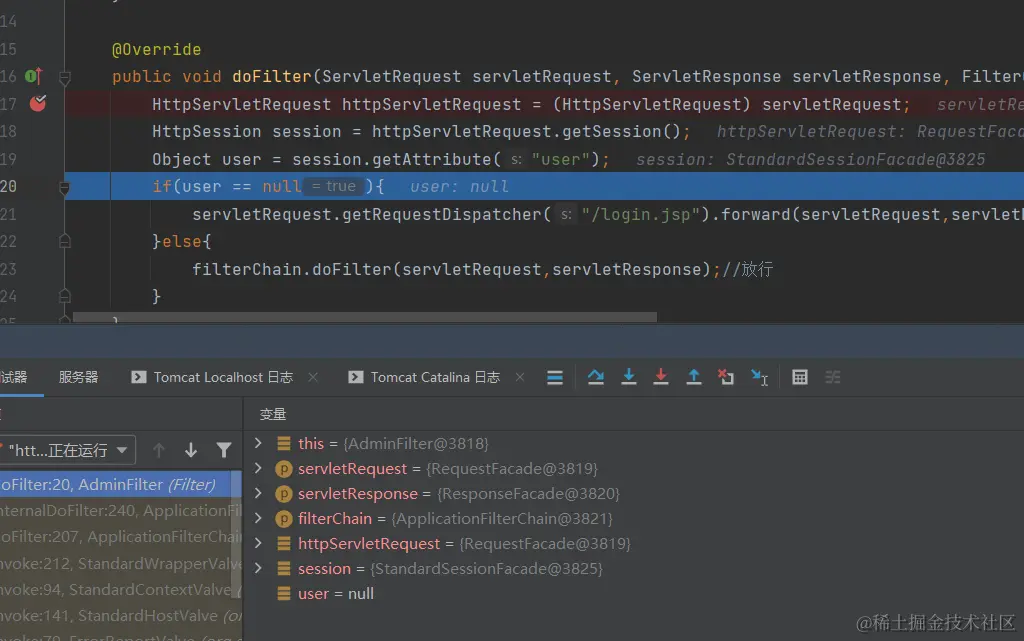

调试

image-20211110111904347

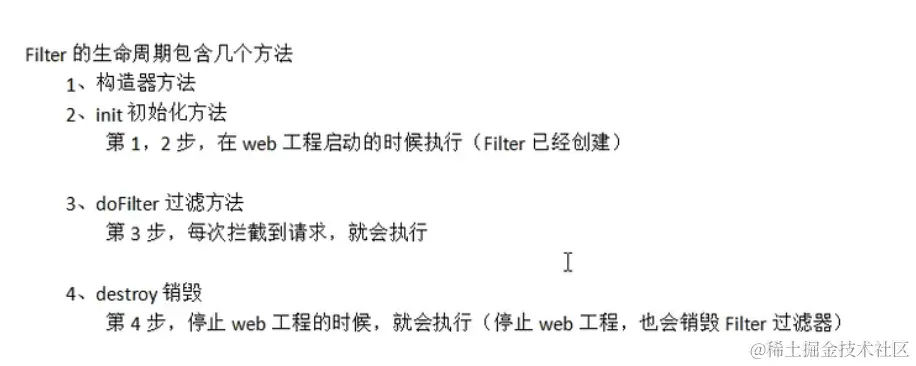

3.Filter的生命周期

image-20211110153212379

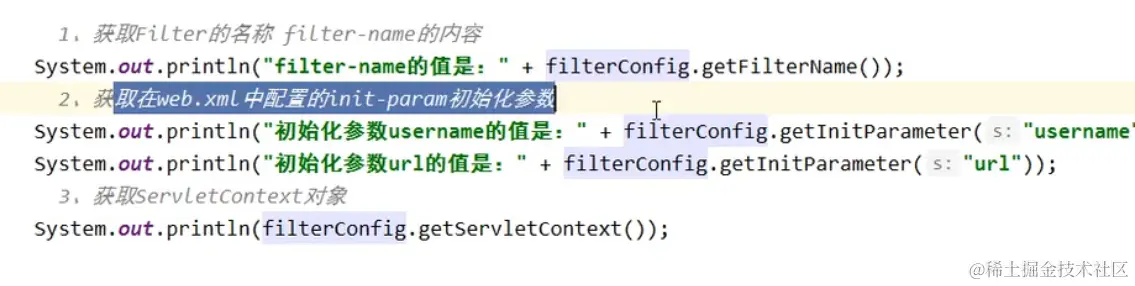

4.FilterConfig类

image-20211110153638375

5.FilterChain过滤器链

image-20211113101019831

image-20211113101710459

image-20211113102051372

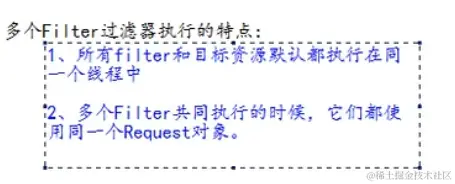

image-20211113102343298

Filter1

public class Filter1 implements Filter {
    @Override
    public void init(FilterConfig filterConfig) throws ServletException {

    }

    @Override
    public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
        System.out.println("Filter1前置");
        filterChain.doFilter(servletRequest,servletResponse);
        System.out.println("Filter1后置");
    }

    @Override
    public void destroy() {

    }
}

Filter2

public class Filter2 implements Filter {
    @Override
    public void init(FilterConfig filterConfig) throws ServletException {

    }

    @Override
    public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
        System.out.println("Filter2前置");
        filterChain.doFilter(servletRequest,servletResponse);
        System.out.println("Filter2后置");
    }

    @Override
    public void destroy() {

    }
}

xml

<filter>
        <filter-name>Filter1</filter-name>
        <filter-class>Filter.Filter1</filter-class>
    </filter>

    <filter-mapping>
        <filter-name>Filter1</filter-name>
        <url-pattern>/hh.jsp</url-pattern>
    </filter-mapping>

    <filter>
        <filter-name>Filter2</filter-name>
        <filter-class>Filter.Filter2</filter-class>
    </filter>

    <filter-mapping>
        <filter-name>Filter2</filter-name>
        <url-pattern>/hh.jsp</url-pattern>
    </filter-mapping>

6.Filter拦截器的三种拦截路径

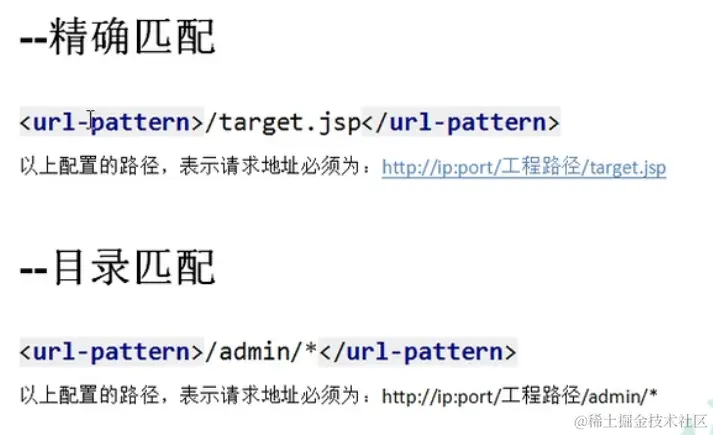

image-20211113102713332

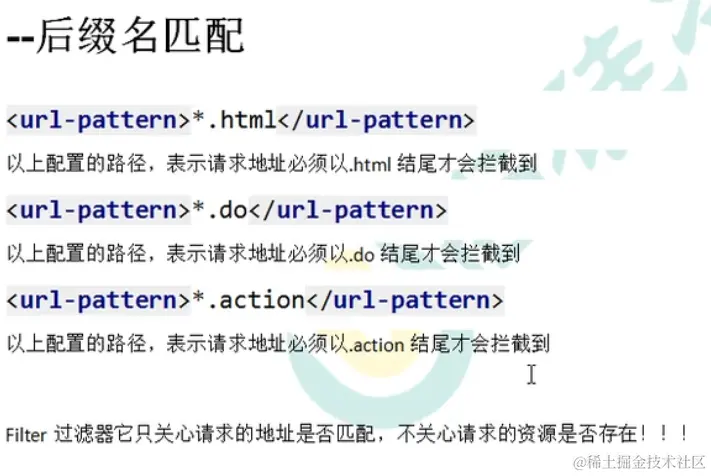

image-20211113102733403

avatar
文章
阅读
粉丝
