某一天清晨

产品: 来弟弟 , 我们做一个进度条吧~ 要那种顶部的.

我:顶部？ 那啥 进度条顶部都是直线的 那刘海的会遮挡哇~

产品:遮挡？ 这种不是到了刘海跟着系统自动弯曲下来了吗？

我: 这。。。

我当时的心情

一般来说 要在屏幕上画 线条 形状之类的基本上会用 UIBezierPath 来做.

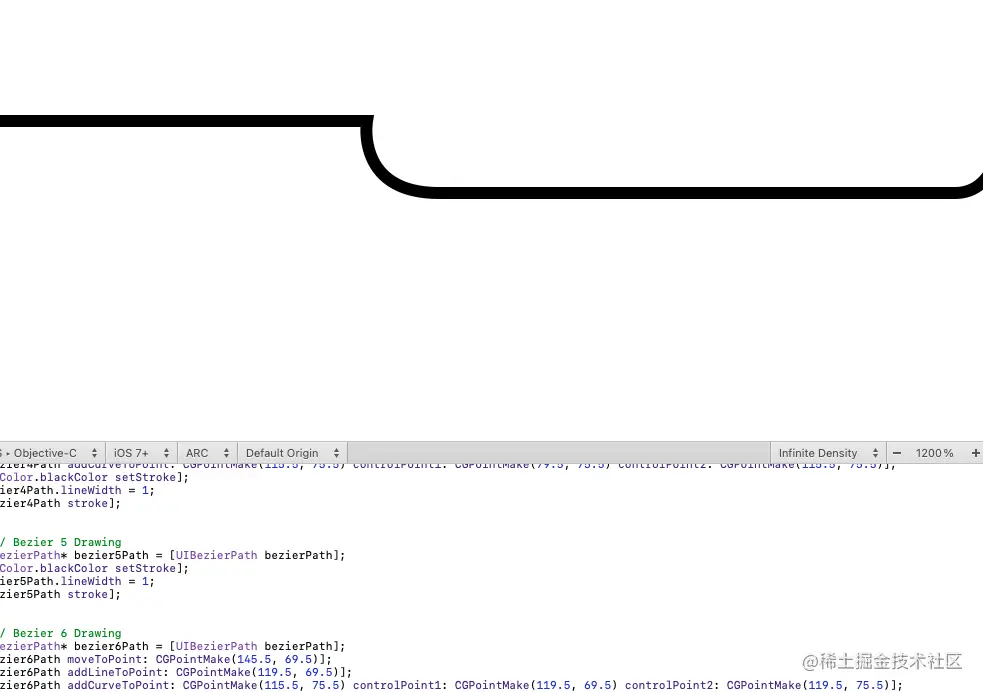

用paintCode 绘图工具模拟画了一个不忍直视的。。

心想 ... 也就这个样子了 去对比一下看大概能不能合上

图中红色线条就是刚才画出来的 . 仔细看了之后 我发现想简单了. 苹果这个刘海并不像是一个圆角那么简单

看到这个玩意儿 又没什么参数 真要自己模拟画的话 有点搞不定 .  网上搜一下这个怪东西 .

特殊的"曲线"

苹果产品中的这个 圆 circle 比较特殊 是一种叫 连续弯曲 (我随便翻译的。。)

原文: medium.com/tall-west/n…

这个不只是刘海上 只要是涉及到苹果的产品

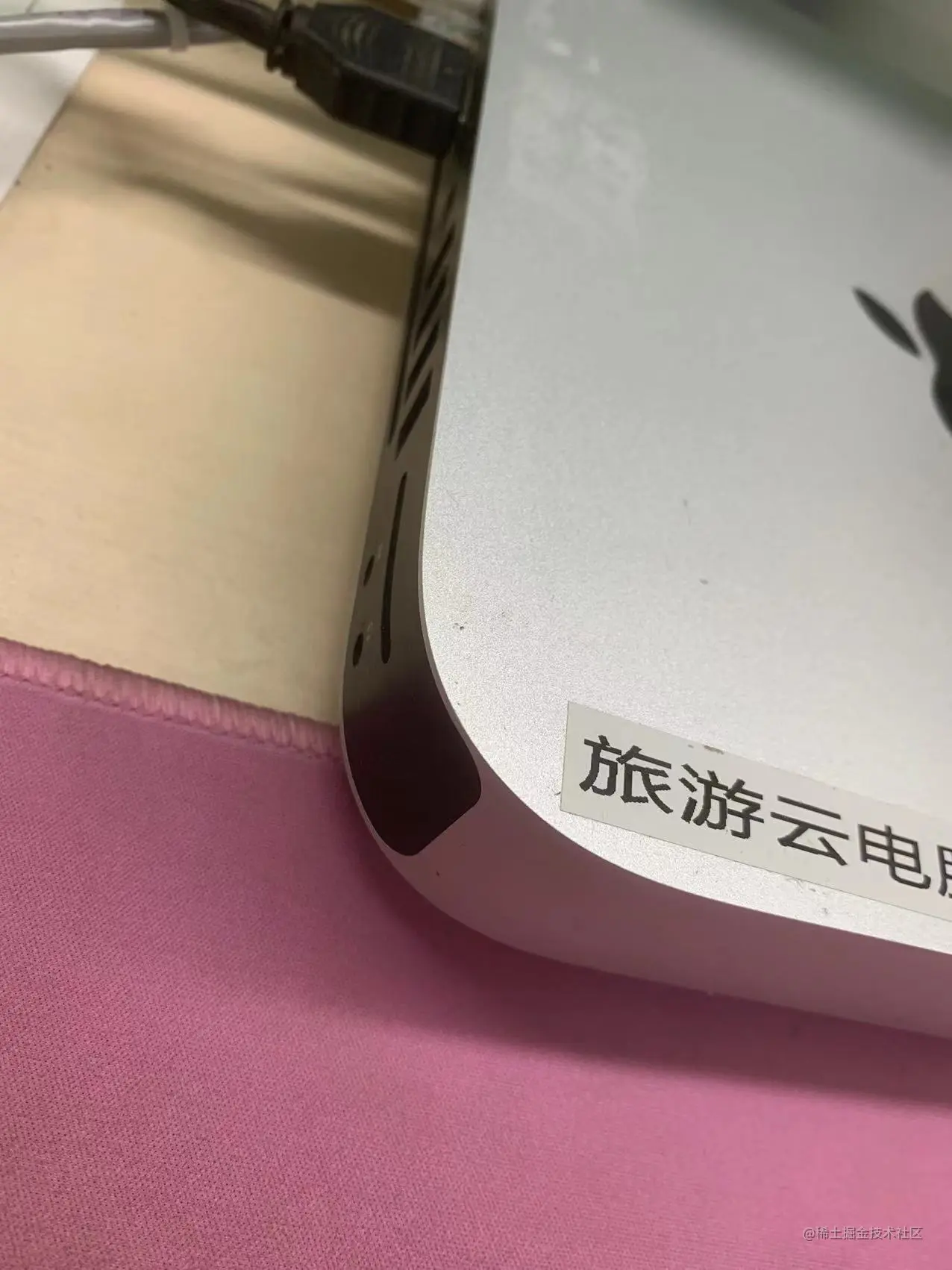

都可以看到 我默默的看了一下 我身边的 mac mini  。。

这里有篇文章提到 这个 连续弯曲

hackernoon.com/apples-icon…

截取一下其中重要的信息

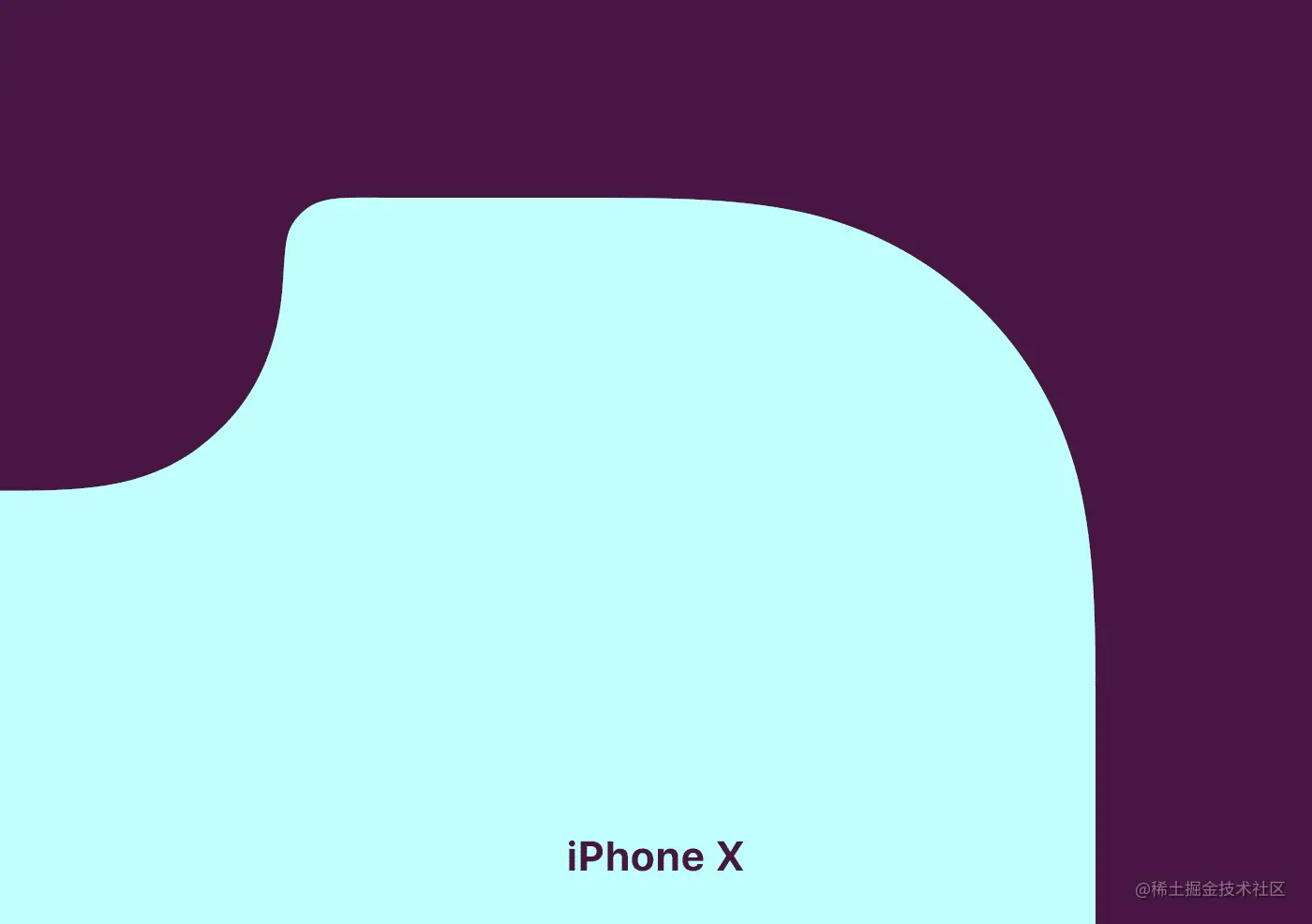

给人的感觉就是 弯曲到直线的时候是非常平滑的没有突兀的地方

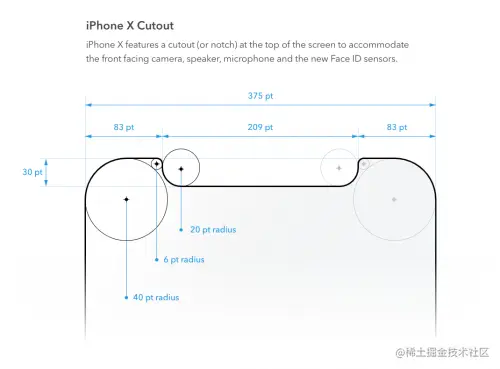

设计中怎么实现呢 这里参考的 paintcode 的文章

这玩意儿。。 搞得这么复杂。。

有没有现成在 iOS 实现了的代码 . 还真有 是 Swift 的 我也转了下 OC

贴上

//bar的宽度

#define kLineHeight 3





/**

 创建刘海屏的bezierPath

*/

-(UIBezierPath *)createNotchPath

{

    NotchBarConfig *config = [NotchBarConfig new];

    CGFloat lineHeight = kLineHeight;

//    CGFloat containerHeight = 2 * config.smallCircleRadius + config.largeCircleRadius + lineHeight;

    CGFloat screenWidth = [UIScreen mainScreen].bounds.size.width;

    CGFloat leftNotchPoint = (screenWidth - config.notchWidth) / 2 + 0.5;

    CGFloat rightNotchPoint = (screenWidth + config.notchWidth) / 2;

    CGFloat smallCircleDiameter = 2 * config.smallCircleRadius;

    UIBezierPath *bezierPath = [UIBezierPath bezierPath];

    [bezierPath moveToPoint:CGPointMake(0, 0)];

    // Draw line to small-circle left to `leftNotchPoint`.

    [bezierPath addLineToPoint:CGPointMake(leftNotchPoint - config.smallCircleRadius, 0)];

    // Draw the small circle left to the `leftNotchPoint`.

    // See <https://developer.apple.com/documentation/uikit/uibezierpath/1624358-init#1965853> for the definition of the

    // angles in the default coordinate system.

    [bezierPath addArcWithCenter:CGPointMake(leftNotchPoint - config.smallCircleRadius, config.smallCircleRadius) radius:config.smallCircleRadius startAngle: -M_PI / 2 endAngle:0 clockwise:true];

    // We're moving the the large-circles a bit up.

    // This prevents having a straight line between the circles.

    // See <https://medium.com/tall-west/no-cutting-corners-on-the-iphone-x-97a9413b94e>

    CGFloat verticalOffsetForLargeCircle = 3;

    // Draw the large circle right to the `leftNotchPoint`.

    [bezierPath addArcWithCenter:CGPointMake(leftNotchPoint + config.largeCircleRadius, smallCircleDiameter - verticalOffsetForLargeCircle) radius:config.largeCircleRadius startAngle: M_PI endAngle:M_PI / 2 clockwise:false];

    // Draw line to large-circle underneath and left to `rightNotchPoint`.

    [bezierPath addLineToPoint:CGPointMake(rightNotchPoint - config.largeCircleRadius, smallCircleDiameter + config.largeCircleRadius - verticalOffsetForLargeCircle)];

    // Draw the large circle left to the `rightNotchPoint`.

    [bezierPath addArcWithCenter:CGPointMake(rightNotchPoint - config.largeCircleRadius, smallCircleDiameter - verticalOffsetForLargeCircle) radius:config.largeCircleRadius startAngle:M_PI / 2 endAngle:0 clockwise:false];

    // Draw the small circle right to the `rightNotchPoint`.

    [bezierPath addArcWithCenter:CGPointMake(rightNotchPoint + config.smallCircleRadius, config.smallCircleRadius) radius:config.smallCircleRadius startAngle:M_PI endAngle:M_PI + M_PI / 2 clockwise:true];

    // Draw line to the end of the screen.

    [bezierPath addLineToPoint:CGPointMake(screenWidth, 0)];

    // And all the way back..

    // Therefore we always have to offset the given `height` by the user.

    // To visually align the height with the "basic" `GradientLoadingBar`, we have to add one point here.

    CGFloat height = lineHeight + 1;

    // Have the small-circle at the bottom-path only one third of the size of the upper-path produced visually better results.

    CGFloat bottomPathSmallCircleRadius = config.smallCircleRadius / 3;

    // Moving the bottom-line in the corners of the small circles just a tiny bit away from the center point to the smartphone corners,

    // produced a visually more equal height for the gradient-view.

    CGFloat bottomPathHorizontalOffsetForSmallCircle = 0.5;

    // Moving the bottom-line just a tiny bit down here produced a visually more equal height for the gradient-view underneath

    // the smartphone-frame in the ears and the notch.

    CGFloat bottomPathVerticalOffsetForLargeCircle = 0.5;

    // Start by moving down at the end of the screen.

    [bezierPath addLineToPoint:CGPointMake(screenWidth, height)];

    // Draw line to small-circle right to `rightNotchPoint`.

    [bezierPath addLineToPoint:CGPointMake(rightNotchPoint + bottomPathSmallCircleRadius, height)];

    // Draw the small circle right to the `rightNotchPoint`.

    // We're offsetting the center-point with the given user-height here.

    [bezierPath addArcWithCenter:CGPointMake(rightNotchPoint + bottomPathSmallCircleRadius + height + bottomPathHorizontalOffsetForSmallCircle, bottomPathSmallCircleRadius + height) radius:bottomPathSmallCircleRadius startAngle:-M_PI / 2 endAngle:-M_PI clockwise:false];

    // Draw the large circle left to the `rightNotchPoint`.

    // We're using the same center-point as the large-circle above, but with a larger radius here.

    [bezierPath addArcWithCenter:CGPointMake(rightNotchPoint - config.largeCircleRadius, smallCircleDiameter - verticalOffsetForLargeCircle + bottomPathVerticalOffsetForLargeCircle) radius:config.largeCircleRadius + height startAngle:0 endAngle:M_PI / 2 clockwise:true];

    // Draw line to large-circle underneath and right to `leftNotchPoint`.

    [bezierPath addLineToPoint:CGPointMake(leftNotchPoint + config.largeCircleRadius + height, smallCircleDiameter + config.largeCircleRadius - verticalOffsetForLargeCircle + height + bottomPathVerticalOffsetForLargeCircle)];

    // Draw the large circle right to the `leftNotchPoint`.

    // We're using the same center-point as the large-circle above, but with a larger radius here.

    [bezierPath addArcWithCenter:CGPointMake(leftNotchPoint + config.largeCircleRadius, smallCircleDiameter - verticalOffsetForLargeCircle + bottomPathVerticalOffsetForLargeCircle) radius:config.largeCircleRadius + height startAngle:M_PI / 2 endAngle:M_PI clockwise:true];

    // Draw the small circle left to the `leftNotchPoint`.

    // We're offsetting the center-point with the given user-height here.

    [bezierPath addArcWithCenter:CGPointMake(leftNotchPoint - bottomPathSmallCircleRadius - height - bottomPathHorizontalOffsetForSmallCircle, bottomPathSmallCircleRadius + height) radius:bottomPathSmallCircleRadius startAngle:0 endAngle:-M_PI / 2 clockwise:false];

    [bezierPath addLineToPoint:CGPointMake(0, height)];

    [bezierPath closePath];

    return bezierPath;

}

这个代码是实现的上面的那张图:

由多个圆组成 长短半径勾画弧 来组成这个path

附上最后的效果:
