AOP的概念说明

Aspect Oriented Programming（AOP）是较为热门的一个话题。AOP，国内大致译作“面向切面编程”。

AOP和OOP的区别

AOP、OOP在字面上虽然非常类似，但却是面向不同领域的两种设计思想。OOP（面向对象编程）针对业务处理过程的实体及其属性和行为进行抽象封装，以获得更加清晰高效的逻辑单元划分。 而AOP则是针对业务处理过程中的切面进行提取，它所面对的是处理过程中的某个步骤或阶段，以获得逻辑过程中各部分之间低耦合性的隔离效果。这两种设计思想在目标上有着本质的差异。

Aspect的源码说明

/**
 Aspects uses Objective-C message forwarding to hook into messages. This will create some overhead. Don't add aspects to methods that are called a lot. Aspects is meant for view/controller code that is not called a 1000 times per second.

 Adding aspects returns an opaque token which can be used to deregister again. All calls are thread safe.
 */
@interface NSObject (Aspects)

/// Adds a block of code before/instead/after the current `selector` for a specific class.
///
/// @param block Aspects replicates the type signature of the method being hooked.
/// The first parameter will be `id<AspectInfo>`, followed by all parameters of the method.
/// These parameters are optional and will be filled to match the block signature.
/// You can even use an empty block, or one that simple gets `id<AspectInfo>`.
///
/// @note Hooking static methods is not supported.
/// @return A token which allows to later deregister the aspect.
+ (id<AspectToken>)aspect_hookSelector:(SEL)selector
                           withOptions:(AspectOptions)options
                            usingBlock:(id)block
                                 error:(NSError **)error;

/// Adds a block of code before/instead/after the current `selector` for a specific instance.
- (id<AspectToken>)aspect_hookSelector:(SEL)selector
                           withOptions:(AspectOptions)options
                            usingBlock:(id)block
                                 error:(NSError **)error;

@end

aspects是基于Objective-c的消息转发机制实现的，所以会有一些性能上的损耗，不建议把aspect用在for循环中。

头文件中是在NSObject基类上提供的两种切面实现方式，一种是对象方法，一种是类方法。

aspect需要的参数：

  1. selector 方法名；
  2. options 切面的时机，枚举类型；
  3. block 切面的block回调；
  4. error 切面的错误回调；
typedef NS_OPTIONS(NSUInteger, AspectOptions) {
    AspectPositionAfter   = 0,            /// Called after the original implementation (default)
    AspectPositionInstead = 1,            /// Will replace the original implementation.
    AspectPositionBefore  = 2,            /// Called before the original implementation.

    AspectOptionAutomaticRemoval = 1 << 3 /// Will remove the hook after the first execution.
};


typedef NS_ENUM(NSUInteger, AspectErrorCode) {
    AspectErrorSelectorBlacklisted,                   /// Selectors like release, retain, autorelease are blacklisted.
    AspectErrorDoesNotRespondToSelector,              /// Selector could not be found.
    AspectErrorSelectorDeallocPosition,               /// When hooking dealloc, only AspectPositionBefore is allowed.
    AspectErrorSelectorAlreadyHookedInClassHierarchy, /// Statically hooking the same method in subclasses is not allowed.
    AspectErrorFailedToAllocateClassPair,             /// The runtime failed creating a class pair.
    AspectErrorMissingBlockSignature,                 /// The block misses compile time signature info and can't be called.
    AspectErrorIncompatibleBlockSignature,            /// The block signature does not match the method or is too large.

    AspectErrorRemoveObjectAlreadyDeallocated = 100   /// (for removing) The object hooked is already deallocated.
};

无论是类方法还是实例方法，最终内部统一调用aspect_add方法。

static id aspect_add(id self, SEL selector, AspectOptions options, id block, NSError **error) {
    NSCParameterAssert(self);
    NSCParameterAssert(selector);
    NSCParameterAssert(block);

    __block AspectIdentifier *identifier = nil;
    aspect_performLocked(^{
        if (aspect_isSelectorAllowedAndTrack(self, selector, options, error)) {
            AspectsContainer *aspectContainer = aspect_getContainerForObject(self, selector);
            identifier = [AspectIdentifier identifierWithSelector:selector object:self options:options block:block error:error];
            if (identifier) {
                [aspectContainer addAspect:identifier withOptions:options];

                // Modify the class to allow message interception.
                aspect_prepareClassAndHookSelector(self, selector, error);
            }
        }
    });
    return identifier;
}

aspect_performLocked 内部是使用OSSpinLock自旋锁，保证线程的安全；

static BOOL aspect_isSelectorAllowedAndTrack(NSObject *self, SEL selector, AspectOptions options, NSError **error) {
    static NSSet *disallowedSelectorList;
    static dispatch_once_t pred;
    dispatch_once(&pred, ^{
        disallowedSelectorList = [NSSet setWithObjects:@"retain", @"release", @"autorelease", @"forwardInvocation:", nil];
    });

    // Check against the blacklist.
    NSString *selectorName = NSStringFromSelector(selector);
    if ([disallowedSelectorList containsObject:selectorName]) {
        NSString *errorDescription = [NSString stringWithFormat:@"Selector %@ is blacklisted.", selectorName];
        AspectError(AspectErrorSelectorBlacklisted, errorDescription);
        return NO;
    }

    // Additional checks.
    AspectOptions position = options&AspectPositionFilter;
    if ([selectorName isEqualToString:@"dealloc"] && position != AspectPositionBefore) {
        NSString *errorDesc = @"AspectPositionBefore is the only valid position when hooking dealloc.";
        AspectError(AspectErrorSelectorDeallocPosition, errorDesc);
        return NO;
    }

    if (![self respondsToSelector:selector] && ![self.class instancesRespondToSelector:selector]) {
        NSString *errorDesc = [NSString stringWithFormat:@"Unable to find selector -[%@ %@].", NSStringFromClass(self.class), selectorName];
        AspectError(AspectErrorDoesNotRespondToSelector, errorDesc);
        return NO;
    }

    // Search for the current class and the class hierarchy IF we are modifying a class object
    if (class_isMetaClass(object_getClass(self))) {
        Class klass = [self class];
        NSMutableDictionary *swizzledClassesDict = aspect_getSwizzledClassesDict();
        Class currentClass = [self class];

        AspectTracker *tracker = swizzledClassesDict[currentClass];
        if ([tracker subclassHasHookedSelectorName:selectorName]) {
            NSSet *subclassTracker = [tracker subclassTrackersHookingSelectorName:selectorName];
            NSSet *subclassNames = [subclassTracker valueForKey:@"trackedClassName"];
            NSString *errorDescription = [NSString stringWithFormat:@"Error: %@ already hooked subclasses: %@. A method can only be hooked once per class hierarchy.", selectorName, subclassNames];
            AspectError(AspectErrorSelectorAlreadyHookedInClassHierarchy, errorDescription);
            return NO;
        }

        do {
            tracker = swizzledClassesDict[currentClass];
            if ([tracker.selectorNames containsObject:selectorName]) {
                if (klass == currentClass) {
                    // Already modified and topmost!
                    return YES;
                }
                NSString *errorDescription = [NSString stringWithFormat:@"Error: %@ already hooked in %@. A method can only be hooked once per class hierarchy.", selectorName, NSStringFromClass(currentClass)];
                AspectError(AspectErrorSelectorAlreadyHookedInClassHierarchy, errorDescription);
                return NO;
            }
        } while ((currentClass = class_getSuperclass(currentClass)));

        // Add the selector as being modified.
        currentClass = klass;
        AspectTracker *subclassTracker = nil;
        do {
            tracker = swizzledClassesDict[currentClass];
            if (!tracker) {
                tracker = [[AspectTracker alloc] initWithTrackedClass:currentClass];
                swizzledClassesDict[(id<NSCopying>)currentClass] = tracker;
            }
            if (subclassTracker) {
                [tracker addSubclassTracker:subclassTracker hookingSelectorName:selectorName];
            } else {
                [tracker.selectorNames addObject:selectorName];
            }

            // All superclasses get marked as having a subclass that is modified.
            subclassTracker = tracker;
        }while ((currentClass = class_getSuperclass(currentClass)));
	} else {
		return YES;
	}

    return YES;
}
  1. 首先单例创建集合disallowedSelectorList，不允许aspect的方法黑名单，retain、release、autorelease、forwardInvocation：，会校验aspect的方法名是否在黑名单列表中，如果存在就不允许切面处理,报错是AspectErrorSelectorBlacklisted；
  2. 其次校验是否是dealloc方法且切面的时机是否是AspectPositionBefore，如果不是则不允许做切面，dealloc是对象的回收调用方法，切面只能是before，报错是AspectErrorSelectorDeallocPosition;
  3. 如果当前对象不响应该方法且类也不响应该方法，因为可能是对象方法也可能是类方法，所以就会报错，报错为AspectErrorDoesNotRespondToSelector；

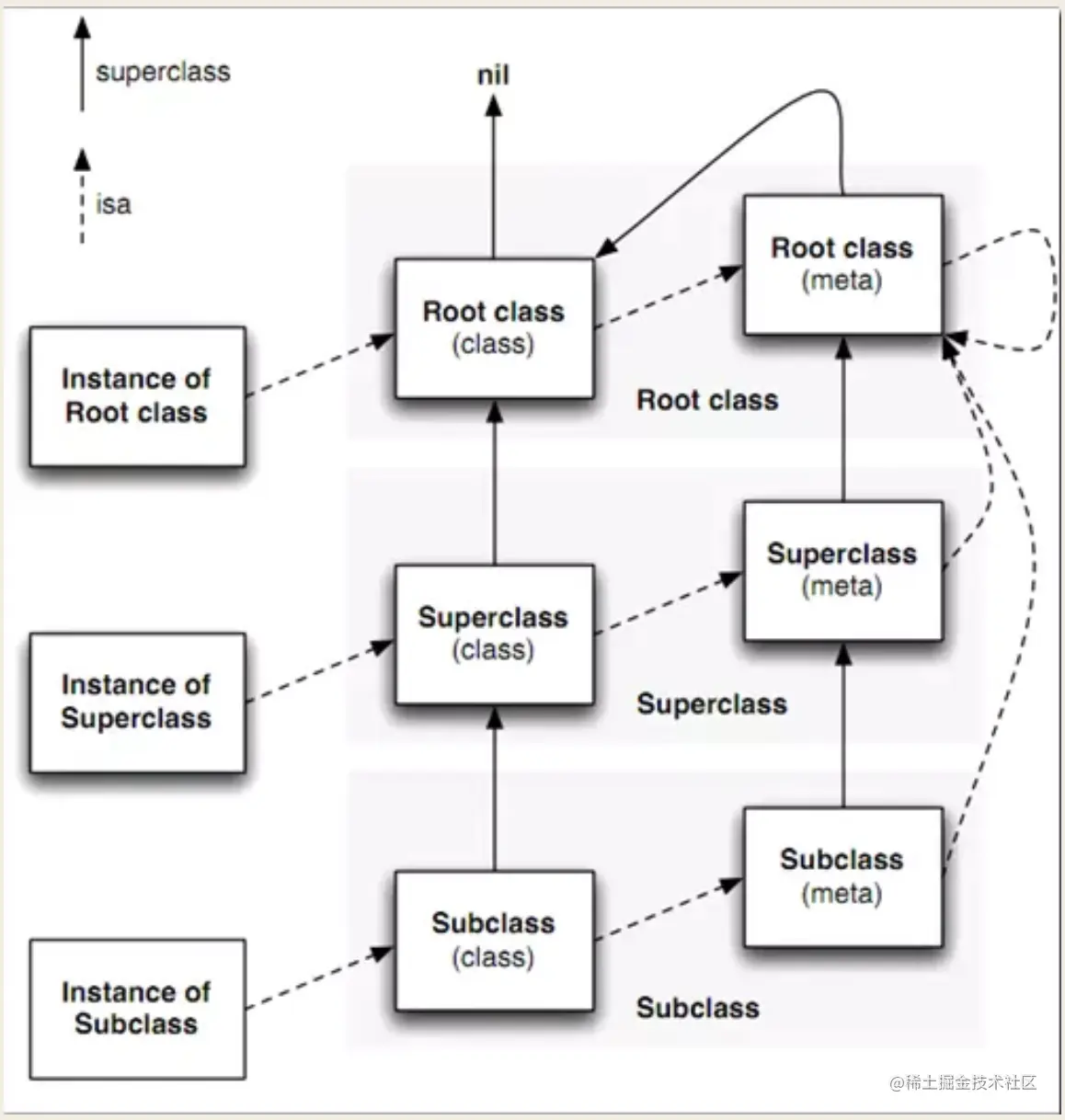

  4. 针对类方法的处理class_isMetaClass(object_getClass(self))，该if条件针对类方法，如果是对象方法的话，切面针对的是独立的对象个体，所以不存在类的继承链上的同步操作，所以如果是对象方法，则直接返回YES；
  5. 类方法的处理：在字典aspect_getSwizzledClassesDict查找是否包含了当前类的配置信息，如果存在则说明当前类已经实现了切面处理，则报出错误 AspectErrorSelectorAlreadyHookedInClassHierarchy，否则在类的继承链上通过do-while需要不停往父类遍历(currentClass = class_getSuperclass(currentClass))，判断是否[tracker.selectorNames containsObject:selectorName]包含该方法，如果存在同样的报出AspectErrorSelectorAlreadyHookedInClassHierarchy。如果没有存在上述的配置，则进行添加切面配置，通过AspectTracker来管理，也是通过do-while遍历当前类以及父类，更新继承链上的切面配置信息；

配置类说明

// Tracks a single aspect.
@interface AspectIdentifier : NSObject
+ (instancetype)identifierWithSelector:(SEL)selector object:(id)object options:(AspectOptions)options block:(id)block error:(NSError **)error;
- (BOOL)invokeWithInfo:(id<AspectInfo>)info;
@property (nonatomic, assign) SEL selector;
@property (nonatomic, strong) id block;
@property (nonatomic, strong) NSMethodSignature *blockSignature;
@property (nonatomic, weak) id object;
@property (nonatomic, assign) AspectOptions options;
@end

// Tracks all aspects for an object/class.
@interface AspectsContainer : NSObject
- (void)addAspect:(AspectIdentifier *)aspect withOptions:(AspectOptions)injectPosition;
- (BOOL)removeAspect:(id)aspect;
- (BOOL)hasAspects;
@property (atomic, copy) NSArray *beforeAspects;
@property (atomic, copy) NSArray *insteadAspects;
@property (atomic, copy) NSArray *afterAspects;
@end

@interface AspectTracker : NSObject
- (id)initWithTrackedClass:(Class)trackedClass;
@property (nonatomic, strong) Class trackedClass;
@property (nonatomic, readonly) NSString *trackedClassName;
@property (nonatomic, strong) NSMutableSet *selectorNames;
@property (nonatomic, strong) NSMutableDictionary *selectorNamesToSubclassTrackers;
- (void)addSubclassTracker:(AspectTracker *)subclassTracker hookingSelectorName:(NSString *)selectorName;
- (void)removeSubclassTracker:(AspectTracker *)subclassTracker hookingSelectorName:(NSString *)selectorName;
- (BOOL)subclassHasHookedSelectorName:(NSString *)selectorName;
- (NSSet *)subclassTrackersHookingSelectorName:(NSString *)selectorName;
@end

AspectIdentifier 单个对象或者类的针对某一个方法的配置信息的管理； AspectsContainer 单个对象或者类的所有配置信息，包括前置、替换、后置等等切面配置，通过关联引用获取aspect_getContainerForObject； AspectTracker 某个类以及类继承链上的track信息，在方法aspect_isSelectorAllowedAndTrack的判断中起着关键性作用；

AspectIdentfier的创建方式如下

+ (instancetype)identifierWithSelector:(SEL)selector object:(id)object options:(AspectOptions)options block:(id)block error:(NSError **)error {
    NSCParameterAssert(block);
    NSCParameterAssert(selector);
    NSMethodSignature *blockSignature = aspect_blockMethodSignature(block, error); // TODO: check signature compatibility, etc.
    if (!aspect_isCompatibleBlockSignature(blockSignature, object, selector, error)) {
        return nil;
    }

    AspectIdentifier *identifier = nil;
    if (blockSignature) {
        identifier = [AspectIdentifier new];
        identifier.selector = selector;
        identifier.block = block;
        identifier.blockSignature = blockSignature;
        identifier.options = options;
        identifier.object = object; // weak
    }
    return identifier;
}

block的方法签名生成如下

static NSMethodSignature *aspect_blockMethodSignature(id block, NSError **error) {
    AspectBlockRef layout = (__bridge void *)block;
	if (!(layout->flags & AspectBlockFlagsHasSignature)) {
        NSString *description = [NSString stringWithFormat:@"The block %@ doesn't contain a type signature.", block];
        AspectError(AspectErrorMissingBlockSignature, description);
        return nil;
    }
	void *desc = layout->descriptor;
	desc += 2 * sizeof(unsigned long int);
	if (layout->flags & AspectBlockFlagsHasCopyDisposeHelpers) {
		desc += 2 * sizeof(void *);
    }
	if (!desc) {
        NSString *description = [NSString stringWithFormat:@"The block %@ doesn't has a type signature.", block];
        AspectError(AspectErrorMissingBlockSignature, description);
        return nil;
    }
	const char *signature = (*(const char **)desc);
	return [NSMethodSignature signatureWithObjCTypes:signature];
}

Block的数据结构声明如下

// Block internals.
typedef NS_OPTIONS(int, AspectBlockFlags) {
	AspectBlockFlagsHasCopyDisposeHelpers = (1 << 25),
	AspectBlockFlagsHasSignature          = (1 << 30)
};
typedef struct _AspectBlock {
	__unused Class isa;
	AspectBlockFlags flags;
	__unused int reserved;
	void (__unused *invoke)(struct _AspectBlock *block, ...);
	struct {
		unsigned long int reserved;
		unsigned long int size;
		// requires AspectBlockFlagsHasCopyDisposeHelpers
		void (*copy)(void *dst, const void *src);
		void (*dispose)(const void *);
		// requires AspectBlockFlagsHasSignature
		const char *signature;
		const char *layout;
	} *descriptor;
	// imported variables
} *AspectBlockRef;
  1. 先将block强制转换成AspectBlockRef类型；
  2. 通过&运算，判断是否包含方法签名AspectBlockFlagsHasSignature，如果没有，说明该block不合法，报出错误AspectErrorMissingBlockSignature；
  3. 获取descriptor结构体的地址，然后做地址偏移，偏移量2 * sizeof(unsigned long int)，来到AspectBlockFlagsHasCopyDisposeHelpers的判断逻辑；
  4. 如果存在标识AspectBlockFlagsHasCopyDisposeHelpers，则存在copy和dispose函数；
  5. 然后再做地址偏移desc += 2 * sizeof(void *)，如果desc为空，继续报错AspectErrorMissingBlockSignature；
  6. 如果没有问题，则拿到block的签名描述，然后生成block对应的方法签名NSMethodSignature;

截屏2022-02-28 下午4.54.49.png

block的方法签名跟原方法的方法签名的兼容性校验

static BOOL aspect_isCompatibleBlockSignature(NSMethodSignature *blockSignature, id object, SEL selector, NSError **error) {
    NSCParameterAssert(blockSignature);
    NSCParameterAssert(object);
    NSCParameterAssert(selector);

    BOOL signaturesMatch = YES;
    NSMethodSignature *methodSignature = [[object class] instanceMethodSignatureForSelector:selector];
    if (blockSignature.numberOfArguments > methodSignature.numberOfArguments) {
        signaturesMatch = NO;
    }else {
        if (blockSignature.numberOfArguments > 1) {
            const char *blockType = [blockSignature getArgumentTypeAtIndex:1];
            if (blockType[0] != '@') {
                signaturesMatch = NO;
            }
        }
        // Argument 0 is self/block, argument 1 is SEL or id<AspectInfo>. We start comparing at argument 2.
        // The block can have less arguments than the method, that's ok.
        if (signaturesMatch) {
            for (NSUInteger idx = 2; idx < blockSignature.numberOfArguments; idx++) {
                const char *methodType = [methodSignature getArgumentTypeAtIndex:idx];
                const char *blockType = [blockSignature getArgumentTypeAtIndex:idx];
                // Only compare parameter, not the optional type data.
                if (!methodType || !blockType || methodType[0] != blockType[0]) {
                    signaturesMatch = NO; break;
                }
            }
        }
    }

    if (!signaturesMatch) {
        NSString *description = [NSString stringWithFormat:@"Block signature %@ doesn't match %@.", blockSignature, methodSignature];
        AspectError(AspectErrorIncompatibleBlockSignature, description);
        return NO;
    }
    return YES;
}
  1. 方法参数的个数校验，block的方法签名的参数个数不能大于原方法的参数个数；
  2. 当blockSignature的方法参数大于1，其实index = 1 存放的是AspectInfo的数据，type encoding肯定是@ id类型;
  3. 如果方法参数大于2，开始比较方法的参数以及类型是否匹配
类型默认参数1默认参数2参数1参数2参数 ...
methodselfselector(_cmd)方法参数1方法参数2...
blockblockAspectInfo数据方法参数1方法参数2...

参数的type encoding列表如下：

#define _C_ID       '@'
#define _C_CLASS    '#'
#define _C_SEL      ':'
#define _C_CHR      'c'
#define _C_UCHR     'C'
#define _C_SHT      's'
#define _C_USHT     'S'
#define _C_INT      'i'
#define _C_UINT     'I'
#define _C_LNG      'l'
#define _C_ULNG     'L'
#define _C_LNG_LNG  'q'
#define _C_ULNG_LNG 'Q'
#define _C_FLT      'f'
#define _C_DBL      'd'
#define _C_BFLD     'b'
#define _C_BOOL     'B'
#define _C_VOID     'v'
#define _C_UNDEF    '?'
#define _C_PTR      '^'
#define _C_CHARPTR  '*'
#define _C_ATOM     '%'
#define _C_ARY_B    '['
#define _C_ARY_E    ']'
#define _C_UNION_B  '('
#define _C_UNION_E  ')'
#define _C_STRUCT_B '{'
#define _C_STRUCT_E '}'
#define _C_VECTOR   '!'
#define _C_CONST    'r'

接下来是准备hook操作aspect_prepareClassAndHookSelector

static void aspect_prepareClassAndHookSelector(NSObject *self, SEL selector, NSError **error) {
    NSCParameterAssert(selector);
    Class klass = aspect_hookClass(self, error);
    Method targetMethod = class_getInstanceMethod(klass, selector);
    IMP targetMethodIMP = method_getImplementation(targetMethod);
    if (!aspect_isMsgForwardIMP(targetMethodIMP)) {
        // Make a method alias for the existing method implementation, it not already copied.
        const char *typeEncoding = method_getTypeEncoding(targetMethod);
        SEL aliasSelector = aspect_aliasForSelector(selector);
        if (![klass instancesRespondToSelector:aliasSelector]) {
            __unused BOOL addedAlias = class_addMethod(klass, aliasSelector, method_getImplementation(targetMethod), typeEncoding);
            NSCAssert(addedAlias, @"Original implementation for %@ is already copied to %@ on %@", NSStringFromSelector(selector), NSStringFromSelector(aliasSelector), klass);
        }

        // We use forwardInvocation to hook in.
        class_replaceMethod(klass, selector, aspect_getMsgForwardIMP(self, selector), typeEncoding);
        AspectLog(@"Aspects: Installed hook for -[%@ %@].", klass, NSStringFromSelector(selector));
    }
}
  1. 先获取要hook的class，在aspect_hookClass方法中获取，源码如下
static Class aspect_hookClass(NSObject *self, NSError **error) {
    NSCParameterAssert(self);
	Class statedClass = self.class;
	Class baseClass = object_getClass(self);
	NSString *className = NSStringFromClass(baseClass);

    // Already subclassed
	if ([className hasSuffix:AspectsSubclassSuffix]) {
		return baseClass;

        // We swizzle a class object, not a single object.
	}else if (class_isMetaClass(baseClass)) {
        return aspect_swizzleClassInPlace((Class)self);
        // Probably a KVO'ed class. Swizzle in place. Also swizzle meta classes in place.
    }else if (statedClass != baseClass) {
        return aspect_swizzleClassInPlace(baseClass);
    }

    // Default case. Create dynamic subclass.
	const char *subclassName = [className stringByAppendingString:AspectsSubclassSuffix].UTF8String;
	Class subclass = objc_getClass(subclassName);

	if (subclass == nil) {
		subclass = objc_allocateClassPair(baseClass, subclassName, 0);
		if (subclass == nil) {
            NSString *errrorDesc = [NSString stringWithFormat:@"objc_allocateClassPair failed to allocate class %s.", subclassName];
            AspectError(AspectErrorFailedToAllocateClassPair, errrorDesc);
            return nil;
        }

		aspect_swizzleForwardInvocation(subclass);
		aspect_hookedGetClass(subclass, statedClass);
		aspect_hookedGetClass(object_getClass(subclass), statedClass);
		objc_registerClassPair(subclass);
	}

	object_setClass(self, subclass);
	return subclass;
}

self.class object_getClass(self) 二者的区别如下：

在objc的源码中可以看到

+ (Class)class {
    return self;
}

- (Class)class {
    return object_getClass(self);
}

Class object_getClass(id obj)
{
    if (obj) return obj->getIsa();
    else return Nil;
}
  1. 如果当前是实例对象，class是调用object_getClass -> obj->getIsa() 获取的是isa指针，就是类对象，那就是[obj class]和object_getclass(obj)返回的结果相同；
  2. 如果当前是类对象，class返回的self，就是自己类对象，object_getClass返回的是类对象的isa，指向的是元类对象；
  3. 如果当前是元类对象，class返回的是自身，object_getClass返回的isa指向的是根元类对象；
  4. 如果是根类对象Root class，class返回的是自身，object_getClass返回的isa指向的是根元类对象（Root meta class）；
  5. 如果是根元类对象（Root meta class）,class返回的是自身，object_getClass返回的isa指向的是根元类对象（Root meta class）也就是自身；

关系图如下：

截屏2022-03-01 下午2.26.21.png

  1. 如果类字符串包含AspectsSubclassSuffix的后缀，说明当前类已经被处理过，直接返回当前类就好；
  2. 如果为元类，说明当前为类对象，就直接hook当前类对象即可，调用aspect_swizzleClassInPlace；
  3. 如果当前类跟base类不同，说明被KVO处理过，那直接对KVO的中间类调用aspect_swizzleClassInPlace,不需要单独创建子类来处理；
  4. 接下来就需要动态创建子类了，创建子类来实现aspect，主要目的是不想影响原有类，如果创建失败，返回错误AspectErrorFailedToAllocateClassPair；
  5. 接下来调用aspect_swizzleForwardInvocation方法，实现forwardInvocation：方法的swizzle；
static NSString *const AspectsForwardInvocationSelectorName = @"__aspects_forwardInvocation:";
static void aspect_swizzleForwardInvocation(Class klass) {
    NSCParameterAssert(klass);
    // If there is no method, replace will act like class_addMethod.
    IMP originalImplementation = class_replaceMethod(klass, @selector(forwardInvocation:), (IMP)__ASPECTS_ARE_BEING_CALLED__, "v@:@");
    if (originalImplementation) {
        class_addMethod(klass, NSSelectorFromString(AspectsForwardInvocationSelectorName), originalImplementation, "v@:@");
    }
    AspectLog(@"Aspects: %@ is now aspect aware.", NSStringFromClass(klass));
}
  1. 替换方法forwardInvocation：的实现，如果原类中没有实现该方法，class_replaceMethod的作用就等同于class_addMethod，替换后方法的实现是__ASPECTS_ARE_BEING_CALLED__方法；
  2. 如果originalImplementation不为空，说明原类中存在该方法，则添加方法名为AspectsForwardInvocationSelectorName的方法，IMP实现为原有方法的实现；
static void aspect_hookedGetClass(Class class, Class statedClass) {
    NSCParameterAssert(class);
    NSCParameterAssert(statedClass);
	Method method = class_getInstanceMethod(class, @selector(class));
	IMP newIMP = imp_implementationWithBlock(^(id self) {
		return statedClass;
	});
	class_replaceMethod(class, @selector(class), newIMP, method_getTypeEncoding(method));
}
  1. aspect_hookedGetClass改变新创建的子类的class方法，IMP实现是原有类，先把子类的isa指向了原有类，再把元类的isa也指向了原类；

回到原方法aspect_prepareClassAndHookSelector的讲解中

  1. 在子类中获取需要切面的方法，拿到Method和IMP，class_getInstanceMethod该方法会在继承链上不断的寻找；
  2. 方法aspect_isMsgForwardIMP判断是否是forwardIMP,如果不是，方法aspect_aliasForSelector返回带有aspect标志前缀的方法名，然后在子类中添加带前缀的方法，实现是原方法的IMP；
  3. class_replaceMethod(klass, selector, aspect_getMsgForwardIMP(self, selector), typeEncoding) 然后将子类的原方法替换成forwardIMP;

操作流程

kclass

selector         -->  originalSeletorIMP

                switch

                  |

aspects_selector  ->  originalSeletorIMP

selector          ->  aspect_getMsgForwardIMP

所以在原有的selector的invoke逻辑中，都会经过forwardIMP，然后进入__ASPECTS_ARE_BEING_CALLED__方法。

获取forwardIMP的实现如下

static IMP aspect_getMsgForwardIMP(NSObject *self, SEL selector) {
    IMP msgForwardIMP = _objc_msgForward;
#if !defined(__arm64__)
    // As an ugly internal runtime implementation detail in the 32bit runtime, we need to determine of the method we hook returns a struct or anything larger than id.
    // https://developer.apple.com/library/mac/documentation/DeveloperTools/Conceptual/LowLevelABI/000-Introduction/introduction.html
    // https://github.com/ReactiveCocoa/ReactiveCocoa/issues/783
    // http://infocenter.arm.com/help/topic/com.arm.doc.ihi0042e/IHI0042E_aapcs.pdf (Section 5.4)
    Method method = class_getInstanceMethod(self.class, selector);
    const char *encoding = method_getTypeEncoding(method);
    BOOL methodReturnsStructValue = encoding[0] == _C_STRUCT_B;
    if (methodReturnsStructValue) {
        @try {
            NSUInteger valueSize = 0;
            NSGetSizeAndAlignment(encoding, &valueSize, NULL);

            if (valueSize == 1 || valueSize == 2 || valueSize == 4 || valueSize == 8) {
                methodReturnsStructValue = NO;
            }
        } @catch (__unused NSException *e) {}
    }
    if (methodReturnsStructValue) {
        msgForwardIMP = (IMP)_objc_msgForward_stret;
    }
#endif
    return msgForwardIMP;
}

默认情况下forwardIMP是_objc_msgForward，但是在非arm64架构下，方法的返回参数类型是结构体的话有差异，返回的实现是_objc_msgForward_stret，中间代码是判断是否是方法返回参数类型是否是结构体类型；

接下来就讲解调用方法__ASPECTS_ARE_BEING_CALLED__

// This is a macro so we get a cleaner stack trace.
#define aspect_invoke(aspects, info) \
for (AspectIdentifier *aspect in aspects) {\
    [aspect invokeWithInfo:info];\
    if (aspect.options & AspectOptionAutomaticRemoval) { \
        aspectsToRemove = [aspectsToRemove?:@[] arrayByAddingObject:aspect]; \
    } \
}

// This is the swizzled forwardInvocation: method.
static void __ASPECTS_ARE_BEING_CALLED__(__unsafe_unretained NSObject *self, SEL selector, NSInvocation *invocation) {
    NSCParameterAssert(self);
    NSCParameterAssert(invocation);
    SEL originalSelector = invocation.selector;
	SEL aliasSelector = aspect_aliasForSelector(invocation.selector);
    invocation.selector = aliasSelector;
    AspectsContainer *objectContainer = objc_getAssociatedObject(self, aliasSelector);
    AspectsContainer *classContainer = aspect_getContainerForClass(object_getClass(self), aliasSelector);
    AspectInfo *info = [[AspectInfo alloc] initWithInstance:self invocation:invocation];
    NSArray *aspectsToRemove = nil;

    // Before hooks.
    aspect_invoke(classContainer.beforeAspects, info);
    aspect_invoke(objectContainer.beforeAspects, info);

    // Instead hooks.
    BOOL respondsToAlias = YES;
    if (objectContainer.insteadAspects.count || classContainer.insteadAspects.count) {
        aspect_invoke(classContainer.insteadAspects, info);
        aspect_invoke(objectContainer.insteadAspects, info);
    }else {
        Class klass = object_getClass(invocation.target);
        do {
            if ((respondsToAlias = [klass instancesRespondToSelector:aliasSelector])) {
                [invocation invoke];
                break;
            }
        }while (!respondsToAlias && (klass = class_getSuperclass(klass)));
    }

    // After hooks.
    aspect_invoke(classContainer.afterAspects, info);
    aspect_invoke(objectContainer.afterAspects, info);

    // If no hooks are installed, call original implementation (usually to throw an exception)
    if (!respondsToAlias) {
        invocation.selector = originalSelector;
        SEL originalForwardInvocationSEL = NSSelectorFromString(AspectsForwardInvocationSelectorName);
        if ([self respondsToSelector:originalForwardInvocationSEL]) {
            ((void( *)(id, SEL, NSInvocation *))objc_msgSend)(self, originalForwardInvocationSEL, invocation);
        }else {
            [self doesNotRecognizeSelector:invocation.selector];
        }
    }

    // Remove any hooks that are queued for deregistration.
    [aspectsToRemove makeObjectsPerformSelector:@selector(remove)];
}
#undef aspect_invoke
  1. ASPECTS_ARE_BEING_CALLED 方法的调用，第一个参数和第二个参数是默认的隐式参数，第三个参数是原方法自带的显式参数；
  2. 将invocation的selector设置为aliasSelector，然后通过关联引用拿到objectContainer和classContainer；
  3. 初始化AspectInfo对象；
  4. 执行before hook aspect_invoke；
  5. 执行instead hook aspect_invoke;
  6. 如果objectContainer和classContainer的insteadAspects为空，则基于当前类以及往上遍历继承链，判断继承链上类是否相应方法，[klass instancesRespondToSelector:aliasSelector]，如果响应则直接执行[invocation invoke]，因为invocation的selector已经调整为aliasSelector，aliasSelector的方法实现已经交换成originalSeletorIMP，所以还是会执行原有的方法实现；
  7. 最后执行 after hook aspect_invoke；
  8. respondsToAlias变量是aliasSelector方法是否响应的标识，如果为false，说明当前类以及继承链上不响应aliasSelector方法，说明没有hook成功，那就要进入forward invocation阶段了，此时需要将invocation的selector设置为原有的originalSelector，同时判断当前对象是否响应originalForwardInvocationSEL方法，如果响应则直接调用objc_msgSend方法，originalForwardInvocationSEL对应的IMP就是对象原有的forwardInvocation的实现；
  9. 否则报错异常，不响应方法，doesNotRecognizeSelector；
  10. 最后基于aspectsToRemove的数组要调用remove方法，该数组的数据来源于aspect_invoke宏定义中；

接下来讲解下AspectIdentifier的invokeWithInfo的方法，该方法执行aspect的block回调；

- (BOOL)invokeWithInfo:(id<AspectInfo>)info {
    NSInvocation *blockInvocation = [NSInvocation invocationWithMethodSignature:self.blockSignature];
    NSInvocation *originalInvocation = info.originalInvocation;
    NSUInteger numberOfArguments = self.blockSignature.numberOfArguments;

    // Be extra paranoid. We already check that on hook registration.
    if (numberOfArguments > originalInvocation.methodSignature.numberOfArguments) {
        AspectLogError(@"Block has too many arguments. Not calling %@", info);
        return NO;
    }

    // The `self` of the block will be the AspectInfo. Optional.
    if (numberOfArguments > 1) {
        [blockInvocation setArgument:&info atIndex:1];
    }

	void *argBuf = NULL;
    for (NSUInteger idx = 2; idx < numberOfArguments; idx++) {
        const char *type = [originalInvocation.methodSignature getArgumentTypeAtIndex:idx];
		NSUInteger argSize;
		NSGetSizeAndAlignment(type, &argSize, NULL);

		if (!(argBuf = reallocf(argBuf, argSize))) {
            AspectLogError(@"Failed to allocate memory for block invocation.");
			return NO;
		}

		[originalInvocation getArgument:argBuf atIndex:idx];
		[blockInvocation setArgument:argBuf atIndex:idx];
    }

    [blockInvocation invokeWithTarget:self.block];

    if (argBuf != NULL) {
        free(argBuf);
    }
    return YES;
}
  1. 根据当前AspectInfo获取对应的blockSignature，然后生成对应block的NSInvocation；
  2. 获取当前AspectInfo的原有的originalInvocation；
  3. 然后两者做对比，方法参数：blockSignature的numberOfArguments不能大于originalInvocation的；
  4. 其次在blockInvocation的第一个参数上设置成AspectInfo对象；
  5. 然后设置第三个以及之后的方法参数，for循环遍历，NSGetSizeAndAlignment根据type encoding大小获取argSize，然后分配内存；
  6. 原有的invocation获取对应idx下参数 [originalInvocation getArgument:argBuf atIndex:idx];
  7. blockInvocation重新在刚刚的idx下设置进参数[blockInvocation setArgument:argBuf atIndex:idx]；
  8. blockInvocation invoke执行 target为当前的block，blockInvocation的签名结构参照上面的表格；
  9. 释放内存argBuf；

最后执行aspectsToRemove的remove操作，对应的方法实现是aspect_remove操作，跟aspect_add方法相对应；

static BOOL aspect_remove(AspectIdentifier *aspect, NSError **error) {
    NSCAssert([aspect isKindOfClass:AspectIdentifier.class], @"Must have correct type.");

    __block BOOL success = NO;
    aspect_performLocked(^{
        id self = aspect.object; // strongify
        if (self) {
            AspectsContainer *aspectContainer = aspect_getContainerForObject(self, aspect.selector);
            success = [aspectContainer removeAspect:aspect];

            aspect_cleanupHookedClassAndSelector(self, aspect.selector);
            // destroy token
            aspect.object = nil;
            aspect.block = nil;
            aspect.selector = NULL;
        }else {
            NSString *errrorDesc = [NSString stringWithFormat:@"Unable to deregister hook. Object already deallocated: %@", aspect];
            AspectError(AspectErrorRemoveObjectAlreadyDeallocated, errrorDesc);
        }
    });
    return success;
}
  1. 根据AspectIdentifier拿到aspect的对象object，通过关联引用获取到对应的AspectsContainer对象；
  2. 然后执行AspectsContainer的removeAspect方法，把当前的aspect的关联关系删除；
  3. 同时执行aspect_cleanupHookedClassAndSelector，把当前的aspect的hook操作撤销；
  4. 把aspect的数据置空还原；
  5. 如果aspect为空，说明内存已经回收，报错为AspectErrorRemoveObjectAlreadyDeallocated；

aspect的hook操作撤销实现如下

// Will undo the runtime changes made.
static void aspect_cleanupHookedClassAndSelector(NSObject *self, SEL selector) {
    NSCParameterAssert(self);
    NSCParameterAssert(selector);

	Class klass = object_getClass(self);
    BOOL isMetaClass = class_isMetaClass(klass);
    if (isMetaClass) {
        klass = (Class)self;
    }

    // Check if the method is marked as forwarded and undo that.
    Method targetMethod = class_getInstanceMethod(klass, selector);
    IMP targetMethodIMP = method_getImplementation(targetMethod);
    if (aspect_isMsgForwardIMP(targetMethodIMP)) {
        // Restore the original method implementation.
        const char *typeEncoding = method_getTypeEncoding(targetMethod);
        SEL aliasSelector = aspect_aliasForSelector(selector);
        Method originalMethod = class_getInstanceMethod(klass, aliasSelector);
        IMP originalIMP = method_getImplementation(originalMethod);
        NSCAssert(originalMethod, @"Original implementation for %@ not found %@ on %@", NSStringFromSelector(selector), NSStringFromSelector(aliasSelector), klass);

        class_replaceMethod(klass, selector, originalIMP, typeEncoding);
        AspectLog(@"Aspects: Removed hook for -[%@ %@].", klass, NSStringFromSelector(selector));
    }

    // Deregister global tracked selector
    aspect_deregisterTrackedSelector(self, selector);

    // Get the aspect container and check if there are any hooks remaining. Clean up if there are not.
    AspectsContainer *container = aspect_getContainerForObject(self, selector);
    if (!container.hasAspects) {
        // Destroy the container
        aspect_destroyContainerForObject(self, selector);

        // Figure out how the class was modified to undo the changes.
        NSString *className = NSStringFromClass(klass);
        if ([className hasSuffix:AspectsSubclassSuffix]) {
            Class originalClass = NSClassFromString([className stringByReplacingOccurrencesOfString:AspectsSubclassSuffix withString:@""]);
            NSCAssert(originalClass != nil, @"Original class must exist");
            object_setClass(self, originalClass);
            AspectLog(@"Aspects: %@ has been restored.", NSStringFromClass(originalClass));

            // We can only dispose the class pair if we can ensure that no instances exist using our subclass.
            // Since we don't globally track this, we can't ensure this - but there's also not much overhead in keeping it around.
            //objc_disposeClassPair(object.class);
        }else {
            // Class is most likely swizzled in place. Undo that.
            if (isMetaClass) {
                aspect_undoSwizzleClassInPlace((Class)self);
            }else if (self.class != klass) {
            	aspect_undoSwizzleClassInPlace(klass);
            }
        }
    }
}
  1. 判断当前self是类对象还是实例对象，如果是类对象，klass也返回当前self；
  2. 如果当前方法的IMP是aspect_isMsgForwardIMP，先通过aliasSelector -> originalMethod -> originalIMP,然后交换方法实现，结果是seletor -> originalIMP;
  3. 然后执行aspect_deregisterTrackedSelector，删除类对象的AspectTracker记录，实例对象不用关注；
  4. 获取当前self关联引用的AspectsContainer，判断当前的AspectsContainer是否有hasAspects，如果没有则删除关联引用aspect_destroyContainerForObject；
  5. 判断类名是包有后缀AspectsSubclassSuffix，如果是则将类重新设置为以前的class，object_setClass(self, originalClass)；
  6. 官方注销了此代码，objc_disposeClassPair(object.class) 将中间aspect的类注销掉，解释是我们不能释放该类，因为我们不能确保我们的子类没有被使用中；
  7. 最后注销类关联，aspect_undoSwizzleClassInPlace 跟 aspect_swizzleClassInPlace相对应；
static Class aspect_swizzleClassInPlace(Class klass) {
    NSCParameterAssert(klass);
    NSString *className = NSStringFromClass(klass);

    _aspect_modifySwizzledClasses(^(NSMutableSet *swizzledClasses) {
        if (![swizzledClasses containsObject:className]) {
            aspect_swizzleForwardInvocation(klass);
            [swizzledClasses addObject:className];
        }
    });
    return klass;
}

static void aspect_undoSwizzleClassInPlace(Class klass) {
    NSCParameterAssert(klass);
    NSString *className = NSStringFromClass(klass);

    _aspect_modifySwizzledClasses(^(NSMutableSet *swizzledClasses) {
        if ([swizzledClasses containsObject:className]) {
            aspect_undoSwizzleForwardInvocation(klass);
            [swizzledClasses removeObject:className];
        }
    });
}

一个是add、另一个是remove；一个是aspect_swizzleForwardInvocation，另一个是aspect_undoSwizzleForwardInvocation； 再次将aspect_swizzleForwardInvocation放在这里，方便对比下实现：

static NSString *const AspectsForwardInvocationSelectorName = @"__aspects_forwardInvocation:";
static void aspect_swizzleForwardInvocation(Class klass) {
    NSCParameterAssert(klass);
    // If there is no method, replace will act like class_addMethod.
    IMP originalImplementation = class_replaceMethod(klass, @selector(forwardInvocation:), (IMP)__ASPECTS_ARE_BEING_CALLED__, "v@:@");
    if (originalImplementation) {
        class_addMethod(klass, NSSelectorFromString(AspectsForwardInvocationSelectorName), originalImplementation, "v@:@");
    }
    AspectLog(@"Aspects: %@ is now aspect aware.", NSStringFromClass(klass));
}

static void aspect_undoSwizzleForwardInvocation(Class klass) {
    NSCParameterAssert(klass);
    Method originalMethod = class_getInstanceMethod(klass, NSSelectorFromString(AspectsForwardInvocationSelectorName));
    Method objectMethod = class_getInstanceMethod(NSObject.class, @selector(forwardInvocation:));
    // There is no class_removeMethod, so the best we can do is to retore the original implementation, or use a dummy.
    IMP originalImplementation = method_getImplementation(originalMethod ?: objectMethod);
    class_replaceMethod(klass, @selector(forwardInvocation:), originalImplementation, "v@:@");

    AspectLog(@"Aspects: %@ has been restored.", NSStringFromClass(klass));
}
  1. 获取AspectsForwardInvocationSelectorName方法，AspectsForwardInvocationSelectorName的实现是originalImplementation；
  2. 获取NSObject的forwardInvocation：的Method;
  3. 如果originalMethod为空的话，originalImplementation为NSObject的实现，否则是原有类klass的forwardInvocation：的IMP；
  4. 最后将kclass的forwardInvocation：方法的实现替换成originalImplementation。

一切是尘归尘土归土，不会对原有类有影响。

最后顺便提下在block的入参的AspectInfo的属性说明下，业务层可能会用到的属性arguments

关键性代码如下

@implementation NSInvocation (Aspects)

// Thanks to the ReactiveCocoa team for providing a generic solution for this.
- (id)aspect_argumentAtIndex:(NSUInteger)index {
	const char *argType = [self.methodSignature getArgumentTypeAtIndex:index];
	// Skip const type qualifier.
	if (argType[0] == _C_CONST) argType++;

#define WRAP_AND_RETURN(type) do { type val = 0; [self getArgument:&val atIndex:(NSInteger)index]; return @(val); } while (0)
	if (strcmp(argType, @encode(id)) == 0 || strcmp(argType, @encode(Class)) == 0) {
		__autoreleasing id returnObj;
		[self getArgument:&returnObj atIndex:(NSInteger)index];
		return returnObj;
	} else if (strcmp(argType, @encode(SEL)) == 0) {
        SEL selector = 0;
        [self getArgument:&selector atIndex:(NSInteger)index];
        return NSStringFromSelector(selector);
    } else if (strcmp(argType, @encode(Class)) == 0) {
        __autoreleasing Class theClass = Nil;
        [self getArgument:&theClass atIndex:(NSInteger)index];
        return theClass;
        // Using this list will box the number with the appropriate constructor, instead of the generic NSValue.
	} else if (strcmp(argType, @encode(char)) == 0) {
		WRAP_AND_RETURN(char);
	} else if (strcmp(argType, @encode(int)) == 0) {
		WRAP_AND_RETURN(int);
	} else if (strcmp(argType, @encode(short)) == 0) {
		WRAP_AND_RETURN(short);
	} else if (strcmp(argType, @encode(long)) == 0) {
		WRAP_AND_RETURN(long);
	} else if (strcmp(argType, @encode(long long)) == 0) {
		WRAP_AND_RETURN(long long);
	} else if (strcmp(argType, @encode(unsigned char)) == 0) {
		WRAP_AND_RETURN(unsigned char);
	} else if (strcmp(argType, @encode(unsigned int)) == 0) {
		WRAP_AND_RETURN(unsigned int);
	} else if (strcmp(argType, @encode(unsigned short)) == 0) {
		WRAP_AND_RETURN(unsigned short);
	} else if (strcmp(argType, @encode(unsigned long)) == 0) {
		WRAP_AND_RETURN(unsigned long);
	} else if (strcmp(argType, @encode(unsigned long long)) == 0) {
		WRAP_AND_RETURN(unsigned long long);
	} else if (strcmp(argType, @encode(float)) == 0) {
		WRAP_AND_RETURN(float);
	} else if (strcmp(argType, @encode(double)) == 0) {
		WRAP_AND_RETURN(double);
	} else if (strcmp(argType, @encode(BOOL)) == 0) {
		WRAP_AND_RETURN(BOOL);
	} else if (strcmp(argType, @encode(bool)) == 0) {
		WRAP_AND_RETURN(BOOL);
	} else if (strcmp(argType, @encode(char *)) == 0) {
		WRAP_AND_RETURN(const char *);
	} else if (strcmp(argType, @encode(void (^)(void))) == 0) {
		__unsafe_unretained id block = nil;
		[self getArgument:&block atIndex:(NSInteger)index];
		return [block copy];
	} else {
		NSUInteger valueSize = 0;
		NSGetSizeAndAlignment(argType, &valueSize, NULL);

		unsigned char valueBytes[valueSize];
		[self getArgument:valueBytes atIndex:(NSInteger)index];

		return [NSValue valueWithBytes:valueBytes objCType:argType];
	}
	return nil;
#undef WRAP_AND_RETURN
}

针对参数的type encoding的装包处理，id、Class、SEL等类型直接返回，其他的基本数据类型，char、bool、int、long、double、float、char*等，需要WRAP_AND_RETURN装包处理后返回，block需要copy后返回，剩下的由NSValue，开辟字节数组valueBytes，来持有。

问题： 1. Aspect的实现原理？ 2. Aspect的实现性能如何？哪里不好？有没有更好的方案？ 3. Aspect会不会跟其他的hook库有冲突（如果同时存在一个项目中）？

avatar
文章
阅读
粉丝
