[Golang] gopacket 初体验

ShadowYD
14,769 阅读9分钟

1. 简介

github: github.com/google/gopa…

  • gopacket 是一个golang语言的网络包抓取库，当然这只是一个最简单的用法。比如你还能用他来做流复制、防火墙等功能；
  • gopacket 包含 npcap 和 libpcap，前者是windows中的 wireshark 依赖的包，后者是linux中 tcpdump 的依赖包;

1.1 Linux 中使用

  • 安装依赖开发库
    yum install -y libpcap libpcap-devel
  • 下载gopacket
    go get github.com/google/gopacket

2. 示例

2.1 获取网络设备信息

  • cap1.go
    package main

import (
   "fmt"
   "github.com/google/gopacket/pcap"
   "log"
)

func main()  {
   // 获取网络设备
   devs, err:= pcap.FindAllDevs()
   if err != nil {
      log.Fatalln(err)
   }
   for _,dev:=range devs{
      fmt.Println("网卡:",dev.Name)
      if (len(dev.Addresses) != 0) {

         maskSize, _ := dev.Addresses[0].Netmask.Size()
         fmt.Printf("  IP: %s/%d\n",dev.Addresses[0].IP, maskSize)
         fmt.Println("  广播地址:",dev.Addresses[0].Broadaddr)
      }
      fmt.Println()
   }

}
  • 输出
    网卡: en0
  IP: 192.168.19.91/24
  广播地址: 192.168.19.255

网卡: lo0
  IP: 127.0.0.1/8
  广播地址: <nil>

2.2 抓取 TCP 8080 端口数据包

  • 先启动一个http服务 http_server.go，go run http_server.go

    package main

import (
        "io"
        "log"
        "net/http"
)

// hello world, the web server
func HelloServer(w http.ResponseWriter, req *http.Request) {
        _, _ = io.WriteString(w, "hello, world - 2!\n")
}

func main() {
        http.HandleFunc("/hello", HelloServer)
        err := http.ListenAndServe(":8080", nil)
        if err != nil {
                log.Fatal("ListenAndServe: ", err)
        }
}

  • cap2.go go run cap2.go

    package main

import (
   "fmt"
   "github.com/google/gopacket"
   "github.com/google/gopacket/layers"
   "github.com/google/gopacket/pcap"
   "log"
   "time"
)


func main()  {
   const (
      // 网络设备
      EthDev string = "eth0"
      // 抓取数据长度
      SnapLen int32 = 65535
      // 是否开启混合模式，混合模式就是不属于本网卡IP的流量
      Promisc bool = false
      // 展示细节的时间
      Timeout time.Duration = time.Second * 3
      // 抓取端口
      DstPort layers.TCPPort = 8080
   )
   // 对网卡流量进行实时捕获
   handler, err := pcap.OpenLive(EthDev, SnapLen, Promisc, Timeout)
   if err!=nil{log.Fatalln(err)}
   defer handler.Close()
   // 获取包源
   source := gopacket.NewPacketSource(handler, handler.LinkType())
   var isApp bool
   for pk := range source.Packets() {
      // 网络四层模型
      // LinkLayer returns the first link layer in the packet
      // LinkLayer() LinkLayer
      // NetworkLayer returns the first network layer in the packet
      // NetworkLayer() NetworkLayer
      // TransportLayer returns the first transport layer in the packet
      // TransportLayer() TransportLayer
      // ApplicationLayer returns the first application layer in the packet
      // ApplicationLayer() ApplicationLayer

      isApp = false
      if layer := pk.TransportLayer(); layer != nil {
         if tcpLayer, ok := layer.(*layers.TCP); ok && tcpLayer.DstPort == DstPort{
            fmt.Println()
            fmt.Printf("TCP Payload: %s\n", string(tcpLayer.Payload))
            fmt.Printf("TCP ContentsLenght: %d \n", len(tcpLayer.Contents))
            fmt.Println(pk.String())
            if len(tcpLayer.Payload) > 0 {
               isApp = true
            }
         }
      }

      if isApp {
         if appLayer := pk.ApplicationLayer(); appLayer != nil {
            fmt.Println("APP Contents:", string(appLayer.LayerContents()))
            fmt.Println("APP Contents Length:", len(appLayer.LayerContents()))
         }
      }
   }
}

  • 请求http

    curl http://127.0.0.1:8080/hello

  • cap2.go 程序输出

    ...

TCP Payload: GET /hello HTTP/1.1
Host: 139.198.31.27:8080
User-Agent: curl/7.64.1
Accept: */*


TCP ContentsLenght: 32
PACKET: 153 bytes, wire length 153 cap length 153 @ 2022-03-01 14:29:53.387448 +0800 CST
- Layer 1 (14 bytes) = Ethernet	{Contents=[..14..] Payload=[..139..] SrcMAC=02:54:9e:2e:5f:64 DstMAC=52:54:9e:b9:70:e8 EthernetType=IPv4 Length=0}
- Layer 2 (20 bytes) = IPv4	{Contents=[..20..] Payload=[..119..] Version=4 IHL=5 TOS=0 Length=139 Id=0 Flags=DF FragOffset=0 TTL=51 Protocol=TCP Checksum=4238 SrcIP=112.94.5.214 DstIP=192.168.0.3 Options=[] Padding=[]}
- Layer 3 (32 bytes) = TCP	{Contents=[..32..] Payload=[..87..] SrcPort=52063 DstPort=8080(http-alt) Seq=1410279372 Ack=1228926593 DataOffset=8 FIN=false SYN=false RST=false PSH=true ACK=true URG=false ECE=false CWR=false NS=false Window=2053 Checksum=5780 Urgent=0 Options=[TCPOption(NOP:), TCPOption(NOP:), TCPOption(Timestamps:2080988029/851079750 0x7c095b7d32ba7246)] Padding=[]}
- Layer 4 (87 bytes) = Payload	87 byte(s)

APP Contents: GET /hello HTTP/1.1
Host: 139.198.31.27:8080
User-Agent: curl/7.64.1
Accept: */*


APP Contents Length: 87

...

2.3 演示抓取 TCP 三次握手及四次分手

  • 先回顾下三次握手及四次分手，若有兴趣更详细的了解该过程请看这篇文章

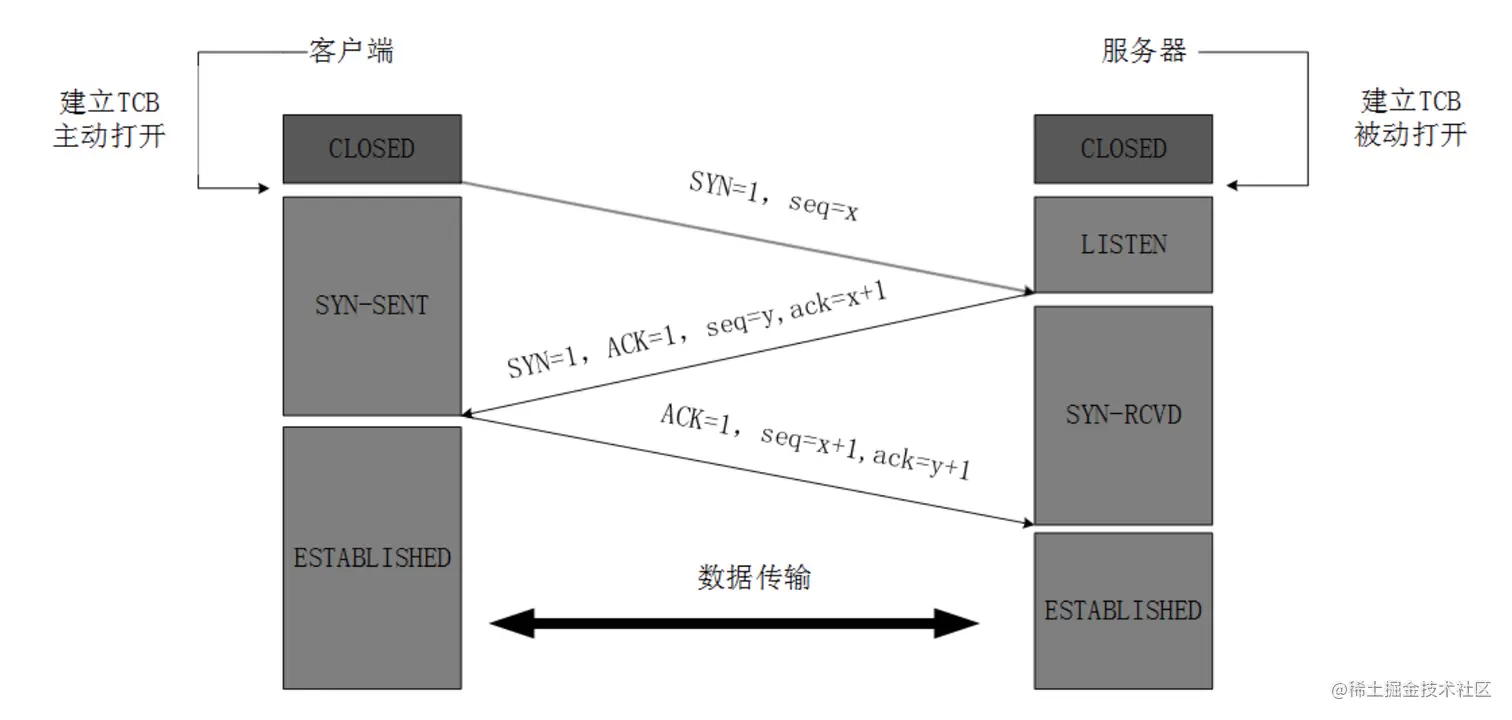

    • 三次握手


    • 四次分手 (常规场景)


  • 先写一个tcp 服务端 tcp_server.go，由于一些无法描述的原因客观上的客户端主动调用Close()函数时无法呈现常规场景的4次分手，当客户端调用Close()的时候必定会抛出了复位包（RST）导致不能走正常的4次分手。所以下面代码采用服务端主动断开了链接来呈现（在tcp协议原语描述中其实是主动断开方即为客户端，所以不妨碍场景的呈现）。

    package main

import (
        "fmt"
        "log"
        "net"
)


func main() {
        l, err := net.Listen("tcp", "0.0.0.0:8081")
        if err != nil {
                log.Fatalln(err)
        }
        defer l.Close()
        for {
                conn, err := l.Accept()
                if err != nil {log.Fatalln(err)}
                fmt.Printf("Received message %s -> %s \n", conn.RemoteAddr(), conn.LocalAddr())
                go handler(conn)
        }

}
func handler(conn net.Conn) {
        defer conn.Close()
        for {
                buf := make([]byte, 1024)
                num, err := conn.Read(buf)
                if err != nil {
                        fmt.Println(err)
                        if err.Error() == "EOF" {
                                return
                        }
                        break
                }
                fmt.Printf("Received data: %v\n", string(buf[:num]))
                // 由于在关闭时tcp队列内依然有数据会发送rst包，
                // 所以这里屏蔽掉数据发送直接关闭链接
                //if num, err =conn.Write([]byte("88")) ; err != nil {
                //	fmt.Println(err)
                //}
                // 设置了服务端主动断开链接，主要是为了完整演示4次分手
                if err := conn.Close(); err != nil {
                        fmt.Println(err)
                }

                //return
        }
}

  • 写一个tcp客户端 tcp_client.go。下面曾经想用tcp 参数 linger 来阻止客户端close时发送RST包，让tcp正常进入四次分手，但测试后发现没效果；

    package main

import (
   "log"
   "net"
   "time"
)

func main() {
   con, err := net.Dial("tcp", "192.168.0.3:8081")
   if err!=nil{
      log.Fatalln(err)
   }
   c := con.(*net.TCPConn)
   //if err := c.SetLinger(1); err != nil {
   // log.Fatalln(err)
   //}

   if _ , err := c.Write([]byte("hello")); err != nil {
      log.Fatalln(err)
   }

   time.Sleep(2 * time.Second)

   if err := c.Close(); err != nil {
      log.Fatalln(err)
   }
}

  • 新的 capture，cap4.go

    package main

import (
   "fmt"
   "github.com/google/gopacket"
   "github.com/google/gopacket/layers"
   "github.com/google/gopacket/pcap"
   "log"
   "time"
)

// 可观测三次握手及四次分手

func main()  {
   const (
      EthDev string = "eth0"
      SnapLen int32 = 1024
      Promisc bool = false
      Timeout time.Duration = time.Second * 2
      Port layers.TCPPort = 8081
   )
   fmt.Println("Capture dev:", EthDev, "port:", Port)
   handler, err := pcap.OpenLive(EthDev, SnapLen, Promisc, Timeout)
   if err != nil {
      log.Fatalln(err)
   }
   defer handler.Close()

   source := gopacket.NewPacketSource(handler, handler.LinkType())
   for pk := range source.Packets() {
      if layer2 := pk.NetworkLayer(); layer2 != nil {
         ipLayer, ok := layer2.(*layers.IPv4)
         if ! ok {
            continue
         }
         if layer3 := pk.TransportLayer() ; layer3 != nil {

            if tcpLayer, ok := layer3.(*layers.TCP); ok {
               if tcpLayer.DstPort == Port || tcpLayer.SrcPort == Port {
                  fmt.Printf("%s:%d --> %s:%d, SYN=%v, ACK=%v, RST=%v, PSH=%v, FIN=%v, URG=%v, ECE=%v," +
                     " Payload length=%d, seq=%v, ackNum=%v, window=%v \n",
                     ipLayer.SrcIP,
                     tcpLayer.SrcPort,
                     ipLayer.DstIP,
                     tcpLayer.DstPort,
                     tcpLayer.SYN, tcpLayer.ACK, tcpLayer.RST, tcpLayer.PSH, tcpLayer.FIN, tcpLayer.URG, tcpLayer.ECE,
                     len(tcpLayer.Payload),
                     tcpLayer.Seq,
                     tcpLayer.Ack,
                     tcpLayer.Window,
                  )
               }
            }
         }
      }
   }
}

  • 运行代码

    go run tcp_server.go
go run cap4.go
go run tcp_client.go

  • 观测cap4.go的输出，下面经过调试后的正确输出，如果你禁止掉tcp_server.go中的主动close的代码，则会发现最后的包时客户端主动断开的 RST 包，四次分手无法正常走下去；

    # 三次握手
192.168.0.2:51260 --> 192.168.0.3:8081, SYN=true, ACK=false, RST=false, PSH=false, FIN=false, URG=false, ECE=false, Payload length=0, seq=3786003339, ackNum=0, window=29200
192.168.0.3:8081 --> 192.168.0.2:51260, SYN=true, ACK=true, RST=false, PSH=false, FIN=false, URG=false, ECE=false, Payload length=0, seq=3563580175, ackNum=3786003340, window=28960
192.168.0.2:51260 --> 192.168.0.3:8081, SYN=false, ACK=true, RST=false, PSH=false, FIN=false, URG=false, ECE=false, Payload length=0, seq=3786003340, ackNum=3563580176, window=229
# 传输了数据
192.168.0.2:51260 --> 192.168.0.3:8081, SYN=false, ACK=true, RST=false, PSH=true, FIN=false, URG=false, ECE=false, Payload length=5, seq=3786003340, ackNum=3563580176, window=229
192.168.0.3:8081 --> 192.168.0.2:51260, SYN=false, ACK=true, RST=false, PSH=false, FIN=false, URG=false, ECE=false, Payload length=0, seq=3563580176, ackNum=3786003345, window=227
# 四次分手
192.168.0.3:8081 --> 192.168.0.2:51260, SYN=false, ACK=true, RST=false, PSH=false, FIN=true, URG=false, ECE=false, Payload length=0, seq=3563580176, ackNum=3786003345, window=227
192.168.0.2:51260 --> 192.168.0.3:8081, SYN=false, ACK=true, RST=false, PSH=false, FIN=false, URG=false, ECE=false, Payload length=0, seq=3786003345, ackNum=3563580177, window=229
192.168.0.2:51260 --> 192.168.0.3:8081, SYN=false, ACK=true, RST=false, PSH=false, FIN=true, URG=false, ECE=false, Payload length=0, seq=3786003345, ackNum=3563580177, window=229
192.168.0.3:8081 --> 192.168.0.2:51260, SYN=false, ACK=true, RST=false, PSH=false, FIN=false, URG=false, ECE=false, Payload length=0, seq=3563580177, ackNum=3786003346, window=227

  • 补充知识点

    • tcp 参数 SO_LINGER, 设置函数close()关闭TCP连接时的行为，下面是其结构体。
      type Linger struct {
    Onoff  int32
    Linger int32
}
    • Onoff 非 0，Linger为0，close()用以下方式关闭连接。
      • 立即关闭该连接，通过发送RST分组(而不是用正常的FIN|ACK|FIN|ACK四个分组)来关闭该连接。至于发送缓冲区中如果有未发送完的数据，则丢弃。主动关闭一方的TCP状态则跳过TIMEWAIT，直接进入CLOSED。网上很多人想利用这一点来解决服务器上出现大量的TIMEWAIT状态的socket的问题，但是，这并不是一个好主意，这种关闭方式的用途并不在这儿，实际用途在于服务器在应用层的需求
    • Onoff 非 0, Linger非0，close()用以下方式关闭连接。
      • 将连接的关闭设置一个超时。如果socket发送缓冲区中仍残留数据，进程进入睡眠，内核进入定时状态去尽量去发送这些数据。在超时之前，如果所有数据都发送完且被对方确认，内核用正常的FIN|ACK|FIN|ACK四个分组来关闭该连接，close()成功返回。如果超时之时，数据仍然未能成功发送及被确认，用上述a方式来关闭此连接。close()返回EWOULDBLOCK。

2.4 通过gopacket构造tcp包，并发生SYN

  • syn_cli.go，可进行用上面cap4.go进行capture该程序发送的SYN包；
    package main

import (
   "fmt"
   "github.com/google/gopacket"
   "github.com/google/gopacket/layers"
   "golang.org/x/sys/unix"
   "log"
   "net"
   "syscall"
)

func getLocalIP(destIP net.IP) (net.IP, int) {
   // 向目标地址使用udp发送
   serverAddr, err := net.ResolveUDPAddr("udp", destIP.String()+":23456")
   if err != nil {
      log.Fatalln(err)
   }

   if con, err := net.DialUDP("udp", nil, serverAddr); err == nil {
      if udpAddr, ok := con.LocalAddr().(*net.UDPAddr); ok {
         return udpAddr.IP, udpAddr.Port
      }
   } else {
      log.Fatalln("Can not get local ip: " + err.Error())
   }
   return nil, -1
}

func main()  {
   // 构建destination ip
   const (
       IPv4 = "ip4"
       Addr = "192.168.0.3"
       Port = 8081
   )

   dstIP, _ := net.ResolveIPAddr(IPv4, Addr)
   dstPort := layers.TCPPort(Port)

   sIP, sPort := getLocalIP(dstIP.IP)
   srcPort := layers.TCPPort(sPort)

   fmt.Printf("Local IP:PORT - %s:%d \n", sIP, srcPort)

   // 构建IP包
   ipPack := &layers.IPv4{
      SrcIP: sIP,
      DstIP: dstIP.IP,
      Protocol: layers.IPProtocolTCP,
   }

   // 构建tcp报文段
   tcpPack := &layers.TCP{
      SrcPort: srcPort,
      DstPort: dstPort,
      Seq: 1205014776,
      SYN: true,
   }


   if err := tcpPack.SetNetworkLayerForChecksum(ipPack); err != nil {
      log.Fatalln(err)
   }

   serialBuf := gopacket.NewSerializeBuffer()
   serialOpts := gopacket.SerializeOptions{
      ComputeChecksums: true,
      FixLengths: true,
   }
   if err := gopacket.SerializeLayers(serialBuf, serialOpts, ipPack,  tcpPack); err != nil {
      log.Fatalln(err)
   }



   // 创建套接字
   fd, err := syscall.Socket(syscall.AF_INET, syscall.SOCK_RAW, syscall.IPPROTO_RAW)
   if err != nil {
      log.Fatalln(err)
   }
   defer unix.Close(fd)
   //defer syscall.Close(fd)

   // 构建目标地址对象
   destAddr := syscall.SockaddrInet4{
      Port: 0,
      Addr: [4]byte{
         dstIP.IP.To4()[0],
         dstIP.IP.To4()[1],
         dstIP.IP.To4()[2],
         dstIP.IP.To4()[3],
      },
   }

   err = syscall.Sendto(fd, serialBuf.Bytes(), 0, &destAddr)
   if err != nil {
      log.Fatalln("Send error: ", err)
   }
   log.Println("Send succeed.")

}

3. 体验 hping3 伪造SYN包

3.1. SYN 攻击

  • 攻击者发送大量的SYN包，源IP是伪造的 服务器回应(SYN+ACK)包， 攻击者不回应ACK包

  • 服务器不知道(SYN+ACK)是否发送成功，默认情况下会重试6次（tcp_syn_retries）cat /etc/sysctl.conf (/proc/sys/net/ipv4/tcp_syn_retries)

3.2 hping3介绍

  • 一款 TCP / IP 数据包编辑器/分析器,常用来做安全审计、防火墙测试等工作。支持TCP，UDP，ICMP 和 RAW-IP 协议，具有跟踪路由模式，在覆盖通道之间发送文件的功能以及许多其他功能(如SYN攻击)。 RAW_SOCKET(SYSCALL)

3.3 安装与入门 hping3

  • 安装

    yum install hping3 -y

  • 使用

    # -a 参数是模拟一个不存在的客户端地址进行发送SYN 包到 192.168.0.3:8080
hping3 -I eth0 -c 1 -a 192.168.10.60  192.168.0.3  --syn -p 8080
# 向192.168.0.3:8080  发送一个SYN包
hping3 -I eth0 -c 1  192.168.0.3  --syn -p 8080
# 加入--flood 选项，就会变态发

4. 构造并发送TCP包（扩展）

  • 前提条件需要知道两端的mac地址，构造TCP包的过程有利于理解整个数据报的分层

    package main

import (
        "github.com/google/gopacket"
        "github.com/google/gopacket/layers"
        "github.com/google/gopacket/pcap"
        "log"
        "net"
        "time"
)

func getLocalIP(dstip net.IP) (net.IP, int) {
        serverAddr, err := net.ResolveUDPAddr("udp", dstip.String()+":23456")
        if err != nil {
                log.Fatal(err)
        }
        if con, err := net.DialUDP("udp", nil, serverAddr); err == nil {
                if udpaddr, ok := con.LocalAddr().(*net.UDPAddr); ok {
                        return udpaddr.IP, udpaddr.Port
                }
        }
        log.Fatal("could not get local ip: " + err.Error())
        return nil, -1
}

func main() {

        //发送端的 mac
        srcMac, _ := net.ParseMAC("fa:16:3e:2a:b6:07")
        //接收端
        distMac, _ := net.ParseMAC("fa:16:3e:a7:07:05")

        //发送端IP
        srcIP := net.ParseIP("192.168.0.204")
        dstIP, _ := net.ResolveIPAddr("ip4", "192.168.0.21")

        _, srcPort := getLocalIP(dstIP.IP)

        // 链路层
        eth := layers.Ethernet{
                SrcMAC:       srcMac,  //发送端的 mac
                DstMAC:       distMac, //发送端的 mac
                EthernetType: layers.EthernetTypeIPv4,
        }

        //IP层
        ipLayer := layers.IPv4{
                SrcIP:    srcIP,
                DstIP:    dstIP.IP,
                Version:  4,
                TTL:      64,
                Protocol: layers.IPProtocolTCP,
        }
        // 四层 tcp
        tcpLayer := layers.TCP{
                SrcPort: layers.TCPPort(srcPort),
                DstPort: layers.TCPPort(80), // 假设接收方是 80
        }
        data := []byte(`abc`) // 应用数据
        payload := gopacket.Payload(data)

        err := tcpLayer.SetNetworkLayerForChecksum(&ipLayer)
        if err != nil {
                panic(err)
        }
        buf := gopacket.NewSerializeBuffer()
        opts := gopacket.SerializeOptions{
                FixLengths:       true,
                ComputeChecksums: true,
        }
        err = gopacket.SerializeLayers(buf, opts, &eth, &ipLayer, &tcpLayer, payload)
        if err != nil {
                panic(err)
        }

        handle, err := pcap.OpenLive("eth0", 2048, false, 30*time.Second)
        if err != nil {
                log.Fatal("pcap打开网络设备失败:", err)
        }
        defer handle.Close()
        //向 我们的网络设备  发包
        err = handle.WritePacketData(buf.Bytes())
        if err != nil {
                log.Fatal("发送数据失败:", err)
        }
        log.Print("数据包已经发送\n")

}

5. 写在最后

  • 看官们都看到这了，如果文章对你有用就左手边点个👍再走呗；
avatar
文章
阅读
粉丝
