spring boot +shiro+mybaits 多数据源项目搭建【一】项目创建，mybatis plus配置

一、项目创建

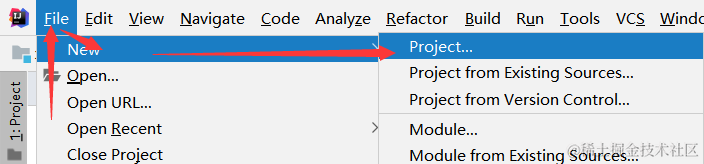

打开开发工具idea,按下图截图方式创建项目。

直接下一步

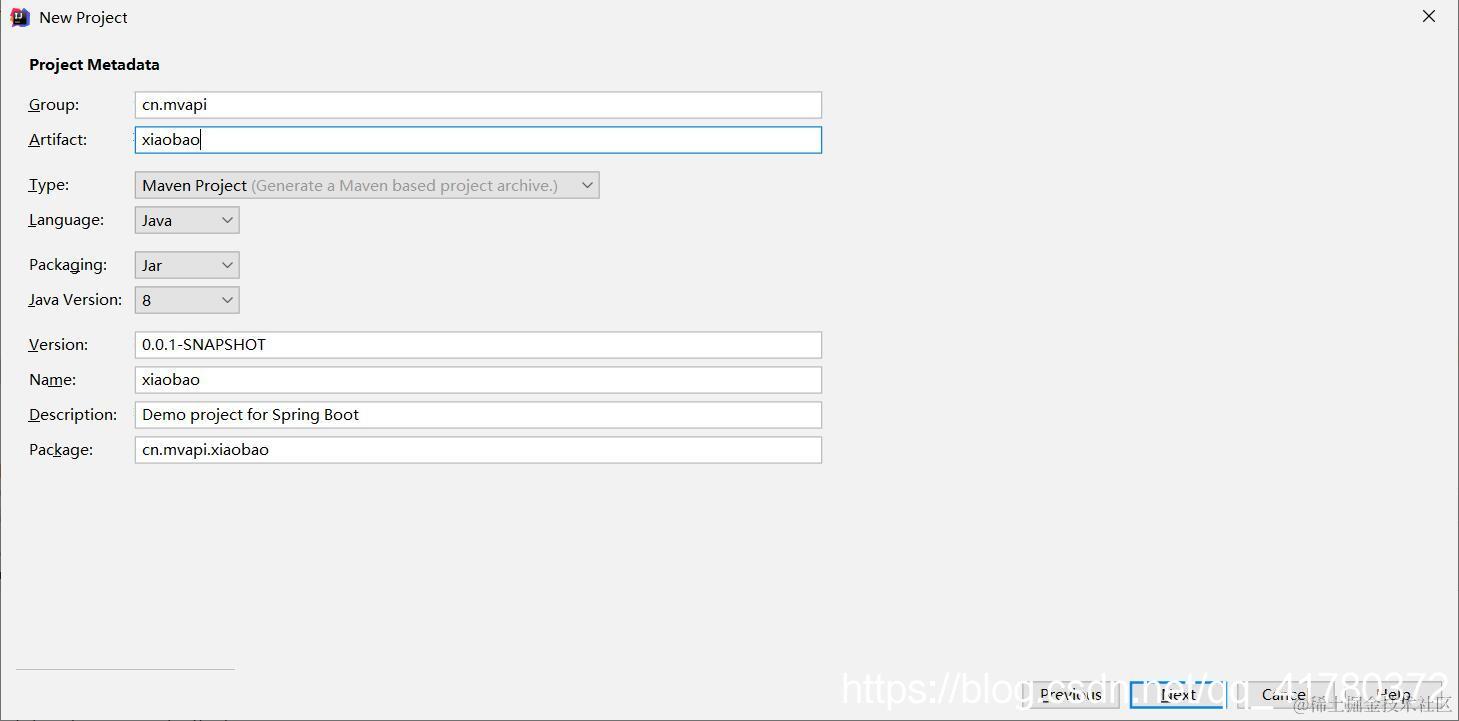

修改相关信息

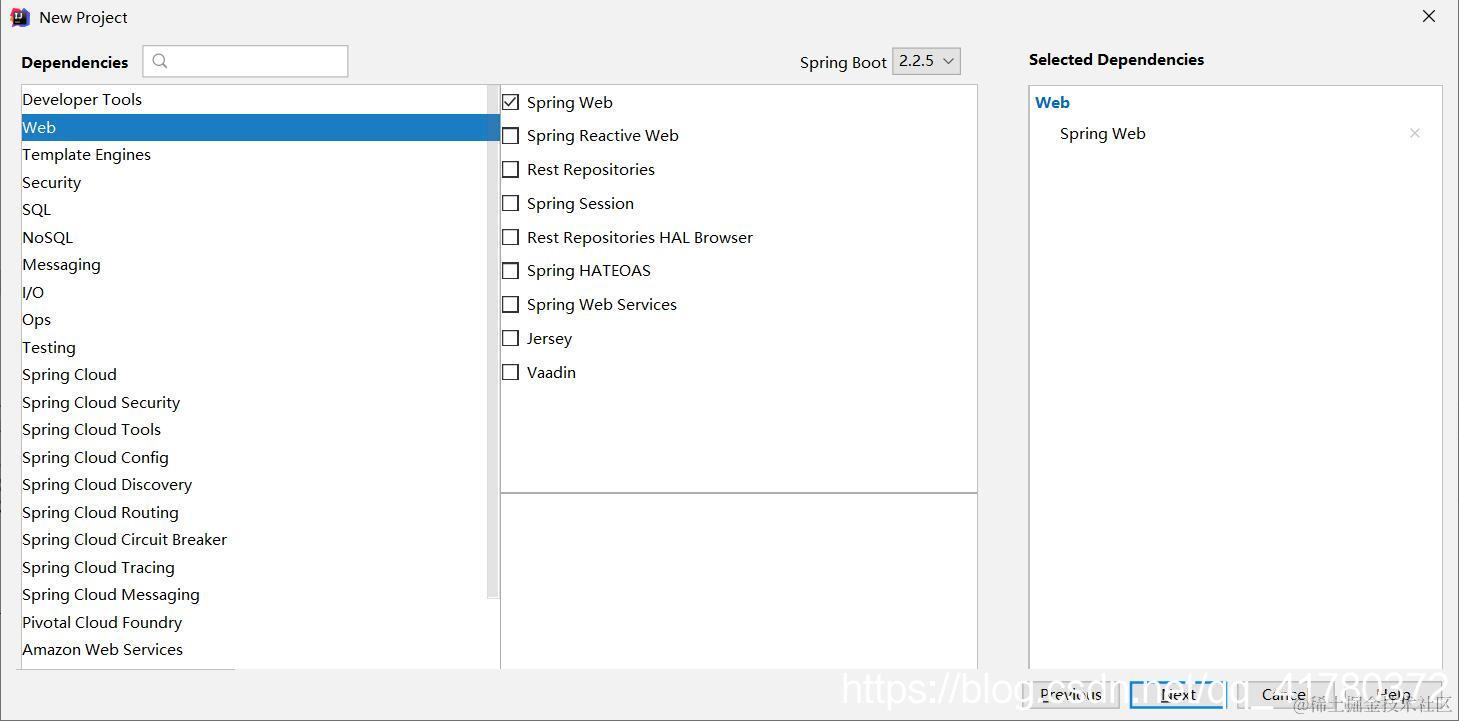

 这里可以直接下一步不用选，后面直接修改pom.xml 文件即可。

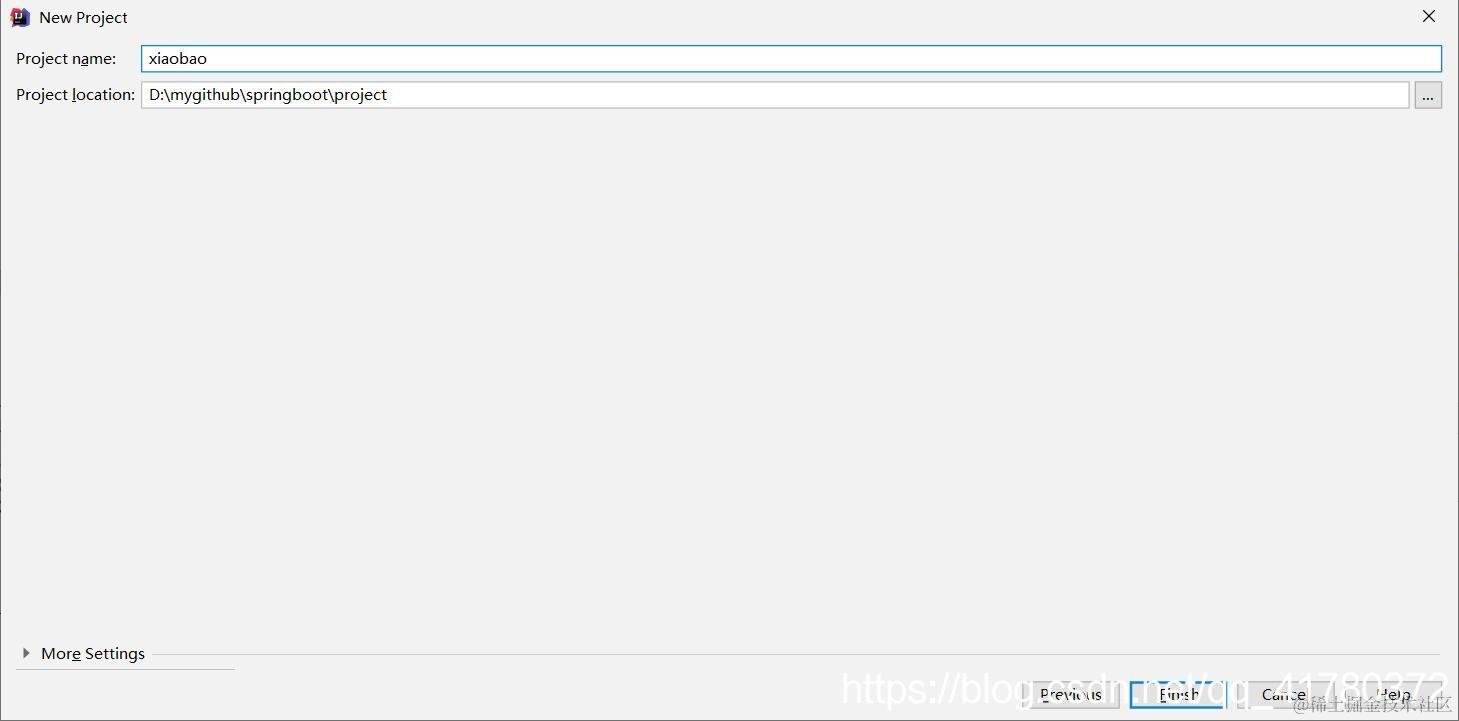

 项目创建完成，修改pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.3.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>cn.mvapi</groupId>
    <artifactId>xiaobao</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>xiaobao</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
        <mybatis-plus.version>3.1.0</mybatis-plus.version>
        <dynamic-datasource.version>2.5.4</dynamic-datasource.version>
        <commons.fileupload.version>1.3.3</commons.fileupload.version>
        <commons.io.version>2.5</commons.io.version>
        <shiro.version>1.5.1</shiro.version>
        <kaptcha.version>0.0.9</kaptcha.version>
        <hutool.version>4.4.5</hutool.version>
        <mybatis-plus-generator.version>3.1.0</mybatis-plus-generator.version>
        <fastjson.version>1.2.31</fastjson.version>
        <commons.version>3.8.1</commons.version>
    </properties>

    <dependencies>

        <!--包括Tomcat和spring-webmvc。-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--支持面向方面的编程即AOP，包括spring-aop和AspectJ。-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-aop</artifactId>
        </dependency>
        <!--为项目添加Redis依赖-->
      <!--  <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>-->
        <!--模板引擎-->
      <!--  <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-freemarker</artifactId>
        </dependency>-->
        <!--spring默认使用yml中的配置，但有时候要用传统的xml或properties配置，就需要使用spring-boot-configuration-processor-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
            <optional>true</optional>
        </dependency>
        <!--添加热部署-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <optional>true</optional>
        </dependency>
       <!-- 支持常规的测试依赖，包括JUnit、Hamcrest、Mockito以及spring-test模块。-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!--支持JDBC数据库。-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>

        <!--mybatisplus-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-extension</artifactId>
            <version>${mybatis-plus.version}</version>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>${mybatis-plus.version}</version>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>dynamic-datasource-spring-boot-starter</artifactId>
            <version>${dynamic-datasource.version}</version>
        </dependency>
        <!--mysql驱动-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>${mysql.version}</version>
        </dependency>
       <!-- 文件上传组件-->
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>${commons.fileupload.version}</version>
        </dependency>
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>${commons.io.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>


        <!--工具-->
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>${hutool.version}</version>
        </dependency>

        <dependency>
            <groupId>org.apache.shiro</groupId>
            <artifactId>shiro-core</artifactId>
            <version>${shiro.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.shiro</groupId>
            <artifactId>shiro-spring</artifactId>
            <version>${shiro.version}</version>
        </dependency>
       <!-- 图形验证码生成工具-->
        <dependency>
            <groupId>com.github.axet</groupId>
            <artifactId>kaptcha</artifactId>
            <version>${kaptcha.version}</version>
        </dependency>
        <!--自动生成 getters, setters, equals, hashCode and toString, and more!-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <scope>provided</scope>
        </dependency>
        <!--代码生成-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-generator</artifactId>
            <version>${mybatis-plus-generator.version}</version>
        </dependency>
        <!--模板引擎 代码生成用-->
        <dependency>
            <groupId>org.freemarker</groupId>
            <artifactId>freemarker</artifactId>
            <version>${freemarker.version}</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>${fastjson.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>${commons.version}</version>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>



二、项目配置

编辑配置文件application.yml

spring:
  profiles:
    active: dev  #对应loc表示本地，dev表示生产或者测试表的配置

新增application-dev.yml

# 项目相关配置
xiaobao:
  # 名称
  name: spring boot
  # 版本
  version: 1.0.0
  # 版权年份
  copyrightYear: 2020

server:       #配置服务
  port: 8081         #配置服务端口

spring:
  devtools:
    restart:
      enabled: true   #热部署启用
  datasource:
    dynamic:
      primary: master
      datasource:
        master:
          username: root
          password: 1234
          driver-class-name: com.mysql.cj.jdbc.Driver
          url: jdbc:mysql://127.0.0.1:3306/githubspringboot?characterEncoding=utf8&zeroDateTimeBehavior=convertToNull&useSSL=false&useJDBCCompliantTimezoneShift=true&useLegacyDatetimeCode=false&serverTimezone=GMT%2B8&nullCatalogMeansCurrent=true
        slave_1:
          username: root
          password: 1234
          driver-class-name: com.mysql.cj.jdbc.Driver
          url: jdbc:mysql://127.0.0.1:3306/xiaobaoplus?characterEncoding=utf8&zeroDateTimeBehavior=convertToNull&useSSL=false&useJDBCCompliantTimezoneShift=true&useLegacyDatetimeCode=false&serverTimezone=GMT%2B8&nullCatalogMeansCurrent=true

新增application-loc.yml，配置同上，也可以不要。

三、代码生成配置

创建文件

Mybatis-Plus.properties

#此处为本项目src所在路径（代码生成器输出路径）
OutputDir=D:\\mygithub\\springboot\\generator\\src\\main\\java
#mapper.xml的生成位置
OutputDirXml=D:\\mygithub\\springboot\\generator\\src\\main\\resources
#数据库表名(此处切不可为空，如果为空，则默认读取数据库的所有表名)
#=sys_role
tableName=
 #装代码的文件夹名
## F:\\xuan\\xiaobaoplus\\src\\main\\java\\cn\\mvapi\\xiaobaoplus\\xiaobaoplus\\test
className=




#设置作者
author=xiaobao
#自定义包路径
#F:\\xuan\\xiaobaoplus\\src\\main\\java\\cn\\mvapi\\xiaobaoplus\\xiaobaoplus\\test
parent=cn.mvapi.xiaobao.common.system
#数据库地址
url=jdbc:mysql://localhost:3306/githubspringboot?characterEncoding=utf8&zeroDateTimeBehavior=convertToNull&useSSL=false&useJDBCCompliantTimezoneShift=true&useLegacyDatetimeCode=false&serverTimezone=GMT%2B8&nullCatalogMeansCurrent=true&tinyInt1isBit=false
userName=root
password=1234

创建生成代码的类 CodeGenerate.java

package cn.mvapi.xiaobao.generator;

import com.baomidou.mybatisplus.annotation.DbType;
import com.baomidou.mybatisplus.core.toolkit.StringPool;
import com.baomidou.mybatisplus.generator.AutoGenerator;
import com.baomidou.mybatisplus.generator.InjectionConfig;
import com.baomidou.mybatisplus.generator.config.*;
import com.baomidou.mybatisplus.generator.config.po.TableInfo;
import com.baomidou.mybatisplus.generator.config.rules.NamingStrategy;
import com.baomidou.mybatisplus.generator.engine.FreemarkerTemplateEngine;

import java.util.ArrayList;
import java.util.List;
import java.util.ResourceBundle;

/**
 * @author a1838
 */
public class CodeGenerate {
    public static void main(String[] args) {

        //用来获取Mybatis-Plus.properties文件的配置信息
        final ResourceBundle rb = ResourceBundle.getBundle("mybatis-plus");

        // 代码生成器
        AutoGenerator mpg = new AutoGenerator();

        // 全局配置
        GlobalConfig gc = new GlobalConfig();
        gc.setOutputDir(rb.getString("OutputDir"));
        gc.setOpen(false);
        gc.setBaseResultMap(true);
        gc.setBaseColumnList(true);
        gc.setAuthor(rb.getString("author"));
        gc.setMapperName("%sDao");
        gc.setXmlName("%sMapper");
        gc.setServiceName("%sService");
        gc.setServiceImplName("%sServiceImpl");
        gc.setControllerName("%sController");

        mpg.setGlobalConfig(gc);

        // 数据源配置
        DataSourceConfig dsc = new DataSourceConfig();
        dsc.setDbType(DbType.MYSQL);
        dsc.setUrl(rb.getString("url"));
        dsc.setDriverName("com.mysql.cj.jdbc.Driver");
        dsc.setUsername(rb.getString("userName"));
        dsc.setPassword(rb.getString("password"));
        mpg.setDataSource(dsc);


        // 自定义配置
        InjectionConfig cfg = new InjectionConfig() {
            @Override
            public void initMap() {
                // to do nothing
            }
        };
        List<FileOutConfig> focList = new ArrayList<>();
        focList.add(new FileOutConfig("/templates/mapper.xml.ftl") {
            @Override
            public String outputFile(TableInfo tableInfo) {
                // 自定义输入文件名称
                return rb.getString("OutputDirXml") + "/mapper/" + rb.getString("className") + "/" + tableInfo.getEntityName() + StringPool.DOT_XML;
            }
        });
        cfg.setFileOutConfigList(focList);
        mpg.setCfg(cfg);
        mpg.setTemplate(new TemplateConfig().setXml(null));

        // 策略配置
        StrategyConfig strategy = new StrategyConfig();
        strategy.setNaming(NamingStrategy.underline_to_camel);
        strategy.setColumnNaming(NamingStrategy.underline_to_camel);
        strategy.setEntityLombokModel(true);
       // strategy.setInclude(new String[]{rb.getString("tableName")});

        // 包配置
        PackageConfig pc = new PackageConfig();
// pc.setModuleName("test");
        pc.setParent(rb.getString("parent"));// 自定义包路径
/*        pc.setController("controller."+rb.getString("className"));// 这里是控制器包名，默认 web
        pc.setEntity("model."+rb.getString("className"));
        pc.setMapper("dao."+rb.getString("className"));
        pc.setXml("mapping."+rb.getString("className"));
        pc.setService("service."+rb.getString("className"));
        pc.setServiceImpl("service."+rb.getString("className")+".impl");*/
        mpg.setPackageInfo(pc);

        mpg.setStrategy(strategy);
        mpg.setTemplateEngine(new FreemarkerTemplateEngine());
        mpg.execute();

    }
}

四、启动上面的类，将生成的代码拷贝到项目里面。

在项目启动类上添加注解，包名填写自己的

@MapperScan(basePackages = {"cn.mvapi.xiaobao.*"})

package cn.mvapi.xiaobao;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@MapperScan(basePackages = {"cn.mvapi.xiaobao.*"})
@SpringBootApplication
public class XiaobaoApplication {

    public static void main(String[] args) {
        SpringApplication.run(XiaobaoApplication.class, args);
        System.out.println("启动成功！");
    }

}

添加一个测试的controller

package cn.mvapi.xiaobao.projecttest;

import cn.mvapi.xiaobao.common.system.entity.SysMenu;
import cn.mvapi.xiaobao.common.system.service.SysMenuService;
import cn.mvapi.xiaobao.common.system.service.impl.SysMenuServiceImpl;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import java.util.List;

@Controller
public class testController {
    @Autowired
    private SysMenuServiceImpl sysMenuService;
    @ResponseBody
    @RequestMapping("dbtest")
    public List<SysMenu> dbtest(){
        return sysMenuService.list();
    }
}

 访问测试地址，能访问到数据代表成功。

下一章：blog.csdn.net/qq_41780372…



github地址：github.com/xiaobaos/sp…

码云地址：gitee.com/xiaobaomeat…

项目优先更新到github上面。
下一章：shiro整合。
