目录

概述

执行流程

XML版

搭建环境

步骤

实现

注解版

搭建环境

步骤

实现

概述

  • Spring MVC 是 Spring 提供的一个基于 MVC 设计模式的轻量级 Web 开发框架，本质上相当于 Servlet。

  • 由于 Spring MVC 本身就是 Spring 框架的一部分，所有与 Spring 框架是无缝集成。是当今业界最主流的 Web 开发框架。

执行流程

  1. 用户点击某个请求路径，发起一个 HTTP request 请求，该请求会被提交到 DispatcherServlet（前端控制器）；

  2. 由 DispatcherServlet 请求一个或多个 HandlerMapping（处理器映射器），并返回一个执行链（HandlerExecutionChain）。

  3. DispatcherServlet 将执行链返回的 Handler 信息发送给 HandlerAdapter（处理器适配器）；

  4. HandlerAdapter 根据 Handler 信息找到并执行相应的 Handler（常称为 Controller）；

  5. Handler 执行完毕后会返回给 HandlerAdapter 一个 ModelAndView 对象（Spring MVC的底层对象，包括 Model 数据模型和 View 视图信息）；

  6. HandlerAdapter 接收到 ModelAndView 对象后，将其返回给 DispatcherServlet ；

  7. DispatcherServlet 接收到 ModelAndView 对象后，会请求 ViewResolver（视图解析器）对视图进行解析；

  8. ViewResolver 根据 View 信息匹配到相应的视图结果，并返回给 DispatcherServlet；

  9. DispatcherServlet 接收到具体的 View 视图后，进行视图渲染，将 Model 中的模型数据填充到 View 视图中的 request 域，生成最终的 View（视图）；

  10. 视图负责将结果显示到浏览器（客户端）。

XML版

        搭建环境

                导入所需jar包坐标

<packaging>war</packaging>

    <properties>

        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>

        <maven.compiler.source>1.8</maven.compiler.source>

        <maven.compiler.target>1.8</maven.compiler.target>

    </properties>

    <dependencies>

        <dependency>

            <groupId>org.springframework</groupId>

            <artifactId>spring-context</artifactId>

            <version>5.2.4.RELEASE</version>

        </dependency>

        <dependency>

            <groupId>org.springframework</groupId>

            <artifactId>spring-aspects</artifactId>

            <version>5.2.4.RELEASE</version>

        </dependency>

        <dependency>

            <groupId>org.springframework</groupId>

            <artifactId>spring-test</artifactId>

            <version>5.2.4.RELEASE</version>

        </dependency>

        <dependency>

            <groupId>org.springframework</groupId>

            <artifactId>spring-webmvc</artifactId>

            <version>5.2.4.RELEASE</version>

        </dependency>

        <!-- 事务 -->

        <dependency>

            <groupId>org.springframework</groupId>

            <artifactId>spring-jdbc</artifactId>

            <version>5.2.4.RELEASE</version>

        </dependency>

        <!-- mysql驱动 -->

        <dependency>

            <groupId>mysql</groupId>

            <artifactId>mysql-connector-java</artifactId>

            <version>8.0.24</version>

        </dependency>

        <dependency>

            <groupId>com.alibaba</groupId>

            <artifactId>druid</artifactId>

            <version>1.2.4</version>

        </dependency>

        <dependency>

            <groupId>org.mybatis</groupId>

            <artifactId>mybatis</artifactId>

            <version>3.5.7</version>

        </dependency>

        <dependency>

            <groupId>tk.mybatis</groupId>

            <artifactId>mapper</artifactId>

            <version>3.5.2</version>

        </dependency>

        <dependency>

            <groupId>com.github.pagehelper</groupId>

            <artifactId>pagehelper</artifactId>

            <version>3.7.5</version>

        </dependency>

        <!--整合-->

        <dependency>

            <groupId>org.mybatis</groupId>

            <artifactId>mybatis-spring</artifactId>

            <version>2.0.5</version>

        </dependency>

        <dependency>

            <groupId>junit</groupId>

            <artifactId>junit</artifactId>

            <version>4.12</version>

        </dependency>

        <!-- mvc json -->

        <dependency>

            <groupId>com.fasterxml.jackson.core</groupId>

            <artifactId>jackson-databind</artifactId>

            <version>2.10.2</version>

        </dependency>

        <!--swagger2-->

        <dependency>

            <groupId>io.springfox</groupId>

            <artifactId>springfox-swagger2</artifactId>

            <version>2.7.0</version>

        </dependency>

        <dependency>

            <groupId>io.springfox</groupId>

            <artifactId>springfox-swagger-ui</artifactId>

            <version>2.7.0</version>

        </dependency>

        <!--文件上传-->

        <dependency>

            <groupId>commons-fileupload</groupId>

            <artifactId>commons-fileupload</artifactId>

            <version>1.4</version>

        </dependency>

        <!--jsp相关-->

        <dependency>

            <groupId>javax.servlet</groupId>

            <artifactId>javax.servlet-api</artifactId>

            <version>3.1.0</version>

            <scope>provided</scope>

        </dependency>

        <dependency>

            <groupId>javax.servlet.jsp</groupId>

            <artifactId>javax.servlet.jsp-api</artifactId>

            <version>2.3.1</version>

            <scope>provided</scope>

        </dependency>

        <dependency>

            <groupId>javax.servlet</groupId>

            <artifactId>jstl</artifactId>

            <version>1.2</version>

        </dependency>

        <dependency>

            <groupId>org.slf4j</groupId>

            <artifactId>slf4j-log4j12</artifactId>

            <version>1.7.10</version>

        </dependency>

    </dependencies>

        步骤

                1.编写Controller UserController

                2.编写jsp页面

                3.编写配置文件扫描Controller

                4.在web.xml中配置前端控制器

                5.编写首页 部署项目 并访问

        实现

                1.编写Controller UserController

@Controller

@RequestMapping("/user")

public class UserController {

@RequestMapping("/selectAll")

public String selectAll(){

return "/list.jsp";

    }

}

                2.编写jsp页面

<%@ page contentType="text/html;charset=UTF-8" language="java" %>

<html>

<head>

    <title>Title</title>

</head>

<body>

    列表页面

</body>

</html>

                3.编写springmvc.xml配置文件 扫描Controller

<?xml version="1.0" encoding="UTF-8"?>

<beans xmlns="http://www.springframework.org/schema/beans"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xmlns:p="http://www.springframework.org/schema/p"

xmlns:context="http://www.springframework.org/schema/context"

xmlns:aop="http://www.springframework.org/schema/aop"

xmlns:mvc="http://www.springframework.org/schema/mvc"

xsi:schemaLocation="http://www.springframework.org/schema/beans

                  http://www.springframework.org/schema/beans/spring-beans.xsd

                  http://www.springframework.org/schema/mvc

                  http://www.springframework.org/schema/mvc/spring-mvc.xsd

                  http://www.springframework.org/schema/aop

                  http://www.springframework.org/schema/aop/spring-aop.xsd

                  http://www.springframework.org/schema/context

                  http://www.springframework.org/schema/context/spring-context.xsd">

<context:component-scan base-package="com.czxy.mvc.controller"></context:component-scan>

</beans>

                4.在web.xml配置前端控制器

<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee

          http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"

version="4.0">

<display-name>Archetype Created Web Application</display-name>

<servlet>

<servlet-name>springmvc</servlet-name>

<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>

<init-param>

<param-name>contextConfigLocation</param-name>

<param-value>classpath:springmvc.xml</param-value>

</init-param>

</servlet>

<servlet-mapping>

<servlet-name>springmvc</servlet-name>

<url-pattern>*.action</url-pattern>

</servlet-mapping>

</web-app>

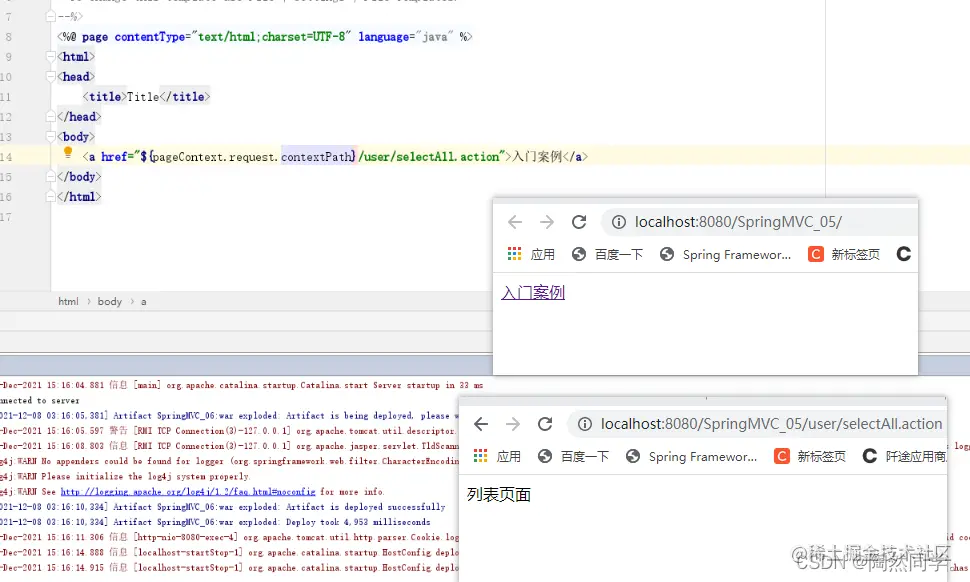

                5.编写首页 部署项目并访问

注解版

        搭建环境

        导入所需jar包坐标

<packaging>war</packaging>

    <properties>

        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>

        <maven.compiler.source>1.8</maven.compiler.source>

        <maven.compiler.target>1.8</maven.compiler.target>

        <!--声明不需要web.xml文件-->

        <failOnMissingWebXml>false</failOnMissingWebXml>

    </properties>

    <dependencies>

        <dependency>

            <groupId>org.springframework</groupId>

            <artifactId>spring-context</artifactId>

            <version>5.2.4.RELEASE</version>

        </dependency>

        <dependency>

            <groupId>org.springframework</groupId>

            <artifactId>spring-aspects</artifactId>

            <version>5.2.4.RELEASE</version>

        </dependency>

        <dependency>

            <groupId>org.springframework</groupId>

            <artifactId>spring-test</artifactId>

            <version>5.2.4.RELEASE</version>

        </dependency>

        <dependency>

            <groupId>org.springframework</groupId>

            <artifactId>spring-webmvc</artifactId>

            <version>5.2.4.RELEASE</version>

        </dependency>

        <!-- 事务 -->

        <dependency>

            <groupId>org.springframework</groupId>

            <artifactId>spring-jdbc</artifactId>

            <version>5.2.4.RELEASE</version>

        </dependency>

        <!-- mysql驱动 -->

        <dependency>

            <groupId>mysql</groupId>

            <artifactId>mysql-connector-java</artifactId>

            <version>8.0.24</version>

        </dependency>

        <dependency>

            <groupId>com.alibaba</groupId>

            <artifactId>druid</artifactId>

            <version>1.2.4</version>

        </dependency>

        <dependency>

            <groupId>org.mybatis</groupId>

            <artifactId>mybatis</artifactId>

            <version>3.5.7</version>

        </dependency>

        <dependency>

            <groupId>tk.mybatis</groupId>

            <artifactId>mapper</artifactId>

            <version>3.5.2</version>

        </dependency>

        <dependency>

            <groupId>com.github.pagehelper</groupId>

            <artifactId>pagehelper</artifactId>

            <version>3.7.5</version>

        </dependency>

        <!--整合-->

        <dependency>

            <groupId>org.mybatis</groupId>

            <artifactId>mybatis-spring</artifactId>

            <version>2.0.5</version>

        </dependency>

        <dependency>

            <groupId>junit</groupId>

            <artifactId>junit</artifactId>

            <version>4.12</version>

        </dependency>

        <!-- mvc json -->

        <dependency>

            <groupId>com.fasterxml.jackson.core</groupId>

            <artifactId>jackson-databind</artifactId>

            <version>2.10.2</version>

        </dependency>

        <!--swagger2-->

        <dependency>

            <groupId>io.springfox</groupId>

            <artifactId>springfox-swagger2</artifactId>

            <version>2.7.0</version>

        </dependency>

        <dependency>

            <groupId>io.springfox</groupId>

            <artifactId>springfox-swagger-ui</artifactId>

            <version>2.7.0</version>

        </dependency>

        <!--文件上传-->

        <dependency>

            <groupId>commons-fileupload</groupId>

            <artifactId>commons-fileupload</artifactId>

            <version>1.4</version>

        </dependency>

        <!--jsp相关-->

        <dependency>

            <groupId>javax.servlet</groupId>

            <artifactId>javax.servlet-api</artifactId>

            <version>3.1.0</version>

            <scope>provided</scope>

        </dependency>

        <dependency>

            <groupId>javax.servlet.jsp</groupId>

            <artifactId>javax.servlet.jsp-api</artifactId>

            <version>2.3.1</version>

            <scope>provided</scope>

        </dependency>

        <dependency>

            <groupId>javax.servlet</groupId>

            <artifactId>jstl</artifactId>

            <version>1.2</version>

        </dependency>

        <dependency>

            <groupId>org.slf4j</groupId>

            <artifactId>slf4j-log4j12</artifactId>

            <version>1.7.10</version>

        </dependency>

    </dependencies>

        步骤

                1.编写Controller UserController

                2.编写jsp 转发到jsp

                3.编写核心配置类(替代xml版 springconfig.xml)

                4.编写核心配置类(web.xm)

                5.编写首页 部署 并访问http://localhost:8080/maven_mvc_anno/user/selectAll.action

        实现

                1.编写Controller UserController

@Controller

@RequestMapping("/user")

public class UserController {

@RequestMapping("/selectAll")

public String selectAll(){

return "/list.jsp";

    }

}

                2.编写jsp 显示提示 list.jsp

<%@ page contentType="text/html;charset=UTF-8" language="java" %>

<html>

<head>

    <title>Title</title>

</head>

<body>

    列表

</body>

</html>

                3.编写配置类 MvcConfiguration1 扫描Controller

@Configuration

@ComponentScan(basePackages = "com.czxy.controller")

public class MvcConfiguration1 {

}

                4.编写WebInitializer 配置类

public class WebInitializer1 implements WebApplicationInitializer {

@Override

public void onStartup(ServletContext servletContext) throws ServletException {

AnnotationConfigWebApplicationContext application = new AnnotationConfigWebApplicationContext();

        application.register(MvcConfiguration1.class);

        FilterRegistration.Dynamic encodingFilter = servletContext.addFilter("encoding", new CharacterEncodingFilter("UTF-8"));

        encodingFilter.addMappingForUrlPatterns(null, true, "/*");

        ServletRegistration.Dynamic mvcServlet = servletContext.addServlet("springmvc", new DispatcherServlet(application));

        mvcServlet.addMapping("*.action");

        mvcServlet.setLoadOnStartup(2);

    }

}

                5.编写首页 index.jsp

<%@ page contentType="text/html;charset=UTF-8" language="java" %>

<html>

<head>

    <title>Title</title>

</head>

<body>

<a href="${pageContext.request.contextPath}/user/selectAll.action">入门案例</a>

</body>

</html>

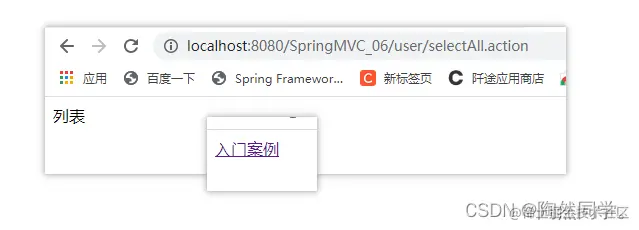

               6.部署并启动服务器 访问
