import cv2 as cv
import numpy as np
import matplotlib.pyplot as plt
# 设置兼容中文
plt.rcParams['font.family'] = ['sans-serif']
plt.rcParams['font.sans-serif'] = ['SimHei']

D:\Anaconda\AZWZ\lib\site-packages\numpy\_distributor_init.py:30: UserWarning: loaded more than 1 DLL from .libs:
D:\Anaconda\AZWZ\lib\site-packages\numpy\.libs\libopenblas.NOIJJG62EMASZI6NYURL6JBKM4EVBGM7.gfortran-win_amd64.dll
D:\Anaconda\AZWZ\lib\site-packages\numpy\.libs\libopenblas.WCDJNK7YVMPZQ2ME2ZZHJJRJ3JIKNDB7.gfortran-win_amd64.dll
  warnings.warn("loaded more than 1 DLL from .libs:\n%s" %

dogsp = cv.imread('img/dogsp.jpeg')
dogGauss = cv.imread('img/dogGauss.jpeg')

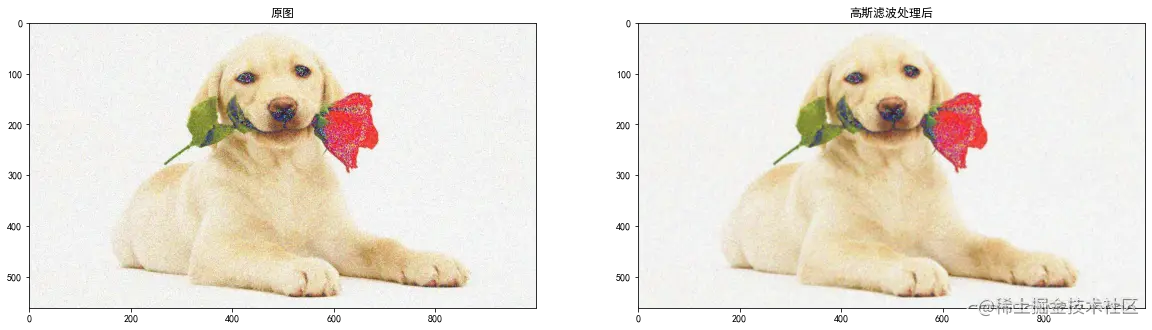

1.均值滤波(计算简单，速度快，但容易使照片模糊)

dog1 = cv.blur(dogsp,(5,5))
plt.figure(figsize=(20,20))
plt.subplot(1,2,1)
m1 = plt.imshow(dogsp[:,:,::-1])
plt.title('原图')
plt.subplot(1,2,2)
m1 = plt.imshow(dog1[:,:,::-1])
plt.title('均值滤波处理后')

Text(0.5, 1.0, '均值滤波处理后')

dog2 = cv.blur(dogGauss,(5,5))
plt.figure(figsize=(20,20))
plt.subplot(1,2,1)
m1 = plt.imshow(dogGauss[:,:,::-1])
plt.title('原图')
plt.subplot(1,2,2)
m1 = plt.imshow(dog2[:,:,::-1])
plt.title('均值滤波处理后')

Text(0.5, 1.0, '均值滤波处理后')

2.高斯滤波(中心点权重较高，周围点权重较低，比较适合处理高斯噪声)

dog1 = cv.GaussianBlur(dogsp,(3,3),1)
plt.figure(figsize=(20,20))
plt.subplot(1,2,1)
m1 = plt.imshow(dogsp[:,:,::-1])
plt.title('原图')
plt.subplot(1,2,2)
m1 = plt.imshow(dog1[:,:,::-1])
plt.title('高斯滤波处理后')

Text(0.5, 1.0, '高斯滤波处理后')

dog2 = cv.GaussianBlur(dogGauss,(3,3),1)
plt.figure(figsize=(20,20))
plt.subplot(1,2,1)
m1 = plt.imshow(dogGauss[:,:,::-1])
plt.title('原图')
plt.subplot(1,2,2)
m1 = plt.imshow(dog2[:,:,::-1])
plt.title('高斯滤波处理后')

Text(0.5, 1.0, '高斯滤波处理后')

3.中值滤波(使用邻域灰度值的中值作为中心点灰度值,非常适合处理椒盐噪声)

dog1 = cv.medianBlur(dogsp,5)
plt.figure(figsize=(20,20))
plt.subplot(1,2,1)
m1 = plt.imshow(dogsp[:,:,::-1])
plt.title('原图')
plt.subplot(1,2,2)
m1 = plt.imshow(dog1[:,:,::-1])
plt.title('中值滤波处理后')

Text(0.5, 1.0, '中值滤波处理后')

dog2 = cv.medianBlur(dogGauss,5)
plt.figure(figsize=(20,20))
plt.subplot(1,2,1)
m1 = plt.imshow(dogGauss[:,:,::-1])
plt.title('原图')
plt.subplot(1,2,2)
m1 = plt.imshow(dog2[:,:,::-1])
plt.title('中值滤波处理后')

Text(0.5, 1.0, '中值滤波处理后')
