基于spring cloud + nacos + gateway + ssm+的学生管理系统

米诺对
180 阅读8分钟
  • 前端：vue + spa + axios
  • 后端：spring cloud + nacos + gateway + ssm+

1.环境搭建

1.0 数据库

#学生数据库
CREATE DATABASE nacos_ssm_student;
USE nacos_ssm_student;

CREATE TABLE tb_city(
  c_id VARCHAR(32) PRIMARY KEY COMMENT '城市ID',
  city_name VARCHAR(20) COMMENT '城市名称' ,
  parent_id VARCHAR(32) COMMENT '父ID'
);

INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('320000','江苏省','0');
INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('140000','山西省','0');
INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('130000','河北省','0');

INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('320100','南京市','320000');
INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('320102','玄武区','320100');
INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('320103','白下区','320100');

INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('321300','宿迁市','320000');
INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('321322','沭阳县','321300');
INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('321323','泗阳县','321300');


INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('140100','太原市','140000');
INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('140106','迎泽区','140100');
INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('140108','尖草坪区','140100');

INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('140800','运城市','140000');
INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('140823','闻喜县','140800');
INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('140828','夏　县','140800');

INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('130100','石家庄市','130000');
INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('130127','高邑县','130100');
INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('130185','鹿泉市','130100');

INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('131000','廊坊市','130000');
INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('131003','广阳区','131000');
INSERT INTO tb_city(c_id,city_name,parent_id) VALUES('131022','固安县','131000');


CREATE TABLE `tb_student` (
  `s_id` INT NOT NULL PRIMARY KEY AUTO_INCREMENT COMMENT '学生ID',
  `sname` VARCHAR(50) DEFAULT NULL COMMENT '姓名',
  `age` INT(11) DEFAULT NULL COMMENT '年龄',
  `birthday` DATETIME DEFAULT NULL COMMENT '生日',
  `gender` CHAR(1) DEFAULT NULL COMMENT '性别',
  `c_id` INT DEFAULT NULL,
  `city_ids` VARCHAR(32) DEFAULT NULL COMMENT '城市：320000,321300,321322'
);

INSERT  INTO `tb_student`(`s_id`,`sname`,`age`,`birthday`,`gender`,`c_id`,`city_ids`) VALUES (1,'赵三33',21,'2001-01-17 00:00:00','1',1,'320000,321300,321322');
INSERT  INTO `tb_student`(`s_id`,`sname`,`age`,`birthday`,`gender`,`c_id`,`city_ids`) VALUES (2,'钱四444',1900,'2001-05-16 00:00:00','1',2,'320000,321300,321322');
INSERT  INTO `tb_student`(`s_id`,`sname`,`age`,`birthday`,`gender`,`c_id`,`city_ids`) VALUES (3,'孙五56',189,'2022-03-15 00:00:00','0',1,'320000,321300,321322');
INSERT  INTO `tb_student`(`s_id`,`sname`,`age`,`birthday`,`gender`,`c_id`,`city_ids`) VALUES (4,'张三',20,'2020-12-21 00:00:00','0',2,'320000,321300,321322');
INSERT  INTO `tb_student`(`s_id`,`sname`,`age`,`birthday`,`gender`,`c_id`,`city_ids`) VALUES (5,'xxx',18,'2020-12-21 00:00:00','0',2,'140000,140800,140823');
INSERT  INTO `tb_student`(`s_id`,`sname`,`age`,`birthday`,`gender`,`c_id`,`city_ids`) VALUES (6,'123',18,'2020-11-01 00:00:00','0',3,'130000,130100,130127');
INSERT  INTO `tb_student`(`s_id`,`sname`,`age`,`birthday`,`gender`,`c_id`,`city_ids`) VALUES (7,'xx',18,'2020-11-02 00:00:00','0',1,'130000,131000,131003');

1.1 后端环境

1.1.1 父项目

  • 坐标

        <!-- 1 确定spring boot的版本-->
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.5.RELEASE</version>
    </parent>

    <!--2  确定版本-->
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <java.version>1.8</java.version>
        <spring-cloud-release.version>Hoxton.SR3</spring-cloud-release.version>
        <nacos.version>1.1.0</nacos.version>
        <alibaba.cloud.version>2.2.1.RELEASE</alibaba.cloud.version>
        <mybatis.starter.version>1.3.2</mybatis.starter.version>
        <mapper.starter.version>2.0.2</mapper.starter.version>
        <mysql.version>5.1.32</mysql.version>
        <pageHelper.starter.version>1.2.5</pageHelper.starter.version>
        <durid.starter.version>1.1.10</durid.starter.version>
        <swagger.version>2.7.0</swagger.version>
        <jwt.jjwt.version>0.9.0</jwt.jjwt.version>
        <jwt.joda.version>2.9.7</jwt.joda.version>
        <beanutils.version>1.9.3</beanutils.version>
        <student.version>1.0-SNAPSHOT</student.version>
    </properties>

    <!-- 3 锁定版本-->
    <dependencyManagement>
        <dependencies>
            <!-- sprig cloud-->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud-release.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--nacos -->
            <dependency>
                <groupId>com.alibaba.nacos</groupId>
                <artifactId>nacos-client</artifactId>
                <version>${nacos.version}</version>
            </dependency>

            <!--nacos cloud 发现 -->
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
                <version>${alibaba.cloud.version}</version>
            </dependency>

            <!--nacos cloud 配置 -->
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
                <version>${alibaba.cloud.version}</version>
            </dependency>

            <!-- https://mvnrepository.com/artifact/com.alibaba.cloud/spring-cloud-starter-alibaba-sentinel -->
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
                <version>${alibaba.cloud.version}</version>
            </dependency>

            <!-- mybatis plus启动器 -->
            <dependency>
                <groupId>com.baomidou</groupId>
                <artifactId>mybatis-plus-boot-starter</artifactId>
                <version>3.4.0</version>
            </dependency>
            <dependency>
                <groupId>com.baomidou</groupId>
                <artifactId>mybatis-plus-annotation</artifactId>
                <version>3.4.0</version>
            </dependency>

            <!-- mysql驱动 -->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql.version}</version>
            </dependency>
            <!-- Druid连接池 -->
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid-spring-boot-starter</artifactId>
                <version>${durid.starter.version}</version>
            </dependency>

            <!--swagger2-->
            <dependency>
                <groupId>io.springfox</groupId>
                <artifactId>springfox-swagger2</artifactId>
                <version>${swagger.version}</version>
            </dependency>
            <dependency>
                <groupId>io.springfox</groupId>
                <artifactId>springfox-swagger-ui</artifactId>
                <version>${swagger.version}</version>
            </dependency>

            <!--jwt-->
            <!--JavaBean工具类，用于JavaBean数据封装-->
            <dependency>
                <groupId>commons-beanutils</groupId>
                <artifactId>commons-beanutils</artifactId>
                <version>${beanutils.version}</version>
            </dependency>

            <!--jwt工具-->
            <dependency>
                <groupId>io.jsonwebtoken</groupId>
                <artifactId>jjwt</artifactId>
                <version>${jwt.jjwt.version}</version>
            </dependency>

            <!--joda 时间工具类 -->
            <dependency>
                <groupId>joda-time</groupId>
                <artifactId>joda-time</artifactId>
                <version>${jwt.joda.version}</version>
            </dependency>

            <!-- 自定义项目 -->
            <dependency>
                <groupId>com.czxy</groupId>
                <artifactId>nacos-ssm-fx-domain-bg12</artifactId>
                <version>${student.version}</version>
            </dependency>

        </dependencies>

    </dependencyManagement>

1.1.2 domain项目

  • 坐标

        <dependencies>
        <!--lombok-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <!--jackson-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-json</artifactId>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-annotation</artifactId>
        </dependency>

    </dependencies>

  • JavaBean

    package com.czxy.domain;

import com.baomidou.mybatisplus.annotation.TableField;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableName;
import com.fasterxml.jackson.annotation.JsonFormat;
import lombok.Data;

import java.util.Date;


@TableName("tb_student")
@Data
public class Student {
    @TableId("s_id")
    private Integer sid;

    @TableField("sname")
    private String sname;

    @TableField("age")
    private Integer age;

    @TableField("birthday")
    @JsonFormat(pattern = "yyyy-MM-dd", timezone = "GMT+8")
    private Date birthday;

    @TableField("gender")
    private String gender;

    @TableField("c_id")
    private Integer cid;

    @TableField("city_ids")
    private String cityIds;

}

/*
CREATE TABLE `tb_student` (
  `s_id` INT NOT NULL PRIMARY KEY AUTO_INCREMENT COMMENT '学生ID',
  `sname` VARCHAR(50) DEFAULT NULL COMMENT '姓名',
  `age` INT(11) DEFAULT NULL COMMENT '年龄',
  `birthday` DATETIME DEFAULT NULL COMMENT '生日',
  `gender` CHAR(1) DEFAULT NULL COMMENT '性别',
  `c_id` INT DEFAULT NULL,
  `city_ids` VARCHAR(32) DEFAULT NULL COMMENT '城市：320000,321300,321322'
);
 */

  • 拷贝：BaseResult

    package com.czxy.vo;

import lombok.Getter;

import java.util.HashMap;
import java.util.Map;


@Getter
public class BaseResult<T> {

    //成功状态码
    public static final int OK = 20000;
    //失败状态码
    public static final int ERROR = 0;

    //返回码
    private Integer code;
    //返回消息
    private String message;

    //存放数据
    private T data;
    //其他数据
    private Map<String,Object> other = new HashMap<>();

    public BaseResult() {

    }

    public BaseResult(Integer code, String message) {
        this.code = code;
        this.message = message;
    }
    public BaseResult(Integer code, String message, T data) {
        this.code = code;
        this.message = message;
        this.data = data;
    }

    /**
     * 快捷成功BaseResult对象
     * @param message
     * @return
     */
    public static BaseResult ok(String message){
        return new BaseResult(BaseResult.OK , message);
    }

    public static BaseResult ok(String message, Object data){
        return new BaseResult(BaseResult.OK , message, data );
    }

    /**
     * 快捷失败BaseResult对象
     * @param message
     * @return
     */
    public static BaseResult error(String message){
        return new BaseResult(BaseResult.ERROR , message);
    }

    /**
     * 自定义数据区域
     * @param key
     * @param msg
     * @return
     */
    public BaseResult append(String key , Object msg){
        other.put(key , msg);
        return this;
    }

//    public Integer getCode() {
//        return code;
//    }
//
//    public String getMessage() {
//        return message;
//    }
//
//    public T getData() {
//        return data;
//    }
//
//    public Map<String, Object> getOther() {
//        return other;
//    }
}

1.1.3 网关gateway

  • 坐标

        <dependencies>
        <!-- 网关 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-gateway</artifactId>
        </dependency>

        <!-- nacos 服务发现 -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>


        <!--JavaBean工具类，用于JavaBean数据封装-->
        <dependency>
            <groupId>commons-beanutils</groupId>
            <artifactId>commons-beanutils</artifactId>
        </dependency>

               <!--jwt工具-->
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt</artifactId>
        </dependency>

        <!--joda 时间工具类 -->
        <dependency>
            <groupId>joda-time</groupId>
            <artifactId>joda-time</artifactId>
        </dependency>


    </dependencies>

  • yml配置文件：application.yml

    #端口号
server:
  port: 10010
spring:
  application:
    name: student-gateway
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848   #nacos服务地址
    gateway:
      discovery:
        locator:
          enabled: true               #开启服务注册和发现的功能，自动创建router以服务名开头的请求路径转发到对应的服务
          lowerCaseServiceId: true    #将请求路径上的服务名配置为小写

  • 启动类

    package com.czxy;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;


@SpringBootApplication
@EnableDiscoveryClient  //服务发现
public class GatewayApplication {
    public static void main(String[] args) {
        SpringApplication.run(GatewayApplication.class,args);
    }
}

  • 跨域配置类：config/GlobalGatewayCorsConfig.java

    package com.czxy.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpMethod;
import org.springframework.http.HttpStatus;
import org.springframework.http.server.reactive.ServerHttpRequest;
import org.springframework.http.server.reactive.ServerHttpResponse;
import org.springframework.web.cors.reactive.CorsUtils;
import org.springframework.web.server.ServerWebExchange;
import org.springframework.web.server.WebFilter;
import org.springframework.web.server.WebFilterChain;
import reactor.core.publisher.Mono;


@Configuration
public class GlobalGatewayCorsConfig {

    @Bean
    public WebFilter corsFilter2() {
        return (ServerWebExchange ctx, WebFilterChain chain) -> {
            ServerHttpRequest request = ctx.getRequest();
            if (CorsUtils.isCorsRequest(request)) {
                HttpHeaders requestHeaders = request.getHeaders();
                ServerHttpResponse response = ctx.getResponse();
                HttpMethod requestMethod = requestHeaders.getAccessControlRequestMethod();
                HttpHeaders headers = response.getHeaders();
                headers.add(HttpHeaders.ACCESS_CONTROL_ALLOW_ORIGIN, requestHeaders.getOrigin());
                headers.addAll(HttpHeaders.ACCESS_CONTROL_ALLOW_HEADERS,
                        requestHeaders.getAccessControlRequestHeaders());
                if (requestMethod != null) {
                    headers.add(HttpHeaders.ACCESS_CONTROL_ALLOW_METHODS, requestMethod.name());
                }
                headers.add(HttpHeaders.ACCESS_CONTROL_ALLOW_CREDENTIALS, "true");
                headers.add(HttpHeaders.ACCESS_CONTROL_EXPOSE_HEADERS, "*");
                if (request.getMethod() == HttpMethod.OPTIONS) {
                    response.setStatusCode(HttpStatus.OK);
                    return Mono.empty();
                }
            }
            return chain.filter(ctx);
        };
    }

}

1.1.4 学生服务

  • 坐标

        <dependencies>
        <!--web起步依赖-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!-- nacos 客户端 -->
        <dependency>
            <groupId>com.alibaba.nacos</groupId>
            <artifactId>nacos-client</artifactId>
        </dependency>

        <!-- nacos 服务发现 -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>

        <!-- mybatis plus启动器 -->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
        </dependency>

        <!-- mysql驱动 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!-- Druid连接池 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
        </dependency>

        <!--swagger2-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
        </dependency>
        <!-- feign 远程调用 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <!-- 自定义项目 -->
        <dependency>
            <groupId>com.czxy</groupId>
            <artifactId>nacos-ssm-fx-domain-bg12</artifactId>
        </dependency>

    </dependencies>

  • yml配置文件

    #端口号
server:
  port: 9001

spring:
  application:
    name: student-plus-service          #服务名
  datasource:
    driverClassName: com.mysql.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/nacos_ssm_student?useUnicode=true&characterEncoding=utf8
    username: root
    password: 1234
    druid:    #druid 连接池配置
      initial-size: 1       #初始化连接池大小
      min-idle: 1           #最小连接数
      max-active: 20        #最大连接数
      test-on-borrow: true  #获取连接时候验证，会影响性能
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848   #nacos服务地址
    sentinel:
      transport:
        dashboard: 127.0.0.1:8080

  • 启动类

    package com.czxy;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@SpringBootApplication
@EnableDiscoveryClient
public class StudentServiceApplication {
    public static void main(String[] args) {
        SpringApplication.run(StudentServiceApplication.class,args);
    }
}

  • 配置类：config/Swagger2ConfigurationV3.java

    package com.czxy.config;


import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.*;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spi.service.contexts.SecurityContext;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.util.ArrayList;
import java.util.List;

/**
 * Swagger2 配置类，
 * 访问路径：swagger-ui.html
 * 自动注册：
 *     位置：resources/META-INF/spring.factories
 *     内容：
 *        org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
 *          com.czxy.config.Swagger2Configuration
 */
@Configuration
@EnableSwagger2
public class Swagger2ConfigurationV3 {

    @Bean
    public Docket createRestApi() {
        // 1 确定文档Swagger版本
        Docket docket = new Docket(DocumentationType.SWAGGER_2);
        // 2 设置 api基本信息
        docket.apiInfo(apiInfo());
        // 3 设置自定义加载路径
        docket = docket.select()
                .apis(RequestHandlerSelectors.basePackage("com.czxy"))
                .paths(PathSelectors.any())
                .build();
        //4 设置权限
        docket.securitySchemes(securitySchemes());
        docket.securityContexts(securityContexts());

        return docket;
    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("API")
                .description("基于swagger接口文档")
                .contact(new Contact("梁桐","http://www.javaliang.com","liangtong@itcast.cn"))
                .version("1.0")
                .build();
    }

    private List<ApiKey> securitySchemes() {
        List<ApiKey> list = new ArrayList<>();
        // name 为参数名  keyname是页面传值显示的 keyname， name在swagger鉴权中使用
        list.add(new ApiKey("Authorization", "Authorization", "header"));
        return list;
    }

    private List<SecurityContext> securityContexts() {
        List<SecurityContext> list = new ArrayList<>();
        list.add(SecurityContext.builder()
                .securityReferences(defaultAuth())
                .forPaths(PathSelectors.regex("^(?!auth).*$"))
                .build());
        return list;
    }

    private List<SecurityReference> defaultAuth() {
        AuthorizationScope authorizationScope = new AuthorizationScope("global", "accessEverything");
        AuthorizationScope[] authorizationScopes = new AuthorizationScope[1];
        authorizationScopes[0] = authorizationScope;
        List<SecurityReference> list = new ArrayList();
        list.add(new SecurityReference("Authorization", authorizationScopes));
        return list;
    }

}

1.2 前端环境

1.2.1 创建项目：

vue create nacos-fx-spa-bg12

1.2.2 整合axios

  • 下载axios

    cnpm install axios --save

  • 抽取工具 request.js

    npm i element-ui --save

    src/utils/request.js

    import axios from 'axios'
import { MessageBox, Message } from 'element-ui'

// 方式1：设置基本路径
// axios.defaults.baseURL='http://localhost:10010/api'

// 方式2：create an axios instance，并设置基本路径
const service = axios.create({
  baseURL: process.env.VUE_APP_BASE_API, // url = base url + request url
  // withCredentials: true, // send cookies when cross-domain requests
  timeout: 5000 // request timeout
})



// request interceptor
service.interceptors.request.use(
  config => {
    // 请求头中追加token
    let token = localStorage.getItem('token')
    if (token) {
      config.headers.Authorization = token
    }
    return config
  },
  error => {
    // do something with request error
    console.log(error) // for debug
    return Promise.reject(error)
  }
)

// response interceptor
service.interceptors.response.use(

  response => {
    const res = response.data

    // if the custom code is not 20000, it is judged as an error.
    if (res.code !== 20000) {
      Message({
        message: res.message || 'Error',
        type: 'error',
        duration: 5 * 1000
      })

      // ajax异常提示信息 (路径信息，数据)
      console.info(response.config, response.data )
      return Promise.reject(new Error(res.message || 'Error'))
    } else {
      return res
    }
  },
  error => {
    console.log('err' + error) // for debug
    if(error.response.status == 401) {
      MessageBox.confirm(error.response.data, '重新登录确认框', {
        confirmButtonText: '重新登录',
        cancelButtonText: '取消',
        type: 'warning'
      }).then(() => {
        // 删除token
        localStorage.removeItem('token')
        location.reload()
      })
    } else {
      Message({
        message: error.message,
        type: 'error',
        duration: 5 * 1000
      })
    }
    return Promise.reject(error)
  }
)

export default service

  • 抽取api：

    • 将ajax抽取到一个student.js文件中，student.js调用request.js（使用增强后的axios）

      // 导入工具 request.js
import axios from '@/utils/request.js'

// 编写功能方法
export function selectAll() {
    return axios.get('/student-plus-service/student')
}

    • request.js ajax访问路径的前缀baseURL，抽取到配置文件中 .env.development

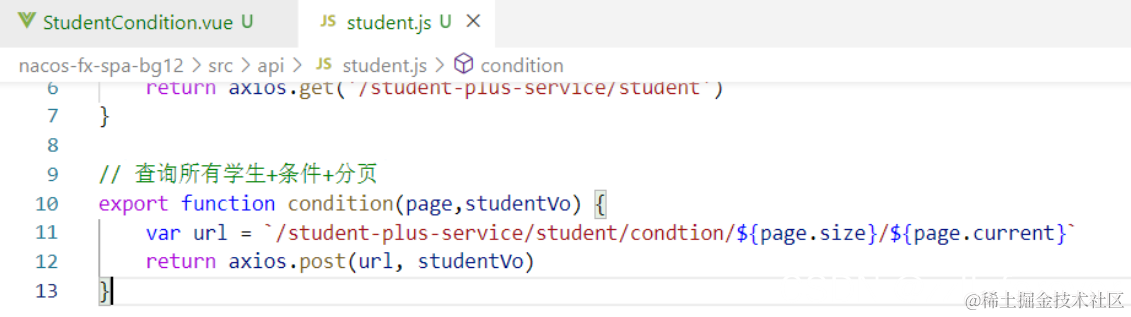

在这里插入图片描述

~~~
# just a flag
ENV = 'development'

# base api
VUE_APP_BASE_API = 'http://localhost:10010/'
~~~

2. 学生管理

2.1 查询所有的学生

2.1.1 后端

  • 步骤：

    • 步骤1：编写mapper，通用mapper
    • 步骤2：编写service，通用service 接口 + 实现类
    • 步骤3：编写controller

  • 步骤1：编写mapper，通用mapper

    package com.czxy.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.czxy.domain.Student;
import org.apache.ibatis.annotations.Mapper;

@Mapper
public interface StudentMapper extends BaseMapper<Student> {
}

  • 步骤2：编写service，通用service 接口 + 实现类

    • 接口

      package com.czxy.service;

import com.baomidou.mybatisplus.extension.service.IService;
import com.czxy.domain.Student;


public interface StudentService extends IService<Student> {
}

    • 实现类

      package com.czxy.service.impl;

import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.czxy.domain.Student;
import com.czxy.mapper.StudentMapper;
import com.czxy.service.StudentService;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;


@Service
@Transactional
public class StudentServiceImpl extends ServiceImpl<StudentMapper, Student> implements StudentService {
}

  • 步骤3：编写controller, GET请求 + BaseResult

    package com.czxy.controller;

import com.czxy.domain.Student;
import com.czxy.service.StudentService;
import com.czxy.vo.BaseResult;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;
import java.util.List;


@RestController
@RequestMapping("/student")
public class StudentController {
    @Resource
    private StudentService studentService;

    @GetMapping
    public BaseResult selectAll() {
        // 1.请求数据
        // 2 查询
        List<Student> list = studentService.list();
        // 3 响应结果
        return BaseResult.ok("查询成功", list);
        /*
        BaesResult baseResult = new BaseResult();
        baseResult.setCode(20000);          //自定义编码
        baseResult.setMessage("查询成功");  //提示信息
        baseResult.setData( list );         //结果数据
         */
    }
}

2.1.2 前端

1）访问页面

  • 步骤1：修改App.vue页面，确定访问路径

    <template>
  <div id="app">
    <!-- 导航条，切换路由 -->
    <div id="nav">
      <router-link to="/">Home</router-link> |
      <router-link to="/studentList">学生列表</router-link>
    </div>
    <!-- 路由视图，用于显示内容 -->
    <router-view/>
  </div>
</template>

<style>

</style>

  • 步骤2：修改路由 src/router/index.js 编写访问路径

    import Home from '../views/Home.vue'
const routes = [
  {
    path: '/',
    name: 'Home',
    component: Home
  },
  {
    path: '/studentList',
    name: '学生列表',
    component: () => import('../views/StudentList.vue')
  }
]

  • 步骤3：创建StudentList.vue页面

    <template>
  <div>
    学生列表页面
  </div>
</template>

<script>
export default {

}
</script>

<style>

</style>
2）显示查询结果

  • 步骤：

    • 步骤1：导入api，获得查询所有函数
    • 步骤2：编写查询所有学生函数，调用导入api函数，完成ajax操作，查询结果保存studentList
    • 步骤3：页面加载成功后，查询
    • 步骤4：遍历展示
<template>
  <div>
    <!-- 4 展示数据 -->
    <table border="1">
      <tr>
        <td>编号</td>
        <td>姓名</td>
        <td>年龄</td>
        <td>生日</td>
        <td>性别</td>
        <td>班级</td>
        <td>操作</td>
      </tr>
      <tr v-for="(student,index) in studentList" :key="index">
        <td>{{student.sid}}</td>
        <td>{{student.sname}}</td>
        <td>{{student.age}}</td>
        <td>{{student.birthday}}</td>
        <td>{{student.gender == 1 ? '男' : '女'}}</td>
        <td>{{student.cid}}</td>
        <td>
          修改
          删除
        </td>
      </tr>
    </table>
  </div>
</template>

<script>
//1 导入查询函数
import {selectAll} from '../api/student'
export default {
  data() {
    return {
      studentList: []
    }
  },
  methods: {
    async selectAllStudent() {
      //2 ajax查询 -- request.js 中对响应结果response进行再处理，返回的是 response.data
      let {data} = await selectAll()   // {data} 从 baseResult中结果data，也就是查询结果
      // 将查询结果保存数据区域
      this.studentList = data
    }
  },
  mounted() {
    // 3 页面加载成功，查询所有
    this.selectAllStudent()
  },
}
</script>

<style>

</style>

2.2 条件查询 + 分页

2.2.1 后端步骤

  • 确定访问路径

    http://localhost:10010/student-plus-service/student/condition/{size}/{current}

  • 步骤1：准备条件封装StudentVo

  • 步骤2：编写controller，获得分页参数+条件，返回 Page进行结果封装

  • 步骤3：编写service

    • 1）查询条件
    • 2）分页
    • 3）查询
    • 4）关联
    • 5）处理/返回结果

  • 步骤4：拷贝MyBatisPlus分页配置类

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-pEssSDxP-1645576553138)(assets/image-20220222150608792.png)]

2.2.2 后端实现

  • 步骤1：准备条件封装StudentVo

    package com.czxy.vo;

import lombok.Data;


@Data
public class StudentVo {
    private String cid;
    private String sname;
    private String startAge;
    private String endAge;
}

  • 步骤2：编写controller，获得分页参数+条件，返回 Page进行结果封装

        /**
     *
     * @param studentVo 条件
     * @param size 每页个数
     * @param current 第几页
     * @return
     */
    @PostMapping("/condtion/{size}/{current}")
    public BaseResult condition(
            @RequestBody StudentVo studentVo,
            @PathVariable("size") Integer size,
            @PathVariable("current") Integer current

            ){
        // 2 查询
        Page<Student> page = studentService.condition(studentVo,size,current);

        // 3 返回
        return BaseResult.ok("查询成功", page);
    }

  • 步骤3：编写service

    • 接口

      package com.czxy.service;

import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.baomidou.mybatisplus.extension.service.IService;
import com.czxy.domain.Student;
import com.czxy.vo.StudentVo;


public interface StudentService extends IService<Student> {
    /**
     * 分页 + 条件 查询
     * @param studentVo
     * @param size
     * @param current
     * @return
     */
    Page<Student> condition(StudentVo studentVo, Integer size, Integer current);
}

    • 实现类

          @Override
    public Page<Student> condition(StudentVo studentVo, Integer size, Integer current) {
        //1 条件
        QueryWrapper<Student> queryWrapper = new QueryWrapper<>();
        // 1.1 班级
        queryWrapper.eq(StringUtils.isNotBlank(studentVo.getCid()), "c_id", studentVo.getCid());
        // 1.2 姓名 - like %张%
        queryWrapper.like(StringUtils.isNotBlank(studentVo.getSname()),"sname", studentVo.getSname());
        // 1.3 开始年龄
        queryWrapper.ge(StringUtils.isNotBlank(studentVo.getStartAge()),"age", studentVo.getStartAge());
        // 1.4 结束年龄
        queryWrapper.le(StringUtils.isNotBlank(studentVo.getEndAge()),"age", studentVo.getEndAge());

        // 2 分页
        Page page = new Page(current, size);

        // 3 查询
        this.baseMapper.selectPage(page, queryWrapper);

        //TODO 4 关联--查询班级

        // 5 返回
        return page;
    }

  • 步骤4：拷贝MyBatisPlus分页配置类

    package com.czxy.config;

import com.baomidou.mybatisplus.annotation.DbType;
import com.baomidou.mybatisplus.extension.plugins.MybatisPlusInterceptor;
import com.baomidou.mybatisplus.extension.plugins.inner.PaginationInnerInterceptor;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;


@Configuration
public class MybatisPlusConfig {

    /**
     * 配置插件
     * @return
     */
    @Bean
    public MybatisPlusInterceptor mybatisPlusInterceptor(){

        MybatisPlusInterceptor mybatisPlusInterceptor = new MybatisPlusInterceptor();
        // 分页插件
        mybatisPlusInterceptor.addInnerInterceptor(new PaginationInnerInterceptor(DbType.MYSQL));

        return mybatisPlusInterceptor;
    }
}

2.2.3 前端步骤

  • 步骤1：编写页面 StudentCondition.vue + 路由

  • 步骤2：编写ajax student.js 写 condition函数

  • 步骤3：修改StudentCondition.vue

    • 基本查询：page、studentVo
    • 条件查询
    • 分页查询

2.2.4 前端实现

  • 步骤1：编写页面 StudentCondition.vue + 路由
    在这里插入图片描述
  • 步骤2：编写ajax student.js 写 condition函数

在这里插入图片描述

// 查询所有学生+条件+分页
export function condition(page,studentVo) {
    var url = `/student-plus-service/student/condtion/${page.size}/${page.current}`
    return axios.post(url, studentVo)
}

  • 步骤3：修改StudentCondition.vue

    • 基本查询：page、studentVo

      <template>
  <div>
    <!-- 列表展示 -->
    <table border="1">
      <tr>
        <td>编号</td>
        <td>姓名</td>
        <td>年龄</td>
        <td>生日</td>
        <td>性别</td>
        <td>班级</td>
        <td>操作</td>
      </tr>
      <tr v-for="(student,index) in page.records" :key="index">
        <td>{{student.sid}}</td>
        <td>{{student.sname}}</td>
        <td>{{student.age}}</td>
        <td>{{student.birthday}}</td>
        <td>{{student.gender == 1 ? '男' : '女'}}</td>
        <td>{{student.cid}}</td>
        <td>
          修改
          删除
        </td>
      </tr>
    </table>
  </div>
</template>

<script>
// 导入ajax函数
import {condition} from '../api/student'
export default {
  data() {
    return {
      page: {     //分页
        size: 3,
        current: 1
      },
      studentVo: {  //条件
        cid: '',
        sname: '',
        startAge: '',
        endAge: '',
      }
    }
  },
  methods: {
    async conditionFn(num) {
      // 设置第几页
      if(num) {
        this.page.current = num
      }

      // ajax查询
      let { data } = await condition(this.page, this.studentVo)

      // 获得结果
      this.page = data
    }
  },
  mounted() {
    // 查询第一页
    this.conditionFn(1)
  },
}
</script>

<style>

</style>

    • 条件查询：（使用模拟数据显示班级列表）

            classesList: [ //班级的模拟数据
        {cid:1, cname: 'Java56'},
        {cid:2, cname: 'Java78'},
        {cid:3, cname: 'Java12'},
        {cid:4, cname: 'Java34'},
      ]

          <!-- 条件查询表单 -->
    班级 <select v-model="studentVo.cid">
        <option value="">--选择班级--</option>
        <option v-for="(classes,index) in classesList" :key="index" :value="classes.cid">{{classes.cname}}</option>
    </select>
    姓名：<input type="text" size="8" v-model="studentVo.sname"/>
    年龄：<input type="text" size="8" v-model="studentVo.startAge"/> --
          <input type="text" size="8" v-model="studentVo.endAge"/>
    <input type="button" value="查询" @click="conditionFn(1)" />

      <!--条件查询的完整版-->
<template>
  <div>
    <!-- 条件查询 -->
    班级 <select v-model="studentVo.cid">
        <option value="">--选择班级--</option>
        <option v-for="(classes,index) in classesList" :key="index" :value="classes.cid">{{classes.cname}}</option>
    </select>
    姓名：<input type="text" size="8" v-model="studentVo.sname"/>
    年龄：<input type="text" size="8" v-model="studentVo.startAge"/> --
          <input type="text" size="8" v-model="studentVo.endAge"/>
    <input type="button" value="查询" @click="conditionFn(1)" />
    <!-- 列表展示 -->
    <table border="1">
      <tr>
        <td>编号</td>
        <td>姓名</td>
        <td>年龄</td>
        <td>生日</td>
        <td>性别</td>
        <td>班级</td>
        <td>操作</td>
      </tr>
      <tr v-for="(student,index) in page.records" :key="index">
        <td>{{student.sid}}</td>
        <td>{{student.sname}}</td>
        <td>{{student.age}}</td>
        <td>{{student.birthday}}</td>
        <td>{{student.gender == 1 ? '男' : '女'}}</td>
        <td>{{student.cid}}</td>
        <td>
          修改
          删除
        </td>
      </tr>
    </table>
  </div>
</template>

<script>
// 导入ajax函数
import {condition} from '../api/student'
export default {
  data() {
    return {
      page: {     //分页
        size: 3,
        current: 1
      },
      studentVo: {  //条件
        cid: '',
        sname: '',
        startAge: '',
        endAge: '',
      },
      classesList: [ //班级的模拟数据
        {cid:1, cname: 'Java56'},
        {cid:2, cname: 'Java78'},
        {cid:3, cname: 'Java12'},
        {cid:4, cname: 'Java34'},
      ]
    }
  },
  methods: {
    async conditionFn(num) {
      // 设置第几页
      if(num) {
        this.page.current = num
      }

      // ajax查询
      let { data } = await condition(this.page, this.studentVo)

      // 获得结果
      this.page = data
    }
  },
  mounted() {
    // 查询第一页
    this.conditionFn(1)
  },
}
</script>

<style>

</style>

    • 分页查询

          <!-- 分页条 -->
    每页
    <select v-model="page.size" @change="conditionFn(1)">
      <option value="1">1</option>
      <option value="2">2</option>
      <option value="3">3</option>
      <option value="5">5</option>
      <option value="10">10</option>
    </select>
    条，
    <a href="" @click.prevent="conditionFn(num)" v-for="(num,index) in page.pages" :key="index">{{num}}</a>，
    跳转到第
    <input type="text" size="4" v-model="page.current" @keyup.enter="conditionFn()">
    页

2.2.5 前端完整代码

<template>
  <div>
    <!-- 条件查询 -->
    班级 <select v-model="studentVo.cid">
        <option value="">--选择班级--</option>
        <option v-for="(classes,index) in classesList" :key="index" :value="classes.cid">{{classes.cname}}</option>
    </select>
    姓名：<input type="text" size="8" v-model="studentVo.sname"/>
    年龄：<input type="text" size="8" v-model="studentVo.startAge"/> --
          <input type="text" size="8" v-model="studentVo.endAge"/>
    <input type="button" value="查询" @click="conditionFn(1)" />
    <!-- 列表展示 -->
    <table border="1">
      <tr>
        <td>编号</td>
        <td>姓名</td>
        <td>年龄</td>
        <td>生日</td>
        <td>性别</td>
        <td>班级</td>
        <td>操作</td>
      </tr>
      <tr v-for="(student,index) in page.records" :key="index">
        <td>{{student.sid}}</td>
        <td>{{student.sname}}</td>
        <td>{{student.age}}</td>
        <td>{{student.birthday}}</td>
        <td>{{student.gender == 1 ? '男' : '女'}}</td>
        <td>{{student.cid}}</td>
        <td>
          修改
          删除
        </td>
      </tr>
    </table>
    <!-- 分页条 -->
    每页
    <select v-model="page.size" @change="conditionFn(1)">
      <option value="1">1</option>
      <option value="2">2</option>
      <option value="3">3</option>
      <option value="5">5</option>
      <option value="10">10</option>
    </select>
    条，
    <a href="" @click.prevent="conditionFn(num)" v-for="(num,index) in page.pages" :key="index">{{num}}</a>，
    跳转到第
    <input type="text" size="4" v-model="page.current" @keyup.enter="conditionFn()">
    页
  </div>
</template>

<script>
// 导入ajax函数
import {condition} from '../api/student'
export default {
  data() {
    return {
      page: {     //分页
        size: 3,
        current: 1
      },
      studentVo: {  //条件
        cid: '',
        sname: '',
        startAge: '',
        endAge: '',
      },
      classesList: [ //班级的模拟数据
        {cid:1, cname: 'Java56'},
        {cid:2, cname: 'Java78'},
        {cid:3, cname: 'Java12'},
        {cid:4, cname: 'Java34'},
      ]
    }
  },
  methods: {
    async conditionFn(num) {
      // 设置第几页
      if(num) {
        this.page.current = num
      }

      // ajax查询
      let { data } = await condition(this.page, this.studentVo)

      // 获得结果
      this.page = data
    }
  },
  mounted() {
    // 查询第一页
    this.conditionFn(1)
  },
}
</script>

<style>

</style>

2.3 添加或修改

2.3.1 后端实现

    @PostMapping
    public BaseResult saveOrUpdate(@RequestBody Student student) {
        try {
            // 保存或更新:如果没有id进行添加操作；如果有id进行更新操作
            boolean result = studentService.saveOrUpdate(student);
            //处理
            if(result) {
                return BaseResult.ok("编辑成功");
            }

            return BaseResult.error("编辑失败");
        } catch (Exception e) {
            e.printStackTrace();
            return BaseResult.error(e.getMessage());
        }

    }
  • 数据库的id为自动增强，如果JavaBean没有设置，会出现类型不匹配异常。

3. 班级管理

3.1 查询所有班级

3.1.1 后端

  • 步骤：

    • 步骤1：编写JavaBean，Classes
    • 步骤2：编写Mapper，ClassesMapper，实现通用mapper
    • 步骤3：编写service，接口+实现类+通用
    • 步骤4：编写controller

  • 步骤1：编写JavaBean，Classes

    package com.czxy.domain;

import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableField;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableName;
import lombok.Data;

@TableName("tb_class")
@Data
public class Classes {
    @TableId(value = "cid", type = IdType.AUTO)
    private Integer cid;
    @TableField("cname")
    private String cname;
}

/*
CREATE TABLE `tb_class` (
  `cid` int(11) NOT NULL AUTO_INCREMENT,
  `cname` varchar(50) DEFAULT NULL,
  PRIMARY KEY (`cid`)
)
 */

  • 步骤2：编写Mapper，ClassesMapper，实现通用mapper

    package com.czxy.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.czxy.domain.Classes;
import org.apache.ibatis.annotations.Mapper;


@Mapper
public interface ClassesMapper extends BaseMapper<Classes> {
}

  • 步骤3：编写service，接口+实现类+通用

    • 接口

      package com.czxy.service;

import com.baomidou.mybatisplus.extension.service.IService;
import com.czxy.domain.Classes;


public interface ClassesService extends IService<Classes> {
}

    • 实现类

      package com.czxy.service.impl;

import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.czxy.domain.Classes;
import com.czxy.mapper.ClassesMapper;
import com.czxy.service.ClassesService;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;


@Service
@Transactional
public class ClassesServiceImpl extends ServiceImpl<ClassesMapper, Classes> implements ClassesService {
}

  • 步骤4：编写controller

    package com.czxy.controller;

import com.czxy.domain.Classes;
import com.czxy.service.ClassesService;
import com.czxy.vo.BaseResult;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;
import java.util.List;


@RestController
@RequestMapping("/classes")
public class ClassesController {

    @Resource
    private ClassesService classesService;

    /**
     * 查询所有
     * @return
     */
    @GetMapping
    public BaseResult findAll() {
        // 2 查询
        List<Classes> list = classesService.list();
        // 3 返回
        return BaseResult.ok("查询成功", list );
    }
}
avatar
文章
阅读
粉丝
