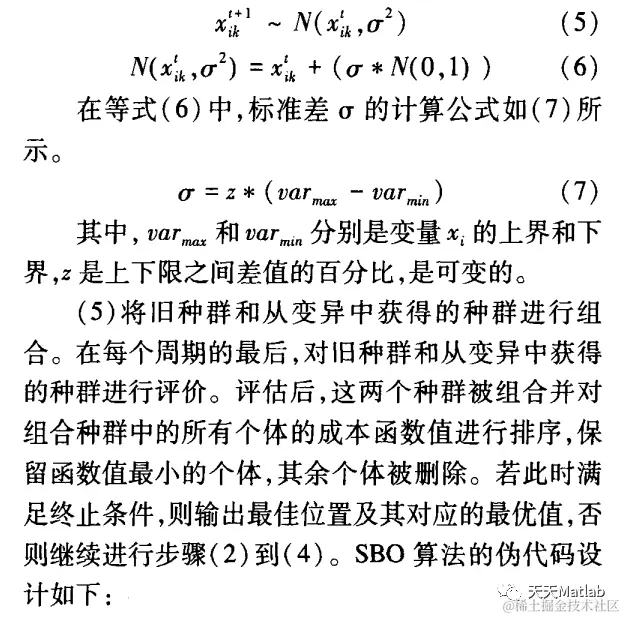

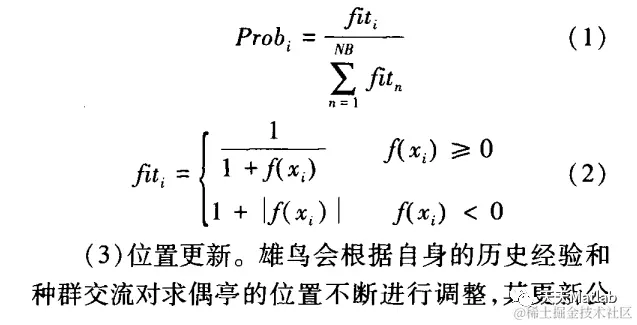

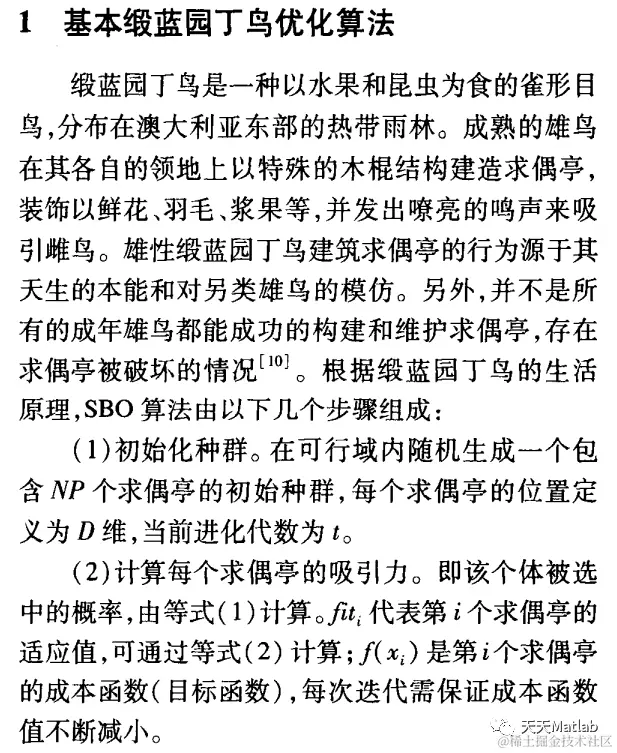

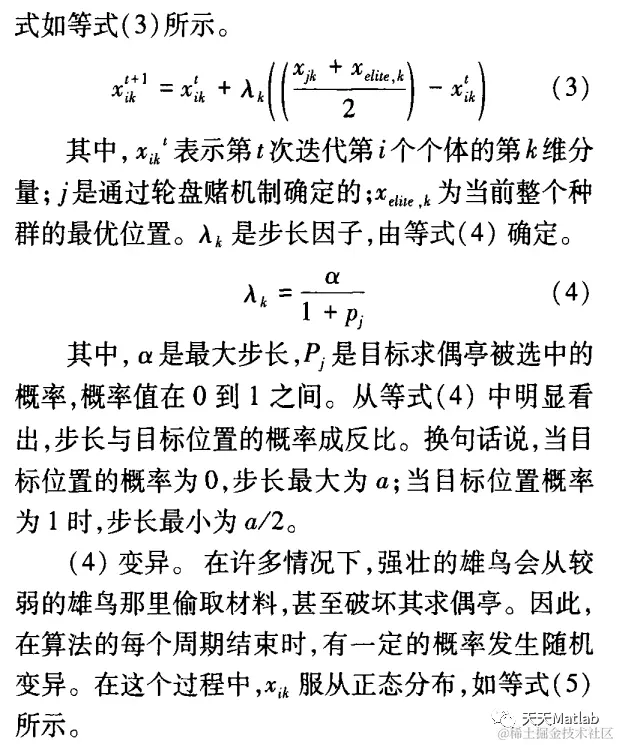

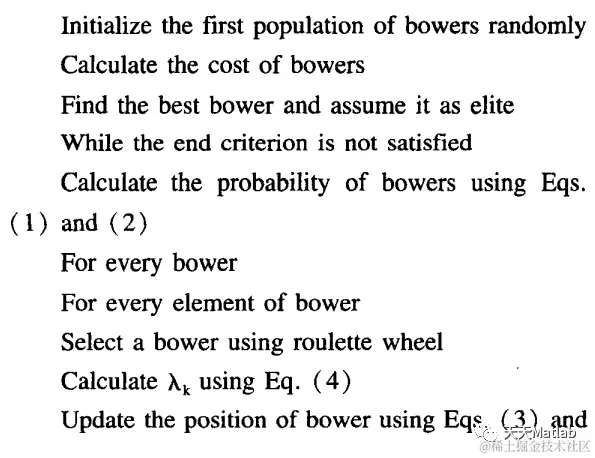

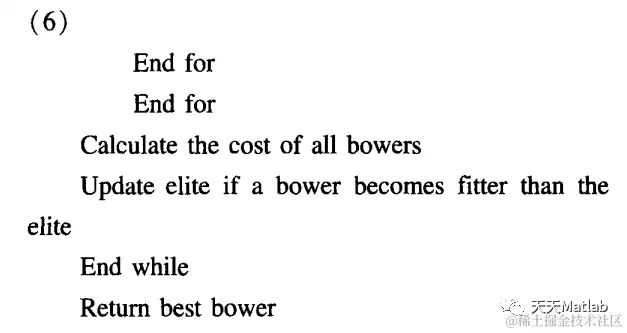

1 简介
2 部分代码
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% Satin Bowerbird Optimizer(SBO)
%%
clc;
clear;
close all;
tic
%% Problem Definition
Function_name='F1';
[lowerbound,upperbound,numbervar,costfcn]=cost_functions(Function_name);
% VarSize=[1 numbervar];
%% SBO Parameters
[MaxIt,nPop,alpha,pMutation,sigma]=SBO_parameters(lowerbound,upperbound);
%% Initialization
[pop,elite,BestCost]=Initialization(nPop,lowerbound,upperbound,numbervar,MaxIt,costfcn);
%% SBO Main Loop
for it=1:MaxIt
newpop=pop;
%Calculating the Fitness of each bower
F=zeros(nPop,1);
for i=1:nPop
• if pop(i).Cost>=0
• F(i)=1/(1+pop(i).Cost);
• else
• F(i)=1+abs(pop(i).Cost);
• end
end
%Calculating the probability of each bower
P=F/sum(F);
%changes at any bower
for i=1:nPop
• for k=1:numbervar
•
• % Select target bower
• j=RouletteWheelSelection(P);
•
• % Calculating Step Size
• lambda=alpha/(1+P(j));
•
• newpop(i).Position(k)=pop(i).Position(k) ...
• +lambda*(((pop(j).Position(k)+elite(k))/2)-pop(i).Position(k));
•
• % Mutation
• if rand<=pMutation
• newpop(i).Position(k)=newpop(i).Position(k)+(sigma*randn);
•
• end
•
• end
• % Evaluation
• newpop(i).Cost=costfcn(newpop(i).Position);
end
•
pop=[pop• newpop• ]; %#ok
% Sort Population
[~, SortOrder]=sort([pop.Cost]);
pop=pop(SortOrder);
pop=pop(1:nPop);
% Update Best Solution Ever Found
BestSol=pop(1);
elite=BestSol.Position;
% Store Best Cost Ever Found
BestCost(it)=BestSol.Cost;
% Show Iteration Information
disp(['SBO:: Iteration-> ' num2str(it) '<----->Best Cost = ' num2str(BestCost(it))]);
end
toc
%% Results
disp(['BestSol=' num2str(elite)]);
disp(['BestCost=' num2str(BestSol.Cost)]);
figure;
semilogy(BestCost,'LineWidth',2);
xlabel('Iteration');
ylabel('Best Cost');
img =gcf; %获取当前画图的句柄
print(img, '-dpng', '-r600', './img.png') %即可得到对应格式和期望dpi的图像

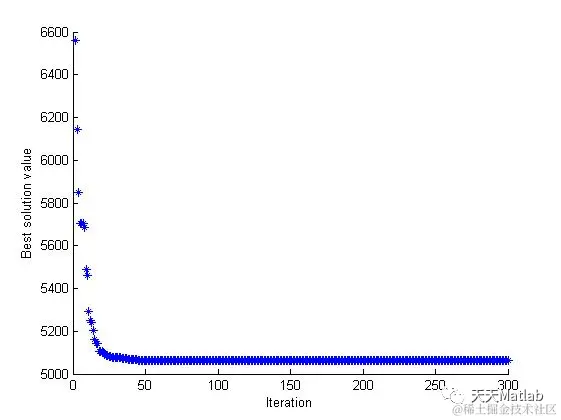

3 仿真结果
4 参考文献
[1]王依柔、张达敏、樊英. "非均匀变异的互利自适应缎蓝园丁鸟优化算法." 计算机工程与科学 v.42;No.312.12(2020):135-143.
[2]鲁晓艺, 刘升, 韩斐斐,等. 基于自适应权重的缎蓝园丁鸟优化算法[J]. 智能计算机与应用, 2018, 8(6):7.
