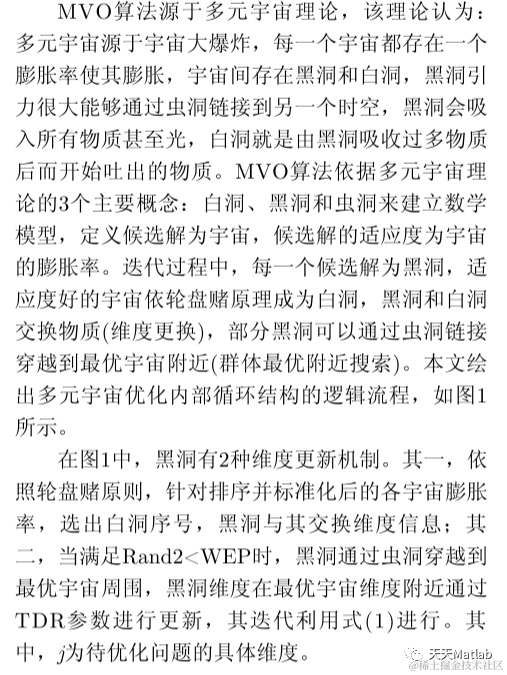

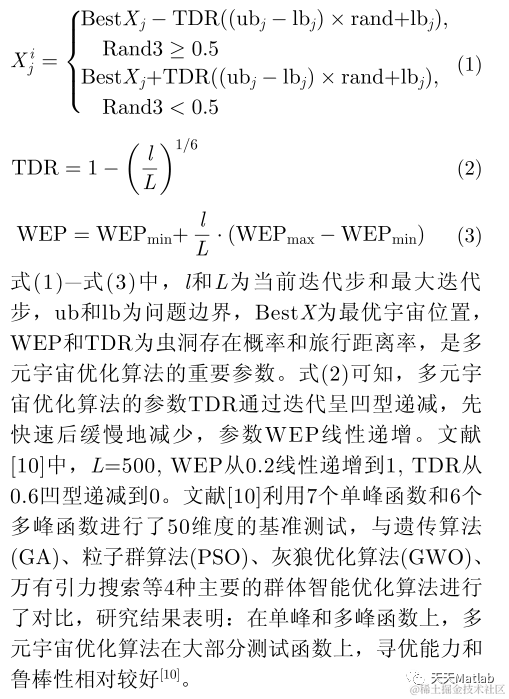

1 简介
2 部分代码
```matlab
%_____________________________________________%
% Multi-Verse Optimizer (MVO) source codes demo version 1.0 %
%
%_____________________________________________%
% You can simply define your cost in a seperate file and load its handle to fobj
% The initial parameters that you need are:
%______________________
% fobj = @YourCostFunction
% dim = number of your variables
% Max_iteration = maximum number of generations
% SearchAgents_no = number of search agents
% lb=[lb1,lb2,...,lbn] where lbn is the lower bound of variable n
% ub=[ub1,ub2,...,ubn] where ubn is the upper bound of variable n
% If all the variables have equal lower bound you can just
% define lb and ub as two single number numbers
% To run MVO: [Best_score,Best_pos,cg_curve]=MVO(Universes_no,Max_iteration,lb,ub,dim,fobj)
%______________________
clear all
clc
Universes_no=60; %Number of search agents (universes)
Function_name='F1'; %Name of the test function that can be from F1 to F23 (Table 1,2,3 in the paper)
Max_iteration=500; %Maximum numbef of iterations
%Load details of the selected benchmark function
[lb,ub,dim,fobj]=Get_Functions_details(Function_name);
[Best_score,Best_pos,cg_curve]=MVO(Universes_no,Max_iteration,lb,ub,dim,fobj);
figure('Position',[290 206 648 287])
%Draw the search space
subplot(1,2,1);
func_plot(Function_name);
title('Test function')
xlabel('x_1');
ylabel('x_2');
zlabel([Function_name,'( x_1 , x_2 )'])
grid off
shading interp;
light;
lighting phong;
shading interp;
%Draw the convergence curve
subplot(1,2,2);
semilogy(cg_curve,'Color','r')
title('Convergence curve')
xlabel('Iteration');
ylabel('Best score obtained so far');
axis tight
grid off
box on
legend('MVO')
display(['The best solution obtained by MVO is : ', num2str(Best_pos)]);
display(['The best optimal value of the objective funciton found by MVO is : ', num2str(Best_score)]);

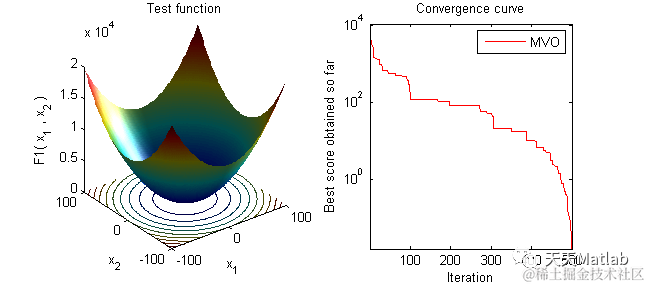

3 仿真结果
4 参考文献
[1]刘京昕. 多元宇宙优化算法的改进及应用[D]. 广西民族大学, 2019.
