1 简介
2 部分代码
%% %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
clear all
close all
clc
N=30; % Number of search agents
Function_name='F1'; % Name of the test function
T=100; % Maximum number of iterations
% Load details of the selected benchmark function
[lb,ub,dim,fobj]=Get_Functions_details(Function_name);
[Rabbit_Energy,Rabbit_Location,CNVG]=HHO(N,T,lb,ub,dim,fobj);
%Draw objective space
figure('Position',[269 240 660 290])
%Draw search space
subplot(1,2,1);
func_plot(Function_name);
title('Parameter space')
xlabel('x_1');
ylabel('x_2');
zlabel([Function_name,'( x_1 , x_2 )'])
subplot(1,2,2);
hold on
semilogy(CNVG,'Color','b','LineWidth',4);
title('Convergence curve')
xlabel('Iteration');
ylabel('Best fitness obtained so far');
axis tight
grid off
box on
legend('HHO')
display(['The best location of HHO is: ', num2str(Rabbit_Location)]);
display(['The best fitness of HHO is: ', num2str(Rabbit_Energy)]);
img =gcf; %获取当前画图的句柄
print(img, '-dpng', '-r600', './img1.png') %即可得到对应格式和期望dpi的图像

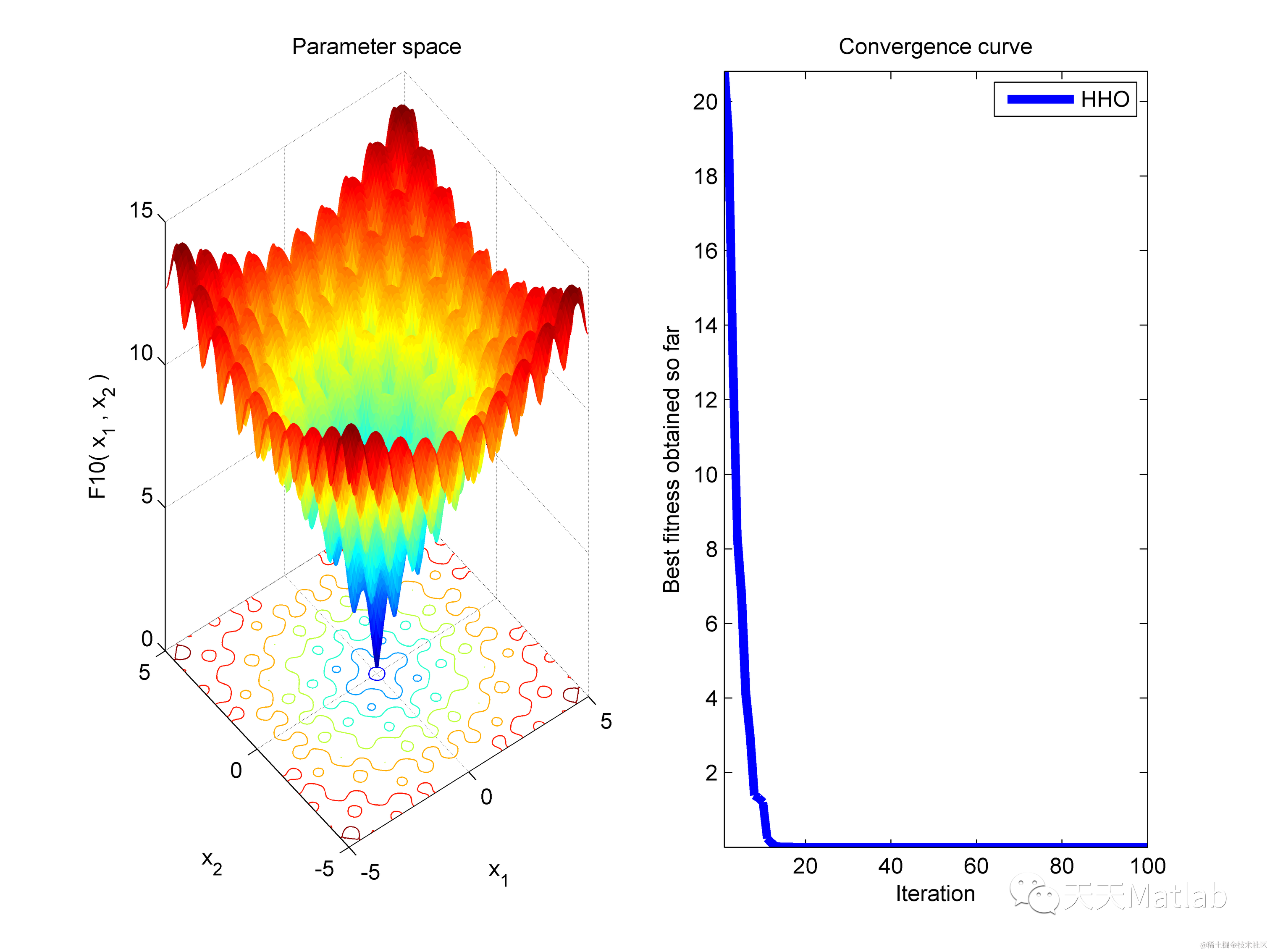

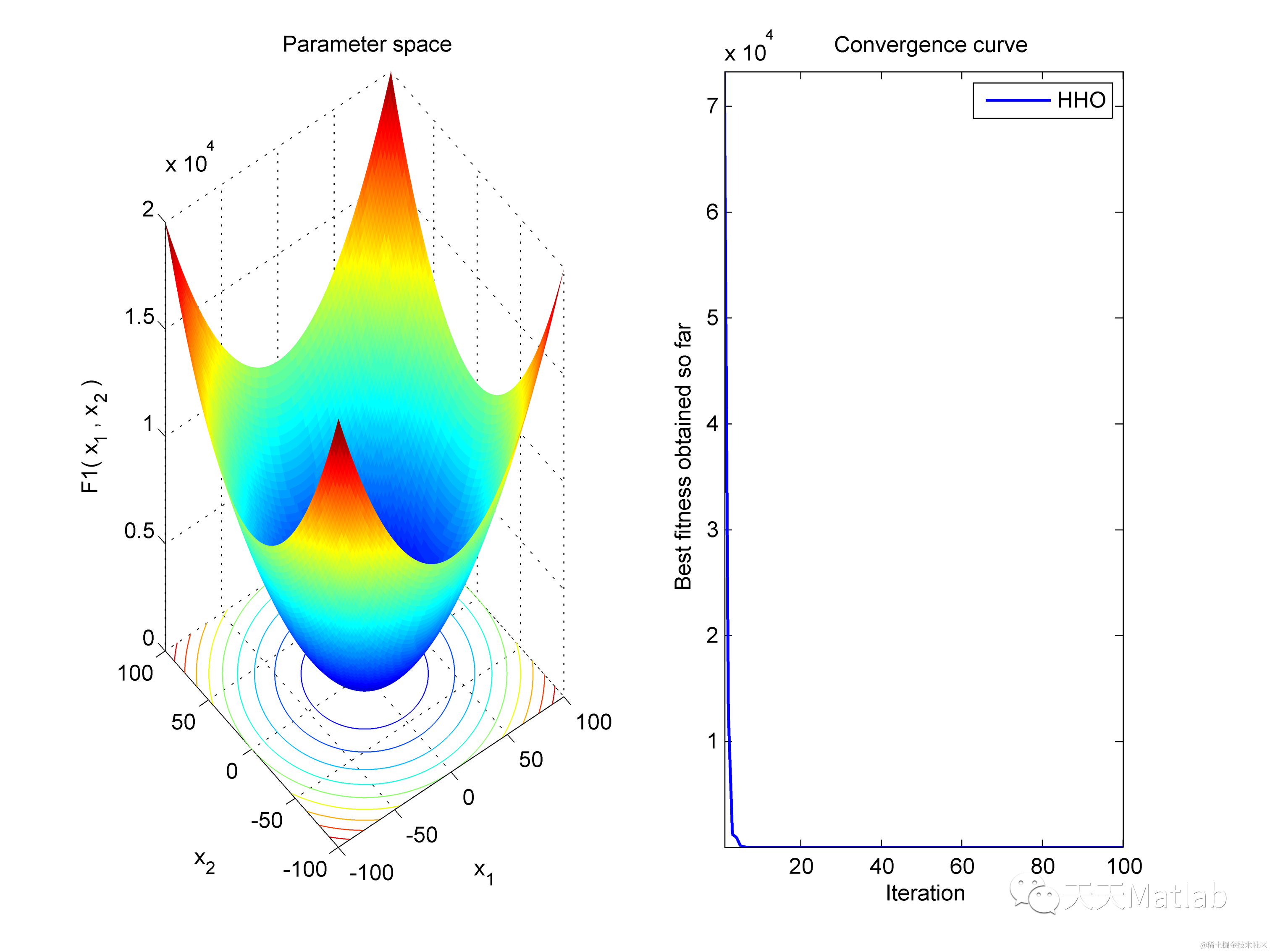

3 仿真结果
4 参考文献
[1]贾鹤鸣, 康立飞, 孙康健, 彭晓旭, 李瑶, & 姜子超. (2019). 哈里斯鹰算法优化脉冲耦合神经网络的图像自动分割. 应用科技(4).
5 MATLAB代码与数据下载地址
见博客主页
