1 简介
基于离散Hopfield神经网络理论,对带噪声的字母识别进行研究.根据神经网络的联想记忆功能,在考虑实际情况的条件下进行模型建立,通过MATLAB软件进行函数创建与设计实现,并对结果进行分析,同时提出应用扩展.

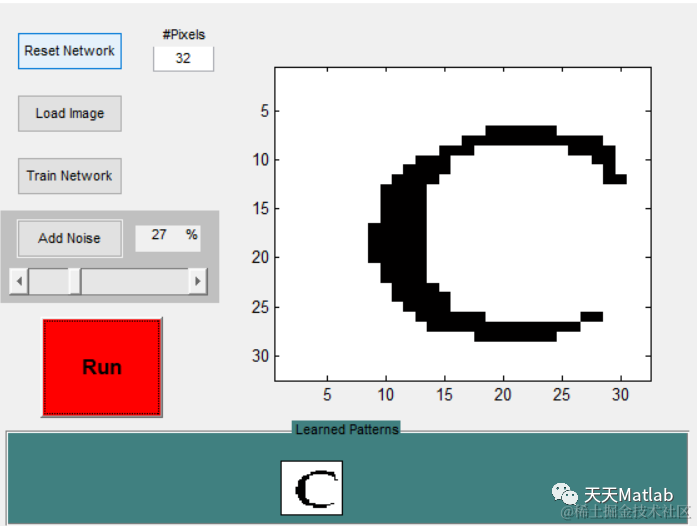

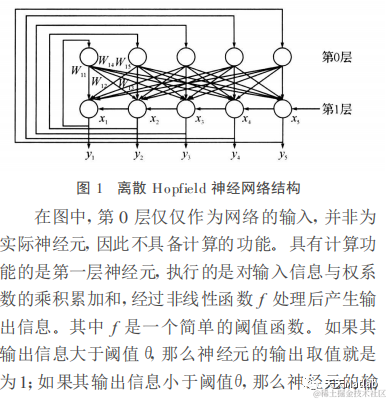

离散神经网络是一种单层 、输出为二值的反馈 型的网络 。假设有一个由五个神经元组成的离 散 Ho pfield 神经网络,其结构如图 1 所示。
