1 简介
针对传统扩展卡尔曼滤波算法在多普勒量测目标跟踪情况下估计精度低的问题,提出了扩展卡尔曼滤波目标跟踪优化算法.该算法对传统的扩展卡尔曼滤波算法进行了改进,将仅考虑位置量测的扩展卡尔曼滤波算法推广到包含多普勒量测的算法以提高目标跟踪精度.仿真结果表明,该算法具有较小的均方根位置误差和均方根速度误差,可以很好地提高目标跟踪过程中的精度,可有效应用于机动目标跟踪场合.
2 部分代码
% Implementation of the MEM-EKF* algorithm based on the article
%
% "Tracking the Orientation and Axes Lengths of an Elliptical Extended Object"
% Shishan Yang and Marcus Baum
close all
clc
clear
dbstop error
% generate ground truth
[gt_center, gt_rotation, gt_orient, gt_length, gt_vel, time_steps, time_interval] =get_ground_truth;
gt = [gt_center;gt_orient;gt_length;gt_vel];
% nearly constant velocity model
H = [1 0 0 0; 0 1 0 0];
Ar =[1 0 10 0; 0 1 0 10; 0 0 1 0; 0 0 0 1] ;
Ap = eye(3);
Ch = diag([1/4, 1/4]); % covariance of the multiplicative noise
Cv = diag([200 8]); % covariance of the measurement noise
Cwr = diag([100 100 1 1]); % covariance of the process noise for the kinematic state
Cwp = diag([0.05 0.001 0.001]); %covariance of the process noise for the shape parameters
lambda = 5;% Nr of measurements is Poisson distributed with mean lambda
%% Prior
r = [100, 100,10, -17]';
p = [-pi/3 200 90]';
Cr = diag([900 900 16 16]);
Cp = diag([0.2 400 400]);
figure;
hold on
for t = 1:time_steps
%% generate measurements
nk = poissrnd(lambda);
while nk == 0
nk = poissrnd(lambda);
end
disp(['Time step: ' num2str(t) ', ' num2str(nk) ' Measurements']);
y = zeros(2, nk);
for n = 1:nk
h(n, :) = -1 + 2.*rand(1, 2);
while norm(h(n, :)) > 1
h(n, :) = -1 + 2.*rand(1, 2);
end
y(:, n) = gt(1:2, t) + h(n, 1)*gt(4, t)*...
[cos(gt(3, t)); sin(gt(3, t))] + h(n, 2)*gt(5, t)*...
[-sin(gt(3, t)); cos(gt(3, t))] + mvnrnd([0 0], Cv, 1)';
end
%% measurement update
[r,p,Cr,Cp] = measurement_update(y,H,r,p,Cr,Cp,Ch,Cv);
%% visualize estimate and ground truth for every 3rd scan
if mod(t, 3)==1
meas_points=plot( y(1, :), y(2, :), '.k', 'lineWidth', 0.5);
hold on
axis equal
gt_plot = plot_extent(gt(:, t), '-', 'k', 1);
est_plot = plot_extent([r(1:2);p ], '-', 'r', 1);
pause(0.1)
end
%% time update
[r,p,Cr,Cp]= time_update(r,p,Cr,Cp,Ar,Ap,Cwr,Cwp);
end
legend([gt_plot, est_plot, meas_points], {'Ground truth', 'Estimate', 'Measurement'},'Location','northwest');

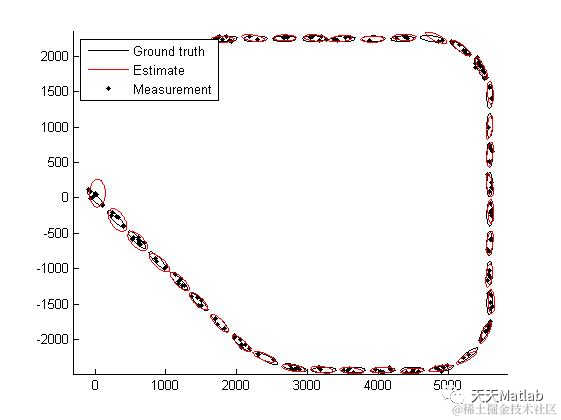

3 仿真结果
4 参考文献
[1]张蕊, & 史丽楠. (2012). 基于扩展卡尔曼滤波的机动目标跟踪研究. 航天控制, 30(3), 12-18.
部分理论引用网络文献，若有侵权联系博主删除。
5 MATLAB代码与数据下载地址
见博客主页
