1 简介

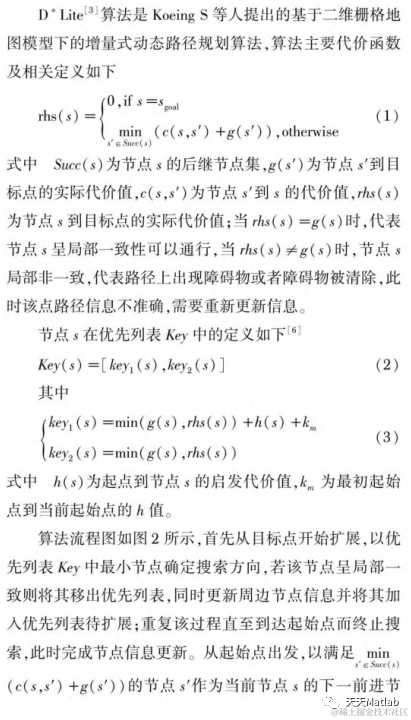

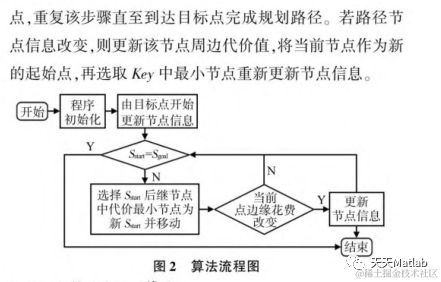

2 部分代码
function varargout = A_GUI(varargin)
% A_GUI MATLAB code for A_GUI.fig
% A_GUI, by itself, creates a new A_GUI or raises the existing
% singleton*.
%
% H = A_GUI returns the handle to a new A_GUI or the handle to
% the existing singleton*.
%
% A_GUI('CALLBACK',hObject,eventData,handles,...) calls the local
% function named CALLBACK in A_GUI.M with the given input arguments.
%
% A_GUI('Property','Value',...) creates a new A_GUI or raises the
% existing singleton*. Starting from the left, property value pairs are
% applied to the GUI before A_GUI_OpeningFcn gets called. An
% unrecognized property name or invalid value makes property application
% stop. All inputs are passed to A_GUI_OpeningFcn via varargin.
%
% *See GUI Options on GUIDE's Tools menu. Choose "GUI allows only one
% instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES
% Edit the above text to modify the response to help A_GUI
% Last Modified by GUIDE v2.5 21-Oct-2018 17:10:48
% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name', mfilename, ...
'gui_Singleton', gui_Singleton, ...
'gui_OpeningFcn', @A_GUI_OpeningFcn, ...
'gui_OutputFcn', @A_GUI_OutputFcn, ...
'gui_LayoutFcn', [] , ...
'gui_Callback', []);
if nargin && ischar(varargin{1})
gui_State.gui_Callback = str2func(varargin{1});
end
if nargout
[varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT
% --- Executes just before A_GUI is made visible.
function A_GUI_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject handle to figure
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% varargin command line arguments to A_GUI (see VARARGIN)
% Choose default command line output for A_GUI
handles.output = hObject;
% Update handles structure
guidata(hObject, handles);
% UIWAIT makes A_GUI wait for user response (see UIRESUME)
% uiwait(handles.figure1);
% --- Outputs from this function are returned to the command line.
function varargout = A_GUI_OutputFcn(hObject, eventdata, handles)
% varargout cell array for returning output args (see VARARGOUT);
% hObject handle to figure
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% Get default command line output from handles structure
varargout{1} = handles.output;
% --- Executes on button press in pushbutton1.
function pushbutton1_Callback(hObject, eventdata, handles)
% hObject handle to pushbutton1 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% set up color map for display 生成彩色地图
global cmap;
global map;
global n_r;
global n_c;
global state;
cmap = [1 1 1; ...% 1 -白色-无障碍
0 0 0; ...% 2 -黑色-有障碍
0 0.8 0; ...% 3 -绿色-已搜索
0 0.4 0; ...% 4 -粉色-正在搜索
0 1 1; ...% 5 -浅蓝色-起始点
1 1 0; ...% 6 -黄色-目标点
0 0 1]; % 7 -蓝色-最终路径
colormap(cmap);
%生成随机地图
map = zeros(n_r,n_c);
randmap = rand(n_r,n_c);
for i = 2:(sub2ind(size(randmap),n_r,n_c)-1)
if (randmap(i) >= 0.75)
map(i) = 2;
end
end
map(1, 1) = 5; % start_coords 起点坐标
map(n_r, n_c) = 6; % dest_coords 终点坐标
image(1.5,1.5,map);
grid on;
axis image;
set(handles.text5,'string','随机地图生成完毕');
% --- Executes on button press in pushbutton2.
function pushbutton2_Callback(hObject, eventdata, handles)
% hObject handle to pushbutton2 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
%搜索最佳路径
global n_r;
global n_c;
global cmap;
global map;
global state;
%route = [];
disp('路径搜索失败');
set(handles.text5,'string','路径搜索失败');
else
%提取路线坐标
set(handles.text5,'string','路径搜索成功');
route = [dest_node];
while (parent(route(1)) ~= 0)
route(1);
parent(route(1))
route = [parent(route(1)), route] ;
end
% 动态显示出路线
for k = 2:length(route) - 1
map(route(k)) = 7;
pause(0.02);
image(1.5, 1.5, map);
grid on;
axis image;
end
disp('路径搜索成功');
end
% --- Executes on selection change in popupmenu1.
function popupmenu1_Callback(hObject, eventdata, handles)
% hObject handle to popupmenu1 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
row = [15 20 25 300];
global n_r
n_r = row(get(handles.popupmenu1, 'value'));
% Hints: contents = cellstr(get(hObject,'String')) returns popupmenu1 contents as cell array
% contents{get(hObject,'Value')} returns selected item from popupmenu1
% --- Executes during object creation, after setting all properties.
function popupmenu1_CreateFcn(hObject, eventdata, handles)
% hObject handle to popupmenu1 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles empty - handles not created until after all CreateFcns called
% Hint: popupmenu controls usually have a white background on Windows.
% See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
set(hObject,'BackgroundColor','white');
end
% --- Executes on selection change in popupmenu2.
function popupmenu2_Callback(hObject, eventdata, handles)
% hObject handle to popupmenu2 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
col = [15 20 25 300];
global n_c
n_c = col(get(handles.popupmenu2, 'value'));
% Hints: contents = cellstr(get(hObject,'String')) returns popupmenu2 contents as cell array
% contents{get(hObject,'Value')} returns selected item from popupmenu2
% --- Executes during object creation, after setting all properties.
function popupmenu2_CreateFcn(hObject, eventdata, handles)
% hObject handle to popupmenu2 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles empty - handles not created until after all CreateFcns called
% Hint: popupmenu controls usually have a white background on Windows.
% See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
set(hObject,'BackgroundColor','white');
end
function text5_Callback(hObject, eventdata, handles)
% hObject handle to text5 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% Hints: get(hObject,'String') returns contents of text5 as text
% str2double(get(hObject,'String')) returns contents of text5 as a double

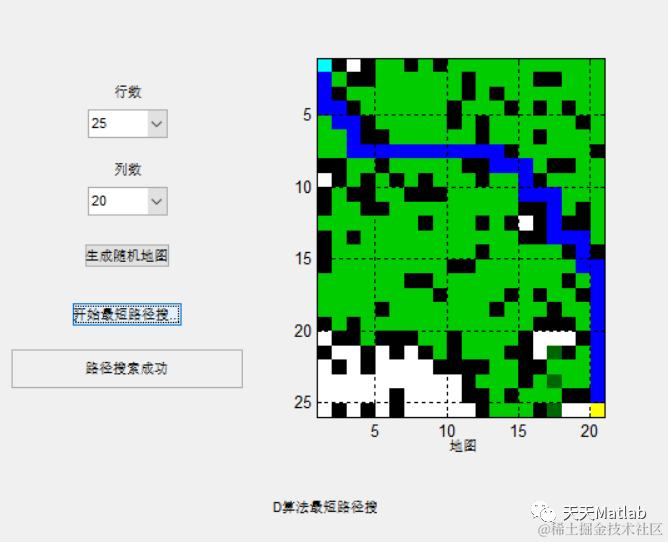

3 仿真结果
4 参考文献
[1]张亚楠, 孙丰财, 史旭华. 基于快速D＊Lite算法的移动机器人路径规划[J]. 数据通信, 2018.
部分理论引用网络文献，若有侵权联系博主删除。
