Linux+keepalived安装配置

准备两台机器

• 通过vagrant安装两台centos虚拟机

这里也可通过其他方式安装两台虚拟机

• centos_1：192.168.168.101

• centos_2：192.168.168.102

vagrant init centos/7
vagrant up

• 链接至虚拟机

vagrant ssh
sudo -i #切换至root

• 配置centos_1

关闭防火墙

systemctl stop firewalld.service
systemctl disable firewalld.service

配置静态IP

vim /etc/sysconfig/network-scripts/ifcfg-eth0

BOOTPROTO="static"
IPADDR="192.168.168.101"
NETMASK="255.255.255.0"
GATEWAY="192.168.168.1"
DNS1="192.168.168.1"
ONBOOT="yes"

重启网络

systemctl restart network

• 配置centos_2

关闭防火墙

systemctl stop firewalld.service
systemctl disable firewalld.service

配置静态IP

vim /etc/sysconfig/network-scripts/ifcfg-eth0

BOOTPROTO="static"
IPADDR="192.168.168.102"
NETMASK="255.255.255.0"
GATEWAY="192.168.168.1"
DNS1="192.168.168.1"
ONBOOT="yes"

重启网络

systemctl restart network

• 安装docker

source <(curl -sL https://get.docker.com)

• 启动docker

systemctl enable docker
systemctl start docker

• 安装docker-compose

curl -L "https://github.com/docker/compose/releases/download/1.29.2/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose

chmod +x /usr/local/bin/docker-compose
ln -s /usr/local/bin/docker-compose /usr/bin/docker-compose

• 安装nginx

mkdir /opt/nginx -p
mkdir /opt/nginx/certificate -p
mkdir /opt/nginx/conf.d -p
mkdir /opt/nginx/logs -p
cd /opt/nginx

/opt/nginx：nginx部署路径
/opt/nginx/certificate：域名证书部署路径
/opt/nginx/conf.d：nginx配置文件路径
/opt/nginx/logs：nginx配置文件路径

添加docker网络

docker network create app_net

添加docker-compose.yml

vim docker-compose.yml

version: '3.7'

services:
  nginx:
    restart: always
    image: nginx:1.19.2
    ports:
     - 80:80
     - 443:443
    volumes:
     - ./conf.d:/etc/nginx/conf.d
     - ./logs:/var/log/nginx
     - ./certificate:/opt/certificate
    networks:
     - custom_net
networks:
  custom_net:
    external:
      name: app_net

添加配置文件

cd conf.d

vim 80.conf

server {
    listen       80;
    server_name  localhost;

    location / {
        root /etc/nginx/conf.d/;
        try_files $uri $uri/ /index.html;
    }
}

vim index.html

101或102

启动nginx

docker-compose up -d

• 安装keepalived

yum update
yum install -y curl gcc openssl-devel libnl3-devel net-snmp-devel
yum install -y keepalived

• 初始化及启动

systemctl start keepalived   //启动keepalived
systemctl enable keepalived  //加入开机启动keepalived
systemctl restart keepalived  //重新启动keepalived
systemctl status keepalived   //查看keepalived状态
systemctl stop keepalived   //停止keepalived
systemctl disable keepalived   //禁用开机启动keepalived

• centos_1配置

vim /etc/keepalived/keepalived.conf

global_defs {
    router_id NodeA
}
vrrp_instance VI_1 {
    state MASTER    #设置为主服务器
    interface eth0  #监测网络接口
    virtual_router_id 51  #主、备必须一样
    priority 100   #(主、备机取不同的优先级，主机值较大，备份机值较小,值越大优先级越高)
    advert_int 1   #VRRP Multicast广播周期秒数
    authentication {
       auth_type PASS  #VRRP认证方式，主备必须一致
       auth_pass 1111   #(密码)
    }
    virtual_ipaddress {
       192.168.168.100/24  #VRRP HA虚拟地址
    }
}

• centos_2配置

vim /etc/keepalived/keepalived.conf

global_defs {
    router_id NodeB
}
vrrp_instance VI_1 {
    state BACKUP    #设置为备用服务器
    interface eth0  #监测网络接口
    virtual_router_id 51  #主、备必须一样
    priority 90   #(主、备机取不同的优先级，主机值较大，备份机值较小,值越大优先级越高)
    advert_int 1   #VRRP Multicast广播周期秒数
    authentication {
       auth_type PASS  #VRRP认证方式，主备必须一致
       auth_pass 1111   #(密码)
    }
    virtual_ipaddress {
       192.168.168.100/24  #VRRP HA虚拟地址
    }
}

• 重启keepalived

systemctl restart keepalived

• 查看及验证

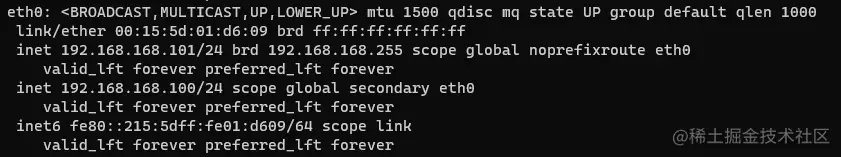

ip a

访问http://192.168.168.100

停掉centos_1上的keepalived

systemctl stop keepalived

访问http://192.168.168.100
