springboot开发微信公众号回复图片(二)

先创建几个实体类:

public class Image {
    private String MediaId;//素材id

    public String getMediaId() {
        return MediaId;
    }

    public void setMediaId(String mediaId) {
        MediaId = mediaId;
    }
}


public class ImageMessage extends BaseMessage{

    private Image Image;//Image节点

    public com.naruto.huo.model.Image getImage() {
        return Image;
    }

    public void setImage(com.naruto.huo.model.Image image) {
        Image = image;
    }
}




public class BaseMessage {
    private String ToUserName;
    private String FromUserName;
    private long CreateTime;
    private String MsgType;
    private long MsgId;

    public String getToUserName() {
        return ToUserName;
    }

    public void setToUserName(String toUserName) {
        ToUserName = toUserName;
    }

    public String getFromUserName() {
        return FromUserName;
    }

    public void setFromUserName(String fromUserName) {
        FromUserName = fromUserName;
    }

    public long getCreateTime() {
        return CreateTime;
    }

    public void setCreateTime(long createTime) {
        CreateTime = createTime;
    }

    public String getMsgType() {
        return MsgType;
    }

    public void setMsgType(String msgType) {
        MsgType = msgType;
    }

    public long getMsgId() {
        return MsgId;
    }

    public void setMsgId(long msgId) {
        MsgId = msgId;
    }
}

1.创建common文件夹，里面放WeixinUtil:

public class WeixinUtil {
    private static Logger log = LoggerFactory.getLogger(WeixinUtil.class);


    /**
     * 开发者id
     */
    private static final String APPID = "****";
    /**
     * 开发者秘钥
     */
    private static final String APPSECRET="****";

    // 获取access_token的接口地址（GET） 限200（次/天）
    //        https://api.weixin.qq.com/cgi-bin/token?grant_type=client_credential&appid=APPID&secret=APPSECRET
    public final static String ACCESS_TOKEN_URL = "https://api.weixin.qq.com/cgi-bin/token?"
            + "grant_type=client_credential&appid=APPID&secret=APPSECRET";

  //  public final static String ACCESS_TOKEN_URL = "https://api.weixin.qq.com/sns/oauth2/access_token?appid=APPID&secret=APPSECRET&code=CODE&grant_type=authorization_code";

    /**
     * 发起https请求并获取结果
     *
     * @param requestUrl 请求地址
     * @param requestMethod 请求方式（GET、POST）
     * @param outputStr 提交的数据
     * @return JSONObject(通过JSONObject.get(key)的方式获取json对象的属性值)
     */
    public static JSONObject httpRequest(String requestUrl, String requestMethod, String outputStr) {
        JSONObject jsonObject = null;
        StringBuffer buffer = new StringBuffer();
        try {
            // 创建SSLContext对象，并使用我们指定的信任管理器初始化
            TrustManager[] tm = { new MyX509TrustManager() };
            SSLContext sslContext = SSLContext.getInstance("SSL", "SunJSSE");
            sslContext.init(null, tm, new java.security.SecureRandom());
            // 从上述SSLContext对象中得到SSLSocketFactory对象
            SSLSocketFactory ssf = sslContext.getSocketFactory();

            URL url = new URL(requestUrl);
            HttpsURLConnection httpUrlConn = (HttpsURLConnection) url.openConnection();
            httpUrlConn.setSSLSocketFactory(ssf);

            httpUrlConn.setDoOutput(true);
            httpUrlConn.setDoInput(true);
            httpUrlConn.setUseCaches(false);
            // 设置请求方式（GET/POST）
            httpUrlConn.setRequestMethod(requestMethod);

            if ("GET".equalsIgnoreCase(requestMethod))
                httpUrlConn.connect();

            // 当有数据需要提交时
            if (null != outputStr) {
                OutputStream outputStream = httpUrlConn.getOutputStream();
                // 注意编码格式，防止中文乱码
                outputStream.write(outputStr.getBytes("UTF-8"));
                outputStream.close();
            }

            // 将返回的输入流转换成字符串
            InputStream inputStream = httpUrlConn.getInputStream();
            InputStreamReader inputStreamReader = new InputStreamReader(inputStream, "utf-8");
            BufferedReader bufferedReader = new BufferedReader(inputStreamReader);

            String str = null;
            while ((str = bufferedReader.readLine()) != null) {
                buffer.append(str);
            }
            bufferedReader.close();
            inputStreamReader.close();
            // 释放资源
            inputStream.close();
            inputStream = null;
            httpUrlConn.disconnect();
            jsonObject = JSONObject.fromObject(buffer.toString());
        } catch (ConnectException ce) {
            log.error("Weixin server connection timed out.");
        } catch (Exception e) {
            log.error("https request error:{}", e);
        }
        return jsonObject;
    }



    /**
     * 获取access_token
     *
     * @param appid 凭证
     * @param appsecret 密钥
     * @return
     */
    public static AccessToken getAccessToken(String appid, String appsecret) {
        AccessToken accessToken = null;

        String requestUrl = ACCESS_TOKEN_URL.replace("APPID", appid).replace("APPSECRET", appsecret);
        JSONObject jsonObject = httpRequest(requestUrl, "GET", null);
        // 如果请求成功
        if (null != jsonObject) {
            accessToken = new AccessToken();
            accessToken.setToken(jsonObject.getString("access_token"));
            accessToken.setExpiresIn(jsonObject.getInt("expires_in"));
        }
        return accessToken;
    }

    /**
     * 处理doget请求
     * @param url
     * @return
     */
    public static JSONObject doGetstr(String url){
        CloseableHttpClient httpclient = HttpClients.createDefault();
        HttpGet httpGet = new HttpGet(url);
        JSONObject jsonObject = null;
        try {
            CloseableHttpResponse response = httpclient.execute(httpGet);
            HttpEntity entity = response.getEntity();
            if(entity!=null){
                String result = EntityUtils.toString(entity);
                jsonObject = JSONObject.fromObject(result);
            }
        } catch (IOException e) {
            e.printStackTrace();
        }
        return jsonObject;

    }
    /**
     * 处理post请求
     * @param url
     * @return
     */
    public static JSONObject doPoststr(String url,String outStr){
        CloseableHttpClient httpclient = HttpClients.createDefault();
        HttpPost httpPost = new HttpPost(url);
        JSONObject jsonObject = null;
        try {
            httpPost.setEntity(new StringEntity(outStr, "utf-8"));
            CloseableHttpResponse response = httpclient.execute(httpPost);
            String result = EntityUtils.toString(response.getEntity(),"utf-8");
            jsonObject =JSONObject.fromObject(result);
        } catch (IOException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }
        return jsonObject;
    }

    public static AccessToken getAccessToken(HttpSession session){
        System.out.println("从接口中获取");
//        Jedis jedis  = RedisUtil.getJedis();
        AccessToken token = new AccessToken();
        String url = ACCESS_TOKEN_URL.replace("APPID", APPID).replace("APPSECRET", APPSECRET);
        JSONObject json = doGetstr(url);
        System.out.println("存储的json："+json.toString());
        if(json!=null){
            token.setToken(json.getString("access_token"));
            token.setExpiresIn(json.getInt("expires_in"));
          /*  jedis.set("access_token", json.getString("access_token"));
            jedis.expire("access_token", 60*60*2);*/
            session.setAttribute("access_token",json.getString("access_token"));
            System.out.println("存储的access_token："+json.getString("access_token"));
        }
//        RedisUtil.returnResource(jedis);
        return token;
    }

    public static String  getAccess_Token(HttpSession session,HttpServletRequest request){
        System.out.println("从缓存中读取");
//        Jedis jedis  = RedisUtil.getJedis();
//        String access_token = jedis.get("access_token");
        Object access_token = request.getSession().getAttribute("access_token");
        System.out.println("SESSION里的access_token是否获取到："+access_token);
        if(access_token==null){
            AccessToken token = getAccessToken(session);
            access_token = token.getToken();
        }
//        RedisUtil.returnResource(jedis);
        return access_token.toString();
    }

}

2.创建一个uploadUtil:

package com.naruto.huo.common;

import net.sf.json.JSONObject;

import java.io.*;
import java.net.HttpURLConnection;
import java.net.URL;
import java.security.KeyManagementException;
import java.security.NoSuchAlgorithmException;
import java.security.NoSuchProviderException;

public class UploadUtil {
    private static final String UPLOAD_URL ="https://api.weixin.qq.com/cgi-bin/media/upload?access_token=ACCESS_TOKEN&type=TYPE";
    /**
     * 文件上传
     * @param filePath
     * @param accessToken
     * @param type
     * @return
     * @throws IOException
     * @throws NoSuchAlgorithmException
     * @throws NoSuchProviderException
     * @throws KeyManagementException
     */
    public static String upload(String filePath, String accessToken,String type) throws IOException, NoSuchAlgorithmException, NoSuchProviderException, KeyManagementException {
        File file = new File(filePath);
        if (!file.exists() || !file.isFile()) {
            throw new IOException("文件不存在");
        }

        String url = UPLOAD_URL.replace("ACCESS_TOKEN", accessToken).replace("TYPE",type);

        URL urlObj = new URL(url);
        //连接
        HttpURLConnection con = (HttpURLConnection) urlObj.openConnection();

        con.setRequestMethod("POST");
        con.setDoInput(true);
        con.setDoOutput(true);
        con.setUseCaches(false);

        //设置请求头信息
        con.setRequestProperty("Connection", "Keep-Alive");
        con.setRequestProperty("Charset", "UTF-8");

        //设置边界
        String BOUNDARY = "----------" + System.currentTimeMillis();
        con.setRequestProperty("Content-Type", "multipart/form-data; boundary=" + BOUNDARY);

        StringBuilder sb = new StringBuilder();
        sb.append("--");
        sb.append(BOUNDARY);
        sb.append("\r\n");
        sb.append("Content-Disposition: form-data;name=\"file\";filename=\"" + file.getName() + "\"\r\n");
        sb.append("Content-Type:application/octet-stream\r\n\r\n");

        byte[] head = sb.toString().getBytes("utf-8");

        //获得输出流
        OutputStream out = new DataOutputStream(con.getOutputStream());
        //输出表头
        out.write(head);

        //文件正文部分
        //把文件已流文件的方式 推入到url中
        DataInputStream in = new DataInputStream(new FileInputStream(file));
        int bytes = 0;
        byte[] bufferOut = new byte[1024];
        while ((bytes = in.read(bufferOut)) != -1) {
            out.write(bufferOut, 0, bytes);
        }
        in.close();

        //结尾部分
        byte[] foot = ("\r\n--" + BOUNDARY + "--\r\n").getBytes("utf-8");//定义最后数据分隔线

        out.write(foot);

        out.flush();
        out.close();

        StringBuffer buffer = new StringBuffer();
        BufferedReader reader = null;
        String result = null;
        try {
            //定义BufferedReader输入流来读取URL的响应
            reader = new BufferedReader(new InputStreamReader(con.getInputStream()));
            String line = null;
            while ((line = reader.readLine()) != null) {
                buffer.append(line);
            }
            if (result == null) {
                result = buffer.toString();
            }
        } catch (IOException e) {
            e.printStackTrace();
        } finally {
            if (reader != null) {
                reader.close();
            }
        }

        JSONObject jsonObj = JSONObject.fromObject(result);
        String typeName = "media_id";
        if("thumb".equals(type)){
            typeName = type + "_media_id";
        }
        String mediaId = jsonObj.getString(typeName);
        return mediaId;
    }
}

3.在之前(一)的controller加一个图片判断:

@Component
public class MessageDispatcher {
    public static String processMessage(Map<String, String> map, HttpSession session, HttpServletRequest request) throws FileNotFoundException {
        String openid = map.get("FromUserName"); //用户 openid
        String mpid = map.get("ToUserName");   //公众号原始 ID
        String content = map.get("Content");
        if (map.get("MsgType").equals(MessageUtil.REQ_MESSAGE_TYPE_TEXT)) {
            //普通文本消息
            TextMessage txtmsg = new TextMessage();
            txtmsg.setToUserName(openid);
            txtmsg.setFromUserName(mpid);
            txtmsg.setCreateTime(new Date().getTime());
            txtmsg.setMsgType(MessageUtil.RESP_MESSAGE_TYPE_TEXT);
            if("接收".equals(content)){
                txtmsg.setContent("接收到了!没错~");
            }else if("图片".equals(content)){
                MessageUtil util = new MessageUtil();
                return util.initMessage(openid, mpid,session,request);
            }else{
                txtmsg.setContent("您输入的是:"+content);
            }
            return MessageUtil.textMessageToXml(txtmsg);
        }
    /*    else if (map.get("MsgType").equals(MessageUtil.REQ_MESSAGE_TYPE_IMAGE)) {
            // 图片消息
            respContent = "您发送的是图片消息！";
            respXml = WeChatUtil.sendTextMsg(requestMap, respContent);
        }*/
        return null;
    }
    public String processEvent(Map<String, String> map) {
        //在这里处理事件
        return "123";
    }
}

4.在(一)的messageUtil里面加代码:

    /*处理图片*/
    /**
     * 将信息转为xml格式
     */
    public String messageToxml(ImageMessage imageMessage) {
        XStream xtream = new XStream();
        xtream.alias("xml", imageMessage.getClass());
        xtream.alias("Image", new Image().getClass());
        System.out.println("xtream.toString():"+xtream.toString());
        return xtream.toXML(imageMessage);
    }
    /**
     * 封装信息
     */
    public String initMessage(String FromUserName, String ToUserName,HttpSession session, HttpServletRequest request) throws FileNotFoundException {
        Image image = new Image();
        image.setMediaId(getmediaId(session,request));
        log.info("MediaId:"+image.getMediaId());
        ImageMessage message = new ImageMessage();
        message.setFromUserName(ToUserName);
        message.setToUserName(FromUserName);
        message.setCreateTime(new Date().getTime());
        message.setImage(image);
        log.info("ToUserName:"+ToUserName);
        log.info("FromUserName:"+FromUserName);
        message.setMsgType("image");
        log.info("message:"+message.toString());
        return messageToxml(message);
    }

    @Value("${config.extPath}")
    private String extPath;

    /**
     * 获取Media
     * @return
     */
    public String getmediaId(HttpSession session, HttpServletRequest request) throws FileNotFoundException {
        //获取classes目录绝对路径
        //ResourceUtils.getURL("classpath:").getPath();
        //String path = request.getSession().getServletContext().getRealPath("/static/pic/feng.png");

        //String path = ClassUtils.getDefaultClassLoader().getResource("").getPath()+"static/images/feng.png";
        String path = request.getServletContext().getRealPath("/")  + "WEB-INF/classes/static/images/feng.png";
        log.info("path:"+path);
        String accessToken = WeixinUtil.getAccess_Token(session,request);
        String mediaId = null;
        try {
            mediaId = UploadUtil.upload(path, accessToken.toString(), "image");

        } catch (KeyManagementException | NoSuchAlgorithmException
                | NoSuchProviderException | IOException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }

        return mediaId;
    }

/*处理结束*/

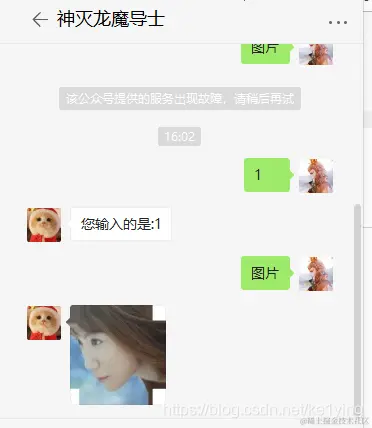

5.最后成功之后则为
