Java 监控工具Arthas

[TOC]

一、介绍:cactus:


Arthas 是Alibaba开源的Java诊断工具,深受开发者喜爱。

当你遇到以下类似问题而束手无策时,Arthas可以帮助你解决:

  1. 这个类从哪个 jar 包加载的?为什么会报各种类相关的 Exception?

  2. 我改的代码为什么没有执行到?难道是我没 commit?分支搞错了?

  3. 遇到问题无法在线上 debug,难道只能通过加日志再重新发布吗?

  4. 线上遇到某个用户的数据处理有问题,但线上同样无法 debug,线下无法重现!

  5. 是否有一个全局视角来查看系统的运行状况?

有什么办法可以监控到JVM的实时运行状态?

Arthas支持JDK 6+,支持Linux/Mac/Winodws,采用命令行交互模式,同时提供丰富的 Tab 自动补全功能,进一步方便进行问题的定位和诊断。

二、 实践教程 :cake:

wget https://code.aliyun.com/middleware-container/handsonLabExternedFiles/raw/master/demo-arthas-spring-boot.jar;java -jar demo-arthas-spring-boot.jar
复制代码


1.1 启动arthas-boot

wget https://arthas.aliyun.com/arthas-boot.jar;java -jar arthas-boot.jar --target-ip 0.0.0.0
复制代码

arthas-boot是Arthas的启动程序,它启动后,会列出所有的Java进程,用户可以选择需要诊断的目标进程。

选择第一个进程,输入 1 ,再Enter/回车:

[INFO] arthas-boot version: 3.5.5
[INFO] Found existing java process, please choose one and input the serial number of the process, eg : 1. Then hit ENTER.
* [1]: 1265 demo-arthas-spring-boot.jar
复制代码
1
复制代码

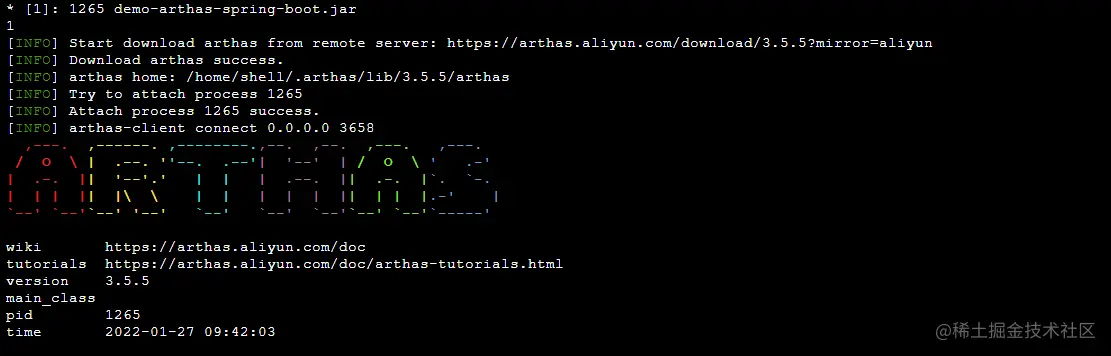

Attach成功之后,会打印Arthas LOGO。输入 help 可以获取到更多的帮助信息。 7Oz9SO.png

三、查看JVM信息:factory:

下面介绍Arthas里查看JVM信息的命令。

1.1 sysprop

sysprop 可以打印所有的System Properties信息。

$ sysprop

KEY                      VALUE
-----------------------------------------------------------------------------------------------------------------------------
 awt.toolkit              sun.awt.X11.XToolkit
 file.encoding.pkg        sun.io
 java.specification.vers  1.8
 ion
 sun.cpu.isalist
 sun.jnu.encoding         UTF-8
 java.class.path          demo-arthas-spring-boot.jar
 java.vm.vendor           Private Build
 sun.arch.data.model      64
 java.vendor.url          http://java.oracle.com/
 catalina.useNaming       false
 user.timezone            Asia/Shanghai
 org.jboss.logging.provi  slf4j
 der
 os.name                  Linux
 java.vm.specification.v  1.8
 ersion
 user.country             US
 sun.java.launcher        SUN_STANDARD
 sun.boot.library.path    /usr/lib/jvm/java-8-openjdk-amd64/jre/lib/amd64
 sun.java.command         demo-arthas-spring-boot.jar
 sun.cpu.endian           little
 user.home                /home/shell
 user.language            en
 java.specification.vend  Oracle Corporation
 or
 java.home                /usr/lib/jvm/java-8-openjdk-amd64/jre
 file.separator           /
 line.separator
 java.vm.specification.v  Oracle Corporation
 endor
 java.specification.name  Java Platform API Specification
 java.awt.graphicsenv     sun.awt.X11GraphicsEnvironment
 java.awt.headless        true
 sun.boot.class.path      /usr/lib/jvm/java-8-openjdk-amd64/jre/lib/resources.jar:/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/
                          rt.jar:/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/sunrsasign.jar:/usr/lib/jvm/java-8-openjdk-amd64/
                          jre/lib/jsse.jar:/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/jce.jar:/usr/lib/jvm/java-8-openjdk-amd
                          64/jre/lib/charsets.jar:/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/jfr.jar:/usr/lib/jvm/java-8-open
                          jdk-amd64/jre/classes
 java.protocol.handler.p  org.springframework.boot.loader
 kgs
 sun.management.compiler  HotSpot 64-Bit Tiered Compilers
 java.runtime.version     1.8.0_292-8u292-b10-0ubuntu1~18.04-b10
 user.name                shell
 path.separator           :
 os.version               3.10.0-957.21.3.el7.x86_64
 java.endorsed.dirs       /usr/lib/jvm/java-8-openjdk-amd64/jre/lib/endorsed
 java.runtime.name        OpenJDK Runtime Environment
 file.encoding            UTF-8
 spring.beaninfo.ignore   true
 sun.nio.ch.bugLevel
 java.vm.name             OpenJDK 64-Bit Server VM
 java.vendor.url.bug      http://bugreport.sun.com/bugreport/
 java.io.tmpdir           /tmp
 catalina.home            /tmp/tomcat.8558577891545713433.61000
 java.version             1.8.0_292
 user.dir                 /home/shell
 os.arch                  amd64
 PID                      1265
 java.vm.specification.n  Java Virtual Machine Specification
 ame
 java.awt.printerjob      sun.print.PSPrinterJob
 sun.os.patch.level       unknown
 catalina.base            /tmp/tomcat.8558577891545713433.61000
 java.library.path        /usr/java/packages/lib/amd64:/usr/lib/x86_64-linux-gnu/jni:/lib/x86_64-linux-gnu:/usr/lib/x86_64-l
                          inux-gnu:/usr/lib/jni:/lib:/usr/lib
 java.vm.info             mixed mode
 java.vendor              Private Build
 java.vm.version          25.292-b10
 java.ext.dirs            /usr/lib/jvm/java-8-openjdk-amd64/jre/lib/ext:/usr/java/packages/lib/ext
 sun.io.unicode.encoding  UnicodeLittle
 java.class.version       52.0
复制代码

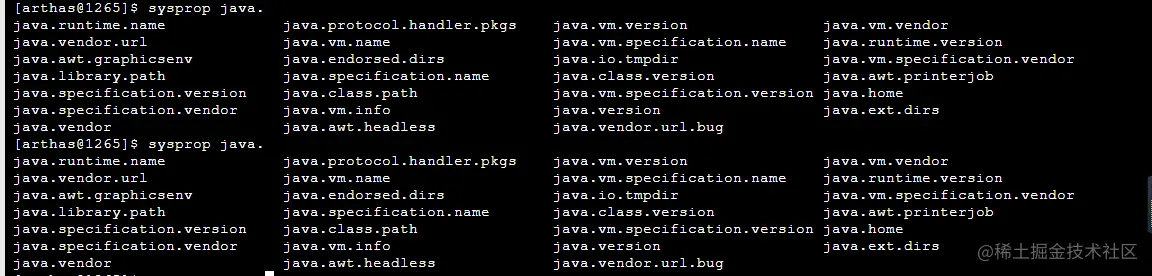

也可以指定单个key: sysprop java.version

$ sysprop java.version
 KEY                      VALUE
-----------------------------------------------------------------------------------------------------------------------------
 java.version             1.8.0_292
复制代码

也可以通过grep来过滤: sysprop | grep user

$ sysprop | grep user
 user.timezone            Asia/Shanghai
 user.country             US
 user.home                /home/shell
 user.language            en
 user.name                shell
 user.dir                 /home/shell
复制代码

可以设置新的value: sysprop testKey testValue

$ sysprop testKey testValue
Successfully changed the system property.
 KEY                      VALUE
-----------------------------------------------------------------------------------------------------------------------------
 testKey                  testValue
复制代码

1.2 sysenv

sysenv 命令可以获取到环境变量。和sysprop命令类似。

sysenv
 KEY                      VALUE
-----------------------------------------------------------------------------------------------------------------------------
 PATH                     /usr/local/nvm/versions/node/v12.13.1/bin:/home/shell/.local/bin:/home/shell/bin:/usr/shell/bin:/u
                          sr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin
 USE_CLOUD_STORAGE        false
 ACCOUNT_ID               1030655505651579
 TZ                       Asia/Shanghai
 ALIBABA_CLOUD_VENDOR     CloudShell/0.2
 CLOUD_SHELL_ROOT_KEY_ID  LTAI4G8C8WqQihqKWH6L54Cr
 ALIYUN_ACCESS_KEY_SECRE  J4TnqPfEhKWLpmuAk5ohhfqqNVHhPPP4YMwUmgXWCqfy
 T
 USER_ID                  1030655505651579
 ALIBABA_CLOUD_ACCESS_KE  J4TnqPfEhKWLpmuAk5ohhfqqNVHhPPP4YMwUmgXWCqfy
 Y_SECRET
 GOCACHE                  /go/.cache/go-build
 DEFAULT_REGION           cn-hangzhou
 ALICLOUD_REGION          cn-hangzhou
 LOGNAME                  shell
 CLOUDSHELL_CONNECT_KEY   7zgfkrzvimgbwpun
 PWD                      /home/shell
 NVM_CD_FLAGS
 CHANNEL_ID               OFFICIAL
 ALICLOUD_ACCOUNT_ID      1030655505651579
 ACCESS_KEY_ID            TMP.3KfX6ZiSosuHVWXdnmkZsJfhE7YtEQpzzhES4zuLz4BfQh1jAWHjaqE9gtygQycXhj9qyhSWVhgwdsh2hm7Rs4BaUTu4Ez
 GOPATH                   /go
 OLDPWD                   /
 ALIYUN_ACCESS_KEY_ID     TMP.3KfX6ZiSosuHVWXdnmkZsJfhE7YtEQpzzhES4zuLz4BfQh1jAWHjaqE9gtygQycXhj9qyhSWVhgwdsh2hm7Rs4BaUTu4Ez
 GEM_HOME                 /home/shell/.gems
 REGION                   cn-hangzhou
 CLOUDSHELL_TENANT_CERT   -----BEGIN CERTIFICATE-----\nMIIDazCCAlOgAwIBAgIQWntjiFQ5tgjmatJi2Ol7iDANBgkqhkiG9w0BAQsFADBC\nMRY
                          wFAYDVQQKDA1jbG91ZHNoZWxsIENBMRMwEQYDVQQLDApjbG91ZHNoZWxsMRMw\nEQYDVQQDDApjbG91ZHNoZWxsMB4XDTIxMTA
                          yNjAwNDgwOVoXDTMxMTAyNjAwNDgw\nOVowQjEWMBQGA1UECgwNY2xvdWRzaGVsbCBDQTETMBEGA1UECwwKY2xvdWRzaGVs\nb
                          DETMBEGA1UEAwwKY2xvdWRzaGVsbDCCASIwDQYJKoZIhvcNAQEBBQADggEPADCC\nAQoCggEBAKz3d8k3+Ak9+c81EDbRTI2Ls
                          AWhXnrArh2E1c2dFAYQk5UyndT80wUv\nNt1uvqk23KOVE4rQOZ2KZ6mQczxlH62H0nX6gSMeZsCqGNtjRtb7j3PNDXGXoYTF\
                          n2WxXhYLgzszcUaJ+/iAiedQx0uIc9J5+sG3Do5LjOsFYGc8UYYBA+UpRJFq71oYs\nZXPJiNxLcOfF3k0JnKMqgNXmIoqEZFm
                          OizpcVGMQZfycgqgid1yDqRVHJRwQHwHv\nclnUzxYTYVa5DsqYDr+OXmx++uHmQDtdli5eIA7rATqKt6BhFY/6VbdSklA8m5s
                          Y\nt1xOZcE/tVSfNyAtsNpwirqAF2U6EeECAwEAAaNdMFswHwYDVR0jBBgwFoAUOC1+\nGQ6yPqW7TzKjy2IBHaqj190wHQYDV
                          R0OBBYEFDgtfhkOsj6lu08yo8tiAR2qo9fd\nMAsGA1UdDwQEAwICBDAMBgNVHRMEBTADAQH/MA0GCSqGSIb3DQEBCwUAA4IBA
                          QAb\nI0APX3asjhpxGkGxQrrBrtAzdyFuQNSBPP6uIdhK+BskYaK3VLh2RwRxiHdoUGO1\nzXK9VFvW2jb/1Xkcdlbm8ZkUefa
                          P03D7E8+1HYuIx1uNo24TcOLZgOCeNvd3sFkz\nLvbluvF4PC44q9M067qlQOk5XvlkhJILYDXdfZLUKY1kC5o6u4f0sv0f6yO
                          yRY55\nUE9WAhZdq1qNvaWD2bqR21x1Gc7fCIXv6rkHmETzcjdrEAaclShs6DmsYi3p148H\nXWfHNEqbIYzZJtzErvjqcgMOC
                          xOHQ8mo6FmripT7w+9YhwbjOfIukIifPg3XdUj3\nUd3M38VSncE805iPPkGM\n-----END CERTIFICATE-----\n
 ALIBABA_CLOUD_ACCOUNT_I  1030655505651579
 D
 ALIBABA_CLOUD_ACCESS_KE  TMP.3KfX6ZiSosuHVWXdnmkZsJfhE7YtEQpzzhES4zuLz4BfQh1jAWHjaqE9gtygQycXhj9qyhSWVhgwdsh2hm7Rs4BaUTu4Ez
 Y_ID
 LS_COLORS                rs=0:di=01;34:ln=01;36:mh=00:pi=40;33:so=01;35:do=01;35:bd=40;33;01:cd=40;33;01:or=40;31;01:mi=00:
                          su=37;41:sg=30;43:ca=30;41:tw=30;42:ow=34;42:st=37;44:ex=01;32:*.tar=01;31:*.tgz=01;31:*.arc=01;31
                          :*.arj=01;31:*.taz=01;31:*.lha=01;31:*.lz4=01;31:*.lzh=01;31:*.lzma=01;31:*.tlz=01;31:*.txz=01;31:
                          *.tzo=01;31:*.t7z=01;31:*.zip=01;31:*.z=01;31:*.Z=01;31:*.dz=01;31:*.gz=01;31:*.lrz=01;31:*.lz=01;
                          31:*.lzo=01;31:*.xz=01;31:*.zst=01;31:*.tzst=01;31:*.bz2=01;31:*.bz=01;31:*.tbz=01;31:*.tbz2=01;31
                          :*.tz=01;31:*.deb=01;31:*.rpm=01;31:*.jar=01;31:*.war=01;31:*.ear=01;31:*.sar=01;31:*.rar=01;31:*.
                          alz=01;31:*.ace=01;31:*.zoo=01;31:*.cpio=01;31:*.7z=01;31:*.rz=01;31:*.cab=01;31:*.wim=01;31:*.swm
                          =01;31:*.dwm=01;31:*.esd=01;31:*.jpg=01;35:*.jpeg=01;35:*.mjpg=01;35:*.mjpeg=01;35:*.gif=01;35:*.b
                          mp=01;35:*.pbm=01;35:*.pgm=01;35:*.ppm=01;35:*.tga=01;35:*.xbm=01;35:*.xpm=01;35:*.tif=01;35:*.tif
                          f=01;35:*.png=01;35:*.svg=01;35:*.svgz=01;35:*.mng=01;35:*.pcx=01;35:*.mov=01;35:*.mpg=01;35:*.mpe
                          g=01;35:*.m2v=01;35:*.mkv=01;35:*.webm=01;35:*.ogm=01;35:*.mp4=01;35:*.m4v=01;35:*.mp4v=01;35:*.vo
                          b=01;35:*.qt=01;35:*.nuv=01;35:*.wmv=01;35:*.asf=01;35:*.rm=01;35:*.rmvb=01;35:*.flc=01;35:*.avi=0
                          1;35:*.fli=01;35:*.flv=01;35:*.gl=01;35:*.dl=01;35:*.xcf=01;35:*.xwd=01;35:*.yuv=01;35:*.cgm=01;35
                          :*.emf=01;35:*.ogv=01;35:*.ogx=01;35:*.aac=00;36:*.au=00;36:*.flac=00;36:*.m4a=00;36:*.mid=00;36:*
                          .midi=00;36:*.mka=00;36:*.mp3=00;36:*.mpc=00;36:*.ogg=00;36:*.ra=00;36:*.wav=00;36:*.oga=00;36:*.o
                          pus=00;36:*.spx=00;36:*.xspf=00;36:
 CLOUD_SHELL_ROOT_KEY_SE  cf4x2LqNAyQXdSqzR5dLUkDrNQQ5VZ
 CRET
 SHLVL                    3
 CLOUDSHELL_PROXY_ACCESS  96924942-e575-484f-8fc5-a1cbee03a437
 _KEY
 default_serverless_devs  {"AccountID":"1030655505651579","AccessKeyID":"TMP.3KfX6ZiSosuHVWXdnmkZsJfhE7YtEQpzzhES4zuLz4BfQh1
 _access                  jAWHjaqE9gtygQycXhj9qyhSWVhgwdsh2hm7Rs4BaUTu4Ez","AccessKeySecret":"J4TnqPfEhKWLpmuAk5ohhfqqNVHhPP
                          P4YMwUmgXWCqfy"}
 ALIYUN_DEFAULT_REGION    cn-hangzhou
 TERM                     xterm-256color
 LANG                     en_US.UTF-8
 GOPROXY                  https://mirrors.aliyun.com/goproxy/
 ALICLOUD_SECRET_KEY      J4TnqPfEhKWLpmuAk5ohhfqqNVHhPPP4YMwUmgXWCqfy
 ACCESS_KEY_SECRET        J4TnqPfEhKWLpmuAk5ohhfqqNVHhPPP4YMwUmgXWCqfy
 CLOUD_SHELL_LANG         zh
 _                        /usr/bin/java
 ALIBABA_CLOUD_DEFAULT_R  cn-hangzhou
 EGION
 CLOUDSHELL_DOWNLOAD_MAX  5368709120
 _SIZE
 NVM_DIR                  /usr/local/nvm
 CLOUD_SHELL              true
 FC_NO_ISOLATION          y
 USER                     shell
 GEM_PATH                 /home/shell/.gems:/var/lib/gems/2.5.0
 ALICLOUD_ACCESS_KEY      TMP.3KfX6ZiSosuHVWXdnmkZsJfhE7YtEQpzzhES4zuLz4BfQh1jAWHjaqE9gtygQycXhj9qyhSWVhgwdsh2hm7Rs4BaUTu4Ez
 ALIYUN_USER_AGENT        CloudShell/0.2
 HOSTNAME                 68ea4d9747b3
 MOUNT_FAILED             false
 NVM_BIN                  /usr/local/nvm/versions/node/v12.13.1/bin
 TF_PLUGIN_CACHE_DIR      /home/shell/.terraform.d/plugin-cache
 CLOUDSHELL_PROXY_ACCESS  c2b141e2-0c63-4959-a267-2faf34d2b8be
 _SECRET
 HOME                     /home/shell
复制代码

1.3 jvm

jvm 命令会打印出JVM的各种详细信息。

 $ jvm
 RUNTIME
-----------------------------------------------------------------------------------------------------------------------------
 MACHINE-NAME                        1265@68ea4d9747b3
 JVM-START-TIME                      2022-01-27 09:39:11
 MANAGEMENT-SPEC-VERSION             1.2
 SPEC-NAME                           Java Virtual Machine Specification
 SPEC-VENDOR                         Oracle Corporation
 SPEC-VERSION                        1.8
 VM-NAME                             OpenJDK 64-Bit Server VM
 VM-VENDOR                           Private Build
 VM-VERSION                          25.292-b10
 INPUT-ARGUMENTS                     []
 CLASS-PATH                          demo-arthas-spring-boot.jar
 BOOT-CLASS-PATH                     /usr/lib/jvm/java-8-openjdk-amd64/jre/lib/resources.jar:/usr/lib/jvm/java-8-openjdk-amd
                                     64/jre/lib/rt.jar:/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/sunrsasign.jar:/usr/lib/jvm
                                     /java-8-openjdk-amd64/jre/lib/jsse.jar:/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/jce.ja
                                     r:/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/charsets.jar:/usr/lib/jvm/java-8-openjdk-am
                                     d64/jre/lib/jfr.jar:/usr/lib/jvm/java-8-openjdk-amd64/jre/classes
 LIBRARY-PATH                        /usr/java/packages/lib/amd64:/usr/lib/x86_64-linux-gnu/jni:/lib/x86_64-linux-gnu:/usr/l
                                     ib/x86_64-linux-gnu:/usr/lib/jni:/lib:/usr/lib

-----------------------------------------------------------------------------------------------------------------------------
 CLASS-LOADING
-----------------------------------------------------------------------------------------------------------------------------
 LOADED-CLASS-COUNT                  9071
 TOTAL-LOADED-CLASS-COUNT            9071
 UNLOADED-CLASS-COUNT                0
 IS-VERBOSE                          false

-----------------------------------------------------------------------------------------------------------------------------
 COMPILATION
-----------------------------------------------------------------------------------------------------------------------------
 NAME                                HotSpot 64-Bit Tiered Compilers
 TOTAL-COMPILE-TIME                  13882
 [time (ms)]

-----------------------------------------------------------------------------------------------------------------------------
 GARBAGE-COLLECTORS
-----------------------------------------------------------------------------------------------------------------------------
 Copy                                name : Copy
 [count/time (ms)]                   collectionCount : 97
                                     collectionTime : 602
 MarkSweepCompact                    name : MarkSweepCompact
 [count/time (ms)]                   collectionCount : 3
                                     collectionTime : 208

-----------------------------------------------------------------------------------------------------------------------------
 MEMORY-MANAGERS
-----------------------------------------------------------------------------------------------------------------------------
 CodeCacheManager                    Code Cache
 Metaspace Manager                   Metaspace
                                     Compressed Class Space
 Copy                                Eden Space
                                     Survivor Space
 MarkSweepCompact                    Eden Space
                                     Survivor Space
                                     Tenured Gen

-----------------------------------------------------------------------------------------------------------------------------
 MEMORY
-----------------------------------------------------------------------------------------------------------------------------
 HEAP-MEMORY-USAGE                   init : 31457280(30.0 MiB)
 [memory in bytes]                   used : 42087040(40.1 MiB)
                                     committed : 81309696(77.5 MiB)
                                     max : 466288640(444.7 MiB)
 NO-HEAP-MEMORY-USAGE                init : 2555904(2.4 MiB)
 [memory in bytes]                   used : 67432512(64.3 MiB)
                                     committed : 68878336(65.7 MiB)
                                     max : -1(-1 B)
 PENDING-FINALIZE-COUNT              0

-----------------------------------------------------------------------------------------------------------------------------
 OPERATING-SYSTEM
-----------------------------------------------------------------------------------------------------------------------------
 OS                                  Linux
 ARCH                                amd64
 PROCESSORS-COUNT                    1
 LOAD-AVERAGE                        0.02
 VERSION                             3.10.0-957.21.3.el7.x86_64

-----------------------------------------------------------------------------------------------------------------------------
 THREAD
-----------------------------------------------------------------------------------------------------------------------------
 COUNT                               30
 DAEMON-COUNT                        28
 PEAK-COUNT                          30
 STARTED-COUNT                       38
 DEADLOCK-COUNT                      0

-----------------------------------------------------------------------------------------------------------------------------
 FILE-DESCRIPTOR
-----------------------------------------------------------------------------------------------------------------------------
 MAX-FILE-DESCRIPTOR-COUNT           1048576
 OPEN-FILE-DESCRIPTOR-COUNT          67
复制代码

1.4 dashboard

dashboard 命令可以查看当前系统的实时数据面板。

输入 q 或者 Ctrl+C 可以退出dashboard命令。

四、 Arthas使用技巧:dart:

1.1 help

Arthas里每一个命令都有详细的帮助信息。可以用-h来查看。帮助信息里有EXAMPLESWIKI链接。

sysprop -h
复制代码

1.2 自动补全

Arthas支持丰富的自动补全功能,在使用有疑惑时,可以输入Tab来获取更多信息。

比如输入 sysprop java. 之后,再输入Tab,会补全出对应的key:
复制代码
$ sysprop java.
java.runtime.name             java.protocol.handler.pkgs    java.vm.version
java.vm.vendor                java.vendor.url               java.vm.name
...
复制代码


1.3 readline的快捷键支持

Arthas支持常见的命令行快捷键,比如Ctrl + A跳转行首,Ctrl + E跳转行尾。

更多的快捷键可以用 keymap 命令查看。

[arthas@1265]$ keymap
 Shortcut                       Description                     Name
-----------------------------------------------------------------------------------------------------------------------------
 "\C-a"                         Ctrl + a                         beginning-of-line
 "\C-e"                         Ctrl + e                         end-of-line
 "\C-f"                         Ctrl + f                         forward-word
 "\C-b"                         Ctrl + b                         backward-word
 "\e[D"                         Left arrow                       backward-char
 "\e[C"                         Right arrow                      forward-char
 "\e[A"                         Up arrow                         history-search-backward
 "\e[B"                         Down arrow                       history-search-forward
 "\C-h"                         Ctrl + h                         backward-delete-char
 "\C-?"                         Ctrl + ?                         backward-delete-char
 "\C-u"                         Ctrl + u                         undo
 "\C-d"                         Ctrl + d                         delete-char
 "\C-k"                         Ctrl + k                         kill-line
 "\C-i"                         Ctrl + i                         complete
 "\C-j"                         Ctrl + j                         accept-line
 "\C-m"                         Ctrl + m                         accept-line
 "\C-w"                         Ctrl + w                         backward-delete-word
 "\C-x\e[3~"                    "\C-x\e[3~"                      backward-kill-line
 "\e\C-?"                       "\e\C-?"                         backward-kill-word
 "\e[1~"                        "\e[1~"                          beginning-of-line
 "\e[4~"                        "\e[4~"                          end-of-line
 "\e[5~"                        "\e[5~"                          beginning-of-history
 "\e[6~"                        "\e[6~"                          end-of-history
 "\e[3~"                        "\e[3~"                          delete-char
 "\e[2~"                        "\e[2~"                          quoted-insert
 "\e[7~"                        "\e[7~"                          beginning-of-line
 "\e[8~"                        "\e[8~"                          end-of-line
 "\eOH"                         "\eOH"                           beginning-of-line
 "\eOF"                         "\eOF"                           end-of-line
 "\e[H"                         "\e[H"                           beginning-of-line
 "\e[F"                         "\e[F"                           end-of-line
复制代码

1.4 历史命令的补全

如果想再执行之前的命令,可以在输入一半时,按Up/↑ 或者 Ddown/↓,来匹配到之前的命令。

比如之前执行过sysprop java.version,那么在输入sysprop ja之后,可以输入Up/↑,就会自动补全为sysprop java.version

如果想查看所有的历史命令,也可以通过 history 命令查看到。

history
复制代码

1.5 pipeline

Arthas支持在pipeline之后,执行一些简单的命令,比如:

sysprop | grep java
复制代码
sysprop | wc -l
复制代码

五、 sc/sm 查看已加载的类 :boxing_glove:

1.1 sc

sc 命令可以查找到所有JVM已经加载到的类。 如果搜索的是接口,还会搜索所有的实现类。比如查看所有的Filter实现类:

sc javax.servlet.Filter
复制代码

通过-d参数,可以打印出类加载的具体信息,很方便查找类加载问题。

sc -d javax.servlet.Filter
复制代码

sc支持通配,比如搜索所有的StringUtils

sc *StringUtils
复制代码

1.2 sm

sm命令则是查找类的具体函数。比如:

sm java.math.RoundingMode
复制代码

通过-d参数可以打印函数的具体属性:

sm -d java.math.RoundingMode
复制代码

也可以查找特定的函数,比如查找构造函数:

sm java.math.RoundingMode <init>
复制代码

六、 Jad

可以通过 jad 命令来反编译代码:

[arthas@1268]$ jad com.example.demo.arthas.user.UserController

ClassLoader:
+-org.springframework.boot.loader.LaunchedURLClassLoader@19469ea2
  +-sun.misc.Launcher$AppClassLoader@1b6d3586
    +-sun.misc.Launcher$ExtClassLoader@7d0587f1

Location:
file:/home/shell/demo-arthas-spring-boot.jar!/BOOT-INF/classes!/

       /*
        * Decompiled with CFR.
        *
        * Could not load the following classes:
        *  com.example.demo.arthas.user.User
        *  org.slf4j.Logger
        *  org.slf4j.LoggerFactory
        *  org.springframework.web.bind.annotation.GetMapping
        *  org.springframework.web.bind.annotation.PathVariable
        *  org.springframework.web.bind.annotation.RestController
        */
       package com.example.demo.arthas.user;

       import com.example.demo.arthas.user.User;
       import org.slf4j.Logger;
       import org.slf4j.LoggerFactory;
       import org.springframework.web.bind.annotation.GetMapping;
       import org.springframework.web.bind.annotation.PathVariable;
       import org.springframework.web.bind.annotation.RestController;

       @RestController
       public class UserController {
           private static final Logger logger = LoggerFactory.getLogger(UserController.class);

           @GetMapping(value={"/user/{id}"})
           public User findUserById(@PathVariable Integer id) {
/*15*/         logger.info("id: {}", (Object)id);
/*17*/         if (id != null && id < 1) {
                   throw new IllegalArgumentException("id < 1");
               }
               return new User(id.intValue(), "name" + id);
           }
       }

Affect(row-cnt:1) cost in 1262 ms.
复制代码

通过--source-only参数可以只打印出在反编译的源代码:

[arthas@1268]$ jad --source-only com.example.demo.arthas.user.UserController
       /*
        * Decompiled with CFR.
        *
        * Could not load the following classes:
        *  com.example.demo.arthas.user.User
        *  org.slf4j.Logger
        *  org.slf4j.LoggerFactory
        *  org.springframework.web.bind.annotation.GetMapping
        *  org.springframework.web.bind.annotation.PathVariable
        *  org.springframework.web.bind.annotation.RestController
        */
       package com.example.demo.arthas.user;

       import com.example.demo.arthas.user.User;
       import org.slf4j.Logger;
       import org.slf4j.LoggerFactory;
       import org.springframework.web.bind.annotation.GetMapping;
       import org.springframework.web.bind.annotation.PathVariable;
       import org.springframework.web.bind.annotation.RestController;

       @RestController
       public class UserController {
           private static final Logger logger = LoggerFactory.getLogger(UserController.class);

           @GetMapping(value={"/user/{id}"})
           public User findUserById(@PathVariable Integer id) {
/*15*/         logger.info("id: {}", (Object)id);
/*17*/         if (id != null && id < 1) {
                   throw new IllegalArgumentException("id < 1");
               }
               return new User(id.intValue(), "name" + id);
           }
       }
复制代码

七、Ognl :kick_scooter:

在Arthas里,有一个单独的ognl命令,可以动态执行代码。

1.1 调用static函数

[arthas@1268]$ ognl '@java.lang.System@out.println("hello ognl")'
复制代码

可以检查Terminal 1里的进程输出,可以发现打印出了hello ognl

1.2 查找UserController的ClassLoader

sc -d com.example.demo.arthas.user.UserController | grep classLoaderHash
复制代码

注意hashcode是变化的,需要先查看当前的ClassLoader信息,提取对应ClassLoader的hashcode。

如果你使用-c,你需要手动输入hashcode:-c <hashcode>

八、案例: 排查函数调用异常 :rabbit:

1.1 现象

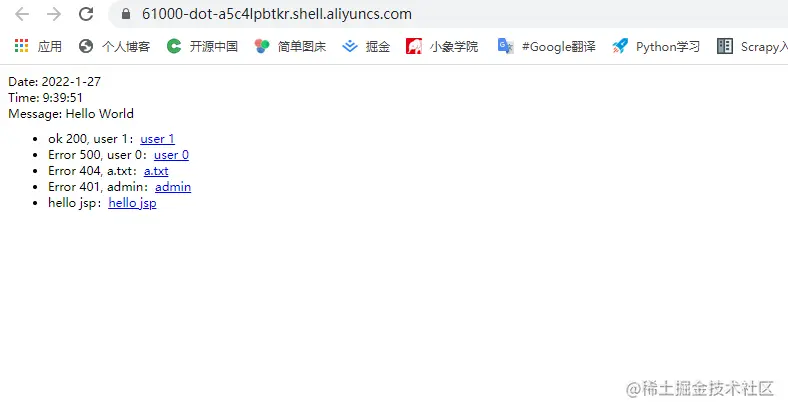

目前,访问 http://localhost:61000/user/0 ,会返回500异常:

curl http://localhost:61000/user/0
复制代码
{"timestamp":1550223186170,"status":500,"error":"Internal Server Error","exception":"java.lang.IllegalArgumentException","message":"id < 1","path":"/user/0"}
复制代码

但请求的具体参数,异常栈是什么呢?

1.2 查看UserController的 参数/异常

watch com.example.demo.arthas.user.UserController * '{params, throwExp}'
复制代码
  1. 第一个参数是类名,支持通配
  2. 第二个参数是函数名,支持通配 访问 curl http://localhost:61000/user/0 ,watch命令会打印调用的参数和异常
curl http://localhost:61000/user/0
复制代码

监控查看到异常结果:

[arthas@1268]$ watch com.example.demo.arthas.user.UserController * '{params, throwExp}'
Press Q or Ctrl+C to abort.
Affect(class count: 1 , method count: 2) cost in 227 ms, listenerId: 1
method=com.example.demo.arthas.user.UserController.findUserById location=AtExceptionExit
ts=2022-01-27 10:58:41; [cost=2.370685ms] result=@ArrayList[
    @Object[][isEmpty=false;size=1],
    @IllegalArgumentException[java.lang.IllegalArgumentException: id < 1],
]

复制代码

可以看到实际抛出的异常是IllegalArgumentException

可以输入 q 或者 Ctrl+C 退出watch命令。

如果想把获取到的结果展开,可以用-x参数:

[arthas@1268]$ watch com.example.demo.arthas.user.UserController * '{params, throwExp}' -x 2
Press Q or Ctrl+C to abort.
Affect(class count: 1 , method count: 2) cost in 59 ms, listenerId: 2
method=com.example.demo.arthas.user.UserController.findUserById location=AtExceptionExit
ts=2022-01-27 11:00:38; [cost=0.475683ms] result=@ArrayList[
    @Object[][
        @Integer[0],
    ],
    java.lang.IllegalArgumentException: id < 1
        at com.example.demo.arthas.user.UserController.findUserById(UserController.java:18)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
        at java.lang.reflect.Method.invoke(Method.java:498)
        at org.springframework.web.method.support.InvocableHandlerMethod.doInvoke(InvocableHandlerMethod.java:205)
        at org.springframework.web.method.support.InvocableHandlerMethod.invokeForRequest(InvocableHandlerMethod.java:133)
        at org.springframework.web.servlet.mvc.method.annotation.ServletInvocableHandlerMethod.invokeAndHandle(ServletInvocableHandlerMethod.java:97)
        at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.invokeHandlerMethod(RequestMappingHandlerAdapter.java:827)
        at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.handleInternal(RequestMappingHandlerAdapter.java:738)
        at org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter.handle(AbstractHandlerMethodAdapter.java:85)
        at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:967)
        at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:901)
        at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:970)
        at org.springframework.web.servlet.FrameworkServlet.doGet(FrameworkServlet.java:861)
        at javax.servlet.http.HttpServlet.service(HttpServlet.java:635)
        at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:846)
        at javax.servlet.http.HttpServlet.service(HttpServlet.java:742)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:231)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
        at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:52)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
        at org.springframework.web.filter.RequestContextFilter.doFilterInternal(RequestContextFilter.java:99)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
        at org.springframework.web.filter.HttpPutFormContentFilter.doFilterInternal(HttpPutFormContentFilter.java:109)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
        at org.springframework.web.filter.HiddenHttpMethodFilter.doFilterInternal(HiddenHttpMethodFilter.java:81)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
        at org.springframework.web.filter.CharacterEncodingFilter.doFilterInternal(CharacterEncodingFilter.java:197)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
        at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:198)
        at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:96)
        at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:496)
        at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:140)
        at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:81)
        at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:87)
        at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:342)
        at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:803)
        at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:66)
        at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:790)
        at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1468)
        at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
        at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
        at java.lang.Thread.run(Thread.java:748)
,
]
复制代码

返回值表达式

在上面的例子里,第三个参数是返回值表达式,它实际上是一个ognl表达式,它支持一些内置对象:

  • loader
  • clazz
  • method
  • target
  • params
  • returnObj
  • throwExp
  • isBefore
  • isThrow
  • isReturn

你可以利用这些内置对象来组成不同的表达式。比如返回一个数组:

watch com.example.demo.arthas.user.UserController * '{params[0], target, returnObj}'
复制代码

更多参考: arthas.aliyun.com/doc/advice-…

九、条件表达式:haircut_woman:

1.1 watch命令支持在第4个参数里写条件表达式,比如:

watch com.example.demo.arthas.user.UserController * returnObj 'params[0] > 100'
复制代码

当访问 user/1 时,watch命令没有输出

当访问 user/101 时,watch会打印出结果。

$ watch com.example.demo.arthas.user.UserController * returnObj 'params[0] > 100'
Press Q or Ctrl+C to abort.
Affect(class-cnt:1 , method-cnt:2) cost in 47 ms.
ts=2019-02-13 19:42:12; [cost=0.821443ms] result=@User[
    id=@Integer[101],
    name=@String[name101],
]
复制代码

1.2 当异常时捕获

watch命令支持-e选项,表示只捕获抛出异常时的请求:

watch com.example.demo.arthas.user.UserController * "{params[0],throwExp}" -e
复制代码

1.3 按照耗时进行过滤

watch命令支持按请求耗时进行过滤,比如:

watch com.example.demo.arthas.user.UserController * '{params, returnObj}' '#cost>200'
复制代码

十、 案例: 热更新代码 :fire:

下面介绍通过jad/mc/redefine 命令实现动态更新代码的功能。

目前,访问 http://localhost:61000/user/0 ,会返回500异常:

{"timestamp":1550223186170,"status":500,"error":"Internal Server Error","exception":"java.lang.IllegalArgumentException","message":"id < 1","path":"/user/0"}
复制代码

下面通过热更新代码,修改这个逻辑。

1.1 jad反编译UserController

jad --source-only com.example.demo.arthas.user.UserController > /tmp/UserController.java
复制代码

jad反编译的结果保存在 /tmp/UserController.java文件里了。

再打开一个Terminal 3,然后用vim来编辑/tmp/UserController.java

## 新窗口打开
vim /tmp/UserController.java
复制代码

比如当 user id 小于1时,也正常返回,不抛出异常:

    @GetMapping(value={"/user/{id}"})
    public User findUserById(@PathVariable Integer id) {
        logger.info("id: {}", (Object)id);
        if (id != null && id < 1) {
            return new User(id, "name" + id);
            // throw new IllegalArgumentException("id < 1");
        }
        return new User(id.intValue(), "name" + id);
    }
复制代码

1.2 sc查找加载UserController的ClassLoader

sc -d *UserController | grep classLoaderHash

classLoaderHash   19469ea2
复制代码

可以发现是 spring boot LaunchedURLClassLoader@19469ea2 加载的。

请记下你的classLoaderHash,后面需要使用它。在这里,它是 19469ea2

1.3 mc

保存好/tmp/UserController.java之后,使用mc(Memory Compiler)命令来编译,并且通过-c或者--classLoaderClass参数指定ClassLoader:

[arthas@2167]$ mc --classLoaderClass org.springframework.boot.loader.LaunchedURLClassLoader /tmp/UserController.java -d /tmp
Memory compiler output:
/tmp/com/example/demo/arthas/user/UserController.class
Affect(row-cnt:1) cost in 2972 ms.
复制代码

也可以通过mc -c <classLoaderHash> /tmp/UserController.java -d /tmp,使用-c参数指定ClassLoaderHash:

$ mc -c 1be6f5c3 /tmp/UserController.java -d /tmp
复制代码

1.4 redefine

再使用redefine命令重新加载新编译好的UserController.class

[arthas@2167]$ redefine /tmp/com/example/demo/arthas/user/UserController.class
redefine success, size: 1, classes:
com.example.demo.arthas.user.UserController
复制代码

redefine成功之后,再次访问 user/0 ,结果是:

{
  "id": 0,
  "name": "name0"
}
复制代码

十一、案例: 动态更新应用Logger Level:hotdog:

在这个案例里,动态修改应用的Logger Level。

1.1 查找UserController的ClassLoader

[arthas@2167]$ sc -d com.example.demo.arthas.user.UserController | grep classLoaderHash
 classLoaderHash   19469ea2
复制代码

1.2 用ognl获取logger

[arthas@2167]$ ognl --classLoaderClass org.springframework.boot.loader.LaunchedURLClassLoader '@com.example.demo.arthas.user.UserController@logger'
@Logger[
    serialVersionUID=@Long[5454405123156820674],
    FQCN=@String[ch.qos.logback.classic.Logger],
    name=@String[com.example.demo.arthas.user.UserController],
    level=null,
    effectiveLevelInt=@Integer[20000],
    parent=@Logger[Logger[com.example.demo.arthas.user]],
    childrenList=null,
    aai=null,
    additive=@Boolean[true],
    loggerContext=@LoggerContext[ch.qos.logback.classic.LoggerContext[default]],
]
复制代码

可以知道UserController@logger实际使用的是logback。可以看到level=null,则说明实际最终的level是从root logger里来的。

1.3 单独设置UserController的logger level

[arthas@2167]$ ognl --classLoaderClass org.springframework.boot.loader.LaunchedURLClassLoader '@com.example.demo.arthas.user.UserController@logger.setLevel(@ch.qos.logback.classic.Level@DEBUG)'
复制代码

再次获取UserController@logger,可以发现已经是DEBUG了:

[arthas@2167]$ ognl --classLoaderClass org.springframework.boot.loader.LaunchedURLClassLoader '@com.example.demo.arthas.user.UserController@logger'
@Logger[
    serialVersionUID=@Long[5454405123156820674],
    FQCN=@String[ch.qos.logback.classic.Logger],
    name=@String[com.example.demo.arthas.user.UserController],
    level=@Level[DEBUG],
    effectiveLevelInt=@Integer[10000],
    parent=@Logger[Logger[com.example.demo.arthas.user]],
    childrenList=null,
    aai=null,
    additive=@Boolean[true],
    loggerContext=@LoggerContext[ch.qos.logback.classic.LoggerContext[default]],
]
复制代码

1.4 修改logback的全局logger level

通过获取root logger,可以修改全局的logger level:

ognl --classLoaderClass org.springframework.boot.loader.LaunchedURLClassLoader '@org.slf4j.LoggerFactory@getLogger("root").setLevel(@ch.qos.logback.classic.Level@DEBUG)'
复制代码

十二、案例: 排查logger冲突问题 :calendar:

在这个案例里,展示排查logger冲突的方法。

1.1 确认应用使用的logger系统

UserController为例,它使用的是slf4j api,但实际使用到的logger系统是logback。

[arthas@2167]$ ognl --classLoaderClass org.springframework.boot.loader.LaunchedURLClassLoader '@com.example.demo.arthas.user.UserController@logger'
@Logger[
    serialVersionUID=@Long[5454405123156820674],
    FQCN=@String[ch.qos.logback.classic.Logger],
    name=@String[com.example.demo.arthas.user.UserController],
    level=@Level[DEBUG],
    effectiveLevelInt=@Integer[10000],
    parent=@Logger[Logger[com.example.demo.arthas.user]],
    childrenList=null,
    aai=null,
    additive=@Boolean[true],
    loggerContext=@LoggerContext[ch.qos.logback.classic.LoggerContext[default]],
]
复制代码

1.2 获取logback实际加载的配置文件

[arthas@2167]$ ognl --classLoaderClass org.springframework.boot.loader.LaunchedURLClassLoader '#map1=@org.slf4j.LoggerFactory@getLogger("root").loggerContext.objectMap, #map1.get("CONFIGURATION_WATCH_LIST")'
@ConfigurationWatchList[
    mainURL=@URL[jar:file:/home/shell/demo-arthas-spring-boot.jar!/BOOT-INF/classes!/logback-spring.xml],
    fileWatchList=@ArrayList[isEmpty=true;size=0],
    lastModifiedList=@ArrayList[isEmpty=true;size=0],
    noContextWarning=@Integer[0],
    context=@LoggerContext[ch.qos.logback.classic.LoggerContext[default]],
    declaredOrigin=@ConfigurationWatchList[ch.qos.logback.core.joran.spi.ConfigurationWatchList@3a34751e],
]
复制代码

1.3 使用classloader命令查找可能存在的logger配置文件

[arthas@2167]$ classloader --classLoaderClass org.springframework.boot.loader.LaunchedURLClassLoader -r logback-spring.xml
 jar:file:/home/shell/demo-arthas-spring-boot.jar!/BOOT-INF/classes!/logback-spring.xml

Affect(row-cnt:1) cost in 1 ms.
复制代码

可以知道加载的配置的具体来源。

可以尝试加载容易冲突的文件:

[arthas@2167]$ classloader --classLoaderClass org.springframework.boot.loader.LaunchedURLClassLoader -r logback.xml

Affect(row-cnt:0) cost in 1 ms.
复制代码
[arthas@2167]$ classloader --classLoaderClass org.springframework.boot.loader.LaunchedURLClassLoader -r log4j.properties

Affect(row-cnt:0) cost in 0 ms.
复制代码

十三、案例: 获取Spring Context:kimono:

在这个案例里,展示获取spring context,再获取bean,然后调用函数。

1.1 使用tt命令获取到spring context

tt即 TimeTunnel,它可以记录下指定方法每次调用的入参和返回信息,并能对这些不同的时间下调用进行观测。

https://arthas.aliyun.com/doc/tt.html
复制代码

访问:user/1

可以看到tt命令捕获到了一个请求:

[arthas@2167]$ tt -t org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter invokeHandlerMethod
Press Q or Ctrl+C to abort.
Affect(class count: 1 , method count: 1) cost in 115 ms, listenerId: 5
 INDEX   TIMESTAMP          COST(ms)  IS-RET  IS-EX  OBJECT         CLASS                        METHOD
                                              P
-----------------------------------------------------------------------------------------------------------------------------
 1000    2022-01-27 11:26:  4.8384    true    false  0x3b265475     RequestMappingHandlerAdapte  invokeHandlerMethod

复制代码

1.2使用tt命令从调用记录里获取到spring context

输入 q 或者 Ctrl + C 退出上面的 tt -t命令。

tt -i 1000 -w 'target.getApplicationContext()'

@AnnotationConfigEmbeddedWebApplicationContext[
    reader=@AnnotatedBeanDefinitionReader[org.springframework.context.annotation.AnnotatedBeanDefinitionReader@2e457641],
    scanner=@ClassPathBeanDefinitionScanner[org.springframework.context.annotation.ClassPathBeanDefinitionScanner@6eb38026],
    annotatedClasses=null,
    basePackages=null,
]
Affect(row-cnt:1) cost in 439 ms.
复制代码

1.3 获取spring bean,并调用函数

[arthas@2167]$ tt -i 1000 -w 'target.getApplicationContext().getBean("helloWorldService").getHelloMessage()'
@String[Hello World]
Affect(row-cnt:1) cost in 7 ms.
复制代码

十四、案例: 排查HTTP请求返回401:baby_chick:

在这个案例里,展示排查HTTP 401问题的技巧。

https://61000-dot-a5c4lpbtkr.shell.aliyuncs.com/admin
复制代码

访问: admin

结果是:

Something went wrong: 401 Unauthorized
复制代码

我们知道401通常是被权限管理的Filter拦截了,那么到底是哪个Filter处理了这个请求,返回了401?

1.1 跟踪所有的Filter函数

开始trace:

trace javax.servlet.Filter *
复制代码

访问: admin

可以在调用树的最深层,找到AdminFilterConfig$AdminFilter返回了401

+---[3.806273ms] javax.servlet.FilterChain:doFilter()
|   `---[3.447472ms] com.example.demo.arthas.AdminFilterConfig$AdminFilter:doFilter()
|       `---[0.17259ms] javax.servlet.http.HttpServletResponse:sendError()
复制代码

1.2 通过stack获取调用栈

上面是通过trace命令来获取信息,从结果里,我们可以知道通过stack跟踪HttpServletResponse:sendError(),同样可以知道是哪个Filter返回了401

[arthas@2167]$ stack javax.servlet.http.HttpServletResponse sendError 'params[0]==401'
Press Q or Ctrl+C to abort.
Affect(class count: 3 , method count: 4) cost in 176 ms, listenerId: 7
ts=2022-01-27 11:33:39;thread_name=http-nio-61000-exec-6;id=15;is_daemon=true;priority=5;TCCL=org.springframework.boot.context.embedded.tomcat.TomcatEmbeddedWebappClassLoader@e2dab9b
    @org.apache.catalina.connector.Response.sendError()
        at org.apache.catalina.connector.ResponseFacade.sendError(ResponseFacade.java:462)
        at com.example.demo.arthas.AdminFilterConfig$AdminFilter.doFilter(AdminFilterConfig.java:38)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
        at org.springframework.web.filter.RequestContextFilter.doFilterInternal(RequestContextFilter.java:99)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
        at org.springframework.web.filter.HttpPutFormContentFilter.doFilterInternal(HttpPutFormContentFilter.java:109)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
        at org.springframework.web.filter.HiddenHttpMethodFilter.doFilterInternal(HiddenHttpMethodFilter.java:81)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
        at org.springframework.web.filter.CharacterEncodingFilter.doFilterInternal(CharacterEncodingFilter.java:197)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
        at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:198)
        at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:96)
        at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:496)
        at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:140)
        at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:81)
        at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:87)
        at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:342)
        at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:803)
        at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:66)
        at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:790)
        at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1468)
        at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
        at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
        at java.lang.Thread.run(Thread.java:748)

ts=2022-01-27 11:33:39;thread_name=http-nio-61000-exec-6;id=15;is_daemon=true;priority=5;TCCL=org.springframework.boot.context.embedded.tomcat.TomcatEmbeddedWebappClassLoader@e2dab9b
    @org.apache.catalina.connector.ResponseFacade.sendError()
        at com.example.demo.arthas.AdminFilterConfig$AdminFilter.doFilter(AdminFilterConfig.java:38)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
        at org.springframework.web.filter.RequestContextFilter.doFilterInternal(RequestContextFilter.java:99)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
        at org.springframework.web.filter.HttpPutFormContentFilter.doFilterInternal(HttpPutFormContentFilter.java:109)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
        at org.springframework.web.filter.HiddenHttpMethodFilter.doFilterInternal(HiddenHttpMethodFilter.java:81)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
        at org.springframework.web.filter.CharacterEncodingFilter.doFilterInternal(CharacterEncodingFilter.java:197)
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
        at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:198)
        at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:96)
        at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:496)
        at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:140)
        at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:81)
        at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:87)
        at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:342)
        at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:803)
        at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:66)
        at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:790)
        at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1468)
        at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
        at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
        at java.lang.Thread.run(Thread.java:748)

复制代码

十四、案例: 排查HTTP请求返回404:honey_pot:

在这个案例里,展示排查HTTP 404问题的技巧。

访问: a.txt

结果是:

Something went wrong: 404 Not Found
复制代码

那么到底是哪个Servlet处理了这个请求,返回了404?

1.1 跟踪所有的Servlet函数

trace javax.servlet.Servlet * > /tmp/servlet.txt
复制代码

访问: a.txt

Terminal 3里,查看/tmp/servlet.txt的内容:

cat /tmp/servlet.txt
复制代码

/tmp/servlet.txt里的内容会比较多,需要耐心找到调用树里最长的地方。

可以发现请求最终是被freemarker处理的:

`---[13.974188ms] org.springframework.web.servlet.ViewResolver:resolveViewName();    +---[0.045561ms] javax.servlet.GenericServlet:<init>()
    +---[min=0.045545ms,max=0.074342ms,total=0.119887ms,count=2] org.springframework.web.servlet.view.freemarker.FreeMarkerView$GenericServletAdapter:<init>()
    +---[0.170895ms] javax.servlet.GenericServlet:init()
    |   `---[0.068578ms] javax.servlet.GenericServlet:init()
    |       `---[0.021793ms] javax.servlet.GenericServlet:init()
    `---[0.164035ms] javax.servlet.GenericServlet:getServletContext()
复制代码

十五、案例: 理解Spring Boot应用的ClassLoader结构:hourglass_flowing_sand:

下面介绍classloader命令的功能。

先访问一个jsp网页,触发jsp的加载: hello

1.1 列出所有ClassLoader

[arthas@2167]$ classloader -l
 name                                                              loadedCount  hash      parent
 BootstrapClassLoader                                              3748         null      null
 com.taobao.arthas.agent.ArthasClassloader@55948442                2628         55948442  sun.misc.Launcher$ExtClassLoader@7
                                                                                          d0587f1
 java.net.FactoryURLClassLoader@7de451d6                           841          7de451d6  sun.misc.Launcher$AppClassLoader@1
                                                                                          b6d3586
   g.apache.jasper.servlet.JasperLoader@a9af914                    1            a9af914   TomcatEmbeddedWebappClassLoader
                                                                                            context: ROOT
                                                                                            delegate: true
                                                                                          ----------> Parent Classloader:
                                                                                          org.springframework.boot.loader.La
                                                                                          unchedURLClassLoader@19469ea2
                                  0            e2dab9b   org.springframework.boot.loader.La
                                                                         unchedURLClassLoader@19469ea2


                                                            9ea2
 org.springframework.boot.loader.LaunchedURLClassLoader@19469ea2   5325         19469ea2  sun.misc.Launcher$AppClassLoader@1
                                                                                          b6d3586
 sun.misc.Launcher$AppClassLoader@1b6d3586                         45           1b6d3586  sun.misc.Launcher$ExtClassLoader@7
                                                                                          d0587f1
 sun.misc.Launcher$ExtClassLoader@7d0587f1                         63           7d0587f1  null
Affect(row-cnt:8) cost in 14 ms.
复制代码
  • TomcatEmbeddedWebappClassLoader 加载的class数量是0,所以在spring boot embedded tomcat里,它只是一个空壳,所有的类加载都是LaunchedURLClassLoader完成的

1.2 列出ClassLoader里加载的所有类

列出上面的org.apache.jasper.servlet.JasperLoader加载的类:

classloader -a --classLoaderClass apache.jasper.servlet.JasperLoader
复制代码
classloader -a --classLoaderClass apache.jasper.servlet.JasperLoader
 hash:1698045338, org.apache.jasper.servlet.JasperLoader@65361d9a
 org.apache.jsp.jsp.hello_jsp
复制代码
  • 注:同ognl, 也可用-c <hashcode>而不用--classLoaderClass指定

1.3 反编译jsp的代码

jad org.apache.jsp.jsp.hello_jsp
复制代码
$ jad org.apache.jsp.jsp.hello_jsp

ClassLoader:
+-org.apache.jasper.servlet.JasperLoader@65361d9a
  +-TomcatEmbeddedWebappClassLoader
      context: ROOT
...
复制代码

1.4 查看ClassLoader树

[arthas@1265]$ classloader -t
+-BootstrapClassLoader
+-sun.misc.Launcher$ExtClassLoader@7d0587f1
  +-com.taobao.arthas.agent.ArthasClassloader@744a1259
  +-sun.misc.Launcher$AppClassLoader@1b6d3586
    +-org.springframework.boot.loader.LaunchedURLClassLoader@19469ea2




                                                     assLoader@19469ea2
        +-org.apache.jasper.servlet.JasperLoader@7ca74939
Affect(row-cnt:7) cost in 20 ms.
复制代码

注意:请使用你的classLoaderHash值覆盖 <classLoaderHash> ,然后手动执行下面相关命令

1.5 列出ClassLoader的urls

比如上面查看到的spring LaunchedURLClassLoader的 hashcode是19469ea2 ,可以通过-c或者--classLoaderClass参数来列出它的所有urls:

classloader --classLoaderClass org.springframework.boot.loader.LaunchedURLClassLoader
复制代码

1.6 加载指定ClassLoader里的资源文件

查找指定的资源文件: classloader --classLoaderClass org.springframework.boot.loader.LaunchedURLClassLoader -r logback-spring.xml

[arthas@1265]$ classloader --classLoaderClass org.springframework.boot.loader.LaunchedURLClassLoader -r logback-spring.xml
 jar:file:/home/shell/demo-arthas-spring-boot.jar!/BOOT-INF/classes!/logback-spring.xml

Affect(row-cnt:1) cost in 1 ms.
复制代码

1.7尝试加载指定的类

比如用上面的spring LaunchedURLClassLoader 尝试加载 java.lang.String

[arthas@1265]$ classloader --classLoaderClass org.springframework.boot.loader.LaunchedURLClassLoader --load java.lang.String
load class success.
 class-info        java.lang.String
 code-source
 name              java.lang.String
 isInterface       false
 isAnnotation      false
 isEnum            false
 isAnonymousClass  false
 isArray           false
 isLocalClass      false
 isMemberClass     false
 isPrimitive       false
 isSynthetic       false
 simple-name       String
 modifier          final,public
 annotation
 interfaces        java.io.Serializable,java.lang.Comparable,java.lang.CharSequence
 super-class       +-java.lang.Object
 class-loader
 classLoaderHash   null
复制代码

十六、案例:查找Top N线程 :hammer_and_pick:

1.1 查看所有线程信息

[arthas@1265]$ thread
Threads Total: 35, NEW: 0, RUNNABLE: 11, BLOCKED: 0, WAITING: 14, TIMED_WAITING: 5, TERMINATED: 0, Internal threads: 5
ID   NAME                           GROUP           PRIORITY   STATE     %CPU      DELTA_TIME TIME      INTERRUPTE DAEMON
-1   C2 CompilerThread0             -               -1         -         14.07     0.029      0:8.038   false      true
-1   C1 CompilerThread1             -               -1         -         1.02      0.002      0:2.718   false      true
44   arthas-command-execute         system          5          RUNNABLE  0.56      0.001      0:0.828   false      true
-1   VM Periodic Task Thread        -               -1         -         0.11      0.000      0:0.432   false      true
-1   VM Thread                      -               -1         -         0.07      0.000      0:0.725   false      true
28   http-nio-61000-AsyncTimeout    main            5          TIMED_WAI 0.02      0.000      0:0.035   false      true
2    Reference Handler              system          10         WAITING   0.0       0.000      0:0.009   false      true
3    Finalizer                      system          8          WAITING   0.0       0.000      0:0.018   false      true
4    Signal Dispatcher              system          9          RUNNABLE  0.0       0.000      0:0.001   false      true
31   Attach Listener                system          9          RUNNABLE  0.0       0.000      0:0.006   false      true
33   arthas-timer                   system          9          WAITING   0.0       0.000      0:0.000   false      true
36   arthas-NettyHttpTelnetBootstra system          5          RUNNABLE  0.0       0.000      0:0.024   false      true
37   arthas-NettyWebsocketTtyBootst system          5          RUNNABLE  0.0       0.000      0:0.001   false      true
38   arthas-NettyWebsocketTtyBootst system          5          RUNNABLE  0.0       0.000      0:0.001   false      true
39   arthas-shell-server            system          9          TIMED_WAI 0.0       0.000      0:0.002   false      true
40   arthas-session-manager         system          9          TIMED_WAI 0.0       0.000      0:0.001   false      true
41   arthas-UserStat                system          9          WAITING   0.0       0.000      0:0.000   false      true
43   arthas-NettyHttpTelnetBootstra system          5          RUNNABLE  0.0       0.000      0:0.238   false      true
13   ContainerBackgroundProcessor[S main            5          TIMED_WAI 0.0       0.000      0:0.007   false      true
14   container-0                    main            5          TIMED_WAI 0.0       0.000      0:0.002   false      false
15   NioBlockingSelector.BlockPolle main            5          RUNNABLE  0.0       0.000      0:0.027   false      true
16   http-nio-61000-exec-1          main            5          WAITING   0.0       0.000      0:1.055   false      true
17   http-nio-61000-exec-2          main            5          WAITING   0.0       0.000      0:0.025   false      true
18   http-nio-61000-exec-3          main            5          WAITING   0.0       0.000      0:0.000   false      true
19   http-nio-61000-exec-4          main            5          WAITING   0.0       0.000      0:0.000   false      true
20   http-nio-61000-exec-5          main            5          WAITING   0.0       0.000      0:0.000   false      true
21   http-nio-61000-exec-6          main            5          WAITING   0.0       0.000      0:0.000   false      true
22   http-nio-61000-exec-7          main            5          WAITING   0.0       0.000      0:0.000   false      true
23   http-nio-61000-exec-8          main            5          WAITING   0.0       0.000      0:0.000   false      true
24   http-nio-61000-exec-9          main            5          WAITING   0.0       0.000      0:0.000   false      true
25   http-nio-61000-exec-10         main            5          WAITING   0.0       0.000      0:0.000   false      true
26   http-nio-61000-ClientPoller-0  main            5          RUNNABLE  0.0       0.000      0:0.039   false      true
27   http-nio-61000-Acceptor-0      main            5          RUNNABLE  0.0       0.000      0:0.006   false      true
30   DestroyJavaVM                  main            5          RUNNABLE  0.0       0.000      0:3.569   false      false
-1   Service Thread                 -               -1         -         0.0       0.000      0:0.000   false      true

复制代码

1.2 查看具体线程的栈

查看线程ID 16的栈:

[arthas@1265]$ thread 16
"http-nio-61000-exec-1" Id=16 WAITING on java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject@42ab2c2f
    at sun.misc.Unsafe.park(Native Method)
    -  waiting on java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject@42ab2c2f
    at java.util.concurrent.locks.LockSupport.park(LockSupport.java:175)
    at java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject.await(AbstractQueuedSynchronizer.java:2039)
    at java.util.concurrent.LinkedBlockingQueue.take(LinkedBlockingQueue.java:442)
    at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:103)
    at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:31)
    at java.util.concurrent.ThreadPoolExecutor.getTask(ThreadPoolExecutor.java:1074)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1134)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
    at java.lang.Thread.run(Thread.java:748)
复制代码

1.3 查看CPU使用率top n线程的栈

[arthas@1265]$ thread -n 3
"C1 CompilerThread1" [Internal] cpuUsage=0.8% deltaTime=1ms time=2743ms


"C2 CompilerThread0" [Internal] cpuUsage=0.43% deltaTime=0ms time=8072ms


"arthas-command-execute" Id=44 cpuUsage=0.34% deltaTime=0ms time=839ms RUNNABLE
    at sun.management.ThreadImpl.dumpThreads0(Native Method)
    at sun.management.ThreadImpl.getThreadInfo(ThreadImpl.java:461)
    at com.taobao.arthas.core.command.monitor200.ThreadCommand.processTopBusyThreads(ThreadCommand.java:206)
    at com.taobao.arthas.core.command.monitor200.ThreadCommand.process(ThreadCommand.java:122)
    at com.taobao.arthas.core.shell.command.impl.AnnotatedCommandImpl.process(AnnotatedCommandImpl.java:82)
    at com.taobao.arthas.core.shell.command.impl.AnnotatedCommandImpl.access$100(AnnotatedCommandImpl.java:18)
    at com.taobao.arthas.core.shell.command.impl.AnnotatedCommandImpl$ProcessHandler.handle(AnnotatedCommandImpl.java:111)
    at com.taobao.arthas.core.shell.command.impl.AnnotatedCommandImpl$ProcessHandler.handle(AnnotatedCommandImpl.java:108)
    at com.taobao.arthas.core.shell.system.impl.ProcessImpl$CommandProcessTask.run(ProcessImpl.java:385)
    at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
    at java.util.concurrent.FutureTask.run(FutureTask.java:266)
    at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.access$201(ScheduledThreadPoolExecutor.java:180)
    at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.run(ScheduledThreadPoolExecutor.java:293)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
复制代码

1.4 查看5秒内的CPU使用率top n线程栈

[arthas@1265]$ thread -n 3 -i 5000
"C2 CompilerThread0" [Internal] cpuUsage=0.14% deltaTime=7ms time=8081ms


"VM Periodic Task Thread" [Internal] cpuUsage=0.08% deltaTime=4ms time=523ms


"C1 CompilerThread1" [Internal] cpuUsage=0.03% deltaTime=1ms time=2748ms
复制代码

1.5 查找线程是否有阻塞

[arthas@1265]$ thread -b
No most blocking thread found!
复制代码

十七、Web Console :hamster:

Arthas支持通过Web Socket来连接。

Arthas支持通过Web Socket来连接。

本地体验

当在本地启动时,可以访问 http://127.0.0.1:8563/ ,通过浏览器来使用Arthas。

十八、Exit/Stop :hamburger:

1.1 reset

Arthas在 watch/trace 等命令时,实际上是修改了应用的字节码,插入增强的代码。显式执行 reset 命令,可以清除掉这些增强代码。

reset
复制代码

1.2 退出Arthas

exit 或者 quit 命令可以退出Arthas。

exit
复制代码

Ctrl+C

退出Arthas之后,还可以再次用 java -jar arthas-boot.jar 来连接。

java -jar arthas-boot.jar
复制代码

Ctrl+C

彻底退出Arthas

exit/quit命令只是退出当前session,arthas server还在目标进程中运行。

想完全退出Arthas,可以执行 stop 命令。

stop
复制代码

十九、arthas-boot支持的参数:kiwi_fruit:

arthas-boot.jar 支持很多参数,可以执行 java -jar arthas-boot.jar -h 来查看。

java -jar arthas-boot.jar -h
复制代码

1.1 允许外部访问

默认情况下, arthas server侦听的是 127.0.0.1 这个IP,如果希望远程可以访问,可以使用--target-ip的参数。

java -jar arthas-boot.jar --target-ip
复制代码

1.2 列出所有的版本

java -jar arthas-boot.jar --versions
复制代码

使用指定版本:

java -jar arthas-boot.jar --use-version 3.1.0
复制代码

1.3 只侦听Telnet端口,不侦听HTTP端口

java -jar arthas-boot.jar --telnet-port 9999 --http-port -1
复制代码

1.4 打印运行的详情

java -jar arthas-boot.jar -v
复制代码
分类:
开发工具
标签:
分类:
开发工具
标签:
收藏成功!
已添加到「」, 点击更改
