Prometheus 是 CNCF 的一个监控系统项目, 集采集、监控、报警等特点于一体。本文通过将介绍如何通过ArgoCD在K8S集群上部署prometheus来监控整个K8S集群的资源。

一、环境

已有一个K8S集群
集群中安装了ArgoCD

二、部署

网上搜索“在K8S中部署prometheus”，大概会被Prometheus Operator 、 kube-prometheus 、community helm chart 三个搞晕。

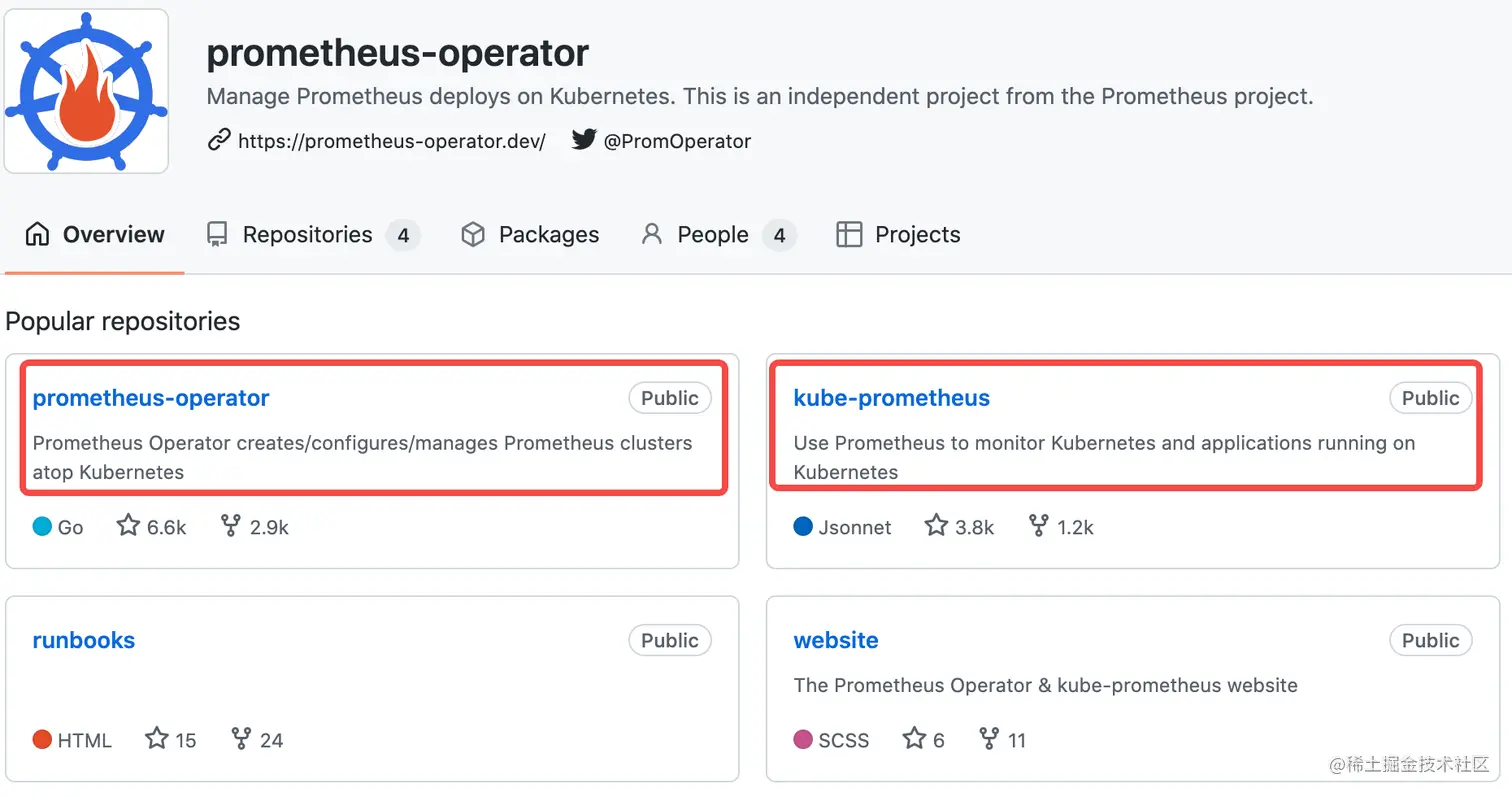

查看github说明，先进行概念辨析

Prometheus Operator vs. kube-prometheus vs. community helm chart

Prometheus Operator

The Prometheus Operator uses Kubernetes custom resources to simplify the deployment and configuration of Prometheus, Alertmanager, and related monitoring components.

kube-prometheus

kube-prometheus provides example configurations for a complete cluster monitoring stack based on Prometheus and the Prometheus Operator. This includes deployment of multiple Prometheus and Alertmanager instances, metrics exporters such as the node_exporter for gathering node metrics, scrape target configuration linking Prometheus to various metrics endpoints, and example alerting rules for notification of potential issues in the cluster.

helm chart

The prometheus-community/kube-prometheus-stack helm chart provides a similar feature set to kube-prometheus. This chart is maintained by the Prometheus community. For more information, please see the chart's readme

Prometheus Operator用的是K8S自定义资源来简化部署和配置Prometheus, Alertmanager及相关监控组件
kube-prometheus 就是基于Prometheus Operator部署了一套Prometheus来完成对K8S集群的监控
community helm chart 就是用helm chart的方式部署了 kube-prometheus

我要安装prometheus监控K8S集群，也就是要部署kube-prometheus，我用ArgoCD部署，ArgoCD支持helm资源清单，所以我们直接用“ prometheus-community/kube-prometheus-stack”安装就行了

下载 helm chart

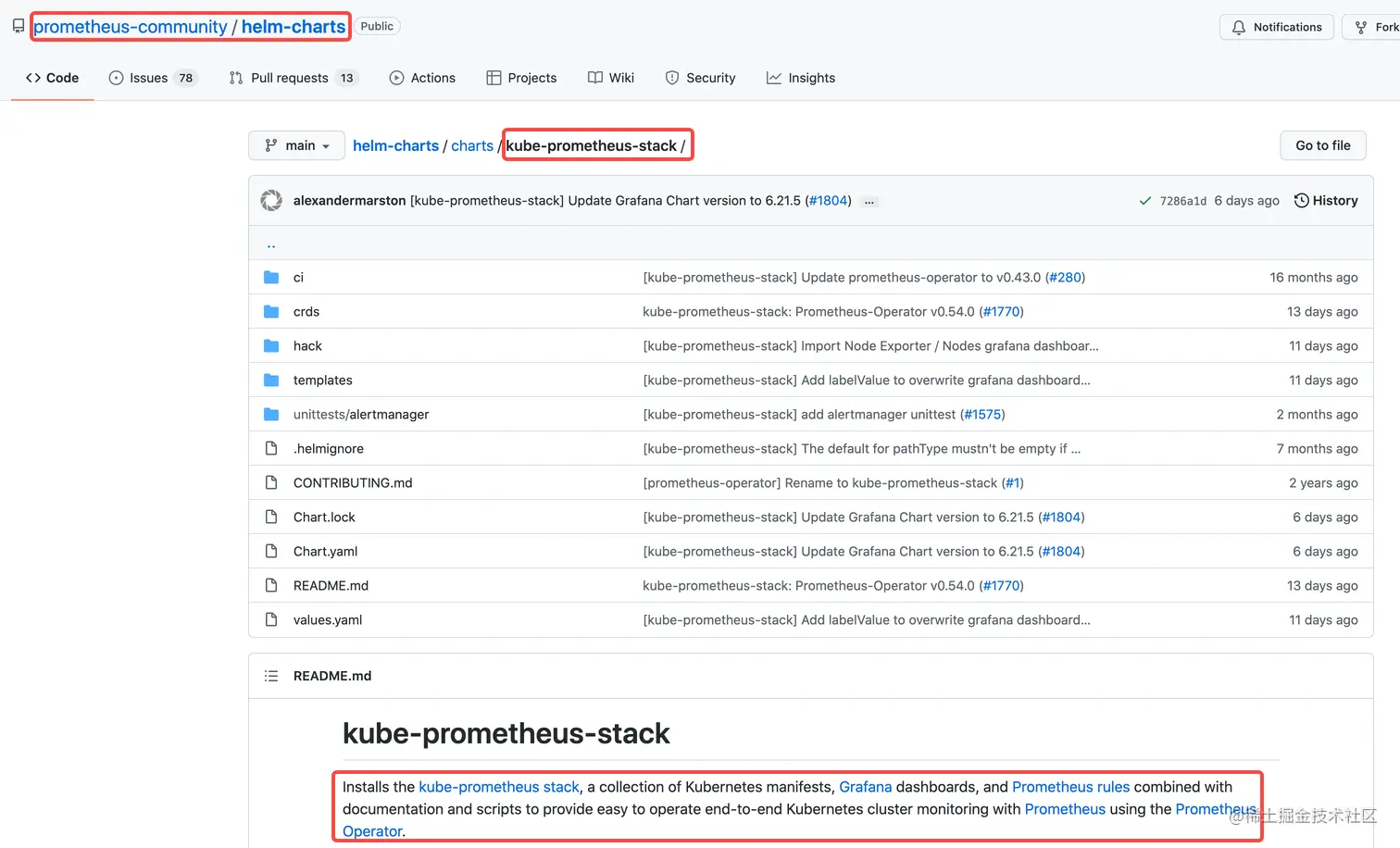

点击此链接进入代码仓 prometheus-community/kube-prometheus-stack

原来kube-prometheus-stack只是“prometheus-community/helm-charts”仓下的其中一个chart。

查看 helm-charts/charts/kube-prometheus-stack/Chart.yaml

dependencies: |                                                                |
| ------------- | -------------------------------------------------------------- |
|               | - name: kube-state-metrics                                     |
|               | version: "4.4.*"                                               |
|               | repository: https://prometheus-community.github.io/helm-charts |
|               | condition: kubeStateMetrics.enabled                            |
|               | - name: prometheus-node-exporter                               |
|               | version: "2.5.*"                                               |
|               | repository: https://prometheus-community.github.io/helm-charts |
|               | condition: nodeExporter.enabled                                |
|               | - name: grafana                                                |
|               | version: "6.21.*"                                              |
|               | repository: https://grafana.github.io/helm-charts              |
|               | condition: grafana.enabled

我们知道kube-prometheus-stack还依赖于kube-state-metrics、prometheus-node-exporter和grafana这三个chart，其中kube-state-metrics、prometheus-node-exporter就在同一个仓库下，而grafana在github的另一个仓库

因为dependencies指向的github仓，实际安装时会因为无法访问github导致按照失败。报错如下：

helm dependency build failed exit status 1: Error: no repository definition for prometheus-community.github.io/helm-charts, prometheus-community.github.io/helm-charts, grafana.github.io/helm-charts. Please add the missing repos via 'helm repo add'

下面我把代码下载下来按照helm chart的subcharts的方式进行了处理。

代码下载到本地

git clone https://github.com/prometheus-community/helm-charts.git
git clone https://grafana.github.io/helm-charts

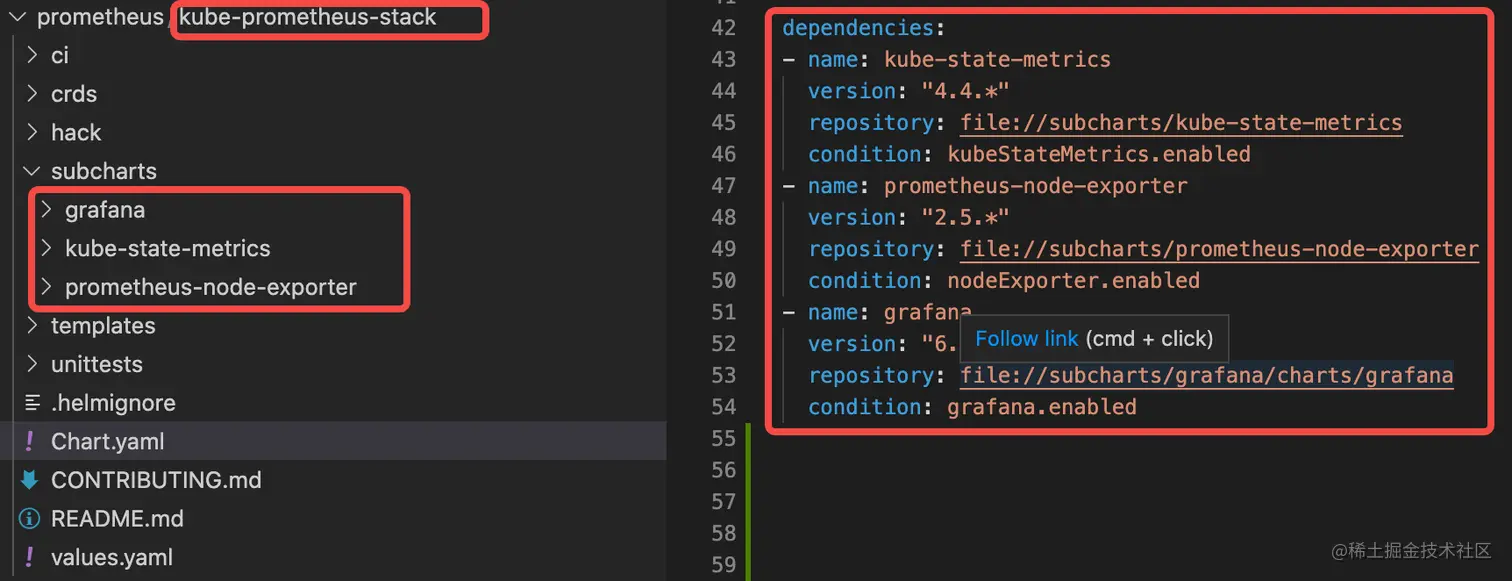

按照subcharts的方式就行了重组，如下：
上面的代码放到ArgoCD管理的配置仓的某个路径下

定义Application

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: prometheus
  namespace: argocd
spec:
  destination:
    namespace: foundation
    server: https://kubernetes.default.svc
  project: foundation
  source:
    path: prometheus/kube-prometheus-stack
    repoURL: https://10.112.21.246/adops/operation-devops.git
    targetRevision: HEAD
  syncPolicy:
    syncOptions:
    - CreateNamespace=true
    automated:
      selfHeal: true
      prune: true

ArgoCD同步

三、问题解决

`helm dependency build` failed

添加到自己仓库 subcharts localcharts

the lock file (Chart.lock) is out of sync with the dependencies file

rpc error: code = Unknown desc = helm dependency build failed exit status 1: Error: the lock file (Chart.lock) is out of sync with the dependencies file (Chart.yaml). Please update the dependencies

因为我修改了chart文件，所以报此错误。

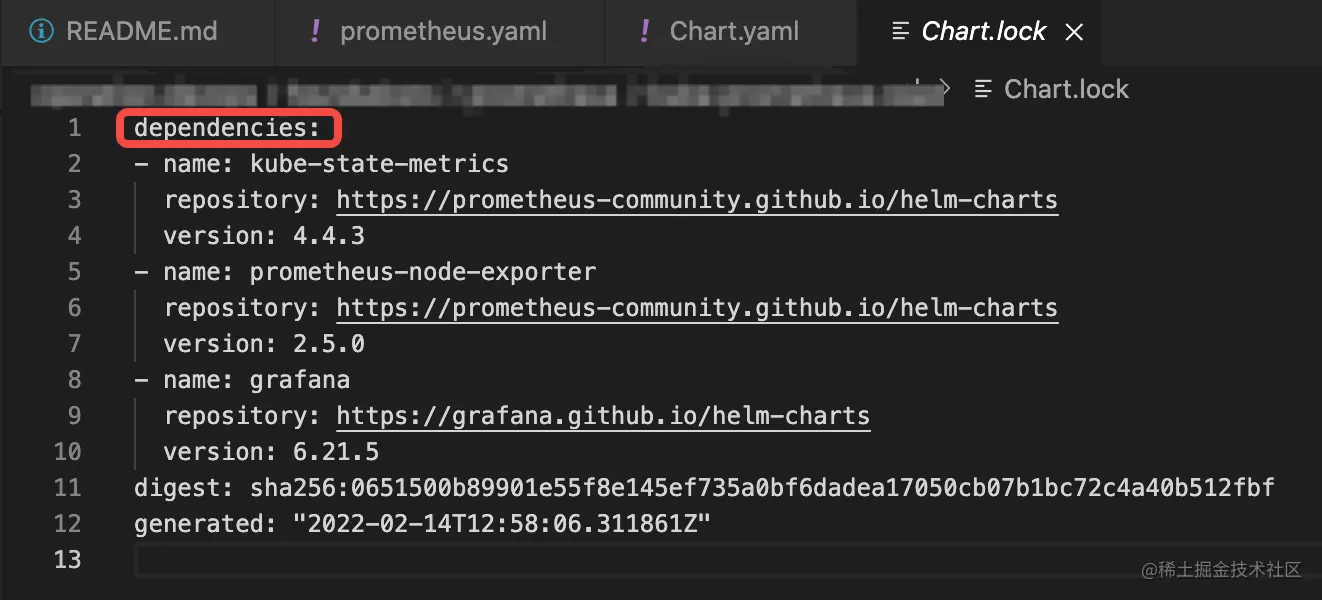

直接删除kube-prometheus-stack下的Charts.lock这个文件就可以了。

镜像拉取问题

kube-state-metrics国内下载地址

# 版本2.3.0
registry.cn-wulanchabu.aliyuncs.com/moge1/kube-state-metrics:v2.3.0
# 版本2.3.1
registry.cn-wulanchabu.aliyuncs.com/moge1/kube-state-metrics:v2.3.1

kube-webhook-certgen

对应官方k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.0

docker pull koala2020/ingress-nginx-kube-webhook-certgen:v1

ArgoCD同步报红

CustomResourceDefinition.apiextensions.k8s.io "prometheuses.monitoring.coreos.com" is invalid: metadata.annotations: Too long: must have at most 262144 bytes

google同样的问题 www.fuscin.com/prometheus-…

通过在cli上通过helm安装没有此问题但是用argoCD就会出现

Got same issue while deploying kube-prometheus-stack via Helm by ArgoCD

CustomResourceDefinition.apiextensions.k8s.io "prometheuses.monitoring.coreos.com" is invalid: metadata.annotations: Too long: must have at most 262144 bytes

Works fine when applying via Helm from CLI

没有实际影响，但是红色让强迫症不舒服

Still marking the ArgoCD App with `Sync Failed`\
It currently is not a real issue but really annoying in the eyes to see a red application.\
Could this be fixed?

添加注解可以解决

For ArgoCD you can add the annotation `argocd.argoproj.io/sync-options: Replace=true` to the CRD

I can confirm that in this way it works.
