C++内存泄漏排查

对于C++程序员来说，内存问题是不可避免的。除了日常code的时候多注意，在遇到线上的内存泄漏问题我们多使用已有的工具对其进行排查。下面主要介绍三个常用的内存泄漏的检测工具。

valgrind

valgrind是大名鼎鼎的Linux上的开源工具包，其中有多个组件包括 Memcheck、Cachegrind、Callgrind、Helgrind、Massif等。我们使用valgrind的Memcheck 去检测内存泄漏。( valgrind资源占用很大，对于性能的影响很大 )

官方手册

安装

下载

wget https://sourceware.org/pub/valgrind/valgrind-3.18.1.tar.bz2

解压
```
tar -jxvf valgrind-3.18.1.tar.bz2
```

编译并安装

cd valgrind-3.18.1/
./configure
make
make install

使用

源代码(valgrind_leak.cpp)

#include <map>

void leak() {
    std::map<int, int *> m_;
    m_[1] = new int(1);
    m_.erase(1);
}
int main() {
    leak();

    return 0;
}

编译

g++ -g -o valgrind_leak valgrind_leak.cpp

运行

valgrind --leak-check=yes --track-origins=yes ./valgrind_leak

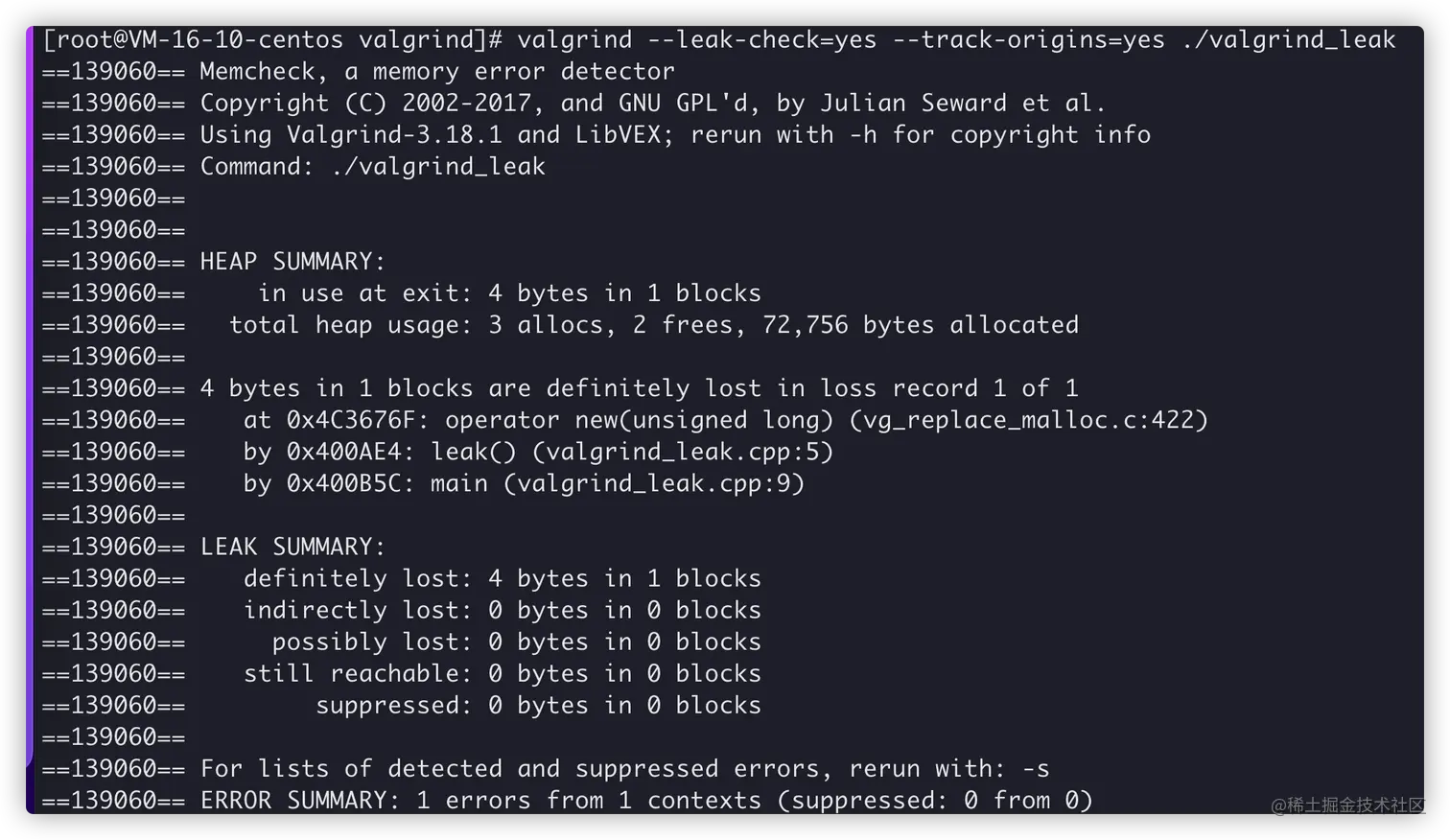

结果

可以看出报告上给出了具体的内存泄漏位置:在valgrind_leak.cpp的第五行出现了内存泄漏。

这只是一个简单的例子，线上的内存泄漏可能远比这复杂，而且valgrind只能在程序结束的时候才能给出报告（也可结合gdb等使其不用退出程序，但是会更复杂些valgrind.org/docs/manual…），再加上资源消耗过大，所以有些程序不适合用valgrind。

AddressSanitizer(Asan)

Address Sanitizer是google的一个内存错误检测工具。它非常快，平均拖慢程序大概2倍。从LLVM 3.1版本开始Address Sanitizer是其中一部分，从gcc 4.8开始 Address Sanitizer也是gcc的一部分。

官方wiki

安装

Address Sanitizer作为gcc的一部分，所以我们只需要一个libasan.so动态库；如果没有使用yum安装即可。

yum install libasan

使用

源代码(asan.cpp)

#include <map>

void leak() {
    std::map<int, int *> m_;
    m_[1] = new int(1);
    m_.erase(1);
}
int main() {
    leak();

    return 0;
}

编译

g++ -g -o asan asan.cpp -fsanitize=address -fno-omit-frame-pointer

运行
```
./asan
```
结果

gperftools

gperftools是google的性能分析工具，包括HEAP PROFILER、HEAP CHECKER、CPU PROFILER

安装

yum install gperftools

使用

源代码(gperf.cpp)

#include <map>

void leak() {
    std::map<int, int *> m_;
    m_[1] = new int(1);
    m_.erase(1);
}
int main() {
    leak();

    return 0;
}

编译
```
g++ -o gperf -g gperf.cpp
```

运行

LD_PRELOAD=/usr/lib64/libtcmalloc.so HEAPCHECK=draconian ./gperf

WARNING: Perftools heap leak checker is active -- Performance may suffer
Not looking for thread stacks; objects reachable only from there will be reported as leaks
Leak check _main_ detected leaks of 463 bytes in 11 objects
The 11 largest leaks:
*** WARNING: Cannot convert addresses to symbols in output below.
*** Reason: Cannot find 'pprof' (is PPROF_PATH set correctly?)
*** If you cannot fix this, try running pprof directly.
Leak of 232 bytes in 1 objects allocated from:
	@ 7ff140431468
	@ 7ff14111b446
	@ 7ff141104d3e
	@ 7ff1414f78ba
	@ 7ff1414f79ba
	@ 7ff1414e8fda
Leak of 56 bytes in 1 objects allocated from:
	@ 7ff14110f982
	@ 7ff141104b92
	@ 7ff1414f78ba
	@ 7ff1414f79ba
	@ 7ff1414e8fda
Leak of 32 bytes in 1 objects allocated from:
	@ 7ff14110f36b
	@ 7ff141104b92
	@ 7ff1414f78ba
	@ 7ff1414f79ba
	@ 7ff1414e8fda
Leak of 31 bytes in 1 objects allocated from:
	@ 7ff141110b83
	@ 7ff14110f4bc
	@ 7ff141104b92
	@ 7ff1414f78ba
	@ 7ff1414f79ba
	@ 7ff1414e8fda
Leak of 24 bytes in 1 objects allocated from:
	@ 7ff1404f0bd1
	@ 7ff140431671
	@ 7ff14111b42c
	@ 7ff141104d3e
	@ 7ff1414f78ba
	@ 7ff1414f79ba
	@ 7ff1414e8fda
Leak of 24 bytes in 1 objects allocated from:
	@ 7ff1404f0bd1
	@ 7ff140431671
	@ 7ff14111b446
	@ 7ff141104d3e
	@ 7ff1414f78ba
	@ 7ff1414f79ba
	@ 7ff1414e8fda
Leak of 20 bytes in 1 objects allocated from:
	@ 7ff140431642
	@ 7ff14111b42c
	@ 7ff141104d3e
	@ 7ff1414f78ba
	@ 7ff1414f79ba
	@ 7ff1414e8fda
Leak of 20 bytes in 1 objects allocated from:
	@ 7ff140431642
	@ 7ff14111b446
	@ 7ff141104d3e
	@ 7ff1414f78ba
	@ 7ff1414f79ba
	@ 7ff1414e8fda
Leak of 16 bytes in 1 objects allocated from:
	@ 7ff14110789a
	@ 7ff141104813
	@ 7ff1414f78ba
	@ 7ff1414f79ba
	@ 7ff1414e8fda
Leak of 4 bytes in 1 objects allocated from:
	@ 7ff14110bf82
	@ 7ff14110f98d
	@ 7ff141104b92
	@ 7ff1414f78ba
	@ 7ff1414f79ba
	@ 7ff1414e8fda
Leak of 4 bytes in 1 objects allocated from:
	@ 400ae5
	@ 400b5d
	@ 7ff14041b493
	@ 400a0e


If the preceding stack traces are not enough to find the leaks, try running THIS shell command:

pprof ./gperf "/tmp/gperf.150872._main_-end.heap" --inuse_objects --lines --heapcheck  --edgefraction=1e-10 --nodefraction=1e-10 --gv

If you are still puzzled about why the leaks are there, try rerunning this program with HEAP_CHECK_TEST_POINTER_ALIGNMENT=1 and/or with HEAP_CHECK_MAX_POINTER_OFFSET=-1
If the leak report occurs in a small fraction of runs, try running with TCMALLOC_MAX_FREE_QUEUE_SIZE of few hundred MB or with TCMALLOC_RECLAIM_MEMORY=false, it might help find leaks more repeata
Exiting with error code (instead of crashing) because of whole-program memory leaks

可以看到报告中给出的Leak check _main_ detected leaks of 463 bytes in 11 objects。gperftools中包含tcmalloc，在执行完检查后会在/tmp目录下生成一个heap文件，可以使用pprof来解析。

pprof ./gperf "/tmp/gperf.150872._main_-end.heap" --lines --text --stack

Using local file ./gperf.
Using local file /tmp/gperf.150872._main_-end.heap.
Total: 0.0 MB
Stacks:

32       (00007ff14110f36b) ??:0:HeapLeakChecker_InternalInitStart
         (00007ff1414f78b9) dl-init.c:0:call_init.part.0
         (00007ff1414f79b9) ??:0:_dl_init
         (00007ff1414e8fd9) ??:0:_dl_start_user

20       (00007ff140431642) ??:0:__add_to_environ
         (00007ff14111b445) ??:0:MallocExtension::Initialize
         (00007ff1414f78b9) dl-init.c:0:call_init.part.0
         (00007ff1414f79b9) ??:0:_dl_init
         (00007ff1414e8fd9) ??:0:_dl_start_user

20       (00007ff140431642) ??:0:__add_to_environ
         (00007ff14111b42b) ??:0:MallocExtension::Initialize
         (00007ff1414f78b9) dl-init.c:0:call_init.part.0
         (00007ff1414f79b9) ??:0:_dl_init
         (00007ff1414e8fd9) ??:0:_dl_start_user

16       (00007ff1414f78b9) dl-init.c:0:call_init.part.0
         (00007ff1414f79b9) ??:0:_dl_init
         (00007ff1414e8fd9) ??:0:_dl_start_user

24       (00007ff1404f0bd1) ??:0:__GI___tsearch
         (00007ff140431670) ??:0:__add_to_environ
         (00007ff14111b445) ??:0:MallocExtension::Initialize
         (00007ff1414f78b9) dl-init.c:0:call_init.part.0
         (00007ff1414f79b9) ??:0:_dl_init
         (00007ff1414e8fd9) ??:0:_dl_start_user

56       (00007ff14110f982) ??:0:HeapLeakChecker_InternalInitStart
         (00007ff1414f78b9) dl-init.c:0:call_init.part.0
         (00007ff1414f79b9) ??:0:_dl_init
         (00007ff1414e8fd9) ??:0:_dl_start_user

4        (0000000000400ae5) /data/mem_leak/gperf/gperf.cpp:5:leak
         (0000000000400b5c) /data/mem_leak/gperf/gperf.cpp:9:main
         (00007ff14041b492) ??:0:__libc_start_main
         (0000000000400a0d) ??:0:_start

24       (00007ff1404f0bd1) ??:0:__GI___tsearch
         (00007ff140431670) ??:0:__add_to_environ
         (00007ff14111b42b) ??:0:MallocExtension::Initialize
         (00007ff1414f78b9) dl-init.c:0:call_init.part.0
         (00007ff1414f79b9) ??:0:_dl_init
         (00007ff1414e8fd9) ??:0:_dl_start_user

4        (00007ff14110bf82) ??:0:HeapLeakChecker::HeapLeakChecker
         (00007ff14110f98c) ??:0:HeapLeakChecker_InternalInitStart
         (00007ff1414f78b9) dl-init.c:0:call_init.part.0
         (00007ff1414f79b9) ??:0:_dl_init
         (00007ff1414e8fd9) ??:0:_dl_start_user

232      (00007ff140431468) ??:0:__add_to_environ
         (00007ff14111b445) ??:0:MallocExtension::Initialize
         (00007ff1414f78b9) dl-init.c:0:call_init.part.0
         (00007ff1414f79b9) ??:0:_dl_init
         (00007ff1414e8fd9) ??:0:_dl_start_user

31       (00007ff141110b83) ??:0:std::__cxx11::basic_string::_M_append
         (00007ff14110f4bb) ??:0:HeapLeakChecker_InternalInitStart
         (00007ff1414f78b9) dl-init.c:0:call_init.part.0
         (00007ff1414f79b9) ??:0:_dl_init
         (00007ff1414e8fd9) ??:0:_dl_start_user

Leak of 232 bytes in 1 objects allocated from:
	@ 7ff140431468 unknown
	@ 00007ff14111b445 MallocExtension::Initialize ??:0
	@ 00007ff141104d3d tcmalloc::ThreadCache::threadlocal_data_ ??:0
	@ 00007ff1414f78b9 call_init.part.0 dl-init.c:0
	@ 00007ff1414f79b9 _dl_init :0
	@ 00007ff1414e8fd9 _dl_start_user :0
Leak of 56 bytes in 1 objects allocated from:
	@ 7ff14110f982 unknown
	@ 00007ff141104b91 tcmalloc::ThreadCache::threadlocal_data_ ??:0
	@ 00007ff1414f78b9 call_init.part.0 dl-init.c:0
	@ 00007ff1414f79b9 _dl_init :0
	@ 00007ff1414e8fd9 _dl_start_user :0
Leak of 32 bytes in 1 objects allocated from:
	@ 7ff14110f36b unknown
	@ 00007ff141104b91 tcmalloc::ThreadCache::threadlocal_data_ ??:0
	@ 00007ff1414f78b9 call_init.part.0 dl-init.c:0
	@ 00007ff1414f79b9 _dl_init :0
	@ 00007ff1414e8fd9 _dl_start_user :0
Leak of 31 bytes in 1 objects allocated from:
	@ 7ff141110b83 unknown
	@ 00007ff14110f4bb HeapLeakChecker_InternalInitStart ??:0
	@ 00007ff141104b91 tcmalloc::ThreadCache::threadlocal_data_ ??:0
	@ 00007ff1414f78b9 call_init.part.0 dl-init.c:0
	@ 00007ff1414f79b9 _dl_init :0
	@ 00007ff1414e8fd9 _dl_start_user :0
Leak of 24 bytes in 1 objects allocated from:
	@ 7ff1404f0bd1 unknown
	@ 00007ff140431670 __add_to_environ :0
	@ 00007ff14111b42b MallocExtension::Initialize ??:0
	@ 00007ff141104d3d tcmalloc::ThreadCache::threadlocal_data_ ??:0
	@ 00007ff1414f78b9 call_init.part.0 dl-init.c:0
	@ 00007ff1414f79b9 _dl_init :0
	@ 00007ff1414e8fd9 _dl_start_user :0
Leak of 24 bytes in 1 objects allocated from:
	@ 7ff1404f0bd1 unknown
	@ 00007ff140431670 __add_to_environ :0
	@ 00007ff14111b445 MallocExtension::Initialize ??:0
	@ 00007ff141104d3d tcmalloc::ThreadCache::threadlocal_data_ ??:0
	@ 00007ff1414f78b9 call_init.part.0 dl-init.c:0
	@ 00007ff1414f79b9 _dl_init :0
	@ 00007ff1414e8fd9 _dl_start_user :0
Leak of 20 bytes in 1 objects allocated from:
	@ 7ff140431642 unknown
	@ 00007ff14111b42b MallocExtension::Initialize ??:0
	@ 00007ff141104d3d tcmalloc::ThreadCache::threadlocal_data_ ??:0
	@ 00007ff1414f78b9 call_init.part.0 dl-init.c:0
	@ 00007ff1414f79b9 _dl_init :0
	@ 00007ff1414e8fd9 _dl_start_user :0
Leak of 20 bytes in 1 objects allocated from:
	@ 7ff140431642 unknown
	@ 00007ff14111b445 MallocExtension::Initialize ??:0
	@ 00007ff141104d3d tcmalloc::ThreadCache::threadlocal_data_ ??:0
	@ 00007ff1414f78b9 call_init.part.0 dl-init.c:0
	@ 00007ff1414f79b9 _dl_init :0
	@ 00007ff1414e8fd9 _dl_start_user :0
Leak of 16 bytes in 1 objects allocated from:
	@ 7ff14110789a unknown
	@ 00007ff141104812 tcmalloc::ThreadCache::threadlocal_data_ ??:0
	@ 00007ff1414f78b9 call_init.part.0 dl-init.c:0
	@ 00007ff1414f79b9 _dl_init :0
	@ 00007ff1414e8fd9 _dl_start_user :0
Leak of 4 bytes in 1 objects allocated from:
	@ 7ff14110bf82 unknown
	@ 00007ff14110f98c HeapLeakChecker_InternalInitStart ??:0
	@ 00007ff141104b91 tcmalloc::ThreadCache::threadlocal_data_ ??:0
	@ 00007ff1414f78b9 call_init.part.0 dl-init.c:0
	@ 00007ff1414f79b9 _dl_init :0
	@ 00007ff1414e8fd9 _dl_start_user :0
Leak of 4 bytes in 1 objects allocated from:
	@ 00400ae5 unknown
	@ 0000000000400b5c main /data/mem_leak/gperf/gperf.cpp:9
	@ 00007ff14041b492 __libc_start_main ??:0
	@ 0000000000400a0d _start ??:0

     0.0  58.7%  58.7%      0.0  69.1% __add_to_environ :0
     0.0  19.0%  77.8%      0.0  26.6% HeapLeakChecker_InternalInitStart ??:0
     0.0  10.4%  88.1%      0.0  10.4% __GI___tsearch :0
     0.0   6.7%  94.8%      0.0   6.7% std::__cxx11::basic_string::_M_append ??:0
     0.0   3.5%  98.3%      0.0  99.1% call_init.part.0 dl-init.c:0
     0.0   0.9%  99.1%      0.0   0.9% HeapLeakChecker::HeapLeakChecker ??:0
     0.0   0.9% 100.0%      0.0   0.9% leak /data/mem_leak/gperf/gperf.cpp:5
     0.0   0.0% 100.0%      0.0  69.1% MallocExtension::Initialize ??:0
     0.0   0.0% 100.0%      0.0   0.9% __libc_start_main ??:0
     0.0   0.0% 100.0%      0.0  99.1% _dl_init :0
     0.0   0.0% 100.0%      0.0  99.1% _dl_start_user :0
     0.0   0.0% 100.0%      0.0   0.9% _start ??:0
     0.0   0.0% 100.0%      0.0   0.9% main /data/mem_leak/gperf/gperf.cpp:9

有的时候内存泄漏并不一定是demo上的情况，也可能是自己分配的内存，但是后面忘了去用，就一直放在那里，也没有去清除。可以用gperftools的HEAP PROFILE工具去查看内存分配的热点。

HEAP PROFILE 官方手册

源码

#include <map>
#include <unistd.h>

void malloc_mem(std::map<int, int *> &p, int i) {

    p[i] = new int(i);
}

int main() {
    int N = 1000;
    std::map<int, int *> m_;
    while (N--) {
        malloc_mem(m_, N);
        sleep(100);
    }

    return 0;
}

编译

g++ -o gperf_malloc -g gperf_malloc.cpp

执行
```
HEAPPROFILE=/tmp/heapprof HEAP_PROFILE_TIME_INTERVAL=10  LD_PRELOAD="/usr/lib64/libtcmalloc.so" ./gperf_malloc
```
HEAP_PROFILE_TIME_INTERVAL 间隔多长时间产生一个dump文件

HEAP_PROFILE_ALLOCATION_INTERVAL 内存消耗超过多少产生一个dump文件

具体参数可见官方文档gperftools.github.io/gperftools/…

分析

# 生成txt
pprof --lines --text ./gperf_malloc /tmp/heapprof.0001.heap > out.txt
# 生成pdf
pprof --lines --pdf ./gperf_malloc /tmp/heapprof.0001.heap > out.pdf

对比分析

生成的文件支持以一个为基准进行比较分析，因为有的程序启动的时候会加载很多数据，需要分配很多内存，后续的持续内存分配则可以用前几个的heap文件为基准去分析。比如以第一个为基准，查看第三个与第一个的差。

# 生成txt
pprof --lines --text --base /tmp/heapprof.0001.heap ./gperf_malloc /tmp/heapprof.0003.heap > diff.txt
# 生成pdf
pprof --lines --pdf --base /tmp/heapprof.0001.heap ./gperf_malloc /tmp/heapprof.0003.heap > diff.pdf

diff.txt

Total: 0.0 MB
     0.0  92.3%  92.3%      0.0  92.3% __gnu_cxx::new_allocator::allocate /usr/include/c++/8/ext/new_allocator.h:112
     0.0   7.7% 100.0%      0.0 100.0% malloc_mem /data/mem_leak/gperf/gperf_malloc.cpp:6
     0.0   0.0% 100.0%      0.0 100.0% __libc_start_main ??:0
     0.0   0.0% 100.0%      0.0 100.0% _start ??:0
     0.0   0.0% 100.0%      0.0 100.0% main /data/mem_leak/gperf/gperf_malloc.cpp:13
     0.0   0.0% 100.0%      0.0  92.3% std::_Rb_tree::_M_create_node /usr/include/c++/8/bits/stl_tree.h:642
     0.0   0.0% 100.0%      0.0  92.3% std::_Rb_tree::_M_emplace_hint_unique /usr/include/c++/8/bits/stl_tree.h:2421
     0.0   0.0% 100.0%      0.0  92.3% std::_Rb_tree::_M_get_node /usr/include/c++/8/bits/stl_tree.h:588
     0.0   0.0% 100.0%      0.0  92.3% std::allocator_traits::allocate /usr/include/c++/8/bits/alloc_traits.h:436
     0.0   0.0% 100.0%      0.0  92.3% std::map::operator[] /usr/include/c++/8/bits/stl_map.h:499

第一列是直接分配的内存单位 MB.
第四列包含自己及其所有被调用者的内存使用情况.
第二列和第五列只是第一列和第四列中数字的百分比表示.
第三列是第二列的累积和（即，第三列中的第 k 个条目是第二列中前 k 个条目的总和。）
