背景

elementUi步骤条组件中的文字总是在icon下边显示，我们的UI设计稿中的步骤条的文字在icon右边，UI同学坚持这样设计，所以只能手写了

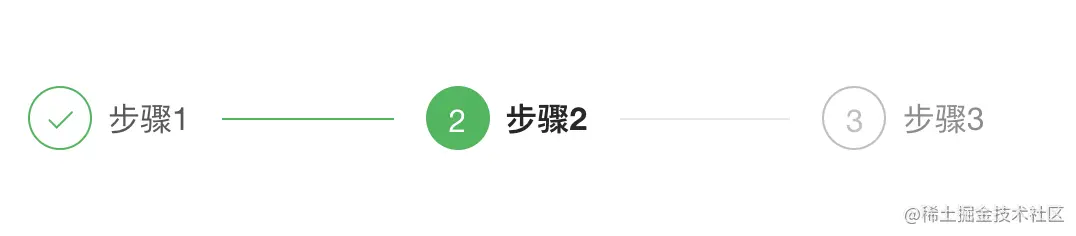

效果预览

代码展示

<template>
  <div class="m-steps-area">
    <div class="m-steps">
      <div
        :class="['m-steps-item',          { 'finished': current > n,            'process': current === n && n !== totalSteps,            'last-process': current === totalSteps && n === totalSteps,            'middle-wait': current < n && n !== totalSteps,            'last-wait': current < n && n === totalSteps,          }        ]"
        v-for="n in totalSteps"
        :key="n"
        @click="onChange(n)">
        <div class="m-steps-icon">
          <span class="u-icon" v-if="current<=n">{{ n }}</span>
          <span class="el-icon-check u-icon" v-else></span>
          <!-- <span class="el-icon-check u-icon" v-else>✓</span> -->
        </div>
        <div class="m-steps-content">
          <div class="u-steps-title">{{ stepsLabel[n-1] || 'S ' + n }}</div>
          <div class="u-steps-description">{{ stepsDesc[n-1] }}</div>
          <!-- <div class="u-steps-description">{{ stepsDesc[n-1] || 'Desc ' + n }}</div> -->
        </div>
      </div>
    </div>
  </div>
</template>
<script>
export default {
  name: 'aSteps',
  props: {
    stepsLabel: { // 步骤title数组
      type: Array,
      default: () => {
        return []
      }
    },
    stepsDesc: { // 步骤description数组
      type: Array,
      default: () => {
        return []
      }
    },
    totalSteps: { // 总的步骤数
      type: Number,
      default: 3
    },
    currentStep: { // 当前选中的步骤
      type: Number,
      default: 1
    }
  },
  data () {
    return {
      // 若当前选中步骤超过总步骤数，则默认选择步骤1
      current: this.currentStep > this.totalSteps ? 1 : this.currentStep
    }
  },
  methods: {
    onChange (index) { // 点击切换选择步骤
      //console.log('index:', index)
      // if (this.current !== index) {
      //   this.current = index
      //   this.$emit('change', index)
      // }
    }
  }
}
</script>
<style lang="scss" scoped>
$steps-color: #03B955;
.m-steps-area {
  width: 100%;
  margin: 0px auto;
  .m-steps {
    padding: 30px 0;
    display: flex;
    .m-steps-item {
      display: inline-block;
      flex: 1; // 弹性盒模型对象的子元素都有相同的长度，且忽略它们内部的内容
      flex-wrap: nowrap;
      white-space: nowrap;
      overflow: hidden;
      font-size: 16px;
      line-height: 32px;
      .m-steps-icon {
        display: inline-block;
        margin-right: 8px;
        width: 32px;
        height: 32px;
        border-radius: 50%;
        text-align: center;
      }
      .m-steps-content {
        display: inline-block;
        vertical-align: top;
        padding-right: 16px;
        .u-steps-title {
          position: relative;
          display: inline-block;
          padding-right: 16px;
        }
        .u-steps-description {
          font-size: 14px;
          max-width: 140px;
        }
      }
    }
    .finished {
      margin-right: 16px;
      //cursor: pointer;
      &:hover {
        .m-steps-content {
          .u-steps-title {
            //color: $steps-color;
          }
          .u-steps-description {
            //color: $steps-color;
          }
        }
      }
      .m-steps-icon {
        background: #fff;
        border: 1px solid rgba(0,0,0,.25);
        border-color: $steps-color;
        .u-icon {
          color: $steps-color;
        }
      }
      .m-steps-content {
        color: rgba(0,0,0,.65);
        .u-steps-title {
          color: rgba(0,0,0,.65);
          &:after {
            background: $steps-color;
            position: absolute;
            top: 16px;
            left: 100%;
            display: block;
            width: 9999px;
            height: 1px;
            content: "";
          }
        }
        .u-steps-description {
          color: rgba(0,0,0,.45);
        }
      }
    }
    .process {
      margin-right: 16px;
      .m-steps-icon {
        background: $steps-color;
        border: 1px solid rgba(0,0,0,.25);
        border-color: $steps-color;
        .u-icon {
          color: #fff;
        }
      }
      .m-steps-content {
        color: rgba(0,0,0,.65);
        .u-steps-title {
          font-weight: 600;
          color: rgba(0,0,0,.85);
          &:after {
            background: #e8e8e8;
            position: absolute;
            top: 16px;
            left: 100%;
            display: block;
            width: 9999px;
            height: 1px;
            content: "";
          }
        }
        .u-steps-description {
          color: rgba(0,0,0,.65);
        }
      }
    }
    .last-process {
      margin-right: 0;
      .m-steps-icon {
        background: $steps-color;
        border: 1px solid rgba(0,0,0,.25);
        border-color: $steps-color;
        .u-icon {
          color: #fff;
        }
      }
      .m-steps-content {
        color: rgba(0,0,0,.65);
        .u-steps-title {
          font-weight: 600;
          color: rgba(0,0,0,.85);
        }
        .u-steps-description {
          color: rgba(0,0,0,.65);
        }
      }
    }
    .middle-wait {
      margin-right: 16px;
      //cursor: pointer;
      &:hover {
        .m-steps-icon {
          //border: 1px solid $steps-color;
          .u-icon {
           // color: $steps-color;
          }
        }
        .m-steps-content {
          .u-steps-title {
           // color: $steps-color;
          }
          .u-steps-description {
           // color: $steps-color;
          }
        }
      }
      .m-steps-icon {
        background: #fff;
        border: 1px solid rgba(0,0,0,.25);
        .u-icon {
          color: rgba(0,0,0,.25);
        }
      }
      .m-steps-content {
        color: rgba(0,0,0,.65);
        .u-steps-title {
          color: rgba(0,0,0,.45);
          &:after {
            background: #e8e8e8;
            position: absolute;
            top: 16px;
            left: 100%;
            display: block;
            width: 9999px;
            height: 1px;
            content: "";
          }
        }
        .u-steps-description {
          color: rgba(0,0,0,.45);
        }
      }
    }
    .last-wait {
      margin-right: 0;
     // cursor: pointer;
      &:hover {
        .m-steps-icon {
          //border: 1px solid $steps-color;
          .u-icon {
          //  color: $steps-color;
          }
        }
        .m-steps-content {
          .u-steps-title {
          //@debug  color: $steps-color;
          }
          .u-steps-description {
          //  color: $steps-color;
          }
        }
      }
      .m-steps-icon {
        background: #fff;
        border: 1px solid rgba(0,0,0,.25);
        .u-icon {
          color: rgba(0,0,0,.25);
        }
      }
      .m-steps-content {
        color: rgba(0,0,0,.65);
        .u-steps-title {
          color: rgba(0,0,0,.45);
        }
        .u-steps-description {
          color: rgba(0,0,0,.45);
        }
      }
    }
  }
}
</style>

开始使用

import Steps from '@/components/steps.vue'

components: {
    Steps
},

current: 2,
stepsLabel: ['步骤1', '步骤2', '步骤3'],
stepsDesc: ['描述1','描述2','描述3'],

<Steps :currentStep="current" :totalSteps="stepsLabel.length" :stepsLabel="stepsLabel" :stepsDesc="stepsDesc" @change="onChange" />

onChange(current) {
    console.log('onChange:', current);
    this.current = current;
}

写在最后

有问题欢迎留言，随时解答
