执行过程

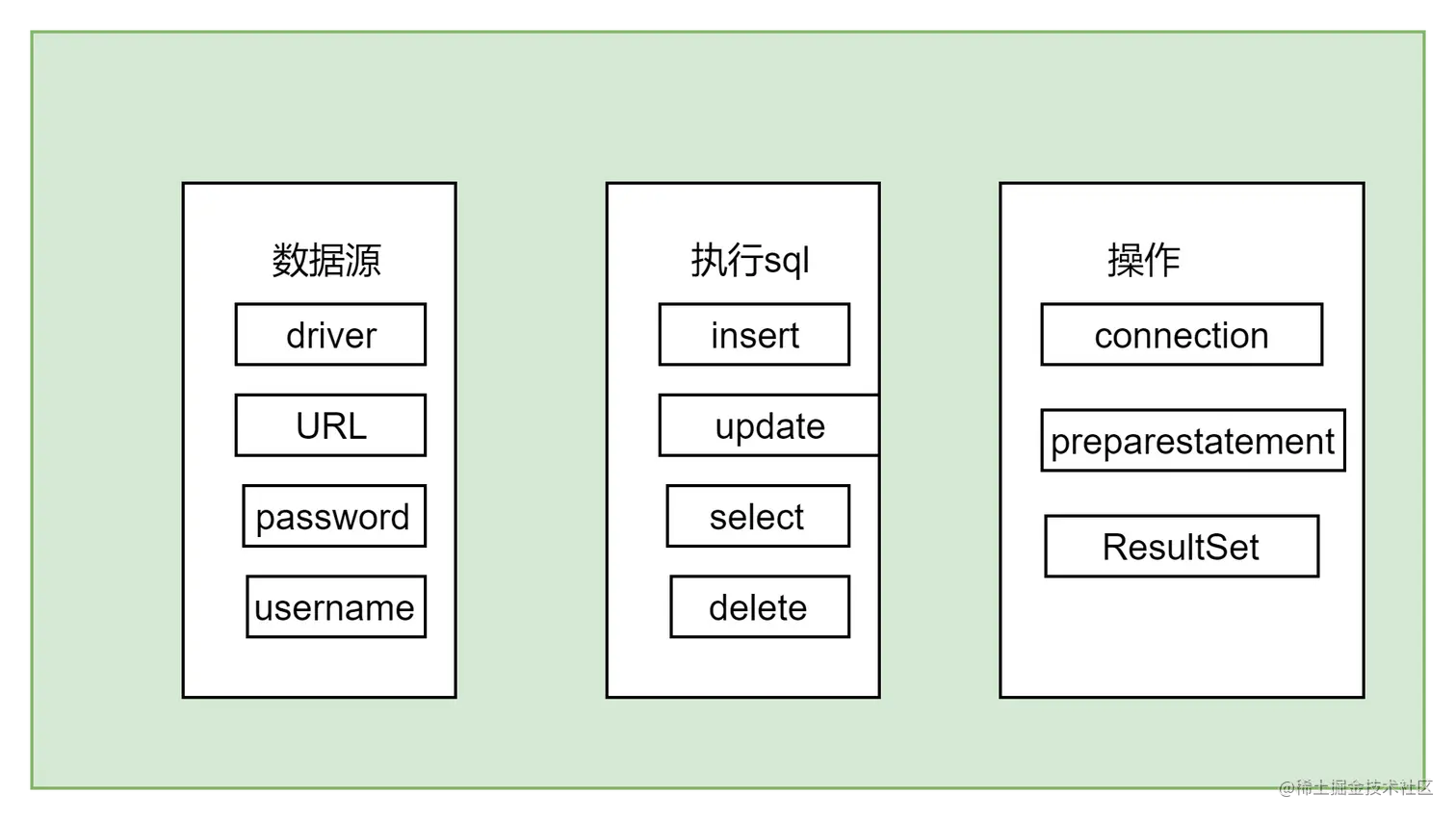

不管什么orm 框架 他基本思路都是先有数据源再去执行sql 之间有与数据库建立连接，通过preparestatement 获取到数据，封装到ResultSet.
Mybatis
通过main 方法启动Mybatis
String xml = "mybatis-config.xml";
InputStream inputStream = Resources.getResourceAsStream(xml);
SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
SqlSession sqlSession = sqlSessionFactory.openSession();
List<User> objects = sqlSession.selectList("com.chonger.example.mybatis.dao.IUserDao.queryUserList","j");
List<User> objects2 = sqlSession.selectList("com.chonger.example.mybatis.dao.IUserDao.queryUserList","j");
IUserDao mapper = sqlSession.getMapper(IUserDao.class);
List<User> j = mapper.queryUserList("j");
System.out.println(""+j);
}
解析mybatis-config.xml
if (parsed) {
throw new BuilderException("Each XMLConfigBuilder can only be used once.");
}
parsed = true;
parseConfiguration(parser.evalNode("/configuration"));
return configuration;
}
private void parseConfiguration(XNode root) {
try {
// issue #117 read properties first
propertiesElement(root.evalNode("properties"));
Properties settings = settingsAsProperties(root.evalNode("settings"));
loadCustomVfs(settings);
loadCustomLogImpl(settings);
typeAliasesElement(root.evalNode("typeAliases"));
pluginElement(root.evalNode("plugins"));
objectFactoryElement(root.evalNode("objectFactory"));
objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
reflectorFactoryElement(root.evalNode("reflectorFactory"));
settingsElement(settings);
// read it after objectFactory and objectWrapperFactory issue #631
environmentsElement(root.evalNode("environments"));
databaseIdProviderElement(root.evalNode("databaseIdProvider"));
typeHandlerElement(root.evalNode("typeHandlers"));
mapperElement(root.evalNode("mappers"));
} catch (Exception e) {
throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
}
}
获取数据源
if (context != null) {
if (environment == null) {
environment = context.getStringAttribute("default");
}
for (XNode child : context.getChildren()) {
String id = child.getStringAttribute("id");
if (isSpecifiedEnvironment(id)) {
TransactionFactory txFactory = transactionManagerElement(child.evalNode("transactionManager"));
DataSourceFactory dsFactory = dataSourceElement(child.evalNode("dataSource"));
DataSource dataSource = dsFactory.getDataSource();
Environment.Builder environmentBuilder = new Environment.Builder(id)
.transactionFactory(txFactory)
.dataSource(dataSource);
configuration.setEnvironment(environmentBuilder.build());
break;
}
}
}
}

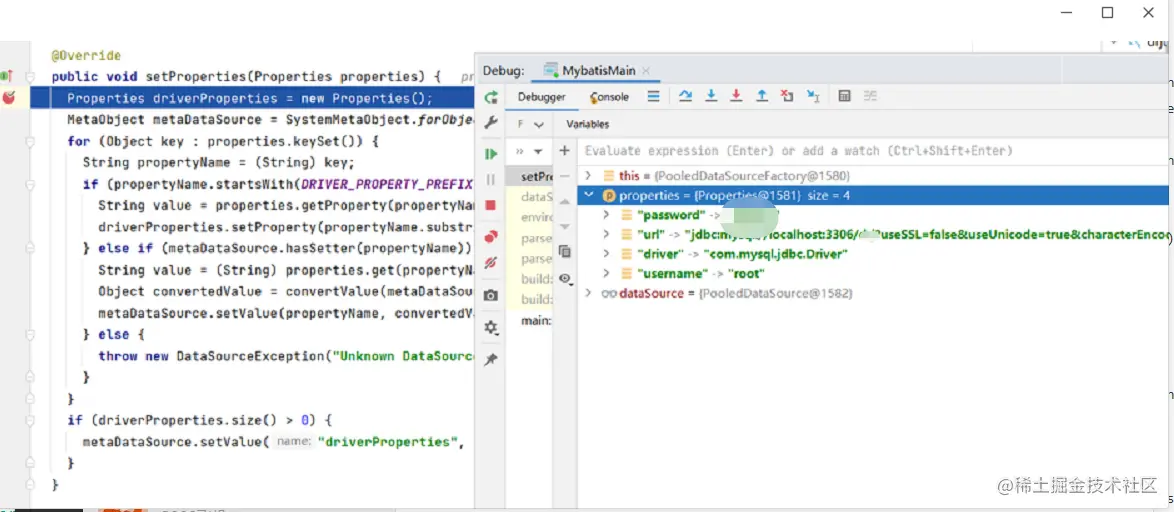

private DataSourceFactory dataSourceElement(XNode context) throws Exception {
if (context != null) {
String type = context.getStringAttribute("type");
Properties props = context.getChildrenAsProperties();
DataSourceFactory factory = (DataSourceFactory) resolveClass(type).getDeclaredConstructor().newInstance();
factory.setProperties(props);
return factory;
}
throw new BuilderException("Environment declaration requires a DataSourceFactory.");
}

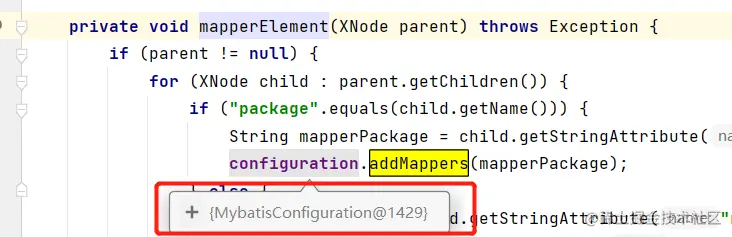

获取执行sql
if (parent != null) {
for (XNode child : parent.getChildren()) {
if ("package".equals(child.getName())) {
String mapperPackage = child.getStringAttribute("name");
configuration.addMappers(mapperPackage);
} else {
String resource = child.getStringAttribute("resource");
String url = child.getStringAttribute("url");
String mapperClass = child.getStringAttribute("class");
if (resource != null && url == null && mapperClass == null) {
//案例
ErrorContext.instance().resource(resource);
try(InputStream inputStream = Resources.getResourceAsStream(resource)) {
XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, resource, configuration.getSqlFragments());
mapperParser.parse();
}
} else if (resource == null && url != null && mapperClass == null) {
ErrorContext.instance().resource(url);
try(InputStream inputStream = Resources.getUrlAsStream(url)){
XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, url, configuration.getSqlFragments());
mapperParser.parse();
}
} else if (resource == null && url == null && mapperClass != null) {
Class<?> mapperInterface = Resources.classForName(mapperClass);
configuration.addMapper(mapperInterface);
} else {
throw new BuilderException("A mapper element may only specify a url, resource or class, but not more than one.");
}
}
}
}
}
public void parse() {
if (!configuration.isResourceLoaded(resource)) {

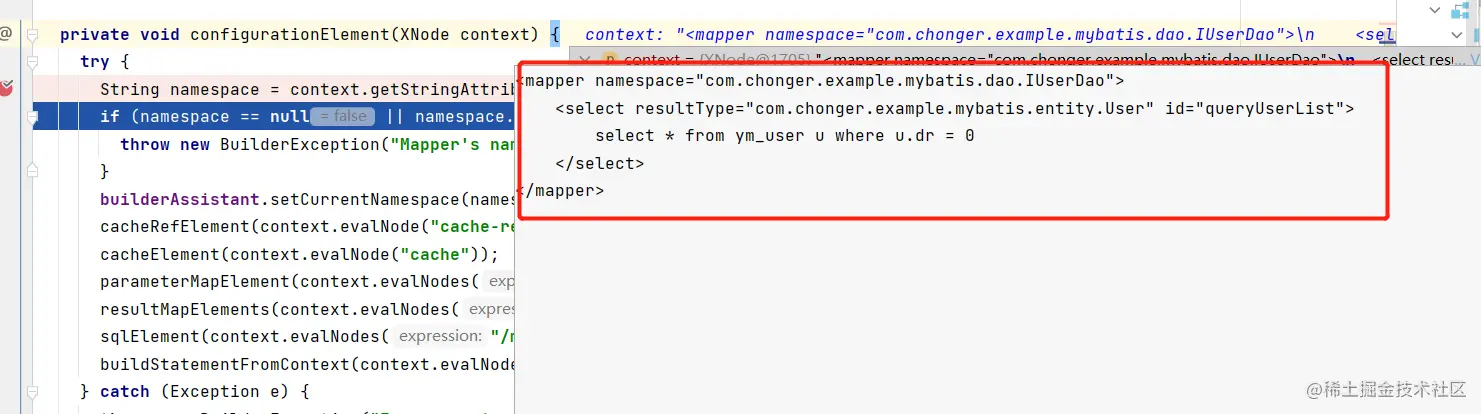

//获取sql
configurationElement(parser.evalNode("/mapper"));
configuration.addLoadedResource(resource);
bindMapperForNamespace();
}
parsePendingResultMaps();
parsePendingCacheRefs();
parsePendingStatements();
}
如何执行sql
public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {
// 获取到执行sql #{name} 转为?
BoundSql boundSql = ms.getBoundSql(parameterObject);
CacheKey key = createCacheKey(ms, parameterObject, rowBounds, boundSql);
return query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
}
@Override
public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql)
throws SQLException {
Cache cache = ms.getCache();
if (cache != null) {
flushCacheIfRequired(ms);
if (ms.isUseCache() && resultHandler == null) {
ensureNoOutParams(ms, boundSql);
@SuppressWarnings("unchecked")
List<E> list = (List<E>) tcm.getObject(cache, key);
if (list == null) {
list = delegate.query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
tcm.putObject(cache, key, list); // issue #578 and #116
}
return list;
}
}
return delegate.query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
}
@Override
public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
ErrorContext.instance().resource(ms.getResource()).activity("executing a query").object(ms.getId());
if (closed) {
throw new ExecutorException("Executor was closed.");
}
if (queryStack == 0 && ms.isFlushCacheRequired()) {
clearLocalCache();
}
List<E> list;
try {
queryStack++;
list = resultHandler == null ? (List<E>) localCache.getObject(key) : null;
if (list != null) {
handleLocallyCachedOutputParameters(ms, key, parameter, boundSql);
} else {
list = queryFromDatabase(ms, parameter, rowBounds, resultHandler, key, boundSql);
}
} finally {
queryStack--;
}
if (queryStack == 0) {
for (DeferredLoad deferredLoad : deferredLoads) {
deferredLoad.load();
}
// issue #601
deferredLoads.clear();
if (configuration.getLocalCacheScope() == LocalCacheScope.STATEMENT) {
// issue #482
clearLocalCache();
}
}
return list;
}
private <E> List<E> queryFromDatabase(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
List<E> list;
localCache.putObject(key, EXECUTION_PLACEHOLDER);
try {
list = doQuery(ms, parameter, rowBounds, resultHandler, boundSql);
} finally {
localCache.removeObject(key);
}
localCache.putObject(key, list);
if (ms.getStatementType() == StatementType.CALLABLE) {
localOutputParameterCache.putObject(key, parameter);
}
return list;
}
public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
Statement stmt = null;
try {
Configuration configuration = ms.getConfiguration();
StatementHandler handler = configuration.newStatementHandler(wrapper, ms, parameter, rowBounds, resultHandler, boundSql);
stmt = prepareStatement(handler, ms.getStatementLog());
return handler.query(stmt, resultHandler);
} finally {
closeStatement(stmt);
}
}
@Override
public <E> List<E> query(Statement statement, ResultHandler resultHandler) throws SQLException {
PreparedStatement ps = (PreparedStatement) statement;
ps.execute();
return resultSetHandler.handleResultSets(ps);
}
// 返回封装的数据结构
@Override
public List<Object> handleResultSets(Statement stmt) throws SQLException {
ErrorContext.instance().activity("handling results").object(mappedStatement.getId());
final List<Object> multipleResults = new ArrayList<>();
int resultSetCount = 0;
ResultSetWrapper rsw = getFirstResultSet(stmt);
List<ResultMap> resultMaps = mappedStatement.getResultMaps();
int resultMapCount = resultMaps.size();
validateResultMapsCount(rsw, resultMapCount);
while (rsw != null && resultMapCount > resultSetCount) {
ResultMap resultMap = resultMaps.get(resultSetCount);
handleResultSet(rsw, resultMap, multipleResults, null);
rsw = getNextResultSet(stmt);
cleanUpAfterHandlingResultSet();
resultSetCount++;
}
String[] resultSets = mappedStatement.getResultSets();
if (resultSets != null) {
while (rsw != null && resultSetCount < resultSets.length) {
ResultMapping parentMapping = nextResultMaps.get(resultSets[resultSetCount]);
if (parentMapping != null) {
String nestedResultMapId = parentMapping.getNestedResultMapId();
ResultMap resultMap = configuration.getResultMap(nestedResultMapId);
handleResultSet(rsw, resultMap, null, parentMapping);
}
rsw = getNextResultSet(stmt);
cleanUpAfterHandlingResultSet();
resultSetCount++;
}
}
return collapseSingleResultList(multipleResults);
}
private ResultSetWrapper getFirstResultSet(Statement stmt) throws SQLException {
ResultSet rs = stmt.getResultSet();
while (rs == null) {
// move forward to get the first resultset in case the driver
// doesn't return the resultset as the first result (HSQLDB 2.1)
if (stmt.getMoreResults()) {
rs = stmt.getResultSet();
} else {
if (stmt.getUpdateCount() == -1) {
// no more results. Must be no resultset
break;
}
}
}
return rs != null ? new ResultSetWrapper(rs, configuration) : null;
}
//获取mysql查询数据的getMetaData 所有字段类型、名称分别获取
public ResultSetWrapper(ResultSet rs, Configuration configuration) throws SQLException {
super();
this.typeHandlerRegistry = configuration.getTypeHandlerRegistry();
this.resultSet = rs;
final ResultSetMetaData metaData = rs.getMetaData();
final int columnCount = metaData.getColumnCount();
for (int i = 1; i <= columnCount; i++) {
columnNames.add(configuration.isUseColumnLabel() ? metaData.getColumnLabel(i) : metaData.getColumnName(i));
jdbcTypes.add(JdbcType.forCode(metaData.getColumnType(i)));
classNames.add(metaData.getColumnClassName(i));
}
}

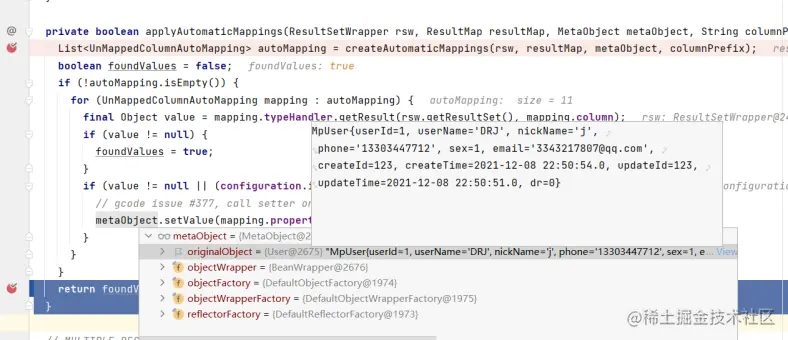

// 真正获取值赋值到实体对象
private boolean applyAutomaticMappings(ResultSetWrapper rsw, ResultMap resultMap, MetaObject metaObject, String columnPrefix) throws SQLException {
List<UnMappedColumnAutoMapping> autoMapping = createAutomaticMappings(rsw, resultMap, metaObject, columnPrefix);
boolean foundValues = false;
if (!autoMapping.isEmpty()) {
for (UnMappedColumnAutoMapping mapping : autoMapping) {
final Object value = mapping.typeHandler.getResult(rsw.getResultSet(), mapping.column);
if (value != null) {
foundValues = true;
}
if (value != null || (configuration.isCallSettersOnNulls() && !mapping.primitive)) {
// gcode issue #377, call setter on nulls (value is not 'found')
metaObject.setValue(mapping.property, value);
}
}
}
return foundValues;
}

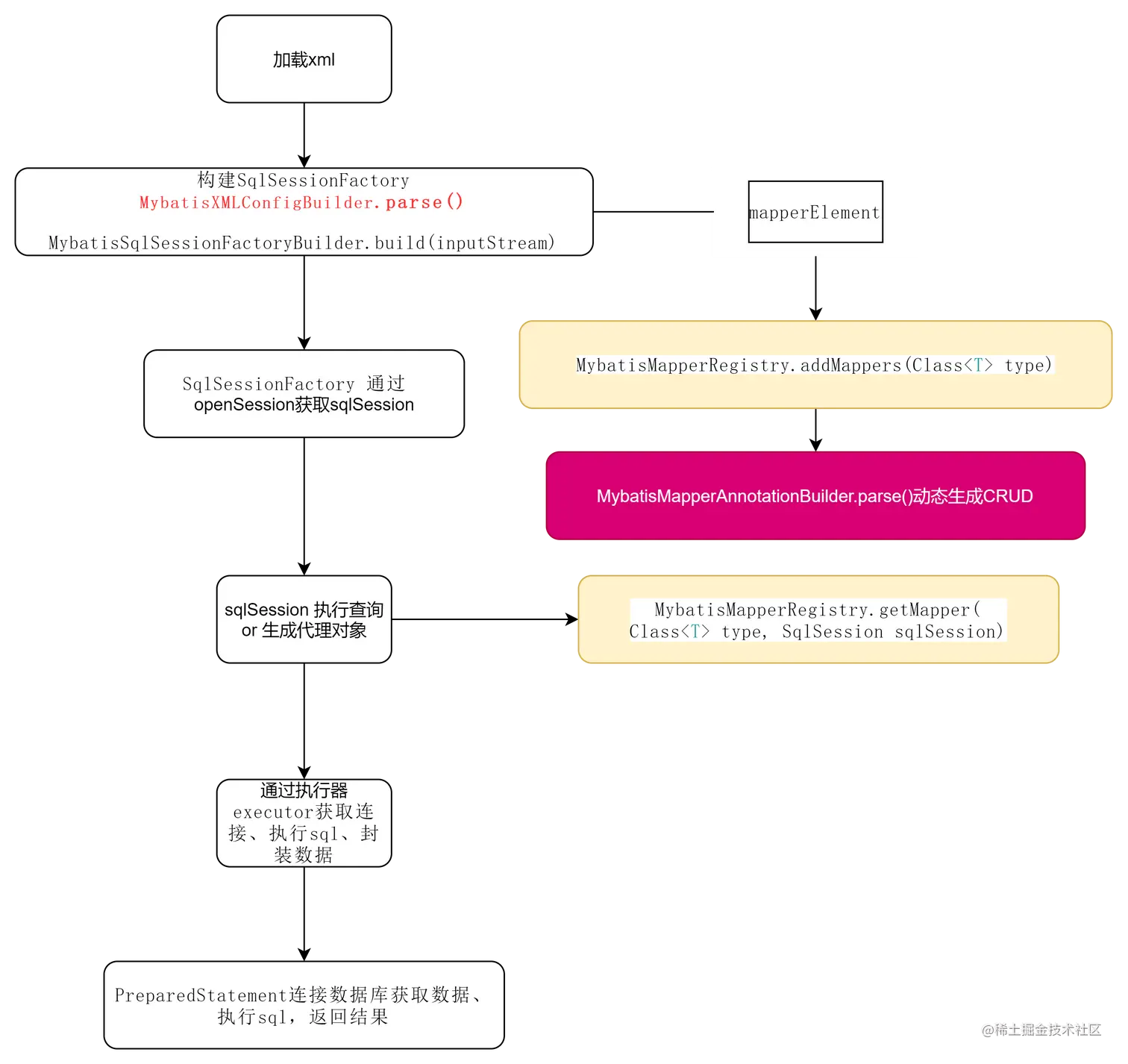

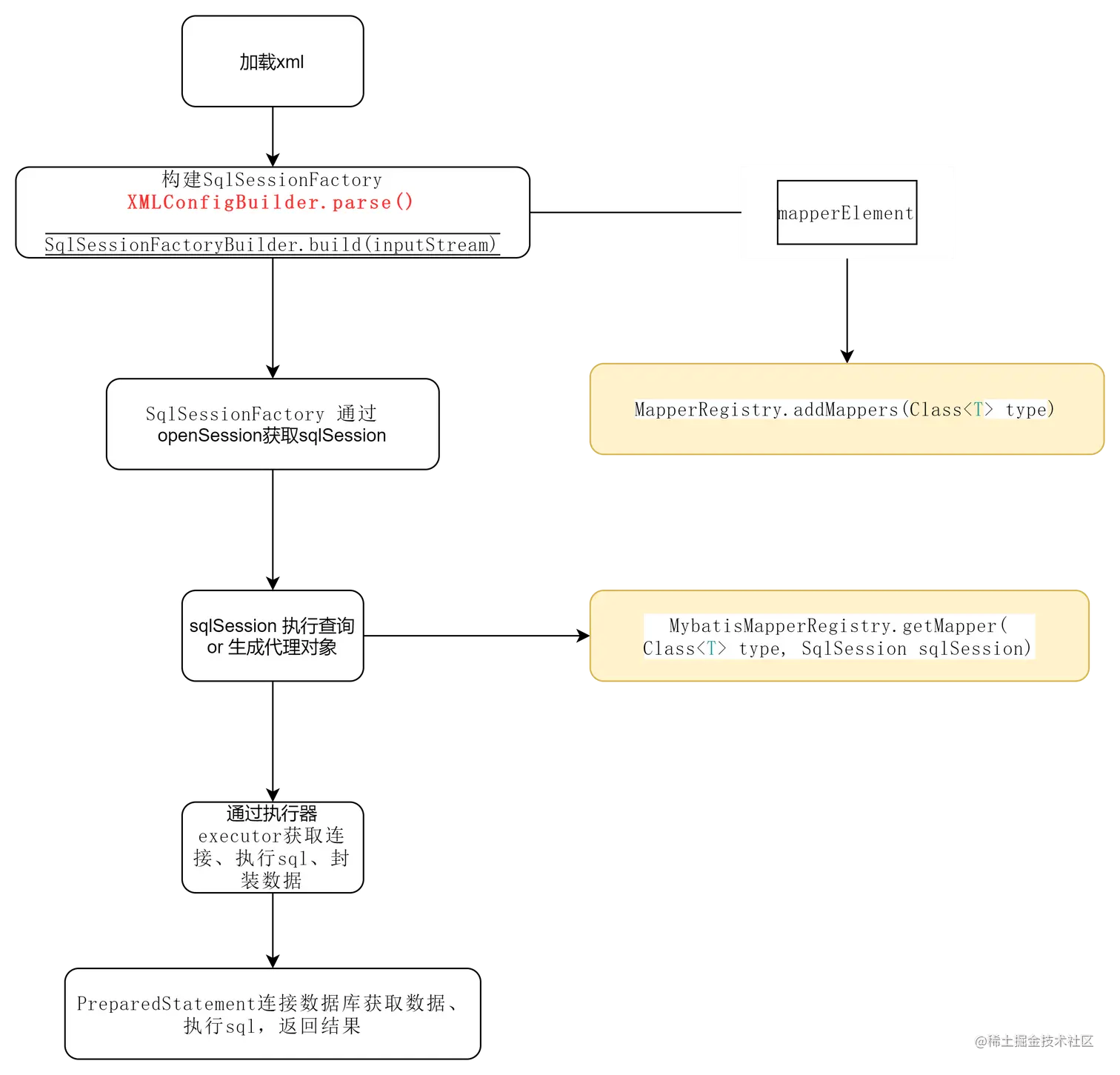

流程图

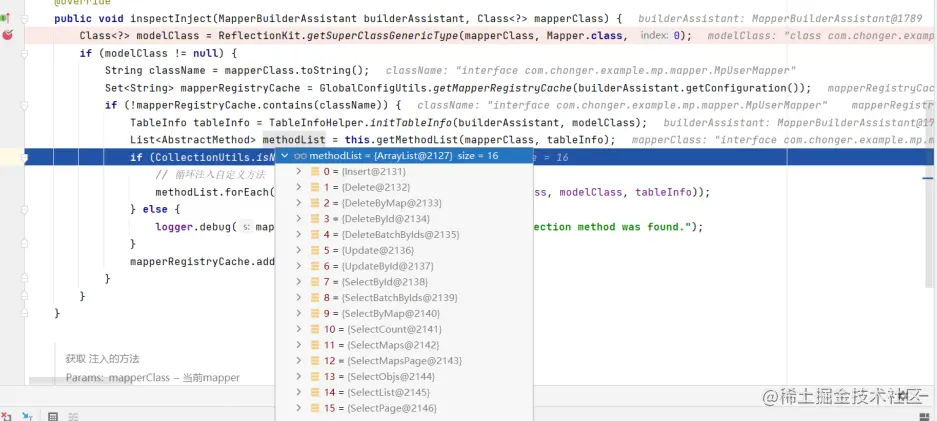

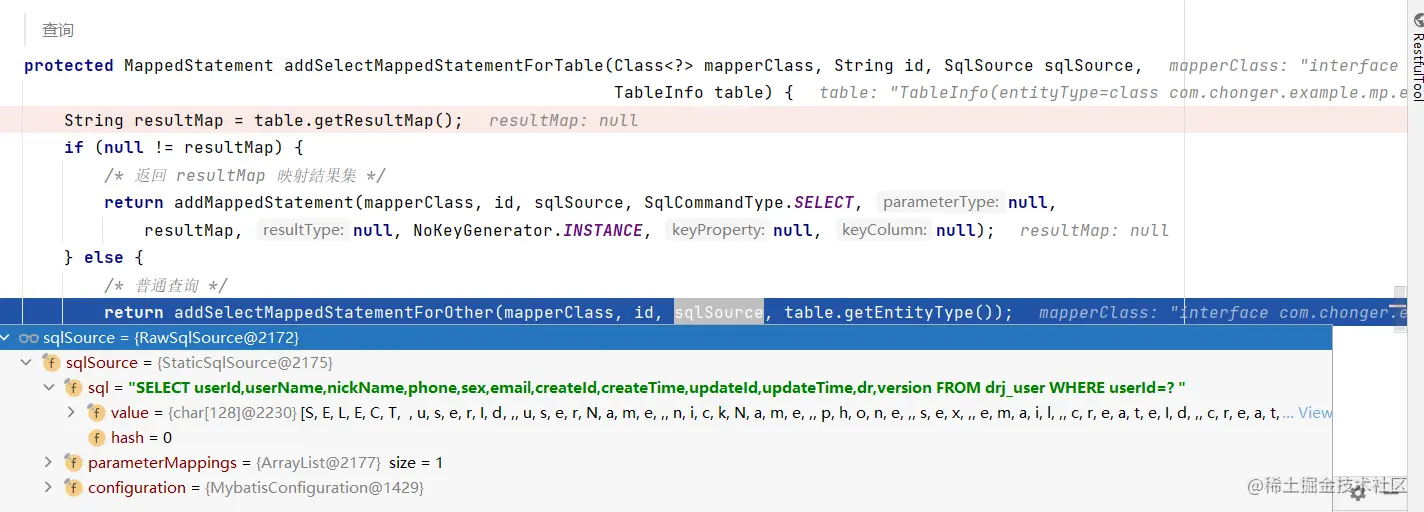

Mybatis-Plus 构建构造SqlSessionFactory
MybatisXMLConfigBuilder 解析
try {
//TODO 这里换成 MybatisXMLConfigBuilder 而不是 XMLConfigBuilder
MybatisXMLConfigBuilder parser = new MybatisXMLConfigBuilder(reader, environment, properties);
return build(parser.parse());
} catch (Exception e) {
throw ExceptionFactory.wrapException("Error building SqlSession.", e);
} finally {
ErrorContext.instance().reset();
try {
reader.close();
} catch (IOException e) {
// Intentionally ignore. Prefer previous error.
}
}
}
public Configuration parse() {
if (parsed) {
throw new BuilderException("Each XMLConfigBuilder can only be used once.");
}
parsed = true;
parseConfiguration(parser.evalNode("/configuration"));
return configuration;
}
private void parseConfiguration(XNode root) {
try {
// issue #117 read properties first
propertiesElement(root.evalNode("properties"));
Properties settings = settingsAsProperties(root.evalNode("settings"));
loadCustomVfs(settings);
loadCustomLogImpl(settings);
typeAliasesElement(root.evalNode("typeAliases"));
pluginElement(root.evalNode("plugins"));
objectFactoryElement(root.evalNode("objectFactory"));
objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
reflectorFactoryElement(root.evalNode("reflectorFactory"));
settingsElement(settings);
// read it after objectFactory and objectWrapperFactory issue #631
environmentsElement(root.evalNode("environments"));
databaseIdProviderElement(root.evalNode("databaseIdProvider"));
typeHandlerElement(root.evalNode("typeHandlers"));
mapperElement(root.evalNode("mappers"));
} catch (Exception e) {
throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
}
}
private void mapperElement(XNode parent) throws Exception {
if (parent != null) {
for (XNode child : parent.getChildren()) {
if ("package".equals(child.getName())) {
String mapperPackage = child.getStringAttribute("name");
configuration.addMappers(mapperPackage);
} else {
String resource = child.getStringAttribute("resource");
String url = child.getStringAttribute("url");
String mapperClass = child.getStringAttribute("class");
if (resource != null && url == null && mapperClass == null) {
ErrorContext.instance().resource(resource);
try(InputStream inputStream = Resources.getResourceAsStream(resource)) {
XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, resource, configuration.getSqlFragments());
mapperParser.parse();
}
} else if (resource == null && url != null && mapperClass == null) {
ErrorContext.instance().resource(url);
try(InputStream inputStream = Resources.getUrlAsStream(url)){
XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, url, configuration.getSqlFragments());
mapperParser.parse();
}
} else if (resource == null && url == null && mapperClass != null) {
Class<?> mapperInterface = Resources.classForName(mapperClass);
configuration.addMapper(mapperInterface);
} else {
throw new BuilderException("A mapper element may only specify a url, resource or class, but not more than one.");
}
}
}
}
}
MybatisConfiguration addMappers
* 使用自己的 MybatisMapperRegistry
*/
@Override
public void addMappers(String packageName) {
mybatisMapperRegistry.addMappers(packageName);
}
@Override
public <T> void addMapper(Class<T> type) {
if (type.isInterface()) {
if (hasMapper(type)) {
// TODO 如果之前注入 直接返回
return;
// TODO 这里就不抛异常了
// throw new BindingException("Type " + type + " is already known to the MapperRegistry.");
}
boolean loadCompleted = false;
try {
// TODO 这里也换成 MybatisMapperProxyFactory 而不是 MapperProxyFactory
knownMappers.put(type, new MybatisMapperProxyFactory<>(type));
// It's important that the type is added before the parser is run
// otherwise the binding may automatically be attempted by the
// mapper parser. If the type is already known, it won't try.
// TODO 这里也换成 MybatisMapperAnnotationBuilder 而不是 MapperAnnotationBuilder
MybatisMapperAnnotationBuilder parser = new MybatisMapperAnnotationBuilder(config, type);
parser.parse();
loadCompleted = true;
} finally {
if (!loadCompleted) {
knownMappers.remove(type);
}
}
}
}
MybatisMapperAnnotationBuilder 解析 主要实现动态生成通用MappedStatement
public void parse() {
String resource = type.toString();
if (!configuration.isResourceLoaded(resource)) {
loadXmlResource();
configuration.addLoadedResource(resource);
String mapperName = type.getName();
assistant.setCurrentNamespace(mapperName);
parseCache();
parseCacheRef();
InterceptorIgnoreHelper.InterceptorIgnoreCache cache = InterceptorIgnoreHelper.initSqlParserInfoCache(type);
for (Method method : type.getMethods()) {
if (!canHaveStatement(method)) {
continue;
}
if (getAnnotationWrapper(method, false, Select.class, SelectProvider.class).isPresent()
&& method.getAnnotation(ResultMap.class) == null) {
parseResultMap(method);
}
try {
// TODO 加入 注解过滤缓存
InterceptorIgnoreHelper.initSqlParserInfoCache(cache, mapperName, method);
parseStatement(method);
} catch (IncompleteElementException e) {
// TODO 使用 MybatisMethodResolver 而不是 MethodResolver
configuration.addIncompleteMethod(new MybatisMethodResolver(this, method));
}
}
// TODO 注入 CURD 动态 SQL , 放在在最后, because 可能会有人会用注解重写sql
try {
if (GlobalConfigUtils.isSupperMapperChildren(configuration, type)) {
parserInjector();
}
} catch (IncompleteElementException e) {
// 添加至尚未完成处理的方法集合中
configuration.addIncompleteMethod(new InjectorResolver(this));
}
}
//补偿之前未完成解析操作的方法
parsePendingMethods();
}
void parserInjector() {
GlobalConfigUtils.getSqlInjector(configuration).inspectInject(assistant, type);
}
@Override
public void inspectInject(MapperBuilderAssistant builderAssistant, Class<?> mapperClass) {
Class<?> modelClass = ReflectionKit.getSuperClassGenericType(mapperClass, Mapper.class, 0);
if (modelClass != null) {
String className = mapperClass.toString();
Set<String> mapperRegistryCache = GlobalConfigUtils.getMapperRegistryCache(builderAssistant.getConfiguration());
if (!mapperRegistryCache.contains(className)) {
TableInfo tableInfo = TableInfoHelper.initTableInfo(builderAssistant, modelClass);
List<AbstractMethod> methodList = this.getMethodList(mapperClass, tableInfo);
if (CollectionUtils.isNotEmpty(methodList)) {
// 循环注入自定义方法
methodList.forEach(m -> m.inject(builderAssistant, mapperClass, modelClass, tableInfo));
} else {
logger.debug(mapperClass.toString() + ", No effective injection method was found.");
}
mapperRegistryCache.add(className);
}
}
}
/**
* 注入自定义方法
*/
public void inject(MapperBuilderAssistant builderAssistant, Class<?> mapperClass, Class<?> modelClass, TableInfo tableInfo) {
this.configuration = builderAssistant.getConfiguration();
this.builderAssistant = builderAssistant;
this.languageDriver = configuration.getDefaultScriptingLanguageInstance();
/* 注入自定义方法 */
injectMappedStatement(mapperClass, modelClass, tableInfo);
}
public class SelectById extends AbstractMethod {
@Override
public MappedStatement injectMappedStatement(Class<?> mapperClass, Class<?> modelClass, TableInfo tableInfo) {
SqlMethod sqlMethod = SqlMethod.SELECT_BY_ID;
SqlSource sqlSource = new RawSqlSource(configuration, String.format(sqlMethod.getSql(),
sqlSelectColumns(tableInfo, false),
tableInfo.getTableName(), tableInfo.getKeyColumn(), tableInfo.getKeyProperty(),
tableInfo.getLogicDeleteSql(true, true)), Object.class);
return this.addSelectMappedStatementForTable(mapperClass, getMethod(sqlMethod), sqlSource, tableInfo);
}
/**
* 添加 MappedStatement 到 Mybatis 容器 这里和Mybatis一致
*/
protected MappedStatement addMappedStatement(Class<?> mapperClass, String id, SqlSource sqlSource,
SqlCommandType sqlCommandType, Class<?> parameterType,
String resultMap, Class<?> resultType, KeyGenerator keyGenerator,
String keyProperty, String keyColumn) {
String statementName = mapperClass.getName() + DOT + id;
if (hasMappedStatement(statementName)) {
logger.warn(LEFT_SQ_BRACKET + statementName + "] Has been loaded by XML or SqlProvider or Mybatis's Annotation, so ignoring this injection for [" + getClass() + RIGHT_SQ_BRACKET);
return null;
}
/* 缓存逻辑处理 */
boolean isSelect = sqlCommandType == SqlCommandType.SELECT;
return builderAssistant.addMappedStatement(id, sqlSource, StatementType.PREPARED, sqlCommandType,
null, null, null, parameterType, resultMap, resultType,
null, !isSelect, isSelect, false, keyGenerator, keyProperty, keyColumn,
configuration.getDatabaseId(), languageDriver, null);
}
MapperBuilderAssistant addMappedStatement
构造SqlSessionFactory
public SqlSessionFactory build(Configuration configuration) {
GlobalConfig globalConfig = GlobalConfigUtils.getGlobalConfig(configuration);
final IdentifierGenerator identifierGenerator;
if (null == globalConfig.getIdentifierGenerator()) {
// 主键生成器
identifierGenerator = new DefaultIdentifierGenerator();
globalConfig.setIdentifierGenerator(identifierGenerator);
} else {
identifierGenerator = globalConfig.getIdentifierGenerator();
}
IdWorker.setIdentifierGenerator(identifierGenerator);
// MP默认插入一些动态方法的xml 脚本方法。
if (globalConfig.isEnableSqlRunner()) {
new SqlRunnerInjector().inject(configuration);
}
SqlSessionFactory sqlSessionFactory = super.build(configuration);
// 缓存 sqlSessionFactory
globalConfig.setSqlSessionFactory(sqlSessionFactory);
return sqlSessionFactory;
}
流程图
后期查询根据代理类Mapper 获取sql 、执行sql 和Mybatis一致
