h5如何将视频变成透明底

动效给的视频，是黑底的，我们活动需要将该视频变成透明底 方案1：利用canvas html:

<video
    id="video"
    style="width: 100%; height: 4rem; display: none"
    src="./../../assets/mp4/cj.mp4"
  ></video>
          <canvas id="canvas1" width="375" height="667" style="display: none"></canvas>
  <canvas id="canvas2" width="375" height="667"></canvas>


js

    const c = document.getElementById('canvas1') as HTMLCanvasElement
  const ctx = c.getContext('2d') as any
  const c2 = document.getElementById('canvas2') as HTMLCanvasElement
  const ctx2 = c2.getContext('2d') as CanvasRenderingContext2D
  const video = document.getElementById('video') as any
  const i = window.setInterval(function () {
    ctx.drawImage(video, 0, 0, 375, 667)
    const im = ctx.getImageData(0, 0, 375, 667)
    console.log(im)
    const l = im.data.length / 4
    for (let j = 0; j < l; j += 1) {
      // videoData[i] = alphaData[i - 1]
      const r = im.data[j * 4 + 0]
      const g = im.data[j * 4 + 1]
      const b = im.data[j * 4 + 2]
      // if (r <= 200 && g <= 200 && b <= 150) im.data[j * 4 + 3] = 0
      if (g < 100 && r < 200) im.data[j * 4 + 3] = 0
    }
    ctx2.putImageData(im, 0, 0, 0, 0, 375, 667)
    if (video.ended) {
      clearInterval(i)
    }
  }, 16)


方案2：利用webgl

           这里是类：

       /* eslint-disable no-unused-expressions */
/* eslint-disable no-underscore-dangle */
class AlphaVideo {
  options: any

  video!: HTMLVideoElement

  playing: boolean | undefined

  gl: any

  canvas: any

  radio: number

  duration: number = 0 // 视频的总播放时长

  constructor(option: any) {
    const defaultOption = {
      src: '',
      autoplay: true,
      loop: true,
      canvas: null,
      // 默认透明视频展示大小
      width: 375,
      height: 400,
      onError() {},
      onPlay() {}
    }
    this.options = {
      ...defaultOption,
      ...option
    }
    this.radio = window.devicePixelRatio

    this.initVideo()
    this.initWebgl()

    if (this.options.autoplay) {
      this.video.play()
    }
  }

  initVideo() {
    const { onPlay, onError, loop, src, onEnd, update } = this.options

    const video = document.createElement('video')
    video.autoplay = false
    video.muted = true
    video.volume = 0
    video.muted = true
    video.loop = loop
    video.setAttribute('x-webkit-airplay', 'true')
    video.setAttribute('webkit-playsinline', 'true')
    video.setAttribute('playsinline', 'true')
    video.style.display = 'none'
    video.src = src
    video.crossOrigin = 'anonymous'
    video.addEventListener('canplay', () => {
      this.playing = true
      onPlay && onPlay()
    })
    video.addEventListener('error', () => {
      onError && onError()
    })
    video.addEventListener('play', () => {
      window.requestAnimationFrame(() => {
        this.drawFrame()
      })
    })
    video.addEventListener('ended', () => {
      onEnd && onEnd()
    })
    video.addEventListener('timeupdate', () => {
      // const timer = setTimeout(() => {
      //   this.duration = this.video.duration
      //   clearTimeout(timer)
      // }, 1000)
      // // console.log(this.video.currentTime)
      // console.log('duration', this.video.duration)
      update && update(this.video.duration, this.video.currentTime)
    })
    document.body.appendChild(video)
    this.video = video
  }

  drawFrame() {
    if (this.playing) {
      this.drawWebglFrame()
    }
    window.requestAnimationFrame(() => {
      this.drawFrame()
    })
  }

  drawWebglFrame() {
    const { gl } = this
    // 配置纹理图像
    gl.texImage2D(gl.TEXTURE_2D, 0, gl.RGB, gl.RGB, gl.UNSIGNED_BYTE, this.video)
    // 绘制
    gl.drawArrays(gl.TRIANGLE_STRIP, 0, 4)
  }

  play() {
    this.playing = true
    this.video.play()
  }

  pause() {
    this.playing = false
    this.video.pause()
  }

  initWebgl() {
    this.canvas = this.options.canvas
    this.canvas.width = this.options.width * this.radio
    this.canvas.height = this.options.height * this.radio
    this.canvas.addEventListener('click', () => {
      this.play()
    })
    if (!this.canvas) {
      this.canvas = document.createElement('canvas')
      document.body.appendChild(this.canvas)
    }

    const gl = this.canvas.getContext('webgl', {
      antialias: true
    })
    gl.viewport(0, 0, this.options.width * this.radio, this.options.height * this.radio)

    // eslint-disable-next-line no-underscore-dangle
    const program = this._initShaderProgram(gl)
    gl.linkProgram(program)
    gl.useProgram(program)

    const buffer = this._initBuffer(gl)

    // 绑定缓冲
    gl.bindBuffer(gl.ARRAY_BUFFER, buffer.position)
    const aPosition = gl.getAttribLocation(program, 'a_position')
    // 允许属性读取，将缓冲区的值分配给特定的属性
    gl.enableVertexAttribArray(aPosition)

    gl.vertexAttribPointer(aPosition, 2, gl.FLOAT, false, 0, 0)
    gl.bindBuffer(gl.ARRAY_BUFFER, buffer.texture)
    const aTexCoord = gl.getAttribLocation(program, 'a_texCoord')
    gl.enableVertexAttribArray(aTexCoord)
    gl.vertexAttribPointer(aTexCoord, 2, gl.FLOAT, false, 0, 0)

    // 绑定纹理
    const texture = this._initTexture(gl)
    gl.bindTexture(gl.TEXTURE_2D, texture)

    const scaleLocation = gl.getUniformLocation(program, 'u_scale')
    gl.uniform2fv(scaleLocation, [this.radio, this.radio])

    this.gl = gl
  }

  _createShader(gl: any, type: any, source: any) {
    const shader = gl.createShader(type)
    gl.shaderSource(shader, source)
    gl.compileShader(shader)
    if (!gl.getShaderParameter(shader, gl.COMPILE_STATUS)) {
      console.error(gl.getShaderInfoLog(shader))
    }

    return shader
  }

  _initShaderProgram(gl: any) {
    // 顶点着色器glsl代码
    const vsSource = `
      attribute vec2 a_position;
      attribute vec2 a_texCoord;
      varying vec2 v_texCoord;
      uniform vec2 u_scale;
      void main(void) {
          gl_Position = vec4(a_position, 0.0, 1.0);
          v_texCoord = a_texCoord;
      }
      `
    // 片元着色器 glsl 代码
    const fsSource = `
      precision lowp float;
      varying vec2 v_texCoord;
      uniform sampler2D u_sampler;
      void main(void) {
          gl_FragColor = vec4(texture2D(u_sampler, v_texCoord).rgb, texture2D(u_sampler, v_texCoord+vec2(-0.5, 0)).r);
      }
      `
    const vsShader = this._createShader(gl, gl.VERTEX_SHADER, vsSource)
    const fsShader = this._createShader(gl, gl.FRAGMENT_SHADER, fsSource)
    const program = gl.createProgram()
    gl.attachShader(program, vsShader)
    gl.attachShader(program, fsShader)
    gl.linkProgram(program)

    return program
  }

  _initBuffer(gl: any) {
    const positionVertice = new Float32Array([-1.0, 1.0, 1.0, 1.0, -1.0, -1.0, 1.0, -1.0])
    const positionBuffer = gl.createBuffer() // 创建buffer
    gl.bindBuffer(gl.ARRAY_BUFFER, positionBuffer) // 把缓冲区对象绑定到目标
    gl.bufferData(gl.ARRAY_BUFFER, positionVertice, gl.STATIC_DRAW) // 向缓冲区对象写入刚定义的顶点数据

    const textureBuffer = gl.createBuffer()

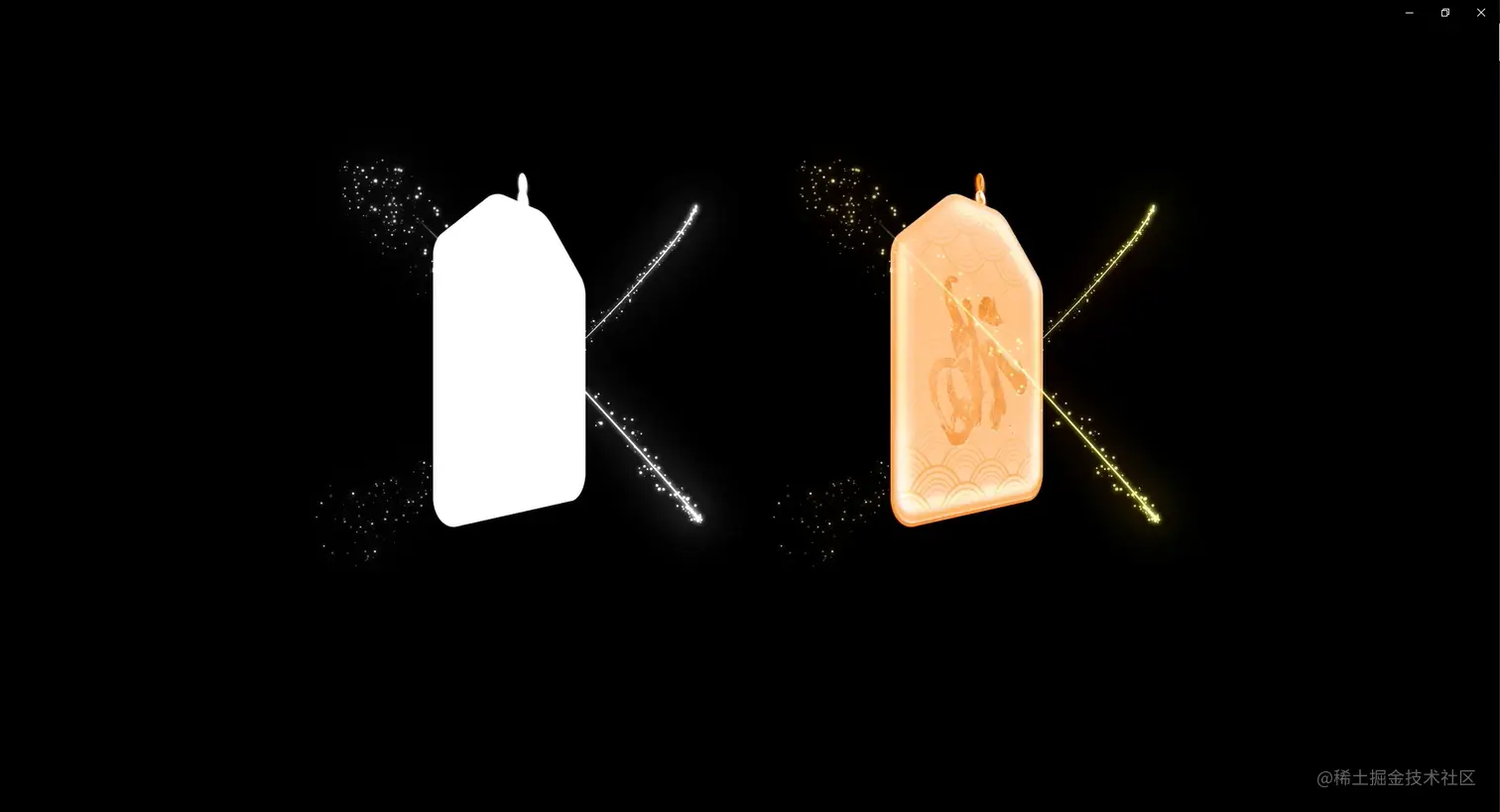

    const textureVertice = new Float32Array([0.5, 1.0, 1.0, 1.0, 0.5, 0.0, 1.0, 0.0]) // 这里将纹理左半部分映射到整个画布上
    gl.bindBuffer(gl.ARRAY_BUFFER, textureBuffer)
    gl.bufferData(gl.ARRAY_BUFFER, textureVertice, gl.STATIC_DRAW)

    return {
      position: positionBuffer,
      texture: textureBuffer
    }
  }

  _initTexture(gl: any) {
    const texture = gl.createTexture()

    gl.bindTexture(gl.TEXTURE_2D, texture)
    // 对纹理图像进行y轴反转，因为WebGL纹理坐标系统的t轴（分为t轴和s轴）的方向和图片的坐标系统Y轴方向相反。因此将Y轴进行反转。
    gl.pixelStorei(gl.UNPACK_FLIP_Y_WEBGL, 1)
    // 配置纹理参数
    gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, gl.NEAREST)
    gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_S, gl.CLAMP_TO_EDGE)
    gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_T, gl.CLAMP_TO_EDGE)

    return texture
  }
}

export default AlphaVideo

使用方法：这里是具体的业务代码
// 抽卡
const handlerDrawCard = (number: number) => {
  lotteryOneDialog.value = false
  lotteryTenDialog.value = false
  if (cardCount.value === 0) {
    Toast('暂无抽奖次数')
    return
  }
  data.canvasVideo = true
  let mv: any
  nextTick(() => {
    if (!mv) {
      mv = new AlphaVideo({
        src: 'https://cdnsource.bugegaming.com/static/images/newyear/test.mp4',
        width: 1000,
        height: 1500,
        loop: true, // 是否循环播放
        canvas: document.getElementById('js_output_2'),
        update: (duration: number, currentTime: number) => {
          if (Math.floor(currentTime) >= Math.floor(duration)) {
            mv.pause()
            data.canvasVideo = false
            mv = null
            const params = {
              times: 0,
              sessionId: 0
            }
            if (number === 1) {
              params.times = 1
            } else if (cardCount.value < 10) {
              params.times = cardCount.value
            } else {
              params.times = 10
            }
            drawCard(params, userToken.value).then((res: any) => {
              if (res.code === 200) {
                if (number === 1) {
                  lotteryOneDialog.value = true
                } else {
                  lotteryTenDialog.value = true
                }
                data.awardList = res.data
                getCardList()
                getSwiperData()
                getCount()
              } else {
                Toast.fail(res.msg)
              }
            })
          }
        }
      })
    }
    mv.play()
  })
}

两种方案对比： 在使用上来看webgl会比canvas更好，如果视频中存在渐变色的话canvas会比较难能处理成想要的效果，而webgl则没有这个问题
