关于【packUp】左右展开收起过渡动画组件

实现效果：

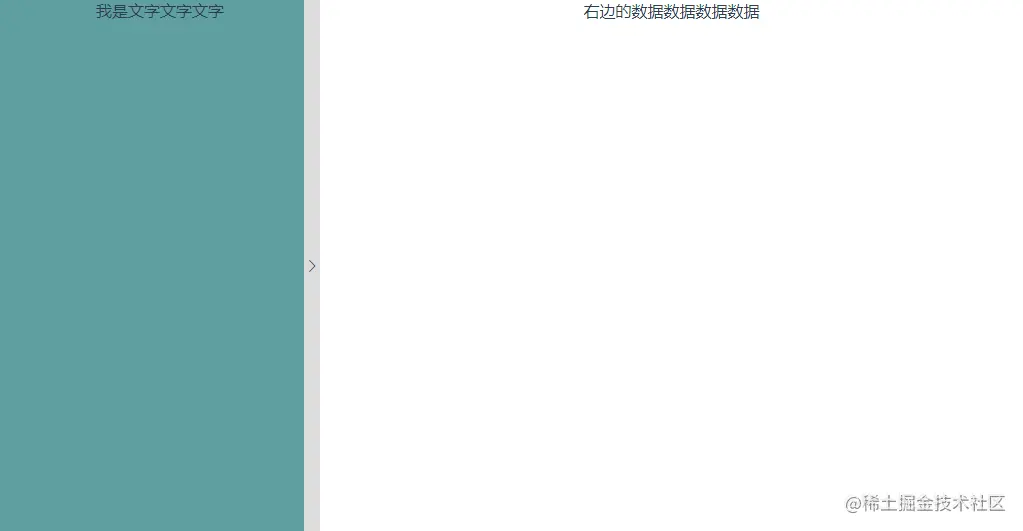

展开时：

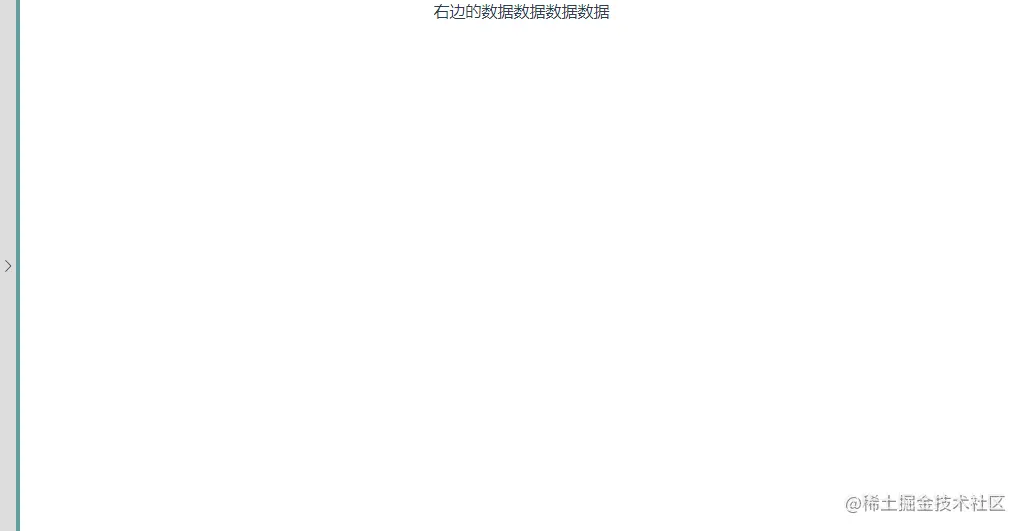

收起时：

1.整个应用页面采用弹性盒布局，左边容器的宽度固定px，右边容器宽度为 flex:1。

<div class="current-page">
    // 引入组件
    <pack-up>
        <div>我是文字文字文字</div>
    </pack-up>
    <div class="right">
        右边的数据数据数据数据
    </div>
</div>

css：

.current-page{
    width: 100%;
    height: 100%;
    display: flex;
}
.left{
    width: 500px;
}
.right{
    flex: 1;
}

2.关于组件

<div class="curr-contents" ref="outerDiv">
    <div class="show-areas" v-show="openflags">
    <!-- 内容插槽 -->
    <slot></slot>
    </div>
    <div class="pack-ups" ref="packUps" @click="handlePack">
    <i class="el-icon-arrow-right"></i>
    </div>
</div>

css:

.curr-contents{
    width: 500px;
    height: 100%;
    position: relative;
    background: lightpink;
    transition: all .5s ease-in-out;
    padding: 0 10px;
    /* transition: height .3s; */
}
.curr-contents .pack-ups{
    height: 100%;
    background: lightcyan;
    position: absolute;
    right: 0;
    top: 0;
    display: flex;
    justify-content: center;
    align-items: center;
    cursor: pointer;
    transition: all .5s ease-in-out;
}
.show-areas{
    transition: all .5s ease-in-out;
}

核心js代码：

// 点击展开 折叠
handlePack(){
    this.openflags=!this.openflags
    const liCon = this.$refs.outerDiv
    let packUps=this.$refs.packUps
if (this.openflags) {
    // 展开
    liCon.style.width = 'auto'
    liCon.style.width = this.liConWidth + 'px'
    packUps.style.position='absolute'
    packUps.style.left='auto'
    packUps.style.right='0'
} else {
    // 收起
    liCon.style.width = 0 + 'px'
    packUps.style.position='absolute'
    packUps.style.right='auto'
    packUps.style.left='0'
    }
}

利用v-show使得被折叠的内容不被销毁，缓存之前的数据

也可以用font-size:0来隐藏内容区

3.完整代码：

<template>
<div class="current-page">
    <pack-up>
        <div>我是文字文字文字</div>
    </pack-up>
    <div class="right">
        右边的数据数据数据数据
    </div>
</div>
</template>

<script>
import packUp from "./component/packUp"
export default {
    name:'',
    components:{ packUp },
    data(){
        return{}
    },
    mounted(){},
    methods:{}
    }
    </script>
    <style scoped>
        .current-page{
        width: 100%;
        height: 100%;
        display: flex;
    }
    .left{
        width: 500px;
    }
    .right{
        flex: 1;
    }
    </style>

子组件：

<template>   <div class="curr-contents" ref="outerDiv">     <div class="show-areas" v-show="openflags">       <!-- 内容插槽 -->       <slot></slot>     </div>     <div class="pack-ups" ref="packUps" @click="handlePack">       <i class="el-icon-arrow-right"></i>     </div>   </div> </template> <script> export default {   name:'',   data() {     return {       liConWidth:500, // 左边容器的宽度       openflags:true,     }   },   methods: {     // 点击展开 折叠     handlePack(){       this.openflags=!this.openflags       const liCon = this.$refs.outerDiv       let packUps=this.$refs.packUps       if (this.openflags) { // 展开         liCon.style.width = 'auto'         liCon.style.width = this.liConWidth + 'px'         packUps.style.position='absolute'         packUps.style.left='auto'         packUps.style.right='0'       } else { // 收起         liCon.style.width = 0 + 'px'         packUps.style.position='absolute'         packUps.style.right='auto'         packUps.style.left='0'       }     }   } } </script> <style scoped>  .curr-contents{     width: 500px;     height: 100%;     position: relative;     background: lightpink;     transition: all .5s ease-in-out;     padding: 0 10px;     /* transition: height .3s; */   }   .curr-contents .pack-ups{     height: 100%;     background: lightcyan;     position: absolute;     right: 0;     top: 0;     display: flex;     justify-content: center;     align-items: center;     cursor: pointer;     transition: all .5s ease-in-out;   }   .show-areas{     transition: all .5s ease-in-out;   } </style>

转载请标明原作者

不喜勿喷，欢迎补充~~
