对于zygote的解析流程，需要从安卓系统的启动流程中分析，而在系统启动的过程中，当配置被解析过后，在/system/core/init/init.cpp文件的SecondStageMain函数中会对于所有的Service/Action等运行，而对于zygote来说，在此前的一篇解析工具分析文章中，是通过生成一个Service，从而来启动这个服务的，而Service的启动，是通过调用其ExecStart函数来启动的（过程感兴趣的话可以去分析一下），因此
// system/core/init/service.cpp
Result<void> Service::ExecStart() {
// ...... 功能无关代码省略
// 设置flags
flags_ |= SVC_ONESHOT;
// 调用Start函数启动Service
if (auto result = Start(); !result.ok()) {
return result;
}
// 设置flags状态
flags_ |= SVC_EXEC;
is_exec_service_running_ = true;
// ...... 功能无关代码省略
return {};
}
Result<void> Service::Start() {
// ...... 功能无关代码省略
// 对于zygote来说，在其配置文件中并未由设置其为DISABLED和RESET状态
// 此处会对这两个状态进行判断，此前我们分析过的bootanim进程这个状态就设置为DISABLED，
// 这样该进程只能通过其他方式来启动，此处不会自启动
bool disabled = (flags_ & (SVC_DISABLED | SVC_RESET));
// Starting a service removes it from the disabled or reset state and
// immediately takes it out of the restarting state if it was in there.
flags_ &= (~(SVC_DISABLED|SVC_RESTARTING|SVC_RESET|SVC_RESTART|SVC_DISABLED_START));
// ...... 功能无关代码省略
struct stat sb;
// args_参数是在初始化的时候赋值的
// 在zygote进程中，这个args_[0] = "/system/bin/app_process"
if (stat(args_[0].c_str(), &sb) == -1) {
flags_ |= SVC_DISABLED;
return ErrnoError() << "Cannot find '" << args_[0] << "'";
}
std::string scon;
// ...... 判断条件不满足代码省略
{
auto result = ComputeContextFromExecutable(args_[0]);
if (!result.ok()) {
return result.error();
}
scon = *result;
}
if (!AreRuntimeApexesReady() && !pre_apexd_) {
// If this service is started before the Runtime and ART APEXes get
// available, mark it as pre-apexd one. Note that this marking is
// permanent. So for example, if the service is re-launched (e.g., due
// to crash), it is still recognized as pre-apexd... for consistency.
pre_apexd_ = true;
}
post_data_ = ServiceList::GetInstance().IsPostData();
LOG(INFO) << "starting service '" << name_ << "'...";
std::vector<Descriptor> descriptors;
// 为Service创建socket，从配置文件中可知，zygote有两个socket，在此处会创建
for (const auto& socket : sockets_) {
if (auto result = socket.Create(scon); result.ok()) {
descriptors.emplace_back(std::move(*result));
} else {
LOG(INFO) << "Could not create socket '" << socket.name << "': " << result.error();
}
}
// ...... 代码省略
pid_t pid = -1;
if (namespaces_.flags) {
pid = clone(nullptr, nullptr, namespaces_.flags | SIGCHLD, nullptr);
} else {
// fork一个进程
pid = fork();
}
if (pid == 0) {
umask(077);
if (auto result = EnterNamespaces(namespaces_, name_, pre_apexd_); !result.ok()) {
LOG(FATAL) << "Service '" << name_
<< "' failed to set up namespaces: " << result.error();
}
for (const auto& [key, value] : environment_vars_) {
setenv(key.c_str(), value.c_str(), 1);
}
for (const auto& descriptor : descriptors) {
descriptor.Publish();
}
// 将pid写入到文件中
if (auto result = WritePidToFiles(&writepid_files_); !result.ok()) {
LOG(ERROR) << "failed to write pid to files: " << result.error();
}
if (task_profiles_.size() > 0 && !SetTaskProfiles(getpid(), task_profiles_)) {
LOG(ERROR) << "failed to set task profiles";
}
// As requested, set our gid, supplemental gids, uid, context, and
// priority. Aborts on failure.
SetProcessAttributesAndCaps();
// 调用ExpandArgsAndExecv函数
if (!ExpandArgsAndExecv(args_, sigstop_)) {
PLOG(ERROR) << "cannot execv('" << args_[0]
<< "'). See the 'Debugging init' section of init's README.md for tips";
}
_exit(127);
}
// ......
}
可以看到，在上述的Start函数中,此处对于zygote的配置文件中的各项参数进行初始化和创建等，最后通过ExpandArgsAndExecv函数来运行服务
static bool ExpandArgsAndExecv(const std::vector<std::string>& args, bool sigstop) {
std::vector<std::string> expanded_args;
std::vector<char*> c_strings;
// 预初始化expanded_args和c_strings
expanded_args.resize(args.size());
c_strings.push_back(const_cast<char*>(args[0].data()));
for (std::size_t i = 1; i < args.size(); ++i) {
auto expanded_arg = ExpandProps(args[i]);
if (!expanded_arg.ok()) {
LOG(FATAL) << args[0] << ": cannot expand arguments': " << expanded_arg.error();
}
expanded_args[i] = *expanded_arg;
c_strings.push_back(expanded_args[i].data());
}
c_strings.push_back(nullptr);
// 是否有接收sigstop信号，若有这个信号接收到，则直接kill当前pid对应的进程
if (sigstop) {
kill(getpid(), SIGSTOP);
}
// 最后运行c_strings[0],此处为"/system/bin/app_process"
return execv(c_strings[0], c_strings.data()) == 0;
}
在这个函数中，首先预初始化参数，然后通过execv函数来运行/system/bin/app_process应用程序，而app_process应用程序的源代码位于/frameworks/base/cmds/app_process/下
/frameworks/base/cmds/app_process/app_main.cpp
int main(int argc, char* const argv[])
{
// ......
// 1. 初始化一个AppRuntime对象
AppRuntime runtime(argv[0], computeArgBlockSize(argc, argv));
// Process command line arguments
// ignore argv[0]
// 将argv[0]去除，此处为/system/bin/app_process，此处已经运行这个程序，无需该参数去除
argc--;
argv++;
// 剩余的argv = { "-Xzygote", "/system/bin", "--zygote", "--start-system-server" }
// ......
int i;
for (i = 0; i < argc; i++) {
// ......
if (argv[i][0] != '-') {
break;
}
if (argv[i][1] == '-' && argv[i][2] == 0) {
++i; // Skip --.
break;
}
// 添加"-Xzygote"到AppRuntime中
runtime.addOption(strdup(argv[i]));
// ......
}
// 上述for循环结束后，i = 1
// Parse runtime arguments. Stop at first unrecognized option.
bool zygote = false;
bool startSystemServer = false;
bool application = false;
String8 niceName;
String8 className;
// ++i, 此时i = 2,也即，此处跳过第二个参数"/system/bin"
++i; // Skip unused "parent dir" argument.
while (i < argc) {
const char* arg = argv[i++];
if (strcmp(arg, "--zygote") == 0) {
// i = 2的情况下满足条件，设置niceName为zygote
zygote = true;
niceName = ZYGOTE_NICE_NAME;
} else if (strcmp(arg, "--start-system-server") == 0) {
// i = 3的情况下满足条件
startSystemServer = true;
}
// ......无法满足条件的分支代码省略
}
Vector<String8> args;
// className并未有设置，此处为null
if (!className.isEmpty()) {
// ......无法满足条件的分支代码省略
} else {
// We're in zygote mode.
maybeCreateDalvikCache();
// 增加start-system-server参数
if (startSystemServer) {
args.add(String8("start-system-server"));
}
char prop[PROP_VALUE_MAX];
// 获取系统abi属性
if (property_get(ABI_LIST_PROPERTY, prop, NULL) == 0) {
LOG_ALWAYS_FATAL("app_process: Unable to determine ABI list from property %s.",
ABI_LIST_PROPERTY);
return 11;
}
String8 abiFlag("--abi-list=");
abiFlag.append(prop);
// 添加abi参数
args.add(abiFlag);
// In zygote mode, pass all remaining arguments to the zygote
// main() method.
// 上述while循环后，i = 4,等于argc
for (; i < argc; ++i) {
args.add(String8(argv[i]));
}
}
// 设置进程名称
if (!niceName.isEmpty()) {
runtime.setArgv0(niceName.string(), true /* setProcName */);
}
if (zygote) {
// 2. 调用AppRuntime的start函数，启动第一个参数对应的Java层的对象
runtime.start("com.android.internal.os.ZygoteInit", args, zygote);
}
// ......
}
从上述函数的代码来看，主要是先初始化了一个AppRuntime对象，这个对象继承自AndroidRuntime对象
classDiagram
AndroidRuntime <|-- AppRuntime
class AppRuntime {
+onVmCreated(JNIEnv* env)
+onStarted()
+onZygoteInit()
+onExit(int code)
+mClassName : String8
+mArgs : Vector<String8>
+mClass : jclass
}
class AndroidRuntime {
-startReg(JNIEnv* env)
-startVm(JavaVM** pJavaVM, JNIEnv** pEnv, bool zygote, bool primary_zygote)
-mOptions : Vector<JavaVMOption>
-mJavaVM : JavaVM*
-javaCreateThreadEtc(android_thread_func_t, void*, const char*, int32_t, size_t, android_thread_id_t*)
+onVmCreated(JNIEnv* env)
+onStarted()
+onZygoteInit()
+onExit(int /*code*/)
+getJavaVM()
+getJNIEnv()
+start(const char *, const Vector<String8>&, bool)
}
然后为AppRuntime对象的start函数预初始化参数，最终调用AppRuntime的start函数，从上述类图可以看到，此处调用的是其父类AndroidRuntime对象的start函数
void AndroidRuntime::start(const char* className, const Vector<String8>& options, bool zygote)
{
// ......
static const String8 startSystemServer("start-system-server");
// Whether this is the primary zygote, meaning the zygote which will fork system server.
bool primary_zygote = false;
/*
* 'startSystemServer == true' means runtime is obsolete and not run from
* init.rc anymore, so we print out the boot start event here.
*/
for (size_t i = 0; i < options.size(); ++i) {
// 从上述的代码分析可知，此处if语句成立，因此promary_zygote = true
if (options[i] == startSystemServer) {
primary_zygote = true;
/* track our progress through the boot sequence */
const int LOG_BOOT_PROGRESS_START = 3000;
LOG_EVENT_LONG(LOG_BOOT_PROGRESS_START, ns2ms(systemTime(SYSTEM_TIME_MONOTONIC)));
}
}
const char* rootDir = getenv("ANDROID_ROOT");
if (rootDir == NULL) {
rootDir = "/system";
if (!hasDir("/system")) {
LOG_FATAL("No root directory specified, and /system does not exist.");
return;
}
setenv("ANDROID_ROOT", rootDir, 1);
}
const char* artRootDir = getenv("ANDROID_ART_ROOT");
if (artRootDir == NULL) {
LOG_FATAL("No ART directory specified with ANDROID_ART_ROOT environment variable.");
return;
}
const char* i18nRootDir = getenv("ANDROID_I18N_ROOT");
if (i18nRootDir == NULL) {
LOG_FATAL("No runtime directory specified with ANDROID_I18N_ROOT environment variable.");
return;
}
const char* tzdataRootDir = getenv("ANDROID_TZDATA_ROOT");
if (tzdataRootDir == NULL) {
LOG_FATAL("No tz data directory specified with ANDROID_TZDATA_ROOT environment variable.");
return;
}
// ......
/* start the virtual machine */
JniInvocation jni_invocation;
jni_invocation.Init(NULL);
JNIEnv* env;
// 启动Java虚拟机
if (startVm(&mJavaVM, &env, zygote, primary_zygote) != 0) {
return;
}
// 初始化Java虚拟机
onVmCreated(env);
/*
* Register android functions.
*/
// 注册JNI函数，后续我们需要分析的ZygoteInit，就是在这个函数中进行注册的
// 将Java层的ZygoteInit和Native层进行关联
if (startReg(env) < 0) {
ALOGE("Unable to register all android natives\n");
return;
}
/*
* We want to call main() with a String array with arguments in it.
* At present we have two arguments, the class name and an option string.
* Create an array to hold them.
*/
jclass stringClass;
jobjectArray strArray;
jstring classNameStr;
stringClass = env->FindClass("java/lang/String");
assert(stringClass != NULL);
strArray = env->NewObjectArray(options.size() + 1, stringClass, NULL);
assert(strArray != NULL);
classNameStr = env->NewStringUTF(className);
assert(classNameStr != NULL);
// 将传入参数className存放到strArray字符串数组中
env->SetObjectArrayElement(strArray, 0, classNameStr);
// 将传入的其他参数存放到strArray字符串数组中
for (size_t i = 0; i < options.size(); ++i) {
jstring optionsStr = env->NewStringUTF(options.itemAt(i).string());
assert(optionsStr != NULL);
env->SetObjectArrayElement(strArray, i + 1, optionsStr);
}
/*
* Start VM. This thread becomes the main thread of the VM, and will
* not return until the VM exits.
*/
// 找到Java层的ZygoteInit类
char* slashClassName = toSlashClassName(className != NULL ? className : "");
jclass startClass = env->FindClass(slashClassName);
if (startClass == NULL) {
ALOGE("JavaVM unable to locate class '%s'\n", slashClassName);
/* keep going */
} else {
// 获取其main函数
jmethodID startMeth = env->GetStaticMethodID(startClass, "main",
"([Ljava/lang/String;)V");
if (startMeth == NULL) {
ALOGE("JavaVM unable to find main() in '%s'\n", className);
/* keep going */
} else {
// 调用ZygoteInit.main函数，注意传入参数为strArray，这个参数由三个字符串组成
env->CallStaticVoidMethod(startClass, startMeth, strArray);
// ......
}
}
// ...... 回收工作
}
如上备注所述，上述的代码主要初始化进程zygote的AppRuntime对象，然后通过start函数调用AndroidRuntime.start,从而启动一个Java虚拟机，注册对应的JNI函数等，最终调用Java层的ZygoteInit.main函数
public static void main(String argv[]) {
ZygoteServer zygoteServer = null;
// Mark zygote start. This ensures that thread creation will throw
// an error.
ZygoteHooks.startZygoteNoThreadCreation();
// Zygote goes into its own process group.
try {
// 设置zygote的pid和gid
Os.setpgid(0, 0);
} catch (ErrnoException ex) {
throw new RuntimeException("Failed to setpgid(0,0)", ex);
}
Runnable caller;
try {
// Store now for StatsLogging later.
final long startTime = SystemClock.elapsedRealtime();
final boolean isRuntimeRestarted = "1".equals(
SystemProperties.get("sys.boot_completed"));
String bootTimeTag = Process.is64Bit() ? "Zygote64Timing" : "Zygote32Timing";
TimingsTraceLog bootTimingsTraceLog = new TimingsTraceLog(bootTimeTag,
Trace.TRACE_TAG_DALVIK);
bootTimingsTraceLog.traceBegin("ZygoteInit");
RuntimeInit.preForkInit();
boolean startSystemServer = false;
String zygoteSocketName = "zygote";
String abiList = null;
boolean enableLazyPreload = false;
for (int i = 1; i < argv.length; i++) {
if ("start-system-server".equals(argv[i])) {
// 满足条件，此处设置startSystemServer = true
startSystemServer = true;
} else if ("--enable-lazy-preload".equals(argv[i])) {
enableLazyPreload = true;
} else if (argv[i].startsWith(ABI_LIST_ARG)) {
// 设置abi flags
abiList = argv[i].substring(ABI_LIST_ARG.length());
}
// ......
}
// isPrimaryZygote = true
final boolean isPrimaryZygote = zygoteSocketName.equals(Zygote.PRIMARY_SOCKET_NAME);
if (!isRuntimeRestarted) {
if (isPrimaryZygote) {
FrameworkStatsLog.write(FrameworkStatsLog.BOOT_TIME_EVENT_ELAPSED_TIME_REPORTED,
BOOT_TIME_EVENT_ELAPSED_TIME__EVENT__ZYGOTE_INIT_START,
startTime);
} else if (zygoteSocketName.equals(Zygote.SECONDARY_SOCKET_NAME)) {
FrameworkStatsLog.write(FrameworkStatsLog.BOOT_TIME_EVENT_ELAPSED_TIME_REPORTED,
BOOT_TIME_EVENT_ELAPSED_TIME__EVENT__SECONDARY_ZYGOTE_INIT_START,
startTime);
}
}
// ......
// Do an initial gc to clean up after startup
bootTimingsTraceLog.traceBegin("PostZygoteInitGC");
gcAndFinalize();
bootTimingsTraceLog.traceEnd(); // PostZygoteInitGC
bootTimingsTraceLog.traceEnd(); // ZygoteInit
Zygote.initNativeState(isPrimaryZygote);
ZygoteHooks.stopZygoteNoThreadCreation();
zygoteServer = new ZygoteServer(isPrimaryZygote);
if (startSystemServer) {
// fork system server进程
Runnable r = forkSystemServer(abiList, zygoteSocketName, zygoteServer);
// {@code r == null} in the parent (zygote) process, and {@code r != null} in the
// child (system_server) process.
if (r != null) {
r.run();
return;
}
}
Log.i(TAG, "Accepting command socket connections");
// The select loop returns early in the child process after a fork and
// loops forever in the zygote.
caller = zygoteServer.runSelectLoop(abiList);
} catch (Throwable ex) {
Log.e(TAG, "System zygote died with exception", ex);
throw ex;
} finally {
if (zygoteServer != null) {
zygoteServer.closeServerSocket();
}
}
// We're in the child process and have exited the select loop. Proceed to execute the
// command.
if (caller != null) {
caller.run();
}
}

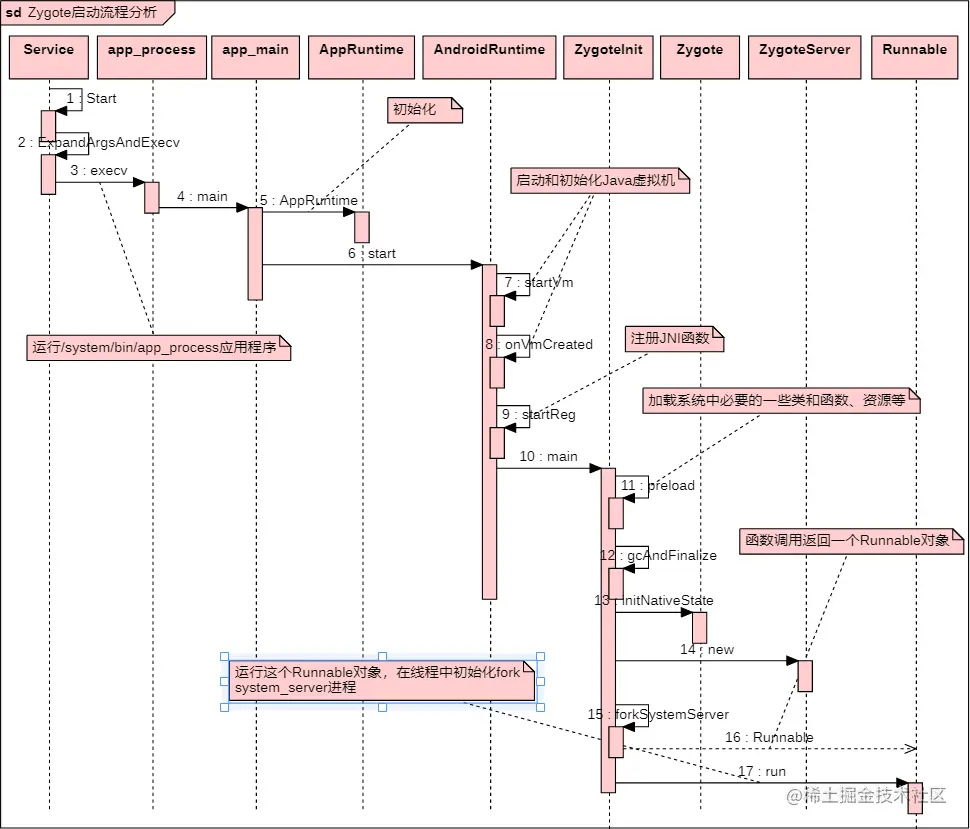

如上述代码，最终会通过调用forkSystemServer函数来fork一个system server进程，关于system_server进程的启动情况，我们下一篇中再行分析，此篇不作过多分析 如上的代码流程时序图如下：
