修改版
以前大一的时候数学老师叫我们写的一个解法器，当然这个可不是人家pytorch的梯度实现。
TIPS
算法使用python编写，基本上除了GUI库，不使用任何第三方数学库． 关于竖式解法请参考如下视频： 链接：pan.baidu.com/s/1Vynxkqse… 提取码：6666
代码
代码部分不多比比，很多变量都是直接使用中文拼音写的，不存在看不懂的问题．如果看不懂，请仔细查看上面的解法链接，或者复习python．
#coding = 'utf-8'
import tkinter as tk
class Root(object):
def __init__(self,root):
self.root = root

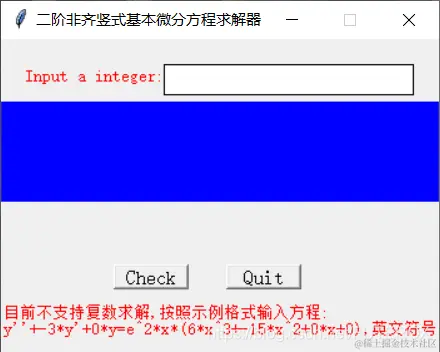

self.root.title("二阶非齐竖式基本微分方程求解器")
self.root.geometry("350x250")
self.root.resizable(width=False,height=False)
self.tips = tk.StringVar()
def Label(self):
Label_IN = tk.Label(self.root,text="Input a integer:",fg='red',font=("宋体",10))
Label_IN.place(x=20,y=20,width=110,heigh=20)
tips_code = '''目前不支持复数求解,按照示例格式输入方程:\ny''+-3*y'+0*y=e^2*x*(6*x^3+-15*x^2+0*x+0),英文符号'''
Label_TIPS = tk.Label(self.root,font=("宋体",10),text=tips_code,justify='left',fg='red')
Label_TIPS.place(x=0,y=205,width=350,height=40)
def B_E_Menu(self):
self.IN_Get = tk.Entry(self.root,font=('宋体', 12),fg='gray',relief='solid',textvariable=self.tips)
self.IN_Get.place(x=130,y=20,height=25,width=200)
self.Show_AN = tk.Label(self.root,fg='red',font=("宋体",10),bg='blue')
self.Show_AN.place(x=0,y=50,height=80,width=350)
self.Check_B = tk.Button(self.root,text='Check',font=("宋体",12))
self.Check_B.place(x=90,y=180,height=20,width=60)
self.Quit_B = tk.Button(self.root,text='Quit',font=("宋体",12))
self.Quit_B.place(x=180,y=180,height=20,width=60)
class Tools(object):
def QiuDao_F(self,nn):
if "*" in nn and "^" in nn:
l1 = nn.split('*')[0]
l2 = nn.split('^')[1]
get_s = str(float(l1)*float(l2))+'*x'+'^'+str(float(l2)-1)
return get_s
else:
if '*' in nn:
get_s = nn.split('*')[0]
return get_s
elif '^' in nn:
l2 = nn.split('^')[1]
get_s = l2+'*x^'+str(float(l2)-1)
return get_s
elif nn == 'x':
return '1'
else:
return '0'
def JianDao_F(self,a,b):
if '*' in a and '*' in b:
l1 = a.split('*')[0]
l2 = b.split('*')[0]
l3 = str(float(l1)-float(l2))+'*'+a.split('*')[1]
return l3
else:
return str(float(a)-float(b))
def ChuDao_F(self,x,lmd):
if 'x'==x:
return str(1/lmd)
if '*' in x:
l1 = x.split('*')
l2 = '{:,.2f}'.format(float(l1[0])/lmd)
get_s = l2+'*'+l1[1]
return get_s
else:
return '{:,.2f}'.format(float(x)/lmd)
def GET_GO(self,Need_Do,lmd):
global star, g, end
g = ''
nn = Need_Do.split('+')
star = 0
end = len(nn)-1
ll1=self.ChuDao_F(nn[0],lmd)
g+=ll1
def ADD_F(ll1):
global star,g,end
if star==end:
return g
ll2=self.QiuDao_F(ll1)
ll3=self.JianDao_F(nn[star+1],ll2)
ll4=self.ChuDao_F(ll3,lmd)
g+='+'+ll4
star+=1
ADD_F(ll4)
ADD_F(ll1)
return g
def GetABC(x):
if '*' not in x:
return 1.0
else:
return float(x.split('*')[0])
def ANSW_GET(y):
Tool = Tools()
QiChi = y.split('=')[0]
FeiQiChi = y.split('=')[1]
R_E = FeiQiChi.split('(')[0]
if R_E:
Lmd = R_E.split('^')[1]
Lmd = float(Lmd.split('*')[0])
else:
Lmd = 0
Need_Do = FeiQiChi.split('(')[1].rstrip(')')
a,b,c = map(GetABC,QiChi.split('+'))
def TUX(a,b,c):
N = (b**2)-4*(a*c)
if N>=0:
return (N**0.5)
else:
return 0
Tux = TUX(a,b,c)
if Tux:
x1 = (-b+Tux)/(2*a)
x2 = (-b-Tux)/(2*a)
if x1 == x2:
Omg = Lmd - x1
g = Tool.GET_GO(Need_Do,Omg)
s = 'y*='+R_E+'('+g+')'+'\nx = {}'.format(x1)
return s
else:
Omg1 = Lmd - x1
Omg2 = Lmd - x2
if Omg1 <= Omg2:
Omgp = Omg1
Omg1 = Omg2
Omg2 = Omgp
g0= Tool.GET_GO(Need_Do, Omg1)
g = Tool.GET_GO(g0,Omg2)
s ='y*='+ R_E + '(' + g + ')'+'\nx1 = {},x2 = {}'.format(x1,x2)
return s
else:
return 0
def Check_Go(xincan):
print(Win.IN_Get.get())
y = Win.IN_Get.get()
s = ANSW_GET(y)
if s:
Win.Show_AN.configure(text=s,font=("宋体",10))
else:
Win.Show_AN.configure(text='抱歉目前不支持此类方程求解',font=("宋体",15))
def Quit_Go(xincan):
Win.Show_AN.configure(text='',font=("宋体",10))
Win.tips.set('')
Win.IN_Get.config(fg='black', textvariable=Win.tips)
if __name__=='__main__':
root=tk.Tk()
Win = Root(root)
Win.Label()
Win.B_E_Menu()
Win.Check_B.bind("<Button-1>",lambda a :Check_Go('0'))
Win.Quit_B.bind("<Button-1>", lambda a: Quit_Go('0'))
root.mainloop()
